Page 622 of 747

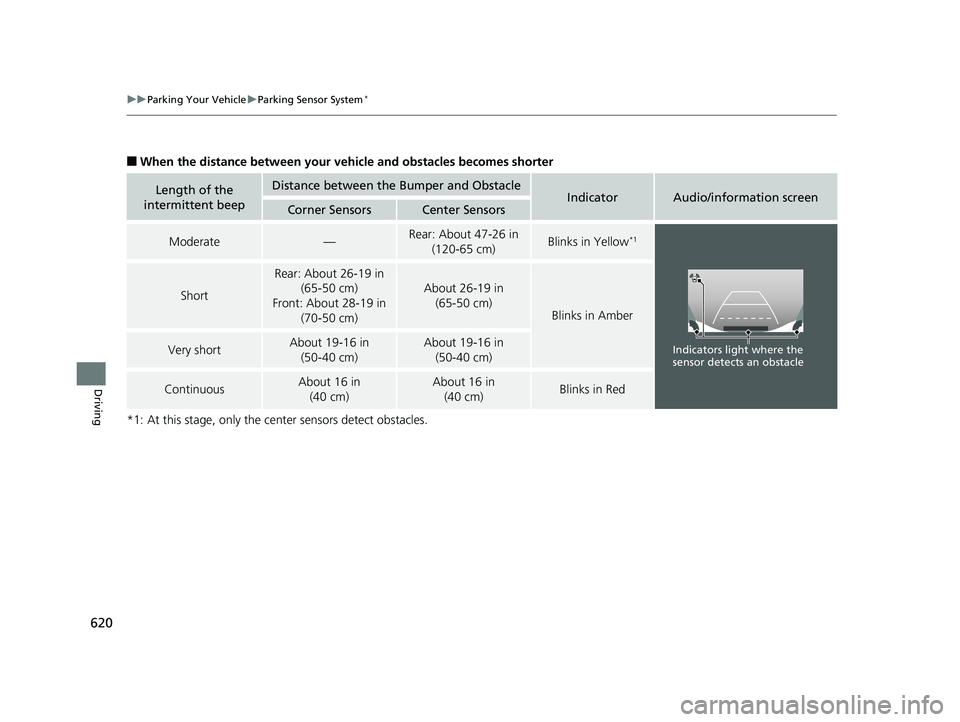

620
uuParking Your Vehicle uParking Sensor System*
Driving
■When the distance between your ve hicle and obstacles becomes shorter
*1: At this stage, only the ce nter sensors detect obstacles.
Length of the
intermittent beepDistance between the Bumper and ObstacleIndicatorAudio/information screenCorner SensorsCenter Sensors
Moderate—Rear: About 47-26 in (120-65 cm)Blinks in Yellow*1
Short
Rear: About 26-19 in (65-50 cm)
Front: About 28-19 in (70-50 cm)
About 26-19 in
(65-50 cm)
Blinks in Amber
Very shortAbout 19-16 in (50-40 cm)About 19-16 in (50-40 cm)
ContinuousAbout 16 in
(40 cm)About 16 in (40 cm)Blinks in Red
Indicators light where the
sensor detects an obstacle
19 PILOT HMA ELP-31TG76310.book 620 ページ 2019年3月15日 金曜日 午後6時8分
Page 623 of 747

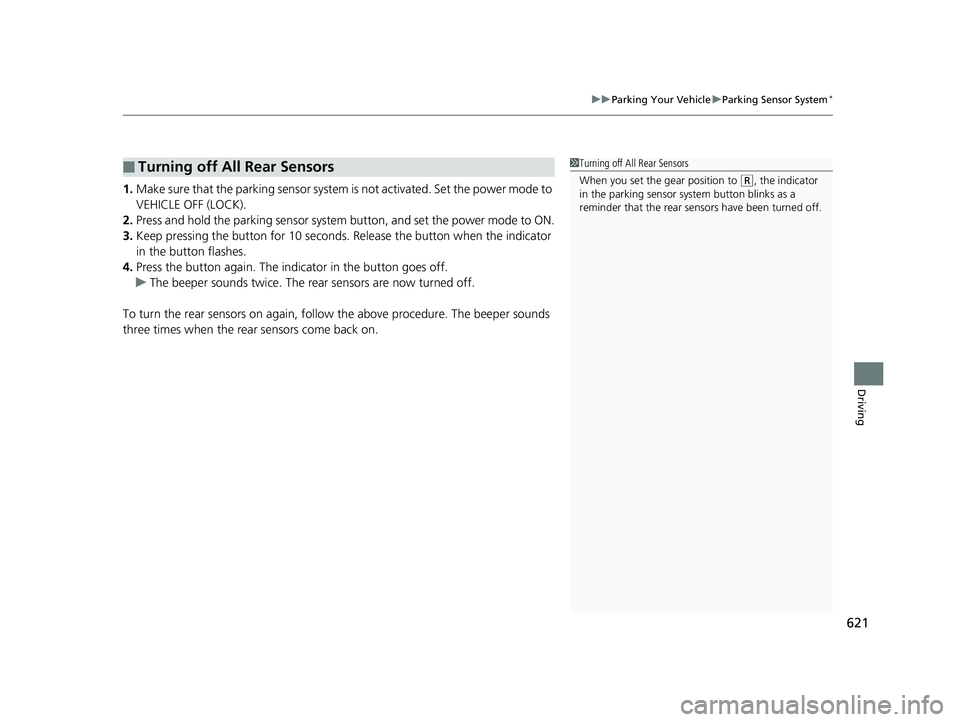

621
uuParking Your Vehicle uParking Sensor System*
Driving
1. Make sure that the parking sensor system is not activated. Set the power mode to
VEHICLE OFF (LOCK).
2. Press and hold the parking sensor system button, and set the power mode to ON.
3. Keep pressing the button for 10 seconds. Release the button when the indicator
in the button flashes.
4. Press the button again. The indi cator in the button goes off.
u The beeper sounds twice. The r ear sensors are now turned off.
To turn the rear sensors on again, follo w the above procedure. The beeper sounds
three times when the rear sensors come back on.
■Turning off All Rear Sensors1 Turning off All Rear Sensors
When you set the gear position to
(R, the indicator
in the parking sensor system button blinks as a
reminder that the rear sens ors have been turned off.
19 PILOT HMA ELP-31TG76310.book 621 ページ 2019年3月15日 金曜日 午後6時8分
Page 624 of 747

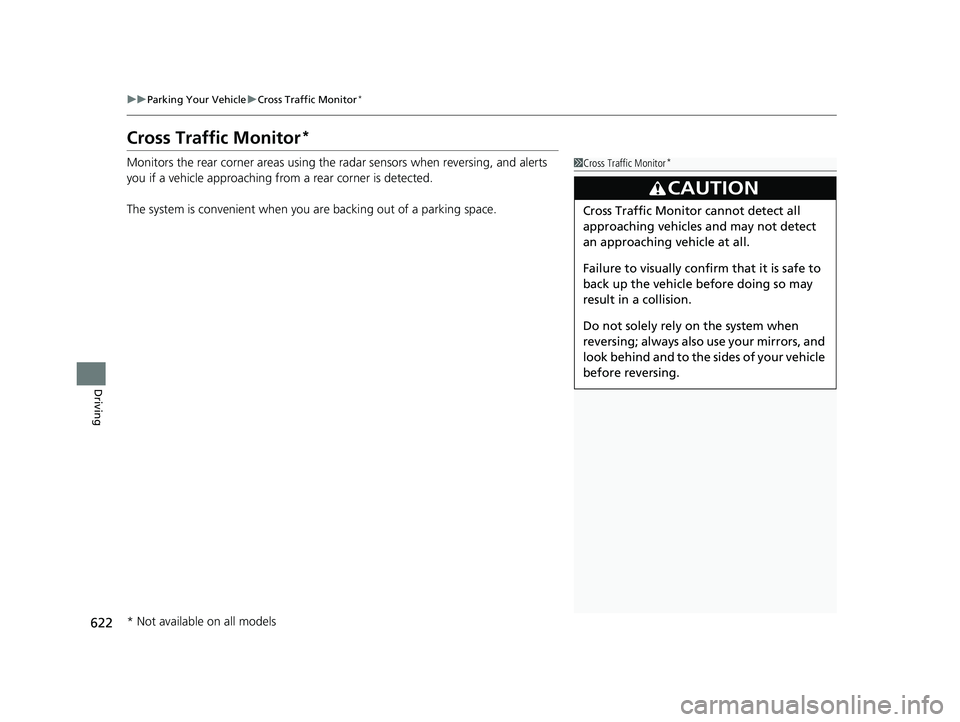

622
uuParking Your Vehicle uCross Traffic Monitor*
Driving
Cross Traffic Monitor*
Monitors the rear corner areas using the radar sensors when reversing, and alerts
you if a vehicle approaching fro m a rear corner is detected.
The system is convenient when you are backing out of a parking space.1 Cross Traffic Monitor*
3CAUTION
Cross Traffic Monitor cannot detect all
approaching vehicles and may not detect
an approaching vehicle at all.
Failure to visually confirm that it is safe to
back up the vehicle before doing so may
result in a collision.
Do not solely rely on the system when
reversing; always also use your mirrors, and
look behind and to the sides of your vehicle
before reversing.
* Not available on all models
19 PILOT HMA ELP-31TG76310.book 622 ページ 2019年3月15日 金曜日 午後6時8分
Page 625 of 747

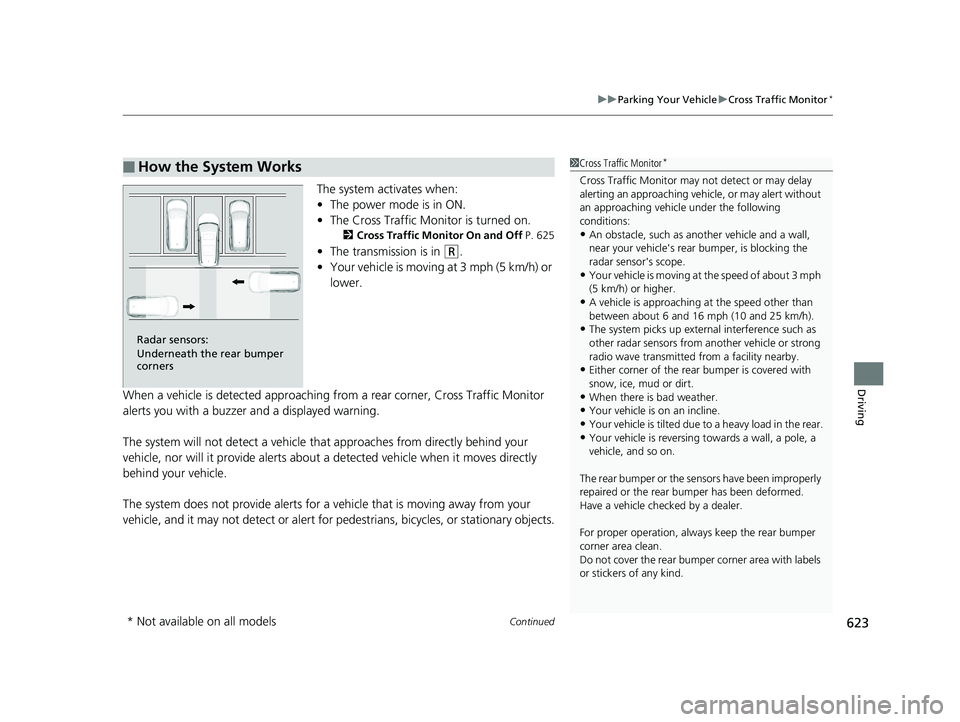

Continued623
uuParking Your Vehicle uCross Traffic Monitor*
Driving
The system activates when:
• The power mode is in ON.
• The Cross Traffic Monitor is turned on.
2 Cross Traffic Monitor On and Off P. 625
•The transmission is in (R.
• Your vehicle is moving at 3 mph (5 km/h) or
lower.
When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning.
The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.
The system does not provide alerts for a vehicle that is moving away from your
vehicle, and it may not detect or alert for pedestrians, bicycles, or stationary objects.
■How the System Works1 Cross Traffic Monitor*
Cross Traffic Monitor may not detect or may delay
alerting an approaching vehi cle, or may alert without
an approaching vehicle under the following
conditions:
•An obstacle, such as a nother vehicle and a wall,
near your vehicle's rear bumper, is blocking the
radar sensor's scope.
•Your vehicle is moving at the speed of about 3 mph
(5 km/h) or higher.
•A vehicle is approaching at the speed other than
between about 6 and 16 mph (10 and 25 km/h).
•The system picks up external interference such as
other radar sensors from an other vehicle or strong
radio wave transmitted fr om a facility nearby.
•Either corner of the rear bumper is covered with
snow, ice, mud or dirt.
•When there is bad weather.
•Your vehicle is on an incline.
•Your vehicle is tilted due to a heavy load in the rear.
•Your vehicle is reversing towards a wall, a pole, a
vehicle, and so on.
The rear bumper or the se nsors have been improperly
repaired or the rear bum per has been deformed.
Have a vehicle checked by a dealer.
For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.
Radar sensors:
Underneath the rear bumper
corners
* Not available on all models
19 PILOT HMA ELP-31TG76310.book 623 ページ 2019年3月15日 金曜日 午後6時8分
Page 737 of 747
Index
735
Index
Index
A
AAC................................... 263, 316, 322, 325
ABS (Anti-lock Brake System) .................. 613
AC Power Outlet ...................................... 218
Accessories and Modifications ................ 685
Accessory Power Sockets ......................... 217
Adaptive Cruise Control (ACC) ................ 581
Adaptive Cruise Control (ACC) Indicator
(Amber) ..................................................... 93
Adaptive Cruise Control (ACC) Indicator (Green) ...................................................... 93
Additives Coolant .................................................. 651
Engine Oil ............................................... 646
Washer ................................................... 654
Additives, Engine Oil ............................... 646
Adjusting
Armrest .................................................. 207
Front Seats.............................................. 194
Head Restraints ....................... 200, 201, 202
Mirrors.................................................... 192
Rear Seats ............................................... 204
Second Row Seats................................... 198
Steering Wheel ....................................... 191
third row seat ......................................... 199
Agile Handling Assist ............................... 555
Air Conditioning System (Climate Control System) ...................................... 235
Changing the Mode................................ 235
Defrosting the Windshield and Windows .............................................. 236 Dust and Pollen Filter ............................... 679
Recirculation/Fresh Air Mode ................... 236
Sensor ..................................................... 241
Synchronization Mode ............................. 238
Using Automatic Climate Control ............ 235
Air Conditioning System (Heating and Cooling System) ...................................... 230
Cooling ................................................... 232
Defrosting the Windshield and Windows ............................................... 233
Heating ................................................... 231
Air Pressure ....................................... 665, 723
Airbags ........................................................ 47
Advanced Airbags ..................................... 53
After a Collision ......................................... 51
Airbag Care ............................................... 59
Event Data Recorder .................................... 0
Front Airbags (SRS) .................................... 50
Indicator .............................................. 57, 85
Passenger Airbag Off Indicator .................. 58
Sensors ...................................................... 47
Side Airbags .............................................. 54
Side Curtain Airbags .................................. 56
All-wheel drive (AWD) Indicator ............... 90
AM/FM Radio .................................... 258, 302
Android Auto ............................................ 344
Anti-lock Brake System (ABS) .................. 613
Indicator .................................................... 84
Apple CarPlay ........................................... 341
Armrest ..................................................... 207
Audio Remote Controls ............................ 248 Audio System
............................ 244, 251, 269
Adjusting the Sound........................ 256, 296
AM/FM Radio .................................. 258, 302
Android Auto .......................................... 344
Apple CarPlay.......................................... 341
Audio/Information Screen................ 252, 270
Auxiliary Input Jack.................................. 246
Changing the Screen Brightness .............. 297
Display Setup .................................. 257, 297
Error Messages ........................................ 348
File Manager ........................................... 290
General Information ................................ 353
HD Subchannel ....................................... 305
Home Screen........................................... 276
HondaLink ®............................................. 333
How to Delete a File ................................ 293
How to Transfer a File ............................. 290
How to Update Wirelessly ....................... 284
How to Update with a USB Device........... 288
iPod ................................................ 260, 319
Limitations for Manual Operation ............ 298
MP3/WMA/AAC .............. 263, 316, 322, 325
My Honda Music ..................................... 325
Playing a CD............................................ 316
Playing AM/FM Radio .............................. 302
Playing Bluetooth ® Audio ................ 266, 329
Playing SiriusXM ® Radio
.......................... 306
Playing Social Playlist ............................... 331
Reactivating ............................................ 247
Recommended CDs ................................. 354
Remote Controls ..................................... 248
19 PILOT HMA ELP-31TG76310.book 735 ページ 2019年3月15日 金曜日 午後6時8分
Page 739 of 747
737
Index
Front Side Marker Lights ......................... 656
Front Turn Signal Lights .......................... 657
Headlights .............................................. 655
High-Mount Brake Light.......................... 659
Parking Lights ......................................... 656
Rear License Plate Lights ......................... 659
Rear Side Marker Lights .......................... 658
Rear Turn Signal Lights............................ 658
Side Turn Signal/Emergency Indicator Lights .................................................... 658
Bulb Specifications ................................... 722
C
CabinTalkTM.............................................. 505
Car Wash Mode ........................................ 541
Carbon Monoxide Gas ............................... 76
Carrying Cargo ................................. 509, 511
CD Player .................................................. 316
Certification Label ................................... 724
Changing Bulbs ........................................ 655
Charging System Indicator ................ 81, 707
Child Safety ................................................ 60
Childproof Door Locks ............................ 151
Child Seat ................................................... 60
Booster Seats ............................................ 75
Child Seat for Infants ................................ 62
Child Seat for Small Children .................... 63
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 69
Larger Children ......................................... 74 Rear-facing Child Seat ............................... 62
Selecting a Child Seat ................................ 64
Childproof Door Locks ............................. 151
Cleaning the Exterior ............................... 682
Cleaning the Interior ................................ 680
Climate Control System ............................ 235
Changing the Mode ................................ 235
Defrosting the Windshield and
Windows ............................................... 236
Dust and Pollen Filter ............................... 679
Recirculation and Fresh Air Mode ............ 236
Sensors .................................................... 241
Synchronization Mode ............................. 238
Using Automatic Climate Control ............ 235
Clock .......................................................... 136
Coat Hook ................................................. 221
Collision Mitigation Braking System
TM
(CMBSTM) .................................................. 569
Collision Mitigation Braking SystemTM
(CMBSTM) Indicator .............................. 93, 94
Compact Spare Tire .......................... 689, 723
Console Compartment ............................. 213
Controls ..................................................... 135
Coolant (Engine) ....................................... 651
Adding to the Radiator ............................ 652
Adding to the Reserve Tank ..................... 651
Overheating ............................................ 705
Temperature Gauge ................................ 110
Creeping (Automatic Transmission) ........ 534
Cross Traffic Monitor ................................ 622
Cup Holders .............................................. 215 Customer Service Information
................. 733
Customized Features ................ 125, 425, 432
D
Daytime Running Lights .......................... 182
Dead Battery ............................................. 702
Defaulting All the Settings ...................... 450
Defrosting the Windshield and Windows ......................................... 233, 236
Detachable Anchor .................................... 44
Devices that Emit Radio Waves ............... 725
Dimming
Headlights ............................................... 175
Rearview Mirror....................................... 192
Dipstick (Engine Oil) ................................. 647
Directional Signals (Turn Signal) ............. 174
Door Mirrors ............................................. 193
Doors ......................................................... 139
Auto Door Locking .................................. 152
Auto Door Unlocking .............................. 152
Door Open Message.................................. 38
Keys ........................................................ 139
Locking/Unlocking the Doors from the
Inside .................................................... 149
Locking/Unlocking the Doors from the Outside ................................................. 142
Lockout Prevention System ...................... 148
DOT Tire Quality Grading ........................ 667
Driver Information Interface ................... 111
Accessing Content .................................. 113
19 PILOT HMA ELP-31TG76310.book 737 ページ 2019年3月15日 金曜日 午後6時8分
