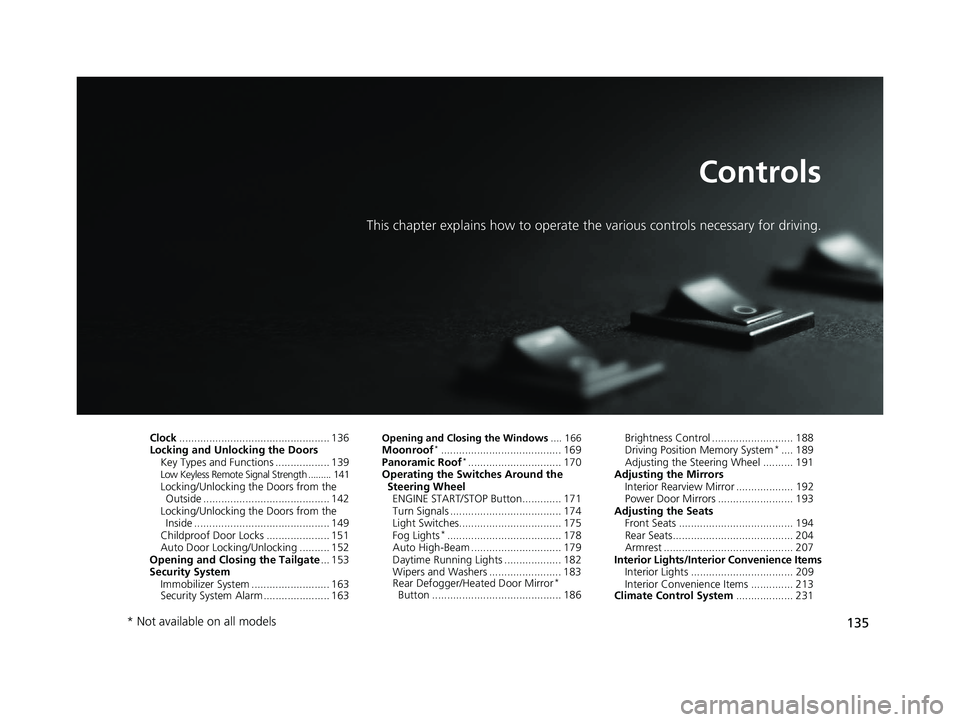

135
Controls
This chapter explains how to operate the various controls necessary for driving.
Clock.................................................. 136
Locking and Unlocking the Doors Key Types and Functions .................. 139
Low Keyless Remote Signal Strength ......... 141Locking/Unlocking the Doors from the Outside .......................................... 142
Locking/Unlocking the Doors from the Inside ............................................. 149
Childproof Door Locks ..................... 151
Auto Door Locking/Unlocking .......... 152
Opening and Closing the Tailgate ... 153
Security System Immobilizer System .......................... 163
Security System Alarm ...................... 163
Opening and Closing the Windows .... 166Moonroof*........................................ 169
Panoramic Roof*............................... 170
Operating the Switches Around the Steering Wheel ENGINE START/STOP Button............. 171
Turn Signals ..................................... 174
Light Switches.................................. 175
Fog Lights
*...................................... 178
Auto High-Beam .............................. 179
Daytime Running Lights ................... 182
Wipers and Washers ........................ 183
Rear Defogger/Heat ed Door Mirror
*
Button ........................................... 186 Brightness Control ........................... 188
Driving Position Memory System
*.... 189
Adjusting the Steering Wheel .......... 191
Adjusting the Mirrors Interior Rearview Mirror ................... 192
Power Door Mirrors ......................... 193
Adjusting the Seats Front Seats ...................................... 194
Rear Seats........................................ 204
Armrest ........................................... 207
Interior Lights/Interior Convenience Items Interior Lights .................................. 209
Interior Convenience Items .............. 213
Climate Control System ................... 231
* Not available on all models
22 PILOT-31TG76600.book 135 ページ ２０２１年６月１１日　金曜日　午後４時４０分

136
Controls

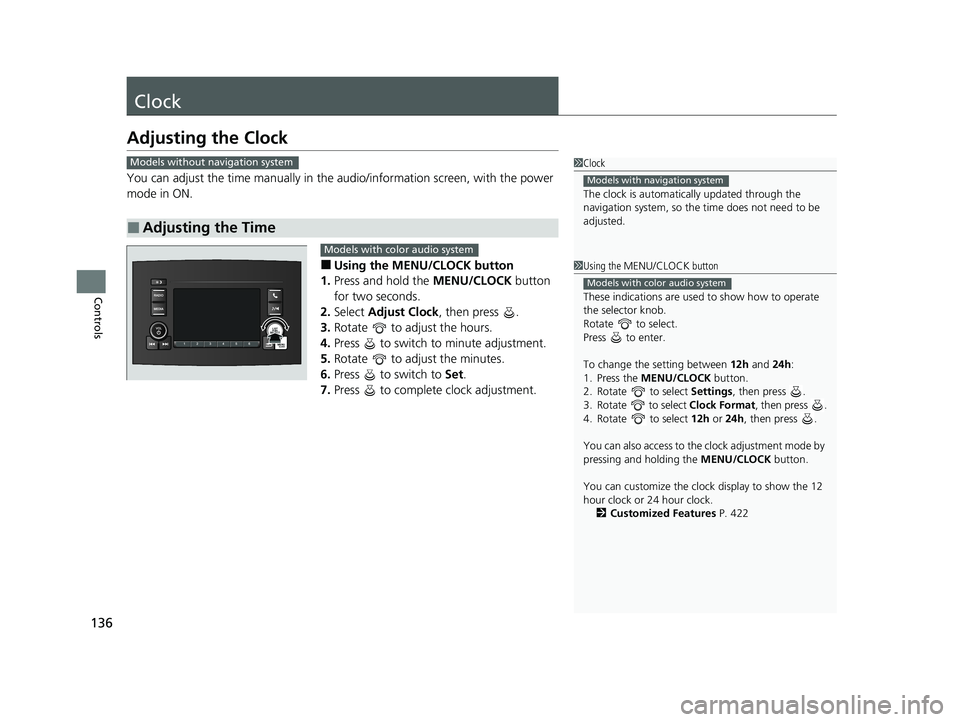

Clock
Adjusting the Clock
You can adjust the time manually in the audio/information screen, with the power
mode in ON.
■Using the MENU/CLOCK button
1. Press and hold the MENU/CLOCK button
for two seconds.
2. Select Adjust Clock , then press .
3. Rotate to adjust the hours.
4. Press to switch to minute adjustment.
5. Rotate to adjust the minutes.
6. Press to switch to Set.
7. Press to complete clock adjustment.
■Adjusting the Time
1Clock
The clock is automatica lly updated through the
navigation system, so the ti me does not need to be
adjusted.
Models with navigation system
Models without navigation system
1 Using the MENU/CLOCK button
These indications are used to show how to operate
the selector knob.
Rotate to select.
Press to enter.
To change the setting between 12h and 24h:
1. Press the MENU/CLOCK button.
2. Rotate to select Settings, then press .
3. Rotate to select Clock Format, then press .
4. Rotate to select 12h or 24h , then press .
You can also access to the clock adjustment mode by
pressing and holding the MENU/CLOCK button.
You can customize the clock display to show the 12
hour clock or 24 hour clock. 2 Customized Features P. 422
Models with color audio system
Models with color audio system
22 PILOT-31TG76600.book 136 ページ ２０２１年６月１１日　金曜日　午後４時４０分

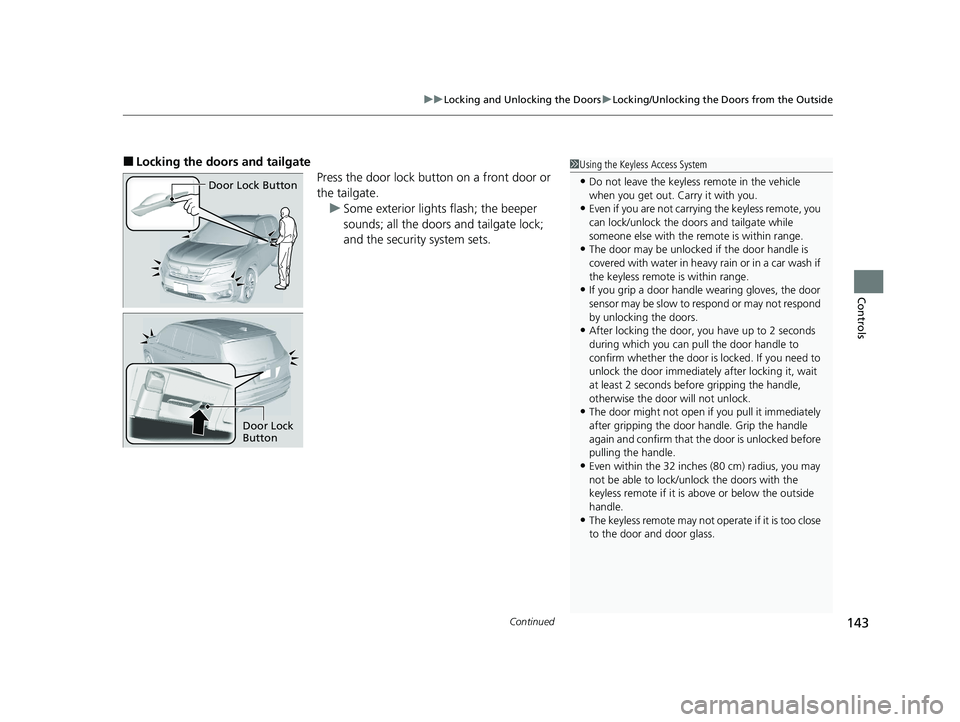

Continued143
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Locking the doors and tailgate
Press the door lock button on a front door or
the tailgate.u Some exterior lights flash; the beeper
sounds; all the doors and tailgate lock;
and the security system sets.1Using the Keyless Access System
•Do not leave the keyless remote in the vehicle
when you get out. Carry it with you.
•Even if you are not carrying the keyless remote, you
can lock/unlock the doors and tailgate while
someone else with the remote is within range.
•The door may be unlocked if the door handle is
covered with water in heavy rain or in a car wash if
the keyless remote is within range.
•If you grip a door handle wearing gloves, the door
sensor may be slow to respond or may not respond
by unlocking the doors.
•After locking the door, you have up to 2 seconds
during which you can pull the door handle to
confirm whether the door is locked. If you need to
unlock the door immediately after locking it, wait
at least 2 seconds befo re gripping the handle,
otherwise the door will not unlock.
•The door might not open if you pull it immediately
after gripping the door handle. Grip the handle
again and confirm that th e door is unlocked before
pulling the handle.
•Even within the 32 inches (80 cm) radius, you may
not be able to lock/unl ock the doors with the
keyless remote if it is above or below the outside
handle.
•The keyless remote may not operate if it is too close
to the door and door glass.
Door Lock Button
Door Lock
Button
22 PILOT-31TG76600.book 143 ページ ２０２１年６月１１日　金曜日　午後４時４０分

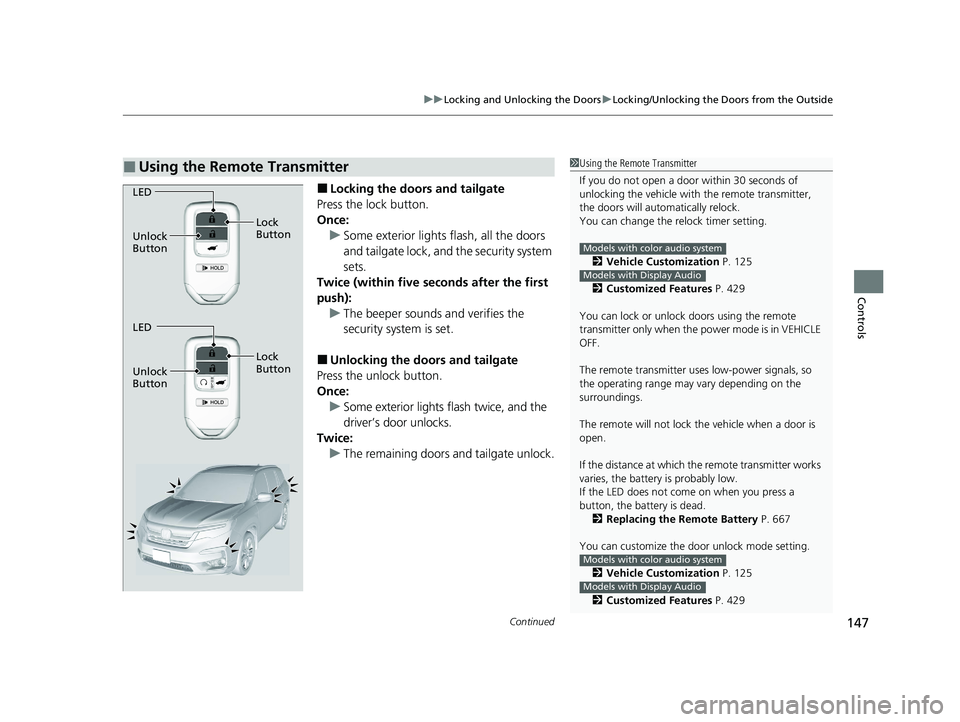

Continued147
uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
Controls
■Locking the doors and tailgate
Press the lock button.
Once: u Some exterior lights flash, all the doors
and tailgate lock, and the security system
sets.
Twice (within five se conds after the first
push): u The beeper sounds and verifies the
security system is set.
■Unlocking the doors and tailgate
Press the unlock button.
Once:
u Some exterior lights flash twice, and the
driver’s door unlocks.
Twice: u The remaining doors and tailgate unlock.
■Using the Remote Transmitter1Using the Remote Transmitter
If you do not open a door within 30 seconds of
unlocking the vehicle with the remote transmitter,
the doors will automatically relock.
You can change the relock timer setting.
2 Vehicle Customization P. 125
2 Customized Features P. 429
You can lock or unlock doors using the remote
transmitter only when the power mode is in VEHICLE
OFF.
The remote transmitter us es low-power signals, so
the operating range may vary depending on the
surroundings.
The remote will not lock th e vehicle when a door is
open.
If the distance at which the remote transmitter works
varies, the batter y is probably low.
If the LED does not come on when you press a
button, the battery is dead.
2 Replacing the Remote Battery P. 667
You can customize the door unlock mode setting. 2 Vehicle Customization P. 125
2 Customized Features P. 429
Models with color audio system
Models with Display Audio
Models with color audio system
Models with Display Audio
LED
Unlock
Button Lock
Button
LED
Unlock
Button Lock
Button
22 PILOT-31TG76600.book 147 ページ ２０２１年６月１１日　金曜日　午後４時４０分

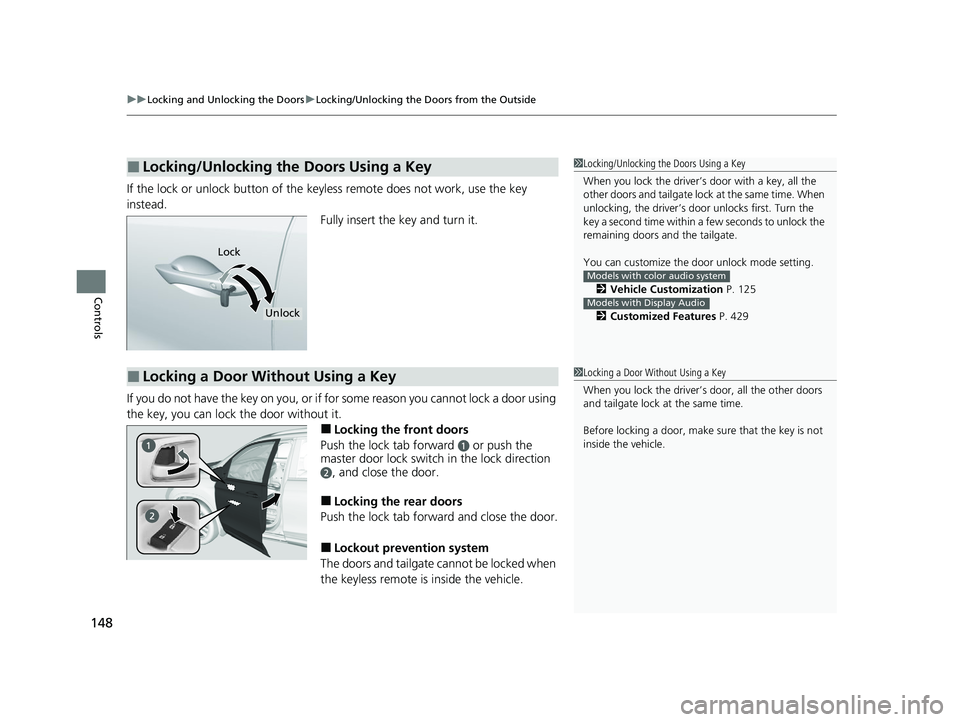

uuLocking and Unlocking the Doors uLocking/Unlocking the Doors from the Outside
148
Controls
If the lock or unlock button of the key less remote does not work, use the key
instead. Fully insert the key and turn it.
If you do not have the key on you, or if for some reason you cannot lock a door using
the key, you can lock the door without it.
■Locking the front doors
Push the lock tab forward
a or push the
master door lock switch in the lock direction
b, and close the door.
■Locking the rear doors
Push the lock tab forward and close the door.
■Lockout prevention system
The doors and tailgate cannot be locked when
the keyless remote is inside the vehicle.
■Locking/Unlocking the Doors Using a Key1 Locking/Unlocking the Doors Using a Key
When you lock the driver’s door with a key, all the
other doors and tailgate lock at the same time. When
unlocking, the driver’s door unlocks first. Turn the
key a second time within a few seconds to unlock the
remaining doors a nd the tailgate.
You can customize the door unlock mode setting.
2 Vehicle Customization P. 125
2 Customized Features P. 429
Models with color audio system
Models with Display Audio
Lock
Unlock
■Locking a Door Without Using a Key1Locking a Door Without Using a Key
When you lock the driver’s door, all the other doors
and tailgate lock at the same time.
Before locking a door, make sure that the key is not
inside the vehicle.
22 PILOT-31TG76600.book 148 ページ ２０２１年６月１１日　金曜日　午後４時４０分

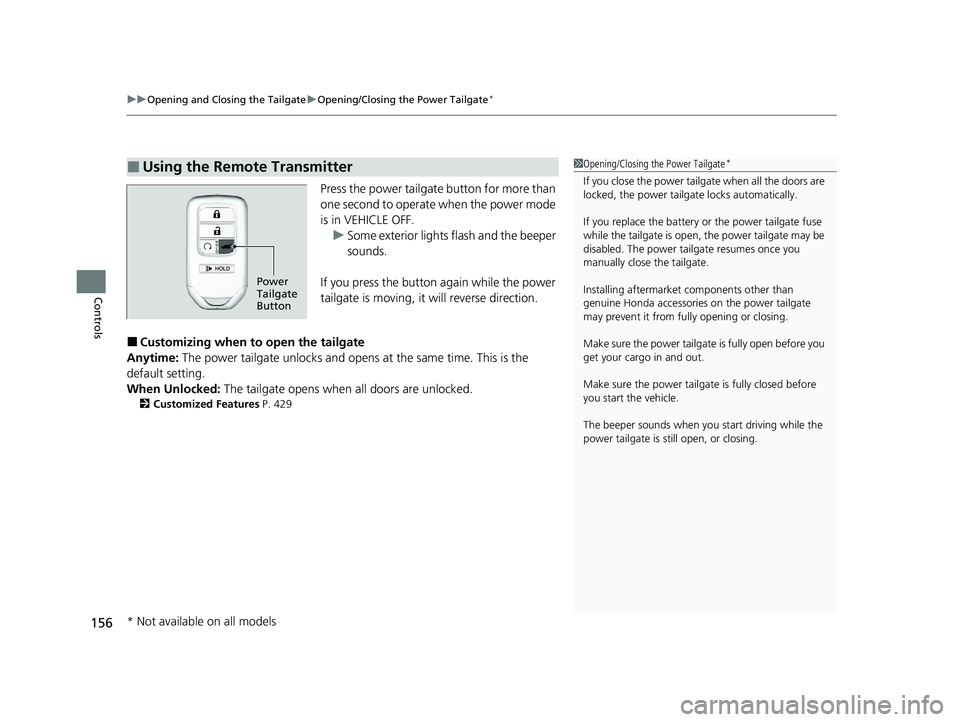

uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
156
Controls
Press the power tailgate button for more than
one second to operate when the power mode
is in VEHICLE OFF.
u Some exterior lights flash and the beeper
sounds.
If you press the button again while the power
tailgate is moving, it will reverse direction.
■Customizing when to open the tailgate
Anytime: The power tailgate unlocks and opens at the same time. This is the
default setting.
When Unlocked: The tailgate opens when all doors are unlocked.
2Customized Features P. 429
■Using the Remote Transmitter1Opening/Closing the Power Tailgate*
If you close the power tail gate when all the doors are
locked, the power tailgate locks automatically.
If you replace the battery or the power tailgate fuse
while the tailgate is open, the power tailgate may be
disabled. The power tail gate resumes once you
manually close the tailgate.
Installing aftermarket components other than
genuine Honda a ccessories on the power tailgate
may prevent it from fully opening or closing.
Make sure the power tailgate is fully open before you
get your cargo in and out.
Make sure the power tailgate is fully closed before
you start the vehicle.
The beeper sounds when you start driving while the
power tailgate is still open, or closing.
Power
Tailgate
Button
* Not available on all models
22 PILOT-31TG76600.book 156 ページ ２０２１年６月１１日　金曜日　午後４時４０分

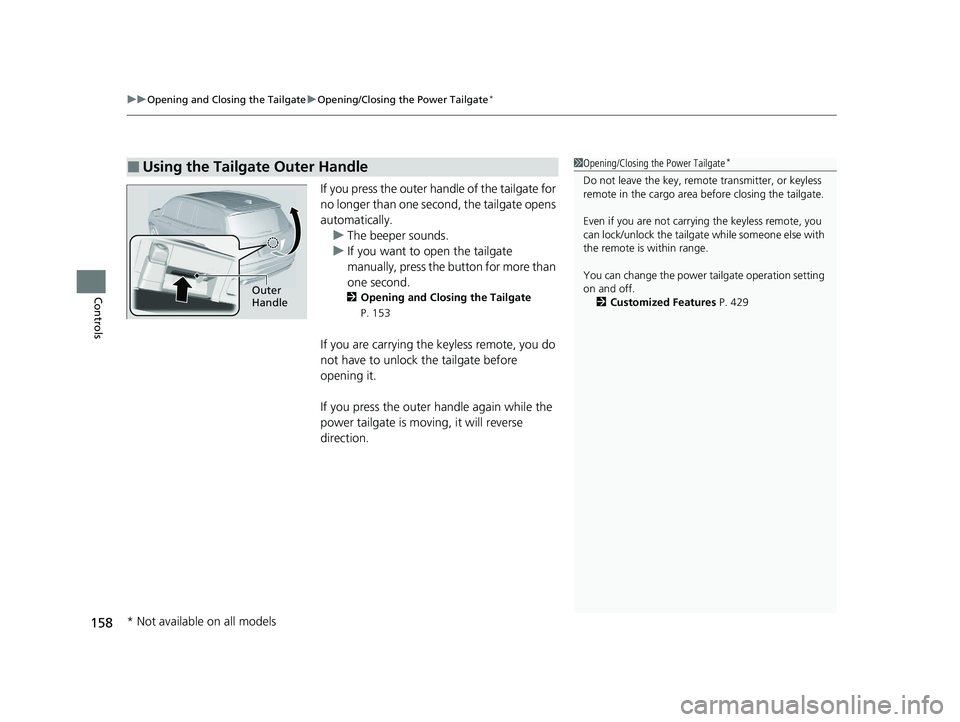

uuOpening and Closing the Tailgate uOpening/Closing the Power Tailgate*
158
Controls
If you press the outer ha ndle of the tailgate for
no longer than one second, the tailgate opens
automatically. u The beeper sounds.
u If you want to open the tailgate
manually, press the button for more than
one second.
2 Opening and Closing the Tailgate
P. 153
If you are carrying the keyless remote, you do
not have to unlock the tailgate before
opening it.
If you press the outer handle again while the
power tailgate is mo ving, it will reverse
direction.
■Using the Tailgate Outer Handle1 Opening/Closing the Power Tailgate*
Do not leave the key, remote transmitter, or keyless
remote in the cargo area be fore closing the tailgate.
Even if you are not carryi ng the keyless remote, you
can lock/unlock the tailgate while someone else with
the remote is within range.
You can change the power tailgate operation setting
on and off. 2 Customized Features P. 429
Outer
Handle
* Not available on all models
22 PILOT-31TG76600.book 158 ページ ２０２１年６月１１日　金曜日　午後４時４０分

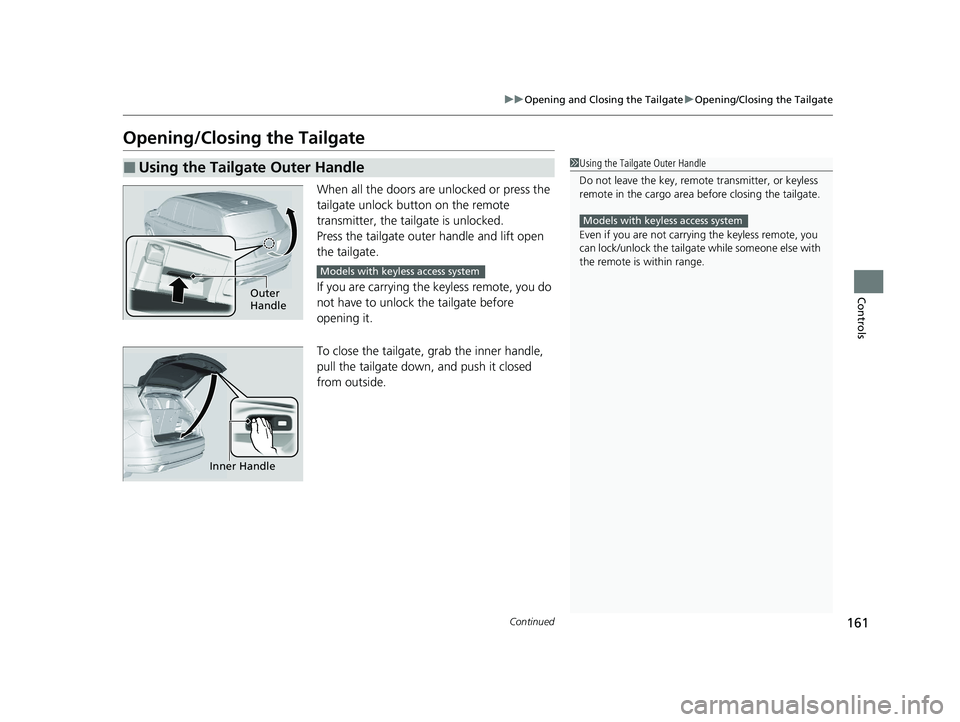

161
uuOpening and Closing the Tailgate uOpening/Closing the Tailgate
Continued
Controls
Opening/Closing the Tailgate
When all the doors are unlocked or press the
tailgate unlock button on the remote
transmitter, the tailgate is unlocked.
Press the tailgate outer handle and lift open
the tailgate.
If you are carrying the keyless remote, you do
not have to unlock the tailgate before
opening it.
To close the tailgate, grab the inner handle,
pull the tailgate down, and push it closed
from outside.
■Using the Tailgate Outer Handle1Using the Tailgate Outer Handle
Do not leave the key, remote transmitter, or keyless
remote in the cargo area be fore closing the tailgate.
Even if you are not carryi ng the keyless remote, you
can lock/unlock the tailgate while someone else with
the remote is within range.
Models with keyless access system
Outer
Handle
Models with keyless access system
Inner Handle
22 PILOT-31TG76600.book 161 ページ ２０２１年６月１１日　金曜日　午後４時４０分

uuOpening and Closing the Tailgate uOpening/Closing the Tailgate
162
Controls
Press the tailgate unlock button to unlock the
tailgate.
■Using the Remote Transmitter1Using the Remote Transmitter
If you have unlocked and opened the tailgate using
the remote transmitter or keyless remote, when
closing, the tailgate locks automatically.
Tailgate
Unlock
Button
Tailgate
Unlock
Button
22 PILOT-31TG76600.book 162 ページ ２０２１年６月１１日　金曜日　午後４時４０分

166
Controls
Opening and Closing the Windows
Opening/Closing the Power Windows
The power windows can be opened and closed when the power mode is in ON,
using the switches on the doors.
The driver’s side switches can be used to open and close all the windows. The power
window lock button on the driver’s side must be switched off (not pushed in,
indicator off) to open and close the windows from anyw here other than the driver’s
seat.
When the power window lock button is pu shed in, the indicator comes on and you
can only operate the driver’s window. Turn the power window lock button on if a
child is in the vehicle.
■Manual operation
To open: Push the switch down lightly, and
hold it until the desired position is reached.
To close: Pull the switch up lightly, and hold it
until the desired position is reached.
■Automatic operation
To open: Push the switch down firmly.
To close: Pull the switch up firmly.
The window opens or cl oses completely. To
stop the window at any time, push or pull the
switch briefly.
■Opening/Closing Windows with Auto-Open/Close Function
1 Opening/Closing the Power Windows
The power windows can be operated for up to 10
minutes after you set the power mode to VEHICLE
OFF.
Opening either front door cancels this function.
Auto Reverse
If a power window senses resistance when closing
automatically, it stops clos ing and reverse direction.
The driver’s window auto re verse function is disabled
when you continuously pull up the switch.
The auto reverse function stops sensing when the
window is almost closed to en sure that it fully closes.
3WARNING
Closing a power window on someone’s
hands or fingers can cause serious injury.
Make sure your passengers are away from
the windows before closing them.
ON
OFF
Power Window
Lock Button
Front Passenger’s
Window Switch
Driver’s Window
Switch
Indicator
22 PILOT-31TG76600.book 166 ページ ２０２１年６月１１日　金曜日　午後４時４０分
