HONDA PILOT 2022 Owners Manual

209Continued
Controls
Interior Lights/Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the tailgate and doors are open or
closed.
■Door activated
The interior lights come on in the following
situations:
• When the tailgate or any doors are opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE
OFF.
■OFF
The interior lights remain off regardless of
whether the tailgate or the doors are open or
closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and go off about 30 seconds after the doors are
closed.
The lights go off after about 30 seconds in the
following situations:
•When you unlock the driver’s door but do not open
it.
•When you set the power mode to VEHICLE OFF but
do not open a door.
You can change the interi or lights dimming time.
2 Vehicle Customization P. 125
2 Customized Features P. 429
The interior lights go off im mediately in the following
situations:
•When you lock the driver’s door.
•When you close the driver’s door in ACCESSORY
mode.
•When you set the power mode to ON.
If you leave any of the tailgate or doors open in
VEHICLE OFF mode, the inte rior lights go off after
about 15 minutes.
To avoid draining the ba ttery, do not leave the
interior light on for an extended length of time when
the engine or power system is off.
Models with color audio system
Models with Display Audio
Models without panoramic roof
Door Activated Position
Off
On
Models with panoramic roof
Door Activated Position
OffOn
22 PILOT-31TG76600.book 209 ページ ２０２１年６月１１日　金曜日　午後４時４０分

uuInterior Lights/Interior Convenience Items uInterior Lights
210
Controls

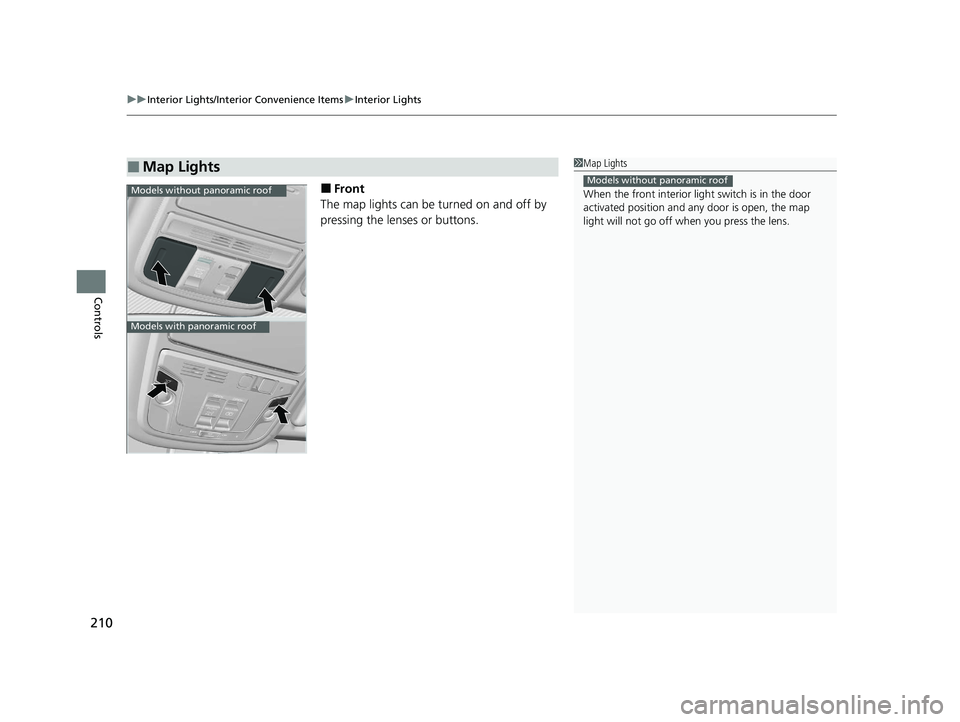

■Front
The map lights can be turned on and off by
pressing the lenses or buttons.
■Map Lights1 Map Lights
When the front interior li ght switch is in the door
activated position and any door is open, the map
light will not go off when you press the lens.
Models without panoramic roof
Models with panoramic roof
Models without panoramic roof
22 PILOT-31TG76600.book 210 ページ ２０２１年６月１１日　金曜日　午後４時４０分

Continued211
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls

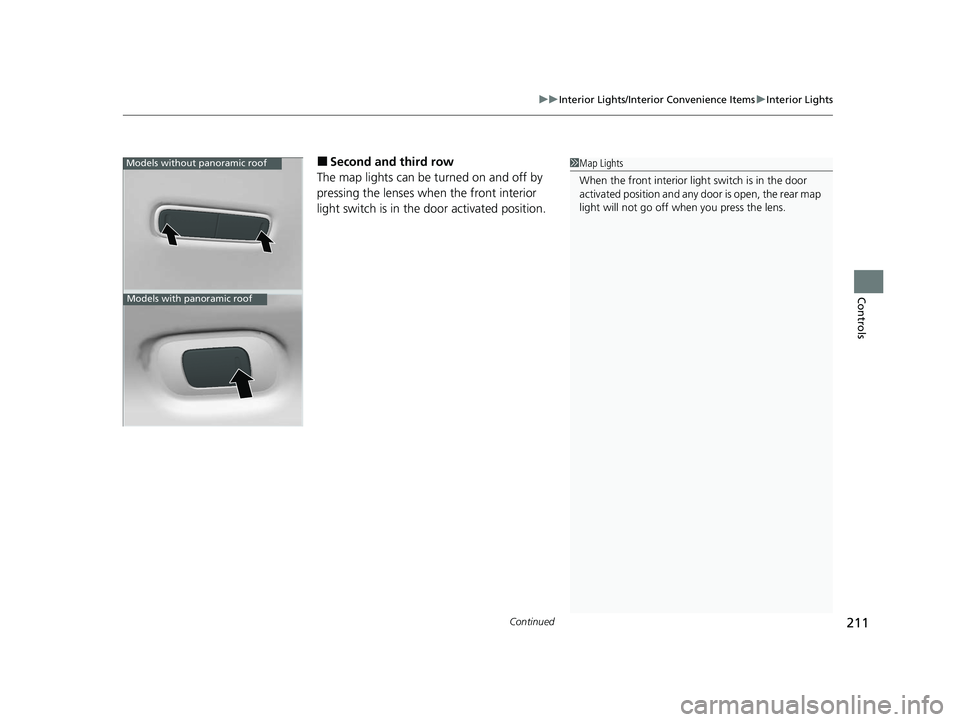

■Second and third row
The map lights can be turned on and off by
pressing the lenses when the front interior
light switch is in the door activated position.1 Map Lights
When the front interior li ght switch is in the door
activated position and any door is open, the rear map
light will not go off when you press the lens.Models without panoramic roof
Models with panoramic roof
22 PILOT-31TG76600.book 211 ページ ２０２１年６月１１日　金曜日　午後４時４０分

212
uuInterior Lights/Interior Convenience Items uInterior Lights
Controls

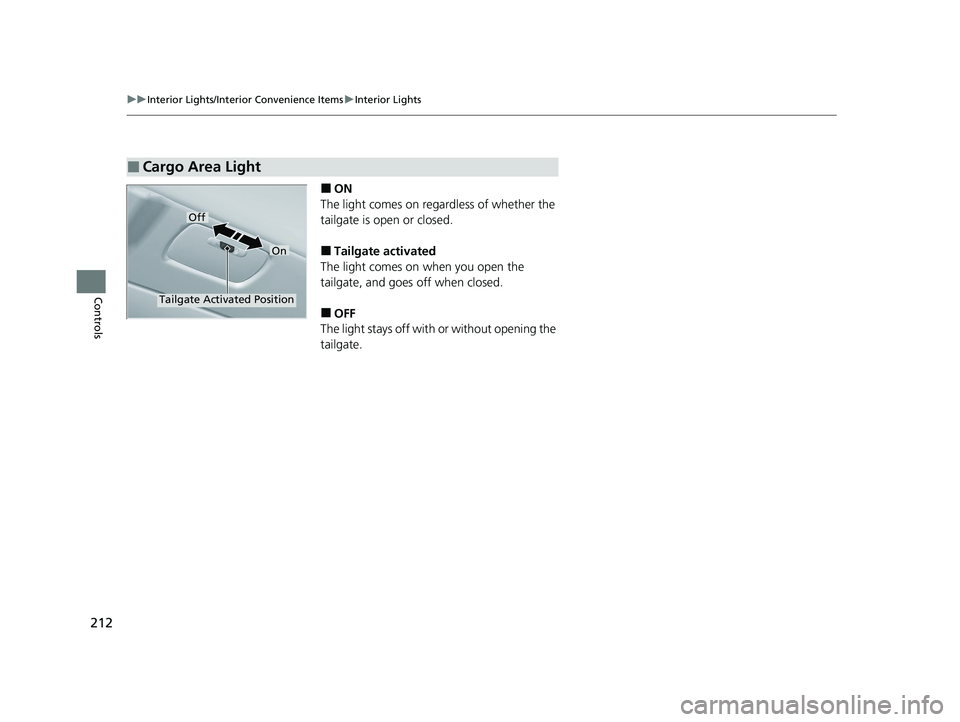

■ON
The light comes on regardless of whether the
tailgate is open or closed.
■Tailgate activated
The light comes on when you open the
tailgate, and goes off when closed.
■OFF
The light stays off with or without opening the
tailgate.
■Cargo Area Light
Off
On
Tailgate Activated Position
22 PILOT-31TG76600.book 212 ページ ２０２１年６月１１日　金曜日　午後４時４０分

213
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Continued
Controls
Interior Convenience Items
Pull the lever to open the glove box. You can
lock the glove box with the built-in key.
To open the console compartment, press the
button to unlock the lid, and then slide it
rearward.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
To Lock
■Console Compartment
Button
22 PILOT-31TG76600.book 213 ページ ２０２１年６月１１日　金曜日　午後４時４０分

214
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

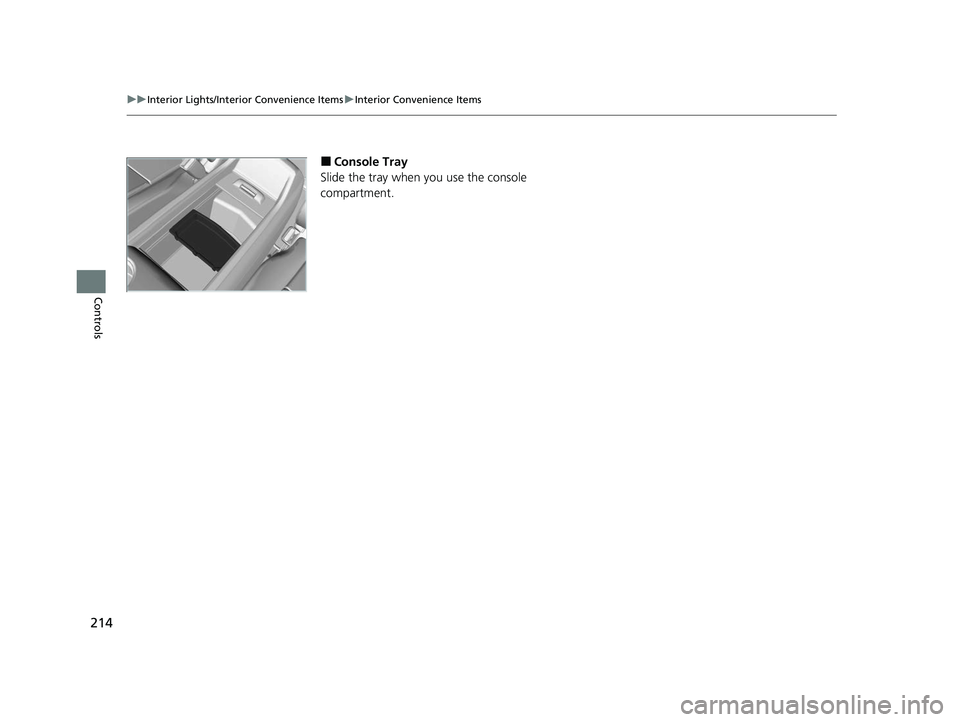

■Console Tray
Slide the tray when you use the console
compartment.
22 PILOT-31TG76600.book 214 ページ ２０２１年６月１１日　金曜日　午後４時４０分

Continued215
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

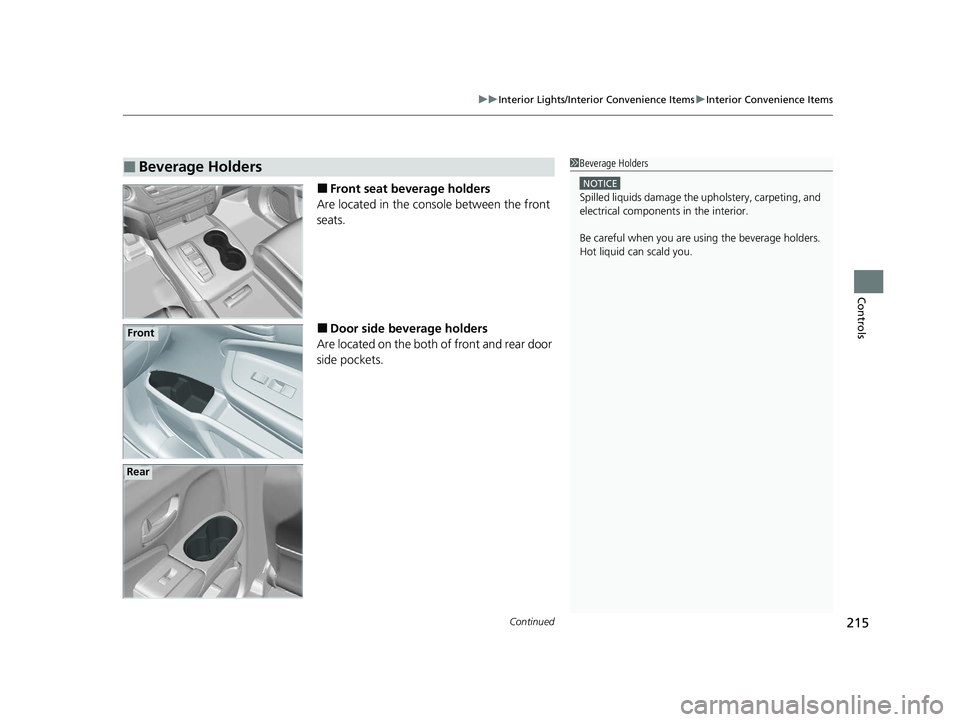

■Front seat beverage holders
Are located in the console between the front
seats.
■Door side beverage holders
Are located on the both of front and rear door
side pockets.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids damage the upholstery, carpeting, and
electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
Front
Rear
22 PILOT-31TG76600.book 215 ページ ２０２１年６月１１日　金曜日　午後４時４０分

216
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls

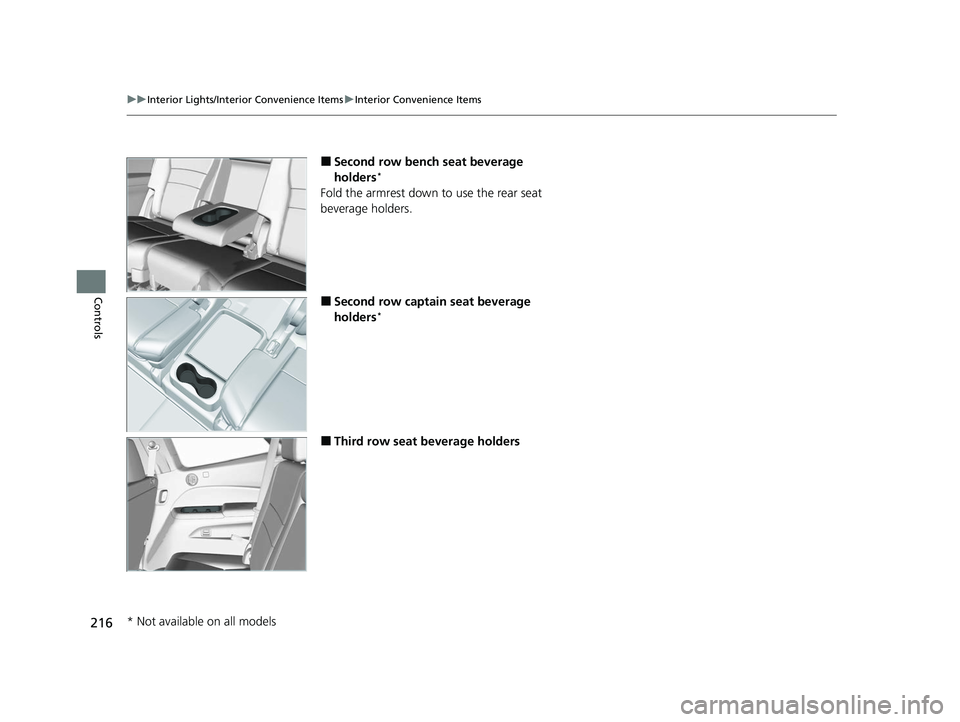

■Second row bench seat beverage
holders*
Fold the armrest down to use the rear seat
beverage holders.
■Second row captain seat beverage
holders*
■Third row seat beverage holders
* Not available on all models
22 PILOT-31TG76600.book 216 ページ ２０２１年６月１１日　金曜日　午後４時４０分

Continued217
uuInterior Lights/Interior Convenience Items uInterior Convenience Items
Controls
The accessory power sockets can be used when the power mode is in ACCESSORY
or ON.
■Console panel
Open the lid and the cover to use it.
■Console compartment
Pull the handle and open the cover to use it.
■Accessory Power Sockets1 Accessory Power Sockets
Do not insert an automotive type cigarette lighter
element.
This can overheat the power socket.
The accessory power socket is designed to supply
power for 12-volt DC accessories that are rated 180
watts (15 amps) or less.
To prevent battery drain, only use the power socket
with the engine running.
When the accessory power soc ket is not in use, close
the cover to prevent any small foreign objects from
getting into the power socket.
22 PILOT-31TG76600.book 217 ページ ２０２１年６月１１日　金曜日　午後４時４０分

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
218
Controls
■Cargo area*
Open the cover to use it.
The AC power outlet can be used when the engine is running. Open the cover to use it. Plug in the appliance
slightly, turn it 90° clockwise, then push it all
the way.
■AC Power Outlet*1AC Power Outlet*
NOTICE
Do not use the AC power outlet for electric
appliances that require high initial peak wattage,
such as cathode-ray tube type televisions,
refrigerators, electric pumps, etc. It is not suitable for
devices that process precis e data, such as medical
equipment, and that require an extremely stable
power supply, such as microcomputer-controlled
electric blankets, touc h sensor lamps, etc.
The AC power outlet is desi gned to supply power for
up to 115 volt appliances that are rated 150 watts or
less.
Continued use of any elec tric appliance/device
exceeding these ratings may result in damage to the
appliance/device.
When the AC power outlet is not in use, close the
cover to prevent any small foreign objects from
getting into the AC power outlet.
* Not available on all models
