HONDA PILOT 2022 Owners Manual

389
uuBlu-ray/DVD Rear Entertainment System*uFront Control Panel Operation
Features

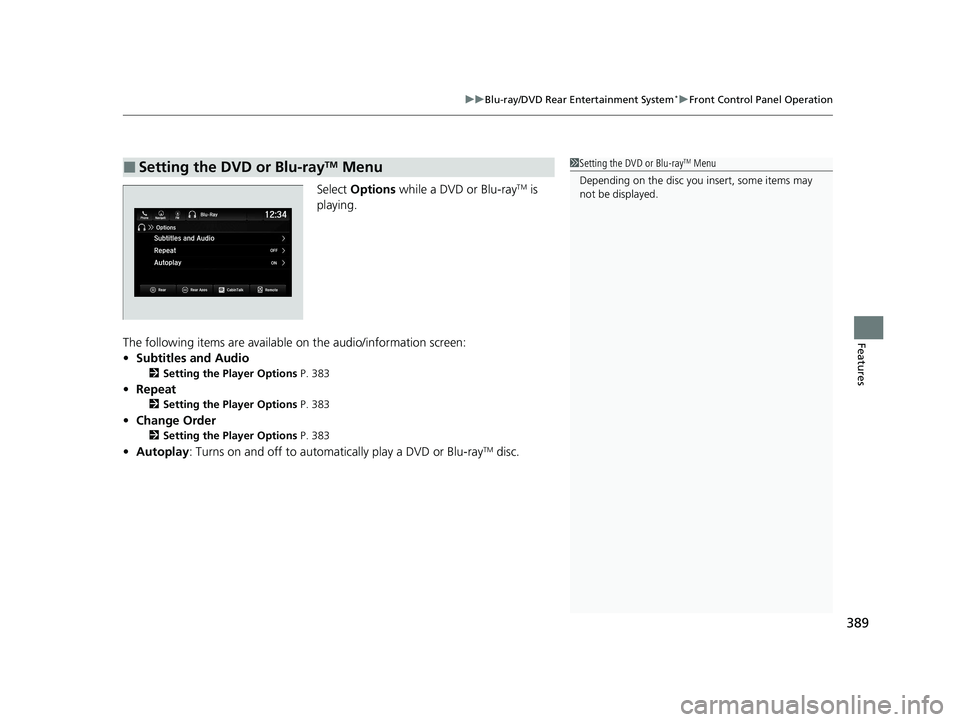

Select Options while a DVD or Blu-rayTM is
playing.
The following items are available on the audio/information screen:
• Subtitles and Audio
2 Setting the Player Options P. 383
•Repeat
2 Setting the Player Options P. 383
•Change Order
2 Setting the Player Options P. 383
•Autoplay: Turns on and off to automati cally play a DVD or Blu-rayTM disc.
■Setting the DVD or Blu-rayTM Menu1Setting the DVD or Blu-rayTM Menu
Depending on the disc you insert, some items may
not be displayed.
22 PILOT-31TG76600.book 389 ページ ２０２１年６月１１日　金曜日　午後４時４０分

390
uuBlu-ray/DVD Rear Entertainment System*uPlaying Apps
Features

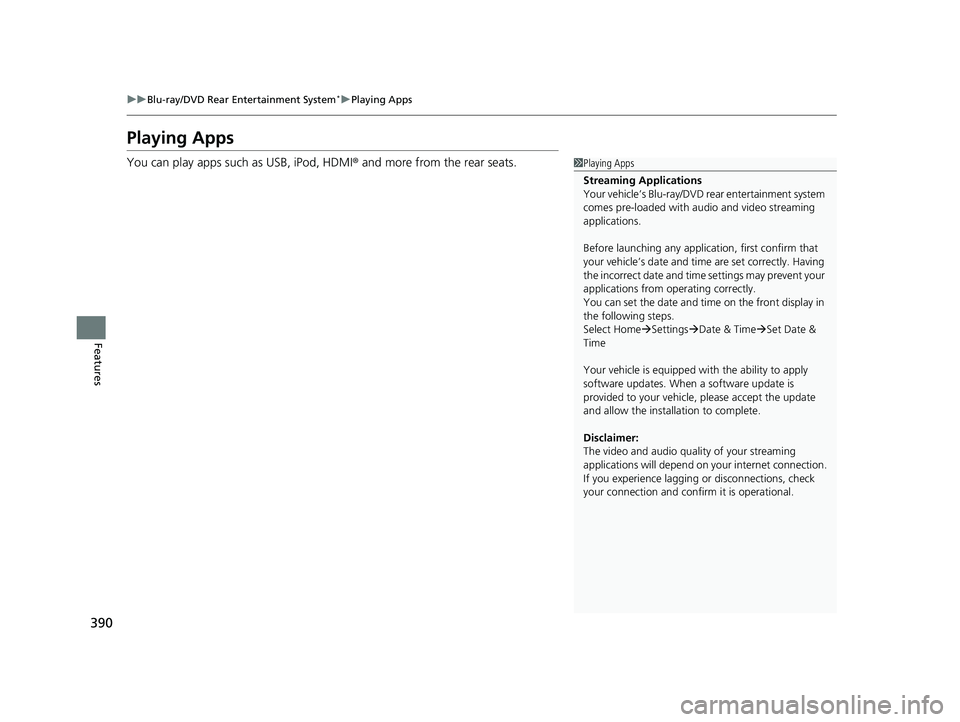

Playing Apps
You can play apps such as USB, iPod, HDMI ® and more from the rear seats.1Playing Apps
Streaming Applications
Your vehicle’s Blu-ray/DVD rear entertainment system
comes pre-loaded with a udio and video streaming
applications.
Before launching any application, first confirm that
your vehicle’s date and time are set correctly. Having
the incorrect date and time settings may prevent your
applications from operating correctly.
You can set the date and ti me on the front display in
the following steps.
Select Home Settings Date & Time Set Date &
Time
Your vehicle is equipped wi th the ability to apply
software updates. When a software update is
provided to your vehicle, please accept the update
and allow the installation to complete.
Disclaimer:
The video and audio qual ity of your streaming
applications will depend on your internet connection.
If you experience lagging or disconnections, check
your connection and conf irm it is operational.
22 PILOT-31TG76600.book 390 ページ ２０２１年６月１１日　金曜日　午後４時４０分

391
uuBlu-ray/DVD Rear Entertainment System*uPlaying Apps
Continued
Features

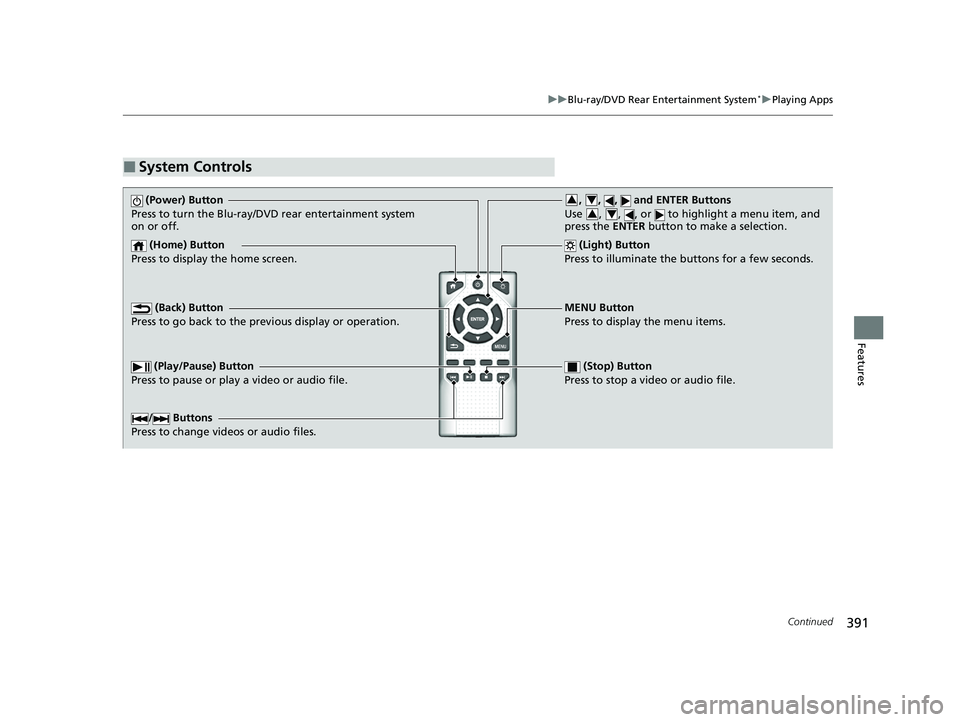

■System Controls
(Power) Button
Press to turn the Blu-ray/DVD rear entertainment system
on or off.
(Home) Button
Press to display the home screen. (Light) Button
Press to illuminate the buttons for a few seconds.
/ Buttons
Press to change videos or audio files.
(Play/Pause) Button
Press to pause or play a video or audio file. (Stop) Button
Press to stop a video or audio file.
MENU Button
Press to display the menu items.
(Back) Button
Press to go back to the pr evious display or operation.
, , , and ENTER Buttons
Use , , , or to highlight a menu item, and
press the ENTER button to make a selection.34
34
22 PILOT-31TG76600.book 391 ページ ２０２１年６月１１日　金曜日　午後４時４０分

uuBlu-ray/DVD Rear Entertainment System*uPlaying Apps
392
Features

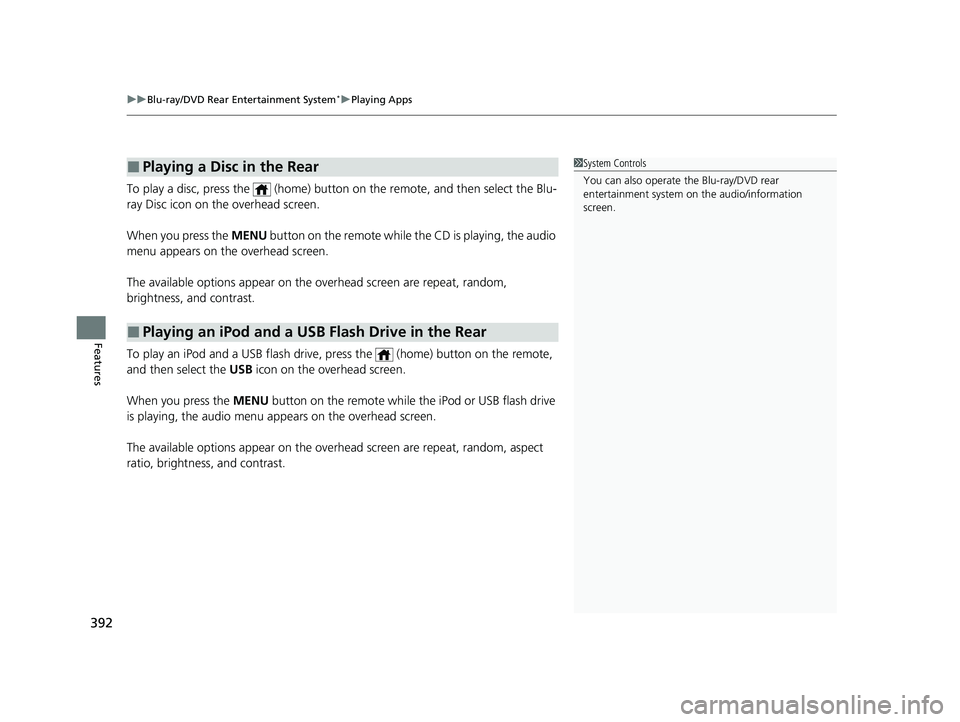

To play a disc, press the (home) button on the remote, and then select the Blu-
ray Disc icon on the overhead screen.
When you press the MENU button on the remote while the CD is playing, the audio
menu appears on the overhead screen.
The available options appear on the overhead screen are repeat, random,
brightness, and contrast.
To play an iPod and a USB flash drive, press the (home) button on the remote,
and then select the USB icon on the overhead screen.
When you press the MENU button on the remote while the iPod or USB flash drive
is playing, the audio menu ap pears on the overhead screen.
The available options appear on the over head screen are repeat, random, aspect
ratio, brightness, and contrast.
■Playing a Disc in the Rear
■Playing an iPod and a USB Flash Drive in the Rear
1 System Controls
You can also operate the Blu-ray/DVD rear
entertainment system on the audio/information
screen.
22 PILOT-31TG76600.book 392 ページ ２０２１年６月１１日　金曜日　午後４時４０分

393
uuBlu-ray/DVD Rear Entertainment System*uPlaying Apps
Continued
Features

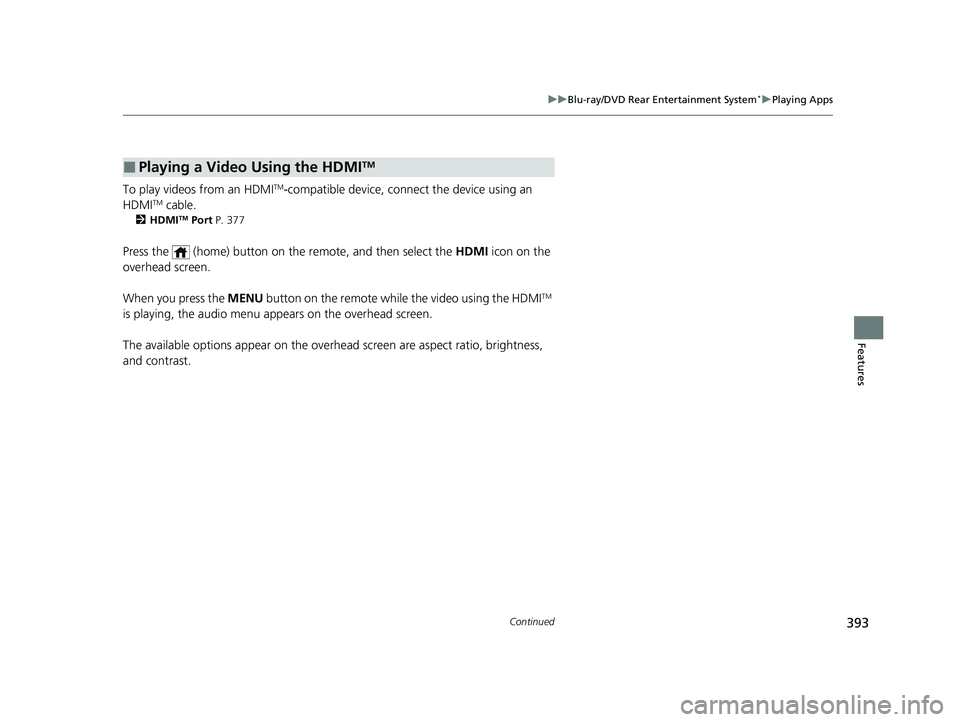

To play videos from an HDMITM-compatible device, connect the device using an
HDMITM cable.
2 HDMITM Port P. 377
Press the (home) button on th e remote, and then select the HDMI icon on the
overhead screen.
When you press the MENU button on the remote while the video using the HDMI
TM
is playing, the audio menu ap pears on the overhead screen.
The available options appear on the overhead screen are aspect ratio, brightness,
and contrast.
■Playing a Video Using the HDMITM
22 PILOT-31TG76600.book 393 ページ ２０２１年６月１１日　金曜日　午後４時４０分

uuBlu-ray/DVD Rear Entertainment System*uPlaying Apps
394
Features

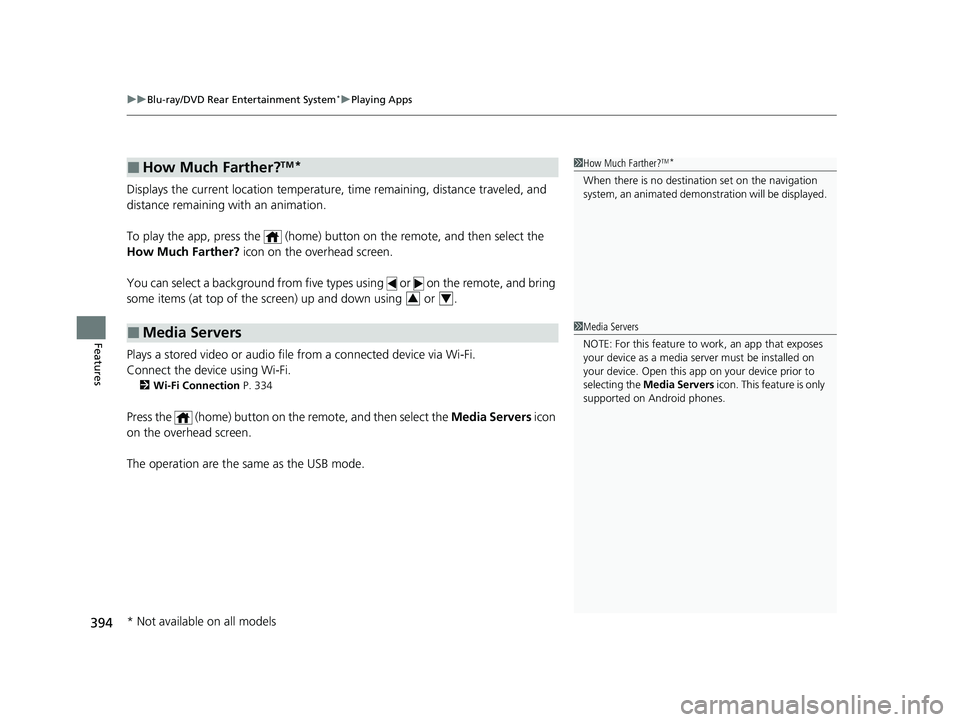

Displays the current location temperature, time remaining, distance traveled, and
distance remaining with an animation.
To play the app, press the (home) button on the remote, and then select the
How Much Farther? icon on the overhead screen.
You can select a background from five types using or on the remote, and bring
some items (at top of the screen) up and down using or .
Plays a stored video or audio file from a connected device via Wi-Fi.
Connect the device using Wi-Fi.
2 Wi-Fi Connection P. 334
Press the (home) button on the remote, and then select the Media Servers icon
on the overhead screen.
The operation are the same as the USB mode.
■How Much Farther?TM*
■Media Servers
1 How Much Farther?TM*
When there is no destinat ion set on the navigation
system, an animated demons tration will be displayed.
34
1Media Servers
NOTE: For this feature to work, an app that exposes
your device as a media se rver must be installed on
your device. Open this a pp on your device prior to
selecting the Media Servers icon. This feature is only
supported on Android phones.
* Not available on all models
22 PILOT-31TG76600.book 394 ページ ２０２１年６月１１日　金曜日　午後４時４０分

395
uuBlu-ray/DVD Rear Entertainment System*uAudio Sources for Front and Rear Seats
Features

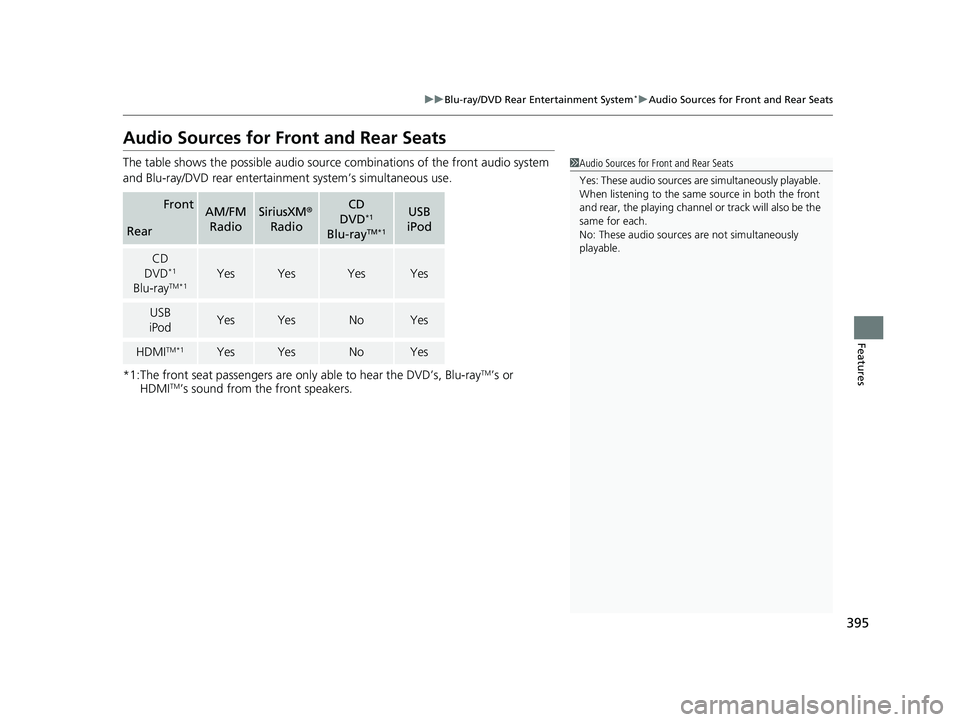

Audio Sources for Front and Rear Seats
The table shows the possible audio source combinations of the front audio system
and Blu-ray/DVD rear entertainm ent system’s simultaneous use.
*1:The front seat passengers are only able to hear the DVD’s, Blu-ray
TM’s or
HDMITM’s sound from the front speakers.
FrontAM/FM
RadioSiriusXM ®
RadioCD
DVD*1
Blu-rayTM*1
USB
iPod
Rear
CD
DVD*1
Blu-rayTM*1YesYesYesYes
USB
iPodYesYesNoYes
HDMITM*1YesYesNoYes
1 Audio Sources for Front and Rear Seats
Yes: These audio sources ar e simultaneously playable.
When listening to the same source in both the front
and rear, the playing channel or track will also be the
same for each.
No: These audio sources are not simultaneously
playable.
22 PILOT-31TG76600.book 395 ページ ２０２１年６月１１日　金曜日　午後４時４０分

396
uuBlu-ray/DVD Rear Entertainment System*uPlayable Discs
Features

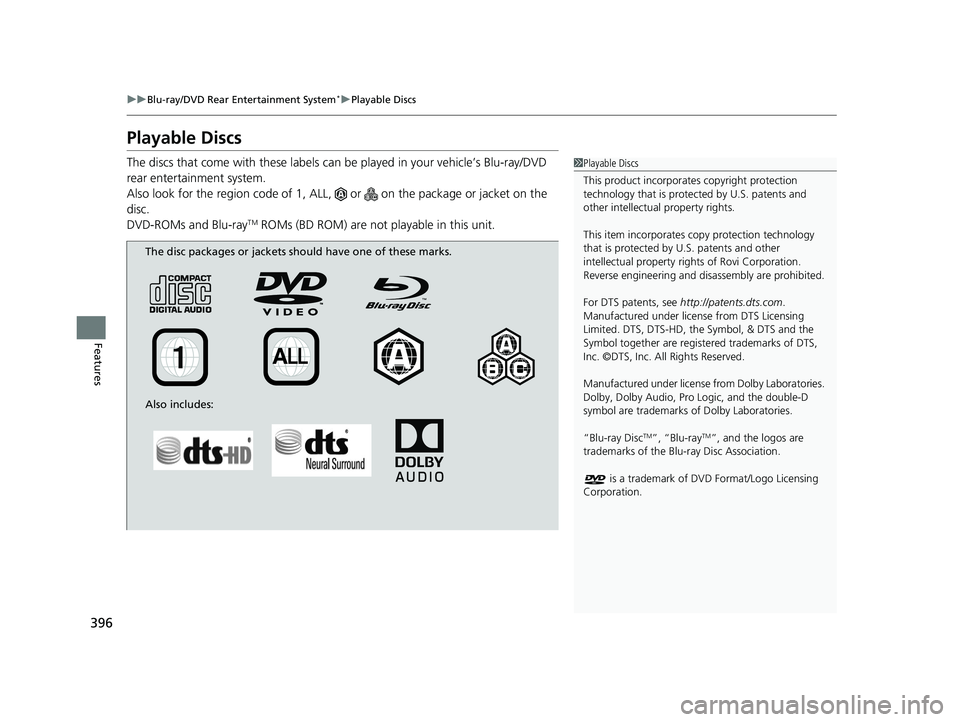

Playable Discs
The discs that come with these labels can be played in your vehicle’s Blu-ray/DVD
rear entertainment system.
Also look for the region code of 1, ALL, or on the package or jacket on the
disc.
DVD-ROMs and Blu-ray
TM ROMs (BD ROM) are not pl ayable in this unit.
1Playable Discs
This product incorporates copyright protection
technology that is protected by U.S. patents and
other intellectual property rights.
This item incorporates co py protection technology
that is protected by U.S. patents and other
intellectual property righ ts of Rovi Corporation.
Reverse engineering and di sassembly are prohibited.
For DTS patents, see http://patents.dts.com .
Manufactured under licens e from DTS Licensing
Limited. DTS, DTS-HD, the Symbol, & DTS and the
Symbol together are regist ered trademarks of DTS,
Inc. ©DTS, Inc. All Rights Reserved.
Manufactured under license from Dolby Laboratories.
Dolby, Dolby Audio, Pro Logic, and the double-D
symbol are trademarks of Dolby Laboratories.
“Blu-ray Disc
TM”, “Blu-rayTM”, and the logos are
trademarks of the Blu-ray Disc Association.
is a trademark of DVD Format/Logo Licensing
Corporation.
The disc packages or jackets should have one of these marks.
Also includes:
22 PILOT-31TG76600.book 396 ページ ２０２１年６月１１日　金曜日　午後４時４０分

397
uuBlu-ray/DVD Rear Entertainment System*uPlayable Discs
Continued
Features

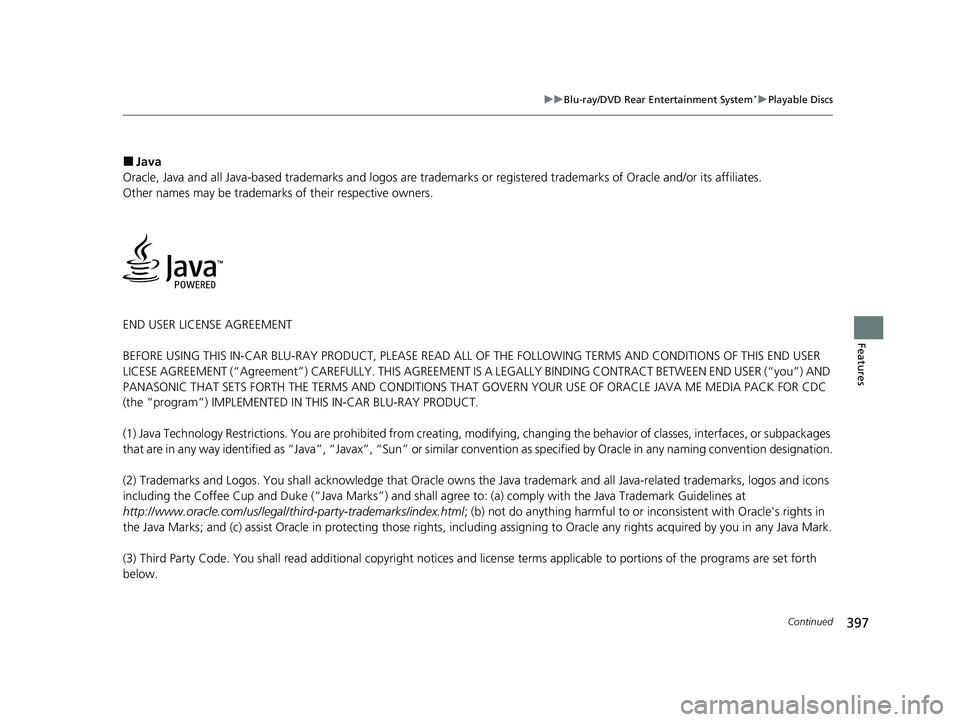

■Java
Oracle, Java and all Java-based trademarks and logos are trademar ks or registered trademarks of Oracle and/or its affiliates.
Other names may be trademarks of their respective owners.
END USER LICENSE AGREEMENT
BEFORE USING THIS IN-CAR BLU-RAY PRODUCT, PLEASE READ AL L OF THE FOLLOWING TERMS AND CONDITIONS OF THIS END USER
LICESE AGREEMENT (“Agreement”) CAREFULLY. THIS AGREEMENT IS A LEGALLY BINDI NG CONTRACT BETWEEN END USER (“you”) AND
PANASONIC THAT SETS FORTH THE TERMS AND CONDITIONS THAT GOV ERN YOUR USE OF ORACLE JAVA ME MEDIA PACK FOR CDC
(the “program”) IMPLEMENTED IN THIS IN-CAR BLU-RAY PRODUCT.
(1) Java Technology Restrictions. You are prohibited from creating , modifying, changing the behavior of classes, interfaces, or subpackages
that are in any way identified as “Java”, “Javax”, “Sun” or similar convention as sp ecified by Oracle in any naming convention designation.
(2) Trademarks and Logos. You sh all acknowledge that Oracle owns the Java trad emark and all Java-related trademarks, logos and icons
including the Coffee Cup and Duke (“Java Marks”) and shall agree to: (a) comply with the Java Trademark Guidelines at
http://www.oracle .com/us/legal/third-pa rty-trademarks/index.html ; (b) not do anything harmful to or in consistent with Oracle's rights in
the Java Marks; and (c) assist Oracle in protecting those rights, including assigning to Oracle any rights acquired by you in a ny Java Mark.
(3) Third Party Code. You shall read additi onal copyright notices and license terms ap plicable to portions of the programs are set forth
below.
22 PILOT-31TG76600.book 397 ページ ２０２１年６月１１日　金曜日　午後４時４０分

398
uuBlu-ray/DVD Rear Entertainment System*uPlayable Discs
Features

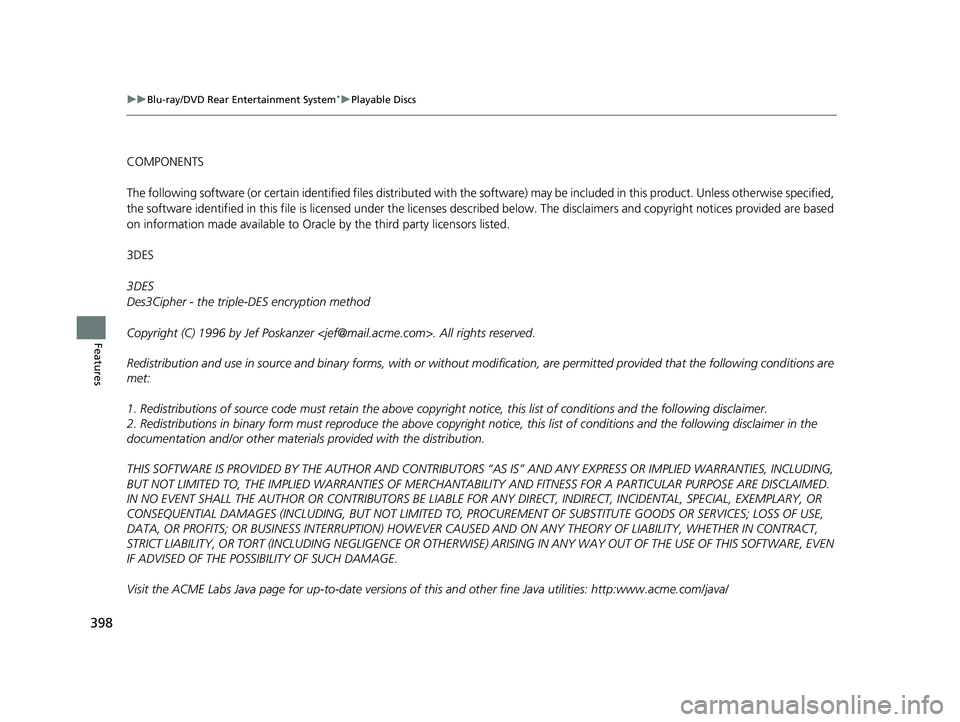

COMPONENTS
The following software (or certain identified files distributed with the software) may be included in this product. Unless otherwise specified,
the software identified in this file is licensed under the licenses described below. The disclaimers and copyright notices provided are based
on information made availabl e to Oracle by the third party licensors listed.
3DES
3DES
Des3Cipher - the triple-DES encryption method
Copyright (C) 1996 by Jef Poskanzer . All rights reserved.
Redistribution and use in source and binary forms, with or wit hout modification, are permitted provided that the following cond itions are
met:
1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaim er in the
documentation and/or other material s provided with the distribution.
THIS SOFTWARE IS PROVIDED BY THE AUTHOR AND CONTRIBUTO RS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING,
BUT NOT LIMITED TO, THE IMPLIED WARRANT IES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED.
IN NO EVENT SHALL THE AUTHOR OR CONTRIBUTORS BE LIABLE FO R ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR
CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INC LUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN
IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
Visit the ACME Labs Java page for up-to -date versions of this and other fine Java utilities: http:www.acme.com/java/
