HONDA PILOT 2022 Owners Manual

679

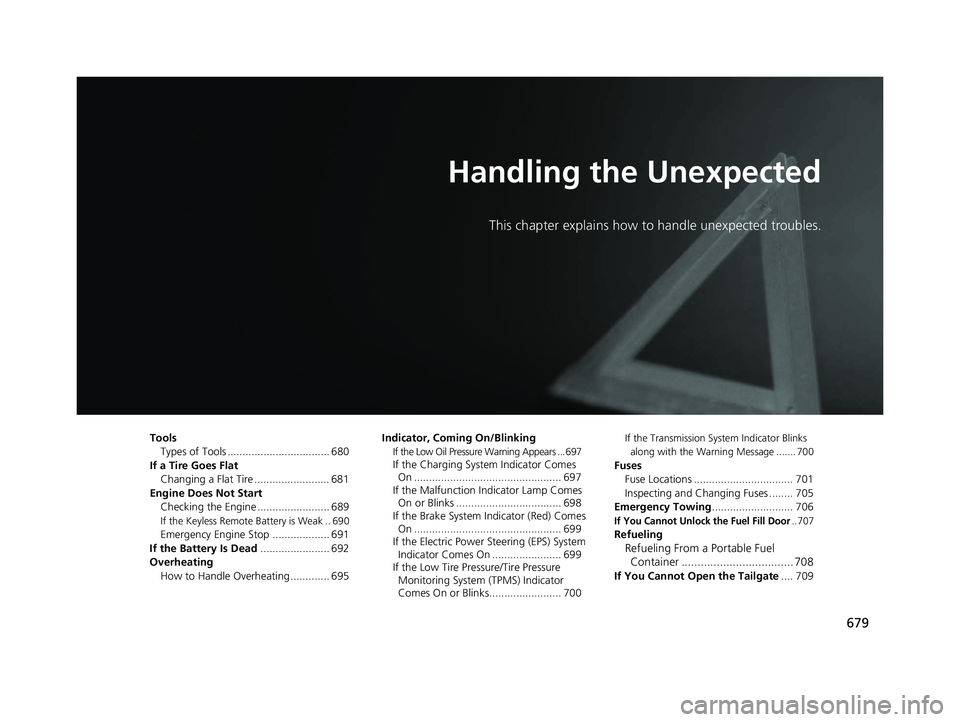

Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 680
If a Tire Goes Flat Changing a Flat Tire ......................... 681
Engine Does Not Start Checking the Engine ........................ 689
If the Keyless Remote Battery is Weak .. 690
Emergency Engine Stop ................... 691
If the Battery Is Dead ....................... 692
Overheating How to Handle Overheating ............. 695 Indicator, Coming On/Blinking
If the Low Oil Pressure Warning Appears ... 697If the Charging System Indicator Comes
On ................................................. 697
If the Malfunction Indicator Lamp Comes On or Blinks ................................... 698
If the Brake System Indicator (Red) Comes
On ................................................. 699
If the Electric Power Steering (EPS) System Indicator Comes On ....................... 699
If the Low Tire Pressure/Tire Pressure Monitoring System (TPMS) Indicator
Comes On or Blinks........................ 700
If the Transmission System Indicator Blinks
along with the Warning Message ....... 700
Fuses Fuse Locations ................................. 701
Inspecting and Changing Fuses ........ 705
Emergency Towing ........................... 706
If You Cannot Unlock the Fuel Fill Door.. 707
Refueling
Refueling From a Portable Fuel
Container ................................... 708
If You Cannot Open the Tailgate .... 709
22 PILOT-31TG76600.book 679 ページ ２０２１年６月１１日　金曜日　午後４時４０分

680
Handling the Unexpected

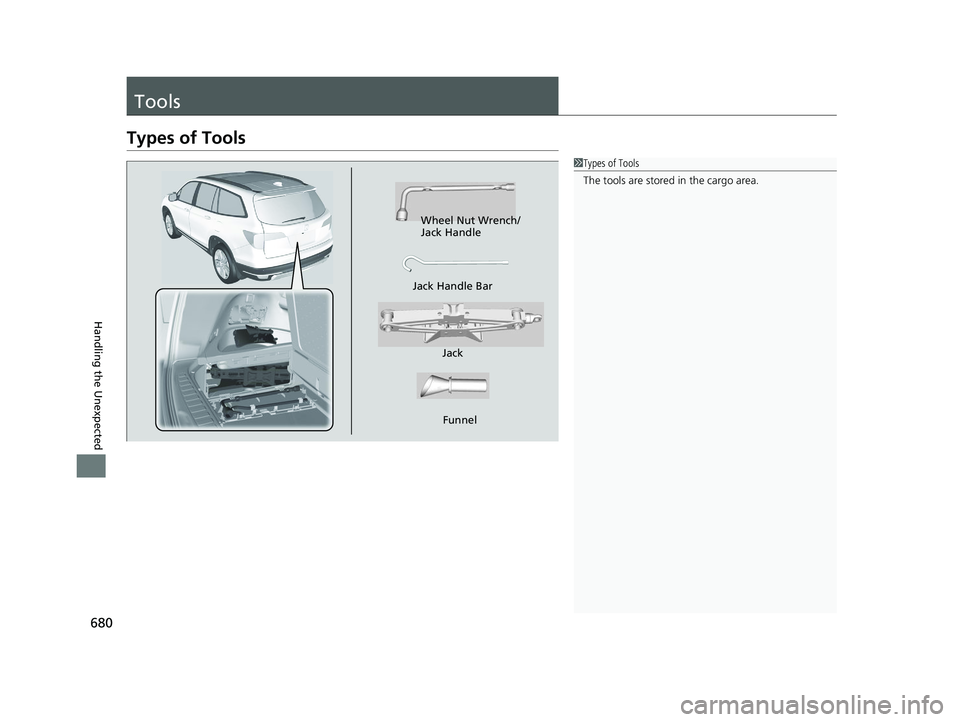

Tools
Types of Tools
1Types of Tools
The tools are stored in the cargo area.
Wheel Nut Wrench/
Jack Handle
Jack
Jack Handle Bar
Funnel
22 PILOT-31TG76600.book 680 ページ ２０２１年６月１１日　金曜日　午後４時４０分

681Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on a firm, level, non-slippery surface and apply the parking brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF
(LOCK).
1 Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use a puncture-repairi ng agent on a flat tire,
as it can damage the tire pressure sensor.
22 PILOT-31TG76600.book 681 ページ ２０２１年６月１１日　金曜日　午後４時４０分

uuIf a Tire Goes Flat uChanging a Flat Tire
682
Handling the Unexpected

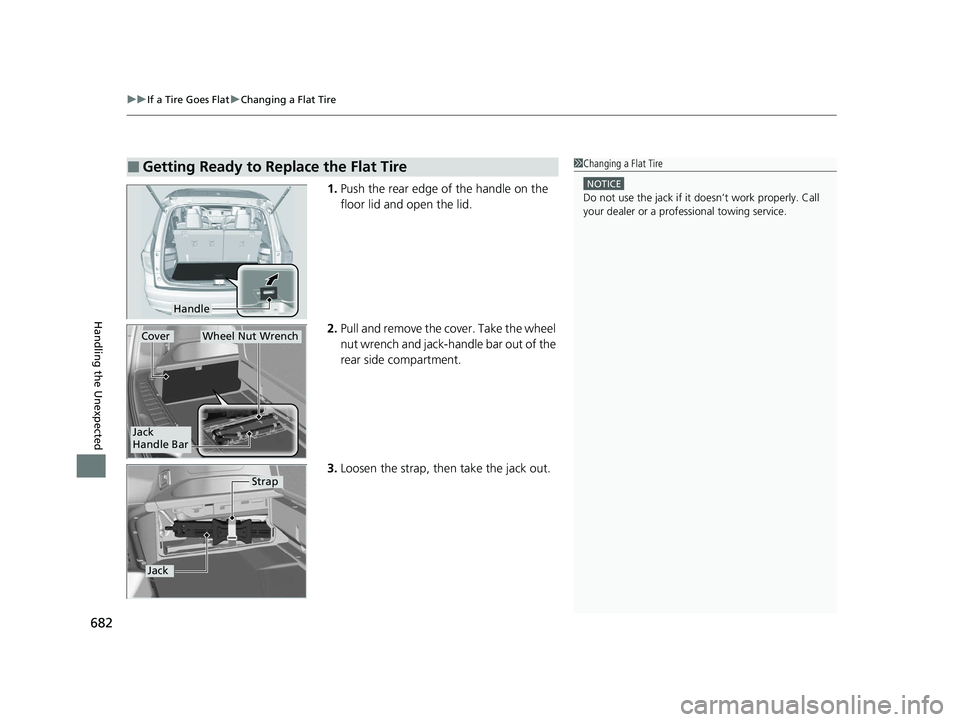

1. Push the rear edge of the handle on the
floor lid and open the lid.
2. Pull and remove the cover. Take the wheel
nut wrench and jack-handle bar out of the
rear side compartment.
3. Loosen the strap, th en take the jack out.
■Getting Ready to Replace the Flat Tire1Changing a Flat Tire
NOTICE
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
Handle
CoverWheel Nut Wrench
Jack
Handle Bar
Strap
Jack
22 PILOT-31TG76600.book 682 ページ ２０２１年６月１１日　金曜日　午後４時４０分

Continued683
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected

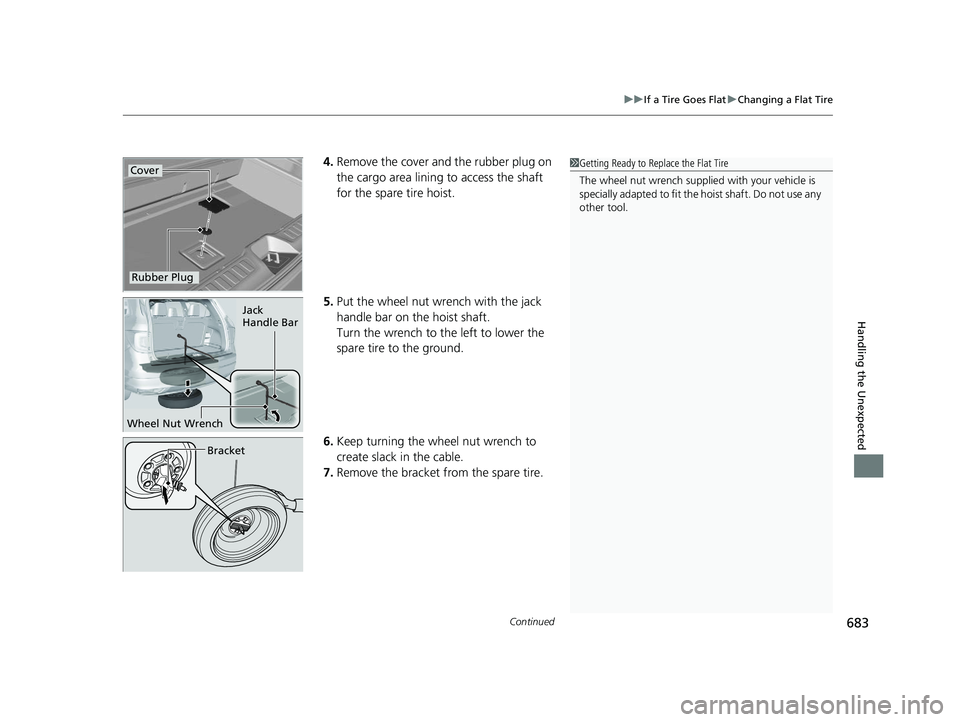

4. Remove the cover and the rubber plug on
the cargo area lining to access the shaft
for the spare tire hoist.
5. Put the wheel nut wrench with the jack
handle bar on the hoist shaft.
Turn the wrench to the left to lower the
spare tire to the ground.
6. Keep turning the wh eel nut wrench to
create slack in the cable.
7. Remove the bracket from the spare tire.1Getting Ready to Replace the Flat Tire
The wheel nut wrench supplied with your vehicle is
specially adapted to fit the hoist shaft. Do not use any
other tool.Cover
Rubber Plug
Jack
Handle Bar
Wheel Nut Wrench
Bracket
22 PILOT-31TG76600.book 683 ページ ２０２１年６月１１日　金曜日　午後４時４０分

684
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected

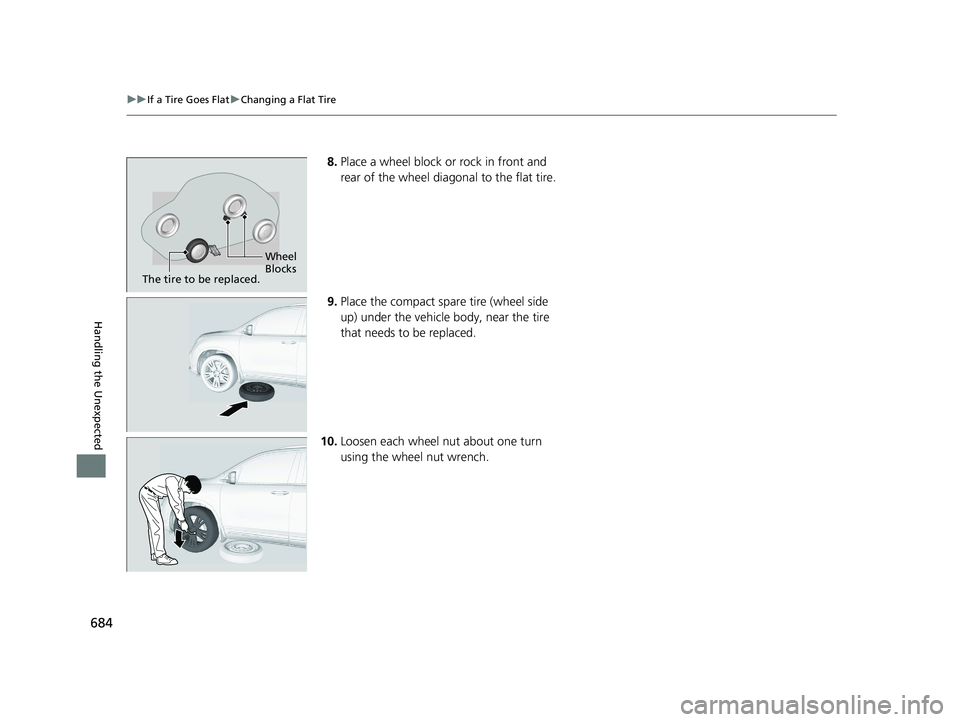

8. Place a wheel block or rock in front and
rear of the wheel diagonal to the flat tire.
9. Place the compact spare tire (wheel side
up) under the vehicle body, near the tire
that needs to be replaced.
10. Loosen each wheel nut about one turn
using the wheel nut wrench.
Wheel
Blocks
The tire to be replaced.
22 PILOT-31TG76600.book 684 ページ ２０２１年６月１１日　金曜日　午後４時４０分

Continued685
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Place the jack under the jacking point
closest to the tire to be changed.
2. Turn the end bracket cl ockwise as shown in
the image until the top of the jack contacts
the jacking point.
u Make sure that the jacking point tab is
resting in the jack notch.
3. Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off the
ground.
■How to Set Up the Jack1How to Set Up the Jack
Do not use the jack with people or luggage in the
vehicle.
Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.
The following instructions must be followed to use
the jack safely:
•Do not use while the engine is running.
•Use only where the ground is firm and level.
•Use only at the jacking points.•Do not get in the vehicl e while using the jack.
•Do not put anything on top of or underneath the
jack.
3WARNING
The vehicle can easily roll off the jack,
seriously injuring anyone underneath.
Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.
Jacking
Points
Jack Handle Bar
Wheel Nut Wrench as Jack Handle
22 PILOT-31TG76600.book 685 ページ ２０２１年６月１１日　金曜日　午後４時４０分

uuIf a Tire Goes Flat uChanging a Flat Tire
686
Handling the Unexpected

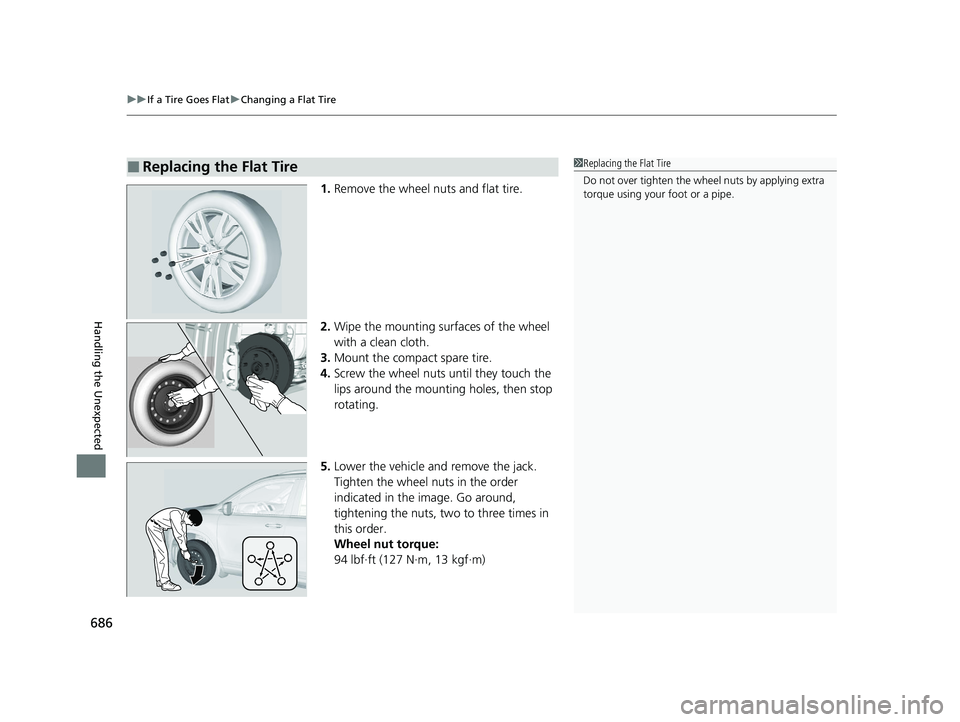

1. Remove the wheel nuts and flat tire.
2. Wipe the mounting surfaces of the wheel
with a clean cloth.
3. Mount the compact spare tire.
4. Screw the wheel nuts until they touch the
lips around the mounting holes, then stop
rotating.
5. Lower the vehicle and remove the jack.
Tighten the wheel nuts in the order
indicated in the image. Go around,
tightening the nuts, two to three times in
this order.
Wheel nut torque:
94 lbf∙ft (127 N∙m, 13 kgf∙m)
■Replacing the Flat Tire1Replacing the Flat Tire
Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.
22 PILOT-31TG76600.book 686 ページ ２０２１年６月１１日　金曜日　午後４時４０分

Continued687
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected

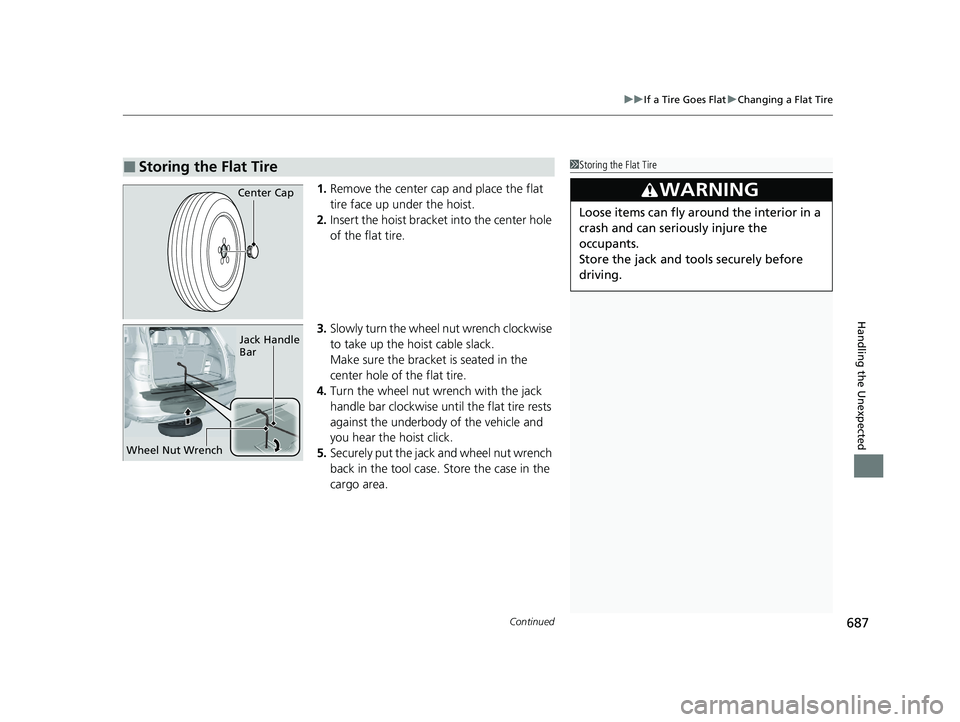

1. Remove the center cap and place the flat
tire face up under the hoist.
2. Insert the hoist bracket into the center hole
of the flat tire.
3. Slowly turn th e wheel nut wrench clockwise
to take up the hoist cable slack.
Make sure the bracket is seated in the
center hole of the flat tire.
4. Turn the wheel nut wrench with the jack
handle bar clockwise until the flat tire rests
against the underbody of the vehicle and
you hear the hoist click.
5. Securely put the jack and wheel nut wrench
back in the tool case. Store the case in the
cargo area.
■Storing the Flat Tire1Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the jack and tools securely before
driving.
Center Cap
Wheel Nut Wrench Jack Handle
Bar
22 PILOT-31TG76600.book 687 ページ ２０２１年６月１１日　金曜日　午後４時４０分

uuIf a Tire Goes Flat uChanging a Flat Tire
688
Handling the Unexpected

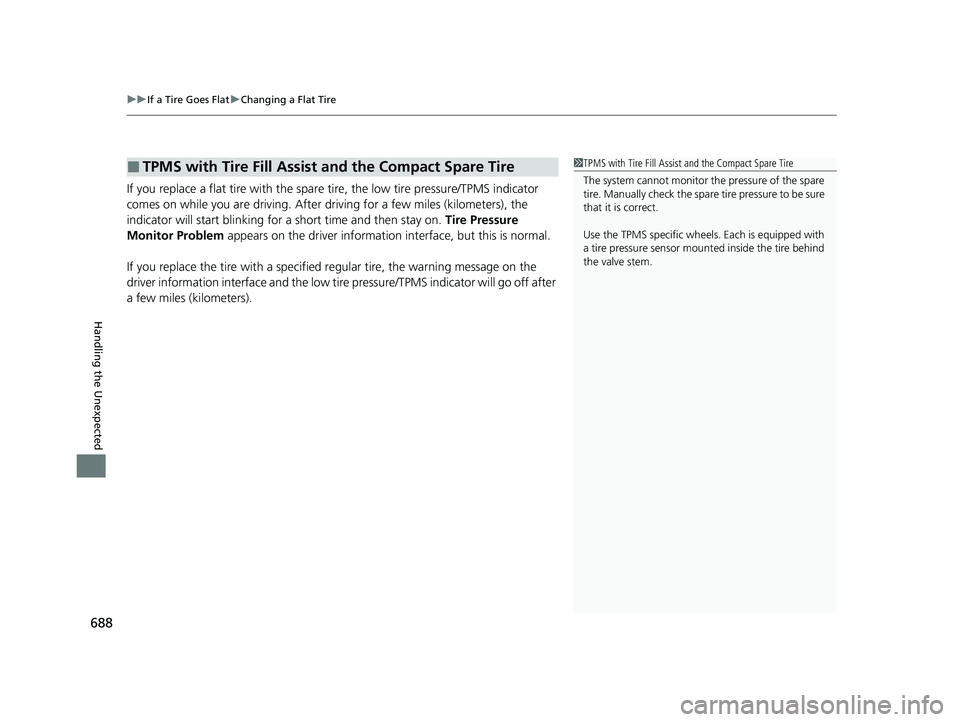

If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), the
indicator will start blinking for a short time and then stay on. Tire Pressure
Monitor Problem appears on the driver information interface, but this is normal.
If you replace the tire with a specified regular tire, the warning message on the
driver information interface and the low tire pressure/TPMS indi cator will go off after
a few miles (kilometers).
■TPMS with Tire Fill Assist and the Compact Spare Tire1 TPMS with Tire Fill Assist and the Compact Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use the TPMS specific wheels. Each is equipped with
a tire pressure sensor mount ed inside the tire behind
the valve stem.
