HONDA PILOT 2023 Owners Manual

120
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Safety Support
Indicator (Green/
Gray)
●Lights up in green when Road Departure
Mitigation system, CMBSTM, Low Speed
Braking Control*, blind spot information
system*, and Parking Sensor System* are
on.
●Lights up in green and gray when Road
Departure Mitiga tion system, CMBSTM, Low
Speed Braking Control*, blind spot
information system*, or Parking Sensor
System*, or any two, three or four of these
systems are off.
●Lights up in gray when Road Departure
Mitigation system, CMBSTM, Low Speed
Braking Control*, blind spot information
system*, and Parking Sensor System* are
off.
2 Road Departure Mitigation System P. 634
2 Blind Spot Information System* P. 563
2 Low Speed Braking Control* P. 584
2 Collision Mitigation Braking SystemTM
(CMBSTM) P. 572
2 Parking Sensor System* P. 663
* Not available on all models
23 PILOT-31T906000_03.book 120 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

121Continued
Instrument Panel

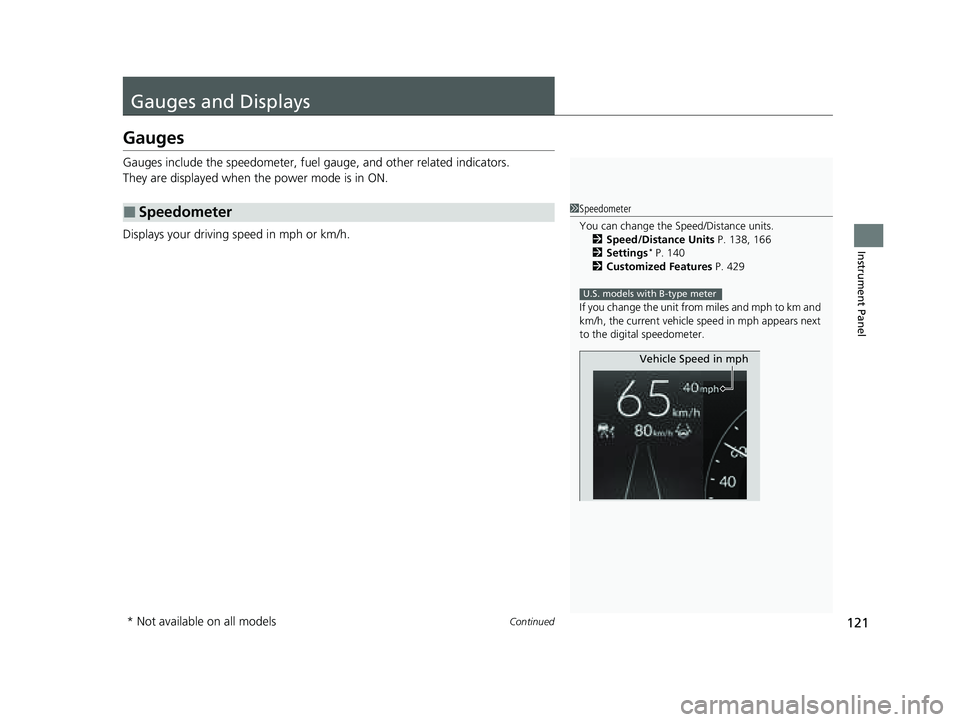

Gauges and Displays
Gauges
Gauges include the speedometer, fuel gauge, and other related indicators.
They are displayed when the power mode is in ON.
Displays your driving speed in mph or km/h.
■Speedometer1 Speedometer
You can change the Speed/Distance units.
2 Speed/Distance Units P. 138, 166
2 Settings
* P. 140
2 Customized Features P. 429
If you change the unit from miles and mph to km and
km/h, the current vehicle speed in mph appears next
to the digital speedometer.
U.S. models with B-type meter
Vehicle Speed in mph
* Not available on all models
23 PILOT-31T906000_03.book 121 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuGauges and Displays uGauges
122
Instrument Panel
Shows the number of engine revolutions per minute.
Displays the amount of fuel left in the fuel tank.
Displays the temperature of the engine coolant.
Shows the total number of miles or kilome ters that your vehicle has accumulated.
■Tachometer
■Fuel Gauge
■Temperature Gauge
■Odometer
1Tachometer
You can turn the tachom eter display on or off.
2 Settings
* P. 140
2 Customized Features P. 429
Models with A-type meter
1Fuel Gauge
NOTICE
You should refuel when the reading approaches .
Running out of fuel can cause the engine to misfire,
damaging the cata lytic converter.
The actual amount of remain ing fuel may differ from
the fuel gauge reading.E
Models with B-type meter
1 Temperature Gauge
NOTICE
Driving with the temperat ure gauge reading in the
upper zone can cause serious engine damage. Pull
safely to the side of th e road and allow engine
temperature to return to normal.
2 Overheating P. 769
* Not available on all models
23 PILOT-31T906000_03.book 122 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued123
uuGauges and Displays uGauges
Instrument Panel
Shows the outside temperature in Fahr enheit (U.S.) or Celsius (Canada).
■Adjusting the outside temperature display
Adjust the temperature reading by up to ±5°F or ±3°C if the temperature reading
seems incorrect.
Shows certain detected traffic signs while driving.
If speed limit warning is activated, the si gn icon blinks when the maximum speed of
the traffic sign detected is exceeded by a threshold, when compared with the vehicle
speed.
2 Traffic Sign Recognition System P. 642
■Outside Temperature
■Traffic Sign Recognition System
1Outside Temperature
The temperature sensor is in the front bumper.
Road heat and exhaust from another vehicle can
affect the temperature reading when your vehicle
speed is less than 19 mph (30 km/h).
It may take several minutes for the display to be
updated after the temperature reading has stabilized.
You can adjust the temperature reading.
2 Settings
* P. 140
2 Customized Features P. 429
1Traffic Sign Recognition System
The default speed limit wa rning threshold is the
maximum speed of the traffic sign detected.
You can adjust the threshol d for speed limit warning.
2 Settings
* P. 140
2 Customized Features P. 429
Models with A-type meterModels with B-type meter
* Not available on all models
23 PILOT-31T906000_03.book 123 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuGauges and Displays uGauges
124
Instrument Panel
Shows the current mode for ACC with Lo w Speed Follow, LKAS, and Traffic Jam
Assist.
2 Adaptive Cruise Control (ACC) with Low Speed Follow P. 590
2 Lane Keeping Assist System (LKAS) P. 612
2 Traffic Jam Assist P. 625
Shows the clock.
You can adjust the time manually and change the clock display to show the 12 hour
clock or 24 hour clock.
2Clock P. 176
■Current Mode for ACC with Low Speed Follow, the LKAS,
and Traffic Jam Assist
■Clock
1 Current Mode for ACC with Lo w Speed Follow, the LKAS, and
Traffic Jam Assist
When you set speed for ACC with Low Speed Follow
or cruise control, a set speed mark will be displayed
on the speedometer.
Models with B-type meter
Set
Speed
Models with A-type meter
23 PILOT-31T906000_03.book 124 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

125
uuGauges and Displays uDriver Information Interface (A-type Meter)
Continued
Instrument Panel
Driver Information In terface (A-type Meter)
The driver information interface shows information such as the estimated travelable
distance and fuel economy of the vehicle. It also displays messages such as warnings
to other helpful information.
When a warning message displays, please check the message and contact a dealer
to have the vehicle inspected if necessary. Please refer to the pages below if the
Engine oil pressure low or Engine temperature too hot message is displayed.
2If the Engine oil pressure low Warning Appears P. 771
2 Overheating P. 769

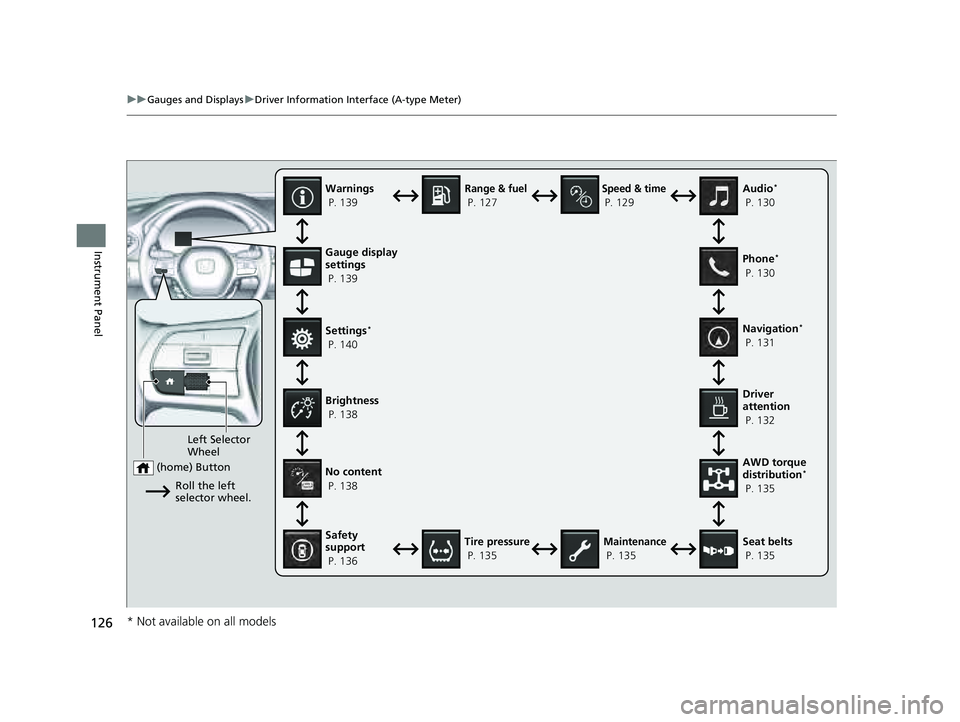

Press the (home) button, th en roll the left selector wheel to scroll to the content
you want to see. Press the left sele ctor wheel to see detailed information.
■Switching the Display1Switching the Display
You can add or delete the meter contents.
2 Gauge Display Settings P. 139
23 PILOT-31T906000_03.book 125 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

126
uuGauges and Displays uDriver Information Interface (A-type Meter)
Instrument PanelGauge display
settings
P. 139
Left Selector
Wheel
(home) Button
Roll the left
selector wheel.
No content
P. 138
Speed & time
P. 129
Warnings
P. 139
Range & fuel
P. 127
Settings
*
P. 140 Driver
attention
P. 132
Seat belts
P. 135
Safety
support
P. 136
Maintenance
P. 135
Brightness
P. 138
Tire pressure
P. 135 AWD torque
distribution
*
P. 135 Navigation
*
P. 131 Phone
*
P. 130 Audio
*
P. 130
* Not available on all models
23 PILOT-31T906000_03.book 126 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

127
uuGauges and Displays uDriver Information Interface (A-type Meter)
Continued
Instrument Panel

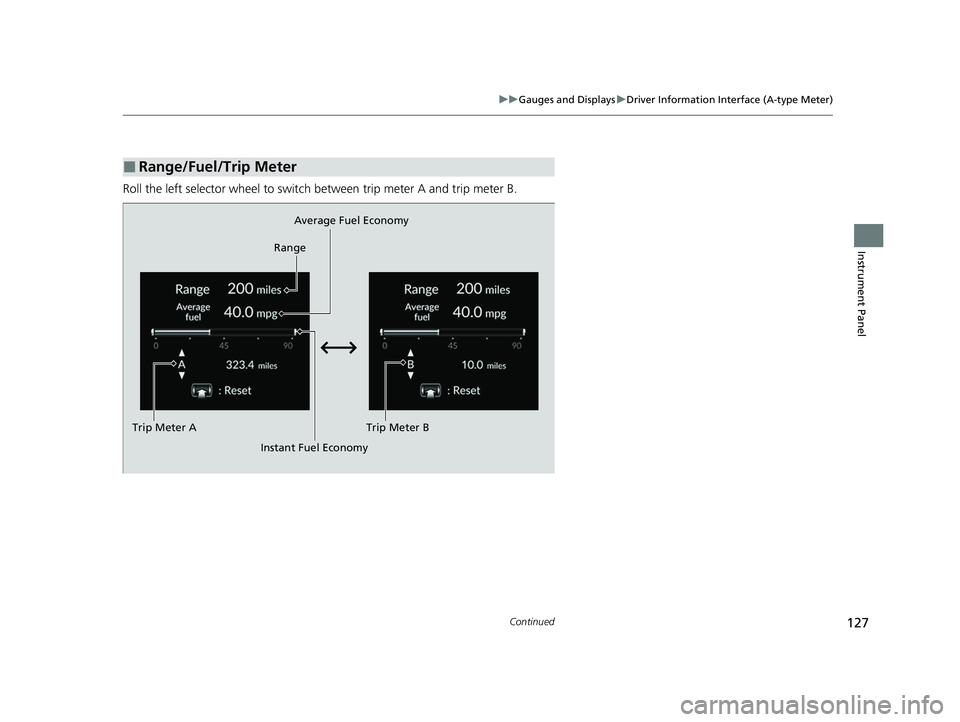

Roll the left selector wheel to switch between trip meter A and trip meter B.
■Range/Fuel/Trip Meter
Average Fuel Economy
Range
Trip Meter B
Instant Fuel Economy
Trip Meter A
23 PILOT-31T906000_03.book 127 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuGauges and Displays uDriver Information Interface (A-type Meter)
128
Instrument Panel

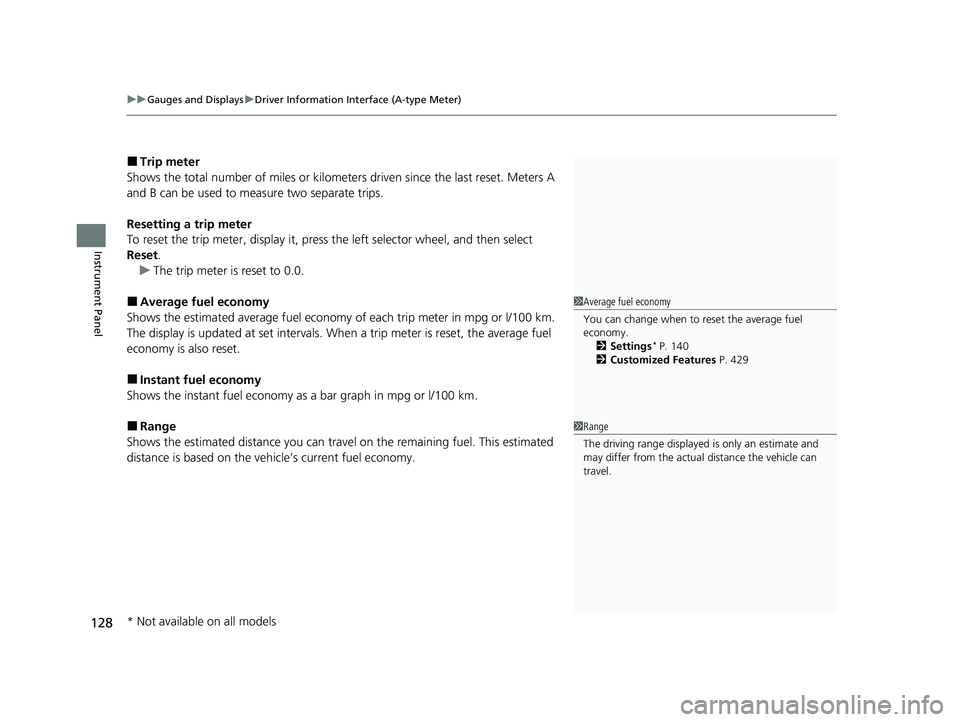

■Trip meter
Shows the total number of miles or kilomete rs driven since the last reset. Meters A
and B can be used to measure two separate trips.
Resetting a trip meter
To reset the trip meter, display it, press the left selector wheel, and then select
Reset .
u The trip meter is reset to 0.0.
■Average fuel economy
Shows the estimated average fuel economy of each trip meter in mpg or l/100 km.
The display is updated at set intervals. When a trip meter is reset, the average fuel
economy is also reset.
■Instant fuel economy
Shows the instant fuel economy as a bar graph in mpg or l/100 km.
■Range
Shows the estimated distance you can trave l on the remaining fuel. This estimated
distance is based on the vehicle’s current fuel economy.
1 Average fuel economy
You can change when to reset the average fuel
economy.
2 Settings
* P. 140
2 Customized Features P. 429
1Range
The driving range displayed is only an estimate and
may differ from the actual distance the vehicle can
travel.
* Not available on all models
23 PILOT-31T906000_03.book 128 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

129
uuGauges and Displays uDriver Information Interface (A-type Meter)
Continued
Instrument Panel

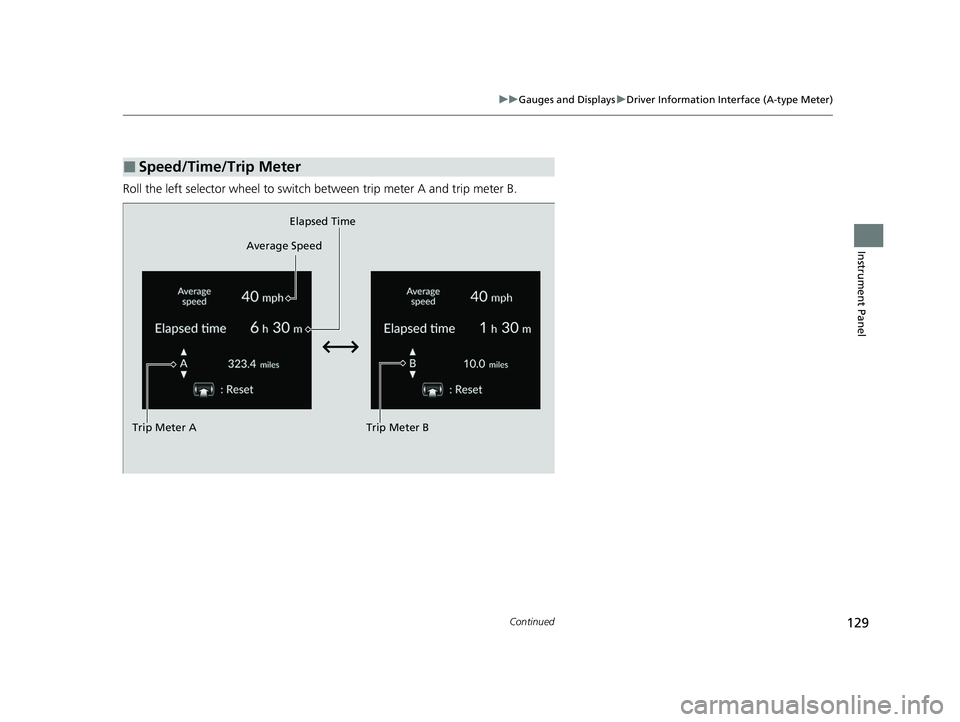

Roll the left selector wheel to switch between trip meter A and trip meter B.
■Speed/Time/Trip Meter
Trip Meter B
Average Speed
Trip Meter A Elapsed Time
