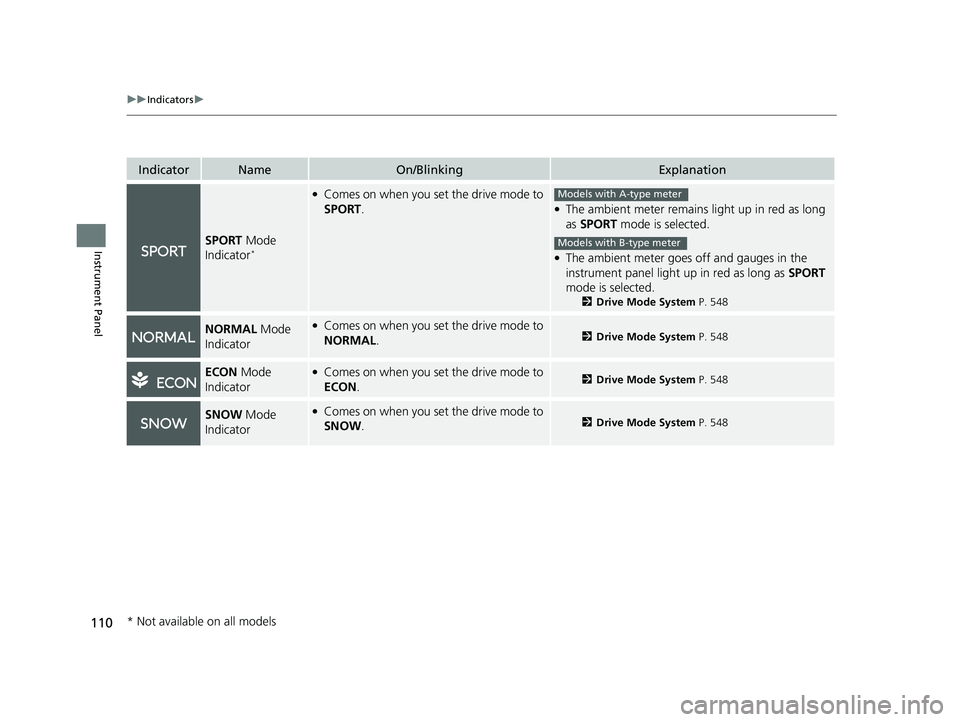

HONDA PILOT 2023 Owners Manual

110
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
SPORT Mode
Indicator*
●Comes on when you set the drive mode to
SPORT.●The ambient meter remains light up in red as long
as SPORT mode is selected.
●The ambient meter goes off and gauges in the
instrument panel light up in red as long as SPORT
mode is selected.
2 Drive Mode System P. 548
NORMAL Mode
Indicator●Comes on when you set the drive mode to
NORMAL .2Drive Mode System P. 548
ECON Mode
Indicator●Comes on when you set the drive mode to
ECON .2Drive Mode System P. 548
SNOW Mode
Indicator●Comes on when you set the drive mode to
SNOW .2Drive Mode System P. 548
Models with A-type meter
Models with B-type meter
* Not available on all models
23 PILOT-31T906000_03.book 110 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

111
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
TRAIL Mode
Indicator*
●Comes on when you set the drive mode to
TRAIL .2Drive Mode System P. 548
SAND Mode
Indicator*
●Comes on when you set the drive mode to
SAND.2Drive Mode System P. 548
TOW Mode
Indicator●Comes on when you set the drive mode to
TOW.2 Drive Mode System P. 548
Low Temperature
Indicator*
●Comes on when the engine coolant
temperature is low.●If the indicator stays on after the engine has
reached normal operating temperature, there may
be a problem with the temperature sensors. Have
your vehicle inspected by a dealer.
* Not available on all models
23 PILOT-31T906000_03.book 111 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

112
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Immobilizer System
Indicator
•Blinks if the immobilizer system cannot
recognize the key information.•Blinks - You cannot start the engine. Set the
power mode to VEHICLE OF F, then select the ON
mode again.
Depress and hold the brake pedal before setting
the power mode to ON.
• Repeatedly blinks - The system may be
malfunctioning. Have your vehicle checked by a
dealer.
• Do not attempt to alter this system or add other
devices to it. Electrical problems can occur.
Security System
Alarm Indicator
•Blinks when the securi ty system alarm has
been set.
2 Security System Alarm P. 207
Models with
A-type meter
Indicator
Indicator
Models with
B-type meter
Canadian models
Models with
A-type meter
Indicator
Indicator
Models with
B-type meter
23 PILOT-31T906000_03.book 112 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

113
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Auto Idle Stop OFF
Indicator
●Comes on when the Auto Idle Stop system
has been turned off by the Auto Idle Stop
OFF button.
2Auto Idle Stop System ON/OFF P. 543
Auto Idle Stop
System Indicator
(Amber)●Blinks if there is a problem with the Auto
Idle Stop system.●Have your vehicle checked by a dealer.
Auto Idle Stop
Indicator (Green)●Comes on when Auto Idle Stop is in
operation. The engine automatically shuts
off.
2Auto Idle Stop P. 542
23 PILOT-31T906000_03.book 113 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

114
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Auto Idle Stop
Suspend Indicator
●Comes on while Auto Idle Stop is
temporarily suspended in the following
situations.
—
-Brake pedal is not fully pressed●Depress the brake pedal firmly.
-The transmission is in a position other than
(D
2Auto Idle Stop P. 542-System charging is prioritized
-Climate control system is prioritized
-Engine coolant temperature is not in
operating range
-SNOW , TOW, SPORT*, TRAIL*, or SAND*
mode is selected.2 Auto Idle Stop P. 542
2 Drive Mode System P. 548
-The battery temperature is too low.
- Auto Idle Stop does not activate for some
reason.
2 Auto Idle Stop P. 542
—
●If you press and hold the Auto Idle Stop OFF
button, you can select whether to display the status
messages or not.
* Not available on all models
23 PILOT-31T906000_03.book 114 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

115
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Adaptive Cruise
Control (ACC) with
Low Speed Follow
Indicator (Amber)
●Comes on if there is a problem with ACC
with Low Speed Follow.●Comes on while driving - Have your vehicle
checked by a dealer.
●Comes on if the ACC with Low Speed
Follow is deactivated temporarily after the
battery has been disconnected, then re-
connected.●Drive a short distance at more than 12 mph (20 km/h).
The indicator should go off. If it does not, have your
vehicle checked by a dealer.
●Indicator may come on temporarily when
the Maximum Load Limit is exceeded.
●ACC with Low Speed Follow has been
automatically canceled.
●Make sure the total load is within the Maximum
Load Limit.
2 Maximum Load Limit P. 505●Stays on constantly - Have your vehicle checked
by a dealer.
Adaptive Cruise
Control (ACC) with
Low Speed Follow
Indicator
(White/Green)●Lights up in white when you press the
button.
●Lights up in green when you press the RES/
+/ SET/− switch up or down.2Adaptive Cruise Control (ACC) with Low
Speed Follow P. 590
23 PILOT-31T906000_03.book 115 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

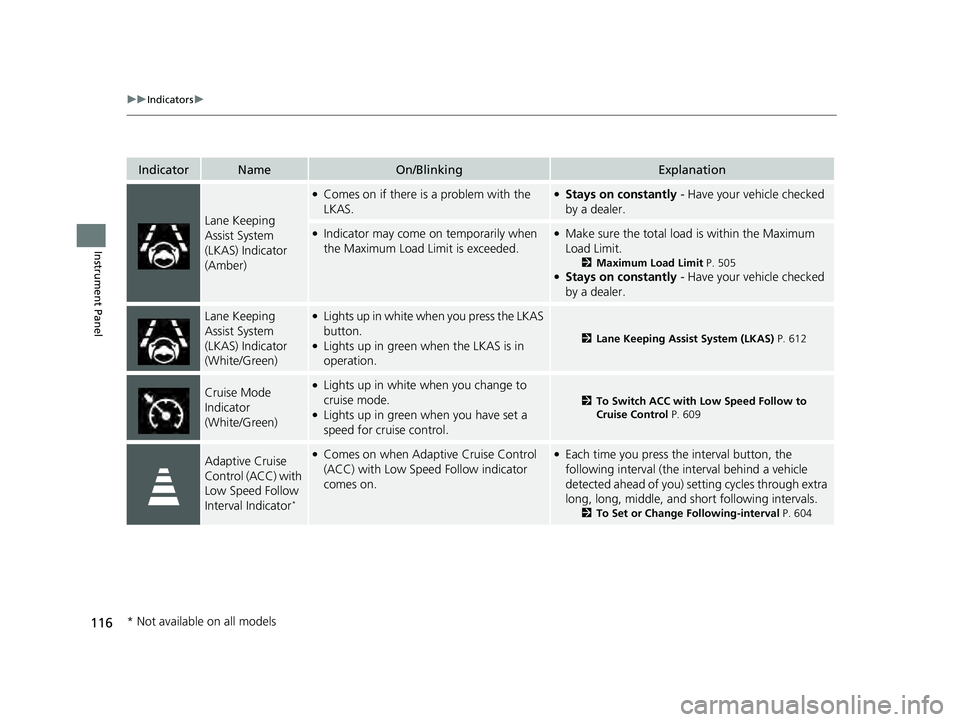

116
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Lane Keeping
Assist System
(LKAS) Indicator
(Amber)
●Comes on if there is a problem with the
LKAS.●Stays on constantly - Have your vehicle checked
by a dealer.
●Indicator may come on temporarily when
the Maximum Load Limit is exceeded.●Make sure the total load is within the Maximum
Load Limit.
2 Maximum Load Limit P. 505●Stays on constantly - Have your vehicle checked
by a dealer.
Lane Keeping
Assist System
(LKAS) Indicator
(White/Green)●Lights up in white wh en you press the LKAS
button.
●Lights up in green when the LKAS is in
operation.2 Lane Keeping Assist System (LKAS) P. 612
Cruise Mode
Indicator
(White/Green)●Lights up in white when you change to
cruise mode.
●Lights up in green when you have set a
speed for cruise control.
2To Switch ACC with Low Speed Follow to
Cruise Control P. 609
Adaptive Cruise
Control (ACC) with
Low Speed Follow
Interval Indicator
*
●Comes on when Adaptive Cruise Control
(ACC) with Low Speed Follow indicator
comes on.●Each time you press the interval button, the
following interval (the interval behind a vehicle
detected ahead of you) se tting cycles through extra
long, long, middle, and short following intervals.
2 To Set or Change Following-interval P. 604
* Not available on all models
23 PILOT-31T906000_03.book 116 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

117
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Safety Support
Indicator (Amber)
●Comes on if there is a problem with Road
Departure Mitigati on system, CMBSTM, Low
Speed Braking Control* or blind spot
information system*.
●Stays on constantly - Have your vehicle checked
by a dealer.
●Comes on if there is a problem with the
parking sensor.
●Check if the area around the sensor(s) is covered
with mud, ice, snow, etc. If the indicator stays on
even after you clean the area, have the system
checked by a dealer.
●Indicator may come on temporarily when
the Maximum Load Limit is exceeded.●Make sure the total load is within the Maximum
Load Limit.
2 Maximum Load Limit P. 505●Stays on constantly - Have your vehicle checked
by a dealer.
●Comes on if the Road Departure Mitigation
system, CMBSTM and Low Speed Braking
Control* are deactivated temporarily after
the battery has been disconnected and
then re-connected.
●Drive a short distance at more than 12 mph (20
km/h). The indicator should go off. If it does not,
have your vehicle checked by a dealer.
Models with Parking Sensor System
* Not available on all models
23 PILOT-31T906000_03.book 117 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

118
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Safety Support
Indicator (Amber)
●Comes on when the Road Departure
Mitigation system and/or CMBSTM shuts
itself off.
●Indicator may come on temporarily if the radar
sensor cannot detect any objects when passing
through an enclosed spac e such as a tunnel, or
driving on an open road without any structures
nearby.
●The area around the radar sensor is blocked by dirt,
mud, etc. Stop your vehicle in a safe place and wipe
the debris off with a soft cloth. Indicator may take
some time to go off after the radar sensor is
cleaned.
●Have your vehicle checked by a dealer if the
indicator does not go o ff even after you have
cleaned the radar sensor.
2 Radar Sensor P. 650
●Stays on - The temperature inside the camera is
too high.
Use the climate control sy stem to cool down the
camera.
The system activates when the temperature inside
the camera cools down.
2 Front Sensor Camera P. 648
23 PILOT-31T906000_03.book 118 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

119
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanation
Safety Support
Indicator (Amber)
●Comes on when the Road Departure
Mitigation system and/or CMBSTM shuts
itself off.
●Stays on - The area around the camera is blocked
by dirt, mud, etc. Stop yo ur vehicle in a safe place
and wipe the debris off with a soft cloth.
●Have your vehicle checked by a dealer if the
indicator and message are still displayed even after
you have cleaned the area around the camera.
2 Front Sensor Camera P. 648●It may come on when the ambient conditions are
dark, such as when driving in a tunnel, or at night,
dawn, or dusk.
●Comes on when mud, snow, or ice
accumulates in the vicinity of the sonar
sensor.
●Remove the obstacle in the vicinity of the sonar
sensor.
2Low Speed Braking Control* P. 584
●Comes on when mud, snow, or ice
accumulates in the vicinity of the blind spot
information system sensor.
●Comes on when the temperature of the
blind spot information system sensor is
high.
●Comes on while driving - Something may be
interfering with th e blind spot information system
sensor. Check the vicinity of the blind spot
information system sensor and remove any
obstacles.
●The system will return to normal when the
temperature cools down.
2 Blind Spot Information System* P. 563
Models with Low Speed Braking Control
Models with blind spot information system
* Not available on all models
23 PILOT-31T906000_03.book 119 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
