HONDA PILOT 2023 Owners Manual

260
Controls

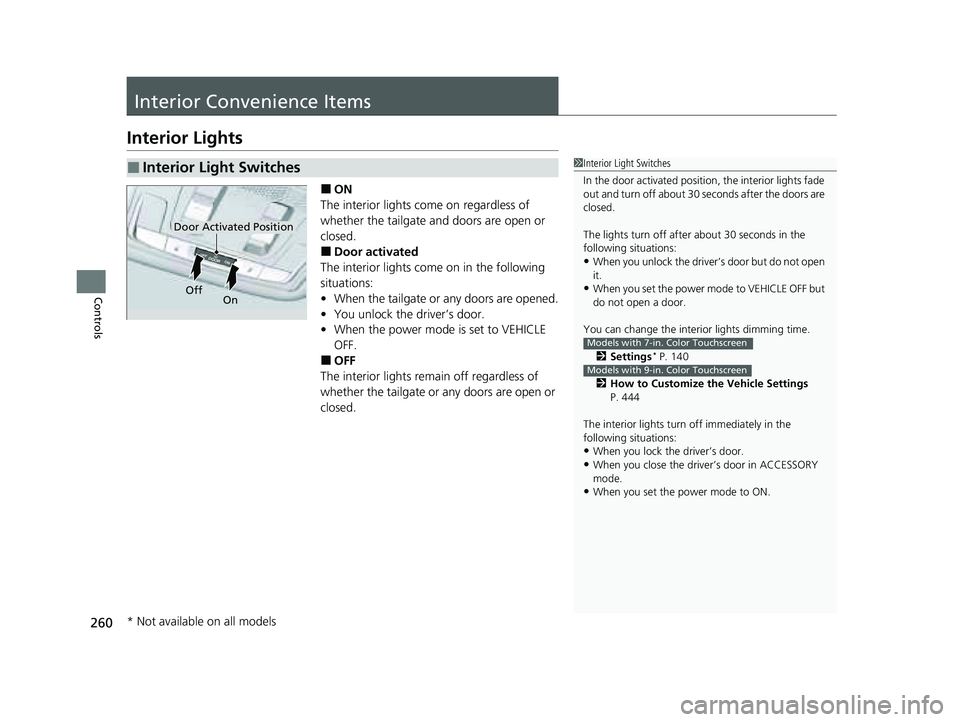

Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the tailgate and doors are open or
closed.
■Door activated
The interior lights come on in the following
situations:
• When the tailgate or any doors are opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE
OFF.
■OFF
The interior lights remain off regardless of
whether the tailgate or any doors are open or
closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and turn off about 30 seconds after the doors are
closed.
The lights turn off afte r about 30 seconds in the
following situations:
•When you unlock the driver’s door but do not open
it.
•When you set the power mode to VEHICLE OFF but
do not open a door.
You can change the interi or lights dimming time.
2 Settings
* P. 140
2 How to Customize the Vehicle Settings
P. 444
The interior lights turn off immediately in the
following situations:
•When you lock the driver’s door.
•When you close the driver’s door in ACCESSORY
mode.
•When you set the power mode to ON.
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
Door Activated Position
Off On
* Not available on all models
23 PILOT-31T906000_03.book 260 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued261
uuInterior Convenience Items uInterior Lights
Controls

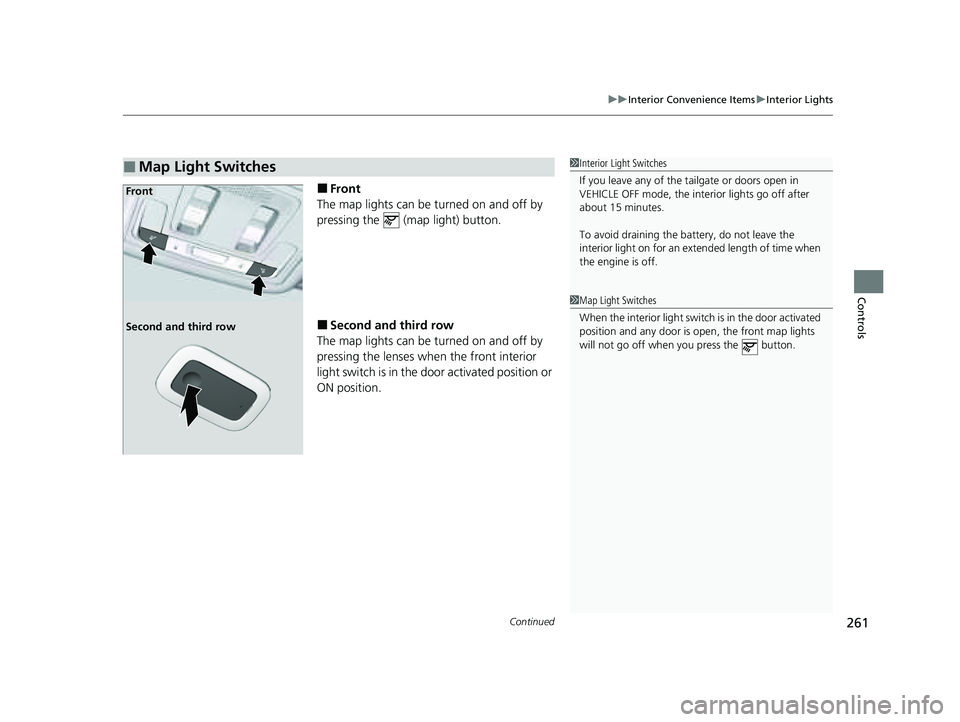

■Front
The map lights can be turned on and off by
pressing the (map light) button.
■Second and third row
The map lights can be turned on and off by
pressing the lenses when the front interior
light switch is in the door activated position or
ON position.
■Map Light Switches1 Interior Light Switches
If you leave any of the tailgate or doors open in
VEHICLE OFF mode, the inte rior lights go off after
about 15 minutes.
To avoid draining the ba ttery, do not leave the
interior light on for an extended length of time when
the engine is off.
Front
Second and third row
1 Map Light Switches
When the interior light swit ch is in the door activated
position and any door is ope n, the front map lights
will not go off when you press the button.
23 PILOT-31T906000_03.book 261 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuInterior Convenience Items uInterior Lights
262
Controls

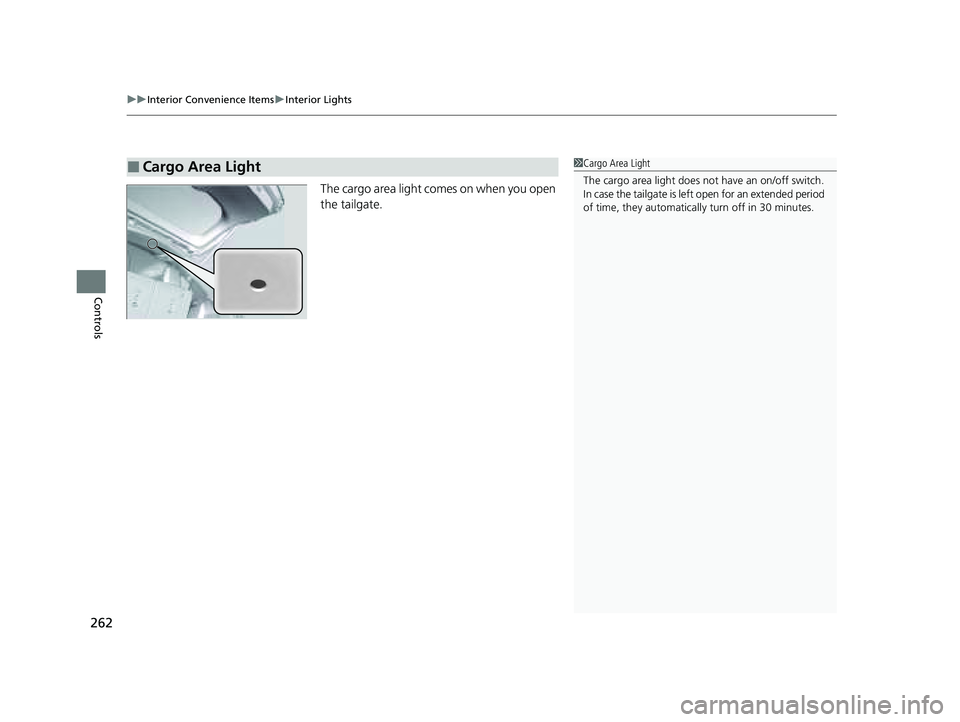

The cargo area light comes on when you open
the tailgate.
■Cargo Area Light1Cargo Area Light
The cargo area light does not have an on/off switch.
In case the tailgate is left open for an extended period
of time, they automaticall y turn off in 30 minutes.
23 PILOT-31T906000_03.book 262 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

263
uuInterior Convenience Items uStorage Items
Continued
Controls

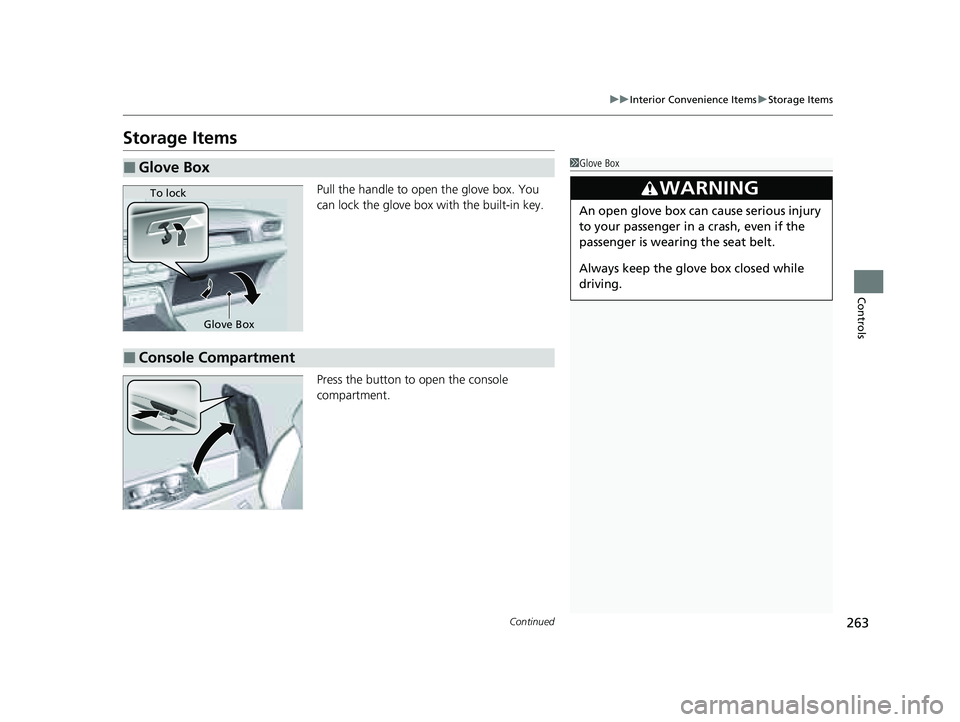

Storage Items
Pull the handle to open the glove box. You
can lock the glove box with the built-in key.
Press the button to open the console
compartment.
■Glove Box1Glove Box
3WARNING
An open glove box can cause serious injury
to your passenger in a crash, even if the
passenger is wearing the seat belt.
Always keep the glove box closed while
driving.
Glove Box
To lock
■Console Compartment
23 PILOT-31T906000_03.book 263 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuInterior Convenience Items uStorage Items
264
Controls

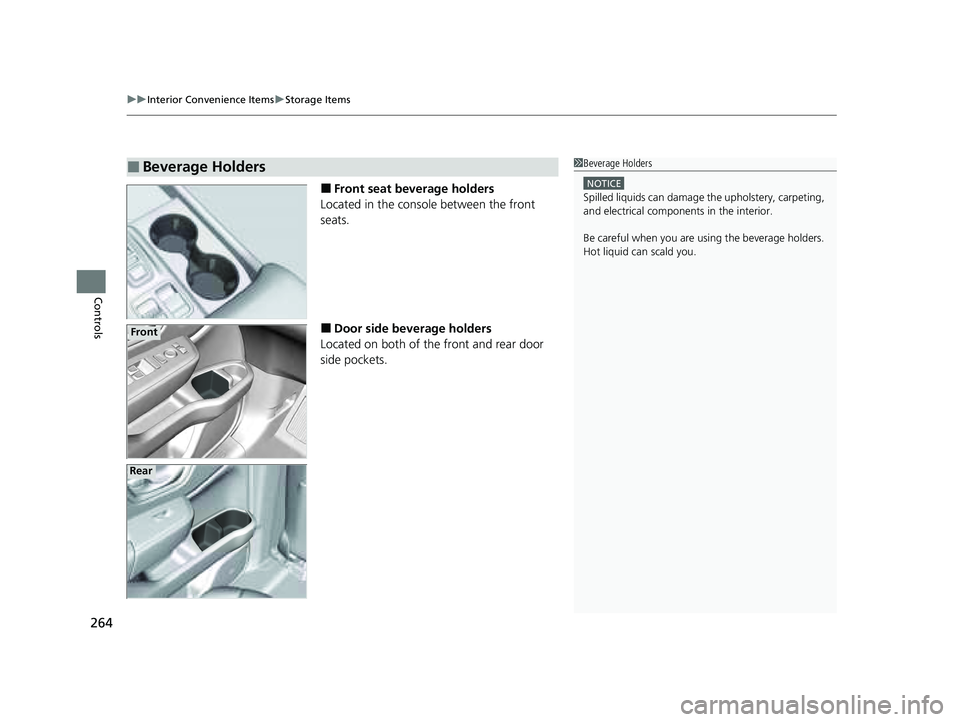

■Front seat beverage holders
Located in the console between the front
seats.
■Door side beverage holders
Located on both of the front and rear door
side pockets.
■Beverage Holders1 Beverage Holders
NOTICE
Spilled liquids ca n damage the upholstery, carpeting,
and electrical components in the interior.
Be careful when you are us ing the beverage holders.
Hot liquid can scald you.
Front
Rear
23 PILOT-31T906000_03.book 264 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

265
uuInterior Convenience Items uStorage Items
Continued
Controls

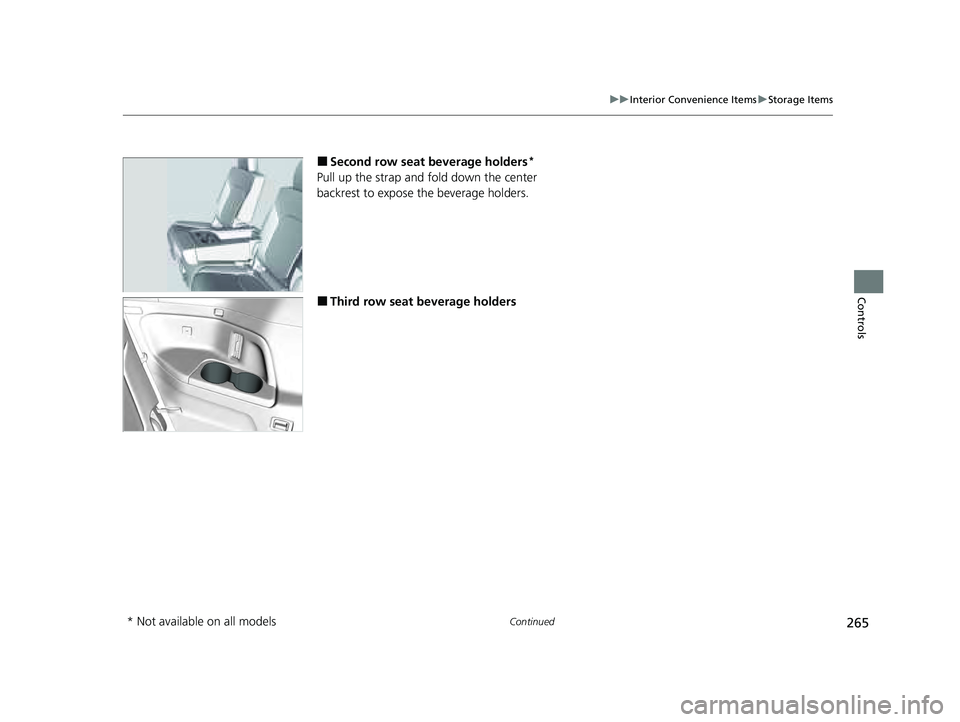

■Second row seat beverage holders*
Pull up the strap and fold down the center
backrest to expose the beverage holders.
■Third row seat beverage holders
* Not available on all models
23 PILOT-31T906000_03.book 265 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuInterior Convenience Items uStorage Items
266
Controls

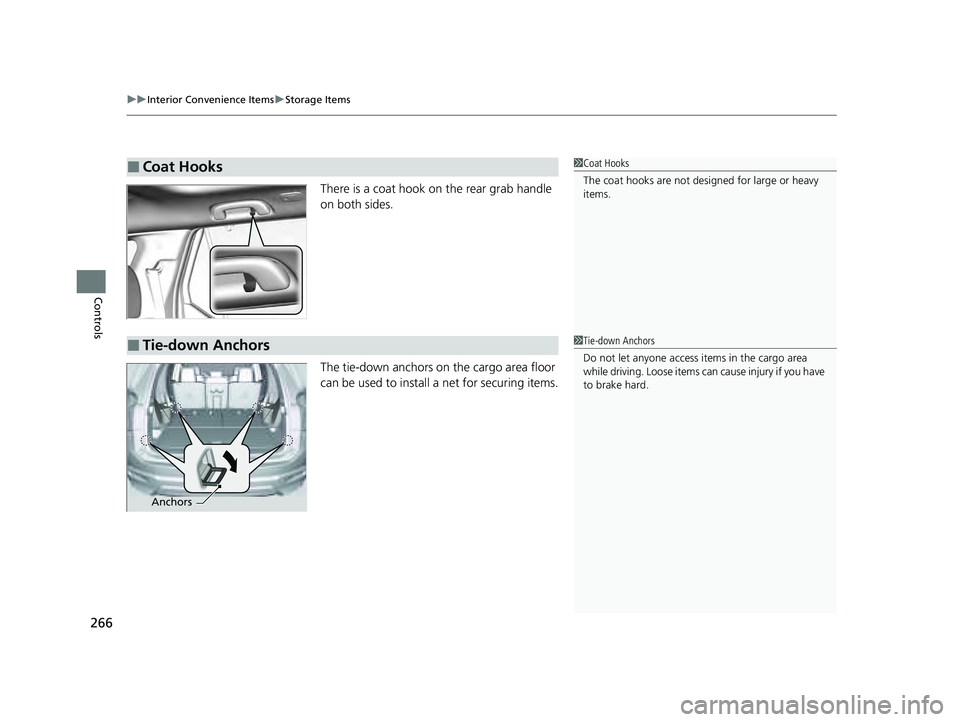

There is a coat hook on the rear grab handle
on both sides.
The tie-down anchors on the cargo area floor
can be used to install a net for securing items.
■Coat Hooks1Coat Hooks
The coat hooks are not desi gned for large or heavy
items.
■Tie-down Anchors1 Tie-down Anchors
Do not let anyone access items in the cargo area
while driving. Loose items can cause injury if you have
to brake hard.
Anchors
23 PILOT-31T906000_03.book 266 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued267
uuInterior Convenience Items uStorage Items
Controls

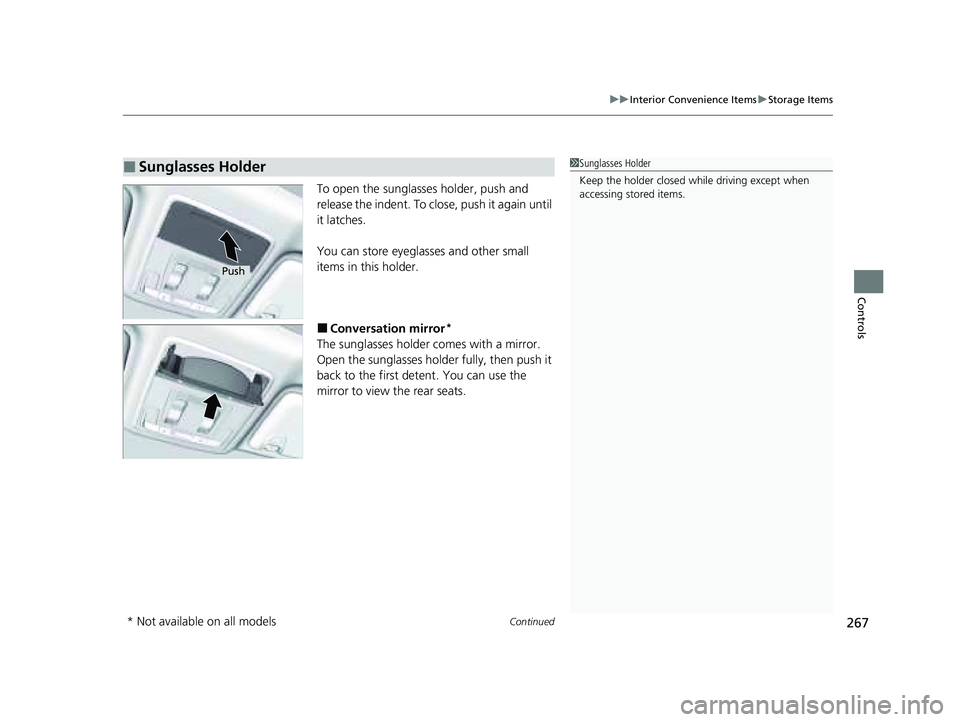

To open the sunglasses holder, push and
release the indent. To close, push it again until
it latches.
You can store eyeglasses and other small
items in this holder.
■Conversation mirror*
The sunglasses holder comes with a mirror.
Open the sunglasses holder fully, then push it
back to the first detent. You can use the
mirror to view the rear seats.
■Sunglasses Holder1Sunglasses Holder
Keep the holder closed wh ile driving except when
accessing stored items.
Push
* Not available on all models
23 PILOT-31T906000_03.book 267 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

268
uuInterior Convenience Items uStorage Items
Controls

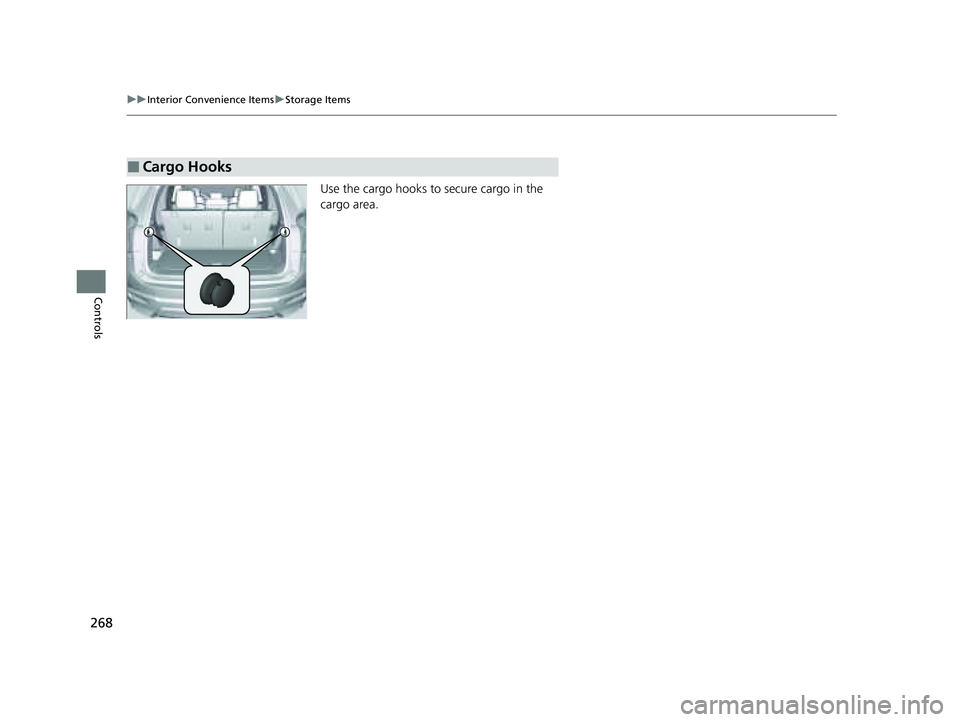

Use the cargo hooks to secure cargo in the
cargo area.
■Cargo Hooks
23 PILOT-31T906000_03.book 268 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued269
uuInterior Convenience Items uStorage Items
Controls

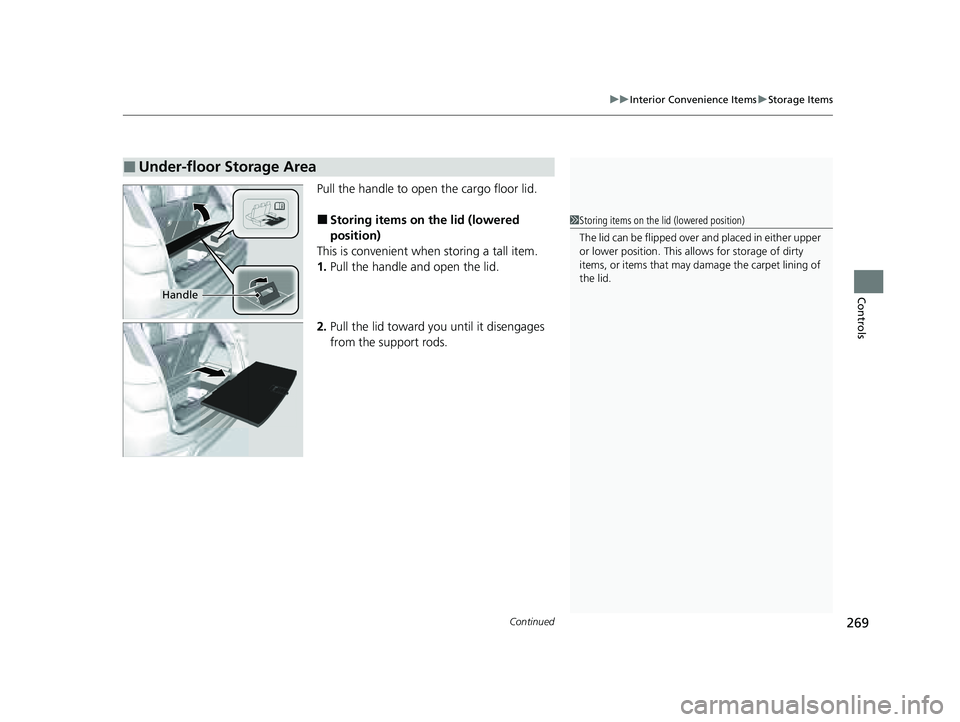

Pull the handle to open the cargo floor lid.
■Storing items on the lid (lowered
position)
This is convenient when storing a tall item.
1. Pull the handle and open the lid.
2. Pull the lid toward you until it disengages
from the support rods.
■Under-floor Storage Area
1Storing items on the lid (lowered position)
The lid can be fli pped over and placed in either upper
or lower position. This allows for storage of dirty
items, or items that may da mage the carpet lining of
the lid.
Handle
