uuParking Your Vehicle uCross Traffic Monitor*
Driving

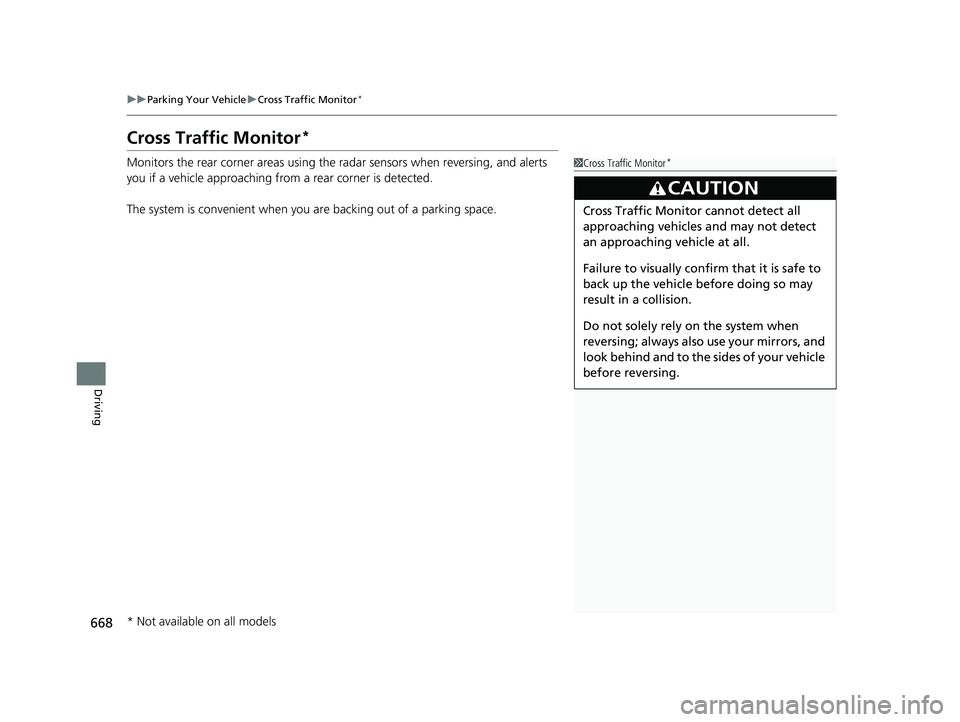

Cross Traffic Monitor*
Monitors the rear corner areas using the radar sensors when reversing, and alerts
you if a vehicle approaching fro m a rear corner is detected.
The system is convenient when you are backing out of a parking space.1 Cross Traffic Monitor*
3CAUTION
Cross Traffic Monitor cannot detect all
approaching vehicles and may not detect
an approaching vehicle at all.
Failure to visually confirm that it is safe to
back up the vehicle before doing so may
result in a collision.
Do not solely rely on the system when
reversing; always also use your mirrors, and
look behind and to the sides of your vehicle
before reversing.
* Not available on all models
23 PILOT-31T906000_03.book 668 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued669
uuParking Your Vehicle uCross Traffic Monitor*
Driving
The system activates when:
• The power mode is in ON.
• The Cross Traffic Monitor is turned on.
2 Cross Traffic Monitor On and Off P. 671
•The transmission is in (R.
• Your vehicle is moving at 3 mph (5 km/h) or
lower.
When a vehicle is detected approaching from a rear corner, Cross Traffic Monitor
alerts you with a buzzer and a displayed warning.
The system will not detect a vehicle that approaches from directly behind your
vehicle, nor will it provide alerts about a detected vehicle when it moves directly
behind your vehicle.
The system does not provide alerts for a vehicle that is moving away from your
vehicle, and it may alert for pedestrians, bicycles, or stationary objects.

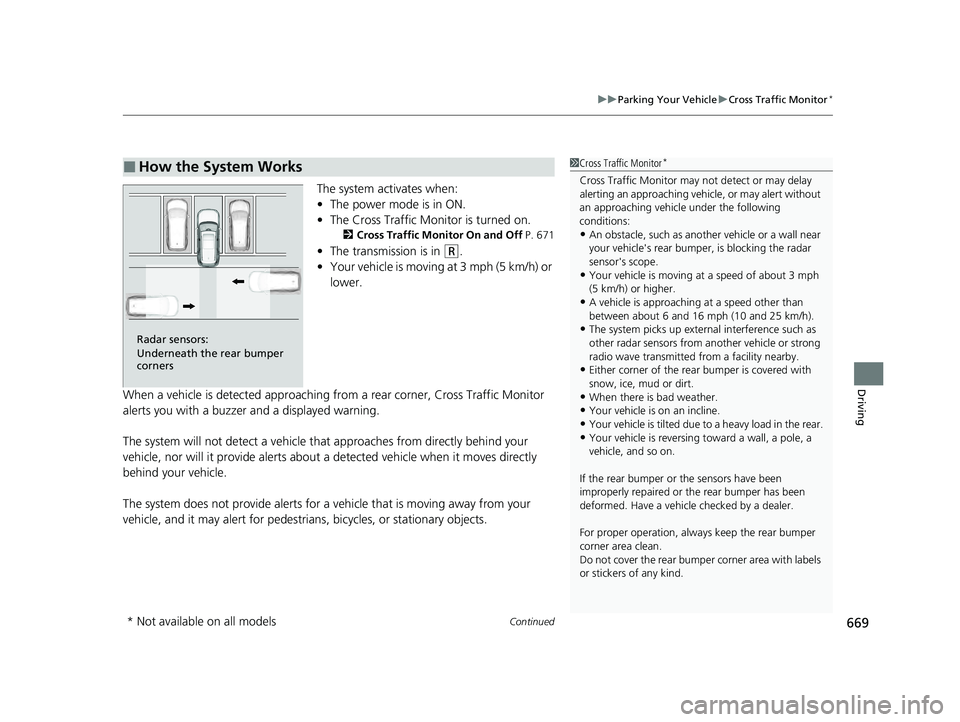

■How the System Works1 Cross Traffic Monitor*
Cross Traffic Monitor may not detect or may delay
alerting an approach ing vehicle, or may alert without
an approaching vehicle under the following
conditions:
•An obstacle, such as anothe r vehicle or a wall near
your vehicle's rear bumpe r, is blocking the radar
sensor's scope.
•Your vehicle is moving at a speed of about 3 mph
(5 km/h) or higher.
•A vehicle is approaching at a speed other than
between about 6 and 16 mph (10 and 25 km/h).
•The system picks up external interference such as
other radar sensors from an other vehicle or strong
radio wave transmitted fr om a facility nearby.
•Either corner of the rear bumper is covered with
snow, ice, mud or dirt.
•When there is bad weather.
•Your vehicle is on an incline.
•Your vehicle is tilted due to a heavy load in the rear.
•Your vehicle is reversing toward a wall, a pole, a
vehicle, and so on.
If the rear bumper or the sensors have been
improperly repaired or the rear bumper has been
deformed. Have a vehicle checked by a dealer.
For proper operation, always keep the rear bumper
corner area clean.
Do not cover the rear bumper corner area with labels
or stickers of any kind.
Radar sensors:
Underneath the rear bumper
corners
* Not available on all models
23 PILOT-31T906000_03.book 669 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuParking Your Vehicle uCross Traffic Monitor*
670
Driving
An arrow icon appears on the side a vehicl e is approaching on the audio/information
screen.
■When the System Detects a Vehicle1 When the System Detects a Vehicle
If the changes to in amber when the
transmission is in
(R, mud, snow or ice, etc. may
have accumulated in the vi cinity of the sensor. The
system is temporarily canceled. Check the bumper
corners for any obstructions, and thoroughly clean
the area if necessary.
If the comes on when the transmission is in
( R,
there may be a problem with the Cross Traffic
Monitor system. Do not use the system and have your
vehicle checked by a dealer.
If the display remains the same with the transmission
in
( R, there may be a problem with the rear camera
system and the Cross Traffic Monitor system.
Do not use the system and have your vehicle checked
by a dealer.
Wide View
Normal View Arrow Icon
Models with multi-view rear camera system
Top Down View
Rear Wide View/
Ground View
Rear Normal View/
Ground View Arrow Icon
Models with surround view camera system
23 PILOT-31T906000_03.book 670 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

675

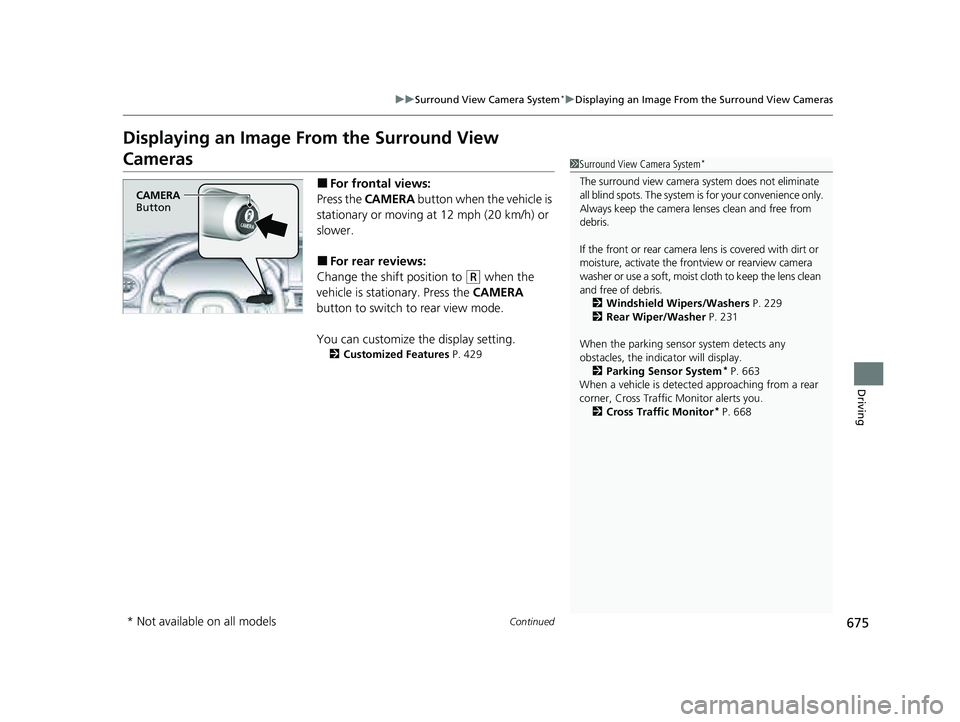

uuSurround View Camera System*uDisplaying an Image From the Surround View Cameras
Continued
Driving
Displaying an Image From the Surround View
Cameras
■For frontal views:
Press the CAMERA button when the vehicle is
stationary or moving at 12 mph (20 km/h) or
slower.
■For rear reviews:
Change the shift position to
(R when the
vehicle is stationary. Press the CAMERA
button to switch to rear view mode.
You can customize the display setting.
2 Customized Features P. 429
1Surround View Camera System*
The surround view camera system does not eliminate
all blind spots. The system is for your convenience only.
Always keep the camera lenses clean and free from
debris.
If the front or rear camera lens is covered with dirt or
moisture, activate the front view or rearview camera
washer or use a soft, moist cloth to keep the lens clean
and free of debris. 2 Windshield Wipers/Washers P. 229
2 Rear Wiper/Washer P. 231
When the parking sensor system detects any
obstacles, the indica tor will display.
2 Parking Sensor System
* P. 663
When a vehicle is detected approaching from a rear
corner, Cross Traffic Monitor alerts you.
2 Cross Traffic Monitor
* P. 668
CAMERA
Button
* Not available on all models
23 PILOT-31T906000_03.book 675 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

717
uuMaintenance Under the Hood uBrake Fluid
Maintenance

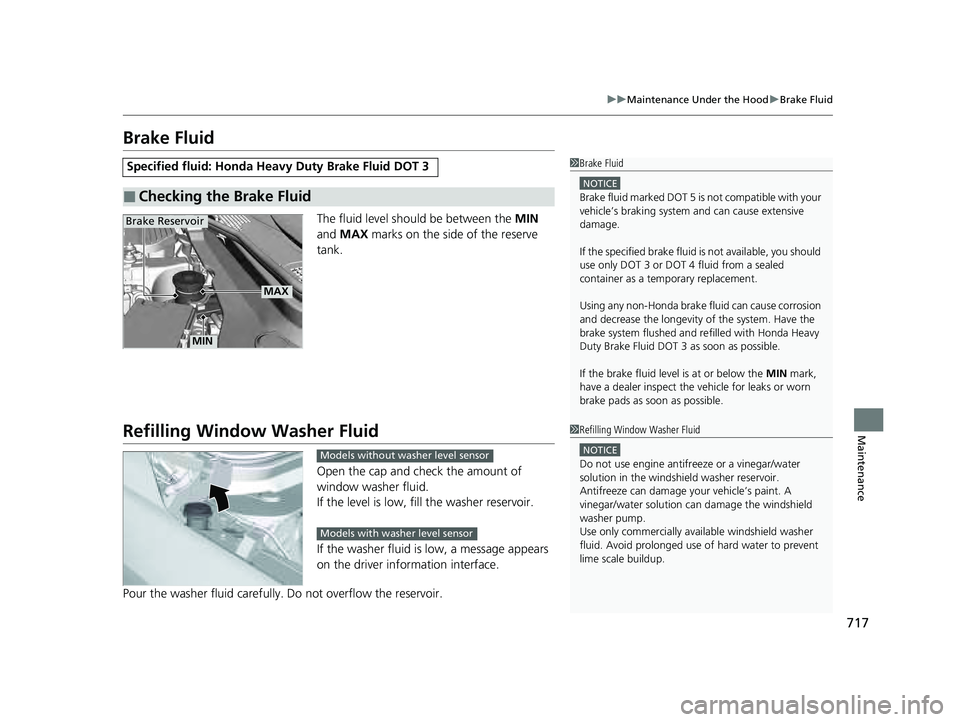

Brake Fluid
The fluid level should be between the MIN
and MAX marks on the side of the reserve
tank.
Refilling Window Washer Fluid
Open the cap and check the amount of
window washer fluid.
If the level is low, fill the washer reservoir.
If the washer fluid is low, a message appears
on the driver information interface.
Pour the washer fluid carefully. Do not overflow the reservoir.
Specified fluid: Honda Heavy Duty Brake Fluid DOT 3
■Checking the Brake Fluid
1Brake Fluid
NOTICE
Brake fluid marked DOT 5 is not compatible with your
vehicle’s braking system and can cause extensive
damage.
If the specified br ake fluid is not av ailable, you should
use only DOT 3 or DOT 4 fluid from a sealed
container as a temporary replacement.
Using any non-Honda brake fluid can cause corrosion
and decrease the longevity of the system. Have the
brake system flushed and re filled with Honda Heavy
Duty Brake Fluid DOT 3 as soon as possible.
If the brake fluid level is at or below the MIN mark,
have a dealer inspect the vehicle for leaks or worn
brake pads as soon as possible.
Brake Reservoir
MIN
MAX
1 Refilling Window Washer Fluid
NOTICE
Do not use engine antifreeze or a vinegar/water
solution in the windshield washer reservoir.
Antifreeze can damage y our vehicle’s paint. A
vinegar/water solution ca n damage the windshield
washer pump.
Use only commercially avai lable windshield washer
fluid. Avoid prolonged use of hard water to prevent
lime scale buildup.Models without washer level sensor
Models with washer level sensor
23 PILOT-31T906000_03.book 717 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

734

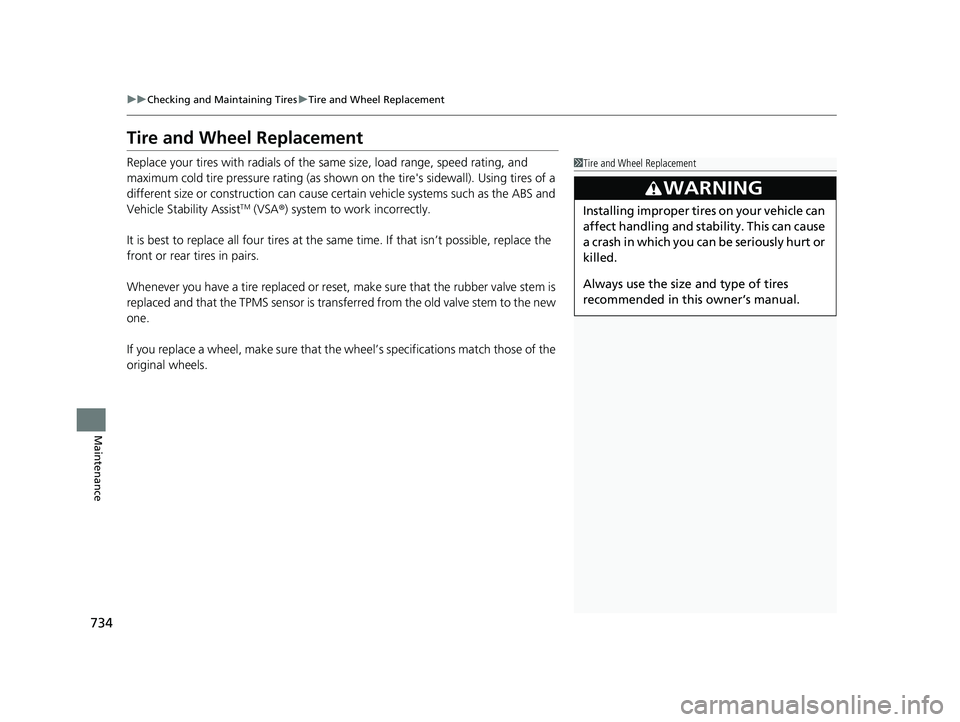

uuChecking and Maintaining Tires uTire and Wheel Replacement
Maintenance
Tire and Wheel Replacement
Replace your tires with radials of the sa me size, load range, speed rating, and
maximum cold tire pressure ra ting (as shown on the tire's sidewall). Using tires of a
different size or construction can cause ce rtain vehicle systems such as the ABS and
Vehicle Stability Assist
TM (VSA ®) system to work incorrectly.
It is best to replace all four tires at the same time. If that isn’t possible, replace the
front or rear tires in pairs.
Whenever you have a tire replaced or reset, make sure that the rubber valve stem is
replaced and that the TPMS sensor is trans ferred from the old valve stem to the new
one.
If you replace a wheel, make sure that the wheel’s specifications match those of the
original wheels.
1 Tire and Wheel Replacement
3WARNING
Installing improper tires on your vehicle can
affect handling and stability. This can cause
a crash in which you can be seriously hurt or
killed.
Always use the size and type of tires
recommended in this owner’s manual.
23 PILOT-31T906000_03.book 734 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

737
Maintenance
Battery

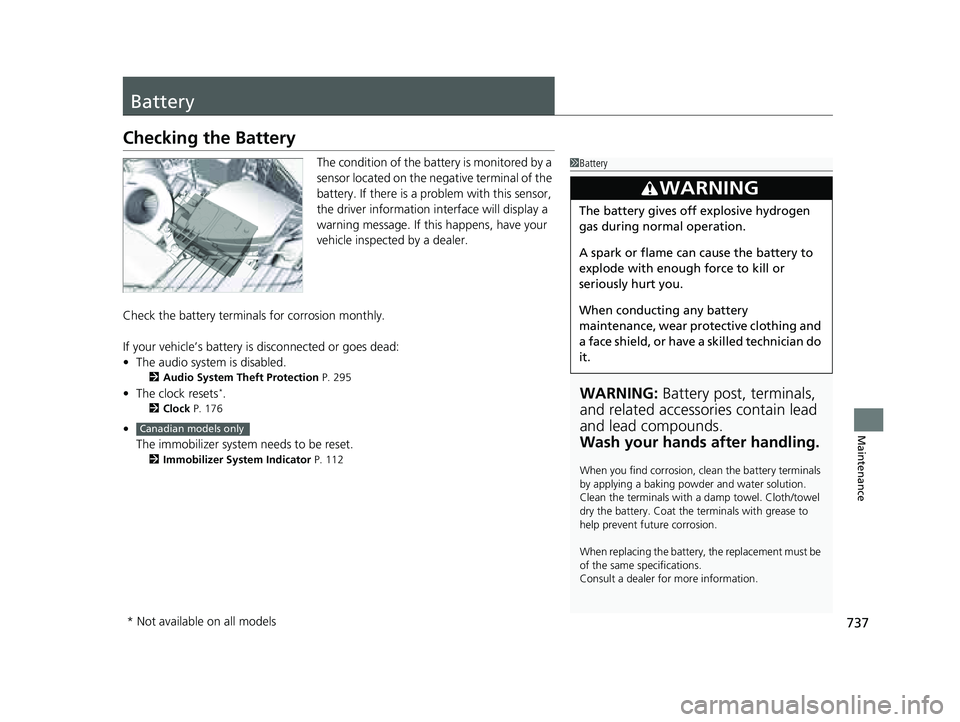

Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the driver information interface will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery termina ls for corrosion monthly.
If your vehicle’s battery is disconnected or goes dead:
• The audio system is disabled.
2 Audio System Theft Protection P. 295
•The clock resets*.
2 Clock P. 176
•
The immobilizer system needs to be reset.
2 Immobilizer System Indicator P. 112
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Canadian models only
* Not available on all models
23 PILOT-31T906000_03.book 737 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

761

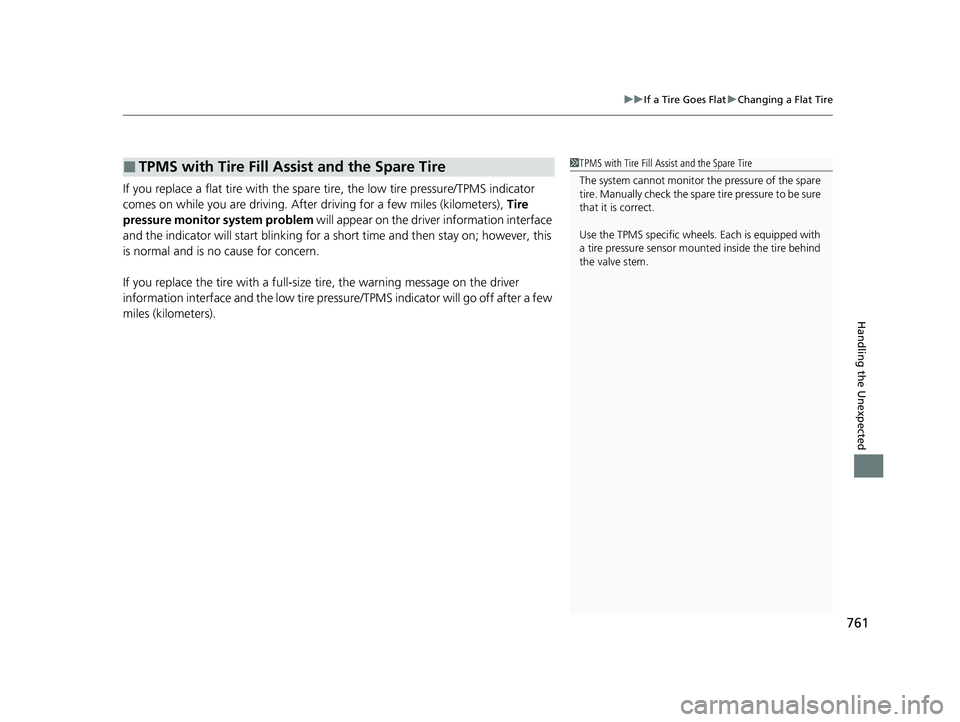

uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
If you replace a flat tire with the spare tire, the low tire pressure/TPMS indicator
comes on while you are driving. After driving for a few miles (kilometers), Tire
pressure monitor system problem will appear on the driver information interface
and the indicator will start blinking for a s hort time and then stay on; however, this
is normal and is no cause for concern.
If you replace the tire with a full-size tire, the warning message on the driver
information interface and the low tire pre ssure/TPMS indicator will go off after a few
miles (kilometers).
■TPMS with Tire Fill Assist and the Spare Tire1 TPMS with Tire Fill Assist and the Spare Tire
The system cannot monitor th e pressure of the spare
tire. Manually check the spare tire pressure to be sure
that it is correct.
Use the TPMS specific wheels. Each is equipped with
a tire pressure sensor mount ed inside the tire behind
the valve stem.
23 PILOT-31T906000_03.book 761 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

779
uuFuses uFuse Locations
Continued
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY225 A
2 Idle Stop 1 (30 A)
Idle Stop 2 (30 A)
EPS 80 A
FET Main 1 70 A
Fuse Box Main 1 60 A
Fuse Box Option 1 60 A Rear Blower 30 A
3
ACM30 A
Starter Cut30 A
Sub Fan Motor30 A
Heater Motor40 A
Accessory Power Socket Main*(40 A)
Rear Defogger40 A
Fuse Box Option 260 A
4 AC Power Outlet*(30 A)
EBB 40 A
Power Tailgate
*(40 A)
ABS/VSA FSR 40 A - 60 A
Wiper Motor 30 A
Fuse Box Main 2 60 A
5
FET Main 230 A
ABS/VSA Motor40 A
IG Main 230 A
SRM 230 A
SRM 130 A
AWD*(30 A)
IG Main 130 A
6 Condenser Fan 30 A
7Trailer Main*(30 A)
8 Power Tailgate*(20 A)
9Back Up Audio*(15 A)
10 - -
11Back Up10 A
12 Trailer Charge*(20 A)
13Trailer Brake*(20 A)
14 Horn 15 A
15--
16 VBU 10 A
17--
18 - -
19FI Main20 A
20 Injector 20 A
21TCU 115 A
22 IG Coil 15 A
23Hazard15 A
24 Right H/L 15 A
25Stop5 A
Circuit ProtectedAmps
26 Left H/L 15 A
27TCU 310 A
28 TCU 2 10 A
29--
30 - -
31Front Washer15 A
32 Battery Sensor 10 A
33Shutter Grille10 A
34 IG1 START 5 A
35Battery Fan5 A
36 FI ECU 5 A
37--
38 IG1 PCS 5 A
39IGPS RAD10 A
40 IGPS VSSV*(10 A)
41--
Circuit ProtectedAmps
* Not available on all models
23 PILOT-31T906000_03.book 779 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

789

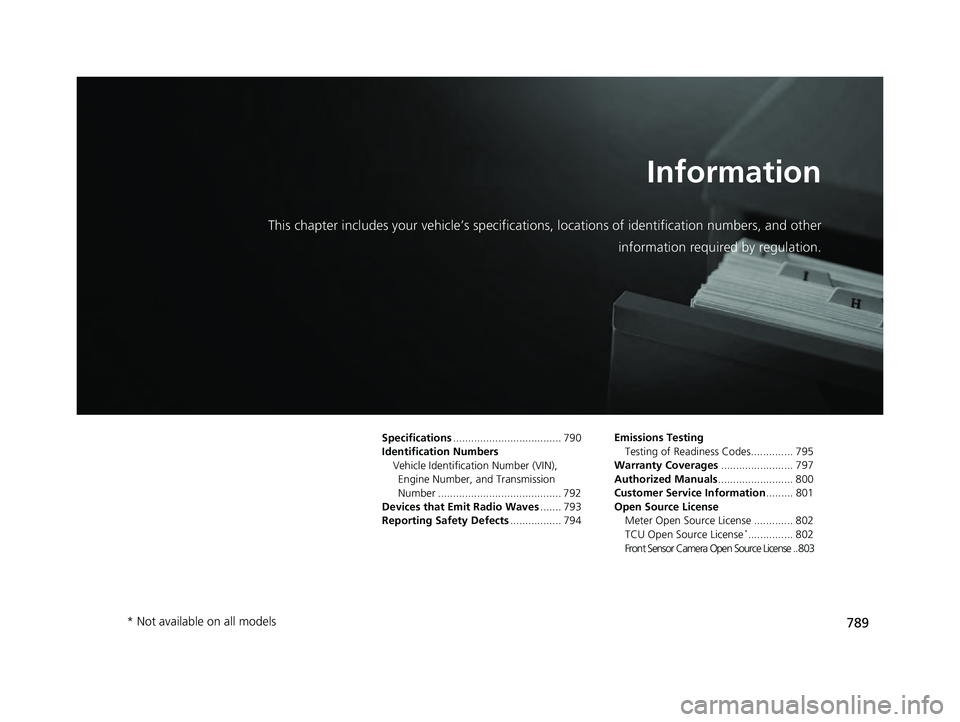

Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 790
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 792
Devices that Emit Radio Waves ....... 793
Reporting Safety Defects ................. 794Emissions Testing
Testing of Readiness Codes.............. 795
Warranty Coverages ........................ 797
Authorized Manuals ......................... 800
Customer Service Information ......... 801
Open Source License Meter Open Source License ............. 802
TCU Open Source License
*............... 802
Front Sensor Camera Open Source License .. 803
* Not available on all models
23 PILOT-31T906000_03.book 789 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
