display HONDA PRELUDE 2000 (in English) User Guide

Audi
o Syste m

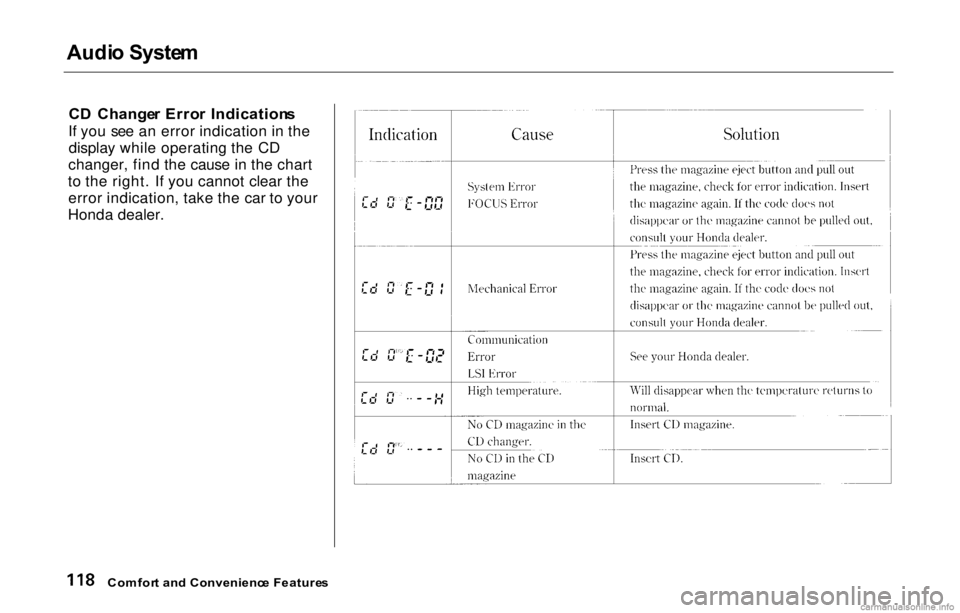

C D Change r Erro r Indication s
If you see an error indication in the display while operating the CD
changer, find the cause in the chart
to the right. If you cannot clear the error indication, take the car to your
Honda dealer.

Comfor t an d Convenienc e Feature s

Audi
o Syste m

The tape direction indicator will light to show you which side of the cassette is playing. The indicates
the side you inserted facing upward
is now playing. If you want to play
the other side, press the PROG

button.

Dolby B noise reduction turns on
when you insert a cassette. If the tape was not recorded with Dolby B
noise reduction, turn it off by
pressing the NR button.
Dolby remains off until you turn it on
by pressing the button again.
When the system reaches the end of the tape, it will automatically reverse direction and play the other side. If
you want to remove the cassette
from the drive, press the EJECT
button on the cassette player. If you turn the system off while a
tape is playing, either with the PWR/
VOL knob or by turning off the ignition, the cassette will remain in
the drive. When you turn the system
back on, the cassette player will be in pause mode. To begin playing, press
the PLAY button.
To switch to the radio or CD player while a tape is playing, press the
AM/FM, or CD button. To change back to the cassette player, push theCD button.
Tap
e Searc h Function s

With a cassette playing, you can use the FF, REW, SKIP, or REPEAT
function to find a desired program.
FF/RE W — Fast Forward and
Rewind move the tape rapidly. Press and release the side of the
TUNE bar to fast forward the tape, or the side to rewind. You will
see FF or REW flashing in the
display. To stop fast forward or
rewind, press either side of the
TUNE bar or the PLAY button. If the system reaches the end of the tape
while in fast forward or rewind, it automatically stops that function,
reverses direction, and begins to play.

Comfor t an d Convenienc e Feature s

Audi
o Syste m

SKI P — The skip function allows
you to find the beginning of a song or passage. To activate SKIP, press
the SEEK/SKIP bar. Press the side to advance to the
beginning of the next song or passage, or the side to return to
the beginning of the current song or
passage. FF or REW will flash in the display as the tape moves. When the
system reaches the beginning of the
next song or passage (FF), or the
beginning of the current one (REW), it goes back to PLAY mode. REPEA
T — The Repeat function
continuously replays the current song or passage. Press the REPEAT
button to activate it; you will see RPT displayed as a reminder. When the
system reaches the end of the song
or passage currently playing, it will
automatically go into rewind. When
it senses the beginning of the same song or passage, the system returns
to PLAY mode. It will continue to
repeat this same program until you deactivate REPEAT by pressing the
button again. The SKIP and REPEAT functions
use silent periods on the tape to findthe end of a song or passage. These
features may not work to your satisfaction if there is almost no gap
between selections, a high noise level between selections, or a silent
period in the middle of selection.
Comfor t an d Convenienc e Feature s

Audi
o Syste m

Carin g fo r th e Cassett e Playe r

The cassette player picks up dirt and oxides from the tape. This contami-
nation builds up over time and
causes the sound quality to degrade.
To prevent this, you should clean the player after every 30 hours of use.
Your dealer has a cleaning kit
available.

If you do not clean the cassette
player regularly, it may eventually
become impossible to remove the
contamination with a normal
cleaning kit.

Use 100-minute or shorter cassettes. Cassettes longer than that use
thinner tape that may break or jam
the drive. Look at the cassette before you
insert it. If the tape is loose, tighten
it by turning a hub with a pencil or
your finger.
If the label is peeling off, remove it
from the cassette or it could cause the cassette to jam in the player.
Never try to insert a warped ordamaged cassette in the player.
When they are not in use, store cassettes in their cases to protect
them from dust and moisture. Never
place cassettes where they will be exposed to direct sunlight, high heat,
or high humidity. If a cassette is
exposed to extreme heat or cold, let
it reach a moderate temperature
before inserting it in the player.
Never try to insert foreign objects
into the cassette player.
If you see the error indication
on the display, press

the EJECT button and remove the
cassette from the unit. Make sure

the tape is not damaged. If the
cassette will not eject or the error
indication stays on after the cassette

ejects, take the car to your Honda
dealer.

Comfor t an d Convenienc e Feature s

Audi
o Syste m

Thef t Protectio n
Your car's audio system will disable itself if it is disconnected from
electrical power for any reason. To
make it work again, the user must enter a specific five-digit code in the
Preset buttons. Because there are
hundreds of number combinations
possible from five digits, making the system work without knowing the
exact code is nearly impossible.
You should have received a card that lists your audio system's codenumber and serial number. It is best
to store this card in a safe place at
home. In addition, you should write
the audio system's serial number in
this Owner's Manual. If you should
happen to lose the card, you must obtain the code number from your
Honda dealer. To do this, you will
need the system's serial number. If your car's battery is disconnected
or goes dead, the audio system will
disable itself. If this happens, you will see in the frequency
display the next time you turn on the
system. Use the Preset buttons to
enter the five-digit code. If it is
entered correctly, the radio will start

playing.

If you make a mistake entering the
code, do not start over or try to
correct your mistake. Complete the
five-digit sequence, then enter the correct code. You have ten tries toenter the correct code. If you are
unsuccessful in ten attempts, you
must then leave the system on for one hour before trying again. You will have to store your favorite
stations in the Preset buttons after
the system begins working. Your original settings were lost when
power was disconnected.
Comfor t an d Convenienc e Feature s

Automati
c Transmissio n

Neutra l (N ) — Use Neutral if you
need to restart a stalled engine, or if
it is necessary to stop briefly with
the engine idling. Shift to Park posi-
tion if you need to leave the car for any reason. Press on the brake pedal
when you are moving the shift lever
from Neutral to another gear.
Driv e (D 4) — Use this position for
your normal driving. The transmis- sion automatically selects a suitable
gear for your speed and acceleration.
You may notice the transmission shifting up at higher speeds when
the engine is cold. This helps the engine warm up faster.
Sequential SportShift Mode — With

the shift lever in "D4" position, you can select the Sequential SportShift
mode to shift gears; much like a
manual transmission, but without a clutch pedal.
To enter the Sequential SportShift mode, slide the shift lever further to
the left. To return to "D4", slide theshift lever to the right.
In the Sequential SportShift mode, each time you push forward on theshift, lever, the transmission shifts to
a higher gear. Pull back on the lever
to downshift. The number of the
gear selected is displayed next to the "D4" indicator (see page 144).
If you slide the shift lever from "D4"
to the Sequential SportShift mode,
the display shows the selected gear.
If you selected "4", you will see /4/
next to "D4" in the display. The Shift
Lever Position Indicator will show the gear you selected while in the
sequential sportshift mode. If youselect the Sequential SportShift
while the car is stopped, the transmission automatically selects
first gear and the display shows /1/.
CONTINUED

Upshif
t

Downshift

Drivin g

Automati
c Transmissio n

If the car speed slows to below the
redline of the selected lower gear
position while the indicator is

flashing, the transmission will

downshift and the display will show
the selected lower gear.
If the transmission temperature is
below 14°F ( — 10 °C), you may not be able to use the Sequential

SportShift mode.
The table shows the speed ranges
for upshifting and downshifting. Driv
e (D3) — This position is similar
to D4, except only
the first three
gears are selected. Use D3, when towing a trailer in hilly terrain, or to
provide engine braking when goingdown a steep hill. D3 can also keep
the transmission

from cycling
between
third and fourth gears in
stop-and-go driving.
For faster acceleration when in D3 or D4, you can get the transmission to
automatically downshift by pushing
the accelerator pedal to the floor.
The transmission will shift down one or two gears, depending on your
speed.

CONTINUED

Drivin g

Engin
e Oi l

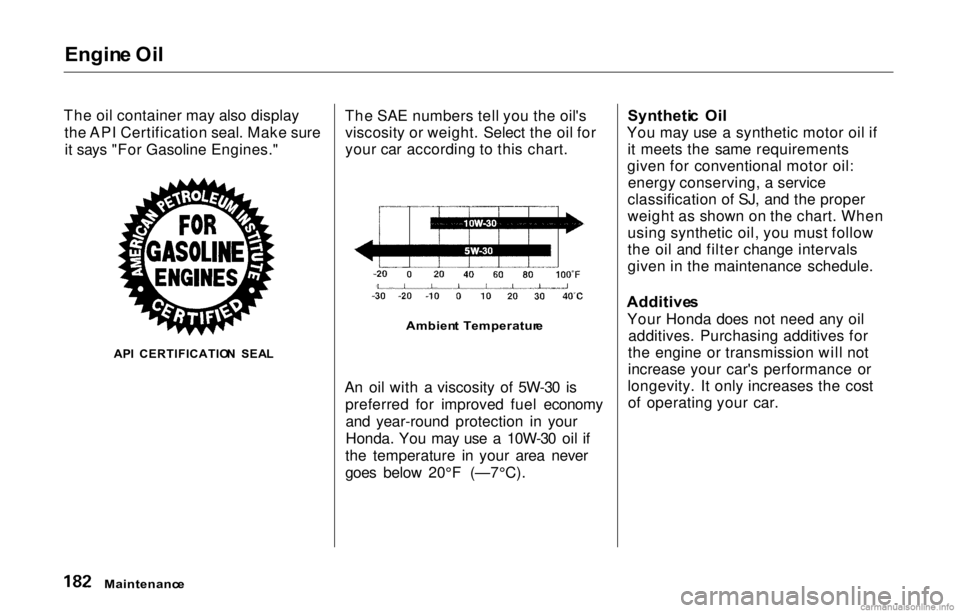

The oil container may also display the API Certification seal. Make sureit says "For Gasoline Engines."
API CERTIFICATIO N SEA L The SAE numbers tell you the oil's
viscosity or weight. Select the oil for
your car according to this chart.
An oil with a viscosity of 5W-30 is preferred for improved fuel economyand year-round protection in your
Honda. You may use a 10W-30 oil if
the temperature in your area never
goes below 20°F (—7°C). Syntheti
c Oi l
You may use a synthetic motor oil if it meets the same requirements
given for conventional motor oil: energy conserving, a service
classification of SJ, and the proper
weight as shown on the chart. When
using synthetic oil, you must follow
the oil and filter change intervals
given in the maintenance schedule.
Additive s
Your Honda does not need any oil additives. Purchasing additives for
the engine or transmission will not
increase your car's performance or
longevity. It only increases the cost of operating your car.

Maintenanc e
Ambien
t Temperatur e

Battery
, Wipe r Blade s

If your car's battery is disconnected
or goes dead, the audio system willdisable itself. The next time you turn on the radio you will see
in the frequency display. Use the Preset buttons to enter the five-digit
code (see page 123 ).

Charging the battery with the cables

connected can seriously damage your

car's electronic controls. Detach the
battery cables before connecting the

battery to a charger.
Wipe
r Blade s

Check the condition of the wiper
blades at least every six months. Look for signs of cracking in the
rubber, or areas that are getting
hard. Replace the blades if you find these signs, or they leave streaksand unwiped areas when used.

Maintenanc e

The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled mechanic do the battery
maintenance.
NOTIC
E

Fuse
s

5. Look for a burned wire inside the fuse. If it is burned, replace it withone of the spare fuses of the same
rating or lower. If you cannot drive the car without
fixing the problem, and you do not have a spare fuse, take a fuse of the same rating or a lower rating from
one of the other circuits. Make sure
you can do without that circuit temporarily (such as the accessory
power socket or radio).
If you replace the blown fuse with aspare fuse that has a lower rating, it
might blow out again. This does not
indicate anything wrong. Replace the
fuse with one of the correct rating as soon as you can.
Replacing a fuse with one that has a

higher rating greatly increases the
chances of damaging the electrical

system. If you do not have a replace-
ment fuse with the proper rating for the

circuit, install one with a lower rating.

6. If the replacement fuse of the same rating blows in a short time,
there is probably a serious electrical problem in your car.
Leave the blown fuse in that
circuit and have your car checked
by a qualified mechanic.
If the radio fuse is removed, the
audio system will disable itself. The
next time you turn on the radio you will see in the frequency
display. Use the Preset buttons to
enter the five-digit code (see page
123).

Takin g Car e o f th e Unexpecte d

CONTINUED

BLOW
N
NOTIC
E
