Page 1 of 20

HONDA RIDGELINE 2010 1.G Technology Reference Guide 2010
Technology Reference Guide
Ridgeline
2010_TRG_US.qxd:QSG_US.qxd  4/13/09  5:06 PM  Page 17

Page 2 of 20

HONDA RIDGELINE 2010 1.G Technology Reference Guide Indicators/Info
Display/MID/TPMS
Instrument Panel Indicators
Briefly appear with each engine start. Red and amber indicators are most critical. Blue and green
indicators are used for general informati

Page 3 of 20

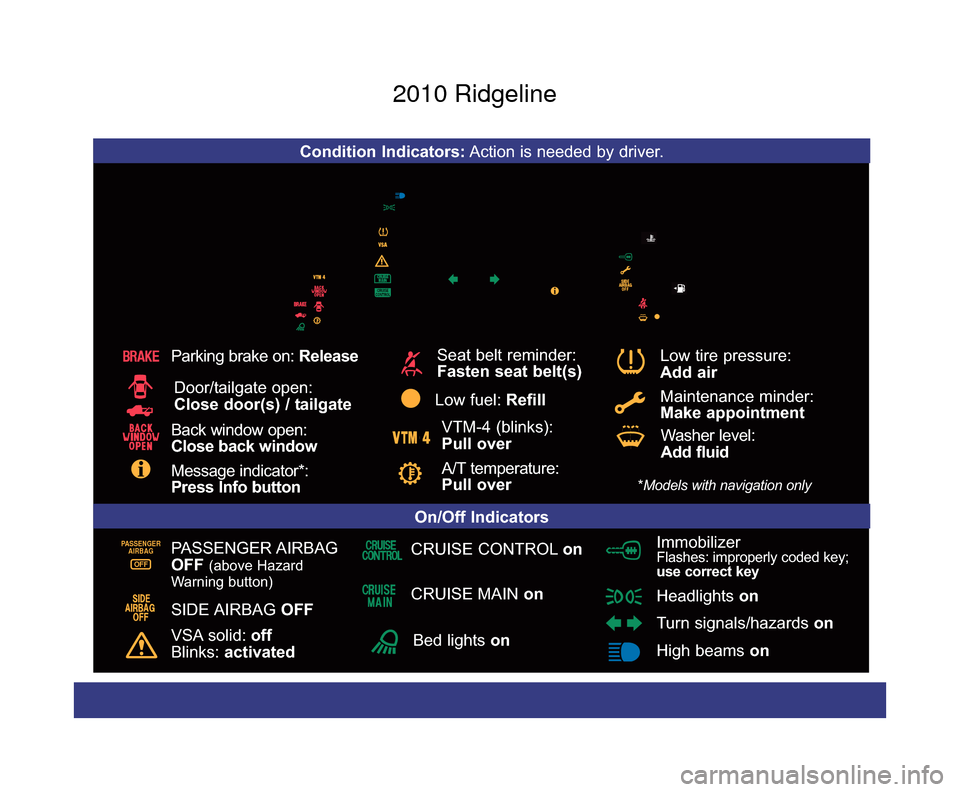

HONDA RIDGELINE 2010 1.G Technology Reference Guide On/Off Indicators
Condition Indicators:Action is needed by driver.
PASSENGER
AIRBAG
OFF
SIDE AIRBAG  OFF
VSA solid: off
Blinks:  activated
CRUISE CONTROL on
CRUISE MAIN  on
Immobilizer Flashes: improp

Page 4 of 20

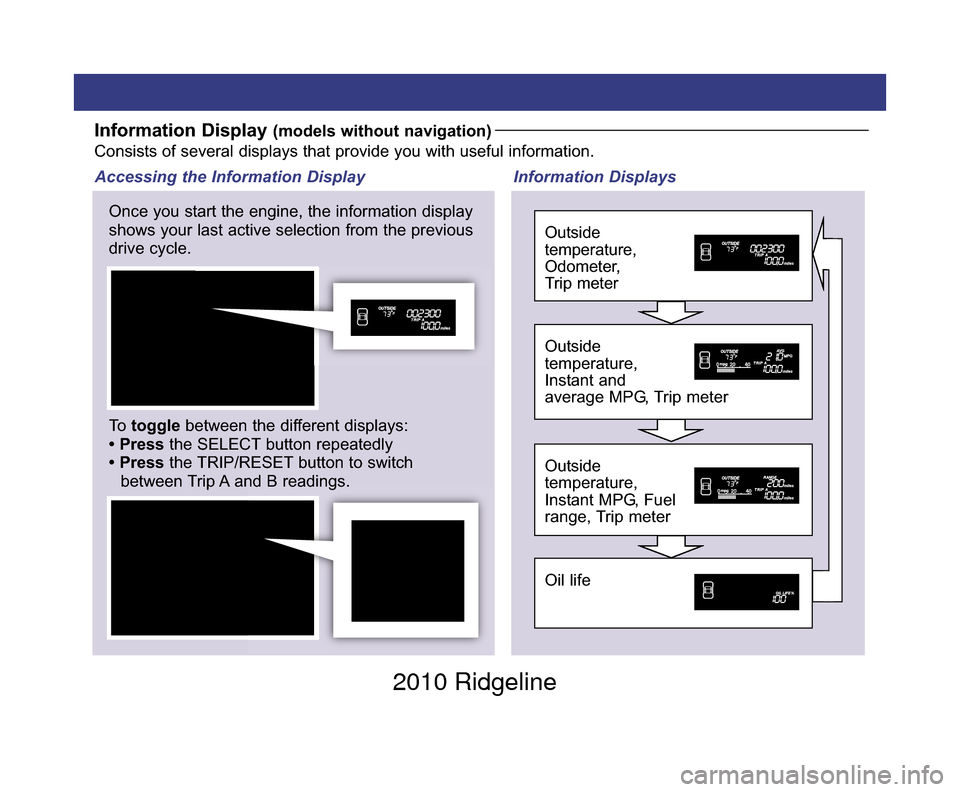

HONDA RIDGELINE 2010 1.G Technology Reference Guide Information Display (models without navigation)Consists of several displays that provide you with useful information.
Once you start the engine, the information display
shows your last active selectio

Page 5 of 20

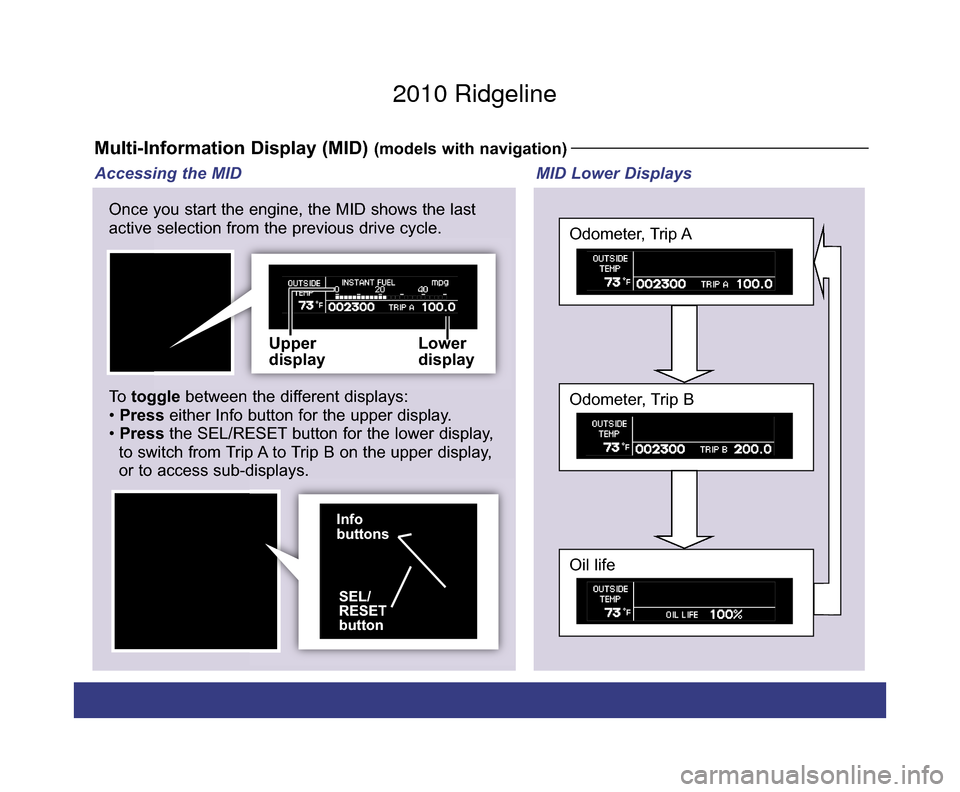

HONDA RIDGELINE 2010 1.G Technology Reference Guide Multi-Information Display (MID) (models with navigation)
Upper
displayLower
display
SEL/
RESET
button
Info
buttons
Once you start the engine, the MID shows the last
active selection from the previous

Page 6 of 20

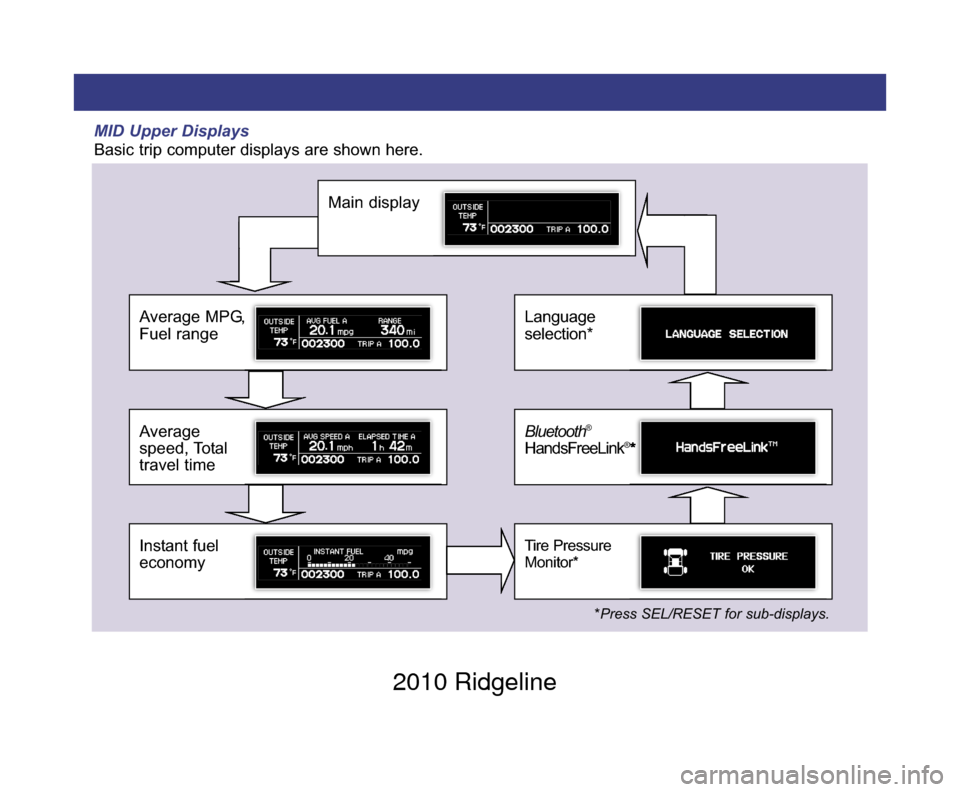

HONDA RIDGELINE 2010 1.G Technology Reference Guide MID Upper Displays
Basic trip computer displays are shown here.
Instant fuel
economy
Average
speed, Total
travel time
Average MPG,
Fuel range
Main display
Tire Pressure
Monitor*
Bluetooth®
HandsFreeL

Page 7 of 20

HONDA RIDGELINE 2010 1.G Technology Reference Guide Indicators/Info
Display/MID/TPMS
Tire Pressure Monitoring System (TPMS)
Each tire valve stem contains a TPMS
sensor.
When the tire pressure drops
significantly below recommended levels,
the low tire p

Page 8 of 20

HONDA RIDGELINE 2010 1.G Technology Reference Guide Auto Door Locks/
HomeLink®/Rearview
Camera
Auto Door Locking/Unlocking
Default Lock Setting
Modifying the Auto Door Unlock Setting The doors are preset to
lock when your vehicle
reaches about 9 mph.

Page 9 of 20

HONDA RIDGELINE 2010 1.G Technology Reference Guide Programmable Auto Door Lock/Unlock Settings
Below are the different programmable options you can choose. See Auto Door Locking/Unlockingin
your owners manual for instructions on programming these set

Page 10 of 20

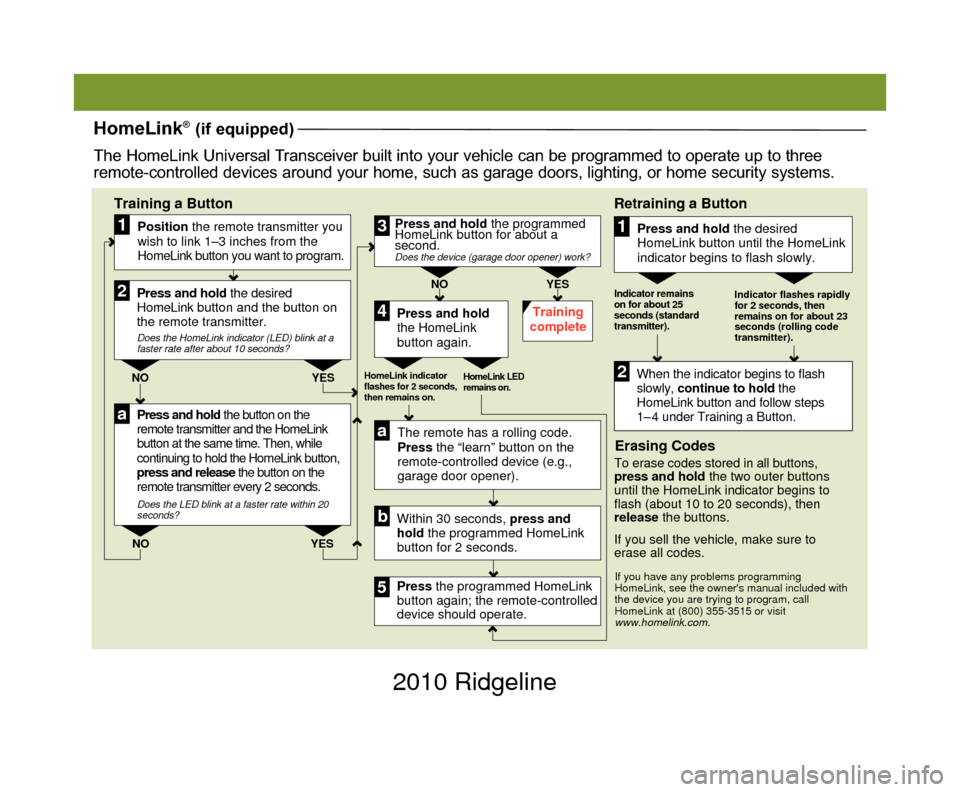

HONDA RIDGELINE 2010 1.G Technology Reference Guide HomeLink®(if equipped)
Press and hold the button on the
remote transmitter and the HomeLink
button at the same time. Then, while
continuing to hold the HomeLink button,
press and release  the but
