HONDA RIDGELINE 2010 1.G Technology Reference Guide

Auto Door Locks/
HomeLink®/Rearview
Camera
Rearview Camera (models with navigation)
To turn the camera on:
Shift into Reverse.
To turn the camera off:
Shiftout of Reverse.
The display shows a view behind the vehicle
while in Reverse (R).
10 Ridgeline TRG_Base:Base 7/6/2009 10:04 AM Page 4 2010 Ridgeline

Voice Command/HFL/Navigation
Using the Voice Command System
• Speak in a clear, natural voice.
• Reduce all background noise.
• Adjust the dashboard and side ventsaway from the microphone in the
ceiling.
• Close the windows.
Voice Command
To reduce driver distraction, use voice commands for hands-free calling, \
navigation, audio, and climate
control functions. A full list of these commands is in the navigation system manual.
Voice Command Tips:
• Press and release the HFL or NAVI Talk button, wait for a
beep, then give a command.
• For a list of available HFL commands, press and release the HFL Talk button and say “Hands-free help.”
• For a list of available navigation commands, press and release the NAVI Talk button and say “Voice command help.”
HFL Talk button: Give HFL commands
or answer incoming calls.
HFL Back button: End a call, go back to
the previous command, or cancel an
operation. NAVI Talk button:
Give navigation, audio,
and climate control
commands.
NAVI Back button:
Cancel a command or
return to the previous
screen.
10 Ridgeline TRG_Base:Base 7/6/2009 10:05 AM Page 5 2010 Ridgeline

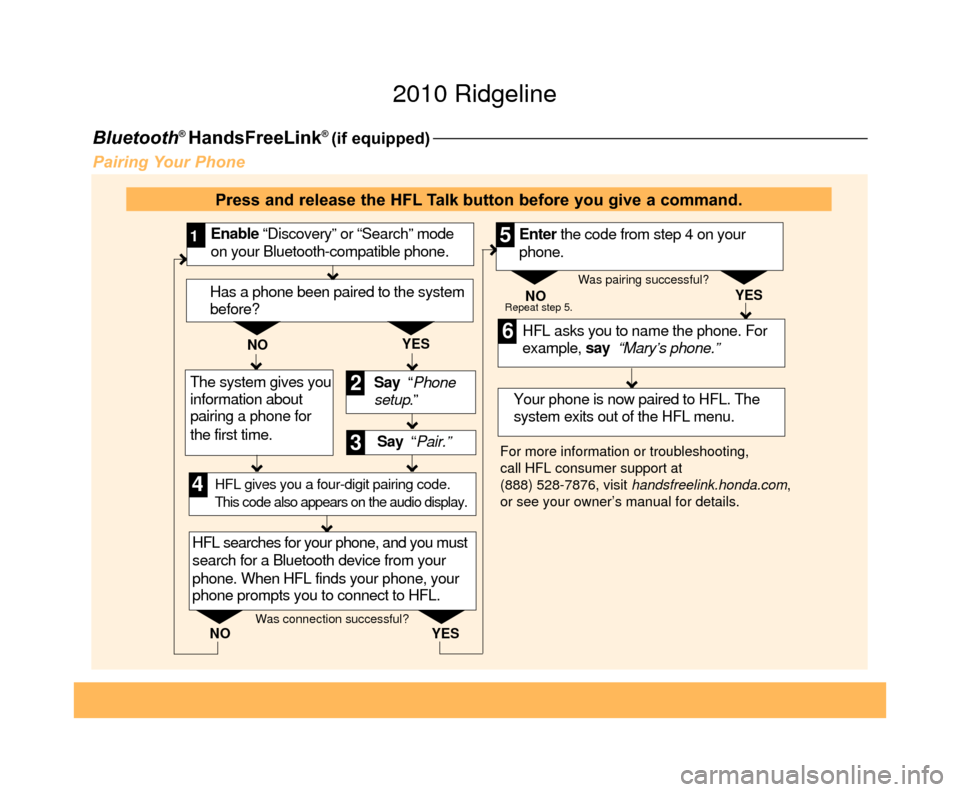

Bluetooth®HandsFreeLink® (if equipped)
Pairing Your Phone
Say “ Pair.” HFL asks you to name the phone. For
example, say “Mary’s phone.”
YES
NO
Enable “Discovery” or “Search” mode
on your Bluetooth-compatible phone.
1
Say “Phone
setup .”
2
3
HFL searches for your phone, and you must
search for a Bluetooth device from your
phone. When HFL finds your phone, your
phone prompts you to connect to HFL. Your phone is now paired to HFL. The
system exits out of the HFL menu.
Enter the code from step 4 on your
phone.
4
5
6
For more information or troubleshooting,
call HFL consumer support at
(888) 528-7876, visit
handsfreelink.honda.com ,
or see your owner’s manual for details. NO
YES
Repeat step 5.
HFL gives you a four-digit pairing code.
This code also appears on the audio display.
Was connection successful? Was pairing successful?
Has a phone been paired to the system
before?
YES
NO
The system gives you
information about
pairing a phone for
the first time.
Press and release the HFL Talk button before you give a command.
10 Ridgeline TRG_5abc:ExtraPages.qxd 7/6/2009 1:23 PM Page a5 2010 Ridgeline

Making a Call1. Press the HFL Talk button, and say “Call”or
“Dial” and the desired phone number .
2. Pressthe HFL Talk button, and say“Call” or
“Dial” to continue.
3. The call is connected and heard through the
vehicle’s speakers.
Receiving a Call
1. A notification is heard, and the following screen appears on the navigation display.
2. Press the HFL Talk button to accept the
call.
3. Press the HFL Back button to end or
decline the call.
10 Ridgeline TRG_5abc:ExtraPages.qxd 7/6/2009 1:23 PM Page b5 2010 Ridgeline

Navigation(if equipped)
Say “City” (or “Change state” if
necessary). Say “Display menu.”
1
Say “Address.”2
3
A list of city names appears. Say
the number listed next to the city you
want to select.
Say the street name. Do not include
the direction (N, S, E, W) or type
(St., Ave., Blvd., etc.).
4
6
Say the name of the city you want, or
say “Current city” to select the city
currently shown.
5
A list of street names appears. Say
the number listed next to the street
you want to select.
Say the entire street address number.
For example, “1-2-5-0.”7
8
The system calculates the route
and displays the “Calculate route to”
screen. Say “OK” to set the route.9

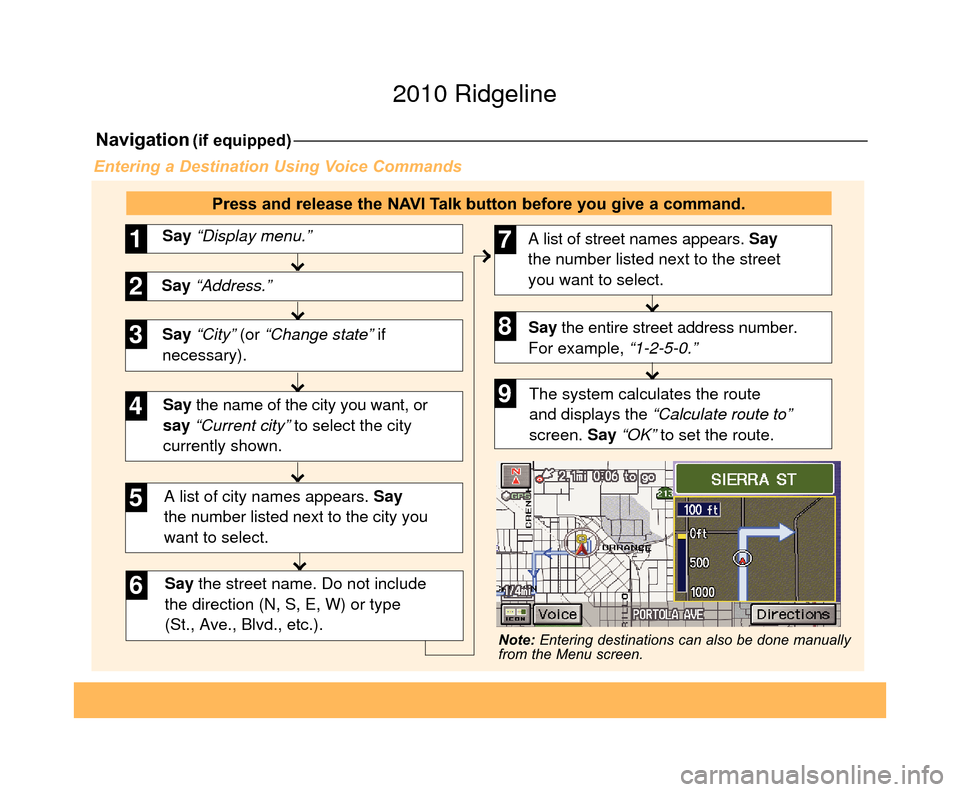

Entering a Destination Using Voice Commands
Press and release the NAVI Talk button before you give a command.
Note: Entering destinations can also be done manually
from the Menu screen.
10 Ridgeline TRG_5abc:ExtraPages.qxd 7/6/2009 1:23 PM Page c5 2010 Ridgeline

1. Say “Find nearest ATM.”
2. A list of the nearest ATMs are displayed by shortest distance to
destination. 3.
Say the number you want to select.
4. The system calculates the route and displays the “Calculate route to” screen.
Say “OK” to set the route.
Press and release the NAVI Talk button before you give a command.
Entering a Destination Using the “Find Nearest” Command
Try these simple steps to find a nearby point of interest, such as a gas station, movie theater, restaurant, etc.
10 Ridgeline TRG_5abc:ExtraPages.qxd 7/6/2009 1:23 PM Page d5 2010 Ridgeline

Commonly Used Voice Commands
Here are some examples of commonly used voice commands. Try some of these to familiarize yourself with
the voice command system.
Press and release the NAVI Talk button before you give a command.
Look for Restaurants in Your Location
Saya command like “Display Chinese restaurants” to
see restaurant icons appear on the map.
Adjust the Vehicle’s Climate Setting Make Audio Selections
Say
a command like “Radio 97.1 FM” or “CD play
track 5” to select that station or song.
Get Estimated Distance to Destination
After a destination is entered, say“How far to
destination?” to hear the remaining distance.
Say
a command like “Air conditioner on” and “Fan
speed 4” to adjust the setting to your liking.
10 Ridgeline TRG_5abc:ExtraPages.qxd 7/6/2009 1:23 PM Page e5 2010 Ridgeline

Commonly Used Voice Commands (continued)Navigation Commands
(Accepted on Map screen
after a destination is entered)
• How long/far to the destination?
• Display destination
• Display entire route
• Find nearest: - ATM
- gas station
- Mexican restaurant
- post office - bank
- Honda dealer
- airport
- hospital
Display Commands(Accepted on Map screen)
• Display (or hide):
- ATM
- gas station
- Mexican restaurant
- post office • Display north up/
heading up
• Zoom in/out
• Go home
• Display current location
• Display map
• Display menu
• Setup
• Information
• Display audio screen
• What time is it?
Press and release the NAVI Talk button before you give a command.
General Commands
(Accepted on most screens to change displays)
Find Place Commands(Accepted on Map screen)
10 Ridgeline TRG_5abc:ExtraPages.qxd 7/6/2009 1:23 PM Page f5 2010 Ridgeline

Voice Command/HFL/Navigation
Audio Commands(Accepted on most screens)
Commonly Used Voice Commands (continued)
Climate Control Commands
(Accepted on most screens)
• Brightness up/down
• Volume up/down/min/max/off • Guidance prompts
min/max/normal
• Radio on
• Radio # FM/AM
• Radio preset
1/2/3/4/5/6
• XM channel # • XM preset 1/2/3/4/5/6
• CD play
• CD play track/disc #
• CD skip forward/back
Press and release the NAVI Talk button before you give a command.
Setup Commands
(Accepted on the Setup screen) • Air conditioner
on/off
• Climate control recirculate/fresh air
• Fan speed up/down • Temperature #
degrees (# = 57–87)
• Temperature max hot/coldHelp Commands(Accepted on most screens)
• Help (list of available commands for currentscreen)
• Voice command help (list of all available navigation, audio, and climate control
commands)
10 Ridgeline TRG_Inside Back2:Inside Back 7/6/2009 1:24 PM Page 6 2010 Ridgeline

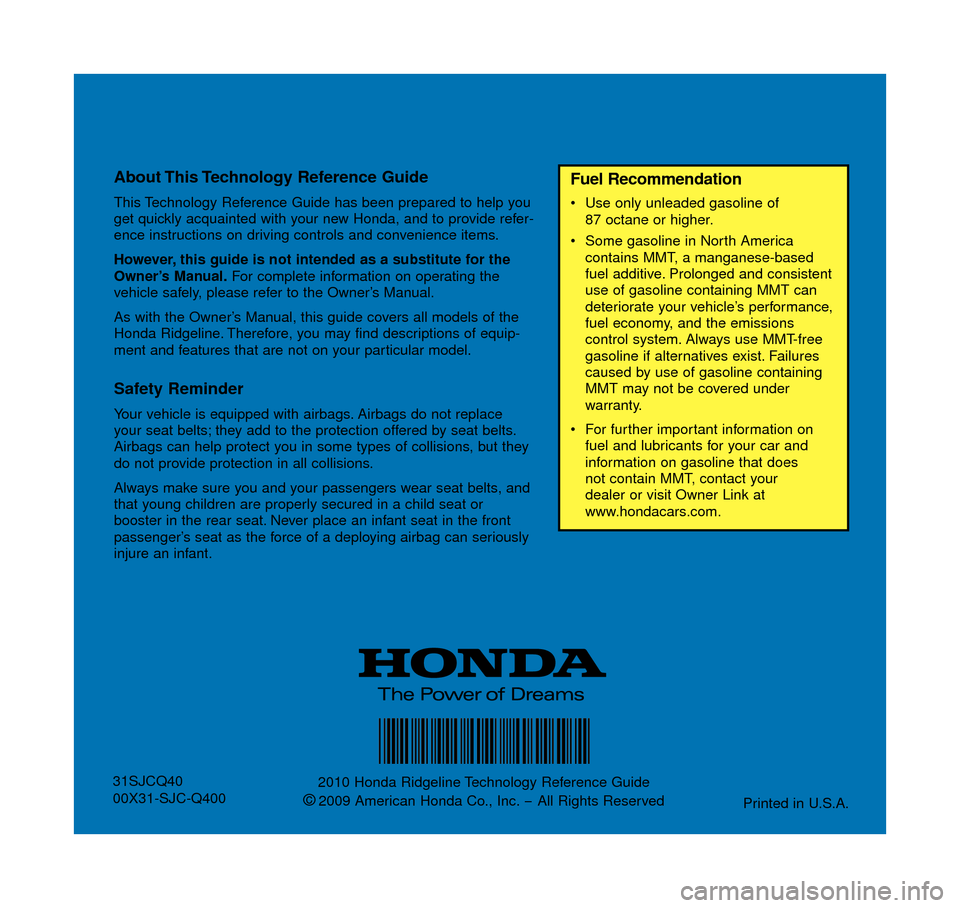

About This Technology Reference Guide
This Technology Reference Guide has been prepared to help you
get quickly acquainted with your new Honda, and to provide refer-
ence instructions on driving controls and convenience items.
However, this guide is not intended as a substitute for the
Owner’s Manual.For complete information on operating the
vehicle safely, please refer to the Owner’s Manual.
As with the Owner’s Manual, this guide covers all models of the
Honda Ridgeline. Therefore, you may find descriptions of equip-
ment and features that are not on your particular model.
Safety Reminder
Your vehicle is equipped with airbags. Airbags do not replace
your seat belts; they add to the protection offered by seat belts.
Airbags can help protect you in some types of collisions, but they
do not provide protection in all collisions.
Always make sure you and your passengers wear seat belts, and
that young children are properly secured in a child seat or
booster in the rear seat. Never place an infant seat in the front
passenger’s seat as the force of a deploying airbag can seriously
injure an infant.
31SJCQ40
00X31-SJC-Q400 2010 Honda Ridgeline Technology Reference Guide©2009 American Honda Co., Inc. -All Rights Reserved
Printed in U.S.A.
Fuel Recommendation
Use only unleaded gasoline of
87 octane or higher.
Some gasoline in North America contains MMT, a manganese-based
fuel additive. Prolonged and consistent
use of gasoline containing MMT can
deteriorate your vehicle’s performance,
fuel economy, and the emissions
control system. Always use MMT-free
gasoline if alternatives exist. Failures
caused by use of gasoline containing
MMT may not be covered under
warranty.
For further important information on fuel and lubricants for your car and
information on gasoline that does
not contain MMT, contact your
dealer or visit Owner Link at
www.hondacars.com.
