display HONDA RIDGELINE 2020 Owner's Manual (in English)

518
Maintenance

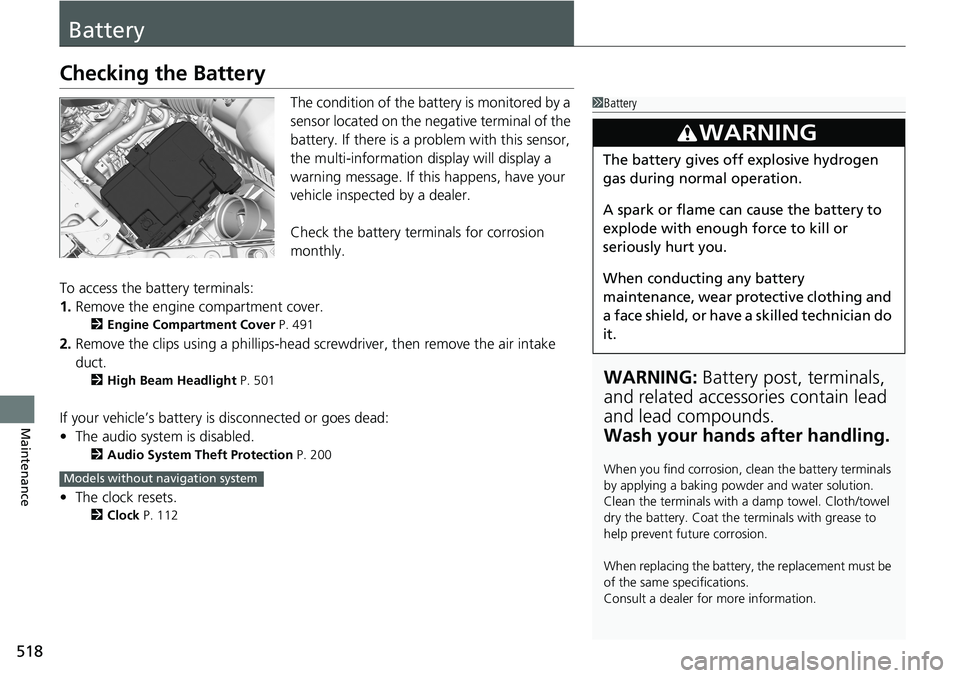

Battery
Checking the Battery
The condition of the battery is monitored by a
sensor located on the negative terminal of the
battery. If there is a problem with this sensor,
the multi-information display will display a
warning message. If this happens, have your
vehicle inspected by a dealer.
Check the battery terminals for corrosion
monthly.
To access the battery terminals:
1. Remove the engine compartment cover.
2 Engine Compartment Cover P. 491
2.Remove the clips using a ph illips-head screwdriver, then remove the air intake
duct.
2 High Beam Headlight P. 501
If your vehicle’s battery is disconnected or goes dead:
•The audio system is disabled.
2 Audio System Theft Protection P. 200
•The clock resets.
2 Clock P. 112
1Battery
WARNING: Battery post, terminals,
and related accessories contain lead
and lead compounds.
Wash your hands after handling.
When you find corrosion, cl ean the battery terminals
by applying a baking powder and water solution.
Clean the terminals with a damp towel. Cloth/towel
dry the battery. Coat the terminals with grease to
help prevent future corrosion.
When replacing the battery, the replacement must be
of the same specifications.
Consult a dealer for more information.
3WARNING
The battery gives off explosive hydrogen
gas during normal operation.
A spark or flame can cause the battery to
explode with enough force to kill or
seriously hurt you.
When conducting any battery
maintenance, wear prot ective clothing and
a face shield, or have a skilled technician do
it.
Models without navigation system

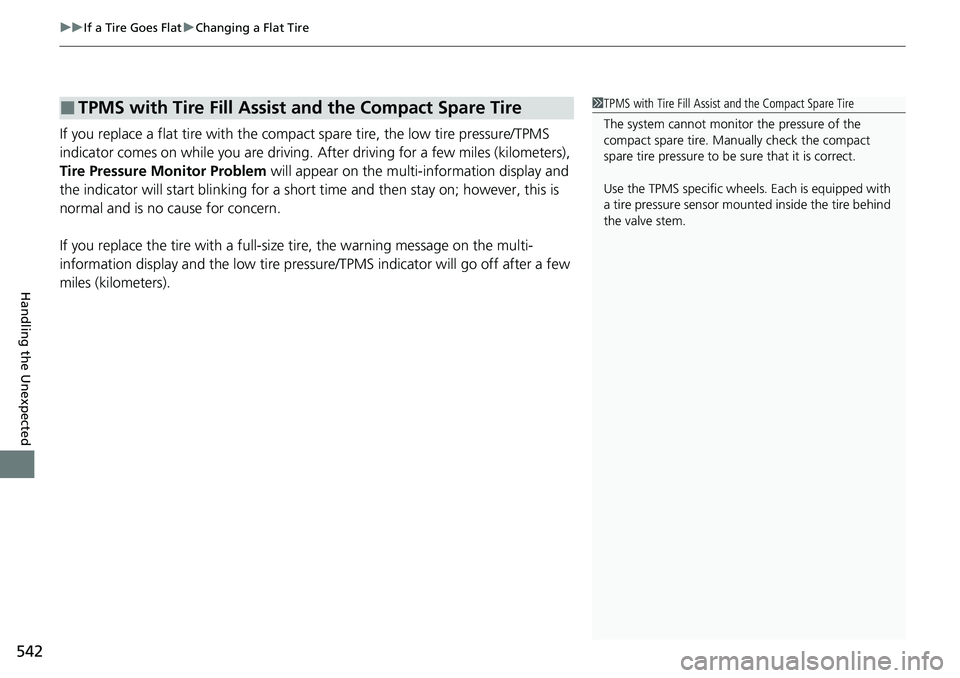

uuIf a Tire Goes Flat uChanging a Flat Tire
542
Handling the Unexpected
If you replace a flat tire with the comp act spare tire, the low tire pressure/TPMS
indicator comes on while you are driving. A fter driving for a few miles (kilometers),
Tire Pressure Monitor Problem will appear on the multi-information display and
the indicator will start blinki ng for a short time and then stay on; however, this is
normal and is no cause for concern.
If you replace the tire with a full-size tire, the warning message on the multi-
information display and the low tire pressu re/TPMS indicator will go off after a few
miles (kilometers).
■TPMS with Tire Fill Assist and the Compact Spare Tire1 TPMS with Tire Fill Assist and the Compact Spare Tire
The system cannot monitor the pressure of the
compact spare tire. Manually check the compact
spare tire pressure to be sure that it is correct.
Use the TPMS specific wheels. Each is equipped with
a tire pressure sensor mount ed inside the tire behind
the valve stem.

543
Handling the Unexpected
Engine Does Not Start
Checking the Engine
If the engine does not start, check the starter.
Starter conditionChecklist
Starter doesn’t turn or turns
over slowly.
The battery may be dead. Check
each of the items on the right and
respond accordingly.Check for a message on the multi-information display.
●If the To Start, Hold Remote Near Start Button message appears
2If the Smart Entry Remote Battery is Weak P. 544
uMake sure the smart entry remote is in its operating range.
2 ENGINE START/STOP Button Operating Range P. 141
Check the brightness of the interior lights.
Turn on the interior lights and check the brightness.
●If the interior lights are dim or do not come on at all
2Battery P. 518●If the interior lights come on normally 2 Fuses P. 556
The starter turns over normally
but the engine doesn’t start.
There may be a problem with the
fuse. Check each of the items on
the right and respond accordingly. Review the engine start procedure.
Follow its instructions, and try
to start the engine again.
2 Starting the Engine P. 379
Check the immobilizer system indicator.
When the immobilizer system indicator is blinking, the engine cannot be started.
2Immobilizer System P. 132
Check the fuel level.
There should be enough fuel in the tank.
2 Fuel Gauge P. 106
Check the fuse.
Check all fuses, or have the vehicle checked by a dealer.
2Inspecting and Changing Fuses P. 561
If the problem continues:
2Emergency Towing P. 562
1Checking the Engine
If you must start the vehi cle immediately, use an
assisting vehicle or booster battery to jump start it.
2 Jump Starting P. 546

544
uuEngine Does Not Start uIf the Smart Entry Remote Battery is Weak
Handling the Unexpected

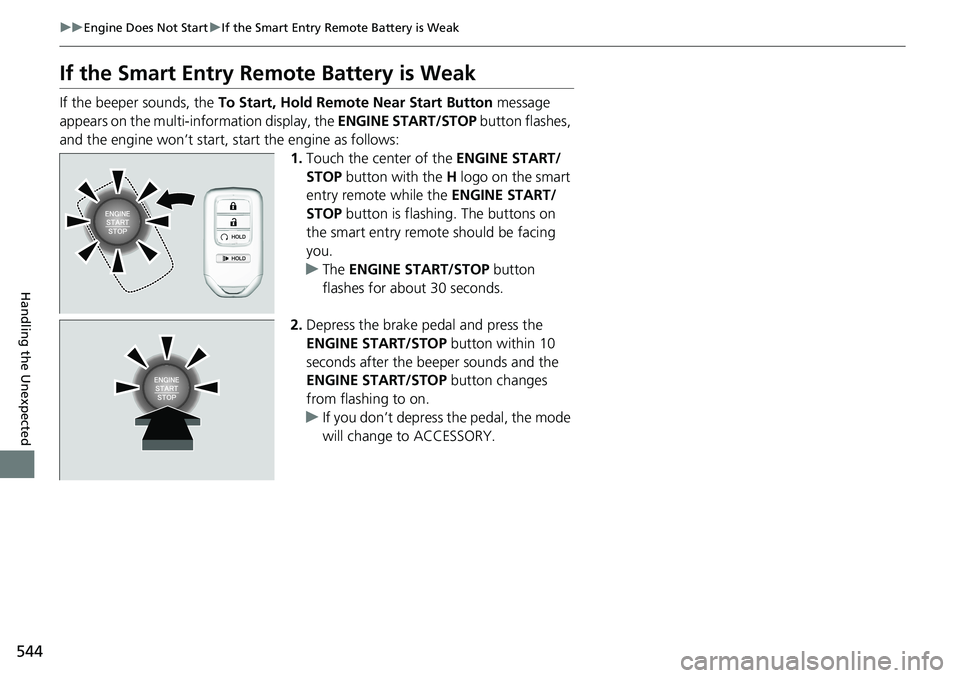

If the Smart Entry Remote Battery is Weak
If the beeper sounds, the To Start, Hold Remote Near Start Button message
appears on the multi-information display, the ENGINE START/STOP button flashes,
and the engine won’t start, start the engine as follows:
1.Touch the center of the ENGINE START/
STOP button with the H logo on the smart
entry remote while the ENGINE START/
STOP button is flashing. The buttons on
the smart entry remote should be facing
you.
u The ENGINE START/STOP button
flashes for about 30 seconds.
2. Depress the brake pedal and press the
ENGINE START/STOP button within 10
seconds after the beeper sounds and the
ENGINE START/STOP button changes
from flashing to on.
u If you don’t depress the pedal, the mode
will change to ACCESSORY.

549Continued
Handling the Unexpected

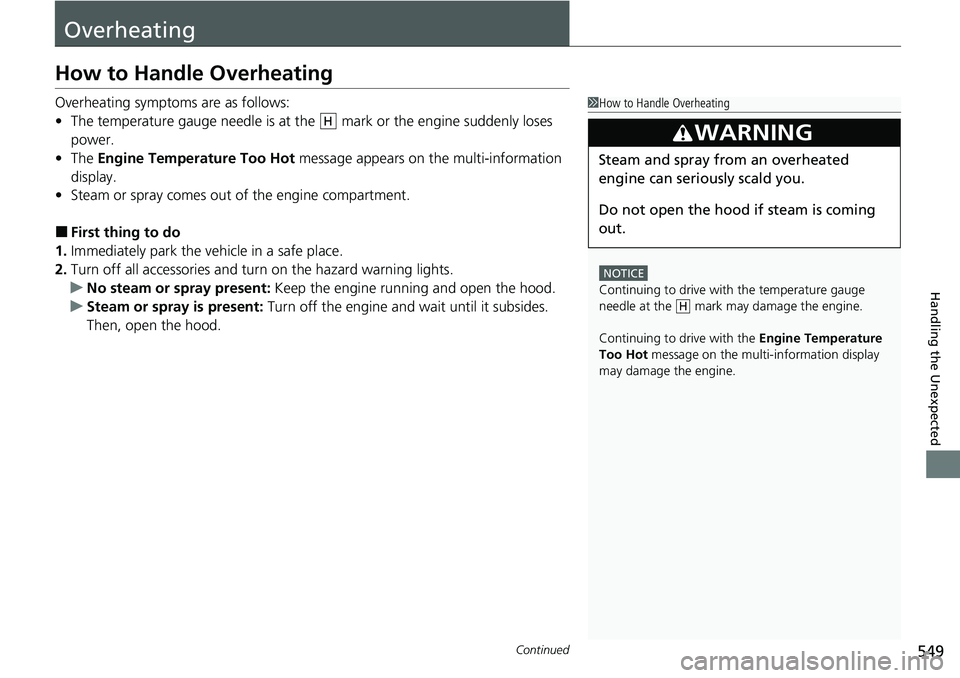

Overheating
How to Handle Overheating
Overheating symptoms are as follows:
•The temperature gauge needle is at the mark or the engine suddenly loses
power.
• The Engine Temperature Too Hot message appears on the multi-information
display.
• Steam or spray comes out of the engine compartment.
■First thing to do
1. Immediately park the vehicle in a safe place.
2. Turn off all accessories and turn on the hazard warning lights.
u No steam or spray present: Keep the engine running and open the hood.
u Steam or spray is present: Turn off the engine and wait until it subsides.
Then, open the hood.
1 How to Handle Overheating
NOTICE
Continuing to drive with the temperature gauge
needle at the mark may damage the engine.
Continuing to drive with the Engine Temperature
Too Hot message on the multi- information display
may damage the engine.
3WARNING
Steam and spray from an overheated
engine can seri ously scald you.
Do not open the hood if steam is coming
out.
H
H

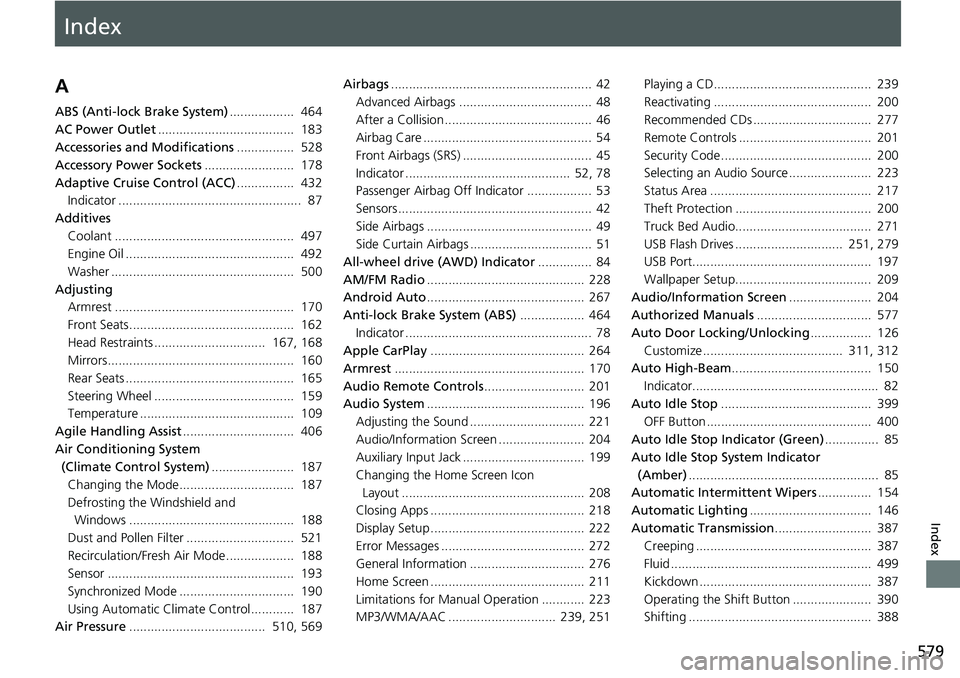

Index
579
Index
Index
A
ABS (Anti-lock Brake System).................. 464
AC Power Outlet ...................................... 183
Accessories and Modifications ................ 528
Accessory Power Sockets ......................... 178
Adaptive Cruise Control (ACC) ................ 432
Indicator ................................................... 87
Additives
Coolant .................................................. 497
Engine Oil ............................................... 492
Washer ................................................... 500
Adjusting Armrest .................................................. 170
Front Seats.............................................. 162
Head Restraints ............................... 167, 168
Mirrors.................................................... 160
Rear Seats ............................................... 165
Steering Wheel ....................................... 159
Temperature ........................................... 109
Agile Handling Assist ............................... 406
Air Conditioning System (Climate Control System) ....................... 187
Changing the Mode................................ 187
Defrosting the Windshield and Windows .............................................. 188
Dust and Pollen Filter .............................. 521
Recirculation/Fresh Air Mode................... 188
Sensor .................................................... 193
Synchronized Mode ................................ 190
Using Automatic Climate Control............ 187
Air Pressure ...................................... 510, 569 Airbags
........................................................ 42
Advanced Airbags ..................................... 48
After a Collision ......................................... 46
Airbag Care ............................................... 54
Front Airbags (SRS) .................................... 45
Indicator .............................................. 52, 78
Passenger Airbag Off Indicator .................. 53
Sensors ...................................................... 42
Side Airbags .............................................. 49
Side Curtain Airbags .................................. 51
All-wheel drive (AWD) Indicator ............... 84
AM/FM Radio ............................................ 228
Android Auto ............................................ 267
Anti-lock Brake System (ABS) .................. 464
Indicator .................................................... 78
Apple CarPlay ........................................... 264
Armrest ..................................................... 170
Audio Remote Controls ............................ 201
Audio System ............................................ 196
Adjusting the Sound ................................ 221
Audio/Information Screen ........................ 204
Auxiliary Input Jack .................................. 199
Changing the Home Screen Icon Layout ................................................... 208
Closing Apps ........................................... 218
Display Setup ........................................... 222
Error Messages ........................................ 272
General Information ................................ 276
Home Screen ........................................... 211
Limitations for Manua l Operation ............ 223
MP3/WMA/AAC .............................. 239, 251 Playing a CD............................................ 239
Reactivating ............................................ 200
Recommended CDs ................................. 277
Remote Controls ..................................... 201
Security Code .......................................... 200
Selecting an Audio Source ....................... 223
Status Area ............................................. 217
Theft Protection ...................................... 200
Truck Bed Audio...................................... 271
USB Flash Drives .............................. 251, 279
USB Port.................................................. 197
Wallpaper Setup...................................... 209
Audio/Information Screen ....................... 204
Authorized Manuals ................................ 577
Auto Door Locking/Unlocking ................. 126
Customize ....................................... 311, 312
Auto High-Beam ....................................... 150
Indicator.................................................... 82
Auto Idle Stop .......................................... 399
OFF Button .............................................. 400
Auto Idle Stop Indicator (Green) ............... 85
Auto Idle Stop System Indicator
(Amber) ..................................................... 85
Automatic Intermittent Wipers ............... 154
Automatic Lighting .................................. 146
Automatic Transmission .........

.................. 387
Creeping ................................................. 387
Fluid ........................................................ 499
Kickdown ................................................ 387
Operating the Shift Button ...................... 390
Shifting ................................................... 388

581
Index
Controls.................................................... 111
Conversation Mirror ................................ 177
Coolant (Engine) ...................................... 497
Adding to the Radiator ........................... 498
Adding to the Reserve Tank .................... 497
Overheating ............................................ 549
Creeping (Automatic Transmission) ........ 387
Cross Traffic Monitor ............................... 471
Cup Holders .............................................. 175
Customer Service Information ................ 578
Customized Features ............................... 295
D
Daytime Running Lights .......................... 149
Dead Battery ............................................ 546
Defaulting All the Settings ...................... 319
Defogger/Heated Door Mirror ................ 155
Defrosting the Windshield and Windows ................................................. 188
Devices that Emit Radio Waves ............... 571
Dimming Headlights .............................................. 145
Rearview Mirror ...................................... 160
Dipstick (Engine Oil) ................................ 493
Directional Signals (Turn Signal) ............. 144
Display Button .......................................... 204
Door Mirrors ............................................. 161
Doors ........................................................ 113
Auto Door Locking.................................. 126
Auto Door Unlocking .............................. 126 Door Open Message ............................ 34, 92
Key .......................................................... 113
Locking/Unlocking the Doors
from the Inside ................................ 14, 123
Locking/Unlocking the Doors
from the Outside ................................... 116
Lockout Prevention System ...................... 122
DOT Tire Quality Grading ........................ 512
Driving ....................................................... 357
Adaptive Cruise Control (ACC) ................ 432
Automatic Transmission ........................... 387
Braking .................................................... 462
Off-Highway Driving Guidelines ............... 377
Shifting ................................................... 388
Starting the Engine .................................. 379
Driving Guidelines for Your Utility Vehicle ..................................................... 385
Driving Position Memory System ............. 157
Dust and Pollen Filter ............................... 521
E
Eco Assist® System ...................................... 10
ECON Button ............................................. 396
ECON Mode Indicator ................................ 88
Electric Power Steering (EPS) System Indicator ............................................ 81, 553
Electronic Stability Control (ESC) ............. 404
Emergency ................................................ 562
Emergency Trunk Opener ........................ 131
Emissions Testing (Readiness Codes) ....... 573Engine
Coolant ................................................... 497
Jump Starting .......................................... 546
Oil ........................................................... 492
Remote Engine Start................................ 381
Starting ................................................... 379
Engine Compartment Cover .................... 491
Engine Coolant ......................................... 497
Adding to the Radiator ............................ 498
Adding to the Reserve Tank..................... 497
Overheating ............................................ 549
Temperature Gauge ................................ 106
Engine Oil ................................................. 492
Adding .................................................... 494
Checking................................................. 493
Displaying Oil Life .................................... 485
Low Oil Pressure Indicator ................. 75, 551
Recommended Engine Oil ....................... 492
ENGINE START/STOP Button .................... 141
EPS (Electric Power Steering) System Indicator............................................ 81, 553
Exhaust Gas Hazard
(Carbon Monoxide) .................................. 70
Exterior Care (Cleaning) ........................... 524
Exterior Mirrors ........................................ 161

582
Index

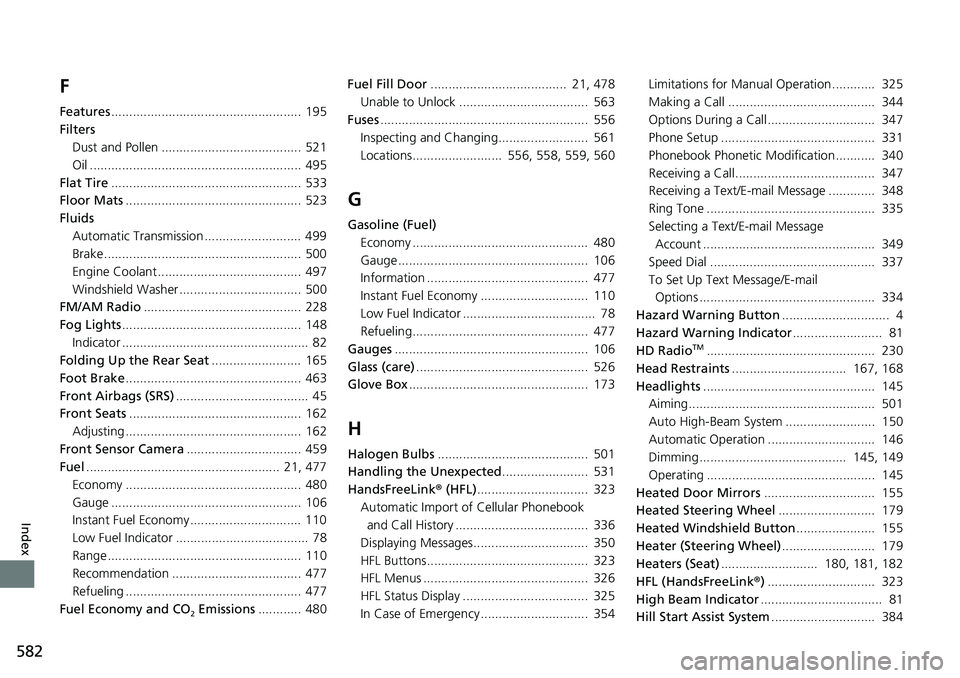

F
Features..................................................... 195
Filters Dust and Pollen ....................................... 521
Oil ........................................................... 495
Flat Tire ..................................................... 533
Floor Mats ................................................. 523
Fluids
Automatic Transmission ........................... 499
Brake ....................................................... 500
Engine Coolant ........................................ 497
Windshield Washer .................................. 500
FM/AM Radio ............................................ 228
Fog Lights .................................................. 148
Indicator .................................................... 82
Folding Up the Rear Seat ......................... 165
Foot Brake ................................................. 463
Front Airbags (SRS) ..................................... 45
Front Seats ................................................ 162
Adjusting ................................................. 162
Front Sensor Camera ................................ 459
Fuel ...................................................... 21, 477
Economy ................................................. 480
Gauge ..................................................... 106
Instant Fuel Economy ............................... 110
Low Fuel Indicator ..................................... 78
Range ...................................................... 110
Recommendation .................................... 477
Refueling ................................................. 477
Fuel Economy and CO
2 Emissions ............ 480 Fuel Fill Door
...................................... 21, 478
Unable to Unlock .................................... 563
Fuses .......................................................... 556
Inspecting and Changing......................... 561
Locations......................... 556, 558, 559, 560
G
Gasoline (Fuel) Economy ................................................. 480
Gauge ..................................................... 106
Information ............................................. 477
Instant Fuel Economy .............................. 110
Low Fuel Indicator ..................................... 78
Refueling................................................. 477
Gauges ...................................................... 106
Glass (care) ................................................ 526
Glove Box .................................................. 173
H
Halogen Bulbs .......................................... 501
Handling the Unexpected ........................ 531
HandsFreeLink ® (HFL) ............................... 323
Automatic Import of Cellular Phonebook
and Call History ..................................... 336
Displaying Messages................................ 350
HFL Buttons............................................. 323
HFL Menus .............................................. 326
HFL Status Display ................................... 325
In Case of Emergency .............................. 354 Limitations for Manual Operation ............ 325
Making a Call ......................................... 344
Options During a Call.............................. 347
Phone Setup ........................................... 331
Phonebook Phonetic M
odification........... 340
Receiving a Call....................................... 347
Receiving a Text/E-mail Message ............. 348
Ring Tone ............................................... 335
Selecting a Text/E-mail Message Account ................................................ 349
Speed Dial .............................................. 337
To Set Up Text Message/E-mail Options ................................................. 334
Hazard Warning Button .............................. 4
Hazard Warning Indicator ......................... 81
HD Radio
TM............................................... 230
Head Restraints ................................ 167, 168
Headlights ................................................ 145
Aiming.................................................... 501
Auto High-Beam System ......................... 150
Automatic Operation .............................. 146
Dimming......................................... 145, 149
Operating ............................................... 145
Heated Door Mirrors ............................... 155
Heated Steering Wheel ........................... 179
Heated Windshield Button ...................... 155
Heater (Steering Wheel) .......................... 179
Heaters (Seat) ........................... 180, 181, 182
HFL (HandsFreeLink ®) .............................. 323
High Beam Indicator .................................. 81
Hill Start Assist System ............................. 384

584
Index
L
Lane Keeping Assist System (LKAS)......... 445
Indicator .............................................. 87, 88
LaneWatch
TM............................................. 415
LATCH (Child Seats) .............................. 60, 65
Lights ................................................. 145, 501
Auto High Beam ...................................... 150
Automatic ............................................... 146
Bed.......................................................... 185
Bulb Replacement .................................... 501
Daytime Running Lights ........................... 149
Fog Lights ................................................ 148
High Beam Indicator .................................. 81
Interior .................................................... 171
Light Switches ......................................... 145
Lights On Indicator .................................... 82
Turn Signals ............................................. 144
Load Limits ................................................ 361
Locking/Unlocking .................................... 113
Auto Door Locking/Unlocking .................. 126
Childproof Door Locks ............................. 125
From Inside .............................................. 123
From Outside ........................................... 116
Key .......................................................... 113
Using a Key ............................................. 122
Lockout Prevention System ...................... 122
Low Battery Charge .................................. 551
Low Fuel Indicator ...................................... 78
Low Oil Pressure Indicator ................. 75, 551
Low Tire Pressure Indicator ........................ 81
Lower Anchors ............................................ 60 Lubricant Specifications Chart
................. 569
Luggage (Maximum Load Limit) ............. 361
Lumbar Support ....................................... 162
M
M (sequential mode) Indicator/Sequential
Mode Gear Selection Indicator ................ 76
Maintenance ............................................. 481
Battery .................................................... 518
Brake Fluid .............................................. 500
Cleaning ................................................. 522
Climate Control System ........................... 521
Coolant ................................................... 497
Maintenance Minder
TM............................ 485
Oil ........................................................... 493
Precautions ............................................. 482
Radiator .................................................. 498
Remote Transmitter ................................. 520
Replacing Light Bulbs .............................. 501
Safety...................................................... 483
Service Items ........................................... 487
Tires ........................................................ 509
Transmission Fluid ................................... 499
Under the Hood ...................................... 489
Wiper Blades ........................................... 507
Malfunction Indicator Lamp .............. 75, 552
Map Lights ................................................ 172
Maximum Load Limit ............................... 361
Meters, Gauges ......................................... 106 Mirrors
...................................................... 160
Adjusting ................................................ 160
Door ....................................................... 161
Exterior ................................................... 161
Interior Rearview ..................................... 160
Modifications (and Accessories) .............. 528
Moonroof ................................................. 139
MP3 ................................................... 239, 251
MP3/WMA/AAC ................................ 239, 251
Multi-Information Display ....................... 107
Multi-View Rear Camera ......................... 475
N
Numbers (Identification)......................... 570
O
Odometer................................................. 108
Off-Highway Driving Guidelines ............. 377
Oil (Engine) .............................................. 492
Adding ................................................... 494
Checking ................................................ 493
Displaying Oil Life ................................... 485
Low Oil Pressure Indicator ................. 75, 551
Recommended Engine Oil ....................... 492
Viscosity.................................................. 492
Open Source Licenses .............................. 294

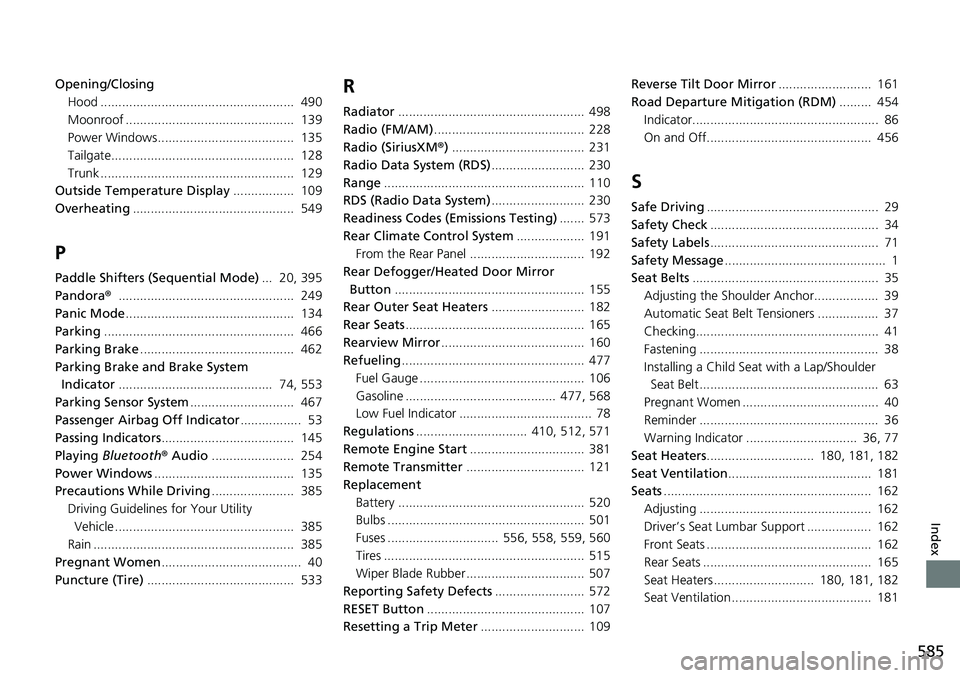

585
Index
Opening/ClosingHood ...................................................... 490
Moonroof ............................................... 139
Power Windows...................................... 135
Tailgate................................................... 128
Trunk ...................................................... 129
Outside Temperature Display ................. 109
Overheating ............................................. 549
P
Paddle Shifters (Sequential Mode) ... 20, 395
Pandora ®................................................. 249
Panic Mode ............................................... 134
Parking ..................................................... 466
Parking Brake ........................................... 462
Parking Brake and Brake System Indicator ........................................... 74, 553
Parking Sensor System ............................. 467
Passenger Airbag Off Indicator ................. 53
Passing Indicators ..................................... 145
Playing Bluetooth ® Audio ....................... 254
Power Windows ....................................... 135
Precautions While Driving ....................... 385
Driving Guidelines for Your Utility Vehicle .................................................. 385
Rain ........................................................ 385
Pregnant Women ....................................... 40
Puncture (Tire) ......................................... 533
R
Radiator.................................................... 498
Radio (FM/AM) .......................................... 228
Radio (SiriusXM ®) ..................................... 231
Radio Data System (RDS) .......................... 230
Range ........................................................ 110
RDS (Radio Data System) .......................... 230
Readiness Codes (Emissions Testing) ....... 573
Rear Climate Control System ................... 191
From the Rear Panel ................................ 192
Rear Defogger/Heated Door Mirror
Button ..................................................... 155
Rear Outer Seat Heaters .......................... 182
Rear Seats .................................................. 165
Rearview Mirror ........................................ 160
Refueling ................................................... 477
Fuel Gauge .............................................. 106
Gasoline .......................................... 477, 568
Low Fuel Indicator ..................................... 78
Regulations ............................... 410, 512, 571
Remote Engine Start ................................ 381
Remote Transmitter ................................. 121
Replacement Battery .................................................... 520
Bulbs ....................................................... 501
Fuses ............................... 556, 558, 559, 560
Tires ........................................................ 515
Wiper Blade Rubber ................................. 507
Reporting Safety Defects ......................... 572
RESET Button ............................................ 107
Resetting a Trip Meter ............................. 109 Reverse Tilt Door Mirror
.......................... 161
Road Departure Mitigation (RDM) ......... 454
Indicator.................................................... 86
On and Off.............................................. 456
S
Safe Driving ................................................ 29
Safety Check ............................................... 34
Safety Labels ............................................... 71
Safety Message ............................................. 1
Seat Belts .................................................... 35
Adjusting the Shoulder Anchor.................. 39
Automatic Seat Belt Tensioners ................. 37
Checking................................................... 41
Fastening .................................................. 38
Installing a Child Seat with a Lap/Shoulder
Seat Belt .................................................. 63
Pregnant Women ...................................... 40
Reminder .................................................. 36
Warning Indicator ............................... 36, 77
Seat Heaters .............................. 180, 181, 182
Seat Ventilation ........................................ 181
Seats .......................................................... 162
Adjusting ................................................ 162
Driver’s Seat Lumbar Support .................. 162
Front Seats .............................................. 162
Rear Seats ............................................... 165
Seat Heaters ............................ 180, 181, 182
Seat Ventilation ....................................... 181
