HONDA RIDGELINE 2021 Navigation Manual (in English)

119
uuInformation Functions uCalculator
Other Features

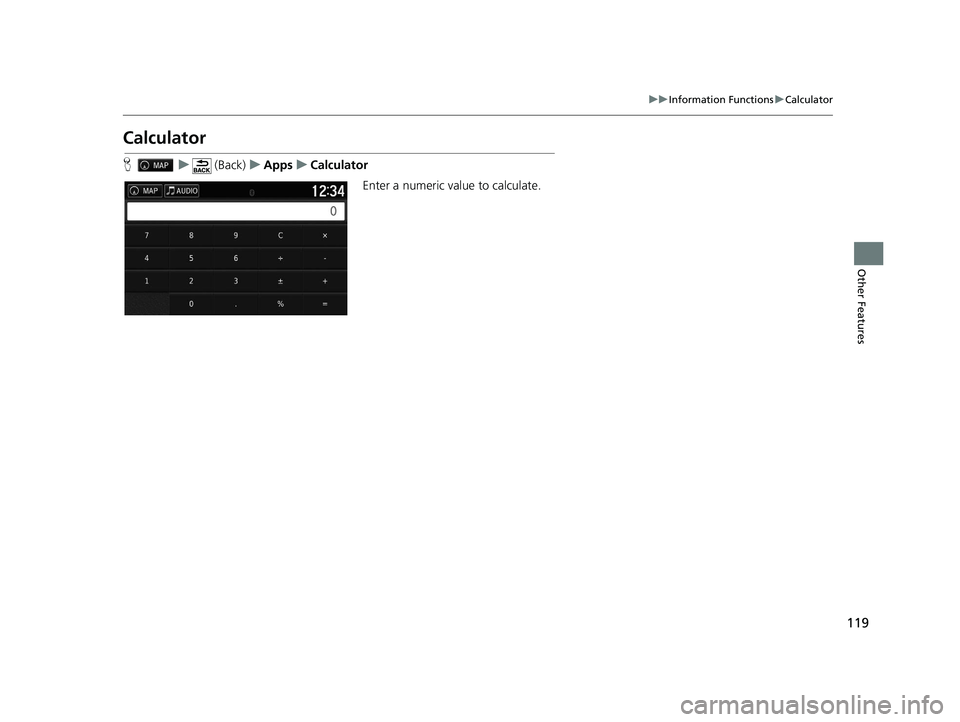

Calculator
H u (Back) uApps uCalculator
Enter a numeric value to calculate.
21 RIDGELINE NAVI-31T6Z8400.book 119 ページ ２０２０年１０月１９日　月曜日　午後１２時２０分

120
uuInformation Functions uUnit Converter
Other Features

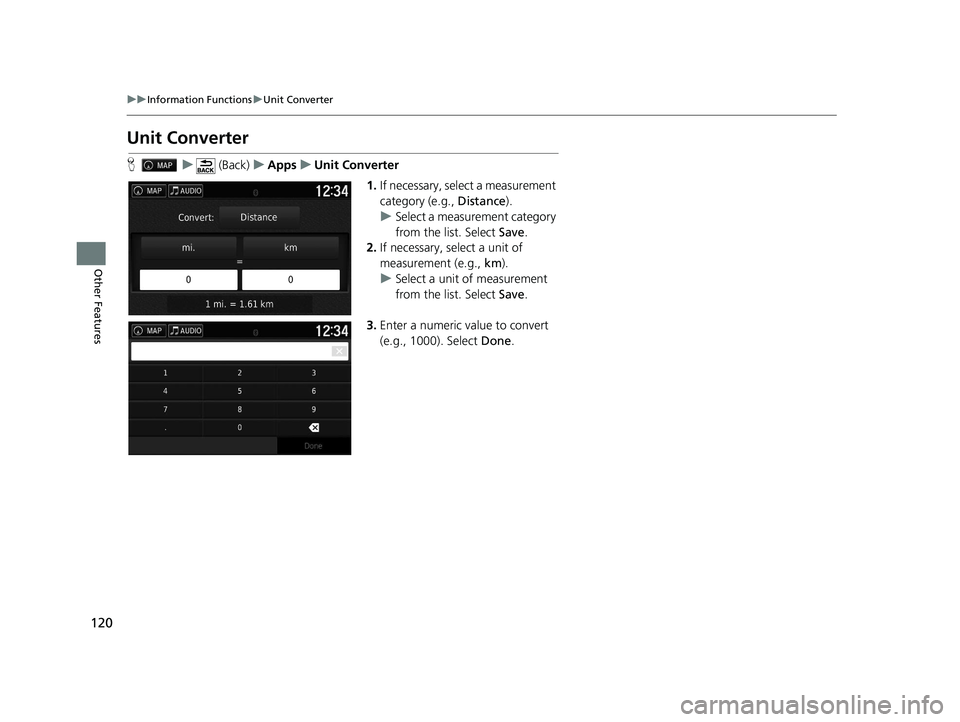

Unit Converter
H u (Back) uApps uUnit Converter
1.If necessary, select a measurement
category (e.g., Distance ).
u Select a measurement category
from the list. Select Save.
2. If necessary, select a unit of
measurement (e.g., km).
u Select a unit of measurement
from the list. Select Save.
3. Enter a numeric value to convert
(e.g., 1000). Select Done.
21 RIDGELINE NAVI-31T6Z8400.book 120 ページ ２０２０年１０月１９日　月曜日　午後１２時２０分

121
uuInformation Functions uGPS Information
Other Features
GPS Information
H u (Back)
The GPS info screen displays the satellites' status. Select and hold .
uA solid bar indicates that the GPS
satellite is ready for use.
21 RIDGELINE NAVI-31T6Z8400.book 121 ページ ２０２０年１０月１９日　月曜日　午後１２時２０分

122
21 RIDGELINE NAVI-31T6Z8400.book 122 ページ ２０２０年１０月１９日　月曜日　午後１２時２０分

123
Troubleshooting
Troubleshooting................................... 124
Map, Voice, Entering Destinations ........ 124
Traffic .................................................. 125
Guidance, Routing ............................... 126
Update, Coverage, Map Errors ............. 127
Display, Accessories.............................. 127
Miscellaneous Questions ...................... 128
21 RIDGELINE NAVI-31T6Z8400.book 123 ページ ２０２０年１０月１９日　月曜日　午後１２時２０分

124
Troubleshooting
Troubleshooting
Map, Voice, Entering Destinations
ProblemSolution
The Startup Confirmation screen is displayed every
time I start the car.This is normal. The Startup Confirmation screen reminds you and your guest
drivers to always operate the navigation system in a safe manner. The Startup
Confirmation screen goes off after a certa in period of time, even if you do not
select OK.
The navigation system reboots by itself (returns to
the opening screen).A reboot can be caused by extreme temper atures or shock from bumpy roads, and
does not necessarily indicate a problem. If this happens frequently, please see your
dealer.
How do I specify a destinat ion when an entered city
or street could not be found?Try selecting the destination directly from the map.
2 Map Input P. 73
How do I delete saved places?1.Select > > Saved > > Delete Saved Places .
2. Select saved places you want to delete.
3. Select Delete .
4. Select Yes.
I cannot hear the navigation system voice.1.Select and then select the (Back) icon. Select Settings >
Navigation and set Voice Prompts to on.
2. Press the (Home) icon. Select Settings > System > Sound/Beep tab.
Turn up Guidance Volume , if guidance volume is low.
For more details, see the Owner’s Manual.
21 RIDGELINE NAVI-31T6Z8400.book 124 ページ ２０２０年１０月１９日　月曜日　午後１２時２０分

125
uuTroubleshooting uTraffic
Troubleshooting
Traffic
ProblemSolution
Traffic information is missing or is not displaying
properly. What is wrong?Verify the following:●Traffic information relies on a clear signal. If signal strength is low, traffic data
may not be available.
●Check that the traffic icons are turned on.
2 Traffic Information P. 86●It is possible that there is a temporary technical problem with your metropolitan
area traffic provider. You can call Honda Au tomobile Customer Service to see if
there is an outage.
2 Honda Automobile Customer Service Contact Information P. 132●If the situation persists, see your Honda authorized dealer for assistance.●Traffic information is available only in certain areas.
21 RIDGELINE NAVI-31T6Z8400.book 125 ページ ２０２０年１０月１９日　月曜日　午後１２時２０分

126
uuTroubleshooting uGuidance, Routing
Troubleshooting
Guidance, Routing
ProblemSolution
The navigation system does not route me the same
way I would go or the same way as other mapping
systems.The navigation system attempts to genera te the optimal route. You can change the
route preferences used when calculating a route.
2 Recalculate Using Another Route Preference P. 106
The street I’m on is not shown on the map screen.The mapping database is constantly undergoing revision.
The vehicle position icon is not following the road. ●Check that the GPS antenna (located in the dashboard) is not blocked. For best
reception, remove items from the dashboar d, such as radar detectors, cellular
phones, or loose articles.
●Metallic tinting or other aftermarket devices can interfere with GPS reception.
Please consult your dealer.
2 GPS P. 130
How do I stop the map from rotating as I drive
along?1.Select and then pres s the (Back) icon.
2. Select Settings > Map & Vehicle > Driving Map View .
3. Check that Driving Map View is set to Track Up or 3-D .
4. Select North Up and then select Save.
The “Arrival time” displa y sometimes increases
even though I am getting closer to my destination.“Arrival time” is based on the speed limit on each road. Depending on the traffic
conditions, the “Arrival time” may be calculated to be earlier or later.
My elevation (shown when I display the current
position) seems to fluc tuate even though my
elevation has not changed.This is normal. The elevation can vary ±100 ft (30 m) due to GPS calculation errors.
2 GPS P. 130
My elevation is missing on the “current position”
screen.The elevation is only displayed if the GP S antenna can receive signals from at least
four satellites. Try moving the vehicle into an open area. The elevation is also not
displayed if the calculated elevation is zero or below sea level.
21 RIDGELINE NAVI-31T6Z8400.book 126 ページ ２０２０年１０月１９日　月曜日　午後１２時２０分

127
uuTroubleshooting uUpdate, Coverage, Map Errors
Troubleshooting
Update, Coverage, Map Errors
Display, Accessories
ProblemSolution
My city is not part of a fully verified detailed
coverage area.The mapping database is constantly undergoing revision.
Does the navigation system work outside North
America?The system contains maps for the contiguous United States, Canada, Mexico,
Puerto Rico, US Virgin Is lands, Cayman Islands, The Bahamas, French Guiana,
Guadeloupe, Martinique, Saint Barthelme, and Jamaica. The navigation system
will not work in other countries.
2 Map Coverage P. 133
ProblemSolution
The display appears dim when starting the car in
really cold weather.This is normal. The display will become brighter after a few minutes.
21 RIDGELINE NAVI-31T6Z8400.book 127 ページ ２０２０年１０月１９日　月曜日　午後１２時２０分

128
uuTroubleshooting uMiscellaneous Questions
Troubleshooting
Miscellaneous Questions
ProblemSolution
My clock frequently changes forward and backward
by one hour.The clock setting is automatically updated based on your GPS location. If you are
driving near a time zone border, the automatic update is the likely reason.
How do I change the interface language?Press the (Home) icon and then select Settings > System > Others tab >
Language .
Select the desired language for system language.
For more information, see the Owner's Manual.
21 RIDGELINE NAVI-31T6Z8400.book 128 ページ ２０２０年１０月１９日　月曜日　午後１２時２０分
