HONDA S2000 2003 1.G Owners Manual

Maint enance
Required Maintenance Record (f or Normal and Severe Schedules)
158
63,750 mi
67,500 mi
71,250 mi
75,000 mi
78,750 mi
82,500 mi
86,250 mi
90,000 mi93,750 mi
97,500 mi
101,250 mi
105,000 mi
108,750 mi
112,500 mi
116,250 mi
120,000 mi
Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date Signature or dealer stamp mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
mi/km
Date
102,000 km
108,000 km
114,000 km
120,000 km
(or 5 years)
126,000 km
132,000 km
138,000 km
144,000 km
(or 6 years) 150,000 km
156,000 km
162,000 km
168,000 km
(or 7 years)
174,000 km
180,000 km
186,000 km
192,000 km
(or 8 years)

µµ µ
µ
µ
µ
Youshouldcheckthefollowing
items at the specif ied intervals. If
you are unsure of how to perf orm
any check, turn to the page given.
Engine oil level Check every
time you fill the fuel tank. See
page .
Windshield washer f luid Check
the level in the reservoir monthly.
If weather conditions cause you to
use the washers f requently, check
the reservoir each time you stop
f or f uel. See page .Tires Check the tire pressure
monthly. Examine the tread f or
wear and foreign objects. See page
.
Lights Check the operation of
the headlights, parking lights,
taillights, high-mount brake light,
turn signals, brake lights, and
license plate lights monthly. See
page .
Engine coolant level Check the
radiator reserve tank every time
you f ill the f uel tank. See page .
Brakes and clutch Check the
f luid level monthly. See page . 123
124
171 174 189
196
Owner Maintenance Checks
Maint enance159

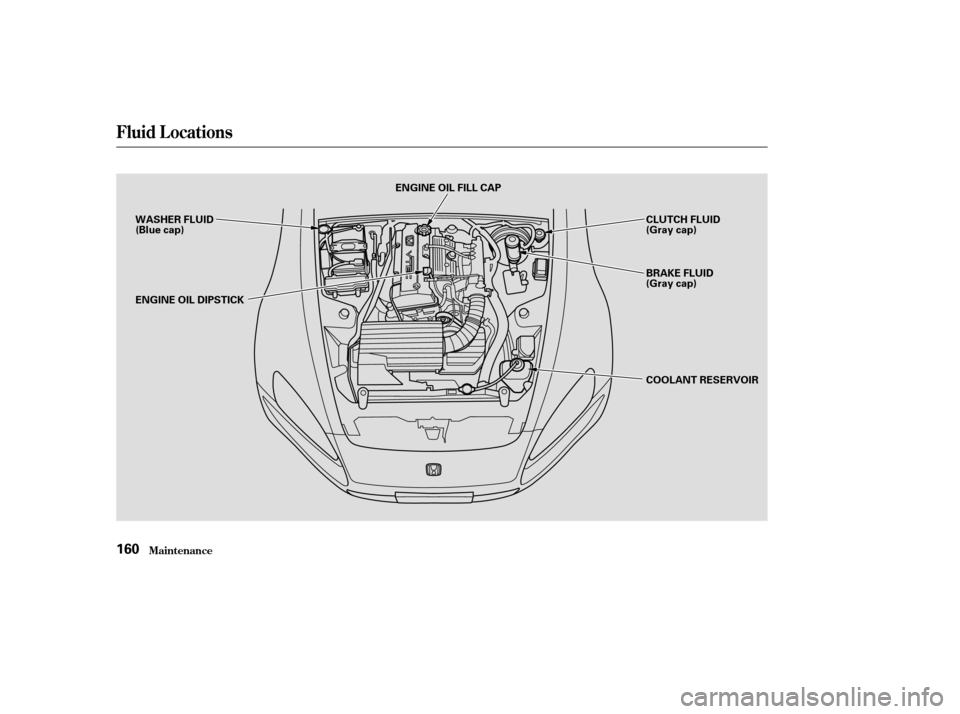

Fluid Locations
Maint enance160
WASHER FLUID
(Blue cap)
ENGINE OIL DIPSTICKENGINE OIL FILL CAP
CLUTCH FLUID
(Gray cap)
BRAKE FLUID
(Gray cap)
COOLANT RESERVOIR

To add oil, unscrew and remove the
engine oil f ill cap on top of the lef t
valve cover. Pour in the oil, and
replace the engine oil f ill cap.
Tighten it securely. Wait a f ew
minutes and recheck the oil level. Do
not f ill above the upper mark; you
could damage the engine.Make sure the API Certif ication Seal
says ‘‘For Gasoline Engines.’’
Pour the oil slowly and caref ully so
you do not spill. Clean up any spills
immediately. Spilled oil could damage components in the engine
compartment.
Oil is major contributor to your
engine’s perf ormance and longevity.
Always use a premium-grade
detergent oil displaying the API
Certif ication Seal. This seal indicates
the oil is energy conserving, and that
it meets the American Petroleum
Institute’s latest requirements. It is
highly recommended that you use
Honda Motor Oil in your vehicle f or
as long as you own it.
CONT INUED
A dding Oil
Recommended Oil
Engine Oil
Maint enance161
API CERTIFICATION SEAL

µ
An oil with a viscosity of 10W-30 is
pref erred f or optimum f uel economy
and year-round protection in your
Honda. You may use a 5W-40 oil if
the temperature in your area goes
below 0°F ( 20°C). The oil’s viscosity or weight is
provided on the container’s label.
Select the oil f or your car according
to this chart.
You may use a synthetic motor oil if
it meets the same requirements
given f or a conventional motor oil: it
displays the API Certif ication Seal,
and it is the proper weight as shown
on the chart. When using synthetic
oil, you must f ollow the oil and f ilter
change intervals given in the
maintenance schedule.Your Honda does not require any oil
additives. Additives may adversely
af f ect your engine’s or transmission’s
perf ormance and durability.
Engine Oil
Maint enance
Synthetic Oil
Additives
162

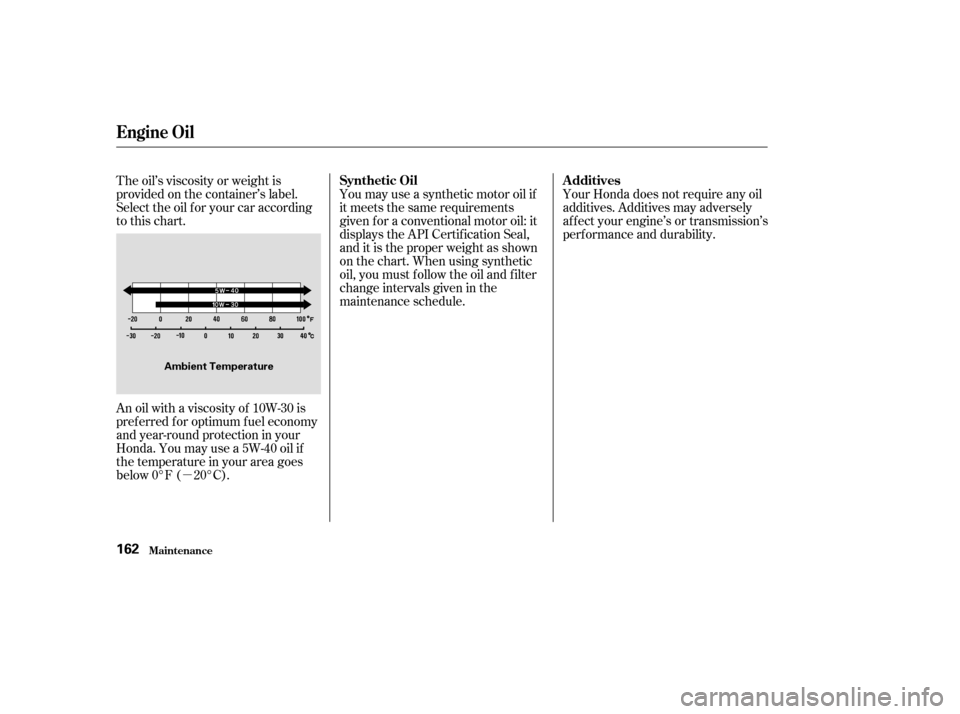

Ambient Temperature

Always change the oil and f ilter
accordingtothetimeanddistance
(miles/kilometers) recommenda-
tions in the maintenance schedule.
The oil and f ilter collect contami-
nants that can damage your engine if
they are not removed regularly.Run the engine until it reaches
normal operating temperature,
then shut it off. Remove the engine oil f ill cap.
Remove the oil drain bolt from the
bottom of the engine. Drain the oil
into an appropriate container.
Install a new oil f ilter according to
instructions that come with it.
Changing the oil and f ilter requires
special tools and access f rom
underneath the car. The car should
be raised on a service station-type
hydraulic lif t f or this service. Unless
you have the knowledge and proper
equipment, you should have this
maintenance done by a skilled
mechanic.
Remove the oil f ilter and let the
remaining oil drain. A special
wrench (available from your
Honda dealer) is required to
remove the f ilter.
1. 2.
3.
4.
CONT INUED
Changing the Oil and Filter
Engine Oil
Maint enance163
WASHER OIL DRAIN BOLT OIL FILTER

Put a new washer on the drain bolt,
then reinstall the drain bolt.
Tighten it to:
Refill the engine with the recom-
mended oil.
Engine oil change capacity
(including f ilter):Turn of f the engine, let it sit f or
several minutes, then check the oil
level. If necessary, add oil to bring
the level to the upper mark on the
dipstick.
Replace the engine oil f ill cap.
Start the engine. The oil pressure
indicator light should go out within
f ive seconds. If it does not, turn of f
the engine and reinspect your
work.
Let the engine run f or several
minutes, then check the drain bolt
and oil f ilter f or leaks.
5.
6.
7.
8.
9.
Engine Oil
Maint enance164
33 lbf·ft (45 N·m , 4.6 kgf·m)
5.1 US qt (4.8
)
Improper disposal of engine oil can be
harmf ul to the environment. If you
change your own oil, please dispose of
the used oil properly. Put it in a sealed
container and take it to a recycling
center. Do not discard it in a trash bin
or dump it on the ground.

If the coolant level in the reserve
tank is at or below the MIN line, add
coolant to bring it up to the MAX line.
Inspect the cooling system f or leaks.
The coolant you add should always
be a mixture of 50 percent antif reeze
and 50 percent water. Never add
straight antif reeze or plain water.If the reserve tank is completely
empty, you should also check the
coolant level in the radiator.
Make sure the engine and radiator
are cool.
Always use Honda All Season
Antif reeze/Coolant Type 2. This
coolant is pre-mixed with 50 percent
antif reeze and 50 percent water. It
does not require any additional
mixing.
If it is not available, you may use
another major-brand non-silicate
coolant as a temporary replacement.
Make sure it is a high-quality coolant
recommended f or aluminum engines.
However, continued use of any non-
Honda coolant can result in
corrosion, causing the cooling
system to malf unction or f ail. Have
the cooling system f lushed and
ref illed with Honda antif reeze/
coolant as soon as possible.
1.
CONT INUED
A dding Engine Coolant
Cooling Syst em
Maint enance165
RESERVE TANK
MAX MIN
Removing the radiator cap
while the engine is hot can
cause the coolant to spray out,
seriously scalding you.
Always let the engine and
radiator cool down before
removing the radiator cap.

The coolant level should be up to
the base of the f iller neck. Add
coolant if it is low.
Turn the radiator cap counter-
clockwise, without pressing down
on it, until it stops. This relieves
any pressure remaining in the
cooling system.
Remove the radiator cap by
pushing down and turning
counterclockwise. Pour coolant into the reserve tank.
Fill it to half way between the MAX
and MIN marks. Put the cap back
on the reserve tank.
Put the radiator cap back on.
Tighten it f ully. Pourthecoolantslowlyand
caref ully so you do not spill. Clean
up any spills immediately. Spilled
coolant could damage components
in the engine compartment. Do not add any rust inhibitors or
other additives to your car’s cooling
system. They may not be compatible
with the coolant or engine compo-
nents.
2.
3.
4.
5.6.
Cooling Syst em
Maint enance166

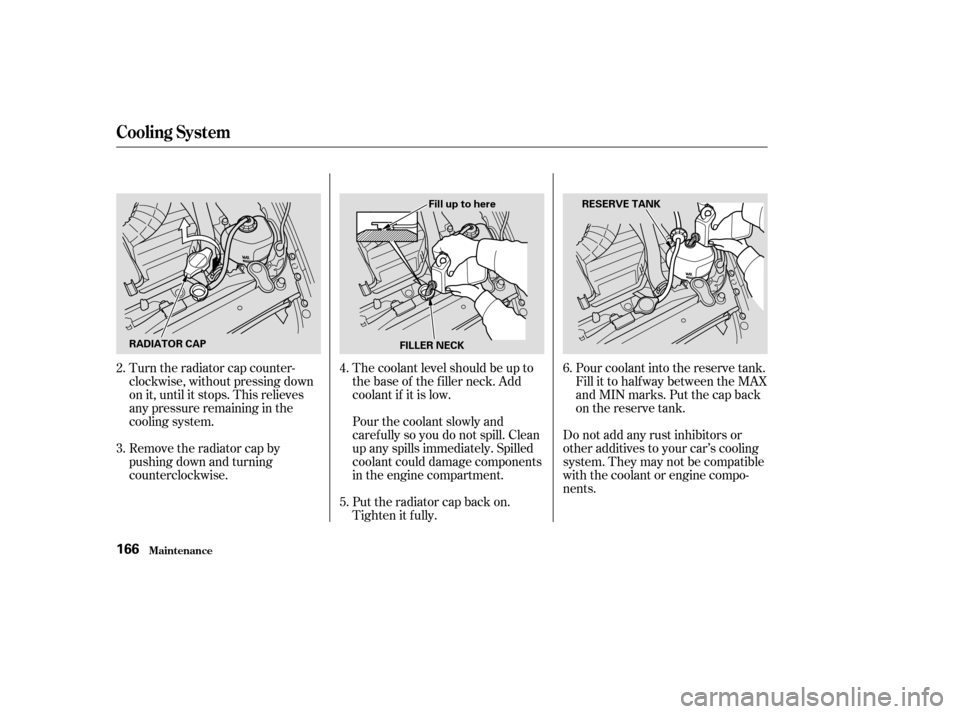

RADIATOR CAP RESERVE TANK
Fill up to here
FILLER NECK

Turn the ignition ON (II). Turn
the heater temperature control
dial f ully clockwise. Turn the
ignition of f .
Openthehood.Makesurethe
engine and radiator are cool to the
touch.
Remove the radiator cap.Loosen the drain plug on the
bottom of the radiator. The
coolant will drain through the
splash guard. Remove the drain
bolt and washer f rom the engine
block.
Thecoolingsystemshouldbe
completely drained and ref illed with
new coolant according to the time
and distance recommendations in
the maintenance schedule. Only use
Honda All season Antif reeze/
Coolant Type 2.
Draining the coolant requires access
to the underside of the car. Unless
you have the tools and knowledge,
you should have this maintenance
done by a skilled mechanic.
1.
2.
3. 4.
CONT INUED
Replacing Engine Coolant
Cooling Syst em
Maint enance167
DRAIN BOLT
DRAIN PLUG
