HONDA S2000 2003 1.G Owners Manual

Remove the reserve tank f rom its
holder by pulling it straight up.
Drain the coolant, then put the
tank back in its holder.When the coolant stops draining,
tightenthedrainplugatthe
bottom of the radiator.
Apply non-hardening sealant to the
drain bolt threads, put a new
washer on the drain bolt, and
reinstall the bolt in the engine
block. Tighten it securely.
Tightening torque:
Loosen the bleeder bolt on top of
the engine, and remove the
bleeder cap near the engine oil f ill
cap.
5. 6.
7.
Cooling Syst em
Maint enance168
RESERVE TANK CAP
HOLDER RESERVE TANK BLEEDER BOLT
61 lbf·ft (83 N·m , 8.5 kgf·m)

CONT INUED
Fill the reserve tank to the MAX
mark. Install the reserve tank cap.
Install the radiator cap, and
tighten it to the first stop.
Start the engine and let it run until
the radiator fan comes on two
times. Then stop the engine.
Pour Honda All Season
Antif reeze/Coolant Type 2 into
the radiator up to the base of the
f iller neck. This coolant is a
mixture of 50 percent antif reeze
and 50 percent water. Pre-mixing
is not required.
Pour coolant into the radiator up
to the base of the f iller neck. Start the engine and let it run f or
about 30 seconds. Then turn of f
the engine. Tighten the bleeder bolt and
reinstall the bleeder cap when
coolant comes out in a steady
stream with no bubbles.
The cooling system capacity is: 9.
10.
11. 12.
13.
14.
8.
Cooling Syst em
Maint enance169
BLEEDER CAP
Fill up to here
FILLER NECK RESERVE TANK
1.72 US gal (6.5)

Remove the radiator cap.
Pour coolant into the radiator up
to the base of the f iller neck and
into the reserve tank up to the
MAX mark.
Start the engine and hold it at
1,500 rpm until the radiator f an
comes on. Turn of f the engine.
Check the coolant level in the
radiator and add coolant if needed.
Install the radiator cap, and
tighten it fully.
If necessary, f ill the reserve tank
to the MAX mark. Install the
reserve tank cap.
15.
16.
17.
18.
19.
Cooling Syst em
Maint enance170

Check the level in the windshield
washer reservoir at least monthly
during normal usage. In bad weather,
when you use the washers of ten,
check the level every time you stop
for fuel.Fill the reservoir with a good-quality
windshield washer f luid. This
increases the cleaning capability and
prevents f reezing in cold weather.
The windshield washer reservoir is
located in the rear of the engine
compartment on the passenger’s side. Check the reservoir’s f luid level by
removing the cap and looking at the
level gauge attached to the cap.
When you ref ill the reservoir, clean
the edges of the windshield wiper
blades with windshield washer f luid
on a clean cloth. This will help to
condition the blade edges.
Windshield Washers
Maint enance171
RESERVOIR CAP
Do not use engine antif reeze or a
vinegar/water solution in the
windshield washer reservoir.
Antif reeze can damage your car’s paint,
while a vinegar/water solution can
damage the windshield washer pump.
Use only commercially-available
windshield washer f luid.

The transmission should be drained
and ref illed with new f luid according
to the time and distance recommen-
dations in the maintenance schedule.
Check the f luid level with the
transmission at normal operating
temperature and the car sitting on
level ground. Remove the
transmission f iller bolt and caref ully
f eel inside the bolt hole with your
f inger. The f luid level should be up
to the edge of the bolt hole. If it is
not, add Honda Manual Transmis-
sion Fluid (MTF) until it starts to
run out of the hole. Reinstall the
f iller bolt and tighten it securely. If Honda MTF is not available, you
may use an SAE 10W-30 or 10W-40
viscosity motor oil with the API
Certif ication seal that says ‘‘FOR
GASOLINE ENGINES’’ as a
temporary replacement. However,
motor oil does not contain the proper
additives and continued use can
cause stiffer shifting. Replace as
soon as it is convenient.
Maint enance
6-speed Manual T ransmission Fluid
172
CORRECT LEVEL
FILLER BOLT

Put a new washer on the f iller bolt,
then reinstall the f iller bolt. Tighten
it securely. Tightening torque:
The dif f erential should be drained
and ref illed with new f luid according
to the time and distance
recommendations in the
maintenance schedule.
Check the f luid level with the
dif f erential at normal operating
temperature and the vehicle sitting
on level ground. Remove the
dif f erential f luid f iller bolt and
washer and caref ully f eel inside the
bolt hole with your f inger. The f luid
level should be up to the edge of the
bolt hole. If it is not, slowly add f luid
until it starts to run out of the hole. Use an SAE 90 viscosity hypoid gear
oil, API service classif ied GL5 or
GL6 only, in the dif f erential.
Maint enance
Dif f erential Fluid
173
CORRECT LEVEL
FILLER BOLT
33 lbf·ft (45 N·m , 4.6 kgf·m)

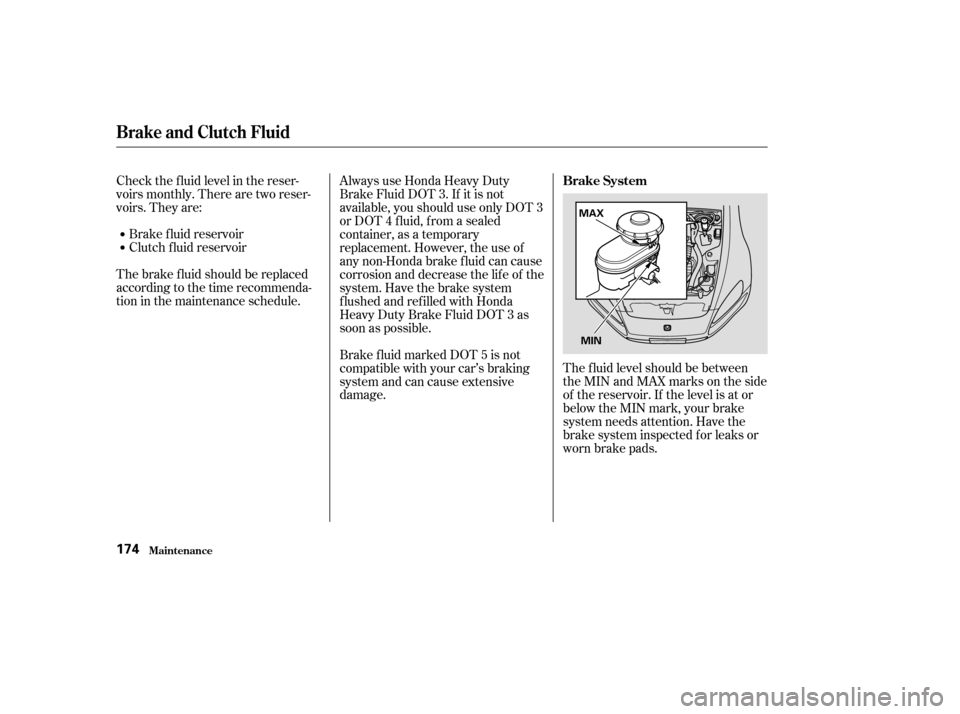

The f luid level should be between
theMINandMAXmarksontheside
of the reservoir. If the level is at or
below the MIN mark, your brake
system needs attention. Have the
brake system inspected f or leaks or
worn brake pads.
Check the f luid level in the reser-
voirs monthly. There are two reser-
voirs. They are:
Brake f luid reservoir
Clutch f luid reservoir
The brake f luid should be replaced
according to the time recommenda-
tion in the maintenance schedule. Always use Honda Heavy Duty
Brake Fluid DOT 3. If it is not
available, you should use only DOT 3
or DOT 4 f luid, f rom a sealed
container, as a temporary
replacement. However, the use of
any non-Honda brake fluid can cause
corrosion and decrease the lif e of the
system. Have the brake system
f lushed and ref illed with Honda
Heavy Duty Brake Fluid DOT 3 as
soon as possible.
Brake f luid marked DOT 5 is not
compatible with your car’s braking
system and can cause extensive
damage.Brake System
Brake and Clutch Fluid
Maint enance174
MAX
MIN

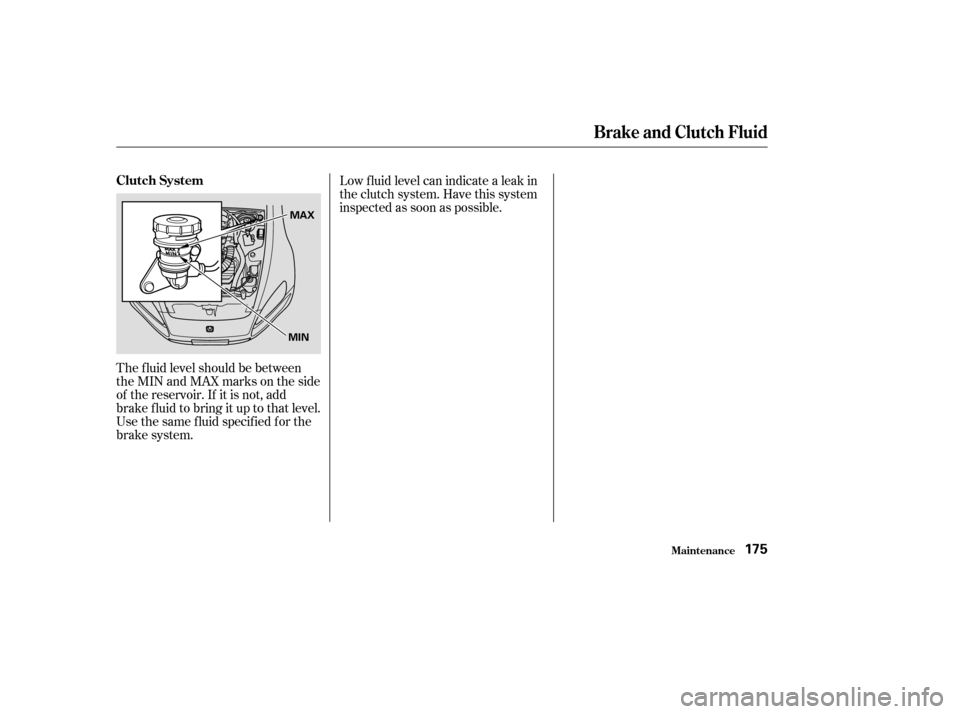

The f luid level should be between
theMINandMAXmarksontheside
of the reservoir. If it is not, add
brake f luid to bring it up to that level.
Use the same fluid specified for the
brake system.Low f luid level can indicate a leak in
the clutch system. Have this system
inspected as soon as possible.
Maint enance
Clutch System
Brake and Clutch Fluid
175
MAX
MIN

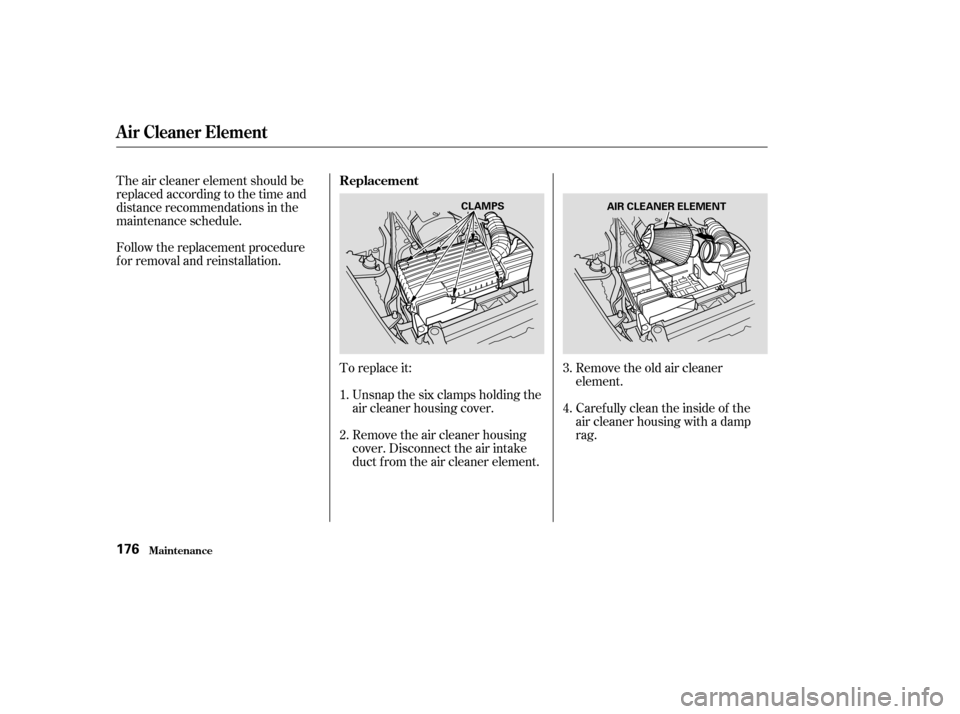

To replace it:
Follow the replacement procedure
for removal and reinstallation.
Unsnap the six clamps holding the
air cleaner housing cover.
Remove the air cleaner housing
cover. Disconnect the air intake
duct f rom the air cleaner element.Remove the old air cleaner
element.
Caref ully clean the inside of the
air cleaner housing with a damp
rag.
The air cleaner element should be
replaced according to the time and
distance recommendations in the
maintenance schedule.
1.
2.3.
4.
Replacement
A ir Cleaner Element
Maint enance176
CLAMPS
AIR CLEANER ELEMENT

Attach the new air cleaner
element to the duct. Install the
new air cleaner element in the air
cleaner housing. Make sure the
pin on the edge of the element f its
in the hole in the bottom of the
housing.
Reinstall the air cleaner housing
cover, snap the six clamps back
into place.
5.
6.
A ir Cleaner Element
Maint enance177
