HONDA S2000 2003 1.G Owners Manual

The spark plugs in your car are a
special platinum-tipped design f or
longer lif e. They only need to be
replaced every 7 years or 105,000
miles (168,000 km), whichever
comes f irst.
Clean the hood latch assembly with a
mild cleaner, then lubricate it with a
multipurpose grease. Lubricate all
the moving parts (as shown),
including the pivot. Follow the time
and distance recommendations in
the Maintenance Schedule. If you
are not sure how to clean and grease
the latch, contact your Honda dealer. Clean off any dirt and oil that have
collected around the ignition coils. Remove the four hexagon socket
head cap bolts holding the ignition
coil cover.
1.
2.
ReplacementSpark Plugs
Hood L atch
Maint enance
Hood L at ch, Spark Plugs
178
PIVOTS

Put the new spark plug into the
socket, then screw it into the hole.
Screw it in by hand so you do not
crossthread it.Torque the spark plug. (If you do
not have a torque wrench, tighten
the spark plug two-thirds of a turn
after it contacts the cylinder head.)
Tightening torque:
Remove the bolt holding the
ignition coil and pull the ignition
coil straight up slightly.
Disconnect the ignition coil
connector by pushing the tab and
pulling the connector back.
Pull the ignition coil all the way up.
Remove the spark plug with
a f ive-eighths inch (16 mm) spark
plug socket.
3.
4.
5.
6.
CONT INUED
Spark Plugs
Maint enance179
18 lbf·ft (25 N·m , 2.5 kgf·m)

´
µ
Repeat this procedure f or the
other three spark plugs. Install the ignition coil. Reinstall
the bolt.
Reinstall the cover on the cylinder
bank. Reinstall the f our hexagon
socket head cap bolts.Spark Plug Gap:
7.
8.
9. NGK:
DENSO:
Spark Plugs
Maint enance
Specif ications:
180
PK22PR-L11S PFR7G-11S
0.04 in (1.1 mm)
0
0.1 mm
Tighten the spark plugs caref ully. A
spark plug that is too loose can
overheat and damage the engine.
Overtightening can cause damage to
the threads in the cylinder head.

Check the battery condition by
looking at the test indicator window
on the battery. The label on the
battery explains the test indicator’s
colors.Check the battery terminals for
corrosion (a white or yellowish
powder). To remove it, cover the
terminals with a solution of baking
soda and water. It will bubble up and
turn brown. When this stops, wash it
of f with plain water. Dry of f the
battery with a cloth or paper towel.
Coat the terminals with grease to
help prevent f uture corrosion.
Check the condition of your car’s
battery monthly. You should check
the color of the test indicator window,
and f or corrosion on the terminals.
Battery posts,
terminals, and related accessories
contain lead and lead compounds.
CONT INUED
Battery
Maint enance
WARNING:
Wash hands af ter handling.
181
TEST INDICATOR WINDOW

µ
If the terminals are severely cor-
roded, clean them with baking soda
and water. Then use a wrench to
loosen and remove the cables f rom
the terminals. Always disconnect the
negative ( ) cable f irst and recon-
nect it last. Clean the battery termi-
nals with a terminal cleaning tool or
wire brush. Reconnect and tighten
the cables, then coat the terminals
with grease. If you need to connect the battery to
a charger, disconnect both cables to
prevent damage to the car’s
electrical system.
Battery
Maint enance182
The battery gives off explosive
hydrogen gas during normal
operation.
A spark or flame can cause the
battery to explode with enough
force to kill or seriously hurt you.
Wear protective clothing and a
face shield, or have a skilled
mechanic do the battery
maintenance.

If your car’s battery is disconnected
or goes dead, the audio system will
disableitself.Thenexttimeyouturn
on the radio you will see ‘‘ ’’ in
the f requency display. Use the
Preset buttons to enter the five-digit
code (see page ).114
Battery
Maint enance183
Charging the battery with the cables
connected can seriously damage your
car’s electronic controls. Detach the
battery cables bef ore connecting the
battery to a charger.

To replace the blade:Disconnect the blade assembly
fromthewiperarmbypushingin
the lock tab. Hold the lock tab in
while you push the blade assembly
toward the base of the arm.
Raise the wiper arm of f the
windshield.
Check the condition of the wiper
blades at least every six months.
Look f or signs of cracking in the
rubber, or areas that are getting
hard. Replace the blades if you f ind
these signs, or if they leave streaks
and unwiped areas when used.
1.2.
Wiper Blades
Maint enance184
LOCK TAB

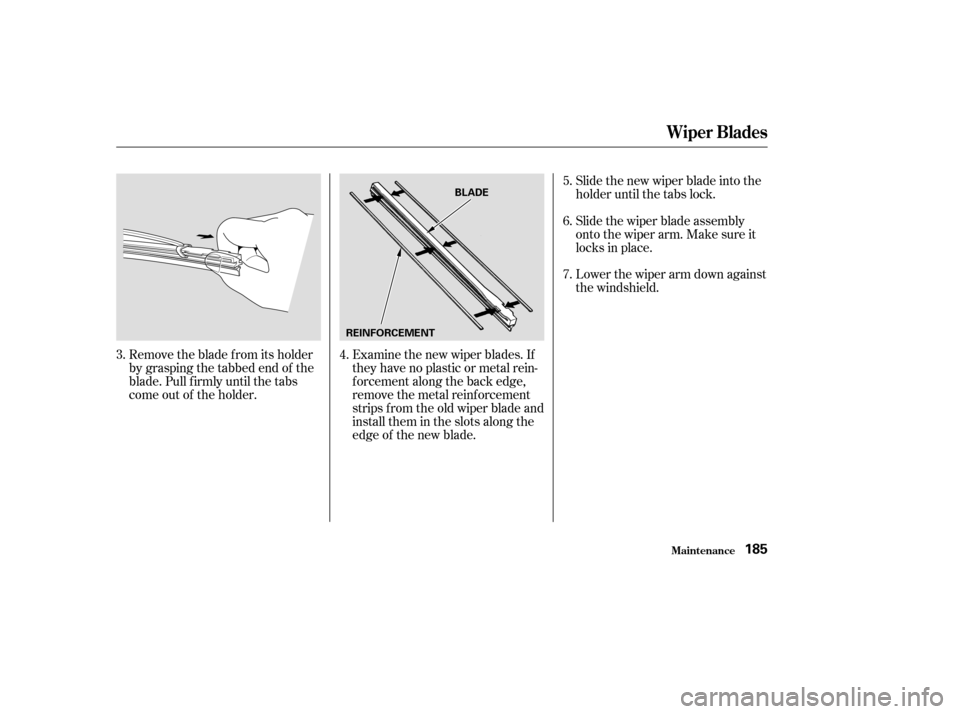

Remove the blade f rom its holder
by grasping the tabbed end of the
blade. Pull f irmly until the tabs
come out of the holder.Examine the new wiper blades. If
they have no plastic or metal rein-
f orcement along the back edge,
remove the metal reinf orcement
strips f rom the old wiper blade and
install them in the slots along the
edge of the new blade.Slide the new wiper blade into the
holder until the tabs lock.
Slide the wiper blade assembly
onto the wiper arm. Make sure it
locks in place.
Lower the wiper arm down against
the windshield.
3. 4. 5.
6.
7.
Wiper Blades
Maint enance185
BLADE
REINFORCEMENT

Run the air conditioning at least once
a week during the cold weather
months. Run it f or at least ten
minutes while you are driving at a
steady speed with the engine at
normal operating temperature. This
circulates the lubricating oil con-
tained in the ref rigerant.If the air conditioning does not get as
cold as before, have your dealer
check the system. Recharge the
system with Ref rigerant HFC-134a
(R-134a). (See Specif ications on page
.)
Your car’s air conditioning is a sealed
system. Any major maintenance,
such as recharging, should be done
by a qualif ied mechanic. You can do
a couple of things to make sure the
air conditioning works ef f iciently.
Periodically check the engine’s
radiator and air conditioning
condenser f or leaves, insects, and
dirt stuck to the f ront surf ace. These
block the air f low and reduce cooling
ef f iciency. Use a light spray f rom a
hose or a sof t brush to remove them. 251
A ir Condit ioning Syst em
Maint enance186
AIR CONDITIONING CONDENSER
Whenever you have the air conditioning
system serviced, make sure the service
f acility uses a ref rigerant recycling
system. This system captures the
ref rigerant f or reuse. Releasing
ref rigerant into the atmosphere can
damage the environment.
The condenser and radiator f ins bend
easily. Only use a low-pressure spray
or sof t-bristle brush to clean them.

Open the hood. Unclip the
windshield base by pulling it up.Put the pins on the windshield
base into their mating holes on the
support, and push the base down
until the pins snap in. Remove the old f ilter. Put a new
f ilter in the holder and push it in
until it locks.
The dust and pollen f ilter is located
in the engine compartment on the
passenger’s side near the base of the
windshield.
Push the tab on the dust and
pollen f ilter to unlock it f rom the
holder.
This f ilter should be replaced every
30,000 miles (48,000 km) under
normal conditions. It should be
replaced every 15,000 miles (24,000
km) if you drive primarily in urban
areas that have high concentrations
of soot in the air f rom industry and
diesel-powered vehicles. Replace it
more of ten if air f low f rom the
climate control system becomes less
than usual. Have the dust and pollen
f ilter replaced by your Honda dealer. The dust and pollen f ilter removes
pollen and dust f rom the outside air,
The heating and cooling system
brings air into the interior. It should
be replaced according to the time
and distance recommendations in
the maintenance schedule.
1.2.
3.
4.
Maint enance
Replacement
Dust and Pollen Filter
187
