Windshield washers Push the right lever up or down to
select a position.
The wipers run at high
speed until you release the lever.
The wipers are not activated.
The wipers operate every
f ew seconds. In low speed and high
speed, the wipers run continuously.
The wipers run at high speed.The wipers run at low speed. Pull the
wiper control lever toward you, and
hold it. The washers spray until you
release the lever. The wipers run at
low speed, then complete one more
sweep after you release the lever.
1.
2.
3.
4.
5.
6. MIST
OFF
INT
HI
LO
Windshield Washers
Windshield Wipers and Washers
58
2009 S2000

µµ µ
Push down on the
lever to signal a lef t turn and up to
signal a right turn. To signal a lane
change, push lightly on the lever,
and hold it. The lever will return to
center when you release it or
complete a turn.
Turning the
switch to the ‘‘ ’’ position turns
on the parking lights, taillights,
instrument panel lights, side-marker
lights, and rear license plate lights.
Turning the switch to the ‘‘ ’’
position turns on the headlights. If
you leave the lights on with the key
removed f rom the ignition switch,
you will hear a reminder buzzer
when you open the driver’s door.
Turn Signal
Of f
Parking and indicator lights
Headlights on
High beams
Flashhighbeams Push the lever
f orward until you hear a click. The
high beam indicator will come on
(see page ). Pull the lever back to
return to the low beams.
To f lash the high beams, pull the
lever back lightly, then release it.
The high beams will stay on as long
as you hold the lever back.
With the headlight switch off, the
high beam headlights and the high
beam indicator come on with
reduced brightness when you turn
the ignition switch to the ON (II)
position and release the parking
brake. They remain on until you turn
the ignition switch of f , even if you
set the parking brake.
The headlights revert to normal
operation when you turn them on
with the switch.
1.
2.
3.
4.
5.
6. 49
Turn Signal
Headlights On High Beams
Daytime Running L ights
Turn Signals and Headlights
Inst rument s and Cont rols
59
2009 S2000

´µ´µ
The buttons in the lower left corner
of the instrument panel adjust the
brightness of the display in f ive steps.
Push the or button five times
to see the f ull range. To reduce glare at night, the
instrument panel illumination dims
when you turn the light switch to the
or position.
Push the red button next to the
parking brake to turn on the hazard
warning lights (f our-way f lashers).
This causes all f our outside turn
signals and both indicators in the
instrument panel to f lash. Use the
hazard warning lights if you need to
park in a dangerous area near heavy
traffic, or if your vehicle is disabled.
Adjust the brightness to the desired
level with the headlight switch of f ,
and also with the headlight switch on.
Both settings will remain at those
levels until you change them.
With the headlight switch on, you
can switch the display to f ull daytime
brightness by pushing and holding
the button. Push the button to
return the display to the original
brightness.
Instrument Panel Brightness
Hazard Warning Button
Instrument Panel Brightness, Hazard Warning Button
60
2009 S2000

Do not push the def ogger button
when the convertible top is f olded.
Make sure the rear window is clear
and you have good visibility bef ore
starting to drive.
The rear window def ogger will clear
fog, frost, and thin ice from the
window. Push the def ogger button to
turn it on and off. The indicator in
the button comes on to show the
def ogger is on. If you do not turn it
of f , the def ogger will shut itself of f
af ter about 15 minutes. It also shuts
of f when you turn of f the ignition
switch. You have to turn the
def ogger on again when you restart
the vehicle. Thedefoggerwiresontheinsideof
the rear window can be accidentally
damaged. When cleaning the glass,
always wipe side-to-side.
Rear Window Def ogger
Inst rument s and Cont rols
61
2009 S2000

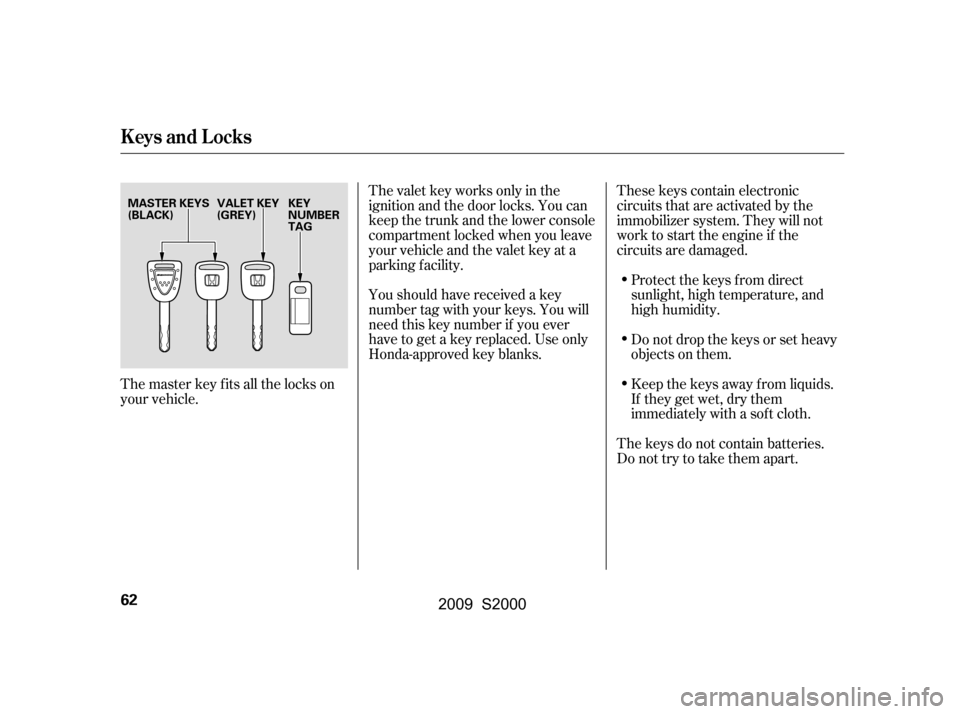

The valet key works only in the
ignition and the door locks. You can
keep the trunk and the lower console
compartment locked when you leave
your vehicle and the valet key at a
parking f acility.
Youshouldhavereceivedakey
number tag with your keys. You will
need this key number if you ever
have to get a key replaced. Use only
Honda-approved key blanks.These keys contain electronic
circuits that are activated by the
immobilizer system. They will not
work to start the engine if the
circuits are damaged.
Protect the keys f rom direct
sunlight, high temperature, and
high humidity.
Donotdropthekeysorsetheavy
objects on them.
Keep the keys away f rom liquids.
If they get wet, dry them
immediately with a sof t cloth.
The keys do not contain batteries.
Do not try to take them apart.
The master key fits all the locks on
your vehicle.
Keys and Locks
62
VALET KEY
(GREY)
KEY
NUMBER
TAG
MASTER KEYS
(BLACK)
2009 S2000

When you turn the ignition switch to
the ON (II) position, the immobilizer
system indicator should come on f or
a f ew seconds, then go of f . If the
indicator starts to blink, it means the
system does not recognize the
coding of the key. Turn the ignition
switch to the LOCK (0) position,
remove the key, reinsert it, and turn
the ignition switch to the ON (II)
position again.If the system repeatedly does not
recognize the coding of your key,
contact your dealer.
Do not attempt to alter this system
or add other devices to it. Electrical
problems could result that may make
your vehicle inoperable.
If you lose your key and cannot start
the engine, contact your dealer.
The immobilizer system protects
your vehicle f rom thef t. If an
improperly coded key (or other
device) is used, the engine’s f uel
system is disabled.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e. key
chain) is near the ignition switch
when you insert the key.
As required by the FCC:
This device complies with Part 15 of theFCC rules. Operation is subject to thef ollowing two conditions: (1) This devicemay not cause harmf ul interf erence, and(2) this device must accept anyinterf erence received, includinginterf erence that may cause undesiredoperation.
Changes or modif ications not expresslyapproved by the party responsible f orcompliance could void the user’sauthority to operate the equipment.
This device complies with IndustryCanada Standard RSS-210.Operation is subject to the f ollowing twoconditions: (1) this device may not causeinterf erence, and (2) this device mustaccept any interf erence that may causeundesired operation of the device.
Immobilizer System
Inst rument s and Cont rols
63
Always take the ignition key with you
whenever you leave the vehicle alone.
2009 S2000

µ
µ µ

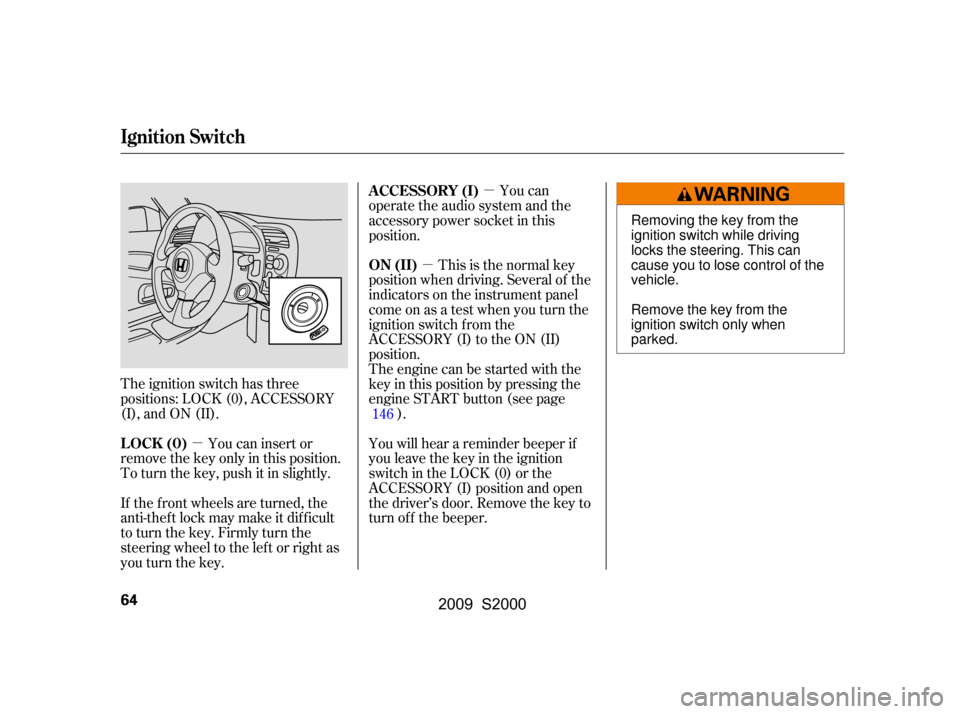

The ignition switch has three
positions: LOCK (0), ACCESSORY
(I), and ON (II). This is the normal key
position when driving. Several of the
indicators on the instrument panel
come on as a test when you turn the
ignition switch f rom the
ACCESSORY (I) to the ON (II)
position.
The engine can be started with the
key in this position by pressing the
engine START button (see page ).
You will hear a reminder beeper if
you leave the key in the ignition
switch in the LOCK (0) or the
ACCESSORY (I) position and open
thedriver’sdoor.Removethekeyto
turn of f the beeper.
You can insert or
remove the key only in this position.
To turn the key, push it in slightly.
If the f ront wheels are turned, the
anti-theft lock may make it difficult
to turn the key. Firmly turn the
steering wheel to the lef t or right as
you turn the key. You can
operate the audio system and the
accessory power socket in this
position.
146
ON (II)
LOCK (0) A CCESSORY (I)
Ignition Switch
64
Removing the key from the
ignition switch while driving
locks the steering. This can
cause you to lose control of the
vehicle.
Remove the key from the
ignition switch only when
parked.
2009 S2000

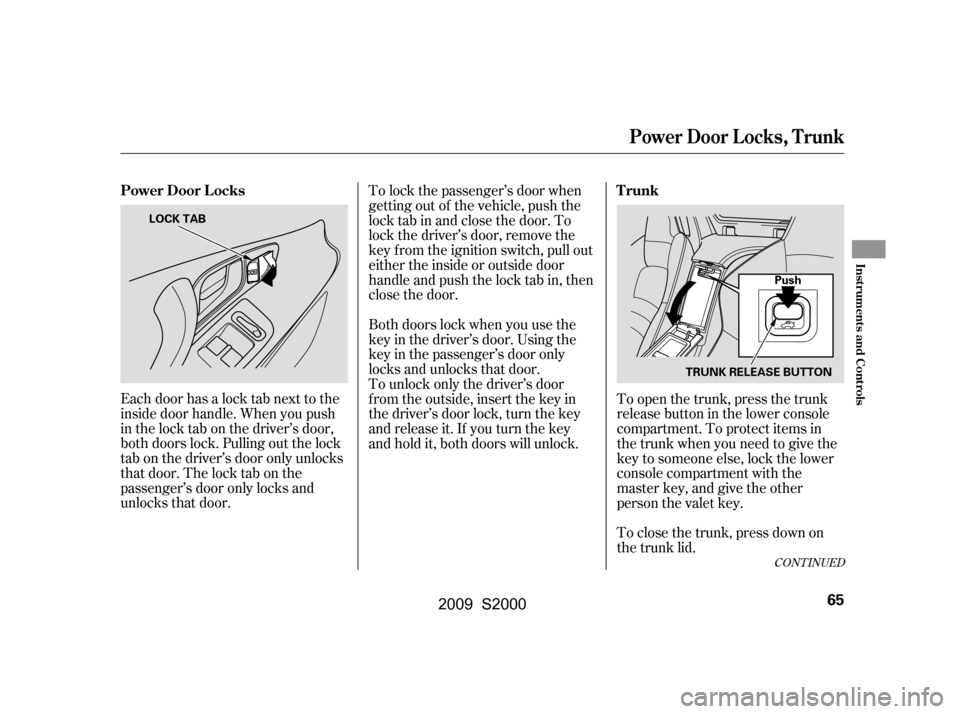

Each door has a lock tab next to the
inside door handle. When you push
in the lock tab on the driver’s door,
both doors lock. Pulling out the lock
tab on the driver’s door only unlocks
that door. The lock tab on the
passenger’s door only locks and
unlocks that door.To lock the passenger’s door when
getting out of the vehicle, push the
lock tab in and close the door. To
lock the driver’s door, remove the
key f rom the ignition switch, pull out
either the inside or outside door
handle and push the lock tab in, then
close the door.
Both doors lock when you use the
key in the driver’s door. Using the
key in the passenger’s door only
locks and unlocks that door.
To unlock only the driver’s door
f rom the outside, insert the key in
the driver’s door lock, turn the key
and release it. If you turn the key
and hold it, both doors will unlock.
To open the trunk, press the trunk
release button in the lower console
compartment. To protect items in
the trunk when you need to give the
key to someone else, lock the lower
console compartment with the
master key, and give the other
person the valet key.
To close the trunk, press down on
the trunk lid.
CONT INUED
Power Door L ocks
T runk
Power Door L ocks, T runk
Inst rument s and Cont rols
65
LOCK TAB
TRUNK RELEASE BUTTONPush
2009 S2000

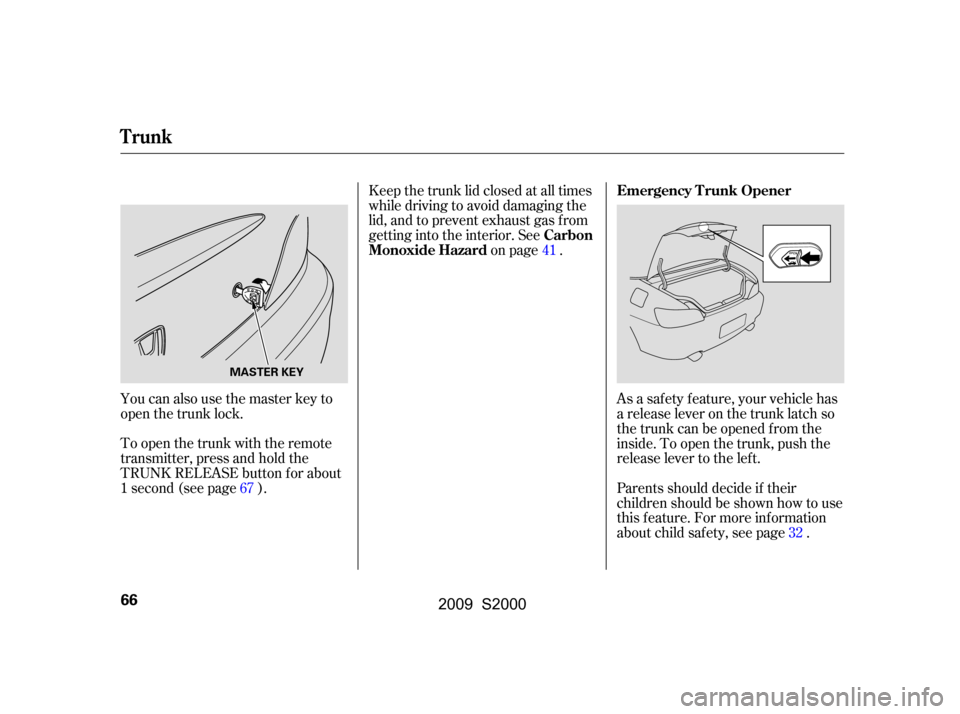

You can also use the master key to
open the trunk lock.
To open the trunk with the remote
transmitter, press and hold the
TRUNK RELEASE button f or about
1second(seepage ).Keep the trunk lid closed at all times
while driving to avoid damaging the
lid, and to prevent exhaust gas f rom
getting into the interior. See
on page .
As a saf ety f eature, your vehicle has
a release lever on the trunk latch so
the trunk can be opened f rom the
inside. To open the trunk, push the
release lever to the lef t.
Parents should decide if their
children should be shown how to use
this f eature. For more inf ormation
about child saf ety, see page .
41
32
67 Emergency T runk Opener
Carbon
Monoxide Hazard
Trunk
66
MASTER KEY
2009 S2000

µ
µ
µ
µ

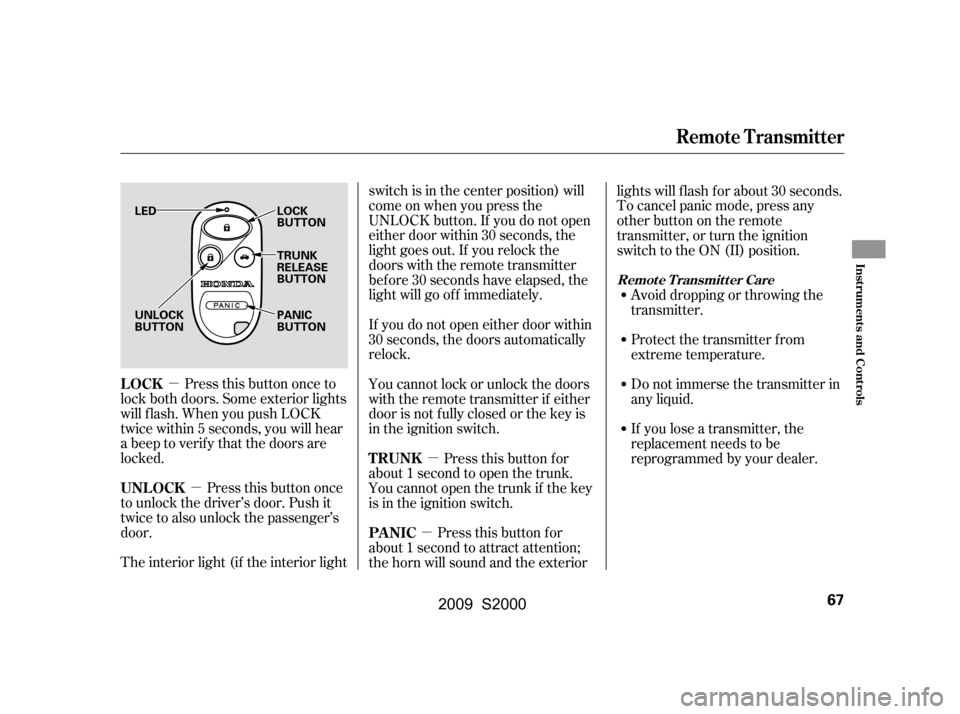

Press this button once
to unlock the driver’s door. Push it
twice to also unlock the passenger’s
door. Press this button once to
lock both doors. Some exterior lights
will f lash. When you push LOCK
twice within 5 seconds, you will hear
a beep to verify that the doors are
locked.
The interior light (if the interior light switch is in the center position) will
come on when you press the
UNLOCK button. If you do not open
either door within 30 seconds, the
light goes out. If you relock the
doors with the remote transmitter
bef ore 30 seconds have elapsed, the
light will go of f immediately.
If you do not open either door within
30 seconds, the doors automatically
relock.
You cannot lock or unlock the doors
with the remote transmitter if either
door is not f ully closed or the key is
in the ignition switch.
Pressthisbuttonfor
about 1 second to open the trunk.
You cannot open the trunk if the key
is in the ignition switch.
Pressthisbuttonfor
about 1 second to attract attention;
thehornwillsoundandtheexterior lights will f lash f or about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter, or turn the ignition
switch to the ON (II) position.
Do not immerse the transmitter in
any liquid.
Protect the transmitter from
extreme temperature.
Avoid dropping or throwing the
transmitter.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer.
UNL OCK
LOCK
TRUNK
PA NIC
Remote Transmitter
Remote Transmitter Care
Inst rument s and Cont rols
67
LED
UNLOCK
BUTTONTRUNK
RELEASE
BUTTON
PANIC
BUTTON
LOCK
BUTTON
2009 S2000
