HUMMER H2 2006 User Guide
Manufacturer: HUMMER, Model Year: 2006, Model line: H2, Model: HUMMER H2 2006Pages: 502, PDF Size: 3.35 MB
Page 11 of 502
Head Restraints
Adjust your head restraint so that the top of the restraint
is closest to the top of your head. This position
reduces the chance of a neck injury in a crash.Pull the head restraint up to raise it. Push the head
restraint down to lower it.
Each front head restraint can also be tilted forward to
four positions by pulling on it.
A click will sound after each tilt position is reached.
Pull the head restraint forward, past the last position, to
release it to the upright position.
The rear seat head restraints are also adjustable up and
down, but they do not tilt.
1-5
Page 12 of 502
Rear Seats
Heated Seats
If your vehicle has this
feature, the buttons used
to control this feature
are located on the back of
the center console. The
engine must be running for
the heated seat feature
to work.
To heat the seat cushion, press the button to cycle
through the temperature settings of high and low. Press
the button a third time to turn the feature off. An
indicator light will glow for each heat setting when the
feature is operating.
The heated rear seats will shut off automatically when
the ignition is turned off.
60/40 Split Bench Seat
The 60/40 split bench seats can be folded to give you
more cargo space.
Folding the Seatbacks
The seatbacks (SUV only) are equipped with rearward
folding head restraints. When the seatback is being
folded down, the head restraint will automatically
fold rearward.
To fold the rear seat, do the following:
1. Make sure that nothing is under or in front of
the seat.
2. Pull up on the strap
loop located at the rear
of the seat cushion
and pull the seat
cushion up and fold
it forward.
3. Pull the seatback forward and fold it down until it
is at.
If the seatback cannot fold at because it interferes
with the cushion, try moving the front seat forward
and/or bringing the front seatback more upright.
4. Repeat the steps for the other half of the 60/40 split
bench seat.
1-6
Page 13 of 502

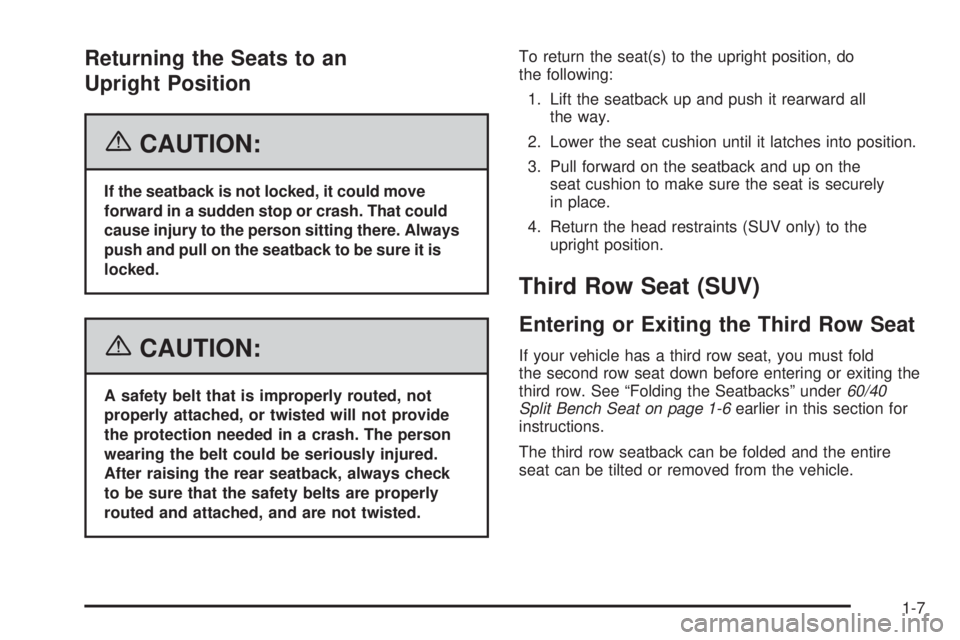

Returning the Seats to an
Upright Position
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.
{CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted will not provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After raising the rear seatback, always check
to be sure that the safety belts are properly
routed and attached, and are not twisted.To return the seat(s) to the upright position, do
the following:
1. Lift the seatback up and push it rearward all
the way.
2. Lower the seat cushion until it latches into position.
3. Pull forward on the seatback and up on the
seat cushion to make sure the seat is securely
in place.
4. Return the head restraints (SUV only) to the
upright position.
Third Row Seat (SUV)
Entering or Exiting the Third Row Seat
If your vehicle has a third row seat, you must fold
the second row seat down before entering or exiting the
third row. See “Folding the Seatbacks” under60/40
Split Bench Seat on page 1-6earlier in this section for
instructions.
The third row seatback can be folded and the entire
seat can be tilted or removed from the vehicle.
1-7
Page 14 of 502
Folding the Seatback
To fold the seatback, do the following:
1. Pull up on the release
lever labeled 1, located
on the rear of the
seatback, and push the
seatback forward.
Unfolding the Seatback
{CAUTION:
If the seatback is not locked, it could move
forward in a sudden stop or crash. That could
cause injury to the person sitting there. Always
push and pull on the seatback to be sure it is
locked.To return the seatback to the passenger position, do
the following:
1. Pull up on the release
lever labeled 1 and
then pull up on
the seatback until the
seatback locks into
the upright position.
2. Push forward on the seatback to make sure it is
locked into position.
1-8
