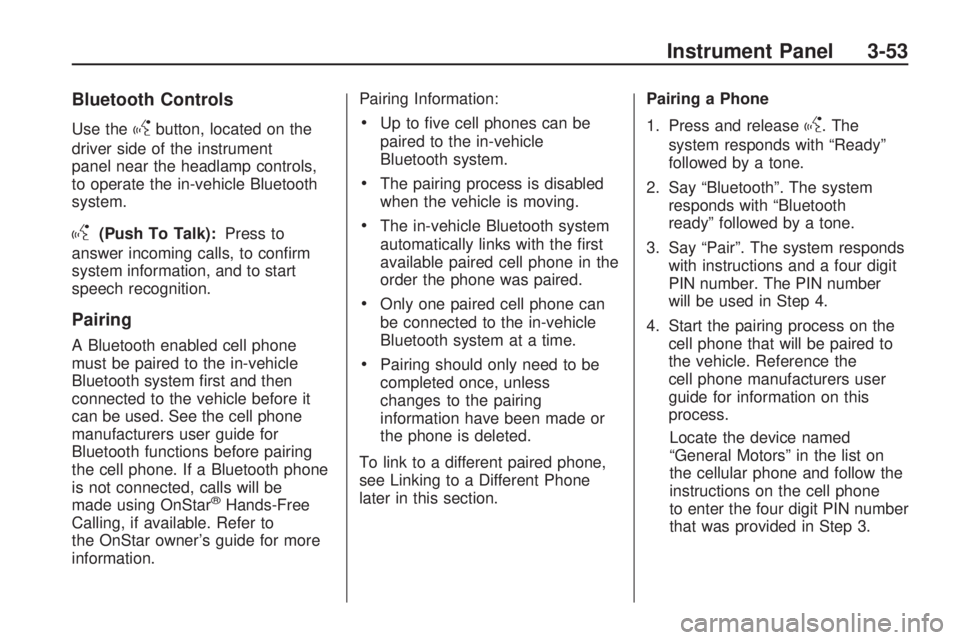

Bluetooth Controls
Use thegbutton, located on the
driver side of the instrument
panel near the headlamp controls,
to operate the in-vehicle Bluetooth
system.
g(Push To Talk):Press to
answer incoming calls, to conrm
system information, and to start
speech recognition.
Pairing
A Bluetooth enabled cell phone
must be paired to the in-vehicle
Bluetooth system rst and then
connected to the vehicle before it
can be used. See the cell phone
manufacturers user guide for
Bluetooth functions before pairing
the cell phone. If a Bluetooth phone
is not connected, calls will be
made using OnStar
®Hands-Free
Calling, if available. Refer to
the OnStar owner’s guide for more
information.Pairing Information:
Up to ve cell phones can be
paired to the in-vehicle
Bluetooth system.
The pairing process is disabled
when the vehicle is moving.
The in-vehicle Bluetooth system
automatically links with the rst
available paired cell phone in the
order the phone was paired.
Only one paired cell phone can
be connected to the in-vehicle
Bluetooth system at a time.
Pairing should only need to be
completed once, unless
changes to the pairing
information have been made or
the phone is deleted.
To link to a different paired phone,
see Linking to a Different Phone
later in this section.Pairing a Phone
1. Press and release
g. The
system responds with “Ready”
followed by a tone.
2. Say “Bluetooth”. The system
responds with “Bluetooth
ready” followed by a tone.
3. Say “Pair”. The system responds
with instructions and a four digit
PIN number. The PIN number
will be used in Step 4.
4. Start the pairing process on the
cell phone that will be paired to
the vehicle. Reference the
cell phone manufacturers user
guide for information on this
process.
Locate the device named
“General Motors” in the list on
the cellular phone and follow the
instructions on the cell phone
to enter the four digit PIN number
that was provided in Step 3.
Instrument Panel 3-53

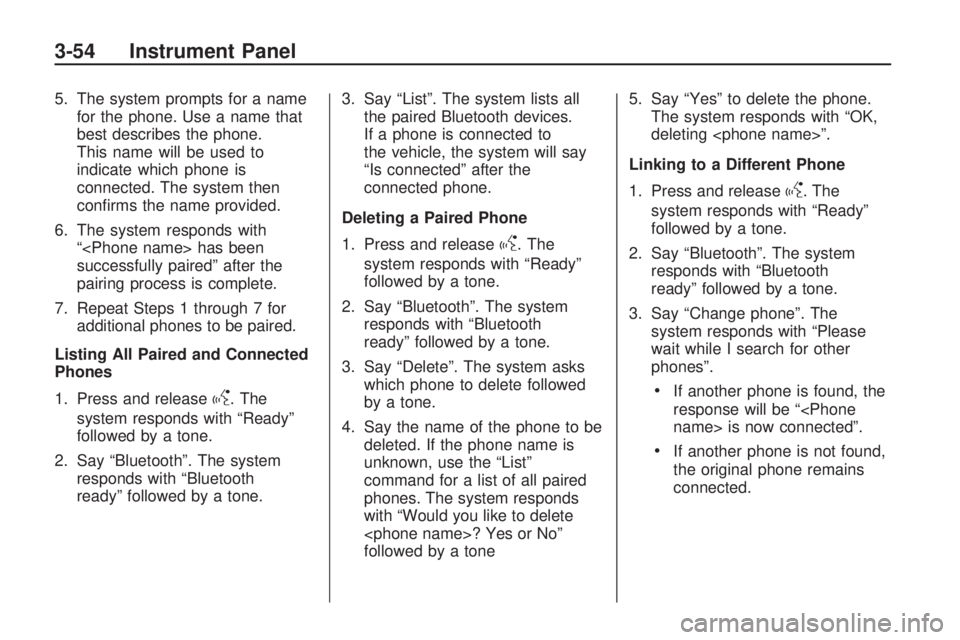

5. The system prompts for a name
for the phone. Use a name that
best describes the phone.
This name will be used to
indicate which phone is
connected. The system then
conrms the name provided.
6. The system responds with
“ has been
successfully paired” after the
pairing process is complete.
7. Repeat Steps 1 through 7 for
additional phones to be paired.
Listing All Paired and Connected
Phones
1. Press and release
g. The
system responds with “Ready”
followed by a tone.
2. Say “Bluetooth”. The system
responds with “Bluetooth
ready” followed by a tone.3. Say “List”. The system lists all
the paired Bluetooth devices.
If a phone is connected to
the vehicle, the system will say
“Is connected” after the
connected phone.
Deleting a Paired Phone
1. Press and release
g. The
system responds with “Ready”
followed by a tone.
2. Say “Bluetooth”. The system
responds with “Bluetooth
ready” followed by a tone.
3. Say “Delete”. The system asks
which phone to delete followed
by a tone.
4. Say the name of the phone to be
deleted. If the phone name is
unknown, use the “List”
command for a list of all paired
phones. The system responds
with “Would you like to delete
? Yes or No”
followed by a tone5. Say “Yes” to delete the phone.
The system responds with “OK,
deleting ”.
Linking to a Different Phone
1. Press and release
g. The
system responds with “Ready”
followed by a tone.
2. Say “Bluetooth”. The system
responds with “Bluetooth
ready” followed by a tone.
3. Say “Change phone”. The
system responds with “Please
wait while I search for other
phones”.
If another phone is found, the
response will be “ name> is now connected”.
If another phone is not found,
the original phone remains
connected.
3-54 Instrument Panel

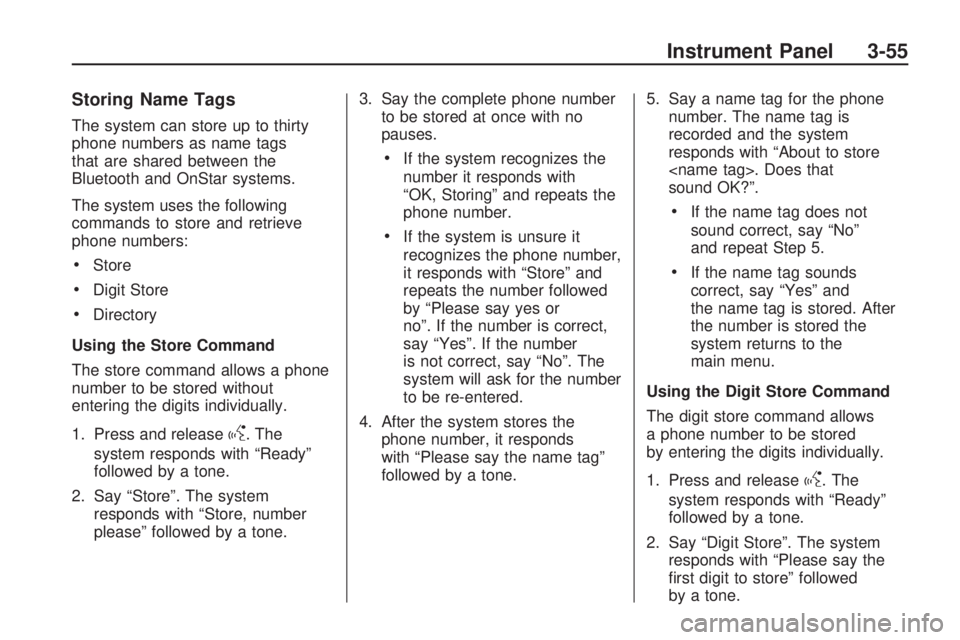

Storing Name Tags
The system can store up to thirty
phone numbers as name tags
that are shared between the
Bluetooth and OnStar systems.
The system uses the following
commands to store and retrieve
phone numbers:
Store
Digit Store
Directory
Using the Store Command
The store command allows a phone
number to be stored without
entering the digits individually.
1. Press and release
g. The
system responds with “Ready”
followed by a tone.
2. Say “Store”. The system
responds with “Store, number
please” followed by a tone.3. Say the complete phone number
to be stored at once with no
pauses.
If the system recognizes the
number it responds with
“OK, Storing” and repeats the
phone number.
If the system is unsure it
recognizes the phone number,
it responds with “Store” and
repeats the number followed
by “Please say yes or
no”. If the number is correct,
say “Yes”. If the number
is not correct, say “No”. The
system will ask for the number
to be re-entered.
4. After the system stores the
phone number, it responds
with “Please say the name tag”
followed by a tone.5. Say a name tag for the phone
number. The name tag is
recorded and the system
responds with “About to store
. Does that
sound OK?”.
If the name tag does not
sound correct, say “No”
and repeat Step 5.
If the name tag sounds
correct, say “Yes” and
the name tag is stored. After
the number is stored the
system returns to the
main menu.
Using the Digit Store Command
The digit store command allows
a phone number to be stored
by entering the digits individually.
1. Press and release
g. The
system responds with “Ready”
followed by a tone.
2. Say “Digit Store”. The system
responds with “Please say the
rst digit to store” followed
by a tone.
Instrument Panel 3-55

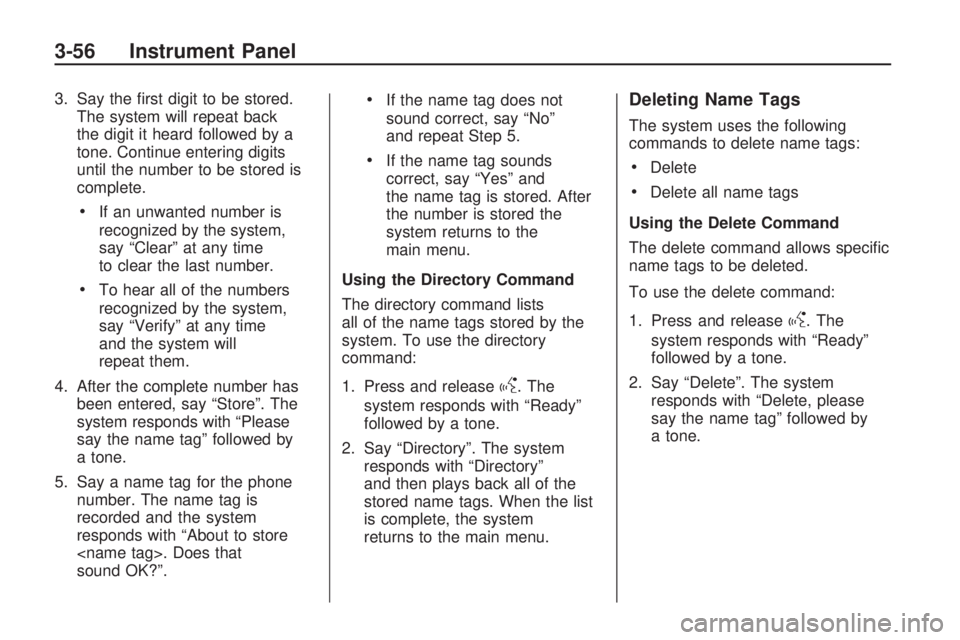

3. Say the rst digit to be stored.
The system will repeat back
the digit it heard followed by a
tone. Continue entering digits
until the number to be stored is
complete.
If an unwanted number is
recognized by the system,
say “Clear” at any time
to clear the last number.
To hear all of the numbers
recognized by the system,
say “Verify” at any time
and the system will
repeat them.
4. After the complete number has
been entered, say “Store”. The
system responds with “Please
say the name tag” followed by
a tone.
5. Say a name tag for the phone
number. The name tag is
recorded and the system
responds with “About to store
. Does that
sound OK?”.
If the name tag does not
sound correct, say “No”
and repeat Step 5.
If the name tag sounds
correct, say “Yes” and
the name tag is stored. After
the number is stored the
system returns to the
main menu.
Using the Directory Command
The directory command lists
all of the name tags stored by the
system. To use the directory
command:
1. Press and release
g. The
system responds with “Ready”
followed by a tone.
2. Say “Directory”. The system
responds with “Directory”
and then plays back all of the
stored name tags. When the list
is complete, the system
returns to the main menu.
Deleting Name Tags
The system uses the following
commands to delete name tags:
Delete
Delete all name tags
Using the Delete Command
The delete command allows specic
name tags to be deleted.
To use the delete command:
1. Press and release
g. The
system responds with “Ready”
followed by a tone.
2. Say “Delete”. The system
responds with “Delete, please
say the name tag” followed by
a tone.
3-56 Instrument Panel

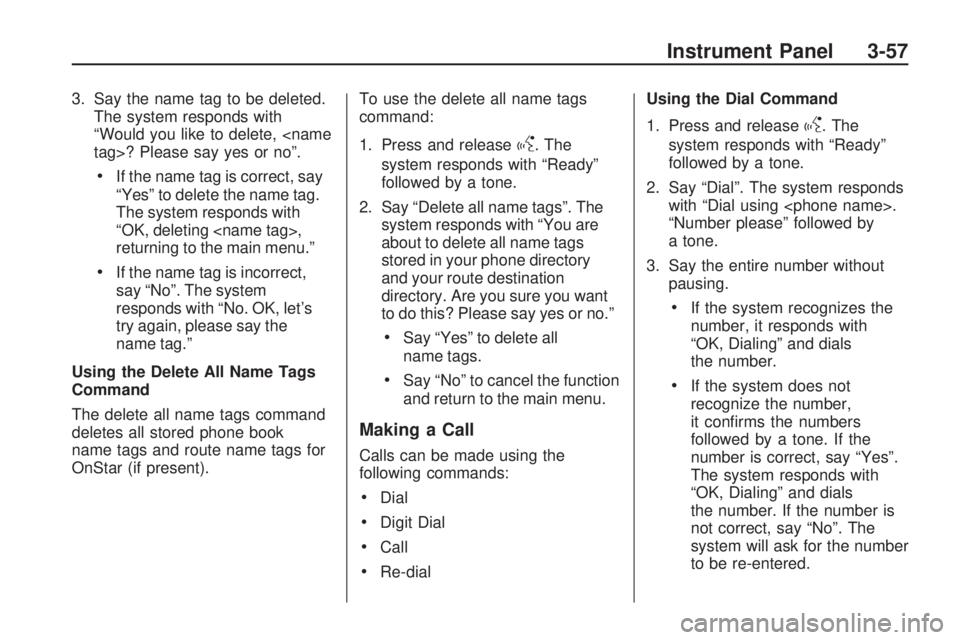

3. Say the name tag to be deleted.
The system responds with
“Would you like to delete, tag>? Please say yes or no”.
If the name tag is correct, say
“Yes” to delete the name tag.
The system responds with
“OK, deleting ,
returning to the main menu.”
If the name tag is incorrect,
say “No”. The system
responds with “No. OK, let’s
try again, please say the
name tag.”
Using the Delete All Name Tags
Command
The delete all name tags command
deletes all stored phone book
name tags and route name tags for
OnStar (if present).To use the delete all name tags
command:
1. Press and release
g. The
system responds with “Ready”
followed by a tone.
2. Say “Delete all name tags”. The
system responds with “You are
about to delete all name tags
stored in your phone directory
and your route destination
directory. Are you sure you want
to do this? Please say yes or no.”
Say “Yes” to delete all
name tags.
Say “No” to cancel the function
and return to the main menu.
Making a Call
Calls can be made using the
following commands:
Dial
Digit Dial
Call
Re-dialUsing the Dial Command
1. Press and release
g. The
system responds with “Ready”
followed by a tone.
2. Say “Dial”. The system responds
with “Dial using .
“Number please” followed by
a tone.
3. Say the entire number without
pausing.
If the system recognizes the
number, it responds with
“OK, Dialing” and dials
the number.
If the system does not
recognize the number,
it conrms the numbers
followed by a tone. If the
number is correct, say “Yes”.
The system responds with
“OK, Dialing” and dials
the number. If the number is
not correct, say “No”. The
system will ask for the number
to be re-entered.
Instrument Panel 3-57

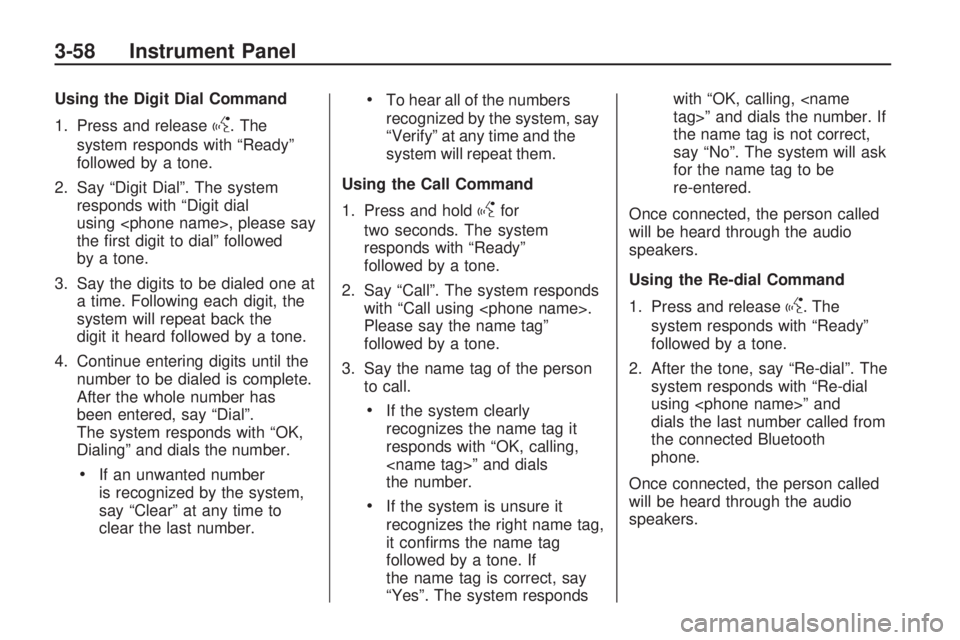

Using the Digit Dial Command
1. Press and release
g. The
system responds with “Ready”
followed by a tone.
2. Say “Digit Dial”. The system
responds with “Digit dial
using , please say
the rst digit to dial” followed
by a tone.
3. Say the digits to be dialed one at
a time. Following each digit, the
system will repeat back the
digit it heard followed by a tone.
4. Continue entering digits until the
number to be dialed is complete.
After the whole number has
been entered, say “Dial”.
The system responds with “OK,
Dialing” and dials the number.
If an unwanted number
is recognized by the system,
say “Clear” at any time to
clear the last number.
To hear all of the numbers
recognized by the system, say
“Verify” at any time and the
system will repeat them.
Using the Call Command
1. Press and hold
gfor
two seconds. The system
responds with “Ready”
followed by a tone.
2. Say “Call”. The system responds
with “Call using .
Please say the name tag”
followed by a tone.
3. Say the name tag of the person
to call.
If the system clearly
recognizes the name tag it
responds with “OK, calling,
” and dials
the number.
If the system is unsure it
recognizes the right name tag,
it conrms the name tag
followed by a tone. If
the name tag is correct, say
“Yes”. The system respondswith “OK, calling, tag>” and dials the number. If
the name tag is not correct,
say “No”. The system will ask
for the name tag to be
re-entered.
Once connected, the person called
will be heard through the audio
speakers.
Using the Re-dial Command
1. Press and release
g. The
system responds with “Ready”
followed by a tone.
2. After the tone, say “Re-dial”. The
system responds with “Re-dial
using ” and
dials the last number called from
the connected Bluetooth
phone.
Once connected, the person called
will be heard through the audio
speakers.
3-58 Instrument Panel

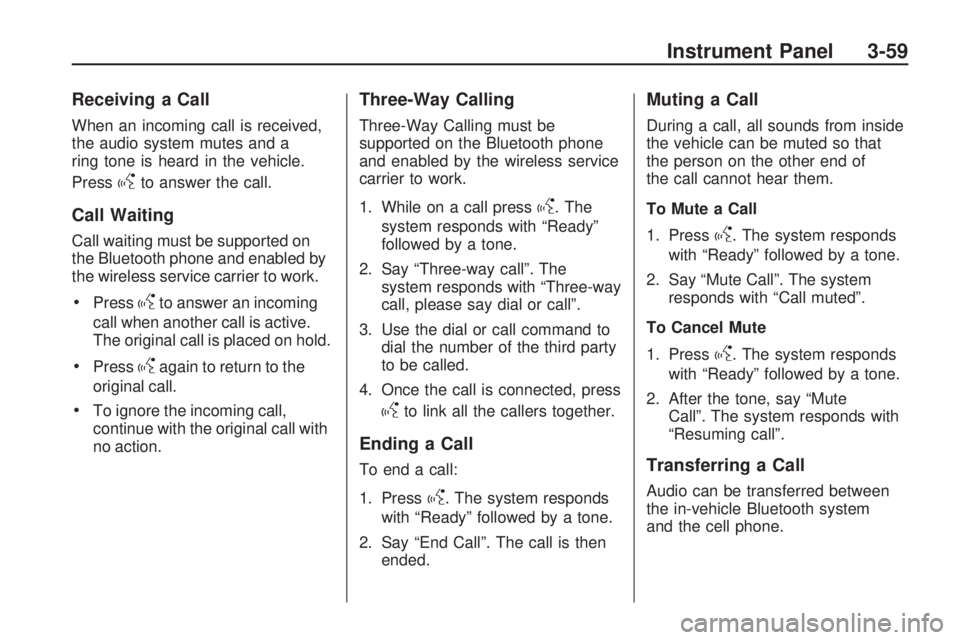

Receiving a Call
When an incoming call is received,
the audio system mutes and a
ring tone is heard in the vehicle.
Press
gto answer the call.
Call Waiting
Call waiting must be supported on
the Bluetooth phone and enabled by
the wireless service carrier to work.
Pressgto answer an incoming
call when another call is active.
The original call is placed on hold.
Pressgagain to return to the
original call.
To ignore the incoming call,
continue with the original call with
no action.
Three-Way Calling
Three-Way Calling must be
supported on the Bluetooth phone
and enabled by the wireless service
carrier to work.
1. While on a call press
g. The
system responds with “Ready”
followed by a tone.
2. Say “Three-way call”. The
system responds with “Three-way
call, please say dial or call”.
3. Use the dial or call command to
dial the number of the third party
to be called.
4. Once the call is connected, press
gto link all the callers together.
Ending a Call
To end a call:
1. Press
g. The system responds
with “Ready” followed by a tone.
2. Say “End Call”. The call is then
ended.
Muting a Call
During a call, all sounds from inside
the vehicle can be muted so that
the person on the other end of
the call cannot hear them.
To Mute a Call
1. Press
g. The system responds
with “Ready” followed by a tone.
2. Say “Mute Call”. The system
responds with “Call muted”.
To Cancel Mute
1. Press
g. The system responds
with “Ready” followed by a tone.
2. After the tone, say “Mute
Call”. The system responds with
“Resuming call”.
Transferring a Call
Audio can be transferred between
the in-vehicle Bluetooth system
and the cell phone.
Instrument Panel 3-59

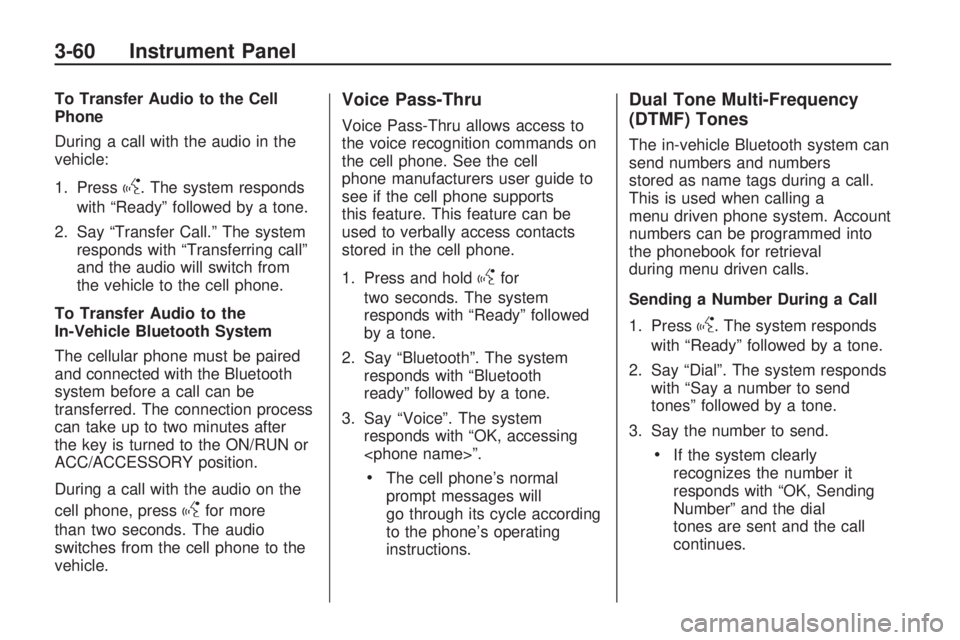

To Transfer Audio to the Cell
Phone
During a call with the audio in the
vehicle:
1. Press
g. The system responds
with “Ready” followed by a tone.
2. Say “Transfer Call.” The system
responds with “Transferring call”
and the audio will switch from
the vehicle to the cell phone.
To Transfer Audio to the
In-Vehicle Bluetooth System
The cellular phone must be paired
and connected with the Bluetooth
system before a call can be
transferred. The connection process
can take up to two minutes after
the key is turned to the ON/RUN or
ACC/ACCESSORY position.
During a call with the audio on the
cell phone, press
gfor more
than two seconds. The audio
switches from the cell phone to the
vehicle.
Voice Pass-Thru
Voice Pass-Thru allows access to
the voice recognition commands on
the cell phone. See the cell
phone manufacturers user guide to
see if the cell phone supports
this feature. This feature can be
used to verbally access contacts
stored in the cell phone.
1. Press and hold
gfor
two seconds. The system
responds with “Ready” followed
by a tone.
2. Say “Bluetooth”. The system
responds with “Bluetooth
ready” followed by a tone.
3. Say “Voice”. The system
responds with “OK, accessing
”.
The cell phone’s normal
prompt messages will
go through its cycle according
to the phone’s operating
instructions.
Dual Tone Multi-Frequency
(DTMF) Tones
The in-vehicle Bluetooth system can
send numbers and numbers
stored as name tags during a call.
This is used when calling a
menu driven phone system. Account
numbers can be programmed into
the phonebook for retrieval
during menu driven calls.
Sending a Number During a Call
1. Press
g. The system responds
with “Ready” followed by a tone.
2. Say “Dial”. The system responds
with “Say a number to send
tones” followed by a tone.
3. Say the number to send.
If the system clearly
recognizes the number it
responds with “OK, Sending
Number” and the dial
tones are sent and the call
continues.
3-60 Instrument Panel

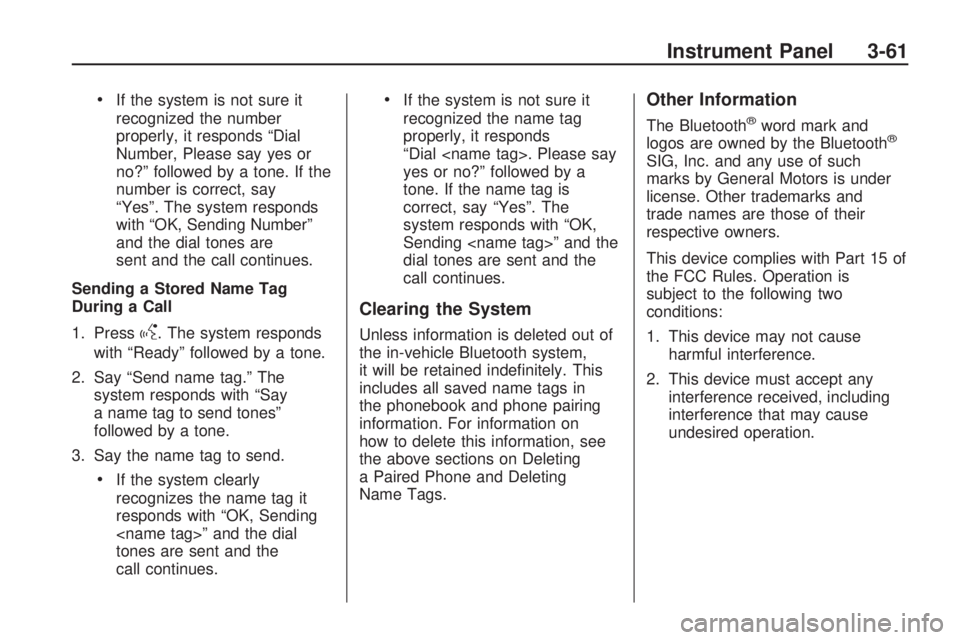

If the system is not sure it
recognized the number
properly, it responds “Dial
Number, Please say yes or
no?” followed by a tone. If the
number is correct, say
“Yes”. The system responds
with “OK, Sending Number”
and the dial tones are
sent and the call continues.
Sending a Stored Name Tag
During a Call
1. Press
g. The system responds
with “Ready” followed by a tone.
2. Say “Send name tag.” The
system responds with “Say
a name tag to send tones”
followed by a tone.
3. Say the name tag to send.
If the system clearly
recognizes the name tag it
responds with “OK, Sending
” and the dial
tones are sent and the
call continues.
If the system is not sure it
recognized the name tag
properly, it responds
“Dial . Please say
yes or no?” followed by a
tone. If the name tag is
correct, say “Yes”. The
system responds with “OK,
Sending ” and the
dial tones are sent and the
call continues.
Clearing the System
Unless information is deleted out of
the in-vehicle Bluetooth system,
it will be retained indenitely. This
includes all saved name tags in
the phonebook and phone pairing
information. For information on
how to delete this information, see
the above sections on Deleting
a Paired Phone and Deleting
Name Tags.
Other Information
The Bluetooth®word mark and
logos are owned by the Bluetooth®
SIG, Inc. and any use of such
marks by General Motors is under
license. Other trademarks and
trade names are those of their
respective owners.
This device complies with Part 15 of
the FCC Rules. Operation is
subject to the following two
conditions:
1. This device may not cause
harmful interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation.
Instrument Panel 3-61

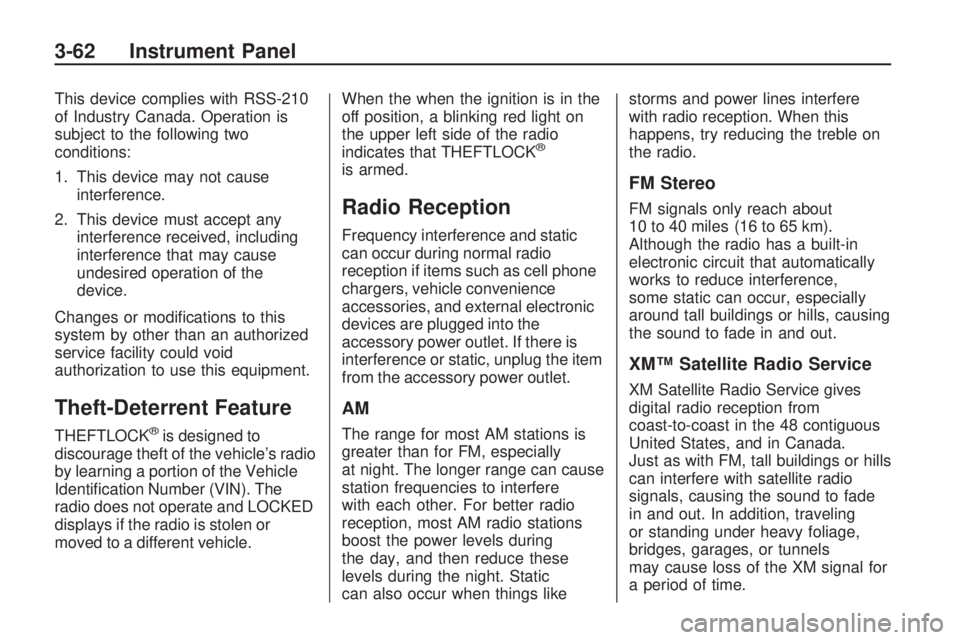

This device complies with RSS-210
of Industry Canada. Operation is
subject to the following two
conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the
device.
Changes or modications to this
system by other than an authorized
service facility could void
authorization to use this equipment.
Theft-Deterrent Feature
THEFTLOCK®is designed to
discourage theft of the vehicle’s radio
by learning a portion of the Vehicle
Identication Number (VIN). The
radio does not operate and LOCKED
displays if the radio is stolen or
moved to a different vehicle.When the when the ignition is in the
off position, a blinking red light on
the upper left side of the radio
indicates that THEFTLOCK
®
is armed.
Radio Reception
Frequency interference and static
can occur during normal radio
reception if items such as cell phone
chargers, vehicle convenience
accessories, and external electronic
devices are plugged into the
accessory power outlet. If there is
interference or static, unplug the item
from the accessory power outlet.
AM
The range for most AM stations is
greater than for FM, especially
at night. The longer range can cause
station frequencies to interfere
with each other. For better radio
reception, most AM radio stations
boost the power levels during
the day, and then reduce these
levels during the night. Static
can also occur when things likestorms and power lines interfere
with radio reception. When this
happens, try reducing the treble on
the radio.
FM Stereo
FM signals only reach about
10 to 40 miles (16 to 65 km).
Although the radio has a built-in
electronic circuit that automatically
works to reduce interference,
some static can occur, especially
around tall buildings or hills, causing
the sound to fade in and out.
XM™ Satellite Radio Service
XM Satellite Radio Service gives
digital radio reception from
coast-to-coast in the 48 contiguous
United States, and in Canada.
Just as with FM, tall buildings or hills
can interfere with satellite radio
signals, causing the sound to fade
in and out. In addition, traveling
or standing under heavy foliage,
bridges, garages, or tunnels
may cause loss of the XM signal for
a period of time.
3-62 Instrument Panel
