If the Off Indicator is Lit for an
Adult-Size Occupant
If a person of adult-size is sitting in
the right front passenger seat, but
the off indicator is lit, it could be
because that person is not sitting
properly in the seat. If this happens,
use the following steps to allow thesystem to detect that person and
enable the right front passenger
frontal airbag and seat-mounted side
impact airbag (if equipped):
1. Turn the vehicle off.
2. Remove any additional material
from the seat, such as blankets,
cushions, seat covers, seat
heaters, or seat massagers.
3. Place the seatback in the fully
upright position.
4. Have the person sit upright in
the seat, centered on the seat
cushion, with legs comfortably
extended.
5. Restart the vehicle and have the
person remain in this position for
two to three minutes after the
on indicator is lit.
Additional Factors Affecting
System Operation
Safety belts help keep the passenger
in position on the seat during vehicle
maneuvers and braking, which helps
the passenger sensing system
maintain the passenger airbag
status. See “Safety Belts” and “Child
Restraints” in the Index for additional
information about the importance of
proper restraint use.
If the shoulder portion of the belt is
pulled out all the way, the child
restraint locking feature will be
engaged. This may unintentionally
cause the passenger sensing system
to turn the airbag(s) off for some
adult size occupants. If this happens,
just let the belt go back all the way
and start again.
Seats and Restraint System 1-57

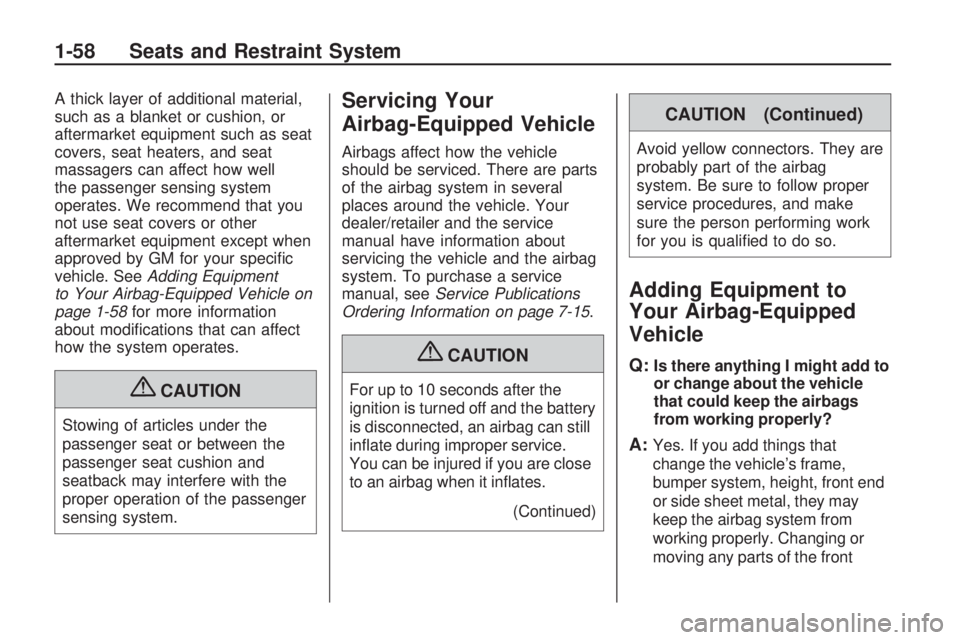

A thick layer of additional material,
such as a blanket or cushion, or
aftermarket equipment such as seat
covers, seat heaters, and seat
massagers can affect how well
the passenger sensing system
operates. We recommend that you
not use seat covers or other
aftermarket equipment except when
approved by GM for your specic
vehicle. SeeAdding Equipment
to Your Airbag-Equipped Vehicle on
page 1-58for more information
about modications that can affect
how the system operates.
{CAUTION
Stowing of articles under the
passenger seat or between the
passenger seat cushion and
seatback may interfere with the
proper operation of the passenger
sensing system.
Servicing Your
Airbag-Equipped Vehicle
Airbags affect how the vehicle
should be serviced. There are parts
of the airbag system in several
places around the vehicle. Your
dealer/retailer and the service
manual have information about
servicing the vehicle and the airbag
system. To purchase a service
manual, seeService Publications
Ordering Information on page 7-15.
{CAUTION
For up to 10 seconds after the
ignition is turned off and the battery
is disconnected, an airbag can still
inate during improper service.
You can be injured if you are close
to an airbag when it inates.
(Continued)
CAUTION (Continued)
Avoid yellow connectors. They are
probably part of the airbag
system. Be sure to follow proper
service procedures, and make
sure the person performing work
for you is qualied to do so.
Adding Equipment to
Your Airbag-Equipped
Vehicle
Q:Is there anything I might add to
or change about the vehicle
that could keep the airbags
from working properly?
A:Yes. If you add things that
change the vehicle’s frame,
bumper system, height, front end
or side sheet metal, they may
keep the airbag system from
working properly. Changing or
moving any parts of the front
1-58 Seats and Restraint System

seats, safety belts, the airbag
sensing and diagnostic module,
steering wheel, instrument panel,
roof-rail airbag modules, ceiling
headliner or pillar garnish trim,
overhead console, front sensors,
side impact sensors, rollover
sensor module, or airbag wiring
can affect the operation of the
airbag system.
In addition, the vehicle has a
passenger sensing system for the
right front passenger position,
which includes sensors that are
part of the passenger seat.
The passenger sensing system
may not operate properly if the
original seat trim is replaced with
non-GM covers, upholstery or
trim, or with GM covers,
upholstery or trim designed for a
different vehicle. Any object, such
as an aftermarket seat heater or a
comfort enhancing pad or device,
installed under or on top of theseat fabric, could also interfere
with the operation of the
passenger sensing system.
This could either prevent proper
deployment of the passenger
airbag(s) or prevent the
passenger sensing system from
properly turning off the passenger
airbag(s). SeePassenger
Sensing System on page 1-54.
If you have any questions, call
Customer Assistance. The phone
numbers and addresses for
Customer Assistance are in
Step Two of the Customer
Satisfaction Procedure in this
manual. SeeCustomer
Satisfaction Procedure on
page 7-1.
If the vehicle has rollover
roof-rail airbags, seeDifferent
Size Tires and Wheels on
page 5-61for additional
important information.Q:Because I have a disability,
I have to get my vehicle
modied. How can I nd out
whether this will affect my
airbag system?
A:If you have questions, call
Customer Assistance. The phone
numbers and addresses for
Customer Assistance are in
Step Two of the Customer
Satisfaction Procedure in this
manual. SeeCustomer
Satisfaction Procedure on
page 7-1.
In addition, your dealer/retailer and
the service manual have information
about the location of the airbag
sensors, sensing and diagnostic
module and airbag wiring.
Seats and Restraint System 1-59

Restraint System
Check
Checking the Restraint
Systems
Safety Belts
Now and then, check the safety
belt reminder light, safety belts,
buckles, latch plates, retractors, and
anchorages are all working properly.
Look for any other loose or damaged
safety belt system parts that might
keep a safety belt system from doing
its job. See your dealer/retailer to
have it repaired. Torn or frayed
safety belts may not protect you in a
crash. They can rip apart under
impact forces. If a belt is torn or
frayed, get a new one right away.
Make sure the safety belt reminder
light is working. SeeSafety Belt
Reminders on page 3-24for more
information.Keep safety belts clean and dry.
SeeCare of Safety Belts on
page 5-85.
Airbags
The airbag system does not need
regularly scheduled maintenance
or replacement. Make sure the
airbag readiness light is working.
SeeAirbag Readiness Light
on page 3-25for more information.
Notice:If an airbag covering
is damaged, opened, or broken,
the airbag may not work properly.
Do not open or break the airbag
coverings. If there are any opened
or broken airbag covers, have
the airbag covering and/or airbag
module replaced. For the
location of the airbag modules,
seeWhat Makes an Airbag
Inflate? on page 1-52. See your
dealer/retailer for service.
Replacing Restraint
System Parts After a
Crash
{CAUTION
A crash can damage the
restraint systems in your vehicle.
A damaged restraint system may
not properly protect the person
using it, resulting in serious injury
or even death in a crash. To help
make sure your restraint systems
are working properly after a crash,
have them inspected and any
necessary replacements made
as soon as possible.
1-60 Seats and Restraint System

If the vehicle has been in a crash, do
you need new safety belts or LATCH
system (if equipped) parts?
After a very minor crash, nothing
may be necessary. But the safety
belt assemblies that were used
during any crash may have been
stressed or damaged. See your
dealer/retailer to have the safety belt
assemblies inspected or replaced.
If the vehicle has the LATCH system
and it was being used during a
crash, you may need new LATCH
system parts.New parts and repairs may be
necessary even if the safety belt or
LATCH system (if equipped), was not
being used at the time of the crash.
If an airbag inates, you will need
to replace airbag system parts.
See the part on the airbag system
earlier in this section.
Have the safety belt pretensioners
checked if the vehicle has been in a
crash, if the airbag readiness light
stays on after the vehicle is started,
or while you are driving. SeeAirbag
Readiness Light on page 3-25.
Seats and Restraint System 1-61

✍NOTES
1-62 Seats and Restraint System

Features and
Controls
Keys
Keys...................................2-2
Remote Keyless Entry
(RKE) System...................2-3
Remote Keyless Entry
(RKE) System Operation. . .2-4
Doors and Locks
Door Locks.........................2-5
Power Door Locks..............2-6
Programmable Automatic
Door Locks........................2-6
Rear Door Security Locks. . . .2-6
Lockout Protection..............2-7
Tailgate..............................2-7
Swing-gate.........................2-9
Windows
Windows.............................2-9
Power Windows................2-10
Sun Visors........................2-11
Theft-Deterrent Systems
Theft-Deterrent Systems. . . .2-11
Content Theft-Deterrent.....2-11
Passlock®(U.S. Only).......2-12
PASS-Key®III+ Electronic
Immobilizer......................2-13
PASS-Key®III+ Electronic
Immobilizer Operation
(Canada Only)
.................2-14
Starting and Operating
Your Vehicle
New Vehicle Break-In.......2-15
Ignition Positions...............2-16
Retained Accessory
Power (RAP)...................2-17
Starting the Engine...........2-17
Engine Coolant Heater......2-19
Automatic Transmission
Operation........................2-19
Manual Transmission
Operation........................2-22
Full-Time Four-Wheel
Drive...............................2-24
Parking Brake...................2-28
Shifting Into Park
(Automatic
Transmission)
..................2-29
Shifting Out of Park
(Automatic
Transmission)
..................2-30
Parking the Vehicle
(Manual Transmission). . . .2-31Parking Over Things
That Burn........................2-31
Engine Exhaust.................2-31
Running the Vehicle
While Parked..................2-32
Mirrors
Automatic Dimming
Rearview Mirror...............2-33
Compass..........................2-34
Outside Power Mirrors......2-35
Outside Convex Mirror......2-35
Object Detection
Systems
Rear Vision
Camera (RVC)................2-36
OnStar®System
OnStar®System................2-39
Features and Controls 2-1

Universal Home Remote
System
Universal Home Remote
System............................2-42
Universal Home Remote
System Operation............2-43
Storage Areas
Glove Box.........................2-47
Cupholders.......................2-47
Front Seat Storage Net.....2-47
Center Console Storage. . . .2-47
Luggage Carrier................2-48
Rear Storage Area............2-49
Convenience Net..............2-49
Cargo Cover (H3).............2-49
Cargo Tie Downs..............2-49
Cargo Management
System (H3T)..................2-49
Sunroof
Sunroof.............................2-50
Keys
{CAUTION
Leaving children in a vehicle with
the ignition key is dangerous for
many reasons, children or others
could be badly injured or even
killed. They could operate the
power windows or other controls
or even make the vehicle move.
The windows will function with the
keys in the ignition and children
could be seriously injured or killed
if caught in the path of a closing
window. Do not leave the keys in

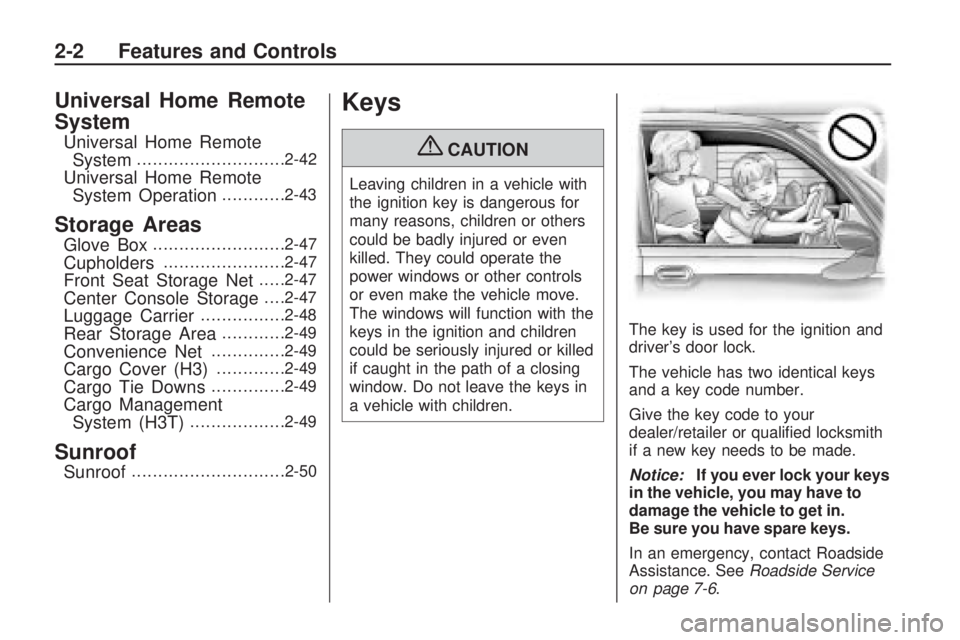

a vehicle with children.The key is used for the ignition and
driver’s door lock.
The vehicle has two identical keys
and a key code number.
Give the key code to your
dealer/retailer or qualied locksmith
if a new key needs to be made.
Notice:If you ever lock your keys
in the vehicle, you may have to
damage the vehicle to get in.
Be sure you have spare keys.
In an emergency, contact Roadside
Assistance. SeeRoadside Service
on page 7-6.
2-2 Features and Controls

Remote Keyless Entry
(RKE) System
The Remote Keyless Entry (RKE)
system operates on a radio
frequency subject to Federal
Communications Commission (FCC)
Rules and with Industry Canada.
This device complies with Part 15
of the FCC Rules. Operation
is subject to the following
two conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the
device.This device complies with RSS-210
of Industry Canada. Operation
is subject to the following
two conditions:
1. This device may not cause
interference.
2. This device must accept any
interference received, including
interference that may cause
undesired operation of the
device.
Changes or modications to this
system by other than an authorized
service facility could void
authorization to use this equipment.If there is a decrease in the RKE
operating range, try this:Check the distance. The
transmitter may be too far from
the vehicle. Stand closer
during rainy or snowy weather.
Check the location. Other
vehicles or objects may be
blocking the signal. Take a
few steps to the left or right,
hold the transmitter higher, and
try again.
Check the transmitter’s battery.
See “Battery Replacement”
later in this section.
If the transmitter is still not
working correctly, see your
dealer/retailer or a qualied
technician for service.
Features and Controls 2-3

Remote Keyless Entry
(RKE) System Operation
The Remote Keyless Entry (RKE)
transmitter functions work up to
30 feet (9 m) away from the vehicle.
There are other conditions which
can affect the performance of
the transmitter. SeeRemote Keyless
Entry (RKE) System on page 2-3.
LOCK:Press to lock all the doors.
The parking lamps may ash
and the horn may chirp.
If a door is open or ajar when LOCK
is pressed, the doors lock, but the
theft-deterrent system does not
arm until the open door is closed.Pressing LOCK may arm the content
theft-deterrent system. SeeContent
Theft-Deterrent on page 2-11for
additional information.
UNLOCK:Press to unlock only the
driver’s door. The interior lamps
come on, the parking lamps may
ash, and the horn may sound.
Press UNLOCK again within
three seconds to unlock all the doors.
Pressing UNLOCK may disarm
the content theft-deterrent system.
SeeContent Theft-Deterrent on
page 2-11for additional information.
Different feedback choices can be
programmed through the Driver
Information Center (DIC). See
“Remote Keyless Entry Feedback”
underDIC Operation and Displays
on page 3-34.
L(Panic):Press to activate the
alarm. The horn sounds and the
headlamps and taillamps ash for up
to 30 seconds. To turn the alarm off
press
Lagain, start the vehicle or
wait 30 seconds.
Programming Transmitters to
the Vehicle
Only RKE transmitters
programmed to this vehicle will
work. If a transmitter is lost
or stolen, a replacement can be
purchased and programmed
through your dealer/retailer.
When the replacement transmitter
is programmed to this vehicle,
all remaining transmitters must also
be reprogrammed. Any lost or
stolen transmitters will no longer
work once the new transmitter
is programmed. Each vehicle can
have up to four transmitters
programmed to it.
Battery Replacement
The battery in the transmitter is
weak and should be changed if it
does not work at the normal range
in any location.
2-4 Features and Controls
