HUMMER H3 2009 Workshop Manual
Manufacturer: HUMMER, Model Year: 2009, Model line: H3, Model: HUMMER H3 2009Pages: 382, PDF Size: 1.99 MB
Page 51 of 382
The vehicle may have the following
airbags:
A seat-mounted side impact
airbag for the driver.
A seat-mounted side impact
airbag for the right front
passenger.
All of the airbags in the vehicle will
have the word AIRBAG embossed in
the trim or on an attached label near
the deployment opening.
For frontal airbags, the word
AIRBAG will appear on the middle
part of the steering wheel for
the driver and on the instrument
panel for the right front passenger.With seat-mounted side impact
airbags, the word AIRBAG
will appear on the side of the
seatback closest to the door.
With roof-rail airbags, the word
AIRBAG will appear along the
headliner or trim.
Airbags are designed to supplement
the protection provided by safety
belts. Even though today’s airbags
are also designed to help reduce
the risk of injury from the force of an
in ating bag, all airbags must
in ate very quickly to do their job.Here are the most important things
to know about the airbag system:
{CAUTION
You can be severely injured or
killed in a crash if you are not
wearing your safety belt — even if
you have airbags. Airbags are
designed to work with safety
belts, but do not replace them.
Also, airbags are not designed to
deploy in every crash. In some
crashes safety belts are your only
restraint. SeeWhen Should an
Airbag Inflate? on page 1-50.
Wearing your safety belt during a
crash helps reduce your chance
of hitting things inside the vehicle
or being ejected from it. Airbags
are “supplemental restraints” to
the safety belts. Everyone in your
vehicle should wear a safety belt
properly — whether or not there is
an airbag for that person.
Seats and Restraint System 1-47
Page 52 of 382
{CAUTION
Airbags in ate with great force,
faster than the blink of an eye.
Anyone who is up against, or very
close to, any airbag when it
in ates can be seriously injured or
killed. Do not sit unnecessarily
close to the airbag, as you would
be if you were sitting on the edge
of your seat or leaning forward.
Safety belts help keep you in
position before and during a
crash. Always wear your safety
belt, even with airbags. The driver
should sit as far back as possible
while still maintaining control of
the vehicle.
Occupants should not lean on or
sleep against the door or side
windows in seating positions with
seat-mounted side impact airbags
and/or roof-rail airbags.
{CAUTION
Children who are up against, or
very close to, any airbag when it
in ates can be seriously injured or
killed. Airbags plus lap-shoulder
belts offer protection for adults
and older children, but not for
young children and infants.
Neither the vehicle’s safety belt
system nor its airbag system is
designed for them. Young children
and infants need the protection
that a child restraint system can
provide. Always secure children
properly in your vehicle. To read
how, seeOlder Children on
page 1-25orInfants and Young
Children on page 1-28.There is an airbag readiness light
on the instrument panel cluster,
which shows the airbag symbol.
The system checks the airbag
electrical system for malfunctions.
The light tells you if there is an
electrical problem. SeeAirbag
Readiness Light on page 3-25for
more information.
1-48 Seats and Restraint System
Page 53 of 382

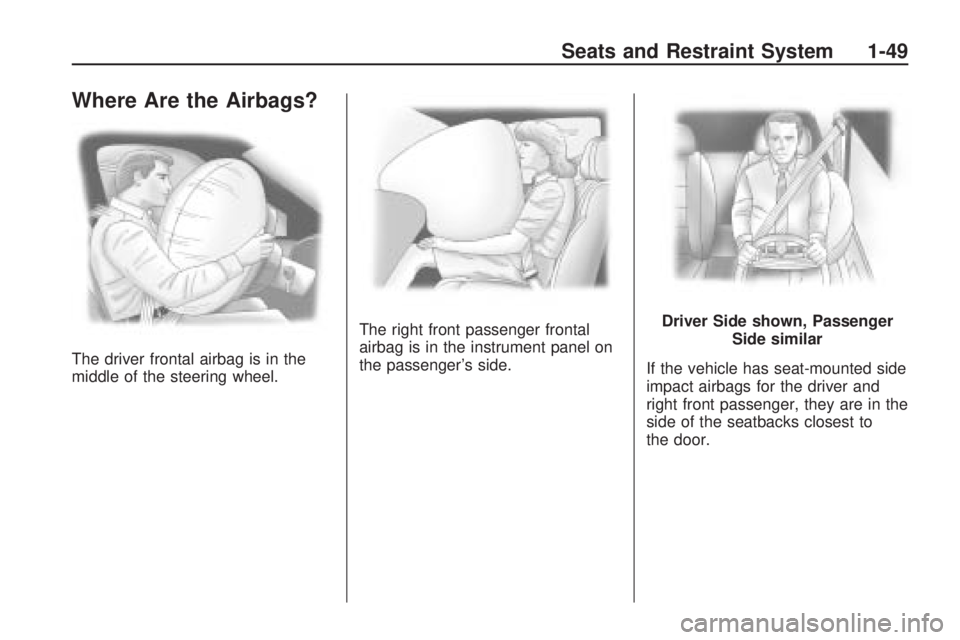

Where Are the Airbags?
The driver frontal airbag is in the
middle of the steering wheel.The right front passenger frontal
airbag is in the instrument panel on
the passenger’s side.
If the vehicle has seat-mounted side
impact airbags for the driver and
right front passenger, they are in the
side of the seatbacks closest to
the door.
Driver Side shown, Passenger
Side similar
Seats and Restraint System 1-49
Page 54 of 382

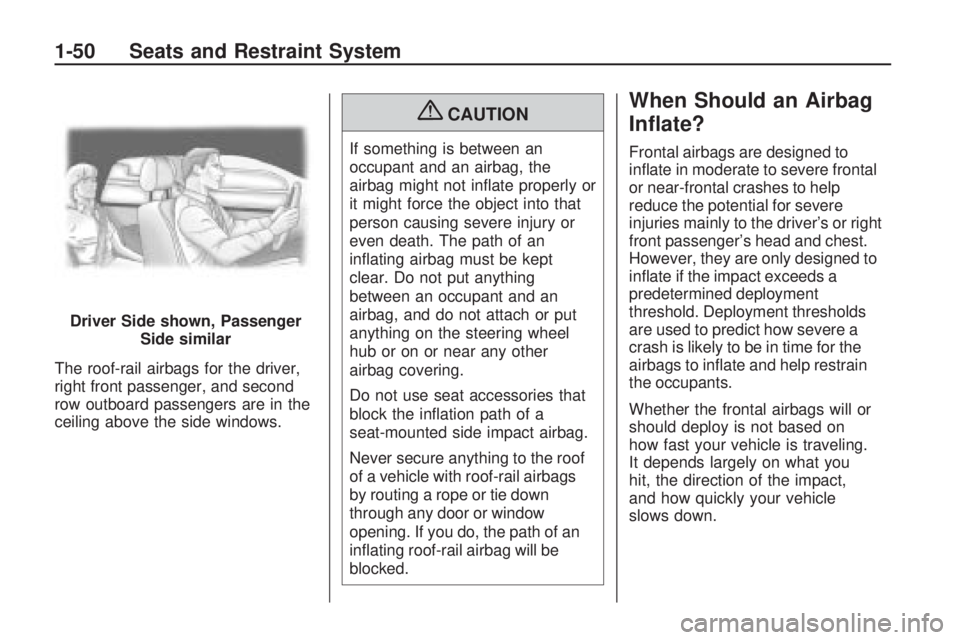

The roof-rail airbags for the driver,
right front passenger, and second
row outboard passengers are in the
ceiling above the side windows.
{CAUTION
If something is between an
occupant and an airbag, the
airbag might not in ate properly or
it might force the object into that
person causing severe injury or
even death. The path of an
in ating airbag must be kept
clear. Do not put anything
between an occupant and an
airbag, and do not attach or put
anything on the steering wheel
hub or on or near any other
airbag covering.
Do not use seat accessories that
block the in ation path of a
seat-mounted side impact airbag.
Never secure anything to the roof
of a vehicle with roof-rail airbags
by routing a rope or tie down
through any door or window
opening. If you do, the path of an
in ating roof-rail airbag will be
blocked.
When Should an Airbag
In ate?
Frontal airbags are designed to
in ate in moderate to severe frontal
or near-frontal crashes to help
reduce the potential for severe
injuries mainly to the driver’s or right
front passenger’s head and chest.
However, they are only designed to
in ate if the impact exceeds a
predetermined deployment
threshold. Deployment thresholds
are used to predict how severe a
crash is likely to be in time for the
airbags to in ate and help restrain
the occupants.
Whether the frontal airbags will or
should deploy is not based on
how fast your vehicle is traveling.
It depends largely on what you
hit, the direction of the impact,
and how quickly your vehicle
slows down. Driver Side shown, Passenger
Side similar
1-50 Seats and Restraint System
Page 55 of 382

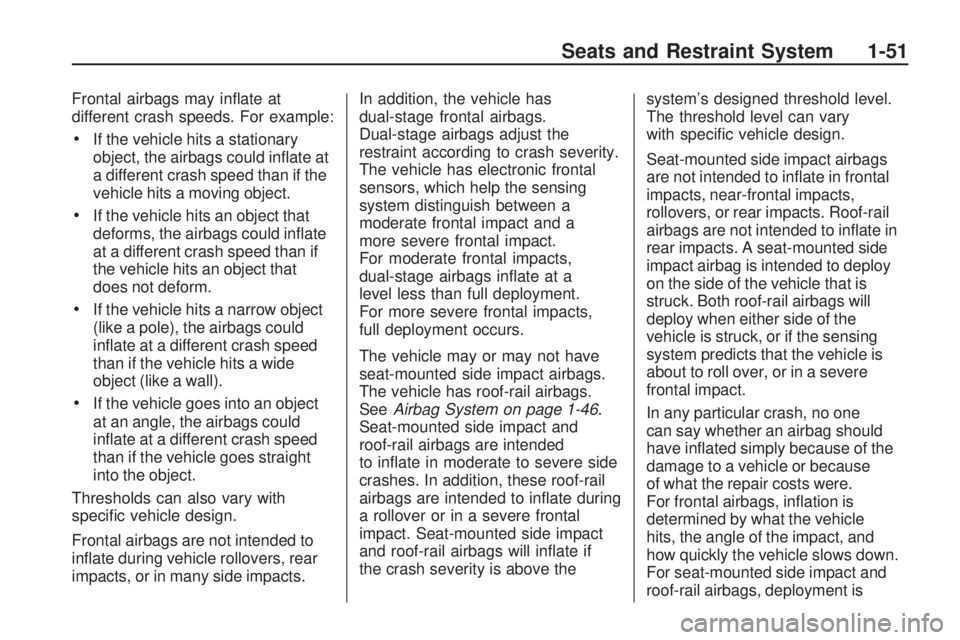

Frontal airbags may in ate at
different crash speeds. For example:
If the vehicle hits a stationary
object, the airbags could in ate at
a different crash speed than if the
vehicle hits a moving object.
If the vehicle hits an object that
deforms, the airbags could in ate
at a different crash speed than if
the vehicle hits an object that
does not deform.
If the vehicle hits a narrow object
(like a pole), the airbags could
in ate at a different crash speed
than if the vehicle hits a wide
object (like a wall).
If the vehicle goes into an object
at an angle, the airbags could
in ate at a different crash speed
than if the vehicle goes straight
into the object.
Thresholds can also vary with
speci c vehicle design.
Frontal airbags are not intended to
in ate during vehicle rollovers, rear
impacts, or in many side impacts.In addition, the vehicle has
dual-stage frontal airbags.
Dual-stage airbags adjust the
restraint according to crash severity.
The vehicle has electronic frontal
sensors, which help the sensing
system distinguish between a
moderate frontal impact and a
more severe frontal impact.
For moderate frontal impacts,
dual-stage airbags in ate at a
level less than full deployment.
For more severe frontal impacts,
full deployment occurs.
The vehicle may or may not have
seat-mounted side impact airbags.
The vehicle has roof-rail airbags.
SeeAirbag System on page 1-46.
Seat-mounted side impact and
roof-rail airbags are intended
to in ate in moderate to severe side
crashes. In addition, these roof-rail
airbags are intended to in ate during
a rollover or in a severe frontal
impact. Seat-mounted side impact
and roof-rail airbags will in ate if
the crash severity is above thesystem’s designed threshold level.
The threshold level can vary
with speci c vehicle design.
Seat-mounted side impact airbags
are not intended to in ate in frontal
impacts, near-frontal impacts,
rollovers, or rear impacts. Roof-rail
airbags are not intended to in ate in
rear impacts. A seat-mounted side
impact airbag is intended to deploy
on the side of the vehicle that is
struck. Both roof-rail airbags will
deploy when either side of the
vehicle is struck, or if the sensing
system predicts that the vehicle is
about to roll over, or in a severe
frontal impact.
In any particular crash, no one
can say whether an airbag should
have in ated simply because of the
damage to a vehicle or because
of what the repair costs were.
For frontal airbags, in ation is
determined by what the vehicle
hits, the angle of the impact, and
how quickly the vehicle slows down.
For seat-mounted side impact and
roof-rail airbags, deployment is
Seats and Restraint System 1-51
Page 56 of 382
determined by the location and
severity of the side impact. In a
rollover event, roof-rail airbag
deployment is determined by the
direction of the roll.
What Makes an Airbag
In ate?
In a deployment event, the sensing
system sends an electrical signal
triggering a release of gas from the
in ator. Gas from the in ator lls the
airbag causing the bag to break out
of the cover and deploy. The in ator,
the airbag, and related hardware are
all part of the airbag module.
Frontal airbag modules are located
inside the steering wheel and
instrument panel. For vehicles with
seat-mounted side impact airbags,
there are airbag modules in the side
of the front seatbacks closest to
the door. For vehicles with roof-rail
airbags, there are airbag modules
in the ceiling of the vehicle, near the
side windows that have occupant
seating positions.
How Does an Airbag
Restrain?
In moderate to severe frontal or
near frontal collisions, even belted
occupants can contact the steering
wheel or the instrument panel. In
moderate to severe side collisions,
even belted occupants can contact
the inside of the vehicle.
Airbags supplement the protection
provided by safety belts.
Frontal airbags distribute the force of
the impact more evenly over the
occupant’s upper body, stopping the
occupant more gradually.
Seat-mounted side impact and
roof-rail airbags distribute the force of
the impact more evenly over the
occupant’s upper body.
Rollover capable roof-rail airbags are
designed to help contain the head
and chest of occupants in the
outboard seating positions in the
rst, second, and third rows. The
rollover capable roof-rail airbags are
designed to help reduce the risk offull or partial ejection in rollover
events, although no system can
prevent all such ejections.
But airbags would not help in many
types of collisions, primarily because
the occupant’s motion is not toward
those airbags. SeeWhen Should
an Airbag Inflate? on page 1-50
for more information.
Airbags should never be regarded
as anything more than a supplement
to safety belts.
What Will You See After
an Airbag In ates?
After the frontal airbags and
seat-mounted side impact airbags
in ate, they quickly de ate, so
quickly that some people may not
even realize an airbag in ated.
Roof-rail airbags may still be at least
partially in ated for some time after
they deploy. Some components of
the airbag module may be hot for
several minutes. For location of the
airbag modules, seeWhat Makes an
Airbag Inflate? on page 1-52.
1-52 Seats and Restraint System
Page 57 of 382

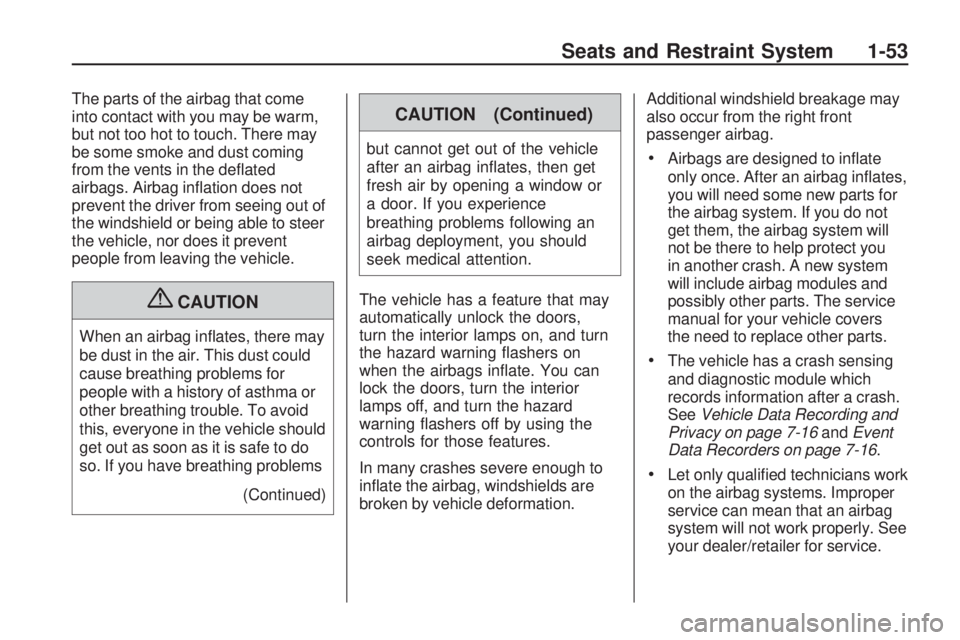

The parts of the airbag that come
into contact with you may be warm,
but not too hot to touch. There may
be some smoke and dust coming
from the vents in the de ated
airbags. Airbag in ation does not
prevent the driver from seeing out of
the windshield or being able to steer
the vehicle, nor does it prevent
people from leaving the vehicle.
{CAUTION
When an airbag in ates, there may
be dust in the air. This dust could
cause breathing problems for
people with a history of asthma or
other breathing trouble. To avoid
this, everyone in the vehicle should
get out as soon as it is safe to do
so. If you have breathing problems
(Continued)
CAUTION (Continued)
but cannot get out of the vehicle
after an airbag in ates, then get
fresh air by opening a window or
a door. If you experience
breathing problems following an
airbag deployment, you should
seek medical attention.
The vehicle has a feature that may
automatically unlock the doors,
turn the interior lamps on, and turn
the hazard warning ashers on
when the airbags in ate. You can
lock the doors, turn the interior
lamps off, and turn the hazard
warning ashers off by using the
controls for those features.
In many crashes severe enough to
in ate the airbag, windshields are
broken by vehicle deformation.Additional windshield breakage may
also occur from the right front
passenger airbag.Airbags are designed to in ate
only once. After an airbag in ates,
you will need some new parts for
the airbag system. If you do not
get them, the airbag system will
not be there to help protect you
in another crash. A new system
will include airbag modules and
possibly other parts. The service
manual for your vehicle covers
the need to replace other parts.
The vehicle has a crash sensing
and diagnostic module which
records information after a crash.
SeeVehicle Data Recording and
Privacy on page 7-16andEvent
Data Recorders on page 7-16.
Let only quali ed technicians work
on the airbag systems. Improper
service can mean that an airbag
system will not work properly. See
your dealer/retailer for service.
Seats and Restraint System 1-53
Page 58 of 382

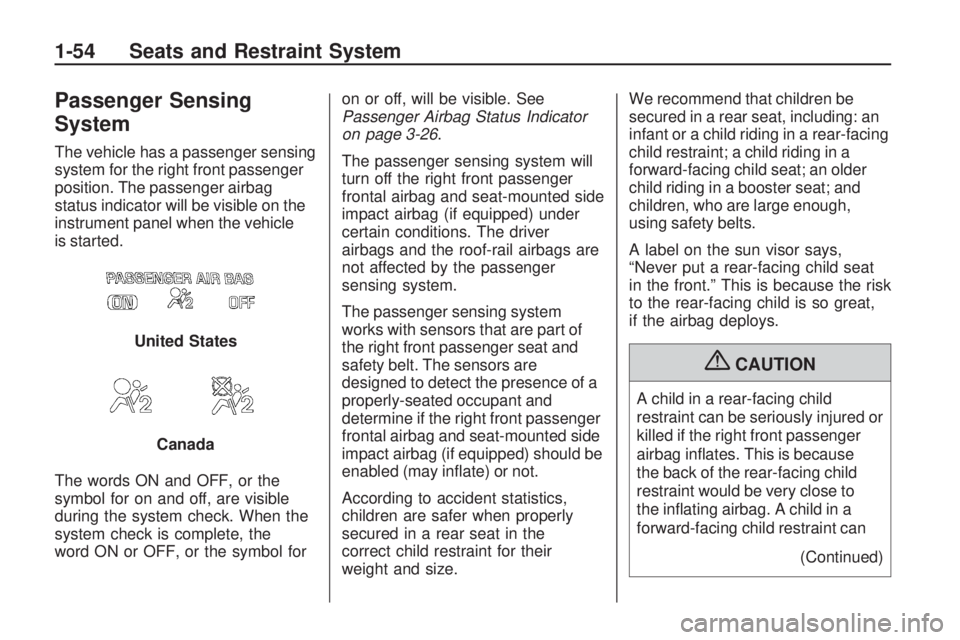

Passenger Sensing
System
The vehicle has a passenger sensing
system for the right front passenger
position. The passenger airbag
status indicator will be visible on the
instrument panel when the vehicle
is started.
The words ON and OFF, or the
symbol for on and off, are visible
during the system check. When the
system check is complete, the
word ON or OFF, or the symbol foron or off, will be visible. See
Passenger Airbag Status Indicator
on page 3-26.
The passenger sensing system will
turn off the right front passenger
frontal airbag and seat-mounted side
impact airbag (if equipped) under
certain conditions. The driver
airbags and the roof-rail airbags are
not affected by the passenger
sensing system.
The passenger sensing system
works with sensors that are part of
the right front passenger seat and
safety belt. The sensors are
designed to detect the presence of a
properly-seated occupant and
determine if the right front passenger
frontal airbag and seat-mounted side
impact airbag (if equipped) should be
enabled (may in ate) or not.
According to accident statistics,
children are safer when properly
secured in a rear seat in the
correct child restraint for their
weight and size.We recommend that children be
secured in a rear seat, including: an
infant or a child riding in a rear-facing
child restraint; a child riding in a
forward-facing child seat; an older
child riding in a booster seat; and
children, who are large enough,
using safety belts.
A label on the sun visor says,
“Never put a rear-facing child seat
in the front.” This is because the risk
to the rear-facing child is so great,
if the airbag deploys.
{CAUTION
A child in a rear-facing child
restraint can be seriously injured or
killed if the right front passenger
airbag in ates. This is because
the back of the rear-facing child
restraint would be very close to
the in ating airbag. A child in a
forward-facing child restraint can
(Continued) United States
Canada
1-54 Seats and Restraint System
Page 59 of 382
CAUTION (Continued)
be seriously injured or killed if
the right front passenger airbag
in ates and the passenger seat
is in a forward position.
Even if the passenger sensing
system has turned off the right
front passenger frontal airbag
and seat-mounted side impact
airbag (if equipped), no system is
fail-safe. No one can guarantee
that an airbag will not deploy under
some unusual circumstance, even
though the airbag(s) are off.
Secure rear-facing child
restraints in a rear seat, even
if the airbag(s) are off. If you
secure a forward-facing child
restraint in the right front seat,
always move the front passenger
seat as far back as it will go. It is
better to secure the child restraint
in a rear seat.The passenger sensing system is
designed to turn off the right
front passenger frontal airbag if:The right front passenger seat is
unoccupied.
The system determines that an
infant is present in a rear-facing
infant seat.
The system determines that a
small child is present in a
child restraint.
The system determines that a
small child is present in a
booster seat.
A right front passenger takes
his/her weight off of the seat
for a period of time.
The right front passenger seat is
occupied by a smaller person,
such as a child who has
outgrown child restraints.
Or, if there is a critical problem
with the airbag system or the
passenger sensing system.When the passenger sensing
system has turned off the right
front passenger frontal airbag and
seat-mounted side impact airbag
(if equipped), the off indicator will
light and stay lit to remind you
that the airbag or airbags are off.
SeePassenger Airbag Status
Indicator on page 3-26.
The passenger sensing system is
designed to turn on (may in ate) the
right front passenger frontal airbag
and seat-mounted side impact airbag
(if equipped) anytime the system
senses that a person of adult size
is sitting properly in the right front
passenger seat.
When the passenger sensing
system has allowed the airbag or
airbags to be enabled, the on
indicator will light and stay lit to
remind you that the airbag or
airbags are active.
Seats and Restraint System 1-55
Page 60 of 382

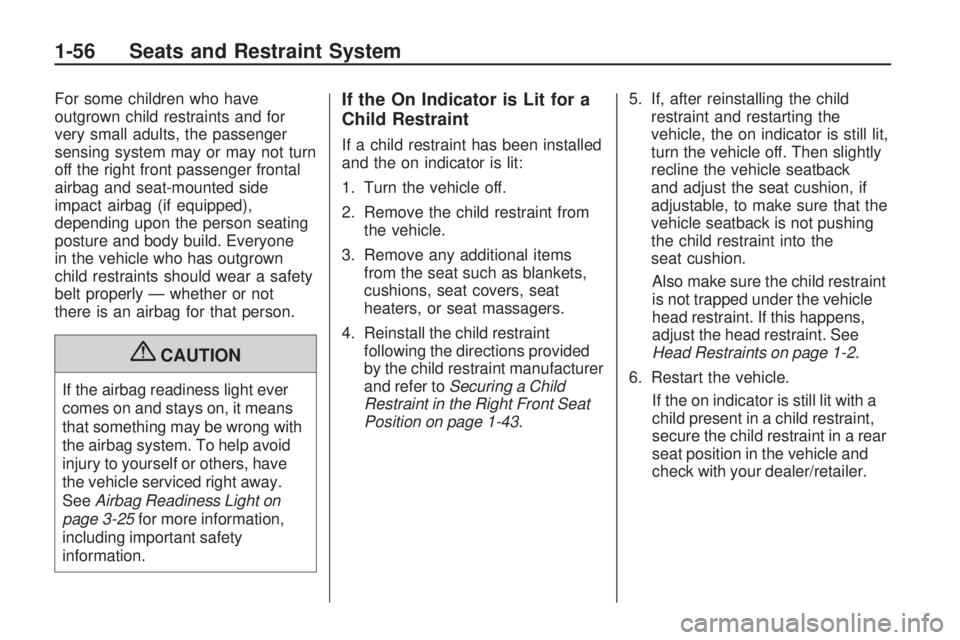

For some children who have
outgrown child restraints and for
very small adults, the passenger
sensing system may or may not turn
off the right front passenger frontal
airbag and seat-mounted side
impact airbag (if equipped),
depending upon the person seating
posture and body build. Everyone
in the vehicle who has outgrown
child restraints should wear a safety
belt properly — whether or not
there is an airbag for that person.
{CAUTION
If the airbag readiness light ever
comes on and stays on, it means
that something may be wrong with
the airbag system. To help avoid
injury to yourself or others, have
the vehicle serviced right away.
SeeAirbag Readiness Light on
page 3-25for more information,
including important safety
information.
If the On Indicator is Lit for a
Child Restraint
If a child restraint has been installed
and the on indicator is lit:
1. Turn the vehicle off.
2. Remove the child restraint from
the vehicle.
3. Remove any additional items
from the seat such as blankets,
cushions, seat covers, seat
heaters, or seat massagers.
4. Reinstall the child restraint
following the directions provided
by the child restraint manufacturer
and refer toSecuring a Child
Restraint in the Right Front Seat
Position on page 1-43.5. If, after reinstalling the child
restraint and restarting the
vehicle, the on indicator is still lit,
turn the vehicle off. Then slightly
recline the vehicle seatback
and adjust the seat cushion, if
adjustable, to make sure that the
vehicle seatback is not pushing
the child restraint into the
seat cushion.
Also make sure the child restraint
is not trapped under the vehicle
head restraint. If this happens,
adjust the head restraint. See
Head Restraints on page 1-2.
6. Restart the vehicle.
If the on indicator is still lit with a
child present in a child restraint,
secure the child restraint in a rear
seat position in the vehicle and
check with your dealer/retailer.
1-56 Seats and Restraint System
