HUMMER H3 2009 Owner's Manual
Manufacturer: HUMMER, Model Year: 2009, Model line: H3, Model: HUMMER H3 2009Pages: 382, PDF Size: 1.99 MB
Page 21 of 382
{CAUTION
You can be seriously injured if
your belt is buckled in the wrong
place like this. In a crash, the belt
would go up over your abdomen.
The belt forces would be there,
not on the pelvic bones. This
could cause serious internal
injuries. Always buckle your belt
into the buckle nearest you.
Q:What is wrong with this?
A:The belt is over an armrest.
{CAUTION
You can be seriously injured if
your belt goes over an armrest
like this. The belt would be much
too high. In a crash, you can slide
under the belt. The belt force
would then be applied on the
abdomen, not on the pelvic
bones, and that could cause
serious or fatal injuries. Be sure
the belt goes under the armrests.
Seats and Restraint System 1-17
Page 22 of 382

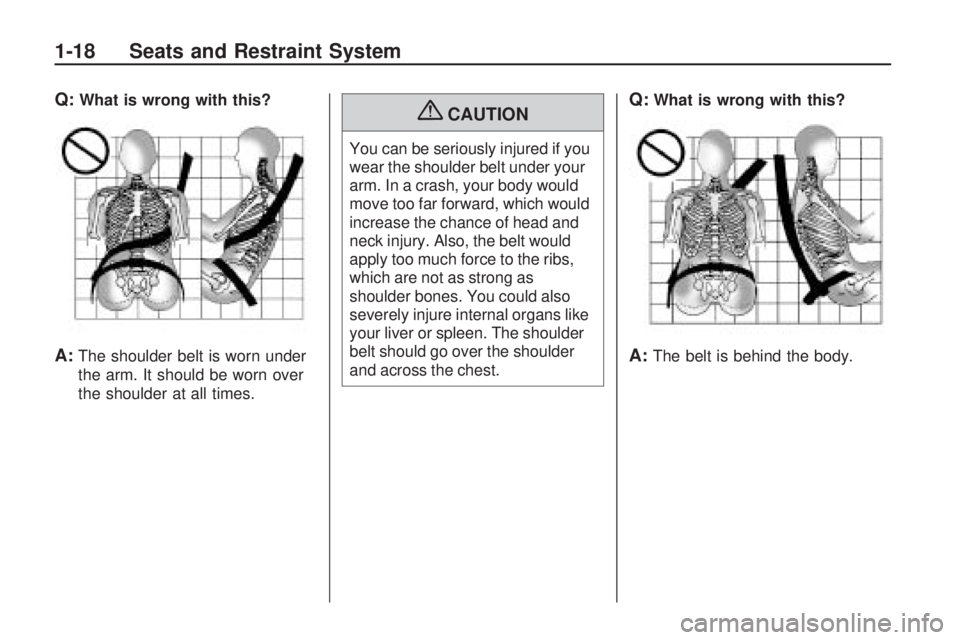

Q:What is wrong with this?
A:The shoulder belt is worn under
the arm. It should be worn over
the shoulder at all times.
{CAUTION
You can be seriously injured if you
wear the shoulder belt under your
arm. In a crash, your body would
move too far forward, which would
increase the chance of head and
neck injury. Also, the belt would
apply too much force to the ribs,
which are not as strong as
shoulder bones. You could also
severely injure internal organs like
your liver or spleen. The shoulder
belt should go over the shoulder
and across the chest.
Q:What is wrong with this?
A:The belt is behind the body.
1-18 Seats and Restraint System
Page 23 of 382

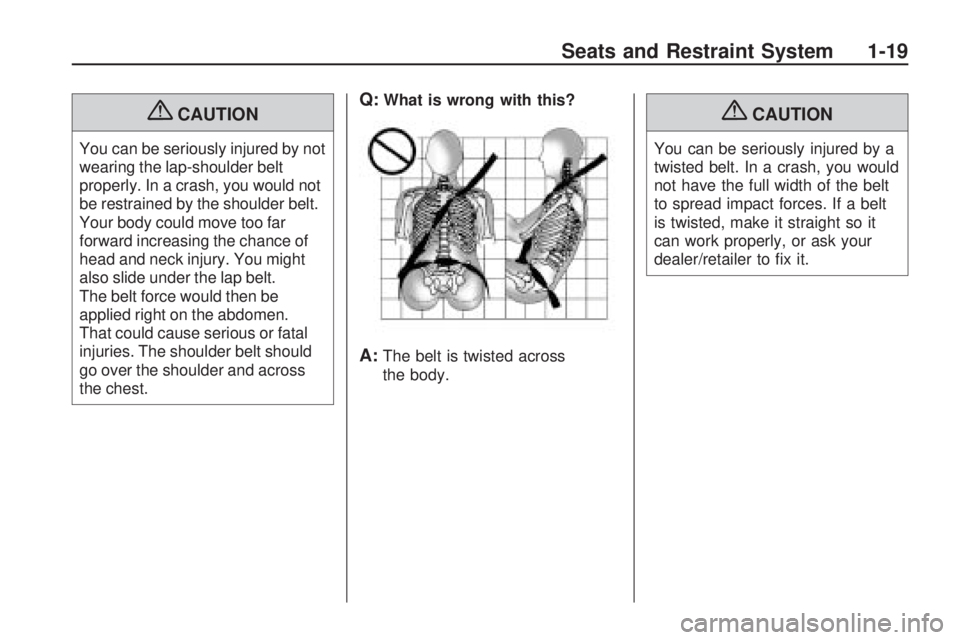

{CAUTION
You can be seriously injured by not
wearing the lap-shoulder belt
properly. In a crash, you would not
be restrained by the shoulder belt.
Your body could move too far
forward increasing the chance of
head and neck injury. You might
also slide under the lap belt.
The belt force would then be
applied right on the abdomen.
That could cause serious or fatal
injuries. The shoulder belt should
go over the shoulder and across
the chest.
Q:What is wrong with this?
A:The belt is twisted across
the body.
{CAUTION
You can be seriously injured by a
twisted belt. In a crash, you would
not have the full width of the belt
to spread impact forces. If a belt
is twisted, make it straight so it
can work properly, or ask your
dealer/retailer to x it.
Seats and Restraint System 1-19
Page 24 of 382

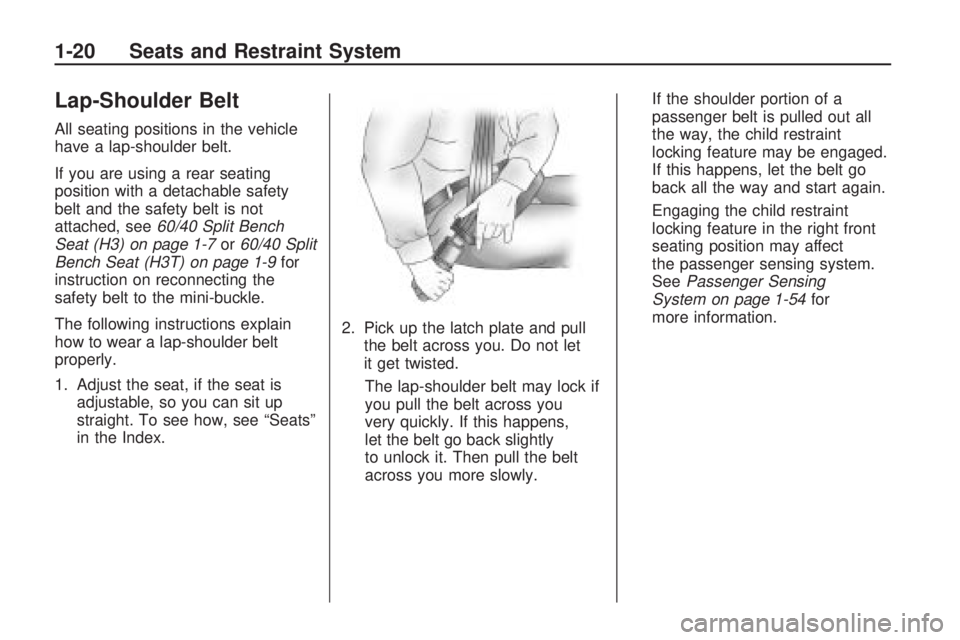

Lap-Shoulder Belt
All seating positions in the vehicle
have a lap-shoulder belt.
If you are using a rear seating
position with a detachable safety
belt and the safety belt is not
attached, see60/40 Split Bench
Seat (H3) on page 1-7or60/40 Split
Bench Seat (H3T) on page 1-9for
instruction on reconnecting the
safety belt to the mini-buckle.
The following instructions explain
how to wear a lap-shoulder belt
properly.
1. Adjust the seat, if the seat is
adjustable, so you can sit up
straight. To see how, see “Seats”
in the Index.2. Pick up the latch plate and pull
the belt across you. Do not let
it get twisted.
The lap-shoulder belt may lock if
you pull the belt across you
very quickly. If this happens,
let the belt go back slightly
to unlock it. Then pull the belt
across you more slowly.If the shoulder portion of a
passenger belt is pulled out all
the way, the child restraint
locking feature may be engaged.
If this happens, let the belt go
back all the way and start again.
Engaging the child restraint
locking feature in the right front
seating position may affect
the passenger sensing system.
SeePassenger Sensing
System on page 1-54for
more information.
1-20 Seats and Restraint System
Page 25 of 382

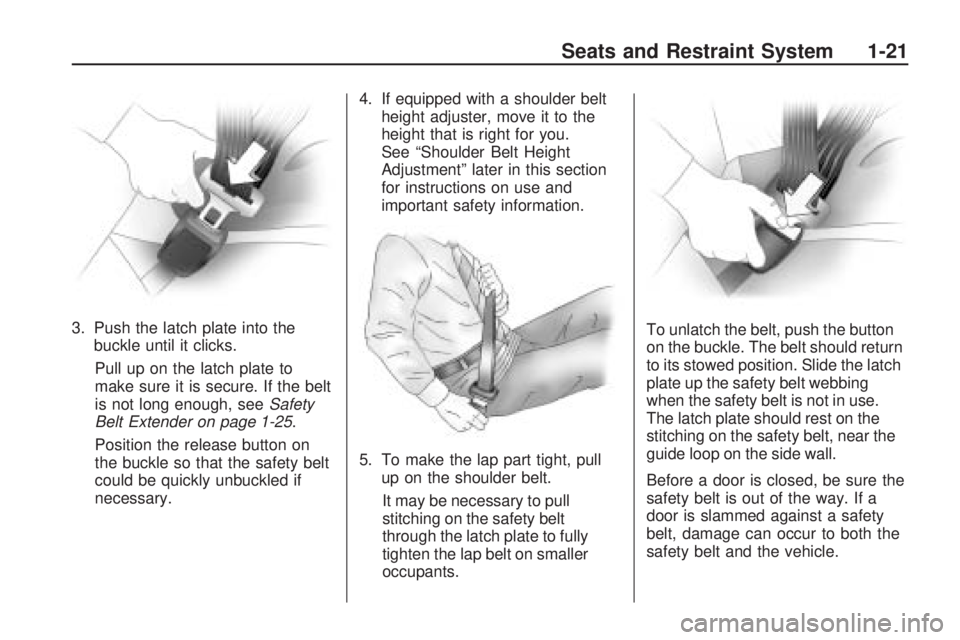

3. Push the latch plate into the
buckle until it clicks.
Pull up on the latch plate to
make sure it is secure. If the belt
is not long enough, seeSafety
Belt Extender on page 1-25.
Position the release button on
the buckle so that the safety belt
could be quickly unbuckled if
necessary.4. If equipped with a shoulder belt
height adjuster, move it to the
height that is right for you.
See “Shoulder Belt Height
Adjustment” later in this section
for instructions on use and
important safety information.
5. To make the lap part tight, pull
up on the shoulder belt.
It may be necessary to pull
stitching on the safety belt
through the latch plate to fully
tighten the lap belt on smaller
occupants.To unlatch the belt, push the button
on the buckle. The belt should return
to its stowed position. Slide the latch
plate up the safety belt webbing
when the safety belt is not in use.
The latch plate should rest on the
stitching on the safety belt, near the
guide loop on the side wall.
Before a door is closed, be sure the
safety belt is out of the way. If a
door is slammed against a safety
belt, damage can occur to both the
safety belt and the vehicle.
Seats and Restraint System 1-21
Page 26 of 382

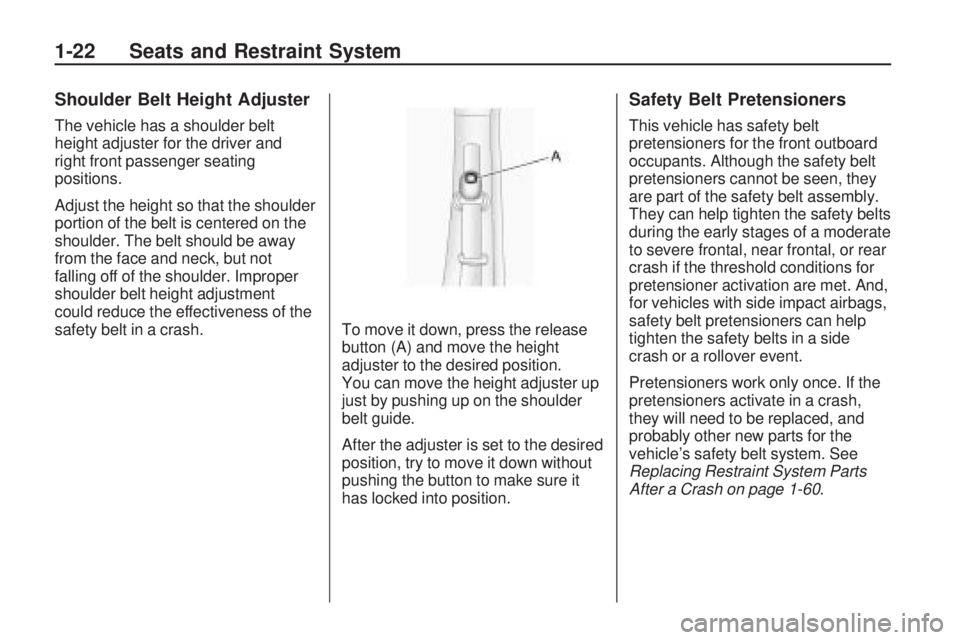

Shoulder Belt Height Adjuster
The vehicle has a shoulder belt
height adjuster for the driver and
right front passenger seating
positions.
Adjust the height so that the shoulder
portion of the belt is centered on the
shoulder. The belt should be away
from the face and neck, but not
falling off of the shoulder. Improper
shoulder belt height adjustment
could reduce the effectiveness of the
safety belt in a crash.
To move it down, press the release
button (A) and move the height
adjuster to the desired position.
You can move the height adjuster up
just by pushing up on the shoulder
belt guide.
After the adjuster is set to the desired
position, try to move it down without
pushing the button to make sure it
has locked into position.
Safety Belt Pretensioners
This vehicle has safety belt
pretensioners for the front outboard
occupants. Although the safety belt
pretensioners cannot be seen, they
are part of the safety belt assembly.
They can help tighten the safety belts
during the early stages of a moderate
to severe frontal, near frontal, or rear
crash if the threshold conditions for
pretensioner activation are met. And,
for vehicles with side impact airbags,
safety belt pretensioners can help
tighten the safety belts in a side
crash or a rollover event.
Pretensioners work only once. If the
pretensioners activate in a crash,
they will need to be replaced, and
probably other new parts for the
vehicle’s safety belt system. See
Replacing Restraint System Parts
After a Crash on page 1-60.
1-22 Seats and Restraint System
Page 27 of 382
Rear Safety Belt Comfort
Guides
Rear shoulder belt comfort guides
may provide added safety belt
comfort for older children who have
outgrown booster seats and for
some adults. When installed on a
shoulder belt, the comfort guide
positions the shoulder belt away
from the neck and head.There is one guide for each
outboard passenger position in the
rear seat. Here is how to install
a comfort guide to the safety belt:
1. Pull the elastic cord out from
between the edge of the
seatback and the interior body to
remove the guide from its
storage clip.2. Place the guide over the belt and
insert the two edges of the belt
into the slots of the guide.

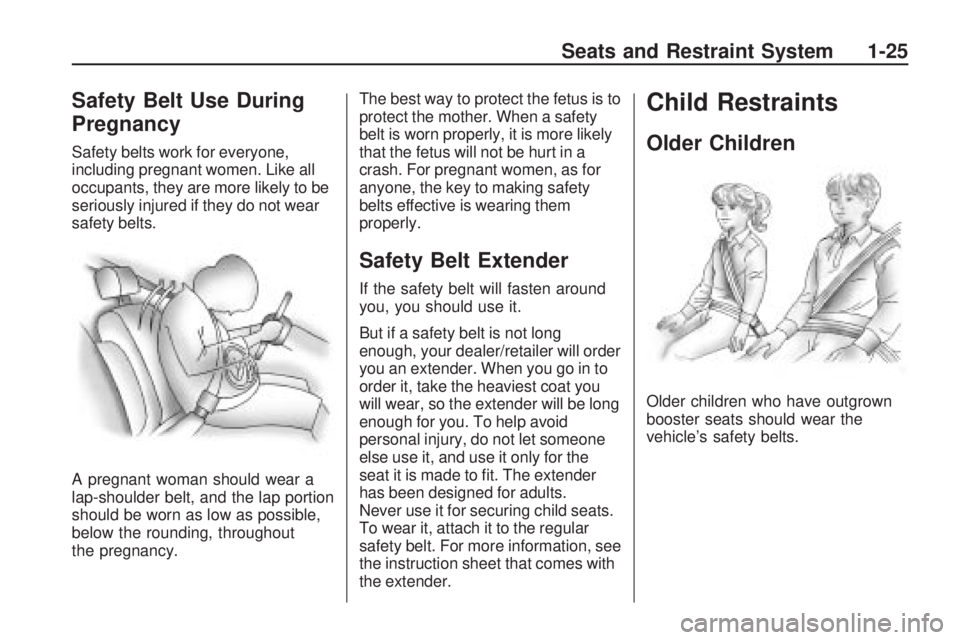

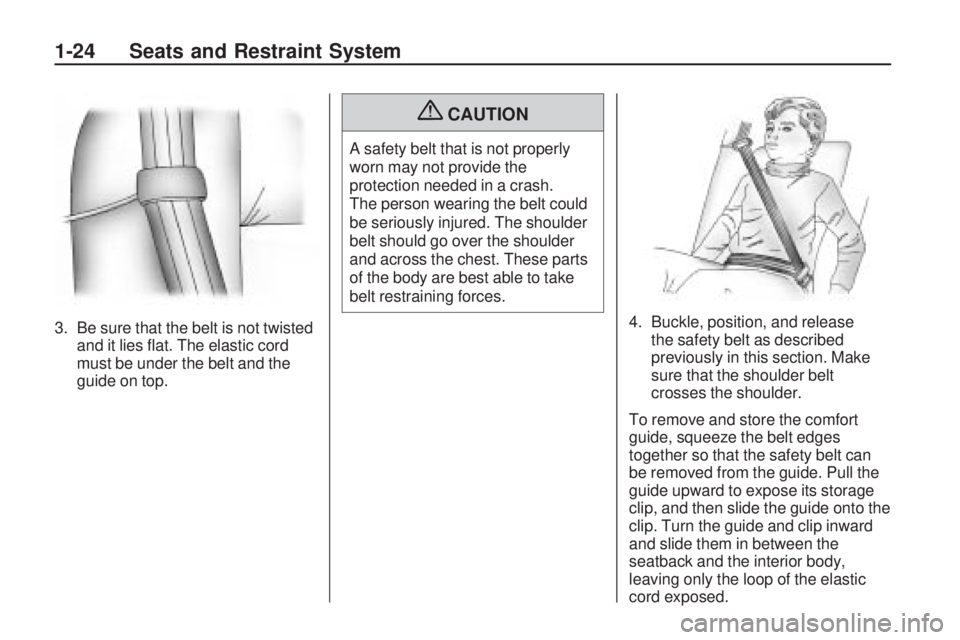

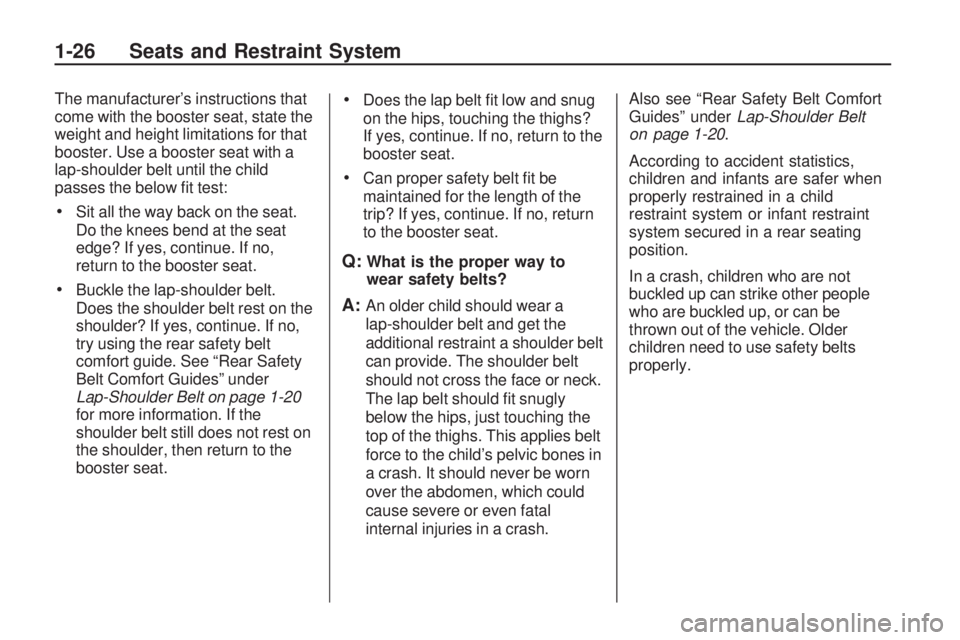

Seats and Restraint System 1-23
