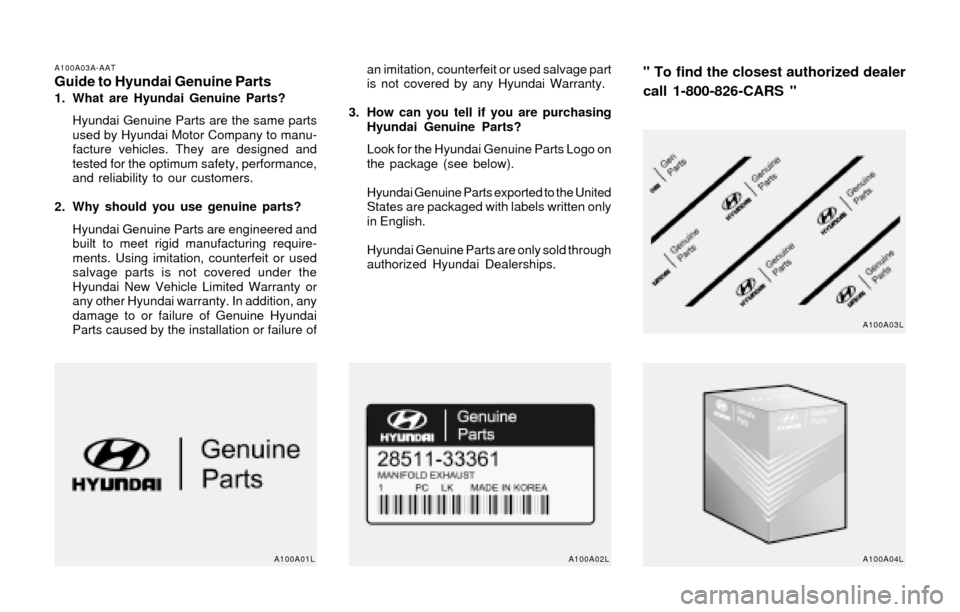

A100A03A-AATGuide to Hyundai Genuine Parts1. What are Hyundai Genuine Parts?
Hyundai Genuine Parts are the same parts
used by Hyundai Motor Company to manu-
facture vehicles. They are designed and
tested for the optimum safety, performance,
and reliability to our customers.
2. Why should you use genuine parts?
Hyundai Genuine Parts are engineered and
built to meet rigid manufacturing require-
ments. Using imitation, counterfeit or used
salvage parts is not covered under the
Hyundai New Vehicle Limited Warranty or
any other Hyundai warranty. In addition, any
damage to or failure of Genuine Hyundai
Parts caused by the installation or failure ofan imitation, counterfeit or used salvage part
is not covered by any Hyundai Warranty.
3. How can you tell if you are purchasing
Hyundai Genuine Parts?
Look for the Hyundai Genuine Parts Logo on
the package (see below).
Hyundai Genuine Parts exported to the United
States are packaged with labels written only
in English.
Hyundai Genuine Parts are only sold through
authorized Hyundai Dealerships.
" To find the closest authorized dealer
call 1-800-826-CARS "
A100A01L A100A02L A100A04LA100A03L

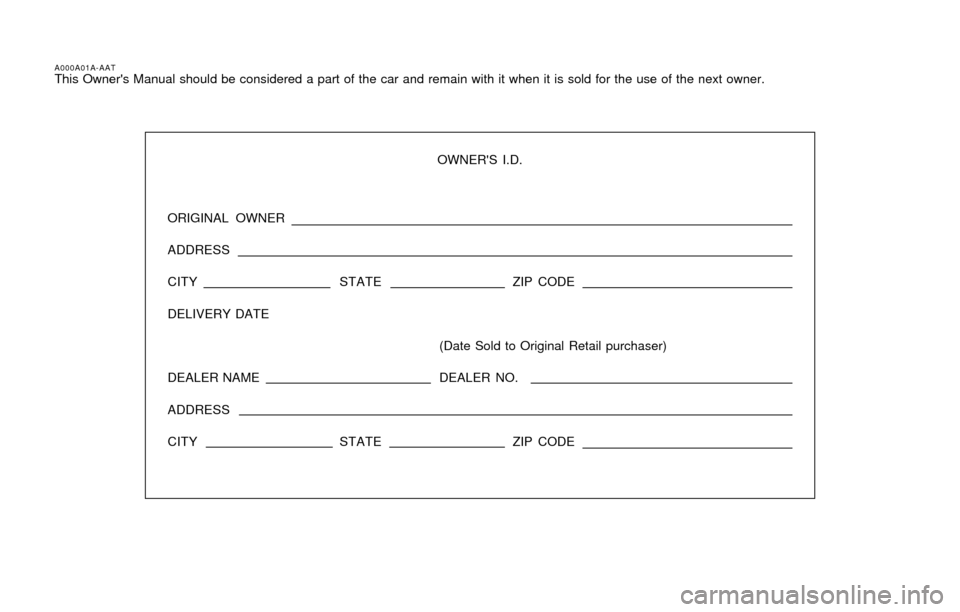

A000A01A-AATThis Owner's Manual should be considered a part of the car and remain with it when it is sold for the use of the next owner.
OWNER'S I.D.
ORIGINAL OWNER
ADDRESS
CITY STATEZIP CODE
DELIVERY DATE
(Date Sold to Original Retail purchaser)
DEALER NAME DEALER NO.
ADDRESS
CITY STATEZIP CODE

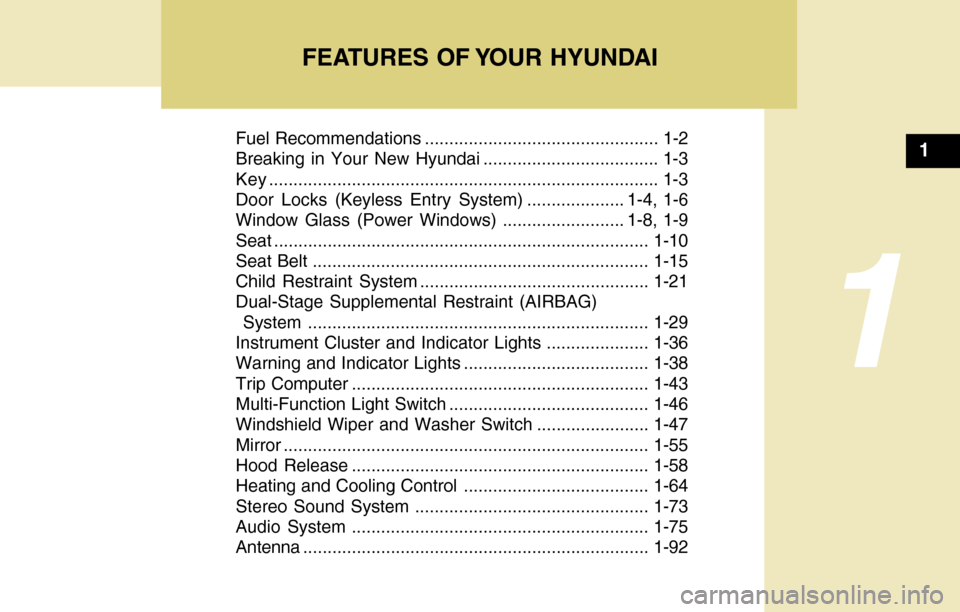

FEATURES OF YOUR HYUNDAI
1
Fuel Recommendations ................................................ 1-2
Breaking in Your New Hyundai .................................... 1-3
Key ................................................................................ 1-3
Door Locks (Keyless Entry System) .................... 1-4, 1-6
Window Glass (Power Windows) ......................... 1-8, 1-9
Seat ............................................................................. 1-10
Seat Belt.....................................................................1-15
Child Restraint System...............................................1-21
Dual-Stage Supplemental Restraint (AIRBAG)
System......................................................................1-29
Instrument Cluster and Indicator Lights .....................1-36
Warning and Indicator Lights ......................................1-38
Trip Computer.............................................................1-43
Multi-Function Light Switch.........................................1-46
Windshield Wiper and Washer Switch .......................1-47
Mirror...........................................................................1-55
Hood Release.............................................................1-58
Heating and Cooling Control ......................................1-64
Stereo Sound System................................................1-73
Audio System.............................................................1-75
Antenna.......................................................................1-921

1FEATURES OF YOUR HYUNDAI

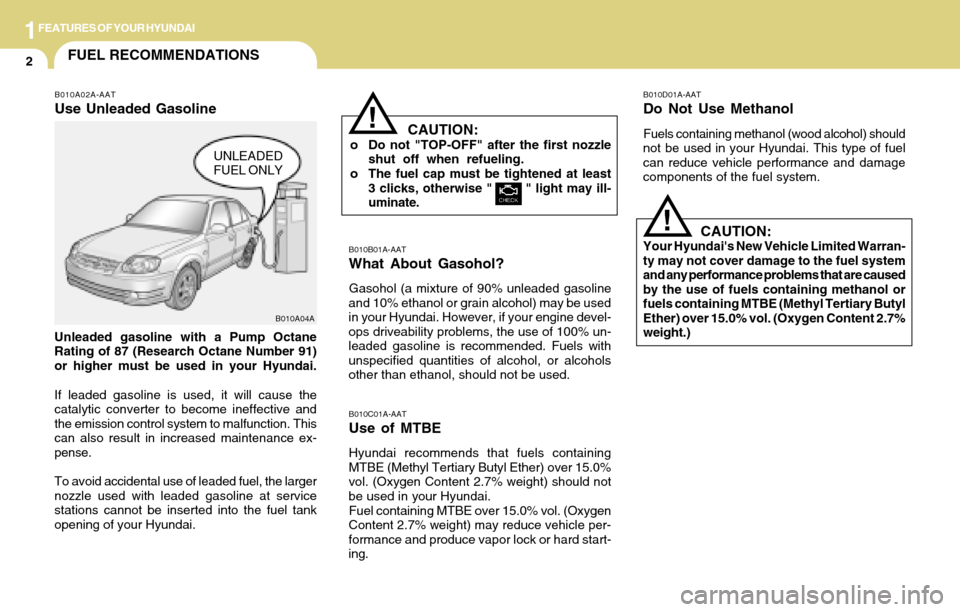

2FUEL RECOMMENDATIONS
UNLEADED
FUEL ONLY
B010A04A
!
B010A02A-AAT
Use Unleaded Gasoline
Unleaded gasoline with a Pump Octane
Rating of 87 (Research Octane Number 91)
or higher must be used in your Hyundai.
If leaded gasoline is used, it will cause the
catalytic converter to become ineffective and
the emission control system to malfunction. This
can also result in increased maintenance ex-
pense.
To avoid accidental use of leaded fuel, the larger
nozzle used with leaded gasoline at service
stations cannot be inserted into the fuel tank
opening of your Hyundai.
B010B01A-AAT
What About Gasohol?
Gasohol (a mixture of 90% unleaded gasoline
and 10% ethanol or grain alcohol) may be used
in your Hyundai. However, if your engine devel-
ops driveability problems, the use of 100% un-
leaded gasoline is recommended. Fuels with
unspecified quantities of alcohol, or alcohols
other than ethanol, should not be used.
B010C01A-AAT
Use of MTBE
Hyundai recommends that fuels containing
MTBE (Methyl Tertiary Butyl Ether) over 15.0%
vol. (Oxygen Content 2.7% weight) should not
be used in your Hyundai.
Fuel containing MTBE over 15.0% vol. (Oxygen
Content 2.7% weight) may reduce vehicle per-
formance and produce vapor lock or hard start-
ing.
B010D01A-AAT
Do Not Use Methanol
Fuels containing methanol (wood alcohol) should
not be used in your Hyundai. This type of fuel
can reduce vehicle performance and damage
components of the fuel system.CAUTION:o Do not "TOP-OFF" after the first nozzle
shut off when refueling.
o The fuel cap must be tightened at least
3 clicks, otherwise " " light may ill-
uminate.
CAUTION:Your Hyundai's New Vehicle Limited Warran-
ty may not cover damage to the fuel system
and any performance problems that are caused
by the use of fuels containing methanol or
fuels containing MTBE (Methyl Tertiary Butyl
Ether) over 15.0% vol. (Oxygen Content 2.7%
weight.)
!

1FEATURES OF YOUR HYUNDAI
3KEYSBREAKING IN YOUR NEW HYUNDAI
B010F01A-AAT
Operation in Foreign Countries
If you are going to drive your Hyundai in another
country, be sure to:
o Observe all regulations regarding registra-
tion and insurance.
o Determine that acceptable fuel is available.
B010E01A-AAT
Gasolines for Cleaner Air
To help contribute to cleaner air, Hyundai rec-
ommends that you use gasolines treated with
detergent additives, which help prevent deposit
formation in the engine. These gasolines will
help the engine run cleaner and enhance
performance of the Emission Control System.
B020A01S-AAT
During the First 1200 Miles (2000 Km)
No formal "break-in" procedure is required with
your new Hyundai. However, you can contribute
to the economical operation and durability of
your Hyundai by observing the following recom-
mendations during the first 1200 miles (2000
km).
o Don't drive faster than 55 MPH (88 km/h).
o While driving, keep your engine speed (rpm,
or revolutions per minute) between 2,000
rpm and 4,000 rpm.
o Use moderate acceleration. Don't start quickly
or depress the accelerator pedal fully.
o For the first 200 miles (300 km), try to avoid
hard stops.
o Don't lug the engine (in other words, don't
drive so slowly in too high a gear that the
engine "bucks"-shift to a lower gear).
o Whether going fast or slow, vary your speed
from time to time.
o Don't let the engine idle longer than 3 min-
utes at one time.
o Don't tow a trailer during the first 1,200 miles
(2,000 km) of operation.
B030A01A-AAT
For greater convenience, the same key oper-
ates all the locks in your Hyundai. However,
because the doors can be locked without a
key, carrying a spare key is recommended in
case you accidentally lock one key inside the
car.
B030A01E

1FEATURES OF YOUR HYUNDAI

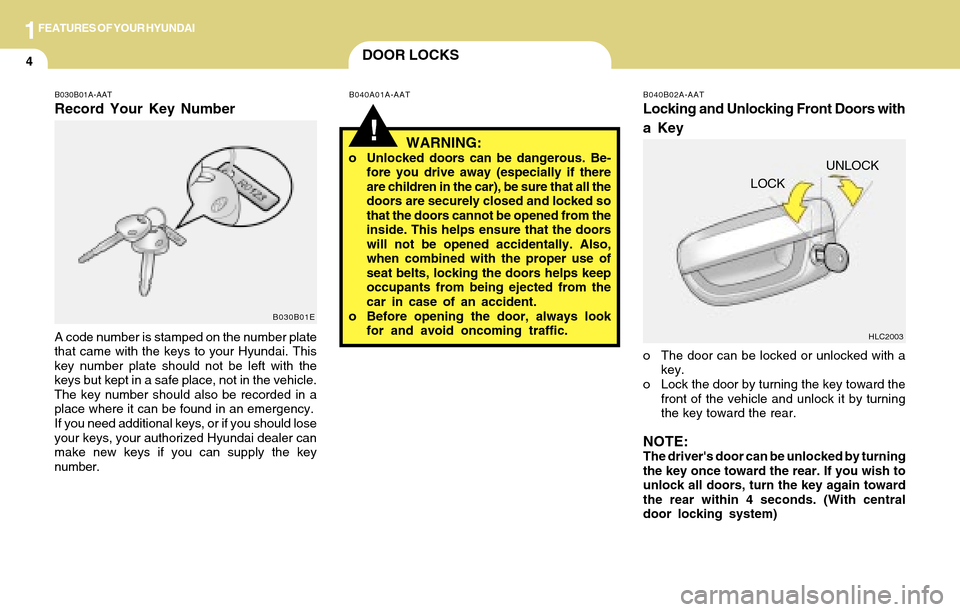

4DOOR LOCKS
!
B030B01A-AAT
Record Your Key Number
A code number is stamped on the number plate
that came with the keys to your Hyundai. This
key number plate should not be left with the
keys but kept in a safe place, not in the vehicle.
The key number should also be recorded in a
place where it can be found in an emergency.
If you need additional keys, or if you should lose
your keys, your authorized Hyundai dealer can
make new keys if you can supply the key
number.
B030B01EB040A01A-AAT B040B02A-AAT
Locking and Unlocking Front Doors with
a Key
o The door can be locked or unlocked with a
key.
o Lock the door by turning the key toward the
front of the vehicle and unlock it by turning
the key toward the rear.
NOTE:The driver's door can be unlocked by turning
the key once toward the rear. If you wish to
unlock all doors, turn the key again toward
the rear within 4 seconds. (With central
door locking system)
WARNING:o Unlocked doors can be dangerous. Be-
fore you drive away (especially if there
are children in the car), be sure that all the
doors are securely closed and locked so
that the doors cannot be opened from the
inside. This helps ensure that the doors
will not be opened accidentally. Also,
when combined with the proper use of
seat belts, locking the doors helps keep
occupants from being ejected from the
car in case of an accident.
o Before opening the door, always look
for and avoid oncoming traffic.UNLOCK
HLC2003
LOCK

1FEATURES OF YOUR HYUNDAI
5
B040D01FC-GAT

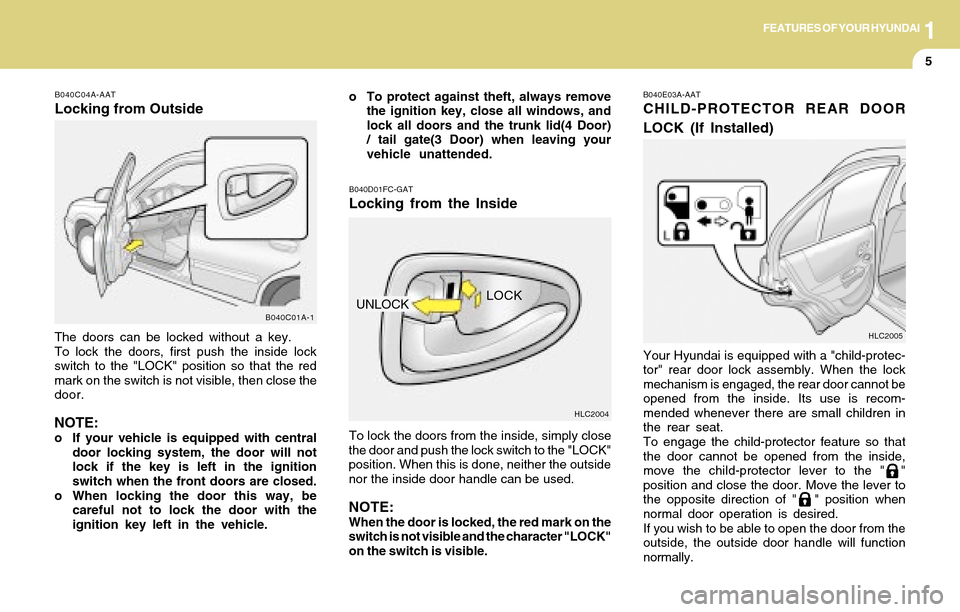

Locking from the Inside
To lock the doors from the inside, simply close
the door and push the lock switch to the "LOCK"
position. When this is done, neither the outside
nor the inside door handle can be used.
NOTE:When the door is locked, the red mark on the
switch is not visible and the character "LOCK"
on the switch is visible.
B040E03A-AAT
CHILD-PROTECTOR REAR DOOR
LOCK (If Installed)
Your Hyundai is equipped with a "child-protec-
tor" rear door lock assembly. When the lock
mechanism is engaged, the rear door cannot be
opened from the inside. Its use is recom-
mended whenever there are small children in
the rear seat.
To engage the child-protector feature so that
the door cannot be opened from the inside,
move the child-protector lever to the " "
position and close the door. Move the lever to
the opposite direction of " " position when
normal door operation is desired.
If you wish to be able to open the door from the
outside, the outside door handle will function
normally. The doors can be locked without a key.
To lock the doors, first push the inside lock
switch to the "LOCK" position so that the red
mark on the switch is not visible, then close the
door.
NOTE:o If your vehicle is equipped with central
door locking system, the door will not
lock if the key is left in the ignition
switch when the front doors are closed.
o When locking the door this way, be
careful not to lock the door with the
ignition key left in the vehicle.
B040C04A-AAT
Locking from Outside
B040C01A-1
HLC2004
LOCK
UNLOCK
HLC2005
o To protect against theft, always remove
the ignition key, close all windows, and
lock all doors and the trunk lid(4 Door)
/ tail gate(3 Door) when leaving your
vehicle unattended.

1FEATURES OF YOUR HYUNDAI

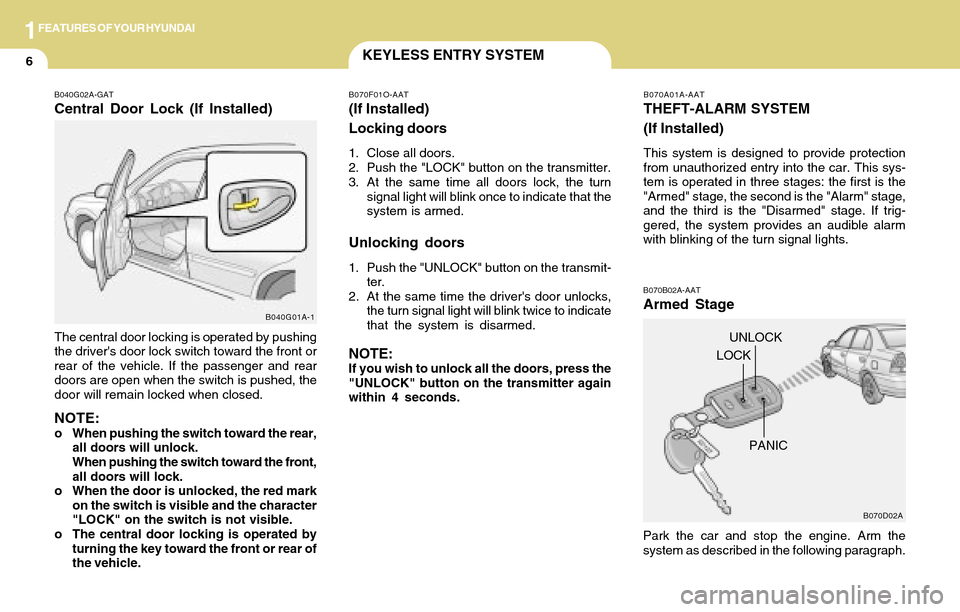

6KEYLESS ENTRY SYSTEM
B070A01A-AAT
THEFT-ALARM SYSTEM
(If Installed)
This system is designed to provide protection
from unauthorized entry into the car. This sys-
tem is operated in three stages: the first is the
"Armed" stage, the second is the "Alarm" stage,
and the third is the "Disarmed" stage. If trig-
gered, the system provides an audible alarm
with blinking of the turn signal lights.
B040G02A-GAT
Central Door Lock (If Installed)
B040G01A-1
The central door locking is operated by pushing
the driver's door lock switch toward the front or
rear of the vehicle. If the passenger and rear
doors are open when the switch is pushed, the
door will remain locked when closed.
NOTE:o When pushing the switch toward the rear,
all doors will unlock.
When pushing the switch toward the front,
all doors will lock.
o When the door is unlocked, the red mark
on the switch is visible and the character
"LOCK" on the switch is not visible.
o The central door locking is operated by
turning the key toward the front or rear of
the vehicle.
B070D02A B070B02A-AAT
Armed Stage
Park the car and stop the engine. Arm the
system as described in the following paragraph.
LOCKUNLOCK
PANIC
B070F01O-AAT
(If Installed)
Locking doors
1. Close all doors.
2. Push the "LOCK" button on the transmitter.
3. At the same time all doors lock, the turn
signal light will blink once to indicate that the
system is armed.
Unlocking doors
1. Push the "UNLOCK" button on the transmit-
ter.
2. At the same time the driver's door unlocks,
the turn signal light will blink twice to indicate
that the system is disarmed.
NOTE:If you wish to unlock all the doors, press the
"UNLOCK" button on the transmitter again
within 4 seconds.

1FEATURES OF YOUR HYUNDAI
7
B070C03A-AAT
Alarm Stage
The alarm will be activated if any of the follow-
ing occurs while the car is parked and the
system is armed.
1) A door or tail gate(3 Door) is opened without
using the transmitter or the ignition key.
2) The trunk lid(4 Door) is opened without using
the ignition key.
3) The engine hood is opened.
The alarming horn will sound and the turn signal
lights will blink continuously for 27 seconds
(This happens 3 times). To turn off the system,
unlock the door with the transmitter or the igni-
tion key.
B070D02A-AAT
Disarmed Stage
The system will be disarmed when the following
step is taken:
The driver's or passenger's door is unlocked by
depressing the "UNLOCK" button on the trans-
mitter or the ignition key.
After completion of the steps above, the turn
signal lights will blink twice to indicate that the
system is disarmed.
If any door, trunk lid(4 Door)/tail gate(3 Door) or
engine hood is not opened within 30 seconds,
the system will be rearmed.
NOTE:When the system is disarmed with the interior
light switched to "DR" or "
", the interior
light will illuminate for 30 seconds. 1) Remove the ignition key from the ignition
switch.
2) Make sure that the engine hood and trunk lid
(4 Door)/tail gate (3 Door) are closed and
latched.
3) Lock the doors using the transmitter of the
keyless entry system.
After completion of the steps above, the turn
signal lights will blink once to indicate that the
system is armed.
NOTE:If any door, trunk lid (4 Door)/tail gate (3 Door)
or engine hood remains open, the system will
not be armed. If this happens, rearm the sys-
tem as described above.
!CAUTION:o Do not arm the system until all passen-
gers have left the car. If the system is
armed while a passenger(s) remains in
the car, the alarm may be activated when
the remaining passenger(s) leaves the car.
o If the "LOCK" button is pressed once
more within 4 seconds after pushing the
"LOCK" button on the transmitter, the
alarming horn will sound once to indicate
that the system is armed.CAUTION:Avoid trying to start the engine while the
system is armed.
!
B070E02A-AAT
Panic Warning
1. Push the "PANIC" button on the transmitter.
2. At the same time, the alarming horn will
sound and the turn signal lights will blink
continuously for 30 seconds.
3. To turn off the system, push the "PANIC"
button again on the transmitter.

1FEATURES OF YOUR HYUNDAI

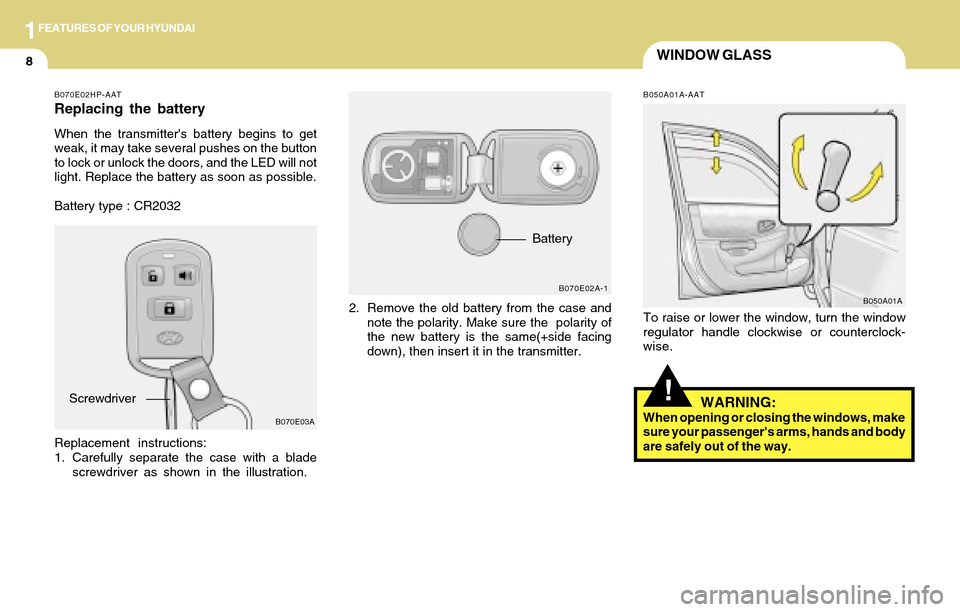

8WINDOW GLASS
!
B070E02HP-AAT
Replacing the battery
When the transmitter's battery begins to get
weak, it may take several pushes on the button
to lock or unlock the doors, and the LED will not
light. Replace the battery as soon as possible.
Battery type : CR2032
Replacement instructions:
1. Carefully separate the case with a blade
screwdriver as shown in the illustration.2. Remove the old battery from the case and
note the polarity. Make sure the polarity of
the new battery is the same(+side facing
down), then insert it in the transmitter.
B070E03A
Screwdriver
Battery
B070E02A-1
B050A01A B050A01A-AAT
To raise or lower the window, turn the window
regulator handle clockwise or counterclock-
wise.
WARNING:When opening or closing the windows, make
sure your passenger's arms, hands and body
are safely out of the way.
