1FEATURES OF YOUR HYUNDAI
19
!
cally adjusts to the proper length only after the
lap belt portion of the seat belt is adjusted
manually so that it fits snugly around your hips.
When the seat belt is fully extended from the
retractor to allow the installation of a child
restraint system, the seat belt operation
changes to allow the belt to retract, but not to
extend (Automatic Locking Retractor Type).
See page 1-26.
NOTE:Although the combination retractor provides
the same level of protection for seated pas-
sengers in either emergency or automatic
locking modes, it is recommended that seated
passengers use the emergency locking fea-
ture for improved convenience. The auto-
matic locking function is intended to facilitate
child restraint installation. To convert from
the automatic locking feature to the emer-
gency locking operation mode, allow the un-
buckled seat belt to fully retract.
WARNING:o For maximum restraint system protec-
tion, seat belts must always be used
whenever the car is moving.
o Seat belts are most effective when
seatbacks are in the upright position.
o Children must always be seatbelted in
the rear seats. Never allow children to
ride in the front passenger seat.
o The shoulder belt should be positioned
midway over the shoulder nearest the
door for the most effective protection.
Never wear the seat belt under the arm
nearest the door. Wearing the belt under
the arm nearest the door could cause
serious or fatal injuries in an accident.
o Avoid wearing twisted seat belts. A twist-
ed belt can't do its job as well. In a colli-
sion, it could even cut into you. Be sure
the belt webbing is straight and not
twisted.
o Be careful not to damage the belt web-
bing or hardware. If the belt webbing or
hardware is damaged, replace it.
!
B200A01A-AAT
Adjusting Your Seat Belt
WARNING:
You should place the lap belt portion as low as
possible and snugly across your hips, not on
your waist. If the lap belt is located too high on
your waist, it may increase the chance of
injury in the event of a collision. Both arms
should not be under or over the belt. Rather,
one should be over and the other under, as
shown in the illustration.
Never wear the seat belt under the arm near-
est the door.
B200A01L
Page 32 of 205

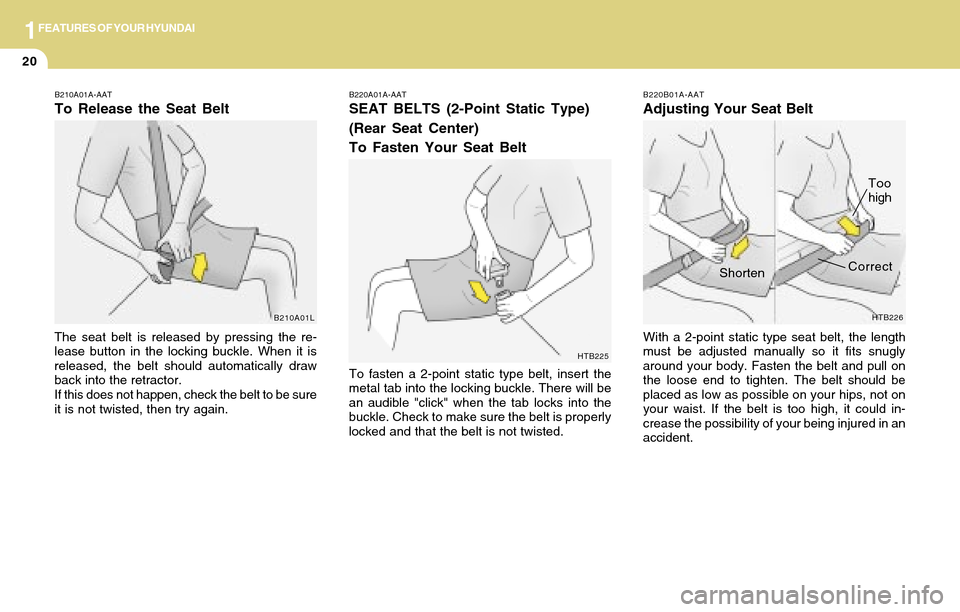

1FEATURES OF YOUR HYUNDAI
20
B220B01A-AAT
Adjusting Your Seat Belt
With a 2-point static type seat belt, the length
must be adjusted manually so it fits snugly
around your body. Fasten the belt and pull on
the loose end to tighten. The belt should be
placed as low as possible on your hips, not on
your waist. If the belt is too high, it could in-
crease the possibility of your being injured in an
accident.
HTB226
Correct
ShortenToo
high
B220A01A-AAT
SEAT BELTS (2-Point Static Type)
(Rear Seat Center)
To Fasten Your Seat Belt
To fasten a 2-point static type belt, insert the
metal tab into the locking buckle. There will be
an audible "click" when the tab locks into the
buckle. Check to make sure the belt is properly
locked and that the belt is not twisted.
B210A01A-AAT
To Release the Seat Belt
The seat belt is released by pressing the re-
lease button in the locking buckle. When it is
released, the belt should automatically draw
back into the retractor.
If this does not happen, check the belt to be sure
it is not twisted, then try again.
HTB225 B210A01L
Page 33 of 205

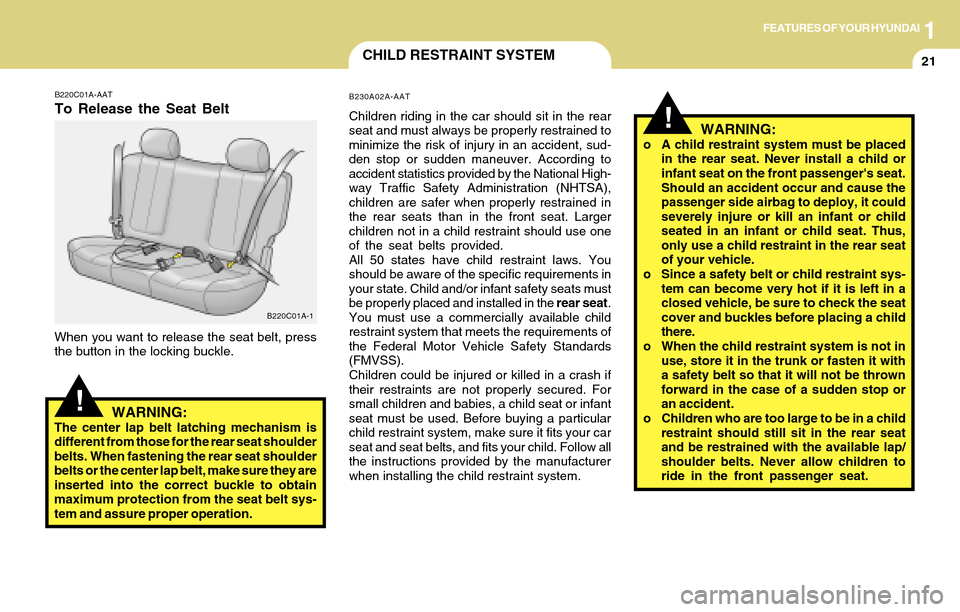

1FEATURES OF YOUR HYUNDAI
21CHILD RESTRAINT SYSTEM
!
B220C01A-AAT
To Release the Seat Belt
When you want to release the seat belt, press
the button in the locking buckle.
B220C01A-1
WARNING:The center lap belt latching mechanism is
different from those for the rear seat shoulder
belts. When fastening the rear seat shoulder
belts or the center lap belt, make sure they are
inserted into the correct buckle to obtain
maximum protection from the seat belt sys-
tem and assure proper operation.
B230A02A-AAT
Children riding in the car should sit in the rear
seat and must always be properly restrained to
minimize the risk of injury in an accident, sud-
den stop or sudden maneuver. According to
accident statistics provided by the National High-
way Traffic Safety Administration (NHTSA),
children are safer when properly restrained in
the rear seats than in the front seat. Larger
children not in a child restraint should use one
of the seat belts provided.
All 50 states have child restraint laws. You
should be aware of the specific requirements in
your state. Child and/or infant safety seats must
be properly placed and installed in the rear seat.
You must use a commercially available child
restraint system that meets the requirements of
the Federal Motor Vehicle Safety Standards
(FMVSS).
Children could be injured or killed in a crash if
their restraints are not properly secured. For
small children and babies, a child seat or infant
seat must be used. Before buying a particular
child restraint system, make sure it fits your car
seat and seat belts, and fits your child. Follow all
the instructions provided by the manufacturer
when installing the child restraint system.WARNING:o A child restraint system must be placed
in the rear seat. Never install a child or
infant seat on the front passenger's seat.
Should an accident occur and cause the
passenger side airbag to deploy, it could
severely injure or kill an infant or child
seated in an infant or child seat. Thus,
only use a child restraint in the rear seat
of your vehicle.
o Since a safety belt or child restraint sys-
tem can become very hot if it is left in a
closed vehicle, be sure to check the seat
cover and buckles before placing a child
there.
o When the child restraint system is not in
use, store it in the trunk or fasten it with
a safety belt so that it will not be thrown
forward in the case of a sudden stop or
an accident.
o Children who are too large to be in a child
restraint should still sit in the rear seat
and be restrained with the available lap/
shoulder belts. Never allow children to
ride in the front passenger seat.
!
Page 34 of 205

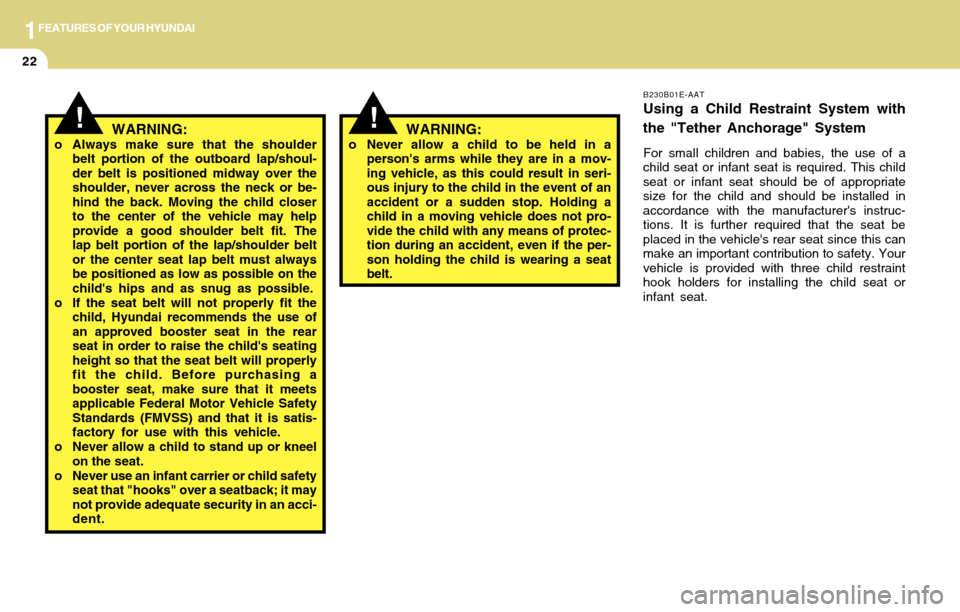

1FEATURES OF YOUR HYUNDAI
22
B230B01E-AAT
Using a Child Restraint System with
the "Tether Anchorage" System
For small children and babies, the use of a
child seat or infant seat is required. This child
seat or infant seat should be of appropriate
size for the child and should be installed in
accordance with the manufacturer's instruc-
tions. It is further required that the seat be
placed in the vehicle's rear seat since this can
make an important contribution to safety. Your
vehicle is provided with three child restraint
hook holders for installing the child seat or
infant seat.
!WARNING:o Always make sure that the shoulder
belt portion of the outboard lap/shoul-
der belt is positioned midway over the
shoulder, never across the neck or be-
hind the back. Moving the child closer
to the center of the vehicle may help
provide a good shoulder belt fit. The
lap belt portion of the lap/shoulder belt
or the center seat lap belt must always
be positioned as low as possible on the
child's hips and as snug as possible.
o If the seat belt will not properly fit the
child, Hyundai recommends the use of
an approved booster seat in the rear
seat in order to raise the child's seating
height so that the seat belt will properly
fit the child. Before purchasing a
booster seat, make sure that it meets
applicable Federal Motor Vehicle Safety
Standards (FMVSS) and that it is satis-
factory for use with this vehicle.
o Never allow a child to stand up or kneel
on the seat.
o Never use an infant carrier or child safety
seat that "hooks" over a seatback; it may
not provide adequate security in an acci-
dent.WARNING:o Never allow a child to be held in a
person's arms while they are in a mov-
ing vehicle, as this could result in seri-
ous injury to the child in the event of an
accident or a sudden stop. Holding a
child in a moving vehicle does not pro-
vide the child with any means of protec-
tion during an accident, even if the per-
son holding the child is wearing a seat
belt.
!
Page 35 of 205

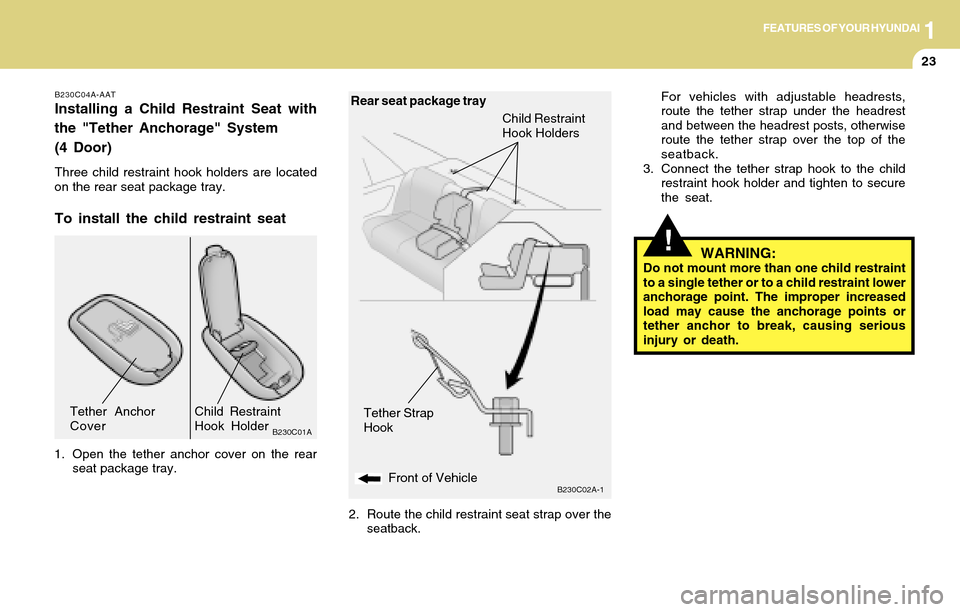

1FEATURES OF YOUR HYUNDAI
23
B230C04A-AAT
Installing a Child Restraint Seat with
the "Tether Anchorage" System
(4 Door)
Three child restraint hook holders are located
on the rear seat package tray.
To install the child restraint seat
B230C01A
1. Open the tether anchor cover on the rear
seat package tray.
Tether Anchor
CoverChild Restraint
Hook Holder
2. Route the child restraint seat strap over the
seatback.
B230C02A-1Front of Vehicle
Tether Strap
HookChild Restraint
Hook Holders
Rear seat package tray
!
For vehicles with adjustable headrests,
route the tether strap under the headrest
and between the headrest posts, otherwise
route the tether strap over the top of the
seatback.
3. Connect the tether strap hook to the child
restraint hook holder and tighten to secure
the seat.
WARNING:Do not mount more than one child restraint
to a single tether or to a child restraint lower
anchorage point. The improper increased
load may cause the anchorage points or
tether anchor to break, causing serious
injury or death.
Page 36 of 205

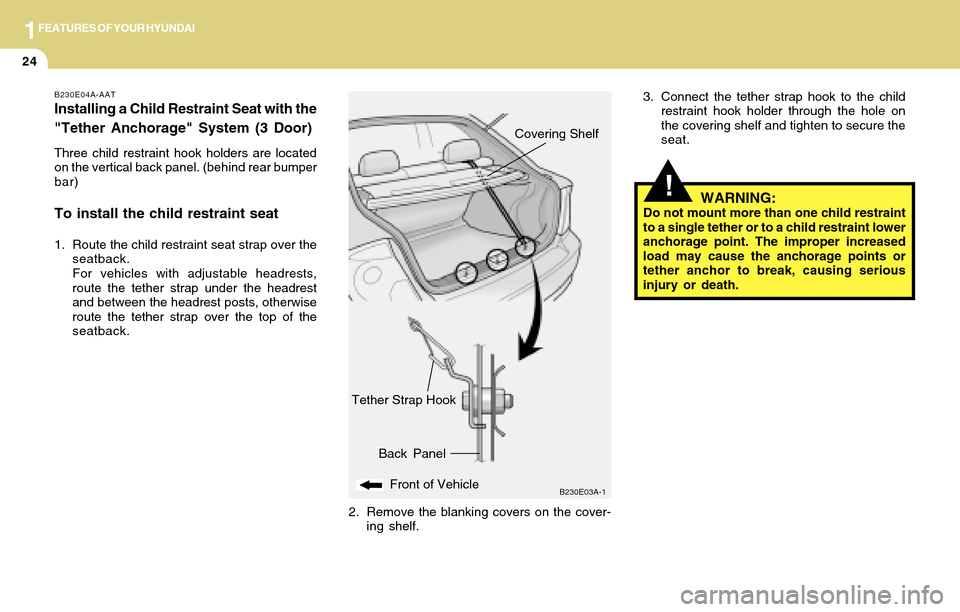

1FEATURES OF YOUR HYUNDAI
24
!
Tether Strap Hook
B230E03A-1Front of Vehicle
Back PanelCovering Shelf
3. Connect the tether strap hook to the child
restraint hook holder through the hole on
the covering shelf and tighten to secure the
seat.B230E04A-AAT
Installing a Child Restraint Seat with the
"Tether Anchorage" System (3 Door)
Three child restraint hook holders are located
on the vertical back panel. (behind rear bumper
bar)
To install the child restraint seat
1. Route the child restraint seat strap over the
seatback.
For vehicles with adjustable headrests,
route the tether strap under the headrest
and between the headrest posts, otherwise
route the tether strap over the top of the
seatback.
WARNING:Do not mount more than one child restraint
to a single tether or to a child restraint lower
anchorage point. The improper increased
load may cause the anchorage points or
tether anchor to break, causing serious
injury or death.
2. Remove the blanking covers on the cover-
ing shelf.
Page 37 of 205

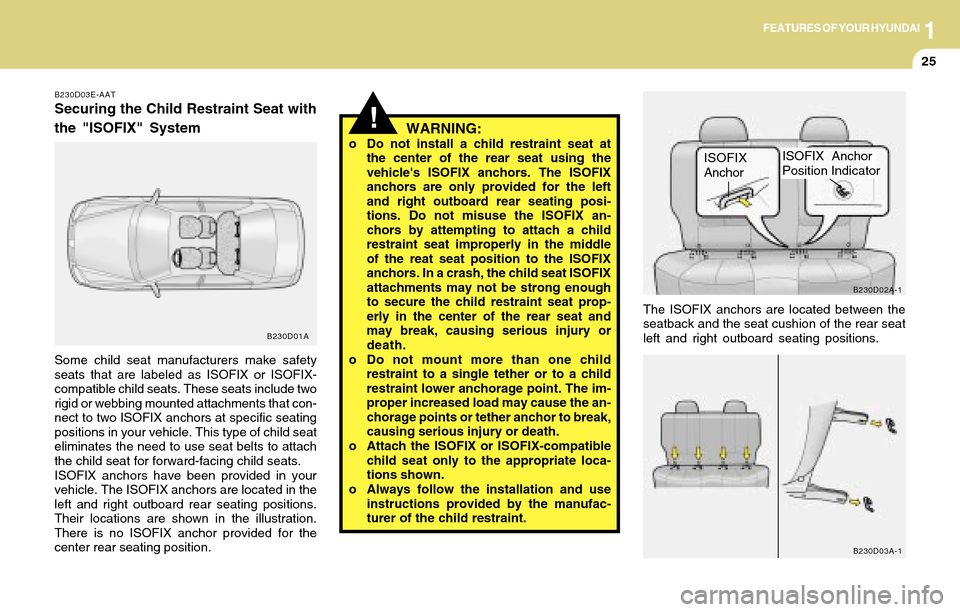

1FEATURES OF YOUR HYUNDAI
25
WARNING:o Do not install a child restraint seat at
the center of the rear seat using the
vehicle's ISOFIX anchors. The ISOFIX
anchors are only provided for the left
and right outboard rear seating posi-
tions. Do not misuse the ISOFIX an-
chors by attempting to attach a child
restraint seat improperly in the middle
of the reat seat position to the ISOFIX
anchors. In a crash, the child seat ISOFIX
attachments may not be strong enough
to secure the child restraint seat prop-
erly in the center of the rear seat and
may break, causing serious injury or
death.
o Do not mount more than one child
restraint to a single tether or to a child
restraint lower anchorage point. The im-
proper increased load may cause the an-
chorage points or tether anchor to break,
causing serious injury or death.
o Attach the ISOFIX or ISOFIX-compatible
child seat only to the appropriate loca-
tions shown.
o Always follow the installation and use
instructions provided by the manufac-
turer of the child restraint.
B230D03E-AAT
Securing the Child Restraint Seat with
the "ISOFIX" System
Some child seat manufacturers make safety
seats that are labeled as ISOFIX or ISOFIX-
compatible child seats. These seats include two
rigid or webbing mounted attachments that con-
nect to two ISOFIX anchors at specific seating
positions in your vehicle. This type of child seat
eliminates the need to use seat belts to attach
the child seat for forward-facing child seats.
ISOFIX anchors have been provided in your
vehicle. The ISOFIX anchors are located in the
left and right outboard rear seating positions.
Their locations are shown in the illustration.
There is no ISOFIX anchor provided for the
center rear seating position.
B230D01A
!
The ISOFIX anchors are located between the
seatback and the seat cushion of the rear seat
left and right outboard seating positions.
B230D02A-1
ISOFIX
AnchorISOFIX Anchor
Position Indicator
B230D03A-1
Page 38 of 205
1FEATURES OF YOUR HYUNDAI
26
To install a child restraint system in the out-
board rear seats, extend the shoulder/lap belt
entirely from its retractor until a "click" is felt.
This will engage the seat belt retractor auto-
matic locking feature, which allows the seat
belt to retract but not extend. Install the child
restraint system, buckle the seat belt and
allow the seat belt to take up any slack. Make
sure that the lap portion of the belt is tight
around the child restraint system and the
shoulder portion of the belt is positioned so that
it cannot interfere with the child's head or neck.
Also, double check to be sure that the retrac-
tor has engaged the automatic locking feature
by trying to extend webbing out of the retrac-
tor. If the retractor is in the automatic locking
B230G01A-AAT
Installation on Outboard Rear Seats
On outboard rear seats
B230G01A B230F01A-AAT
Installation on Rear Seat Center
Position
Use the center seat belt for the rear seat to
secure the child restraint system as illustrated.
After installation of the child restraint system,
rock the child seat back and forth, and side to
side to ensure that it is properly secured by the
seat belt.
If the child seat moves, readjust the length of the
seat belt. Then, if equipped, insert the child
restraint tether strap hook into the child restraint
hook holder and tighten to secure the seat.
Always refer to the child restraint system
manufacturer's recommendation before install-
ing the child restraint system in your vehicle.
B230F01A
On center rear seat
Follow the child seat manufacturer's instruc-
tions to properly install safety seats with ISOFIX
or ISOFIX-compatible attachments.
Once you have installed the ISOFIX child re-
straint seat, assure that the seat is properly
attached to the ISOFIX and tether anchors.
Also, test the safety seat before you place the
child in it. Tilt the seat from side to side. Also try
to tug the seat forward. Check to see if the
anchors hold the seat in place.
WARNING:If the child restraint seat is not anchored
properly, the risk of a child being seriously
injured or killed in a collision greatly increases.
!
Page 39 of 205

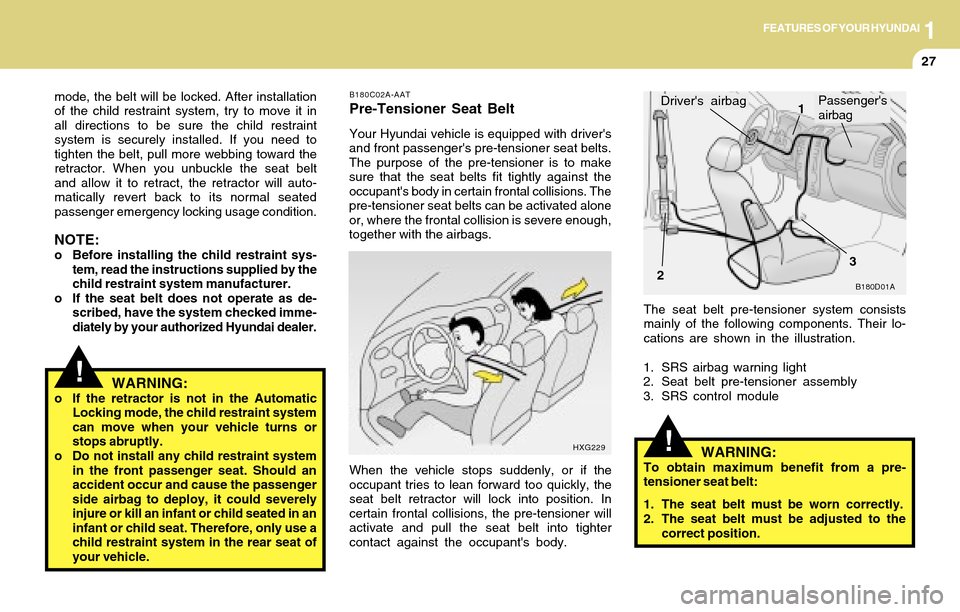

1FEATURES OF YOUR HYUNDAI
27
!
!
The seat belt pre-tensioner system consists
mainly of the following components. Their lo-
cations are shown in the illustration.
1. SRS airbag warning light
2. Seat belt pre-tensioner assembly
3. SRS control module
B180C02A-AAT
Pre-Tensioner Seat Belt
Your Hyundai vehicle is equipped with driver's
and front passenger's pre-tensioner seat belts.
The purpose of the pre-tensioner is to make
sure that the seat belts fit tightly against the
occupant's body in certain frontal collisions. The
pre-tensioner seat belts can be activated alone
or, where the frontal collision is severe enough,
together with the airbags.
When the vehicle stops suddenly, or if the
occupant tries to lean forward too quickly, the
seat belt retractor will lock into position. In
certain frontal collisions, the pre-tensioner will
activate and pull the seat belt into tighter
contact against the occupant's body.
Passenger's
airbag
HXG229B180D01A
Driver's airbag1
23
WARNING:To obtain maximum benefit from a pre-
tensioner seat belt:
1. The seat belt must be worn correctly.
2. The seat belt must be adjusted to the
correct position. mode, the belt will be locked. After installation
of the child restraint system, try to move it in
all directions to be sure the child restraint
system is securely installed. If you need to
tighten the belt, pull more webbing toward the
retractor. When you unbuckle the seat belt
and allow it to retract, the retractor will auto-
matically revert back to its normal seated
passenger emergency locking usage condition.
NOTE:o Before installing the child restraint sys-
tem, read the instructions supplied by the
child restraint system manufacturer.
o If the seat belt does not operate as de-
scribed, have the system checked imme-
diately by your authorized Hyundai dealer.
WARNING:o If the retractor is not in the Automatic
Locking mode, the child restraint system
can move when your vehicle turns or
stops abruptly.
o Do not install any child restraint system
in the front passenger seat. Should an
accident occur and cause the passenger
side airbag to deploy, it could severely
injure or kill an infant or child seated in an
infant or child seat. Therefore, only use a
child restraint system in the rear seat of
your vehicle.
Page 40 of 205
1FEATURES OF YOUR HYUNDAI
28
!WARNING:o Pre-tensioners are designed to operate
only one time. After activation, pre-
tensioner seat belts must be replaced. All
seat belts, of any type, should always be
replaced after they have been worn dur-
ing a collision.
o The pre-tensioner seat belt assembly
mechanisms become hot during activa-
tion. Do not touch the pre-tensioner seat
belt assemblies for several minutes after
they have been activated.
o Do not attempt to inspect or replace the
pre-tensioner seat belts yourself. This
must be done by an authorized Hyundai
dealer.
o Do not strike the pre-tensioner seat belt
assemblies.
o Do not attempt to service or repair the
pre-tensioner seat belt system in any
manner.
o Improper handling of the pre-tensioner
seat belt assemblies, and failure to heed
the warnings to not strike, modify, in-
spect, replace, service or repair the pre-
tensioner seat belt assemblies may lead
to improper operation or inadvertent acti-
vation and serious injury.
o Always wear the seat belts when driving
or riding in a motor vehicle.CAUTION:o Because the sensor that activates the
SRS airbag is connected with the pre-
tensioner seat belt, the SRS airbag warn-
ing light on the instrument panel will
blink for approximately 6 seconds after
the ignition key has been turned to the
"ON" position, and then it should turn
off.
o If the pre-tensioner seat belt is not
working properly, this warning light
will illuminate even if there is no mal-
function of the SRS airbag system.
If the SRS airbag warning light does not
illuminate when the ignition key is turned
to "ON", or if it remains illuminated after
blinking for approximately 6 seconds, or
if it illuminates while the vehicle is being
driven, please have an authorized Hyundai
dealer inspect the pre-tensioner seat
belts and SRS airbag system as soon as
possible.
!
NOTE:o Both the driver's and front passenger's
pre-tensioner seat belts will be activated
in certain frontal collisions. The pre-
tensioner seat belts can be activated
alone or, where the frontal collision is
severe enough, together with the
airbags.
The pre-tensioners will not be acti-
vated if the seat belts are not being
worn at the time of the collision.
o When the pre-tensioner seat belts are
activated, a loud noise may be heard and
fine dust, which may appear to be smoke,
may be visible in the passenger compart-
ment. These are normal operating condi-
tions and are not hazardous.
o Although it is harmless, the fine dust may
cause skin irritation and should not be
breathed for prolonged periods. Wash
your hands and face thoroughly after an
accident in which the pre-tensioner seat
belts were activated.
