Hyundai Accent 2005 Manual PDF

1
FEATURES OF YOUR HYUNDAI
59
FLOOR MAT ANCHOR
HOOD RELEASE
!
!
CAUTION:
Make sure that the support rod has been
released prior to closing the hood.
!
WARNING:
o Always double check to be sure that the
hood is firmly latched before driving
away. If it is not latched, the hood could
open while the vehicle is being driven,
causing a total loss of visibility, which
might result in an accident.
o The support rod must be inserted com-
pletely into the hole provided in the hood
whenever you inspect the engine com-
partment. This will prevent the hood
from falling and possibly injuring you.
o Do not move the vehicle with the hood in
the raised position, as vision is obstructed
and the hood could fall or be damaged.
B571A03Y-AATWhen using a floor mat on the front floor
carpet, make sure it attaches to the floor mat
anchor in your vehicle. This keeps the floor
mat from sliding forward.
HXGS263
WARNING:
o Make sure the floor mat is properly
placed on the floor carpet. If the floor
mat slips and interferes with the move-
ment of the pedals during driving, it
may cause an accident.
o Don't put a additional floor mat on the
top of the fixed mat, otherwise the ad-
ditional mat may slide forward and inter-
fere with the movement of the pedals. 2. Push the safety catch lever to the left and
lift the hood.
3. Hold the hood open with the support rod.
Before closing the hood, return the support rod
to its clip to prevent it from rattling. Lower the
hood until it is about 1 ft. (30 cm) above the
closed position and let it drop. Make sure that
it locks into place.
B570A01A-1 B570A03A-GAT
1. Pull the release knob to unlatch the hood.
B570A01A

1FEATURES OF YOUR HYUNDAI60
B560A02S-AAT
B560A01A-1The fuel-filler lid may be opened from inside the
vehicle by pulling up on the fuel-filler lid opener
located on the front floor area on the left side
of the car.NOTE:If the fuel-filler lid will not open because ice
has formed around it, tap lightly or push on
the lid to break the ice and release the lid. Do
not pry on the lid. If necessary, spray around
the lid with an approved de-icer fluid (do not
use radiator anti-freeze) or move the vehicle
to a warm place and allow the ice to melt.REMOTE FUEL-FILLER LID RELEASE
!
WARNING:
o The fuel cap must be tightened at least
3 clicks, otherwise " " light will
illuminate.
o Gasoline vapors are dangerous. Before
refueling, always stop the engine and
never allow sparks or open flames near
the filler area. If you need to replace the
filler cap, use a genuine Hyundai re-
placement part.
o If you open the fuel filler cap during
high ambient temperatures, a slight
"pressure sound" may be heard. This is
normal and not a cause for concern.
Whenever you open the fuel filler cap,
turn it slowly.
HLC2016-2
!
o Make sure the fuel filler cap is replaced
and securely seated after fueling. Fail-
ure to replace or fully seat the fuel filler
cap will result in fuel vapors escaping
into the atmosphere and the check
engine "MIL" indicator illuminating.
o Do not "TOP-OFF" after the first nozzle
shut off when refueling.
o Automotive fuels are flammable/explo-
sive materials. When refueling, please
note the following guidelines carefully.
o Before touching the fuel nozzle or fuel
filler cap, have one's hands in contact
with metal parts away from the filler
neck to discharge static electricity.
o Do not get back in the vehicle while
refueling. Do not operate anything that
can produce static electricity. Static
electricity discharge can ignite fuel va-
pors resulting in explosion.
o When using a portable fuel container
be sure to place the container on the
ground while refueling. Static electric-
ity discharge from the container can
ignite fuel vapors causing a fire. While
starting refueling contact should be
maintained until the filling is complete.
WARNING:

1
FEATURES OF YOUR HYUNDAI
61
!
TRUNK LID (4 DOOR)
B540C02A-AATTo Unlock Using the Key.To open the trunk lid, insert the key and turn
it clockwise to unlock. The luggage compart-
ment light illuminates when the trunk lid is
opened.
B450E01A
!
B540A01E-AATRemote Trunk Lid Release
B540D01A
To open the trunk lid without using the key, pull
up the lid release lever.
To close, lower the trunk lid, then press down
on it until it locks. To be sure the trunk lid is
securely fastened, try to pull it up again.
WARNING:
The trunk lid should always be kept com-
pletely closed while the vehicle is in motion.
If it is left open or ajar, poisonous exhaust
gases may enter the car resulting in serious
illness or death to the occupants. See addi-
tional warnings concerning exhaust gases on
page 2-2.
!
WARNING:
Parents should teach children about the
emergency trunk release lever in their ve-
hicle and how to open the trunk lid if they
are accidentally locked in the trunk. o Do not use cellular phones around a
gas station. The electric current or elec-
tronic interference from cellular phones
can ignite fuel vapors causing a fire.
o When refueling always shut the engine
off. Sparks by electrical equipment of
the engine can ignite fuel vapors caus-
ing a fire. After refueling, check to make
sure the fuel filler cap is securely closed,
and then start the engine.
o Do not smoke or try to light cigarettes
around a gas station. Automotive fuels
are flammable.
WARNING:

1FEATURES OF YOUR HYUNDAI62
B540F01A-AATTailgate (3 DOOR)To open the tailgate, unlock it by turning the
key clockwise, then pull the outside handle
toward you.
To close, lower the tailgate and shut firmly to
engage the latch. Lock the tailgate by turning the
key counterclockwise.
If the vehicle is equipped with central door
locking, the tailgate can be locked without a
key. Push the central door lock switch toward
the front of the vehicle after closing the tailgate.
If the tailgate is open when the switch is
pushed, the tailgate will be locked when it is
fully closed.
B540B02E-AATTrunk Lid Emergency Latch ReleaseYour vehicle is equipped with a glow-in-the
dark emergency trunk release lever located
inside the trunk. It will glow after the trunk is
closed. When pulled, this lever will release the
trunk latch mechanism and open the trunk.
B540B02AB540F01A
WARNING:
o If a person is locked in the trunk, pull
the emergency trunk release lever on
the driver's side of the inside panel of
the trunk to open the trunk lid.
o HYUNDAI recommends that cars be kept
locked and keys be kept out of the
reach of children, and that parents teach
their children about the dangers of
playing in trunks.
o Parents should teach children about
the emergency trunk release lever in
their vehicle and how to open the trunk
lid if they are accidentally locked in the
trunk.
!

1
FEATURES OF YOUR HYUNDAI
63
SUN VISOR
CARGO AREA COVER
HLC2105 B580A01TB-AAT
B580A01A-2
Type A
Type B
B650A01A-GAT(3 Door Model)Nothing should be carried on top of the lug-
gage cover. Loose materials could result in
injury to vehicle occupants during sudden
braking.
B650A01A-1
Type A
Type B
!
WARNING:
The tailgate should always be kept completely
closed while the vehicle is in motion. If it is left
open or ajar, poisonous exhaust gases may
enter the car which could result in serious
injury or death to the occupants. See addi-
tional warnings concerning exhaust gases on
page 2-2.

1FEATURES OF YOUR HYUNDAI64
HORN
!
Your Hyundai is equipped with sun visors to
give the driver and front passenger either frontal
or sideward shade. To reduce glare or to shut
out direct rays of the sun, turn the sun visor
down. A ticket holder is provided on the back
of the sun visor for the driver. Vanity mirrors
are provided on the back of the sunvisor for
the driver and the front passenger (If In-
stalled).NOTE:The Supplemental Restraint System (SRS)
label containing useful information can be
found on the front of each sun visor.
WARNING:
Do not place the sun visor in such a manner
that it obscures visibility of the roadway,
traffic or other objects.
B610A01A-AATPress the pad on the steering wheel to sound
the horn.
B610B02A

1
FEATURES OF YOUR HYUNDAI
65
HEATING AND COOLING CONTROLB710A01TB-GAT(If Installed)
B710A01A-1
1. Side Defrost Nozzle
2. Side Ventilator
3. Windshield Defrost Nozzle
4. Center Ventilator
B710B01S-AATCENTER VENTILATORThe center ventilators are located in the middle
of the dashboard. The direction of air flow from
the vents in the center of the dashboard is
adjustable.
To control the direction of the air flow, move the
knob in the center of the vent up-and-down and
side-to-side.B710C02HP-AATSIDE VENTILATORThe side ventilators are located on each side of
dashboard. To change the direction of the air
flow, move the knob in the center of the vent up-
and-down and side-to-side. The vents are
opened when the vent knob is moved to " "
position. The vents are closed when the vent
knob is moved to " ". Keep these vents
clear of any obstructions.

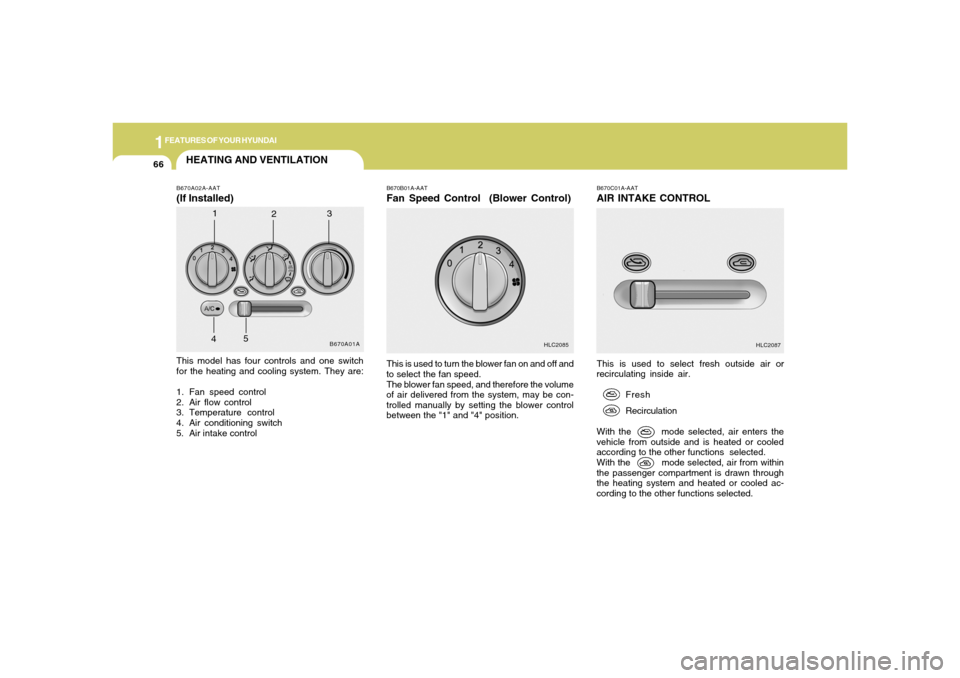

1FEATURES OF YOUR HYUNDAI66
HEATING AND VENTILATION
This is used to select fresh outside air or
recirculating inside air.
Fresh
Recirculation
With the mode selected, air enters the
vehicle from outside and is heated or cooled
according to the other functions selected.
With the mode selected, air from within
the passenger compartment is drawn through
the heating system and heated or cooled ac-
cording to the other functions selected.B670C01A-AATAIR INTAKE CONTROL
This model has four controls and one switch
for the heating and cooling system. They are:
1. Fan speed control
2. Air flow control
3. Temperature control
4. Air conditioning switch
5. Air intake control
B670B01A-AATFan Speed Control (Blower Control)This is used to turn the blower fan on and off and
to select the fan speed.
The blower fan speed, and therefore the volume
of air delivered from the system, may be con-
trolled manually by setting the blower control
between the "1" and "4" position.
B670A02A-AAT(If Installed)
B670A01A
1
23
4
HLC2085
HLC2087
5

1

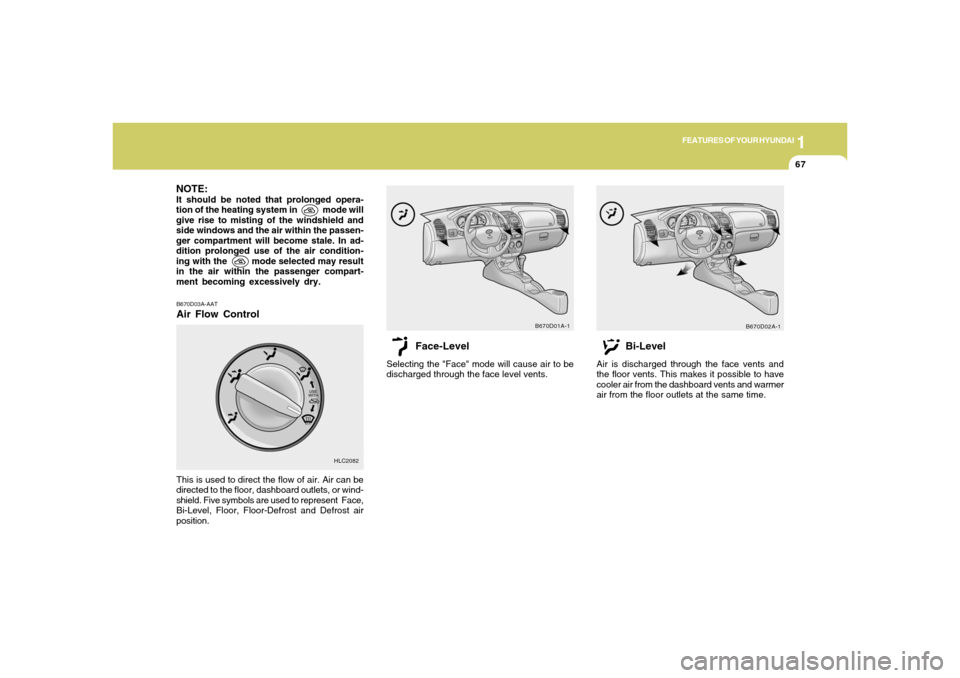

FEATURES OF YOUR HYUNDAI
67
NOTE:It should be noted that prolonged opera-
tion of the heating system in mode will
give rise to misting of the windshield and
side windows and the air within the passen-
ger compartment will become stale. In ad-
dition prolonged use of the air condition-
ing with the mode selected may result
in the air within the passenger compart-
ment becoming excessively dry.
Bi-Level
Air is discharged through the face vents and
the floor vents. This makes it possible to have
cooler air from the dashboard vents and warmer
air from the floor outlets at the same time.
B670D02A-1
B670D01A-1
Face-Level
Selecting the "Face" mode will cause air to be
discharged through the face level vents.
B670D03A-AATAir Flow ControlThis is used to direct the flow of air. Air can be
directed to the floor, dashboard outlets, or wind-
shield. Five symbols are used to represent Face,
Bi-Level, Floor, Floor-Defrost and Defrost air
position.
HLC2082

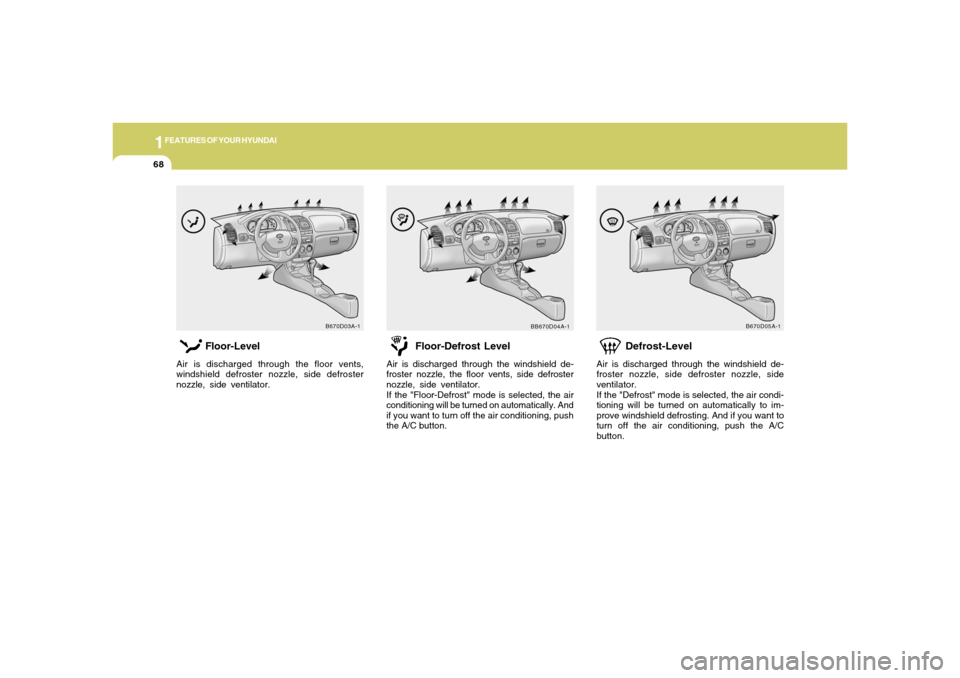

1FEATURES OF YOUR HYUNDAI68
Defrost-Level
Air is discharged through the windshield de-
froster nozzle, side defroster nozzle, side
ventilator.
If the "Defrost" mode is selected, the air condi-
tioning will be turned on automatically to im-
prove windshield defrosting. And if you want to
turn off the air conditioning, push the A/C
button.
B670D05A-1
Floor-Level
Air is discharged through the floor vents,
windshield defroster nozzle, side defroster
nozzle, side ventilator.
B670D03A-1
Floor-Defrost Level
Air is discharged through the windshield de-
froster nozzle, the floor vents, side defroster
nozzle, side ventilator.
If the "Floor-Defrost" mode is selected, the air
conditioning will be turned on automatically. And
if you want to turn off the air conditioning, push
the A/C button.
BB670D04A-1
