FEATURES OF YOUR HYUNDAI
69
BI-LEVEL HEATING
HEATING CONTROLSB690A02A-AAT B670E02A-AAT
TEMPERATURE CONTROL
Cool
Warm
This control is used to adjust the degree of
heating or cooling desired.
HLC2086
For normal heating operation, set the air intake
control to the fresh air ( ) position and the
air flow control to the floor ( ) position.
For faster heating, the air intake control should
be set in the recirculate ( ) position.
If the windows fog up, set the air flow control to
the defrost ( ) position (The air conditioning
will be turned on automatically.) and the air
intake control to the fresh air ( ) position.
For maximum heat, move the temperature con-
trol to "Warm".
B700A01A-AATYour Hyundai is equipped with bi-level heating
controls. This makes it possible to have cooler
air from the dashboard vents and warmer air
from the floor outlets at the same time. To use
this feature:
o Set the air intake control to the fresh air
( ) position.
o Set the air flow control at the bi-level ( )
position.
o Set the temperature control between "Cool"
and "Warm".
B690A01A
B670B01A

1FEATURES OF YOUR HYUNDAI70
VENTILATION
B730A01L-AATOperation Tipso To keep dust or unpleasant fumes from
entering the car through the ventilation
system, temporarily set the air intake con-
trol to the position.
Be sure to return the control to the po-
sition when the irritation has passed to keep
fresh air in the vehicle. This will help keep the
driver alert and comfortable.
o Air for the heating/cooling system is drawn in
through the grilles just ahead of the wind-
shield. Care should be taken that these are
not blocked by leaves, snow, ice or other
obstructions.
o To prevent interior fog on the windshield, set
the air intake control to the fresh air ( )
position, fan speed to the desired position,
turn on the air conditioning system, and
adjust temperature control to desired tem-
perature.
B740A01A-AATAir Conditioning Switch
(If Installed)The air conditioning is turned on by pushing
the A/C button on the heating/air conditioning
control panel.
B710A01A-AATTo operate the ventilation system:
o Set the air intake control at the fresh air
( ) position.
o To direct all intake air to the dashboard
vents, set the airflow control to the face
( ) position.
o Adjust the fan speed control to the desired
speed.
o Set the temperature control between "Cool"
and "Warm".
B710A01A
HLC2090
AIR CONDITIONING SYSTEM

1
FEATURES OF YOUR HYUNDAI
71
B740B02A-AATAIR CONDITIONING OPERATION
CoolingTo use the air conditioning to cool the interior:
o Turn on the fan control switch (1).
o Turn on the air conditioning switch (4) by
pushing in on the switch.
The air conditioning indicator light should
come on at the same time.
o Set the air intake control (5) to the po-
sition.
o Set the temperature control (3) to "Cool".
("Cool" provides maximum cooling. The tem-
perature may be moderated by moving the
control toward "Warm".)
(1)
(2)(3)
(4) (5)
B740D01A-AATOperation Tipso If the interior of the car is hot when you first
get in, open the windows for a few minutes to
expel the hot air.
o When you are using the air conditioning
system, keep all windows closed to keep hot
air out.
o When moving slowly, as in heavy traffic, shift
to a lower gear. This increases engine speed,
which in turn increases the speed of the air
conditioning compressor.
o On steep grades, turn the air conditioner off
to avoid the possibility of the engine over-
heating.
o During winter months or in periods when the
air conditioner is not used regularly, run the
air conditioner once every month for a few
minutes. This will help circulate the lubri-
cants and keep your system in peak operat-
ing condition.
B740C01A-AATDe-Humidified HeatingFor dehumidified heating:
o Turn on the fan control switch (1).
o Turn on the air conditioning switch (4). The
air conditioning indicator light should come
on at the same time.
o Set the air intake control (5) to the fresh air
( ) position.
o Set the air flow control (2) to the face ( )
position.
B740C01A
(1)
(2)(3)
(4) (5)
o Adjust the fan control (1) to the desired
speed. For greater cooling, turn the fan
control (1) to one of the higher speeds or
temporarily select the position on the
air intake control (5).o Adjust the fan control (1) to the desired
speed.
o For more rapid action, set the fan at one of
the higher speeds.
o Adjust the temperature control (3) to provide
the desired amount of warmth.
B740B01A

1FEATURES OF YOUR HYUNDAI72

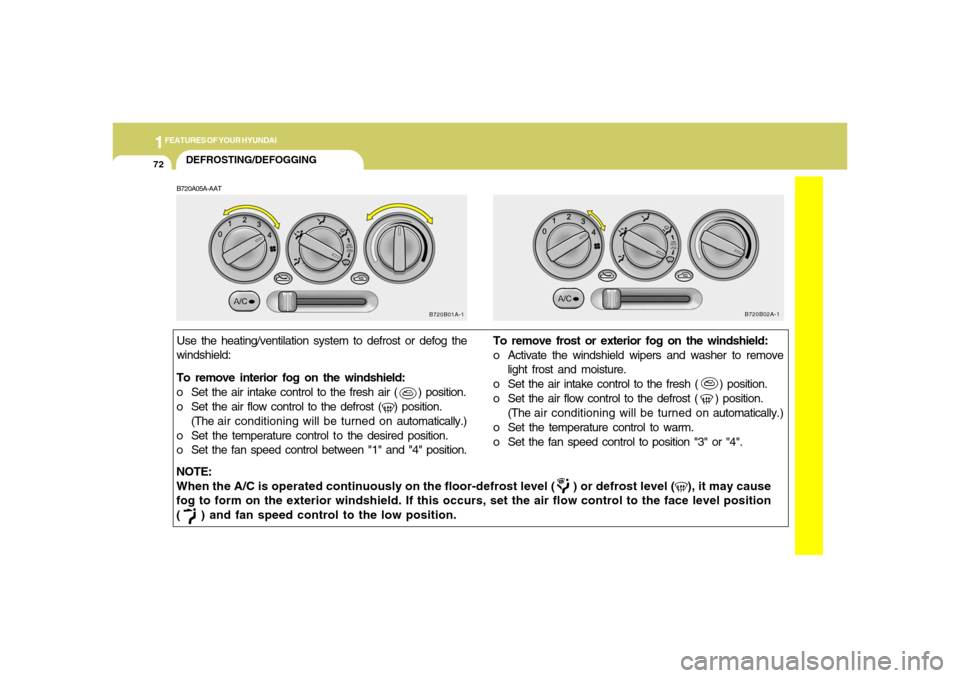

DEFROSTING/DEFOGGINGNOTE:
When the A/C is operated continuously on the floor-defrost level ( ) or defrost level ( ), it may cause
fog to form on the exterior windshield. If this occurs, set the air flow control to the face level position
( ) and fan speed control to the low position.Use the heating/ventilation system to defrost or defog the
windshield:
To remove interior fog on the windshield:
o Set the air intake control to the fresh air ( ) position.
o Set the air flow control to the defrost ( ) position.
(The air conditioning will be turned on automatically.)
o Set the temperature control to the desired position.
o Set the fan speed control between "1" and "4" position.To remove frost or exterior fog on the windshield:
o Activate the windshield wipers and washer to remove
light frost and moisture.
o Set the air intake control to the fresh ( ) position.
o Set the air flow control to the defrost ( ) position.
(The air conditioning will be turned on automatically.)
o Set the temperature control to warm.
o Set the fan speed control to position "3" or "4".B720A05A-AAT
B720B01A-1B720B02A-1

1
FEATURES OF YOUR HYUNDAI
73
AIR CONDITIONER FILTER
(For Evaporator and Blower unit)
!
B760A01Y
The air conditioner filter is located in front of the
evaporator unit behind the glove box.
It operates to decrease the amount of pollut-
ants entering the car.
To replace the air conditioner filter, refer to the
page 6-16.B760A05A-GAT(If Installed)Inside of
a vehicleEvaporator coreFilter
Blower
Outside air
CAUTION:
o Replace the filter every 12,000 miles
(20,000 km) or once a year. If the car is
being driven in severe conditions such
as dusty, rough roads, more frequent
air conditioner filter inspections and
changes are required.
o When the air flow rate is decreased, it
must be checked at an authorized dealer.
Inside air

1FEATURES OF YOUR HYUNDAI74
STEREO SOUND SYSTEM
FM broadcasts are transmitted at high fre-
quencies and do not bend to follow the earth's
surface. Because of this, FM broadcasts gen-
erally begin to fade at short distances from the
station. Also, FM signals are easily affected by
buildings, mountains, or other obstructions.
These can result in certain listening conditions
which might lead you to believe a problem
exists with your radio. The following conditions
are normal and do not indicate radio trouble: AM broadcasts can be received at greater dis-
tances than FM broadcasts. This is because
AM radio waves are transmitted at low fre-
quencies. These long, low frequency radio
waves can follow the curvature of the earth
rather than travelling straight out into the atmo-
sphere. In addition, they curve around ob-
structions so that they can provide better
signal coverage.
B750A02A-AATHow Car Audio WorksAM and FM radio signals are broadcast from
transmitter towers located around your city.
They are intercepted by the radio antenna on
your car. This signal is then received by the
radio and sent to your car speakers.
When a strong radio signal has reached your
vehicle, the precise engineering of your audio
system ensures the best possible quality re-
production. However, in some cases the sig-
nal coming to your vehicle may not be strong
and clear. This can be due to factors such as
the distance from the radio station, closeness
of other strong radio stations or the presence
of buildings, bridges or other large obstruc-
tions in the area.Ionosphere
B750A02L
Mountains
Buildings
Obstructed areaUnobstructed
area FM radio station
B750A03L
Ionosphere FM reception
B750A01L
Iron bridges
AM reception

1
FEATURES OF YOUR HYUNDAI
75
!
o Station Swapping - As an FM signal weak-
ens, another more powerful signal near the
same frequency may begin to play. This is
because your radio is designed to lock onto
the clearest signal. If this occurs, select
another station with a stronger signal.
o Multi-Path Cancellation - Radio signals be-
ing received from several directions can
cause distortion or fluttering. This can be
caused by a direct and reflected signal
from the same station, or by signals from
two stations with close frequencies. If this
occurs, select another station until the con-
dition has passed.
B750B03Y-AATUsing a cellular phone or a two-way
radioWhen a cellular phone is used inside the vehi-
cle, noise may be produced from the audio
equipment. This does not mean that something
is wrong with the audio equipment. In such a
case, use the cellular phone at a place as far as
possible from the audio equipment.
o Fading - As your car moves away from the
radio station, the signal will weaken and
sound will begin to fade. When this occurs,
we suggest that you select another stronger
station.
o Flutter/Static - Weak FM signals or large
obstructions between the transmitter and your
radio can disturb the signal causing static or
fluttering noises to occur. Reducing the tre-
ble level may lessen this effect until the
disturbance clears.
B750A04L B750A05L
WARNING:
Don't use a cellular phone when you are
driving. Stop at a safe place to use a cellular
phone.

1FEATURES OF YOUR HYUNDAI76
AUDIO SYSTEM
1. POWER ON-OFF, BALANCE, VOLUME, SCAN Control Knob
H210A01O-AATSTEREO RADIO OPERATION (H215) (If Installed)
H210A01O
2. FADER Control Knob
3. BASS/TREBLE Control Knob4. BAND Selector 5. TUNE/SEEK Select Button
6. PRESET Station Select Button

1
FEATURES OF YOUR HYUNDAI
77
2. FAD (Fader Control) KnobTurn the control knob counterclockwise to em-
phasize front speaker sound (rear speaker
sound will be attenuated). When the control
knob is turned clockwise, rear speaker sound
will be emphasized (front speaker sound will
be attenuated).3. BASS Control KnobPress to pop the knob out and turn to the left or
right for the desired bass tone.TREBLE Control Knob.Pull the bass control knob further out. Turn to
the left or right for the desired treble tone.4. BAND SelectorPressing the button changes the AM, FM1
and FM2 bands. The mode selected is dis-
played on LCD.5. TUNE (Manual) Select ButtonPress the ( ) side or ( ) side to increase or to
decrease the frequency. With the button held
down for 1 sec. or more, the stop signal (broad-
casting radio wave) is ignored and channel
selection continues.
SEEK Operation
(Automatic Channel Selection)Press the TUNE select button for 1 sec. or
more. When the ( ) side is pressed, the unit will
automatically tune to the next higher frequency
and when the ( ) side is pressed, it will automa-
tically tune to the next lower frequency.6. PRESET STATION SELECT ButtonSix (6) stations for AM, FM1 and FM2 respec-
tively can be preset in the electronic memory
circuit on this unit.HOW TO PRESET STATIONSSix AM and twelve FM stations may be pro-
grammed into the memory of the radio. Then, by
simply pressing the band select button and/or
one of the six station select buttons, you may
recall any of these stations instantly. To pro-
gram the stations, follow these steps:
o Press band selector to set the band for AM,
FM1, and FM2.
o Select the desired station to be stored by
seek, scan or manual tuning.
o Determine the preset station select button
you wish to use to access that station.
H210B04O-AAT1. POWER ON-OFF/VOLUME Control
KnobThe radio unit may be operated when the igni-
tion key is in the "ACC" or "ON" position. Rotate
the knob clockwise to switch the radio unit on
and to increase the volume.
The LCD shows the radio frequency in the radio
mode. Turn the knob counterclockwise to re-
duce the volume and to switch the radio unit off.BAL (Balance Control) KnobPull and turn the control knob clockwise to
emphasize right speaker sound (left speaker
sound will be attenuated). When the control
knob is turned counterclockwise, left speaker
sound will be emphasized (right speaker sound
will be attenuated).
After adjusting the balance, push the knob
again to use the other function.SCAN KnobWhen the scan knob is pressed, the frequency
will increase and the receivable stations will be
tuned in one after another, receiving each sta-
tion for 5 seconds. To stop scanning, press the
scan knob again.
FM
AM

1FEATURES OF YOUR HYUNDAI78
o Press the station select button for more
than two seconds. A select button indicator
will show in the display indicating which
select button you have depressed. You
should then release the button, and pro-
ceed to program the next desired station.
A total of 18 stations can be programmed
by selecting one AM and two FM stations
per button.
o When completed, any preset station may
be recalled by selecting AM, FM1 or FM2
band and the appropriate station button.
!
CAUTION:
o Do not place beverages close to the
audio system. The audio system mecha-
nism may be damaged if you spill them.
o Do not impact on the audio system, or
the audio system mechanism could be
damaged.
