Hyundai Accent 2011 User Guide

F11
!
CALIFORNIA PROPOSITION
65 WARNING:
Items contained in motor vehicles or
emitted from them are known to the
State of California to cause cancer and
birth defects or reproductive harm.
These include:
o Gasoline and its vapors
o Engine exhaust
o Used engine oil
o Interior passenger compartment
components and materials
o Component parts which are subject
to heat and wear
In addition, battery posts, terminals and
related accessories contain lead, lead
compounds and other chemicals known
to the State of California to cause cancer
and reproductive harm.

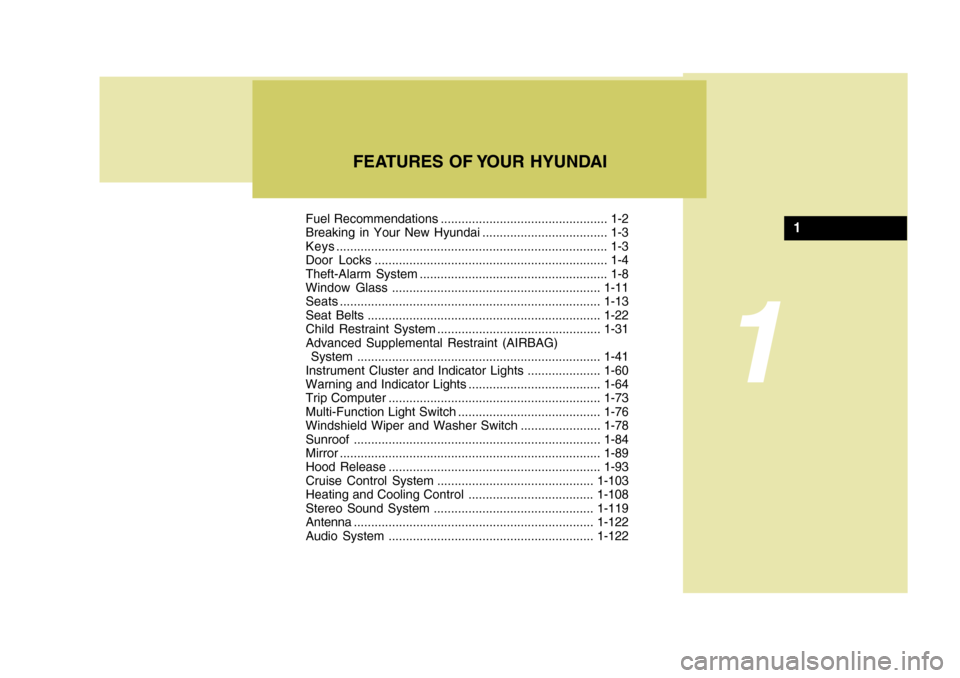

FEATURES OF YOUR HYUNDAI
1
Fuel Recommendations ................................................ 1-2
Breaking in Your New Hyundai .................................... 1-3
Keys.............................................................................. 1-3
Door Locks ................................................................... 1-4
Theft-Alarm System ...................................................... 1-8
Window Glass ............................................................1-11
Seats...........................................................................1-13
Seat Belts...................................................................1-22
Child Restraint System...............................................1-31
Advanced Supplemental Restraint (AIRBAG)
System......................................................................1-41
Instrument Cluster and Indicator Lights .....................1-60
Warning and Indicator Lights ......................................1-64
Trip Computer.............................................................1-73
Multi-Function Light Switch .........................................1-76
Windshield Wiper and Washer Switch.......................1-78
Sunroof.......................................................................1-84
Mirror...........................................................................1-89
Hood Release.............................................................1-93
Cruise Control System.............................................1-103
Heating and Cooling Control.................................... 1-108
Stereo Sound System..............................................1-119
Antenna.....................................................................1-122
Audio System...........................................................1-122
1

1FEATURES OF YOUR HYUNDAI2
!
B010F01A-AATOperation in Foreign CountriesIf you are going to drive your Hyundai in
another country, be sure to:
o Observe all regulations regarding reg-
istration and insurance.
o Determine that acceptable fuel is avail-
able.B010E01A-AATGasolines for Cleaner AirTo help contribute to cleaner air, Hyundai
recommends you use gasolines treated
with detergent additives, which help pre-
vent deposit formation in the engine.
These gasolines will help the engine run
cleaner and enhance performance of the
Emission Control System.

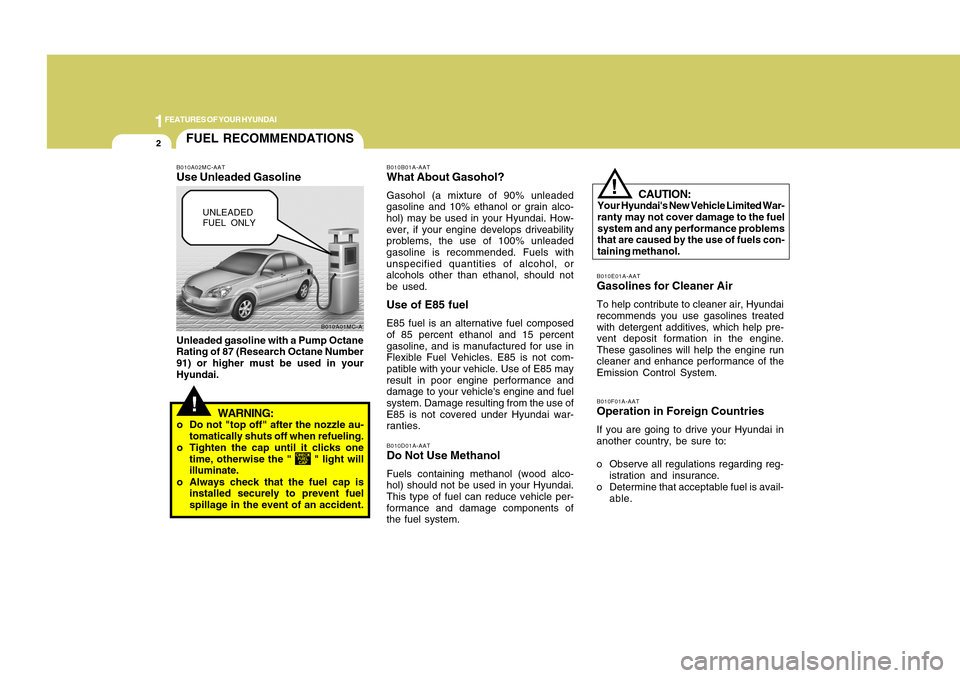

FUEL RECOMMENDATIONS
UNLEADED
FUEL ONLY
B010A01MC-A B010A02MC-AAT
Use Unleaded GasolineUnleaded gasoline with a Pump Octane
Rating of 87 (Research Octane Number
91) or higher must be used in your
Hyundai.
B010B01A-AATWhat About Gasohol?Gasohol (a mixture of 90% unleaded
gasoline and 10% ethanol or grain alco-
hol) may be used in your Hyundai. How-
ever, if your engine develops driveability
problems, the use of 100% unleaded
gasoline is recommended. Fuels with
unspecified quantities of alcohol, or
alcohols other than ethanol, should not
be used.B010D01A-AATDo Not Use MethanolFuels containing methanol (wood alco-
hol) should not be used in your Hyundai.
This type of fuel can reduce vehicle per-
formance and damage components of
the fuel system.
CAUTION:
Your Hyundai's New Vehicle Limited War-
ranty may not cover damage to the fuel
system and any performance problems
that are caused by the use of fuels con-
taining methanol.
!
WARNING:
o Do not "top off" after the nozzle au-
tomatically shuts off when refueling.
o Tighten the cap until it clicks one
time, otherwise the "
" light will
illuminate.
o Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an accident.
Use of E85 fuelE85 fuel is an alternative fuel composed
of 85 percent ethanol and 15 percent
gasoline, and is manufactured for use in
Flexible Fuel Vehicles. E85 is not com-
patible with your vehicle. Use of E85 may
result in poor engine performance and
damage to your vehicle's engine and fuel
system. Damage resulting from the use of
E85 is not covered under Hyundai war-
ranties.

1
FEATURES OF YOUR HYUNDAI
31
FEATURES OF YOUR HYUNDAI
3

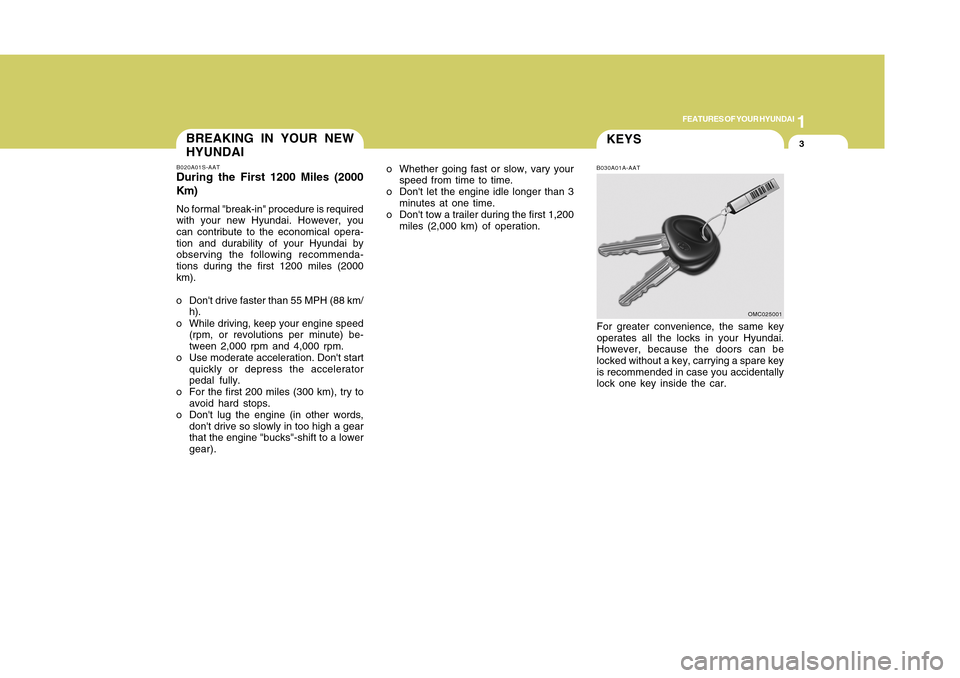

BREAKING IN YOUR NEW
HYUNDAIB020A01S-AATDuring the First 1200 Miles (2000
Km)No formal "break-in" procedure is required
with your new Hyundai. However, you
can contribute to the economical opera-
tion and durability of your Hyundai by
observing the following recommenda-
tions during the first 1200 miles (2000
km).
o Don't drive faster than 55 MPH (88 km/
h).
o While driving, keep your engine speed
(rpm, or revolutions per minute) be-
tween 2,000 rpm and 4,000 rpm.
o Use moderate acceleration. Don't start
quickly or depress the accelerator
pedal fully.
o For the first 200 miles (300 km), try to
avoid hard stops.
o Don't lug the engine (in other words,
don't drive so slowly in too high a gear
that the engine "bucks"-shift to a lower
gear).o Whether going fast or slow, vary your
speed from time to time.
o Don't let the engine idle longer than 3
minutes at one time.
o Don't tow a trailer during the first 1,200
miles (2,000 km) of operation.
KEYSB030A01A-AATFor greater convenience, the same key
operates all the locks in your Hyundai.
However, because the doors can be
locked without a key, carrying a spare key
is recommended in case you accidentally
lock one key inside the car.
OMC025001

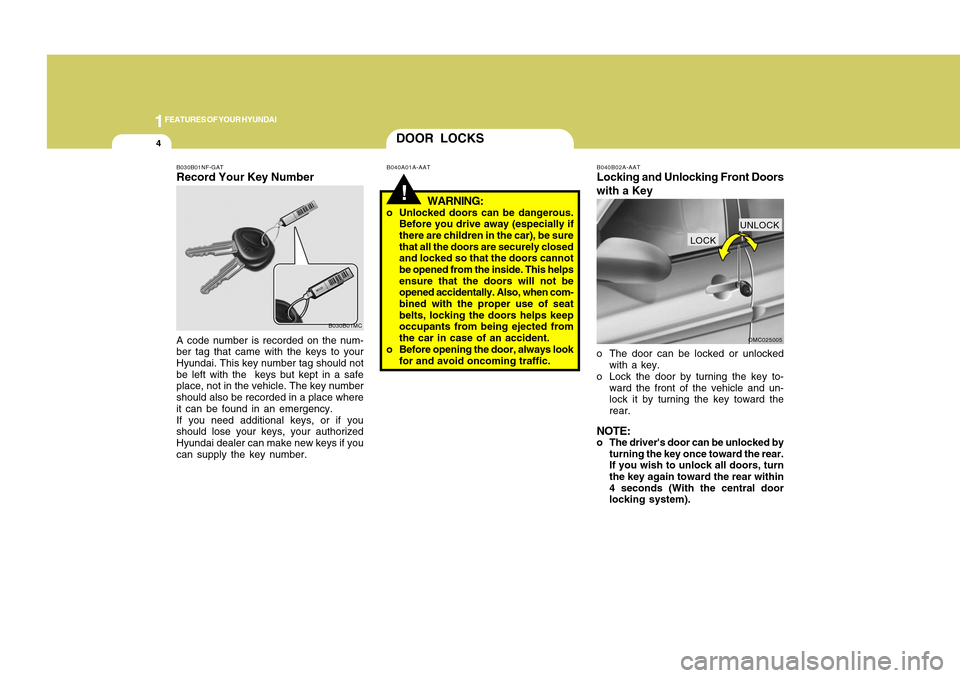

1FEATURES OF YOUR HYUNDAI4
B040B02A-AATLocking and Unlocking Front Doors
with a Keyo The door can be locked or unlocked
with a key.
o Lock the door by turning the key to-
ward the front of the vehicle and un-
lock it by turning the key toward the
rear.
OMC025005UNLOCK
LOCK
DOOR LOCKS!
B030B01NF-GATRecord Your Key NumberA code number is recorded on the num-
ber tag that came with the keys to your
Hyundai. This key number tag should not
be left with the keys but kept in a safe
place, not in the vehicle. The key number
should also be recorded in a place where
it can be found in an emergency.
If you need additional keys, or if you
should lose your keys, your authorized
Hyundai dealer can make new keys if you
can supply the key number.
B030B01MCB040A01A-AAT
WARNING:
o Unlocked doors can be dangerous.
Before you drive away (especially if
there are children in the car), be sure
that all the doors are securely closed
and locked so that the doors cannot
be opened from the inside. This helps
ensure that the doors will not be
opened accidentally. Also, when com-
bined with the proper use of seat
belts, locking the doors helps keep
occupants from being ejected from
the car in case of an accident.
o Before opening the door, always look
for and avoid oncoming traffic.
NOTE:o The driver's door can be unlocked by
turning the key once toward the rear.
If you wish to unlock all doors, turn
the key again toward the rear within
4 seconds (With the central door
locking system).

1
FEATURES OF YOUR HYUNDAI
51
FEATURES OF YOUR HYUNDAI
5

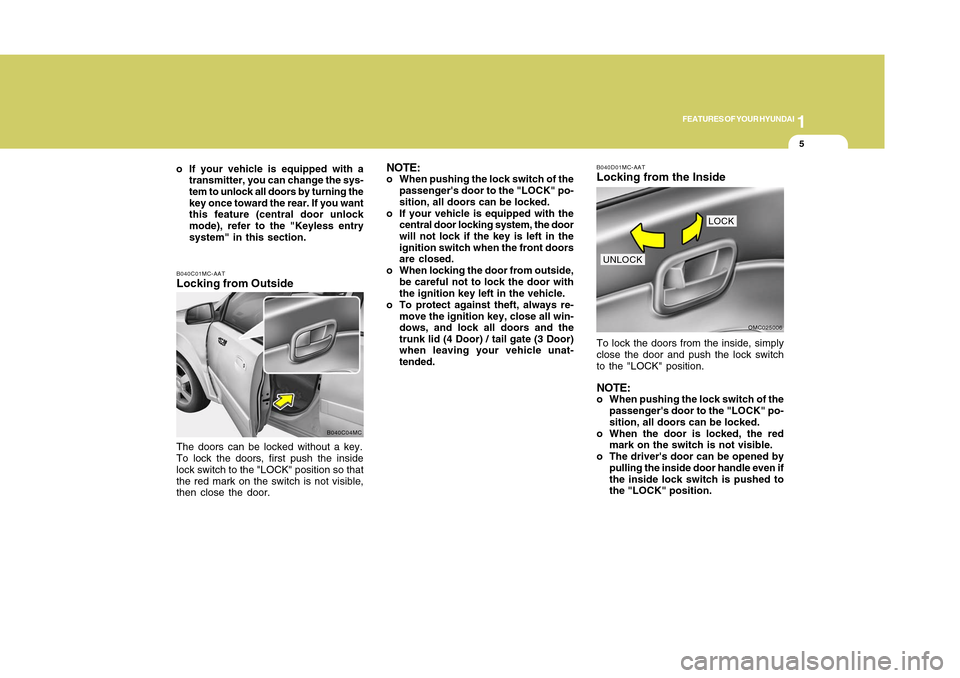

The doors can be locked without a key.
To lock the doors, first push the inside
lock switch to the "LOCK" position so that
the red mark on the switch is not visible,
then close the door.B040C01MC-AATLocking from Outside
B040C04MC
NOTE:o When pushing the lock switch of the
passenger's door to the "LOCK" po-
sition, all doors can be locked.
o If your vehicle is equipped with the
central door locking system, the door
will not lock if the key is left in the
ignition switch when the front doors
are closed.
o When locking the door from outside,
be careful not to lock the door with
the ignition key left in the vehicle.
o To protect against theft, always re-
move the ignition key, close all win-
dows, and lock all doors and the
trunk lid (4 Door) / tail gate (3 Door)
when leaving your vehicle unat-
tended.
B040D01MC-AATLocking from the InsideTo lock the doors from the inside, simply
close the door and push the lock switch
to the "LOCK" position.NOTE:o When pushing the lock switch of the
passenger's door to the "LOCK" po-
sition, all doors can be locked.
o When the door is locked, the red
mark on the switch is not visible.
o The driver's door can be opened by
pulling the inside door handle even if
the inside lock switch is pushed to
the "LOCK" position.
OMC025006
UNLOCK
LOCK
o If your vehicle is equipped with a
transmitter, you can change the sys-
tem to unlock all doors by turning the
key once toward the rear. If you want
this feature (central door unlock
mode), refer to the "Keyless entry
system" in this section.

1FEATURES OF YOUR HYUNDAI6
!

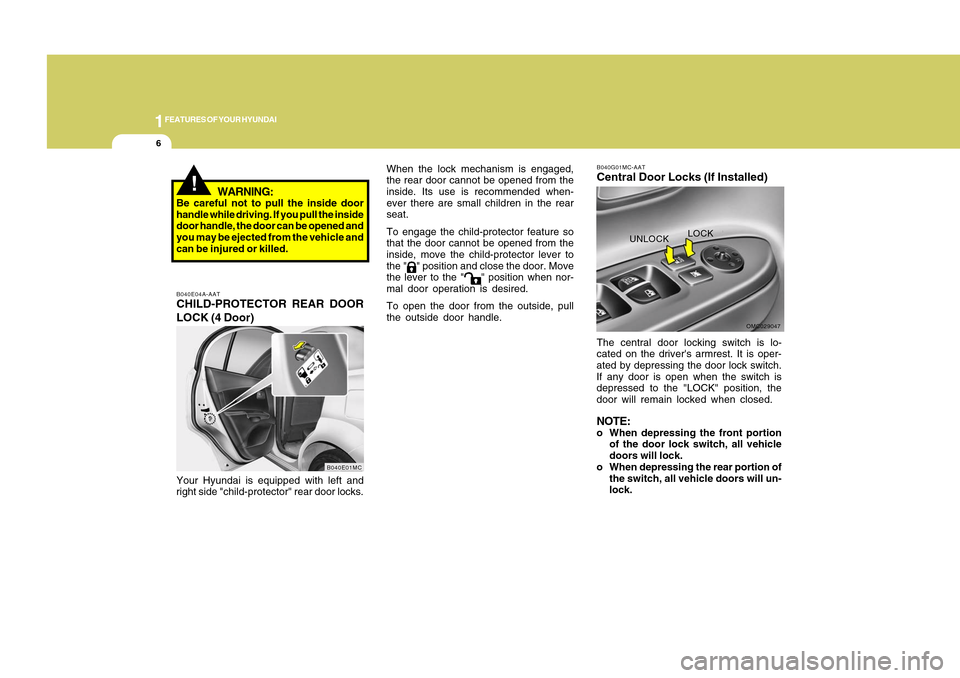

B040E04A-AATCHILD-PROTECTOR REAR DOOR
LOCK (4 Door)Your Hyundai is equipped with left and
right side "child-protector" rear door locks.
B040G01MC-AATCentral Door Locks (If Installed)The central door locking switch is lo-
cated on the driver's armrest. It is oper-
ated by depressing the door lock switch.
If any door is open when the switch is
depressed to the "LOCK" position, the
door will remain locked when closed.NOTE:o When depressing the front portion
of the door lock switch, all vehicle
doors will lock.
o When depressing the rear portion of
the switch, all vehicle doors will un-
lock.
B040E01MC
WARNING:
Be careful not to pull the inside door
handle while driving. If you pull the inside
door handle, the door can be opened and
you may be ejected from the vehicle and
can be injured or killed.When the lock mechanism is engaged,
the rear door cannot be opened from the
inside. Its use is recommended when-
ever there are small children in the rear
seat.
To engage the child-protector feature so
that the door cannot be opened from the
inside, move the child-protector lever to
the "
" position and close the door. Move
the lever to the "
" position when nor-
mal door operation is desired.
To open the door from the outside, pull
the outside door handle.
OMC029047
UNLOCKLOCK

1
FEATURES OF YOUR HYUNDAI
71
FEATURES OF YOUR HYUNDAI
7

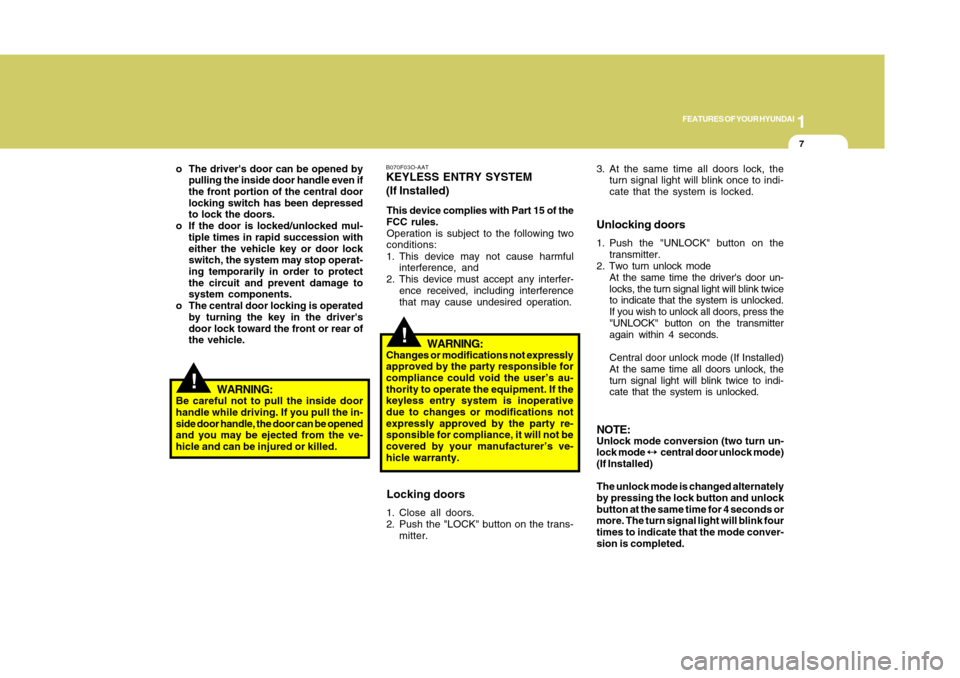

o The driver's door can be opened by
pulling the inside door handle even if
the front portion of the central door
locking switch has been depressed
to lock the doors.
o If the door is locked/unlocked mul-
tiple times in rapid succession with
either the vehicle key or door lock
switch, the system may stop operat-
ing temporarily in order to protect
the circuit and prevent damage to
system components.
o The central door locking is operated
by turning the key in the driver's
door lock toward the front or rear of
the vehicle.
B070F03O-AATKEYLESS ENTRY SYSTEM
(If Installed)
Unlocking doors
1. Push the "UNLOCK" button on the
transmitter.
2. Two turn unlock mode
At the same time the driver's door un-
locks, the turn signal light will blink twice
to indicate that the system is unlocked.
If you wish to unlock all doors, press the
"UNLOCK" button on the transmitter
again within 4 seconds.
Central door unlock mode (If Installed)
At the same time all doors unlock, the
turn signal light will blink twice to indi-
cate that the system is unlocked. This device complies with Part 15 of the
FCC rules.
Operation is subject to the following two
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interfer-
ence received, including interference
that may cause undesired operation.
!
WARNING:
Be careful not to pull the inside door
handle while driving. If you pull the in-
side door handle, the door can be opened
and you may be ejected from the ve-
hicle and can be injured or killed.
!
WARNING:
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s au-
thority to operate the equipment. If the
keyless entry system is inoperative
due to changes or modifications not
expressly approved by the party re-
sponsible for compliance, it will not be
covered by your manufacturer’s ve-
hicle warranty.
NOTE:Unlock mode conversion (two turn un-
lock mode
↔ ↔ ↔ ↔
↔ central door unlock mode)
(If Installed)
The unlock mode is changed alternately
by pressing the lock button and unlock
button at the same time for 4 seconds or
more. The turn signal light will blink four
times to indicate that the mode conver-
sion is completed. 3. At the same time all doors lock, the
turn signal light will blink once to indi-
cate that the system is locked.
Locking doors1. Close all doors.
2. Push the "LOCK" button on the trans-
mitter.

1FEATURES OF YOUR HYUNDAI8

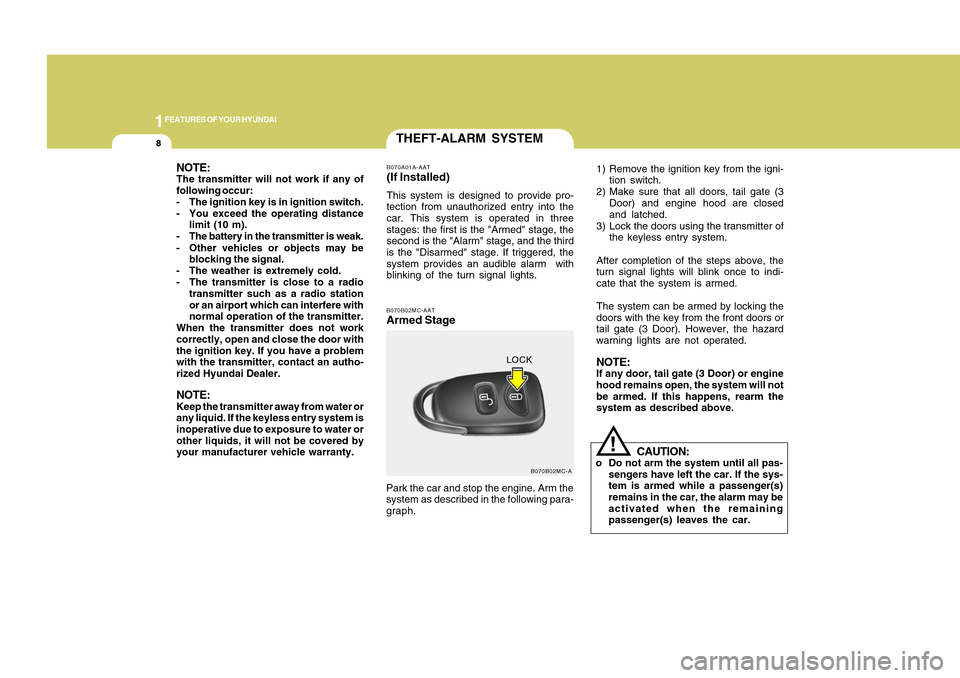

THEFT-ALARM SYSTEMB070A01A-AAT(If Installed)This system is designed to provide pro-
tection from unauthorized entry into the
car. This system is operated in three
stages: the first is the "Armed" stage, the
second is the "Alarm" stage, and the third
is the "Disarmed" stage. If triggered, the
system provides an audible alarm with
blinking of the turn signal lights.
!
B070B02MC-A B070B02MC-AAT
Armed StagePark the car and stop the engine. Arm the
system as described in the following para-
graph.1) Remove the ignition key from the igni-
tion switch.
2) Make sure that all doors, tail gate (3
Door) and engine hood are closed
and latched.
3) Lock the doors using the transmitter of
the keyless entry system.
After completion of the steps above, the
turn signal lights will blink once to indi-
cate that the system is armed.
The system can be armed by locking the
doors with the key from the front doors or
tail gate (3 Door). However, the hazard
warning lights are not operated.
NOTE:If any door, tail gate (3 Door) or engine
hood remains open, the system will not
be armed. If this happens, rearm the
system as described above.
CAUTION:
o Do not arm the system until all pas-
sengers have left the car. If the sys-
tem is armed while a passenger(s)
remains in the car, the alarm may be
activated when the remaining
passenger(s) leaves the car.
LOCK
NOTE:The transmitter will not work if any of
following occur:
- The ignition key is in ignition switch.
- You exceed the operating distance
limit (10 m).
- The battery in the transmitter is weak.
- Other vehicles or objects may be
blocking the signal.
- The weather is extremely cold.
- The transmitter is close to a radio
transmitter such as a radio station
or an airport which can interfere with
normal operation of the transmitter.
When the transmitter does not work
correctly, open and close the door with
the ignition key. If you have a problem
with the transmitter, contact an autho-
rized Hyundai Dealer.NOTE:Keep the transmitter away from water or
any liquid. If the keyless entry system is
inoperative due to exposure to water or
other liquids, it will not be covered by
your manufacturer vehicle warranty.

1
FEATURES OF YOUR HYUNDAI
91
FEATURES OF YOUR HYUNDAI
9

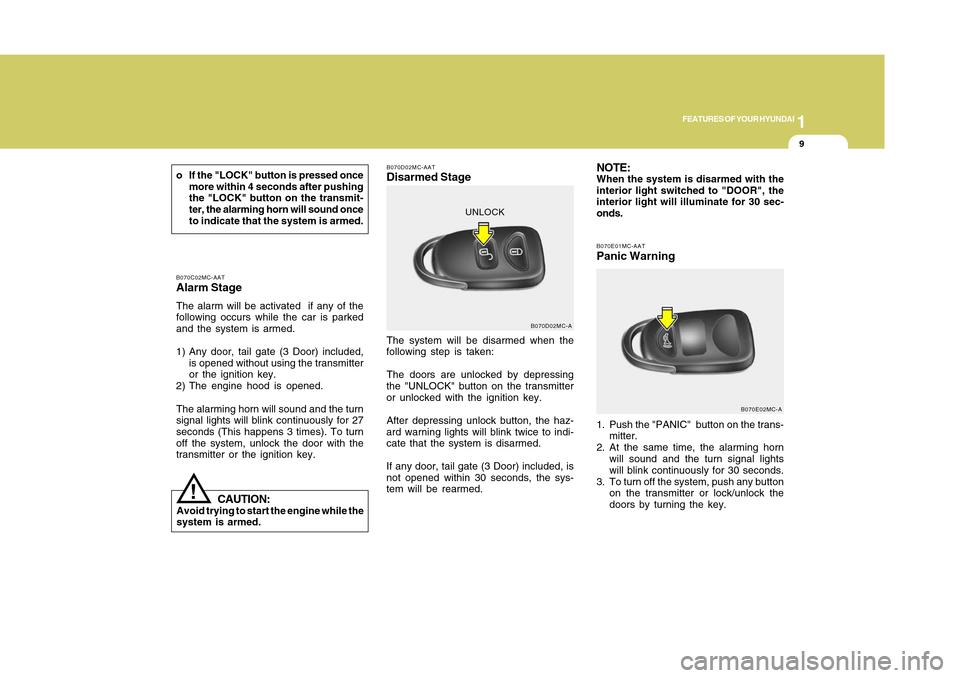

B070C02MC-AATAlarm StageThe alarm will be activated if any of the
following occurs while the car is parked
and the system is armed.
1) Any door, tail gate (3 Door) included,
is opened without using the transmitter
or the ignition key.
2) The engine hood is opened.
The alarming horn will sound and the turn
signal lights will blink continuously for 27
seconds (This happens 3 times). To turn
off the system, unlock the door with the
transmitter or the ignition key.
CAUTION:
Avoid trying to start the engine while the
system is armed.
!
B070D02MC-AATDisarmed StageThe system will be disarmed when the
following step is taken:
The doors are unlocked by depressing
the "UNLOCK" button on the transmitter
or unlocked with the ignition key.
After depressing unlock button, the haz-
ard warning lights will blink twice to indi-
cate that the system is disarmed.
If any door, tail gate (3 Door) included, is
not opened within 30 seconds, the sys-
tem will be rearmed.
B070D02MC-A
UNLOCK
o If the "LOCK" button is pressed once
more within 4 seconds after pushing
the "LOCK" button on the transmit-
ter, the alarming horn will sound once
to indicate that the system is armed.
B070E01MC-AATPanic Warning1. Push the "PANIC" button on the trans-
mitter.
2. At the same time, the alarming horn
will sound and the turn signal lights
will blink continuously for 30 seconds.
3. To turn off the system, push any button
on the transmitter or lock/unlock the
doors by turning the key.
B070E02MC-A
NOTE:When the system is disarmed with the
interior light switched to "DOOR", the
interior light will illuminate for 30 sec-
onds.
