Hyundai Accent 2011 Owner's Manual

6
DO-IT-YOURSELF MAINTENANCE
3

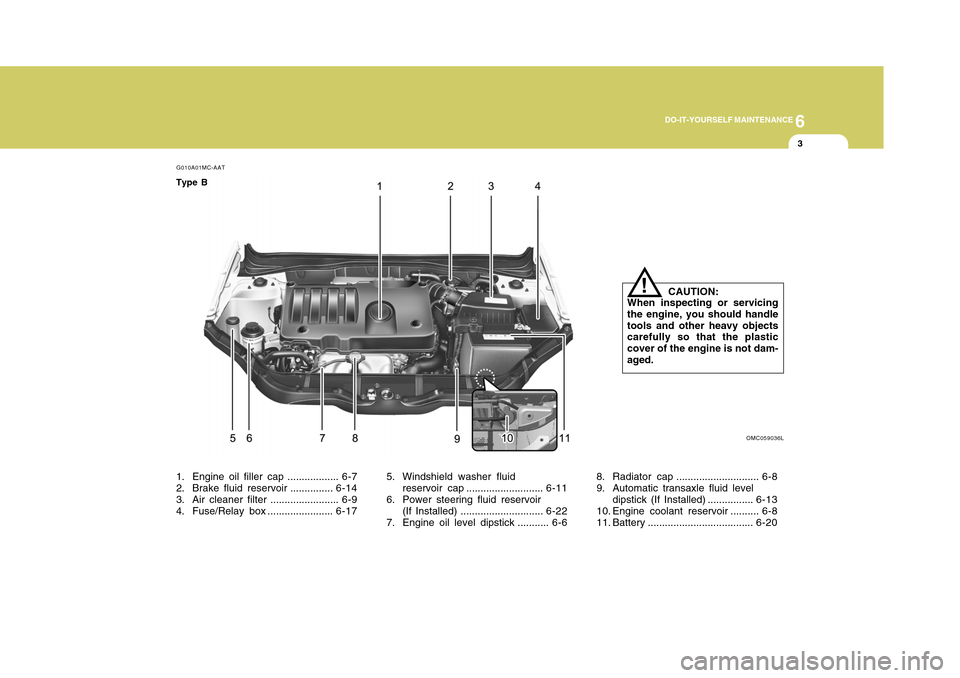

G010A01MC-AAT1. Engine oil filler cap .................. 6-7
2. Brake fluid reservoir ...............6-14
3. Air cleaner filter ........................ 6-9
4. Fuse/Relay box .......................6-175. Windshield washer fluid
reservoir cap ...........................6-11
6. Power steering fluid reservoir
(If Installed) .............................6-22
7. Engine oil level dipstick ........... 6-68. Radiator cap ............................. 6-8
9. Automatic transaxle fluid level
dipstick (If Installed) ................ 6-13
10. Engine coolant reservoir .......... 6-8
11. Battery ..................................... 6-20
OMC059036L
CAUTION:
When inspecting or servicing
the engine, you should handle
tools and other heavy objects
carefully so that the plastic
cover of the engine is not dam-
aged.
!
Type B

6
DO-IT-YOURSELF MAINTENANCE4
GENERAL CHECKS
G020C01A-AATVehicle InteriorThe following should be checked each
time when the vehicle is driven:
o Light operation
o Windshield wiper operation
o Horn operation
o Defroster, heater system operation (and
air conditioning, if installed)
o Steering operation and condition
o Mirror condition and operation
o Turn signal operation
o Accelerator pedal operation
o Brake operation, including parking
brake
o Manual transaxle operation, including
clutchoperation
o Automatic transaxle operation, includ-
ing "Park" mechanism operation
o Seat control condition and operation
o Seat belt condition and operation
o Sun visor operation
If you notice anything that does not oper-
ate correctly or appear to be functioning
correctly, inspect it carefully and seek
assistance from your Hyundai dealer if
service is needed.
G020A01A-AATEngine Compartment
The following should be checked regu-
larly:
o Engine oil level and condition
o Transaxle fluid level and condition
o Brake fluid level
o Clutch fluid level
o Engine coolant level
o Windshield washer fluid level
o Accessory drive belt condition
o Engine coolant hose condition
o Fluid leaks (on or below components)
o Power steering fluid level and condi-
tion
o Battery condition
o Air cleaner filter condition
G020B01A-AATVehicle ExteriorThe following should be checked monthly:
o Overall appearance and condition
o Wheel condition and wheel nut tight-
ness
o Exhaust system condition
o Light condition and operation
o Windshield glass condition
o Wiper blade condition
o Paint condition and body corrosion
o Fluid leaks
o Door and hood lock condition
o Tire pressure and condition
(including spare tire)

6
DO-IT-YOURSELF MAINTENANCE
5

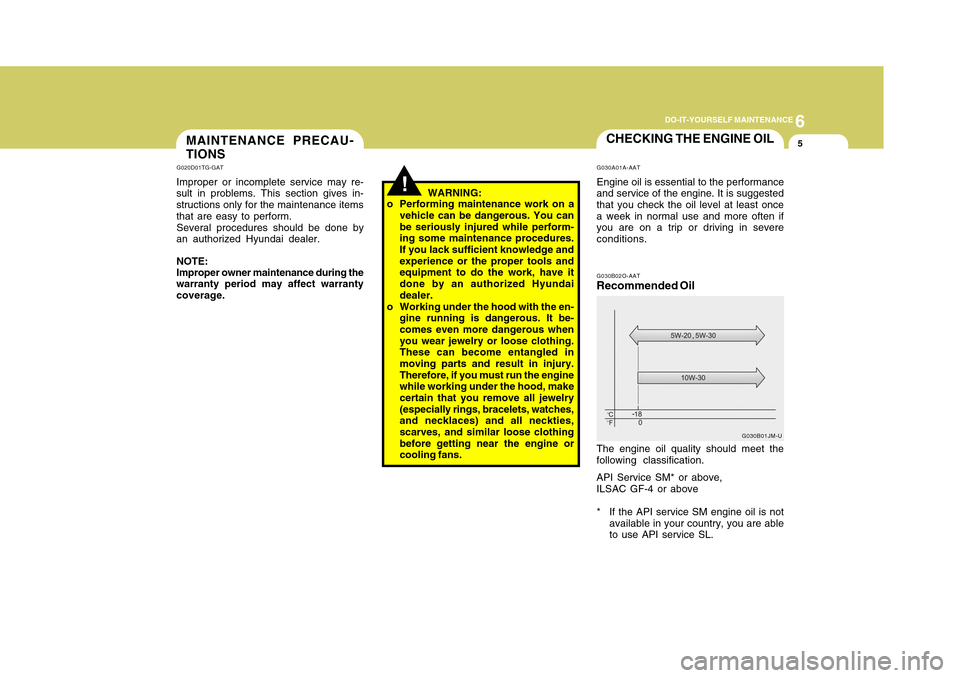

CHECKING THE ENGINE OILG030A01A-AATEngine oil is essential to the performance
and service of the engine. It is suggested
that you check the oil level at least once
a week in normal use and more often if
you are on a trip or driving in severe
conditions.G030B02O-AATRecommended OilThe engine oil quality should meet the
following classification.
API Service SM* or above,
ILSAC GF-4 or above
* If the API service SM engine oil is not
available in your country, you are able
to use API service SL.
G030B01JM-U
MAINTENANCE PRECAU-
TIONS
!
G020D01TG-GATImproper or incomplete service may re-
sult in problems. This section gives in-
structions only for the maintenance items
that are easy to perform.
Several procedures should be done by
an authorized Hyundai dealer.
NOTE:
Improper owner maintenance during the
warranty period may affect warranty
coverage.WARNING:
o Performing maintenance work on a
vehicle can be dangerous. You can
be seriously injured while perform-
ing some maintenance procedures.
If you lack sufficient knowledge and
experience or the proper tools and
equipment to do the work, have it
done by an authorized Hyundai
dealer.
o Working under the hood with the en-
gine running is dangerous. It be-
comes even more dangerous when
you wear jewelry or loose clothing.
These can become entangled in
moving parts and result in injury.
Therefore, if you must run the engine
while working under the hood, make
certain that you remove all jewelry
(especially rings, bracelets, watches,
and necklaces) and all neckties,
scarves, and similar loose clothing
before getting near the engine or
cooling fans.

6
DO-IT-YOURSELF MAINTENANCE6

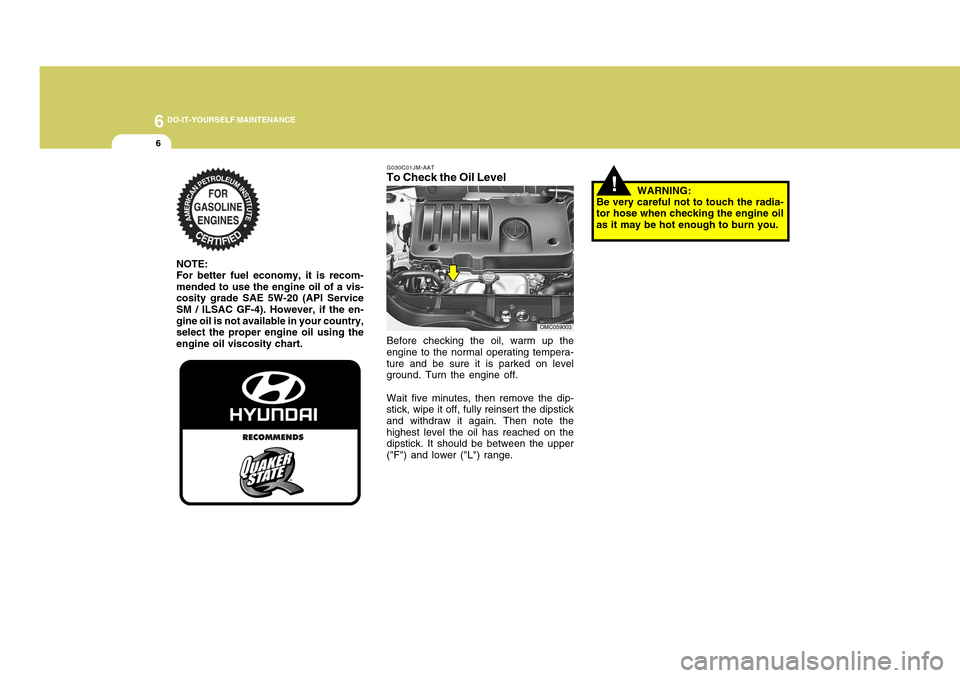

G030C01JM-AATTo Check the Oil LevelBefore checking the oil, warm up the
engine to the normal operating tempera-
ture and be sure it is parked on level
ground. Turn the engine off.
Wait five minutes, then remove the dip-
stick, wipe it off, fully reinsert the dipstick
and withdraw it again. Then note the
highest level the oil has reached on the
dipstick. It should be between the upper
("F") and lower ("L") range.
OMC059003
NOTE:
For better fuel economy, it is recom-
mended to use the engine oil of a vis-
cosity grade SAE 5W-20 (API Service
SM / ILSAC GF-4). However, if the en-
gine oil is not available in your country,
select the proper engine oil using the
engine oil viscosity chart.
!
WARNING:
Be very careful not to touch the radia-
tor hose when checking the engine oil
as it may be hot enough to burn you.

6
DO-IT-YOURSELF MAINTENANCE
7
!
CAUTION:
Slowly pour the recommended oil by
using a funnel. Do not overfill so as not
to damage engine.
!
WARNING:
Be very careful not to touch the radia-
tor hose when adding the engine oil as
it may be hot enough to burn you.

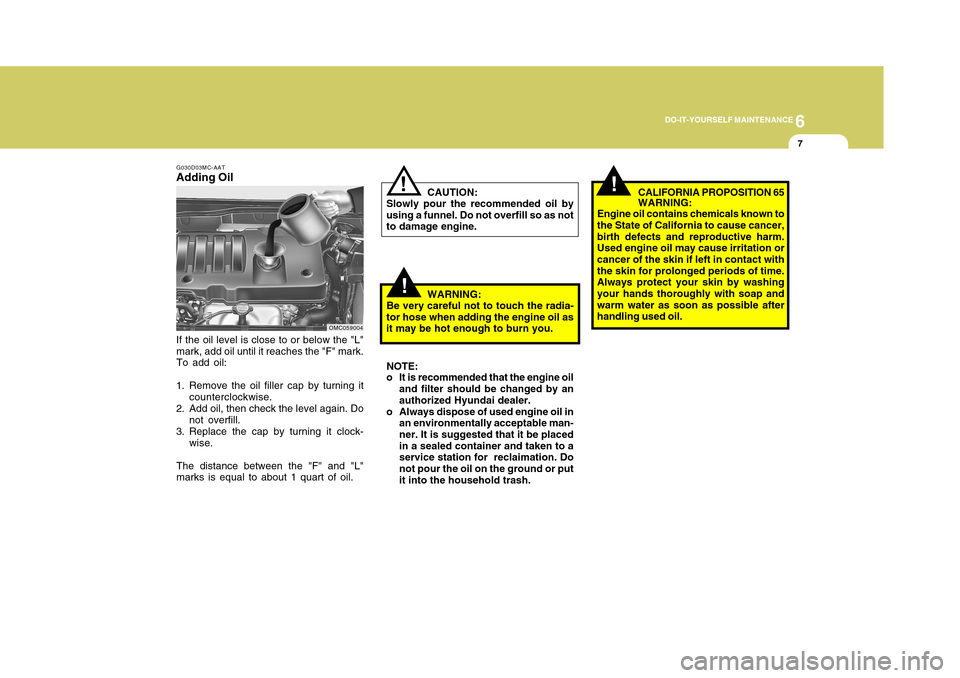

G030D03MC-AATAdding OilIf the oil level is close to or below the "L"
mark, add oil until it reaches the "F" mark.
To add oil:
1. Remove the oil filler cap by turning it
counterclockwise.
2. Add oil, then check the level again. Do
not overfill.
3. Replace the cap by turning it clock-
wise.
The distance between the "F" and "L"
marks is equal to about 1 quart of oil.
OMC059004
NOTE:
o It is recommended that the engine oil
and filter should be changed by an
authorized Hyundai dealer.
o Always dispose of used engine oil in
an environmentally acceptable man-
ner. It is suggested that it be placed
in a sealed container and taken to a
service station for reclaimation. Do
not pour the oil on the ground or put
it into the household trash.
!
CALIFORNIA PROPOSITION 65
WARNING:
Engine oil contains chemicals known to
the State of California to cause cancer,
birth defects and reproductive harm.
Used engine oil may cause irritation or
cancer of the skin if left in contact with
the skin for prolonged periods of time.
Always protect your skin by washing
your hands thoroughly with soap and
warm water as soon as possible after
handling used oil.

6
DO-IT-YOURSELF MAINTENANCE8

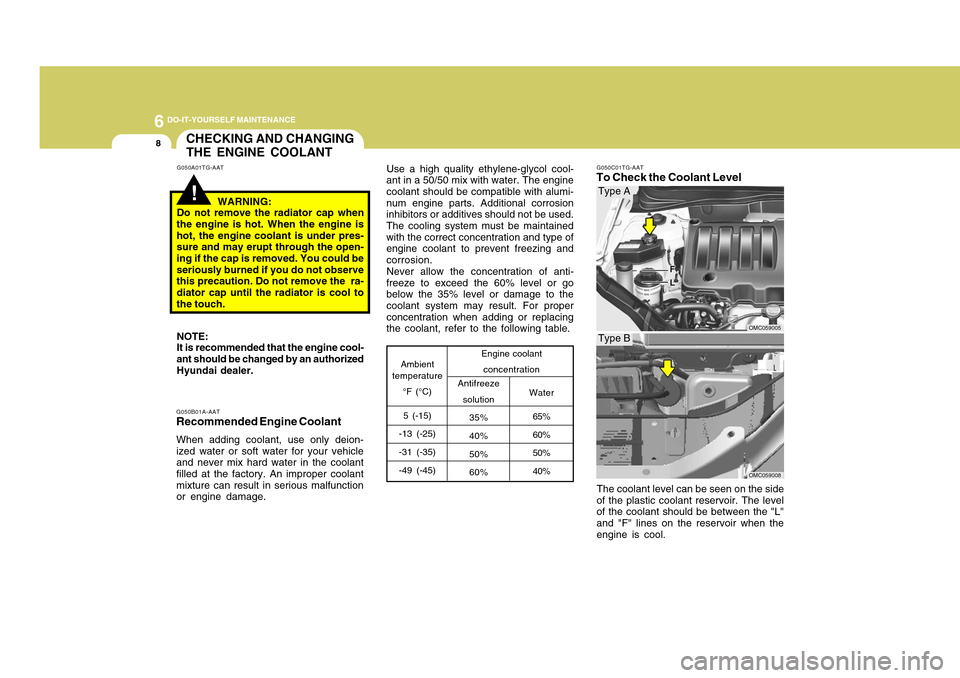

CHECKING AND CHANGING
THE ENGINE COOLANT!
G050A01TG-AAT
WARNING:
Do not remove the radiator cap when
the engine is hot. When the engine is
hot, the engine coolant is under pres-
sure and may erupt through the open-
ing if the cap is removed. You could be
seriously burned if you do not observe
this precaution. Do not remove the ra-
diator cap until the radiator is cool to
the touch.
NOTE:
It is recommended that the engine cool-
ant should be changed by an authorized
Hyundai dealer.
G050B01A-AATRecommended Engine CoolantWhen adding coolant, use only deion-
ized water or soft water for your vehicle
and never mix hard water in the coolant
filled at the factory. An improper coolant
mixture can result in serious malfunction
or engine damage.
G050C01TG-AATTo Check the Coolant LevelThe coolant level can be seen on the side
of the plastic coolant reservoir. The level
of the coolant should be between the "L"
and "F" lines on the reservoir when the
engine is cool.
OMC059008
Type B
OMC059005
Type A
Water
65%
60%
50%
40% Antifreeze
solution
35%
40%
50%
60% Ambient
temperature
°F (°C)
5 (-15)
-13 (-25)
-31 (-35)
-49 (-45)Engine coolant
concentration
Use a high quality ethylene-glycol cool-
ant in a 50/50 mix with water. The engine
coolant should be compatible with alumi-
num engine parts. Additional corrosion
inhibitors or additives should not be used.
The cooling system must be maintained
with the correct concentration and type of
engine coolant to prevent freezing and
corrosion.
Never allow the concentration of anti-
freeze to exceed the 60% level or go
below the 35% level or damage to the
coolant system may result. For proper
concentration when adding or replacing
the coolant, refer to the following table.

6
DO-IT-YOURSELF MAINTENANCE
9

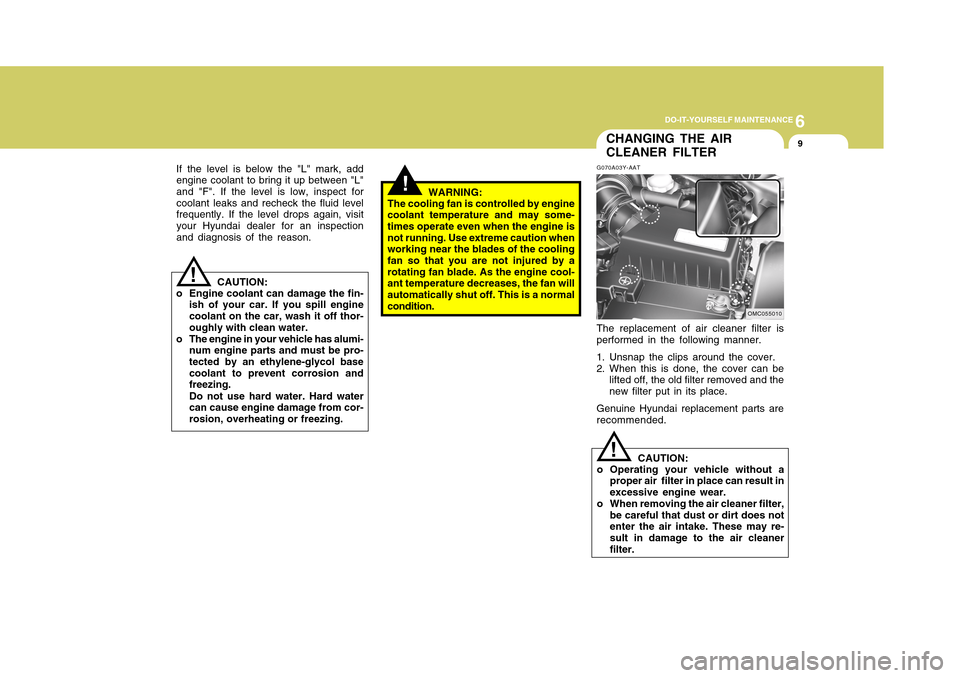

G070A03Y-AATThe replacement of air cleaner filter is
performed in the following manner.
1. Unsnap the clips around the cover.
2. When this is done, the cover can be
lifted off, the old filter removed and the
new filter put in its place.
Genuine Hyundai replacement parts are
recommended.CHANGING THE AIR
CLEANER FILTER
OMC055010
!
WARNING:
The cooling fan is controlled by engine
coolant temperature and may some-
times operate even when the engine is
not running. Use extreme caution when
working near the blades of the cooling
fan so that you are not injured by a
rotating fan blade. As the engine cool-
ant temperature decreases, the fan will
automatically shut off. This is a normal
condition. CAUTION:
o Engine coolant can damage the fin-
ish of your car. If you spill engine
coolant on the car, wash it off thor-
oughly with clean water.
o The engine in your vehicle has alumi-
num engine parts and must be pro-
tected by an ethylene-glycol base
coolant to prevent corrosion and
freezing.
Do not use hard water. Hard water
can cause engine damage from cor-
rosion, overheating or freezing.
!
CAUTION:
o Operating your vehicle without a
proper air filter in place can result in
excessive engine wear.
o When removing the air cleaner filter,
be careful that dust or dirt does not
enter the air intake. These may re-
sult in damage to the air cleaner
filter.
!
If the level is below the "L" mark, add
engine coolant to bring it up between "L"
and "F". If the level is low, inspect for
coolant leaks and recheck the fluid level
frequently. If the level drops again, visit
your Hyundai dealer for an inspection
and diagnosis of the reason.

6
DO-IT-YOURSELF MAINTENANCE
10
WINDSHIELD WIPER
BLADESG080A02A-AATThe wiper blades should be carefully
inspected from time to time and cleaned
to remove accumulations of road film or
other debris. To clean the wiper blades
and arms, use a clean sponge or cloth
with a mild soap or detergent and water.
If the wipers continue to streak or smear
the glass, replace them with genuine
Hyundai replacement parts or their
equivalent.
CAUTION:
o Do not operate the wipers on dry
glass. This can result in more rapid
wear of the wiper blades and may
scratch the glass.
o Keep the blade rubber out of contact
with petroleum products such as
engine oil, gasoline, etc.
!
2. Raise the wiper blade lightly and pull
up it.
HHR5049
G080B01HR-GATReplacing the Wiper BladesTo replace the wiper blades, raise the
wiper to the vertical.To remove the wiper blade1. Push down the wiper blade with the
locking clip (1) pressed to detach it
from the wiper arm.
HHR5048
(1)

6

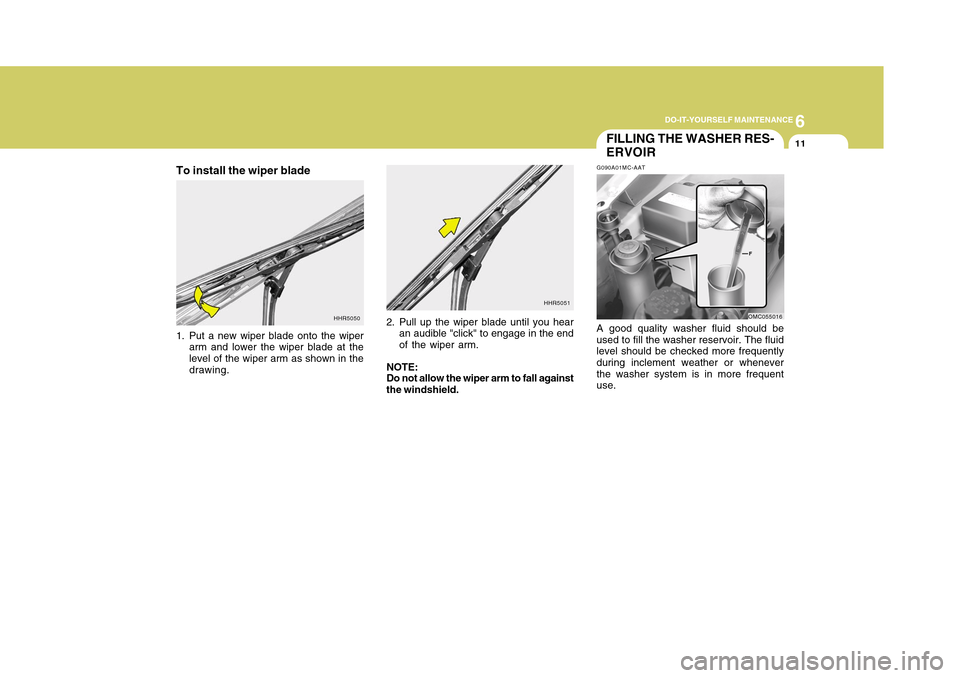

DO-IT-YOURSELF MAINTENANCE
11
FILLING THE WASHER RES-
ERVOIRG090A01MC-AATA good quality washer fluid should be
used to fill the washer reservoir. The fluid
level should be checked more frequently
during inclement weather or whenever
the washer system is in more frequent
use.
OMC055016
1. Put a new wiper blade onto the wiper
arm and lower the wiper blade at the
level of the wiper arm as shown in the
drawing.To install the wiper blade
HHR5050
2. Pull up the wiper blade until you hear
an audible "click" to engage in the end
of the wiper arm.
NOTE:
Do not allow the wiper arm to fall against
the windshield.
HHR5051

6

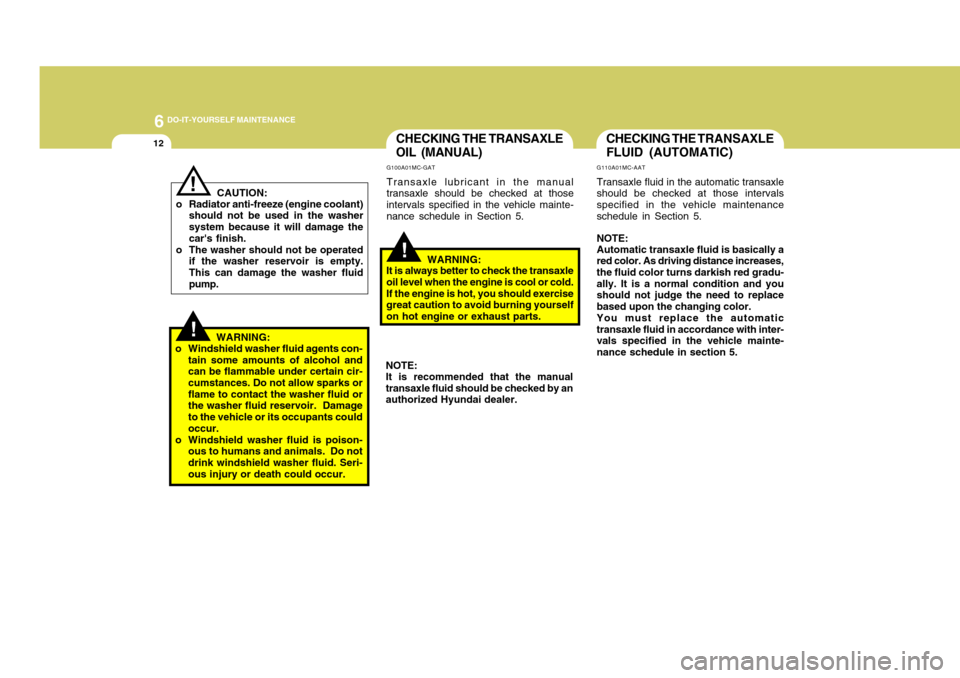

DO-IT-YOURSELF MAINTENANCE
12
!
G100A01MC-GATTransaxle lubricant in the manual
transaxle should be checked at those
intervals specified in the vehicle mainte-
nance schedule in Section 5.
!CHECKING THE TRANSAXLE
OIL (MANUAL)
!
CAUTION:
o Radiator anti-freeze (engine coolant)
should not be used in the washer
system because it will damage the
car's finish.
o The washer should not be operated
if the washer reservoir is empty.
This can damage the washer fluid
pump.WARNING:
It is always better to check the transaxle
oil level when the engine is cool or cold.
If the engine is hot, you should exercise
great caution to avoid burning yourself
on hot engine or exhaust parts.
WARNING:
o Windshield washer fluid agents con-
tain some amounts of alcohol and
can be flammable under certain cir-
cumstances. Do not allow sparks or
flame to contact the washer fluid or
the washer fluid reservoir. Damage
to the vehicle or its occupants could
occur.
o Windshield washer fluid is poison-
ous to humans and animals. Do not
drink windshield washer fluid. Seri-
ous injury or death could occur.NOTE:
It is recommended that the manual
transaxle fluid should be checked by an
authorized Hyundai dealer.
G110A01MC-AATTransaxle fluid in the automatic transaxle
should be checked at those intervals
specified in the vehicle maintenance
schedule in Section 5.
NOTE:
Automatic transaxle fluid is basically a
red color. As driving distance increases,
the fluid color turns darkish red gradu-
ally. It is a normal condition and you
should not judge the need to replace
based upon the changing color.
You must replace the automatic
transaxle fluid in accordance with inter-
vals specified in the vehicle mainte-
nance schedule in section 5.CHECKING THE TRANSAXLE
FLUID (AUTOMATIC)
