Hyundai Accent 2017 Owner's Manual

4-47
Features of your vehicle

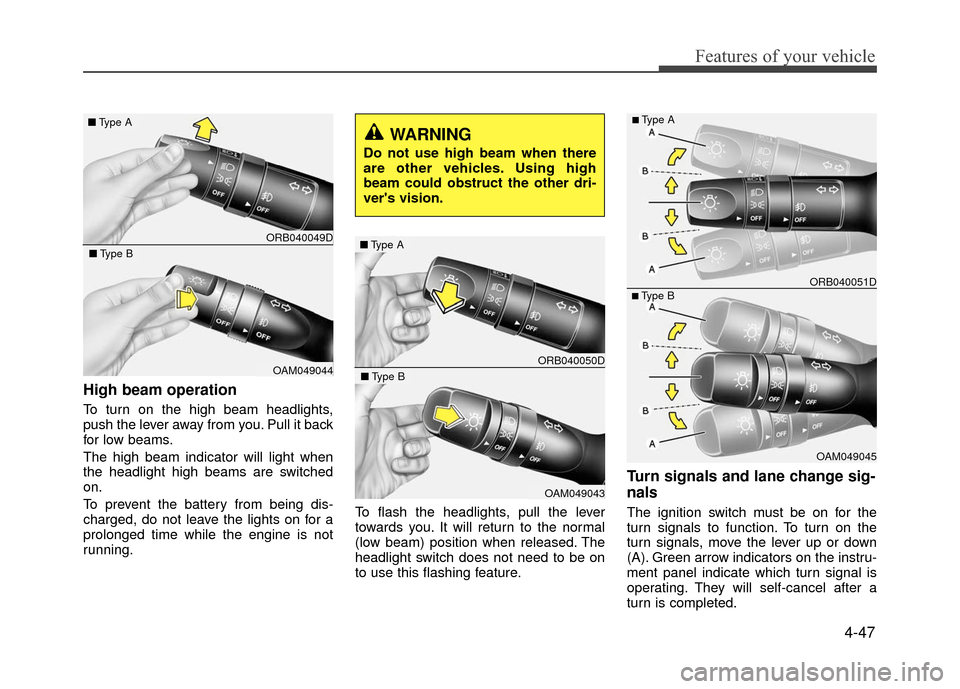

High beam operation
To turn on the high beam headlights,
push the lever away from you. Pull it back
for low beams.
The high beam indicator will light when
the headlight high beams are switched
on.
To prevent the battery from being dis-
charged, do not leave the lights on for a
prolonged time while the engine is not
running.To flash the headlights, pull the lever
towards you. It will return to the normal
(low beam) position when released. The
headlight switch does not need to be on
to use this flashing feature.
Turn signals and lane change sig-
nals
The ignition switch must be on for the
turn signals to function. To turn on the
turn signals, move the lever up or down
(A). Green arrow indicators on the instru-
ment panel indicate which turn signal is
operating. They will self-cancel after a
turn is completed.
ORB040049D
■
Type A
OAM049044
■Type B
WARNING
Do not use high beam when there
are other vehicles. Using high
beam could obstruct the other dri-
ver's vision.
ORB040050D
■Type A
OAM049043
■Type B
OAM049045
■Type B ORB040051D
■Type A

Features of your vehicle
4-48
If the indicator continues to flash after a
turn, manually return the lever to the OFF
position.
To signal a lane change, move the turn
signal lever slightly and hold it in position
(B). The lever will return to the OFF posi-
tion when released.
If an indicator stays on and does not
flash or if it flashes abnormally, one of the
turn signal bulbs may be burned out and
will require replacement.
One-touch lane change function
To activate an one-touch lane change
function, move the turn signal lever
slightly and then release it. The lane
change signals will blink 3 times.
✽ ✽NOTICE
If an indicator flash is abnormally quick
or slow, a bulb may be burned out or
have a poor electrical connection in the
circuit.
Front fog light (if equipped)
Fog lights are used to help provide
improved visibility when visibility is poor
due to fog, rain or snow etc. The fog lights
will turn on when fog light switch (1) is
turned to ON after the headlights are
turned on.
To turn off the fog lights, turn the switch
to OFF.
CAUTION
When in operation, the fog lights
consume large amounts of vehicleelectrical power. Only use the fog lights when visibility is poor orunnecessary battery and generatordrain could occur.
ORB040052D
■ Type A
OAM049046N
■Type B

4-49
Features of your vehicle
WIPERS AND WASHERS
A : Wiper speed control· MIST – Single wipe
· OFF – Off
· INT – Intermittent wipe (if equipped)
· LO – Low wiper speed
· HI – High wiper speed
B : Intermittent wipe time adjustment (if equipped)
C : Wash with brief wipes (front) (if equipped)
ORBC040054E
ORB044054
OAM049100L
■4 Door


OTA040053
ORB044368
OAM049100N


■5 Door

Features of your vehicle
4-50
D : Rear wiper/washer control· – Wash with brief wipes
· ON – Continuous wipe
· INT – Intermittent wipe
· OFF – Off
E : Wash with brief wipes
Windshield wipers
Operates as follows when the ignition
switch is turned ON.
MIST : For a single wiping cycle, push the lever upward and release it with
the lever in the OFF position. The
wipers will operate continuously if
the lever is pushed upward and
held.
OFF : Wiper is not in operation
INT (if equipped) : Wiper operates intermittently atthe same wiping intervals. Use
this mode in a light rain or mist. To
vary the speed setting, turn the
speed control knob (1).
LO : Normal wiper speed
HI : Fast wiper speed
✽ ✽ NOTICE
If there is heavy accumulation of snow
or ice on the windshield, defrost the
windshield for about 10 minutes, or
until the snow and/or ice is removed
before using the windshield wipers to
ensure proper operation.OAM049048N
ORB044369
■5 Door


CAUTION
When starting the vehicle in winter, set the wiper switch in the OFFposition. Otherwise, wipers may operate and ice may damage thewindshield wiper blades. Alwaysremove all snow and ice and defrost the windshield properly prior tooperating the windshield wipers.

4-51
Features of your vehicle
ORB045377ORB045375
■4 Door

■5 Door

Windshield washers
To use the windshield washer, pull the lever gently toward you in the OFF position.
- Type A, Type C: The washer fluid will spray on the windshield and the wipers will operate 1~3 cycles.
- Type B: The washer fluid will spray on the windshield but the wipers will not operate.
Use this function when the windshield is dirty.
The spray operation will continue until you release the lever.
If the washer does not work, check the washer fluid level. If the fluid level is not suffi-
cient, you will need to add appropriate non-abrasive windshield washer fluid to the
washer reservoir.
The reservoir filler neck is located in the front of the engine compartment on the pas-
senger side.
WARNING
Do not use the washer in freezing
temperatures without first warming
the windshield with the defrosters;
the washer solution could freeze on
contact with the windshield and
obscure your vision.
CAUTION
To prevent possible damage to the washer pump, do not operate thewasher when the fluid reservoir is empty.

Features of your vehicle
4-52

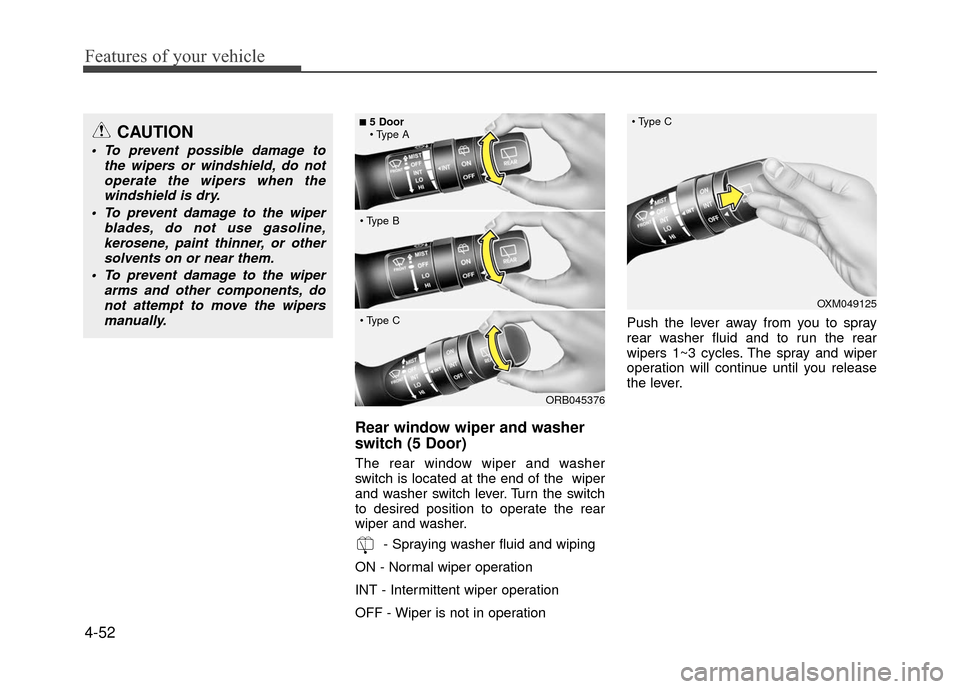

Rear window wiper and washer
switch (5 Door)
The rear window wiper and washer
switch is located at the end of the wiper
and washer switch lever. Turn the switch
to desired position to operate the rear
wiper and washer.- Spraying washer fluid and wiping
ON - Normal wiper operation
INT - Intermittent wiper operation
OFF - Wiper is not in operation Push the lever away from you to spray
rear washer fluid and to run the rear
wipers 1~3 cycles. The spray and wiper
operation will continue until you release
the lever.
ORB045376
■5 Door



OXM049125

CAUTION
To prevent possible damage to
the wipers or windshield, do notoperate the wipers when thewindshield is dry.
To prevent damage to the wiper blades, do not use gasoline,kerosene, paint thinner, or other solvents on or near them.
To prevent damage to the wiper arms and other components, donot attempt to move the wipersmanually.

4-53
Features of your vehicle
Automatic turn off function
(if equipped)
The interior lights automatically turn off
approximately 20 minutes after the igni-
tion switch is turned off.
Map lamp
Push the lens (1) to turn the map lamp on
or off. This light produces a spot beam for
convenient use as a map lamp at night or
as a personal lamp for the driver and the
front passenger.

In the DOOR position, the map lamp and
the room lamp come on when any door is
opened regardless of the ignition switch
position.
When doors are unlocked by the trans-
mitter, the map lamp and the room lamp
come on for approximately 30 seconds
as long as any door is not open. The map
lamp and the room lamp goes out gradu-
ally after approximately 30 seconds if the
door is closed.However, if the ignition switch is ON or all
doors are locked, the map lamp and the
room lamp will turn off immediately. If a
door is opened with the ignition switch in
the ACC or LOCK position, the map lamp
and the room lamp stay on for about 20
minutes. However, if a door is opened
with the ignition switch in the ON posi-
tion, the map lamp and the room lamp
stay on continuously.

Map lamp and room lamp stay on at all
times.

The lights turn off even if a door is
opened.
❈
When the lamp is turned ON by press-
ing the lens (1) the lamp does not turn
off even if the switch (2) is in the OFF
position.
INTERIOR LIGHT
ORB040057
WARNING
Do not use the interior lights when
driving in the dark. Accidents could
happen because the view may be
obscured by interior lights.
CAUTION
Do not use the interior lights for
extended periods when the engineis not running.
It may cause battery discharge.

Features of your vehicle
4-54

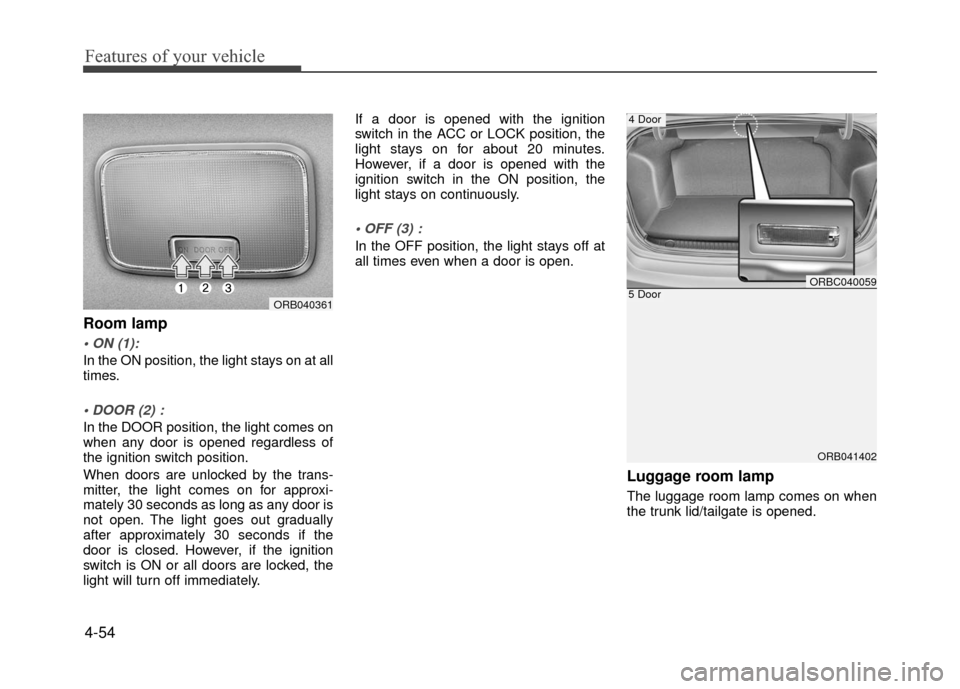

Room lamp

In the ON position, the light stays on at all
times.

In the DOOR position, the light comes on
when any door is opened regardless of
the ignition switch position.
When doors are unlocked by the trans-
mitter, the light comes on for approxi-
mately 30 seconds as long as any door is
not open. The light goes out gradually
after approximately 30 seconds if the
door is closed. However, if the ignition
switch is ON or all doors are locked, the
light will turn off immediately.If a door is opened with the ignition
switch in the ACC or LOCK position, the
light stays on for about 20 minutes.
However, if a door is opened with the
ignition switch in the ON position, the
light stays on continuously.

In the OFF position, the light stays off at
all times even when a door is open.
Luggage room lamp
The luggage room lamp comes on when
the trunk lid/tailgate is opened.
ORB041402
5 DoorORBC040059
4 Door
ORB040361

4-55
Features of your vehicle
✽
✽NOTICE
If you want to defrost and defog the
front windshield, refer to "Windshield
defrosting and defogging" in this sec-
tion.
Rear window defroster
The defroster heats the window to
remove frost, fog and thin ice from the
rear window, while the engine is running.
To activate the rear window defroster,
press the rear window defroster button
located in the center facia switch panel.
The indicator on the rear window
defroster button illuminates when the
defroster is ON.
If there is heavy accumulation of snow on
the rear window, brush it off before oper-
ating the rear defroster.
The rear window defroster automatically
turns off after approximately 20 minutes
or when the ignition switch is turned off.
To turn off the defroster, press the rear
window defroster button again.
Side view mirror defroster
(if equipped)
If your vehicle is equipped with the side
view mirror defrosters, they will operate
at the same time you turn on the rear
window defroster.
CAUTION
To prevent damage to the conduc-tors bonded to the inside surface ofthe rear window, never use sharpinstruments or window cleanerscontaining abrasives to clean the window.
ORB040063L
CAUTION
The luggage room lamp comes onas long as the trunk lid/tailgateopens. To prevent unnecessarycharging system drain, close thetrunk lid/tailgate securely after using the luggage room.
DEFROSTER

Features of your vehicle
4-56
MANUAL CLIMATE CONTROL SYSTEM
1. Temperature control knob
2. Fan speed control knob
3. Air conditioning button
4. Air intake control button
5. Mode selection knob
ORB040065N
