FEATURES OF YOUR HYUNDAI
47
!

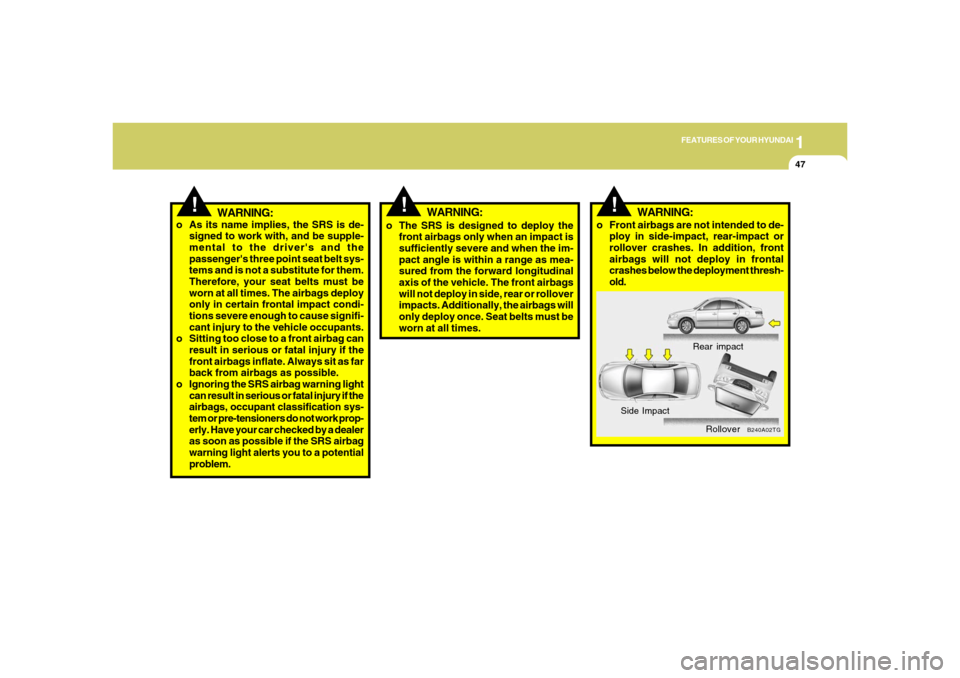

WARNING:
B240A02TG
Rear impact
Side Impact
Rollover
!
WARNING:
o The SRS is designed to deploy the
front airbags only when an impact is
sufficiently severe and when the im-
pact angle is within a range as mea-
sured from the forward longitudinal
axis of the vehicle. The front airbags
will not deploy in side, rear or rollover
impacts. Additionally, the airbags will
only deploy once. Seat belts must be
worn at all times.
!
WARNING:
o As its name implies, the SRS is de-
signed to work with, and be supple-
mental to the driver's and the
passenger's three point seat belt sys-
tems and is not a substitute for them.
Therefore, your seat belts must be
worn at all times. The airbags deploy
only in certain frontal impact condi-
tions severe enough to cause signifi-
cant injury to the vehicle occupants.
o Sitting too close to a front airbag can
result in serious or fatal injury if the
front airbags inflate. Always sit as far
back from airbags as possible.
o Ignoring the SRS airbag warning light
can result in serious or fatal injury if the
airbags, occupant classification sys-
tem or pre-tensioners do not work prop-
erly. Have your car checked by a dealer
as soon as possible if the SRS airbag
warning light alerts you to a potential
problem.o Front airbags are not intended to de-
ploy in side-impact, rear-impact or
rollover crashes. In addition, front
airbags will not deploy in frontal
crashes below the deployment thresh-
old.

1FEATURES OF YOUR HYUNDAI48
!
!

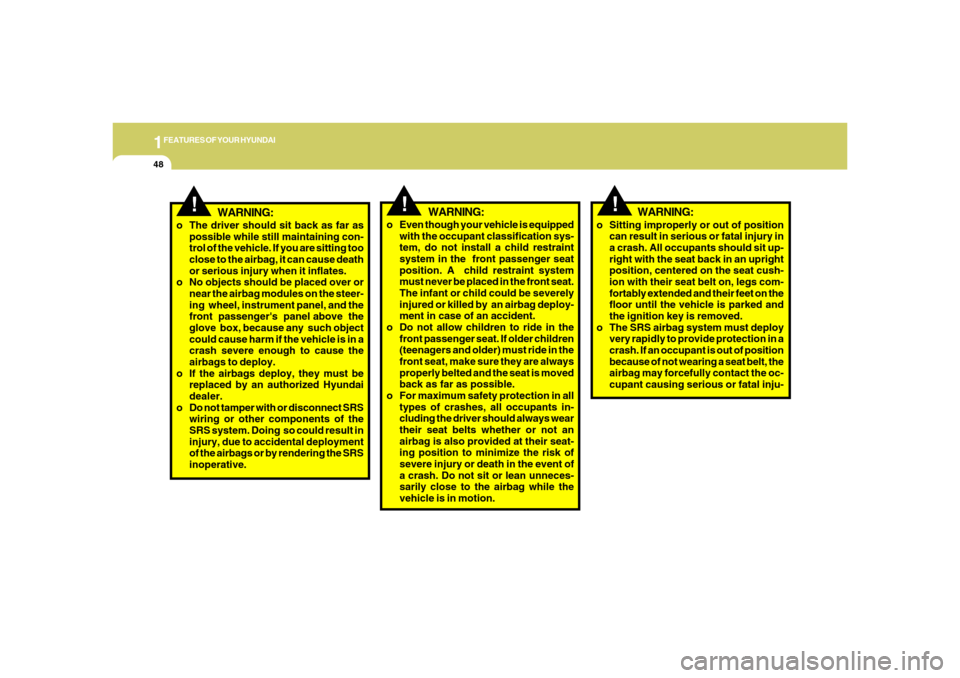

WARNING:
o The driver should sit back as far as
possible while still maintaining con-
trol of the vehicle. If you are sitting too
close to the airbag, it can cause death
or serious injury when it inflates.
o No objects should be placed over or
near the airbag modules on the steer-
ing wheel, instrument panel, and the
front passenger's panel above the
glove box, because any such object
could cause harm if the vehicle is in a
crash severe enough to cause the
airbags to deploy.
o If the airbags deploy, they must be
replaced by an authorized Hyundai
dealer.
o Do not tamper with or disconnect SRS
wiring or other components of the
SRS system. Doing so could result in
injury, due to accidental deployment
of the airbags or by rendering the SRS
inoperative.

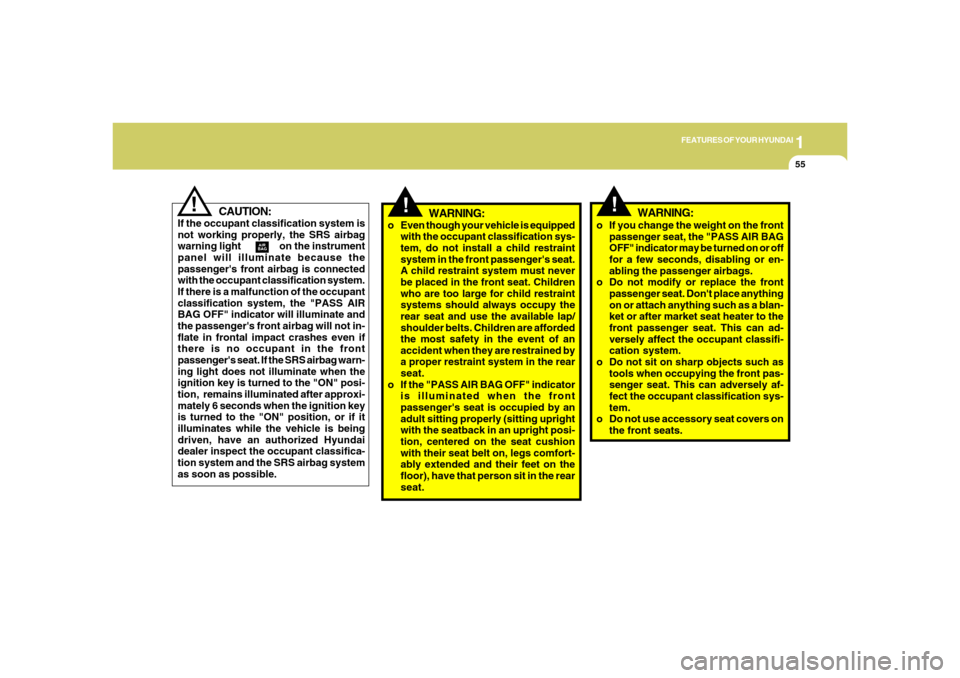

o Even though your vehicle is equipped
with the occupant classification sys-
tem, do not install a child restraint
system in the front passenger seat
position. A child restraint system
must never be placed in the front seat.
The infant or child could be severely
injured or killed by an airbag deploy-
ment in case of an accident.
o Do not allow children to ride in the
front passenger seat. If older children
(teenagers and older) must ride in the
front seat, make sure they are always
properly belted and the seat is moved
back as far as possible.
o For maximum safety protection in all
types of crashes, all occupants in-
cluding the driver should always wear
their seat belts whether or not an
airbag is also provided at their seat-
ing position to minimize the risk of
severe injury or death in the event of
a crash. Do not sit or lean unneces-
sarily close to the airbag while the
vehicle is in motion.
!
WARNING:
o Sitting improperly or out of position
can result in serious or fatal injury in
a crash. All occupants should sit up-
right with the seat back in an upright
position, centered on the seat cush-
ion with their seat belt on, legs com-
fortably extended and their feet on the
floor until the vehicle is parked and
the ignition key is removed.
o The SRS airbag system must deploy
very rapidly to provide protection in a
crash. If an occupant is out of position
because of not wearing a seat belt, the
airbag may forcefully contact the oc-
cupant causing serious or fatal inju-
WARNING:

1
FEATURES OF YOUR HYUNDAI
49

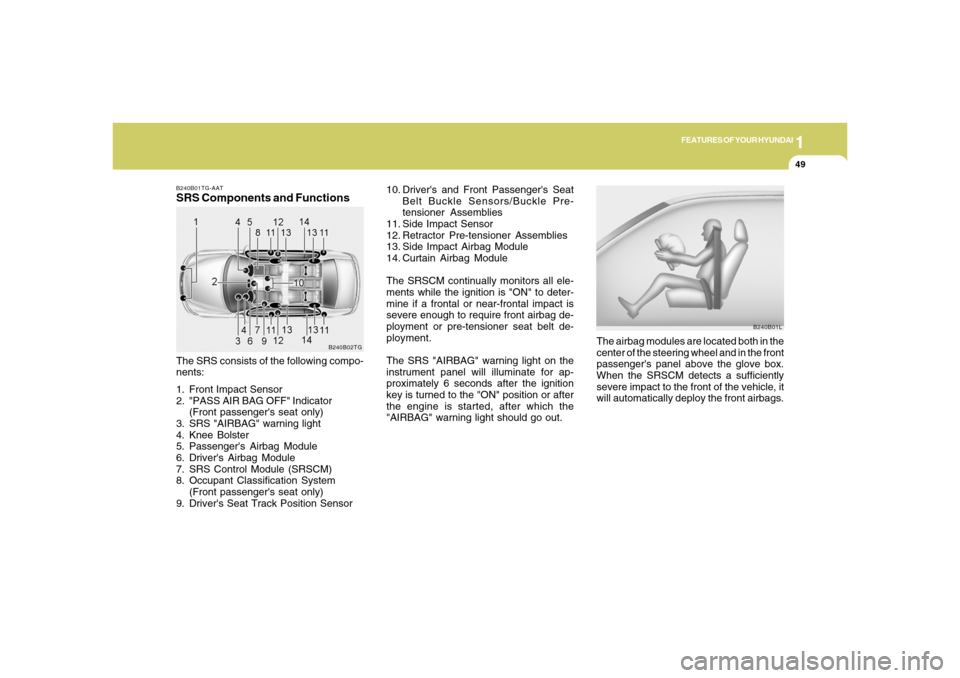

10. Driver's and Front Passenger's Seat
Belt Buckle Sensors/Buckle Pre-
tensioner Assemblies
11. Side Impact Sensor
12. Retractor Pre-tensioner Assemblies
13. Side Impact Airbag Module
14. Curtain Airbag Module
The SRSCM continually monitors all ele-
ments while the ignition is "ON" to deter-
mine if a frontal or near-frontal impact is
severe enough to require front airbag de-
ployment or pre-tensioner seat belt de-
ployment.
The SRS "AIRBAG" warning light on the
instrument panel will illuminate for ap-
proximately 6 seconds after the ignition
key is turned to the "ON" position or after
the engine is started, after which the
"AIRBAG" warning light should go out.The airbag modules are located both in the
center of the steering wheel and in the front
passenger's panel above the glove box.
When the SRSCM detects a sufficiently
severe impact to the front of the vehicle, it
will automatically deploy the front airbags.
B240B01L
B240B01TG-AATSRS Components and FunctionsThe SRS consists of the following compo-
nents:
1. Front Impact Sensor
2. "PASS AIR BAG OFF" Indicator
(Front passenger's seat only)
3. SRS "AIRBAG" warning light
4. Knee Bolster
5. Passenger's Airbag Module
6. Driver's Airbag Module
7. SRS Control Module (SRSCM)
8. Occupant Classification System
(Front passenger's seat only)
9. Driver's Seat Track Position Sensor
B240B02TG

1FEATURES OF YOUR HYUNDAI50
B240B02L

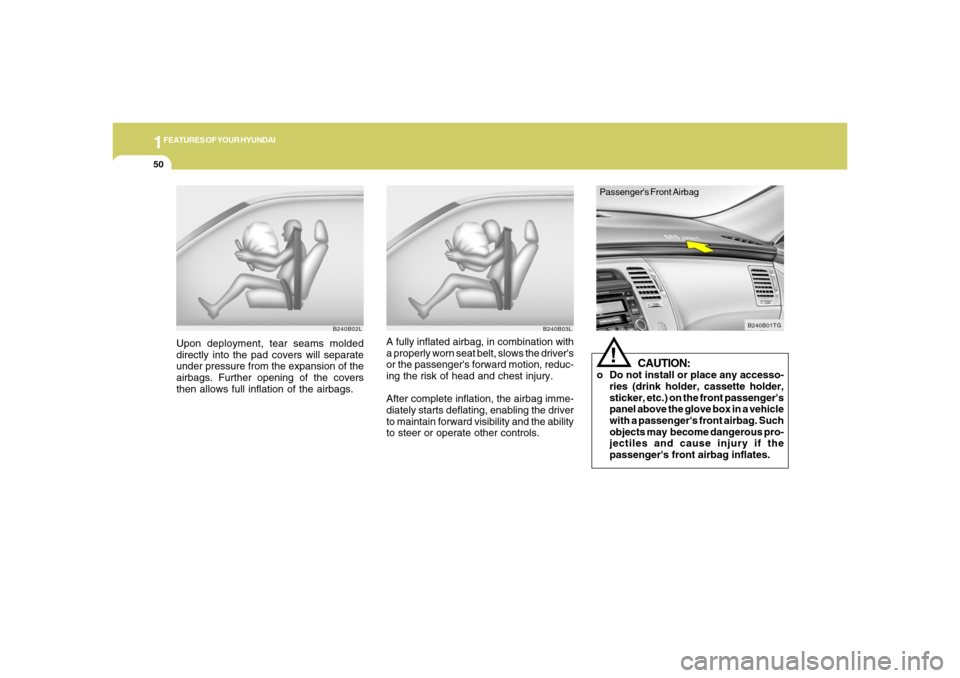

Upon deployment, tear seams molded
directly into the pad covers will separate
under pressure from the expansion of the
airbags. Further opening of the covers
then allows full inflation of the airbags.A fully inflated airbag, in combination with
a properly worn seat belt, slows the driver's
or the passenger's forward motion, reduc-
ing the risk of head and chest injury.
After complete inflation, the airbag imme-
diately starts deflating, enabling the driver
to maintain forward visibility and the ability
to steer or operate other controls.
B240B03L
Passenger's Front Airbag
CAUTION:
o Do not install or place any accesso-
ries (drink holder, cassette holder,
sticker, etc.) on the front passenger's
panel above the glove box in a vehicle
with a passenger's front airbag. Such
objects may become dangerous pro-
jectiles and cause injury if the
passenger's front airbag inflates.
!
B240B01TG

1
FEATURES OF YOUR HYUNDAI
51

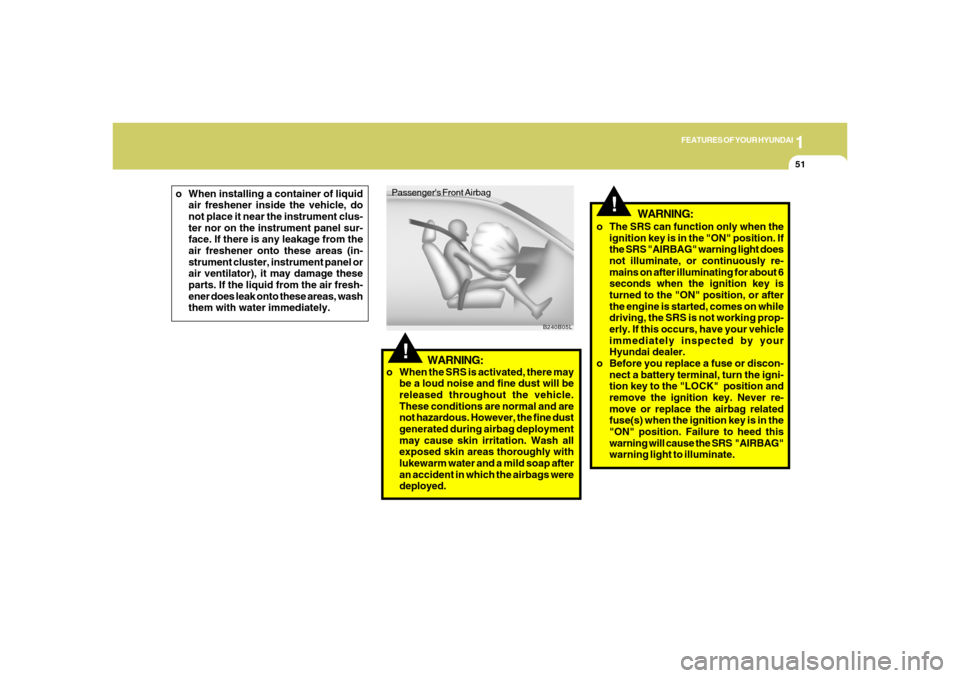

!Passenger's Front Airbag
B240B05L
!
o The SRS can function only when the
ignition key is in the "ON" position. If
the SRS "AIRBAG" warning light does
not illuminate, or continuously re-
mains on after illuminating for about 6
seconds when the ignition key is
turned to the "ON" position, or after
the engine is started, comes on while
driving, the SRS is not working prop-
erly. If this occurs, have your vehicle
immediately inspected by your
Hyundai dealer.
o Before you replace a fuse or discon-
nect a battery terminal, turn the igni-
tion key to the "LOCK" position and
remove the ignition key. Never re-
move or replace the airbag related
fuse(s) when the ignition key is in the
"ON" position. Failure to heed this
warning will cause the SRS "AIRBAG"
warning light to illuminate. o When installing a container of liquid
air freshener inside the vehicle, do
not place it near the instrument clus-
ter nor on the instrument panel sur-
face. If there is any leakage from the
air freshener onto these areas (in-
strument cluster, instrument panel or
air ventilator), it may damage these
parts. If the liquid from the air fresh-
ener does leak onto these areas, wash
them with water immediately.
WARNING:
o When the SRS is activated, there may
be a loud noise and fine dust will be
released throughout the vehicle.
These conditions are normal and are
not hazardous. However, the fine dust
generated during airbag deployment
may cause skin irritation. Wash all
exposed skin areas thoroughly with
lukewarm water and a mild soap after
an accident in which the airbags were
deployed.
WARNING:

1FEATURES OF YOUR HYUNDAI52
*1) The system judges a person of adult
size as an adult. When a smaller adult
sits in the front passenger seat, the
system may recognize him/her as a
child depending on his/her physique
and posture.
*2) Do not allow children to ride in the front
passenger seat. When a larger child
who has outgrown a child restraint
system sits in the front passenger seat,
the system may recognize him/her as
an adult depending on his/her phy-
sique or posture.
*3) Never install a child restraint system on
the front passenger seat.
B990A01TG-AATOCCUPANT CLASSIFICATION SYS-
TEMYour vehicle is equipped with an occupant
classification system in the front
passenger's seat.
The Occupant Classification system is de-
signed to detect the presence of a prop-
erly-seated front passenger and deter-
mine if the passenger's front airbag should
be enabled (may inflate) or not. The driver's
front airbag is not affected or controlled by
the Occupant Classification system.
If the front passenger seat is occupied by
a person that the system determines to be
of adult size sitting properly (sitting upright
with the seatback in an upright position,
centered on the seat cushion with their
seat belt on, legs comfortably extended
and their feet on the floor), the "PASS AIR
BAG OFF" indicator will be turned off and
the front passenger's airbag will be able to
inflate, if necessary, in frontal crashes.

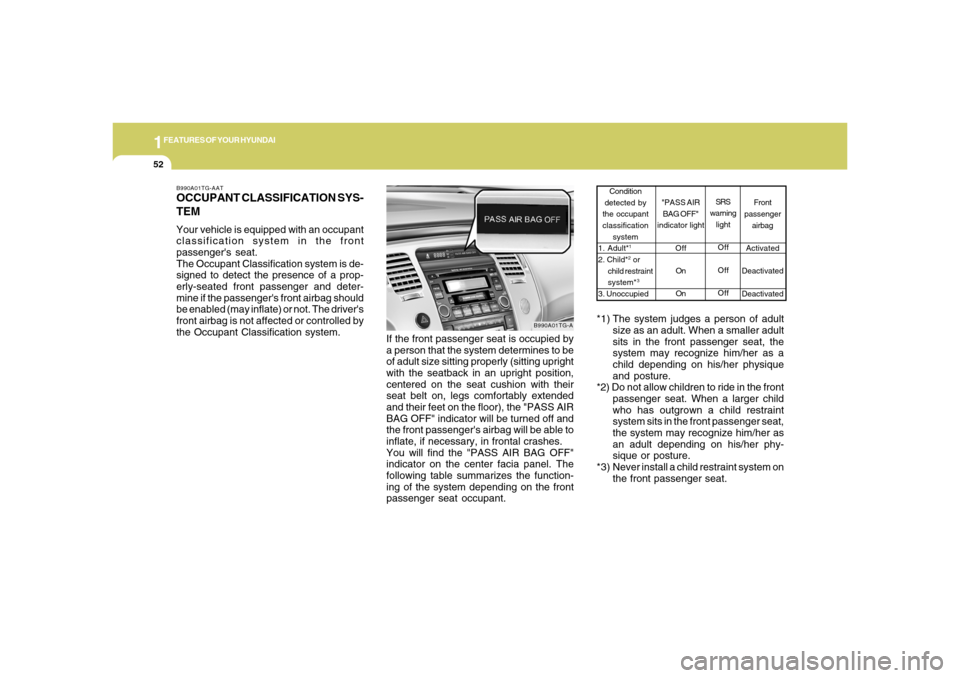

You will find the "PASS AIR BAG OFF"
indicator on the center facia panel. The
following table summarizes the function-
ing of the system depending on the front
passenger seat occupant.
B990A01TG-A
Front
passenger
airbag
Activated
Deactivated
Deactivated Condition
detected by
the occupant
classification
system
1. Adult*
1
2. Child*
2 or
child restraint
system*3
3. UnoccupiedSRS
warning
light
Off
Off
Off "PASS AIR
BAG OFF"
indicator light
Off
On
On

1
FEATURES OF YOUR HYUNDAI
53
!

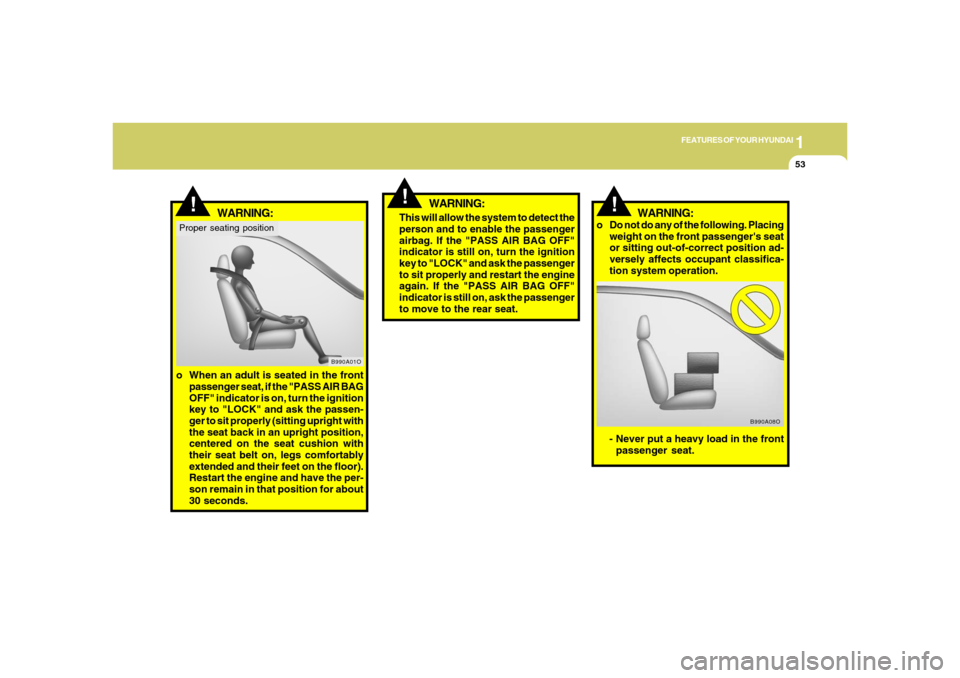

WARNING:
!
- Never put a heavy load in the front
passenger seat.
B990A08O
!
WARNING:
o Do not do any of the following. Placing
weight on the front passenger's seat
or sitting out-of-correct position ad-
versely affects occupant classifica-
tion system operation.
o When an adult is seated in the front
passenger seat, if the "PASS AIR BAG
OFF" indicator is on, turn the ignition
key to "LOCK" and ask the passen-
ger to sit properly (sitting upright with
the seat back in an upright position,
centered on the seat cushion with
their seat belt on, legs comfortably
extended and their feet on the floor).
Restart the engine and have the per-
son remain in that position for about
30 seconds.Proper seating position
B990A01O
This will allow the system to detect the
person and to enable the passenger
airbag. If the "PASS AIR BAG OFF"
indicator is still on, turn the ignition
key to "LOCK" and ask the passenger
to sit properly and restart the engine
again. If the "PASS AIR BAG OFF"
indicator is still on, ask the passenger
to move to the rear seat.
WARNING:

1FEATURES OF YOUR HYUNDAI54
NOTE:The "PASS AIR BAG OFF" indicator illu-
minates for about 4 seconds after the
ignition key is turned to the "ON" posi-
tion or after the engine is started. If the
front passenger seat is occupied, the
occupant classification sensor will then
classify the front passenger within ap-
proximately 8 seconds after the ignition
is turned on.

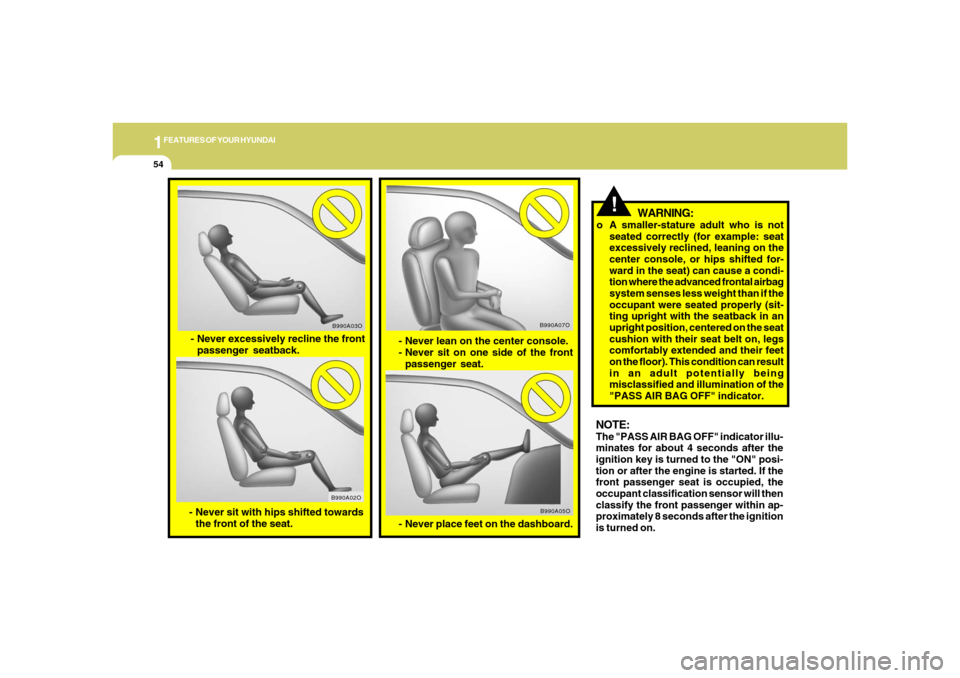

- Never lean on the center console.
- Never sit on one side of the front
passenger seat.
B990A07O
B990A05O
- Never place feet on the dashboard.
!
WARNING:
o A smaller-stature adult who is not
seated correctly (for example: seat
excessively reclined, leaning on the
center console, or hips shifted for-
ward in the seat) can cause a condi-
tion where the advanced frontal airbag
system senses less weight than if the
occupant were seated properly (sit-
ting upright with the seatback in an
upright position, centered on the seat
cushion with their seat belt on, legs
comfortably extended and their feet
on the floor). This condition can result
in an adult potentially being
misclassified and illumination of the
"PASS AIR BAG OFF" indicator.
- Never excessively recline the front
passenger seatback.
- Never sit with hips shifted towards
the front of the seat.
B990A03O
B990A02O

1
FEATURES OF YOUR HYUNDAI
55
!
CAUTION:
If the occupant classification system is
not working properly, the SRS airbag
warning light on the instrument
panel will illuminate because the
passenger's front airbag is connected
with the occupant classification system.
If there is a malfunction of the occupant
classification system, the "PASS AIR
BAG OFF" indicator will illuminate and
the passenger's front airbag will not in-
flate in frontal impact crashes even if
there is no occupant in the front
passenger's seat. If the SRS airbag warn-
ing light does not illuminate when the
ignition key is turned to the "ON" posi-
tion, remains illuminated after approxi-
mately 6 seconds when the ignition key
is turned to the "ON" position, or if it
illuminates while the vehicle is being
driven, have an authorized Hyundai
dealer inspect the occupant classifica-
tion system and the SRS airbag system
as soon as possible.
!
WARNING:
o Even though your vehicle is equipped
with the occupant classification sys-
tem, do not install a child restraint
system in the front passenger's seat.
A child restraint system must never
be placed in the front seat. Children
who are too large for child restraint
systems should always occupy the
rear seat and use the available lap/
shoulder belts. Children are afforded
the most safety in the event of an
accident when they are restrained by
a proper restraint system in the rear
seat.
o If the "PASS AIR BAG OFF" indicator
is illuminated when the front
passenger's seat is occupied by an
adult sitting properly (sitting upright
with the seatback in an upright posi-
tion, centered on the seat cushion
with their seat belt on, legs comfort-
ably extended and their feet on the
floor), have that person sit in the rear
seat.
!
WARNING:
o If you change the weight on the front
passenger seat, the "PASS AIR BAG
OFF" indicator may be turned on or off
for a few seconds, disabling or en-
abling the passenger airbags.
o Do not modify or replace the front
passenger seat. Don't place anything
on or attach anything such as a blan-
ket or after market seat heater to the
front passenger seat. This can ad-
versely affect the occupant classifi-
cation system.
o Do not sit on sharp objects such as
tools when occupying the front pas-
senger seat. This can adversely af-
fect the occupant classification sys-
tem.
o Do not use accessory seat covers on
the front seats.

1FEATURES OF YOUR HYUNDAI56
WARNING:

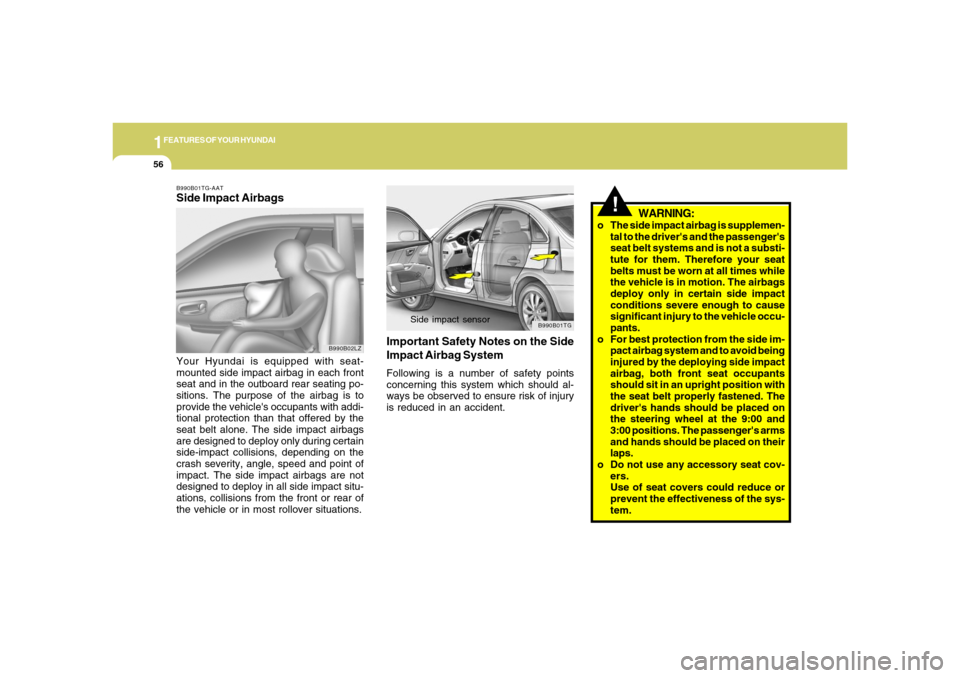

o The side impact airbag is supplemen-
tal to the driver's and the passenger's
seat belt systems and is not a substi-
tute for them. Therefore your seat
belts must be worn at all times while
the vehicle is in motion. The airbags
deploy only in certain side impact
conditions severe enough to cause
significant injury to the vehicle occu-
pants.
o For best protection from the side im-
pact airbag system and to avoid being
injured by the deploying side impact
airbag, both front seat occupants
should sit in an upright position with
the seat belt properly fastened. The
driver's hands should be placed on
the steering wheel at the 9:00 and
3:00 positions. The passenger's arms
and hands should be placed on their
laps.
o Do not use any accessory seat cov-
ers.
Use of seat covers could reduce or
prevent the effectiveness of the sys-
tem.
!
B990B01TG
Side impact sensor
Important Safety Notes on the Side
Impact Airbag SystemFollowing is a number of safety points
concerning this system which should al-
ways be observed to ensure risk of injury
is reduced in an accident.
B990B01TG-AATSide Impact AirbagsYour Hyundai is equipped with seat-
mounted side impact airbag in each front
seat and in the outboard rear seating po-
sitions. The purpose of the airbag is to
provide the vehicle's occupants with addi-
tional protection than that offered by the
seat belt alone. The side impact airbags
are designed to deploy only during certain
side-impact collisions, depending on the
crash severity, angle, speed and point of
impact. The side impact airbags are not
designed to deploy in all side impact situ-
ations, collisions from the front or rear of
the vehicle or in most rollover situations.
B990B02LZ
