Hyundai Azera 2008 Owner's Manual

1
FEATURES OF YOUR HYUNDAI
167167
CAUTION:
o Do not place beverages close to the
audio system. The playback mecha-
nism may be damaged if you spill
them.
o Do not impact on the audio system, or
the playback mechanism could be
damaged.
!
o Press this button when CD or XM is on
to automatically change to radio mode.
o If the ignition switch of the automobile is
set to ACC (1st notch) or ON (2nd notch),
the system will be turned on and auto-
matically play the radio when you press
this button even if the power of the audio
system is off.

1FEATURES OF YOUR HYUNDAI
168
M445SC01TG-AATCOMPACT DISC PLAYER OPERATION (M445S) (If Installed)
1. CD Selector
2. Disc Deck
3. LCD (Liquid Crystal Display)
4. Disc Eject Button
5. CD Indicator
6. SCAN Button
7. Search / Selection Button
8. RDM(Random) Button
9. RPT(Repeat) Button
10. Fast Forward/Rewind Button
11. Track Move (Track Up/Down) Button
12. Information Button
13. Directory Name Search Button
14. Mark / Memory Button
M445SC01TG

1
FEATURES OF YOUR HYUNDAI
169169
M445SD02TG-AAT1. CD Selectoro The system will start playing the CD
when you press this button while radio
or XM is on. (If no CD is found, the LCD
will display "NO DISC" for 3 seconds.)
o If the ignition switch of the automobile is
set to ACC (1st notch) or ON (2nd notch),
the system will be turned on and auto-
matically play the CD from the last played
part when you press this button even if
the power of the audio system is off.
(However, only when the disc is placed
inside the system)NOTE:o Do not stick paper or tape etc., on the
label side or the recording side of any
discs, as it may cause a malfunction.
o The unit cannot play a CDR (Record-
able CD) and CDRW (Rewritable CD)
that is not finalized. Please refer to the
manual of CDR/ CD-RW recorder or
CD-R/CDRW software for more infor-
mation on finalization process.
o Depending on the recording status,
some CD-Rs/CD-RWs may not be
played on this unit.o Playback of MP3 and WMA file for-
mats are supported. Load to play time
for these formats may be longer due
to the compressed nature of these
discs.
2. Disc DeckThis is the place you insert or eject the CD.
When the ignition switch of the automobile
is set to ACC (1st notch) or ON (2nd notch),
if you push the disc in, the power will be
turned on and the CD will be played. The
CD player can play both 12cm and 8cm
audio discs. If you insert a video CD or
Data CD then the LCD will display "ER-
ROR7" and it will turn to the previous mode
(radio or XM).NOTE:Make sure the printed side of the disc
faces upward when you insert the disc.3. LCD (Liquid Crystal Display)It displays the state of the song currently
played as well as the information of the
disc including the track, number, CD, RPT,
RDM, SCAN, runtime, and EQ mode
(CLASSIC, POP, ROCK, JAZZ).
4. Disc Eject ButtonPress this button to eject the disc when the
disc is in the deck. If no CD is in the deck,
LCD will display "NO DISC" for 3 seconds.
(The disc will be ejected when you press
this button even when the ignition switch
(ACC) of the automobile is set to OFF or
when the power of the audio system is off.)NOTE:Forced Eject: When you press and hold
this button for more than 3 seconds, the
disc will be ejected by all means. (Use
this function only when the disc is not
ejected in the abnormal state.)5. CD IndicatorThis indicator light will be on if the CD is
inside the deck whether the audio system
is on or off if the ignition switch of the
automobile is set to ACC (1st notch) or ON
(2nd notch). This light will go off when the
CD is ejected.

1FEATURES OF YOUR HYUNDAI
170
6. SCAN ButtonWhen you press this button, the player will
play 10 seconds of each track (LCD will
display “SCAN”). Press it again to cancel
scanning.7. Search / Selection ButtonTurn the search control to the left or right
while playing CD then the track number on
the LCD will change correspondingly.
When you find the track you want to listen
to, press the button to play the selected
song. (The search will be canceled when
you do not select the track within 5 seconds
after searching the track.)8. RDM(Random) ButtonPress this button to play the songs in ran-
dom order regardless of the order of tracks
(LCD will display “RDM”). Press it again to
cancel random play.
9. RPT ButtonThis lets you listen to the song or CD you
like repeatedly. Simply press this button
when the song or the CD you want to
repeat is played.(LCD will display “RPT”)
Press this button again to cancel repeti-
tion.10. Fast Forward/Rewind ButtonPress and hold "FF" button while the CD is
played to quickly search through the latter
part of the song and "REW", the front part.
When you release the button, the song will
be played from current position.11. Track Move (Track Up/Down) But-
tono Press [
] (Track Up) button while play-
ing CD to play from the beginning of the
next song. (If you hold this button, it will
continue to move to the next song.)
o Press [] (Track Down) button while
playing CD to move to the beginning of
the song and press again to move to the
beginning of the previous song. (If you
hold this button, it will continue to move
to the previous song.)
12. Information ButtonIf the song title is long while playing an MP3
file, press this button to scroll the song title
to the end.13. Directory Name Search ButtonPress "DIR
"(Directory Up) button while
playing an MP3 file to display the next
available folder name and "DIR
"(Direc-
tory Down) button, the previous folder name.
Find the folder you searched for and press
7 to play the songs inside the folder from
the top of the list. (If you do not take any
action after searching for the folder for 5 or
more seconds, this search will be can-
celed.)
14. Mark / Memory ButtonYou can choose only the songs you want
to listen to and play them in respective
order. (Refer to the operation method.)
Press again to cancel.

1
FEATURES OF YOUR HYUNDAI
171171
!
NOTE:o To assure proper operation of the
unit, keep the vehicle interior tem-
perature within a normal range by
using the vehicle’s air conditioning or
heating system.
o When replacing the fuse, replace it
with a fuse having the correct capac-
ity.
o The bookmarks are all erased when
the car battery is disconnected or
power off. Therefore, all data will have
to be set again if this should occur.
o This equipment is designed to be used
only in a 12 volt DC battery system
with negative ground.
o This unit is made of precision parts.
Do not attempt to disassemble or
adjust any parts.
o When driving your vehicle, be sure to
keep the volume of the unit set low
enough to allow you to hear sounds
coming from the outside.
o Do not expose this equipment (includ-
ing the speakers and tape) to water or
excessive moisture.
CAUTION:
o Do not insert warped or poor quality
discs into the CD player as damage to
the unit may occur.
o Do not insert anything like coins into
the player slot as damage to the unit
may occur.
o Do not place beverages close to the
audio system. The playback mecha-
nism may be damaged if you spill
them.
o Do not impact on the audio system, or
the playback mechanism could be
damaged.
o Driving on the off-roads or other vi-
brations may skip your compact disc.
Do not use the audio system on off-
roads as the discs could be scratched
and damaged.
o Do not grip or pull out the disc with
your hand while the disc is being pulled
into the unit by the self loading mecha-
nism. These can cause disc scratch-
ing to occur or trouble in the compact
disc player.o Avoid using home-made CD-Record-
able or CD-Rewritable discs as the
player may not operate properly. When
using the compact disc player, genu-
ine CDs are recommended.

1FEATURES OF YOUR HYUNDAI
172

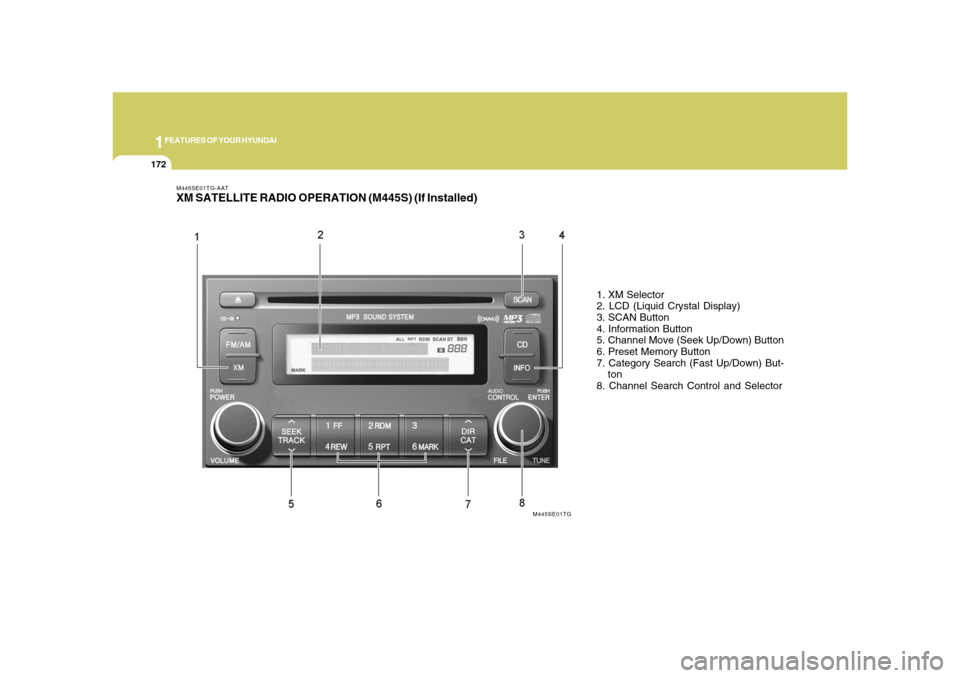

M445SE01TG-AATXM SATELLITE RADIO OPERATION (M445S) (If Installed)
1. XM Selector
2. LCD (Liquid Crystal Display)
3. SCAN Button
4. Information Button
5. Channel Move (Seek Up/Down) Button
6. Preset Memory Button
7. Category Search (Fast Up/Down) But-
ton
8. Channel Search Control and Selector
M445SE01TG

1
FEATURES OF YOUR HYUNDAI
173173
M445SF01TG-AAT1. XM Selectoro This is XM selector and it will turn to
each mode in the following order each
time you press the button.
3. SCAN ButtonWhen you press this button, the player will
play 10 seconds of each channel (LCD will
display "SCAN"). Press it again to cancel
scanning. Also, press and this button for
more than 0.8 seconds to play the chan-
nels memorized to the preset buttons for
10 seconds each. (LCD will display "corre-
sponding channel number", "

", and
"SCAN".) Press it again to cancel scan-
ning.4. Information ButtonYou can see the information of the channel
currently received and you can switch to
different information by pressing this but-
ton in the following order.
5. Channel Move (Seek Up/Down)
Buttono When you press this button, the chan-
nel will move automatically and stop at
the next available channel and play the
channel. The display will cycle once
through the Channel, Title, Name and
Category for selected channel.
(Press [
] to move to the higher fre-
quencies, press [
] to the lower fre-
quencies automatically.)
Press and hold either the down or up at
a fast rate. The display will show the
Channel, Name and Number while tun-
ing at the fast rate.
o Radio ID : Seek or tune to XM channel
0 to display the Radio ID.
6. Preset Memory ButtonPress this button and hold for less than 0.8
seconds to listen to the channel memo-
rized to the button. Also, when you are
listening to the channel other than the
channel memorized to the button using
TUNE or SEEK, press the button you wish
to memorize current channel to and hold
for more than 0.8 seconds until it beeps to
memorize the channel. o When you press this button when you
are listening to CD or RADIO, the sys-
tem will automatically turn to XM mode.
o When ignition switch of the automobile
is set to ACC (1st notch) or ON (2nd
notch) and when you press this button,
XM will be on even when the audio
system was turned off.
2. LCD (Liquid Crystal Display)It displays the XM1, XM2, XM3, Preset
Number, Title of the Channel Received,
EQ Mode (CLASSIC, POP, ROCK, JAZZ),
and SCAN Status when listening to XM.XM1 → XM2→ XM3
Title→Name→Category→Current State

1FEATURES OF YOUR HYUNDAI
174
7. Category Search ButtonPress this button to search another cat-
egory while listening to current channel
(LCD will display "CAT"). (Press [
] to
search in the higher categories and [],
lower categories. Press 8 when you want
to choose the category you want and the
system will receive the channel on the top
of the list in the selected category.)
8. Channel Search Control and Se-
lectorWhile listening to XM broadcast, rotate this
control to the right or left to search other
channels while listening to current chan-
nel.(Turn to the right to search higher
channels and left, lower channels. When
you find the channel you want, press the
button to select the channel.)NOTE:Rotate this control to right or left during
category search, the LCD will display
"" and press this button to select the
channel you want within the category
you want.
!
CAUTION:
o Do not place beverages close to the
audio system. The playback mecha-
nism may be damaged if you spill
them.
o Do not impact on the audio system, or
the playback mechanism could be
damaged.

1
FEATURES OF YOUR HYUNDAI
175175

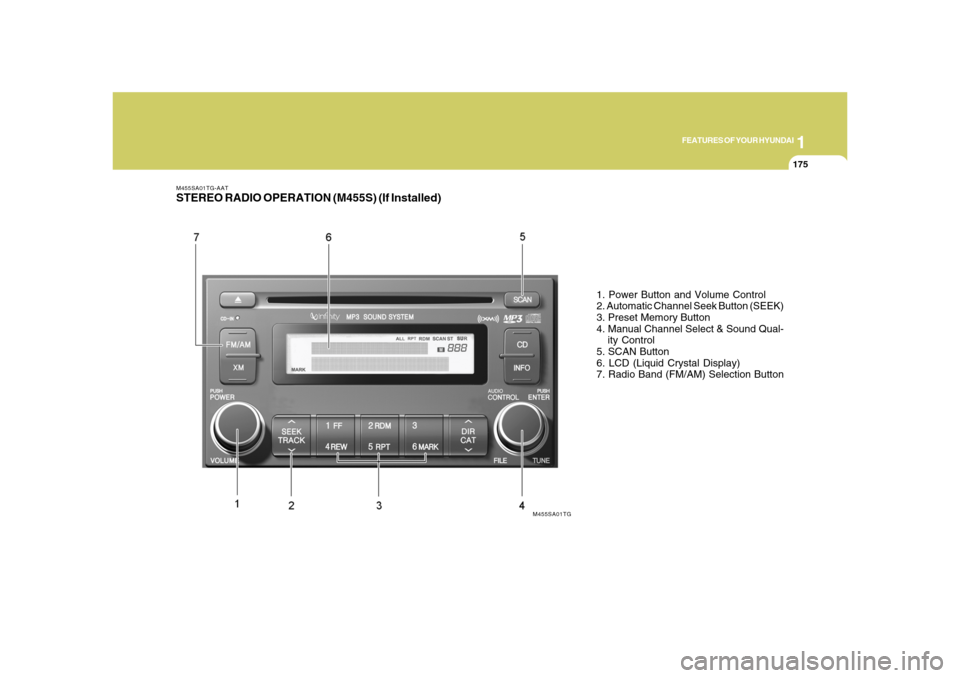

M455SA01TG-AATSTEREO RADIO OPERATION (M455S) (If Installed)
1. Power Button and Volume Control
2. Automatic Channel Seek Button (SEEK)
3. Preset Memory Button
4. Manual Channel Select & Sound Qual-
ity Control
5. SCAN Button
6. LCD (Liquid Crystal Display)
7. Radio Band (FM/AM) Selection Button
M455SA01TG

1FEATURES OF YOUR HYUNDAI
176
M455SB01TG-AAT1. Power Button and Volume Controlo Used for turning on/off the audio sys-
tem.
o Press this button when using the audio
system to turn off the power.
o Turn the volume control clockwise to
increase volume and counterclockwise,
to decrease. (The volume level is dis-
played when adjusting the volume.)2. Automatic Channel Seek Button
(SEEK)Press this button to automatically find and
tune to next available channel.
(Press [
] to automatically seek next avail-
able channel in higher frequencies and
[
] in lower frequencies.)
NOTE:If the channel is not received well, use
the manual control (4).
3. Preset Memory ButtonPress this button and hold for less than 0.8
seconds to easily listen to the channel
memorized to the button. Also, when you
are listening to the channel other than the
channel memorized to the button using
TUNE or SEEK, press the button you wish
to memorize current channel to and hold
for more than 0.8 seconds until it beeps to
memorize the channel.4. Manual Channel Select & Sound
Quality Controlo When listening to a radio channel, ro-
tate this control to manually adjust the
frequency. Turn this control to the right
to increase the frequency and left, to
decrease.
o This selects all functions related with
audio quality.
o When listening to the audio system,
press this button to select following
sound qualities in respective order.
BASS → MIDDLE → TREBLE →
FADER→BALANCE→EQUALIZER →
Current State
o Rotate the control to adjust the sound
mode when adjusting sound quality.5. SCAN ButtonPress this button to tune to all available
channels for 5 seconds each. (LCD will
display "SCAN") Press the button once
again to cancel scanning.6. LCD (Liquid Crystal Display)It displays the state of the system when
listening to the radio such as AM, FM1,
FM2, Stereo(ST), preset number, fre-
quency received, EQ mode (CLASSIC,
POP, ROCK, JAZZ) and SCAN status.7. Radio Band (FM/AM) Selection
Buttono This selects FM/AM and the radio band
will change in the following order every
time you press the button.
FM1 → FM2→ AM
