1
FEATURES OF YOUR HYUNDAI
81

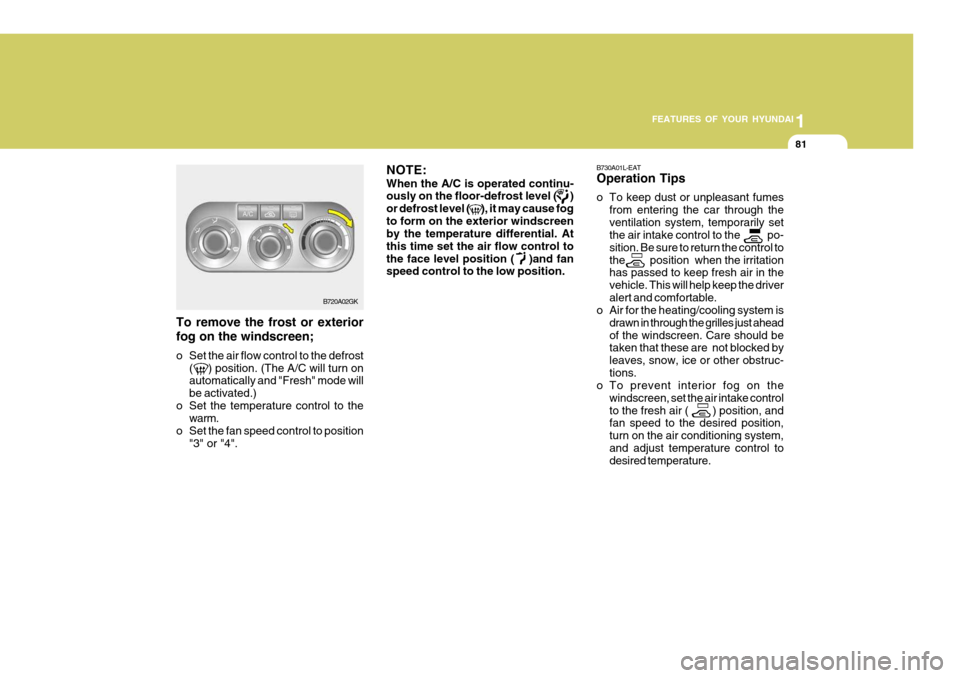

To remove the frost or exterior fog on the windscreen;
o Set the air flow control to the defrost
( ) position. (The A/C will turn on automatically and "Fresh" mode will be activated.)
o Set the temperature control to the warm.
o Set the fan speed control to position "3" or "4". NOTE: When the A/C is operated continu- ously on the floor-defrost level ( ) or defrost level ( ), it may cause fogto form on the exterior windscreen by the temperature differential. At this time set the air flow control tothe face level position ( )and fan speed control to the low position.
B730A01L-EAT Operation Tips
o To keep dust or unpleasant fumes
from entering the car through the ventilation system, temporarily set the air intake control to the po- sition. Be sure to return the control tothe position when the irritation has passed to keep fresh air in the vehicle. This will help keep the driveralert and comfortable.
o Air for the heating/cooling system is
drawn in through the grilles just aheadof the windscreen. Care should be taken that these are not blocked by leaves, snow, ice or other obstruc-tions.
o To prevent interior fog on the
windscreen, set the air intake controlto the fresh air ( ) position, and fan speed to the desired position, turn on the air conditioning system,and adjust temperature control to desired temperature.
B720A02GK
Page 262 of 389

1FEATURES OF YOUR HYUNDAI
82AIR CONDITIONING SYSTEM

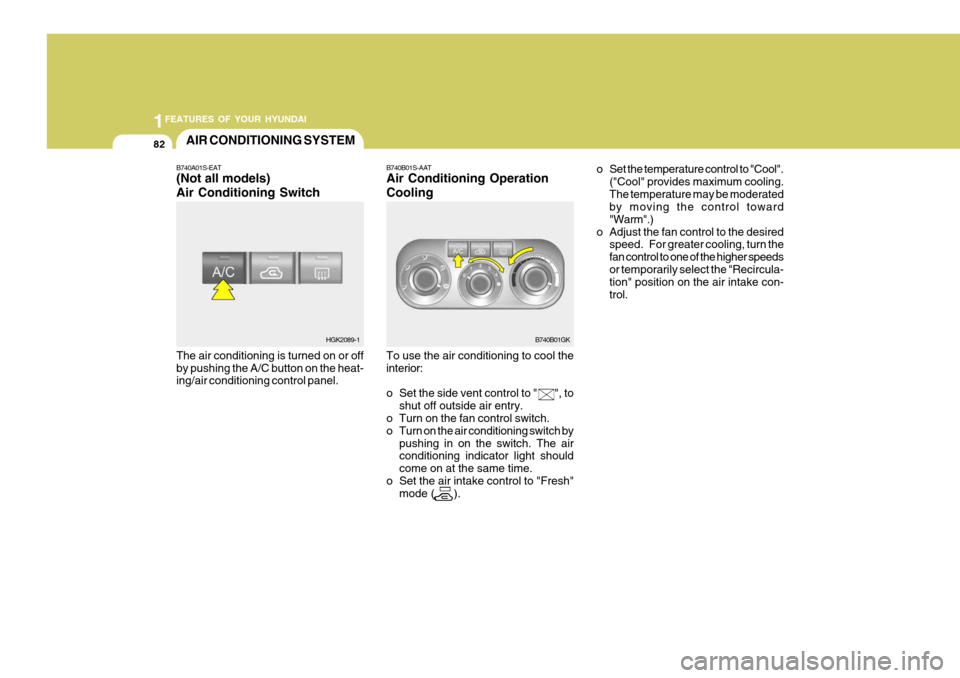

B740A01S-EAT (Not all models) Air Conditioning Switch The air conditioning is turned on or off by pushing the A/C button on the heat- ing/air conditioning control panel. B740B01S-AAT Air Conditioning Operation Cooling To use the air conditioning to cool the interior:
o Set the side vent control to " ", to
shut off outside air entry.
o Turn on the fan control switch.
o Turn on the air conditioning switch by
pushing in on the switch. The air conditioning indicator light should come on at the same time.
o Set the air intake control to "Fresh" mode ( ). o Set the temperature control to "Cool".
("Cool" provides maximum cooling.The temperature may be moderated by moving the control toward "Warm".)
o Adjust the fan control to the desired speed. For greater cooling, turn thefan control to one of the higher speedsor temporarily select the "Recircula- tion" position on the air intake con- trol.
HGK2089-1 B740B01GK
Page 263 of 389

1
FEATURES OF YOUR HYUNDAI
83

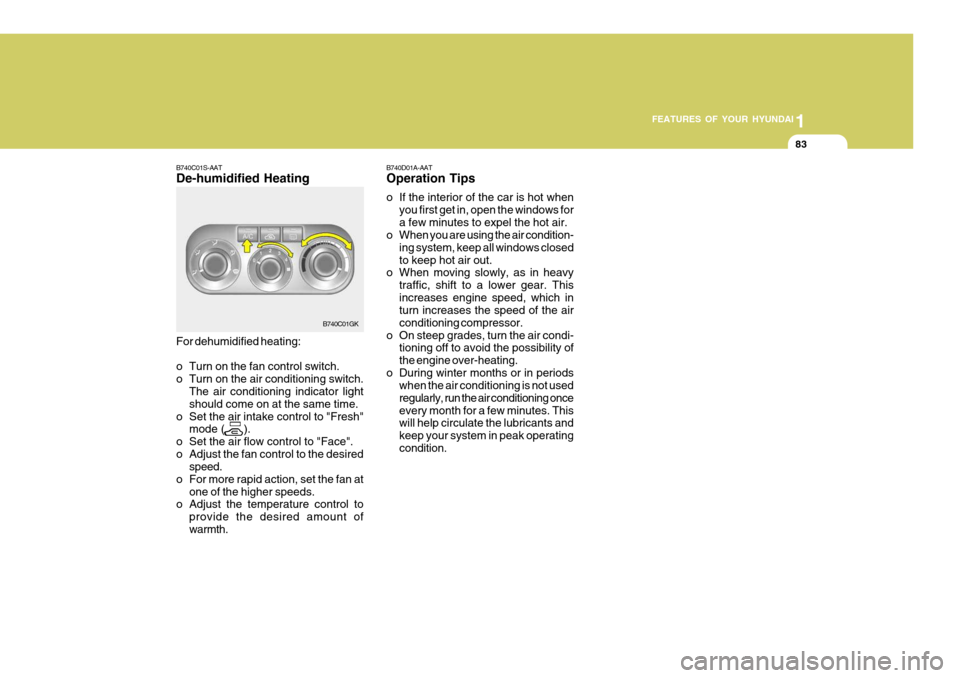

B740C01S-AAT De-humidified Heating For dehumidified heating:
o Turn on the fan control switch.
o Turn on the air conditioning switch.
The air conditioning indicator lightshould come on at the same time.
o Set the air intake control to "Fresh" mode ( ).
o Set the air flow control to "Face".
o Adjust the fan control to the desired speed.
o For more rapid action, set the fan at
one of the higher speeds.
o Adjust the temperature control to
provide the desired amount ofwarmth. B740D01A-AAT Operation Tips
o If the interior of the car is hot when
you first get in, open the windows for a few minutes to expel the hot air.
o When you are using the air condition-
ing system, keep all windows closedto keep hot air out.
o When moving slowly, as in heavy
traffic, shift to a lower gear. Thisincreases engine speed, which in turn increases the speed of the air conditioning compressor.
o On steep grades, turn the air condi- tioning off to avoid the possibility ofthe engine over-heating.
o During winter months or in periods when the air conditioning is not usedregularly, run the air conditioning onceevery month for a few minutes. This will help circulate the lubricants and keep your system in peak operatingcondition.
B740C01GK
Page 264 of 389

1FEATURES OF YOUR HYUNDAI
84AUTOMATIC HEATING AND COOLING CONTROL SYSTEM
B970A01Y-EAT (Not all models) Your Hyundai is equipped with an auto- matic heating and cooling control sys-tem controlled by simply setting the desired temperature. TYPE A (Without Air Quality System)
B970B02GK-EAT Heating and Cooling Controls
1. Temperature Control Button
2. Air Conditioning Switch
3. Display Window
4. Fan Speed Control Switch
5. Air Flow Control Switch
6. AUTO (Automatic Control)Switch
7. Defroster Switch
8. OFF Switch
9. Air lntake Control Switch
10. Ambient Temperature Switch
11. Rear Window Defroster Switch
12. Air Quality System Switch (Not all models) TYPE B (With Air Quality System)
HGK2101
HGK2102
Page 265 of 389

1
FEATURES OF YOUR HYUNDAI
85

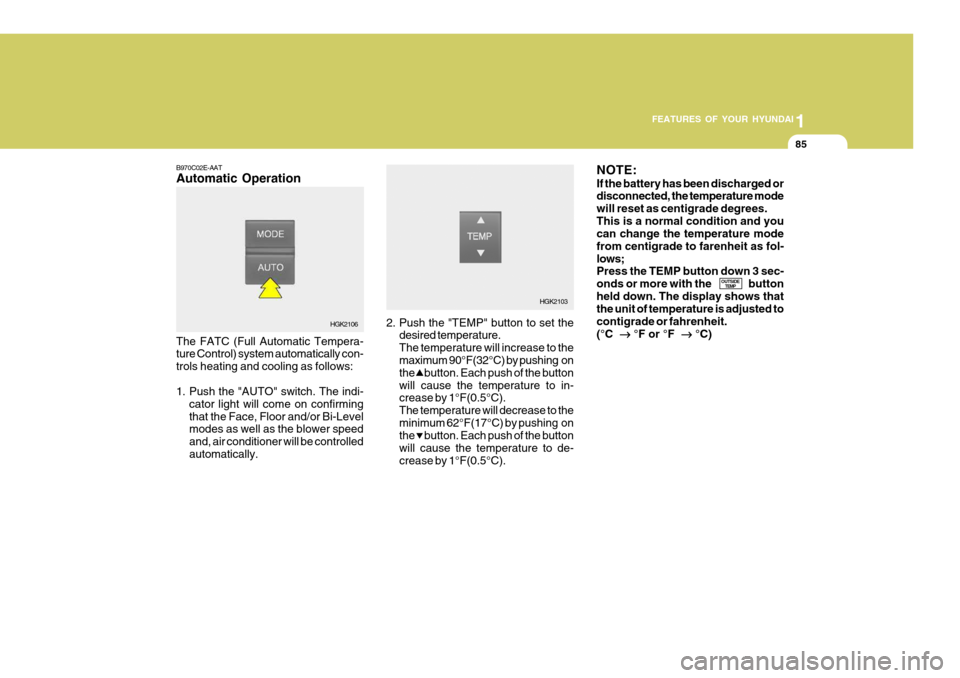

B970C02E-AAT Automatic Operation The FATC (Full Automatic Tempera- ture Control) system automatically con- trols heating and cooling as follows:
1. Push the "AUTO" switch. The indi-
cator light will come on confirming that the Face, Floor and/or Bi-Level modes as well as the blower speed and, air conditioner will be controlledautomatically. 2. Push the "TEMP" button to set the
desired temperature.The temperature will increase to the maximum 90°F(32°C) by pushing on the button. Each push of the buttonwill cause the temperature to in- crease by 1°F(0.5°C). The temperature will decrease to theminimum 62°F(17°C) by pushing on the button. Each push of the button will cause the temperature to de-crease by 1°F(0.5°C).NOTE: If the battery has been discharged or disconnected, the temperature mode will reset as centigrade degrees.This is a normal condition and you can change the temperature mode from centigrade to farenheit as fol-lows; Press the TEMP button down 3 sec- onds or more with the buttonheld down. The display shows that the unit of temperature is adjusted to contigrade or fahrenheit.(°C
°F or °F
°C)
OUTSIDE
TEMP
HGK2106 HGK2103
Page 266 of 389

1FEATURES OF YOUR HYUNDAI
86

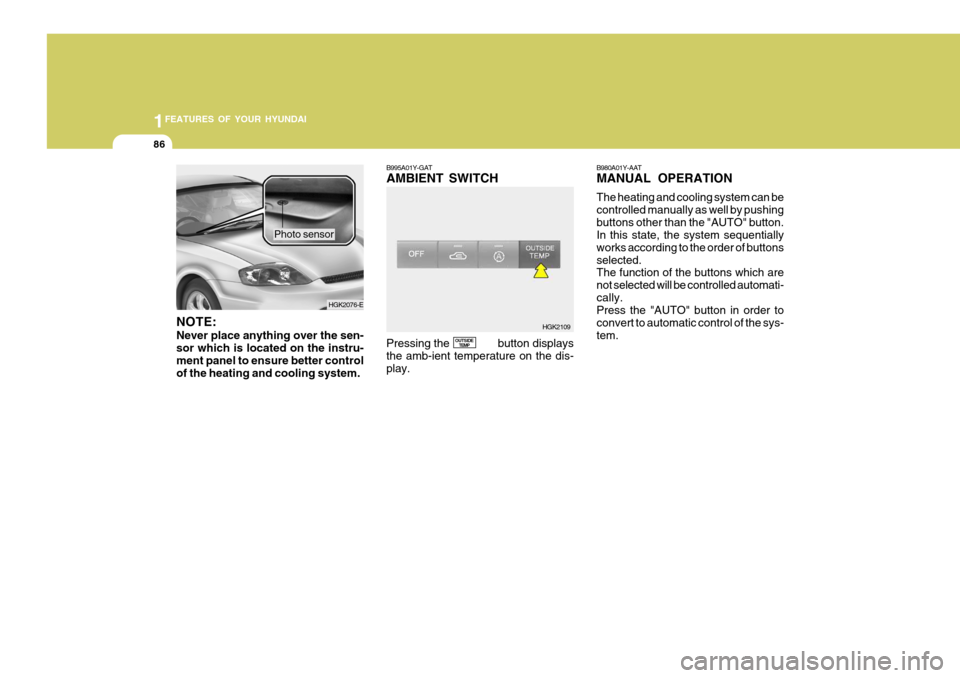

NOTE: Never place anything over the sen- sor which is located on the instru-ment panel to ensure better control of the heating and cooling system. Photo sensor
B995A01Y-GAT AMBIENT SWITCH Pressing the button displays the amb-ient temperature on the dis-play.
OUTSIDE
TEMP B980A01Y-AAT MANUAL OPERATION The heating and cooling system can be controlled manually as well by pushingbuttons other than the "AUTO" button. In this state, the system sequentially works according to the order of buttonsselected. The function of the buttons which are not selected will be controlled automati-cally. Press the "AUTO" button in order to convert to automatic control of the sys-tem.
HGK2109
HGK2076-E
Page 267 of 389

1
FEATURES OF YOUR HYUNDAI
87

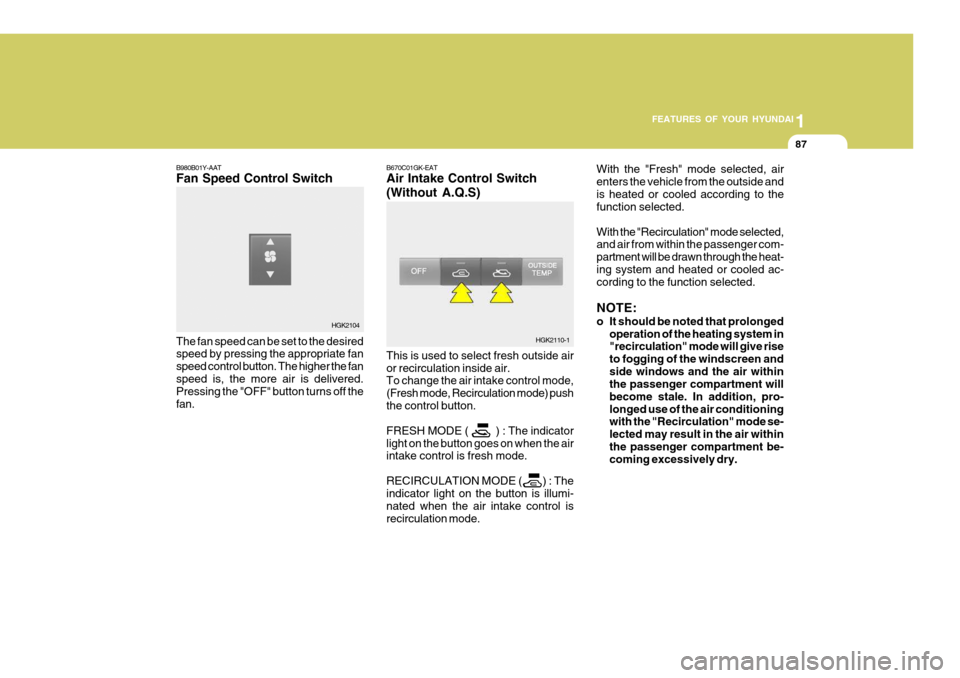

B980B01Y-AAT Fan Speed Control Switch The fan speed can be set to the desired speed by pressing the appropriate fan speed control button. The higher the fanspeed is, the more air is delivered. Pressing the "OFF" button turns off the fan. B670C01GK-EAT Air Intake Control Switch (Without A.Q.S) This is used to select fresh outside air or recirculation inside air. To change the air intake control mode, (Fresh mode, Recirculation mode) pushthe control button. FRESH MODE ( ) : The indicator light on the button goes on when the air intake control is fresh mode. RECIRCULATION MODE ( ) : The indicator light on the button is illumi- nated when the air intake control isrecirculation mode.With the "Fresh" mode selected, airenters the vehicle from the outside andis heated or cooled according to the function selected. With the "Recirculation" mode selected, and air from within the passenger com- partment will be drawn through the heat-ing system and heated or cooled ac- cording to the function selected. NOTE:
o It should be noted that prolonged
operation of the heating system in "recirculation" mode will give rise to fogging of the windscreen andside windows and the air within the passenger compartment will become stale. In addition, pro-longed use of the air conditioning with the "Recirculation" mode se- lected may result in the air withinthe passenger compartment be- coming excessively dry.
HGK2104
HGK2110-1
Page 268 of 389

1FEATURES OF YOUR HYUNDAI
88
o When the ignition switch is turned
"ON" the air intake control will change to " " mode (regardless of switch position). It is normal operation. The air intake control isoperated in "AUTO" mode when turning the ignition to the ON po- sition if the "AUTO" mode wasused before shutting off the en- gine. B980C01GK-EAT Air Intake Control Switch (With A.Q.S) (Not all models) This is used to select fresh outside air or recirculate inside air automatically.
: OFF
:ON
Fresh mode :
Air enters the vehicle from the outsideand is heated or cooled according to thefunction selected. Recirculation mode :
Air from within the passenger compart-ment will be drawn through the heatingsystem and heated or cooled according to the function selected.
Exhaust gas cutoff mode :
Air enters the vehicle from the outside. But if exhaust gas enters the vehiclefrom the outside, the exhaust gas cut- off mode ( ) is automatically converted to the mode, toprevent exhaust gas from entering the vehicle. NOTE:
o It should be noted that prolonged operation of the heating system in recirculation mode ( ) will give rise to misting of thewindscreen and side windows and the air within the passenger com- partment will become stale. Inaddition, prolonged use of the air conditioning with the recircula- tion mode ( ) selected mayresult in the air within the passen- ger compartment becoming ex- cessively dry.
HGK2110
Page 269 of 389

1
FEATURES OF YOUR HYUNDAI
89
!
o When the ignition switch is turned
"ON" the air intake control will change to "Fresh" mode (regard- less of switch position). It is nor- mal operation. The air intake con-trol is operated in "AUTO" mode when turning the ignition to the ON position if the "AUTO" modewas used before shutting off the engine.
CAUTION:
If the windows fog up with the Recir- culation or A.Q.S mode selected, setthe air intake control to the Fresh air position or A.Q.S control to "OFF". B980D01Y-AAT Heating and Cooling System Off Press the "OFF" button to stop the operation of the heating and coolingsystem. B980E01GK-EAT Air Flow Control This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windscreen. Four symbols are used to represent Face, Bi-Level,Floor and Floor-Defrost air position.
Face-Level
When selecting the "Face" mode, the indicator light will come on, causing air to be discharged through the face levelvents.
HGK2105 HGK2095-E
Page 270 of 389

1FEATURES OF YOUR HYUNDAI
90
Bi-Level

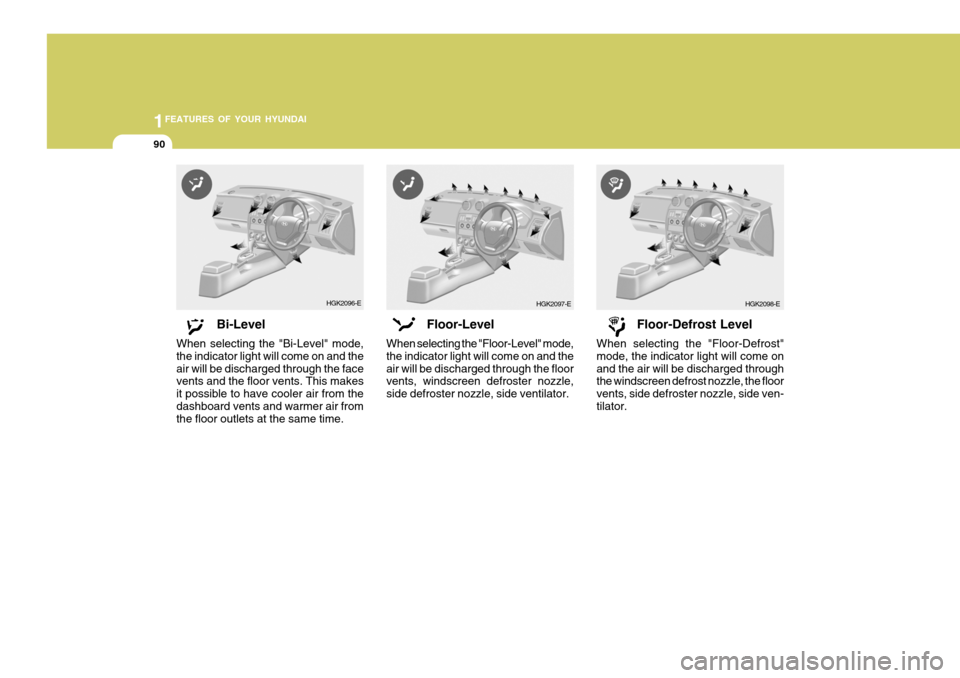

When selecting the "Bi-Level" mode, the indicator light will come on and theair will be discharged through the face vents and the floor vents. This makes it possible to have cooler air from thedashboard vents and warmer air from the floor outlets at the same time. Floor-Level
When selecting the "Floor-Level" mode, the indicator light will come on and theair will be discharged through the floor vents, windscreen defroster nozzle, side defroster nozzle, side ventilator. Floor-Defrost Level
When selecting the "Floor-Defrost"mode, the indicator light will come onand the air will be discharged through the windscreen defrost nozzle, the floor vents, side defroster nozzle, side ven-tilator.
HGK2096-E HGK2097-EHGK2098-E
