50MULTI FUNCTION SWITCH
SB220A1-E Turn Signal Operation To signal an intention to turn right, the switch lever should be pressed down.To signal an intention to turn left, the switch lever should be pushed up- wards. In both instances, the turn sig-nal lamps the instrument cluster warn- ing lamp will flash. Upon completion of the manoeuvre, the lever will, undernormal circumstances, return to the "Off" position. However, if the manoeu- vre involved only a small movement ofthe steering wheel, the signal may need to be cancelled manually. If either turn signal indicator flashes more rapidlythan normal or refuses to flash at all, a malfunction of the turn signal system may exist. SB220B1-E Lane Change Signal To indicate an intention to change lanes, moving the lever slightly to- wards the direction of the relevant turnsignal will cause the turn signal lamps to flash. When the lever is released, it will return to the "off" position. SB220C3-E LIGHTING SWITCH The vehicle sidelamps and headlamps are operated by rotating the end of the turn signal switch barrel. To operatethe sidelight, rotating the switch to the first detent with ignition switch at the "OFF" position will cause the lamps toilluminate. To operate the headlamps, the turn signal switch barrel should be rotated to the second detent. Theheadlamps will only operate when the ignition switch is at the "On" position. If the ignition switch is turned to the "Off"position, only the sidelight will func- tion.
HGK2079-E
HGK2074-E
gkfluk-1a.p65 11/21/2005, 2:56 PM
50

1
CONTROLS AND EQUIPMENT
51
NOTE: The ignition must be in the "ON" position to turn on the headlights. Side light auto cut If you do not turn the side lights "OFF" after driving, the side lights will auto-matically shut "OFF" when the driver's door is opened. To turn them "ON" again you mustsimply turn the ignition key to the "ON" position. SB220D1-E HIGH AND LOW BEAM To turn on the headlight high beams, push the lever forward (away fromyou). For low beams, pull the lever back (toward you). The appropriate headlight beam indicator light will comeon at the same time. B340G01LZ-GAT Auto Light (Not all models) To operate the automatic lamp fea- ture, turn the barrel on the end of the multi-function switch. If you set themulti-function switch to "AUTO", the tail lamps and headlamps will be turned automatically on or off according toexternal illumination.
HGK2075-ENOTE: Switch on car lamp manually in foggy, cloudy and rainy conditions. NOTE:
o Never place anything over sen-
sor located on the instrument panel, this will ensure better auto lamp system control.
o Don't clean the sensor using a window cleaner.
o If your vehicle has window tint or other types of coating on the front windscreen, the AUTO lamp system may not work properly. B340G01GK-E
Auto Light Sensor
gkfluk-1a.p65
11/21/2005, 2:56 PM
51

1CONTROLS AND EQUIPMENT
52
(2) B350B01O-EAT WINDSCREEN WASHER OPERATION To use the windscreen washer, pull the wiper/washer lever toward the steering wheel. When the washers are operated, the wipers automaticallymake two passes across the windscreen. The washer continues to operate until the lever is released.HGK2082-E
WINDSCREEN WIPER/ WASHER SWITCH
SB220E1-E HEADLIGHT FLASHER The headlight may be flashed by pull- ing the turn signal switch lever towards the steering wheel. The headlight willbe extinguished when the switch is released. B350A01A-EAT The windscreen wiper switch, depen- dent upon model, has three operatingpositions. 1. Intermittent wiper operation. 2. Low speed operation. 3. High speed operation. NOTE: To prevent damage to the wiper system, do not attempt to wipe away heavy accumulations of snow orice. Accumulated snow and ice should beremoved manually. If there is only alight layer of snow or ice, operate the heater in the defrost mode to melt the snow or ice before using the wiper.
HGK2077-E HGK2080-E
(1)
(3)
gkfluk-1a.p65 11/21/2005, 2:56 PM
52

1
CONTROLS AND EQUIPMENT
53
NOTE:
o Do not operate the washers for
more than 15 seconds continu- ously or when the fluid reservoiris empty.
o In icy or snowy weather, ensure
that the wiper blades are not fro-zen to the glass prior to operat- ing the wipers.
o In areas where water freezes in winter, use windshield washerantifreeze.
Single Sweep Operation B350C01S-AAT ADJUSTABLE INTERMITTENT WIPER OPERATION(Not all models) To use the intermittent wiper feature, place the wiper switch in the "INT" position. With the switch in this posi- tion, the interval between wipes can bevaried from 2 to 10 seconds by turning the interval adjuster barrel.
HGK2081-E
HGK2084-E
HGK2083-E
If a single wipe is desired, move the windscreen wiper and washer controllever up.B390A01E-EAT Rear Window Wiper and Washer (Not all models)
1. : The rear window wiper starts to operate three times after the washer fluid sprays onto the rear window.
2.OFF 3.INT: The interval between wipes op- erates every 5 seconds inter-mittently.
4.ON : The rear window wiper starts
to operate continuously.
5. : The washer fluid will be sprayed onto the rear window and thewiper operates whilst the rearwindow wiper barrel is placed in this position.
gkfluk-1a.p65 11/21/2005, 2:56 PM
53

1CONTROLS AND EQUIPMENT
54FOG LIGHT SWITCH
B360B01GK
B360A01GK
NOTE: Do not operate the washer continu- ously for more than 15 seconds or when the fluid reservoir is empty;this could damage the system. Do not operate the wiper when the win- dow is dry; this can result in scratch-ing as well as premature wiper blade wear. For the reason stated above,do notoperate the washer when the washer fluid reservoir is empty.
B360A01Y-DAT Rear Fog Light Switch (Not all models) To turn on the rear fog lights, push the switch. They will light when the head-light switch is in the second position and the key is in the "ON" position.
B360B01A-EAT Front Fog Light Switch
To turn on the front fog lights, push the switch. They will light when the head- light switch is in the second position and the ignition key is in the "ON"position. Type A
Type B
Type AType B
gkfluk-1a.p65 11/21/2005, 2:56 PM
54

1
CONTROLS AND EQUIPMENT
55HAZARD WARNING SYSTEM

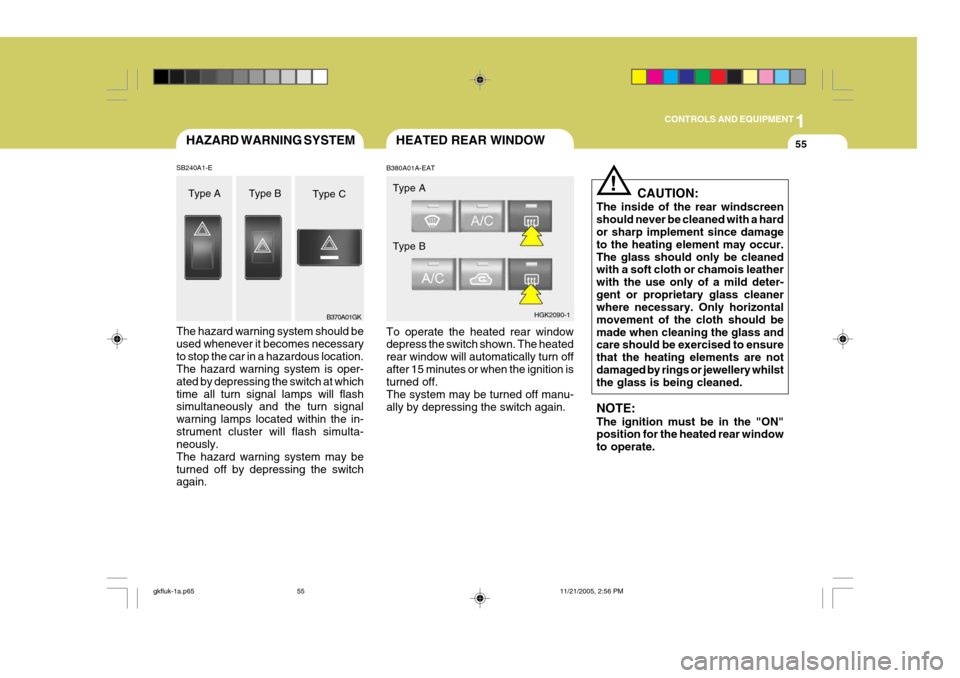

SB240A1-E The hazard warning system should be used whenever it becomes necessaryto stop the car in a hazardous location. The hazard warning system is oper- ated by depressing the switch at whichtime all turn signal lamps will flash simultaneously and the turn signal warning lamps located within the in-strument cluster will flash simulta- neously. The hazard warning system may beturned off by depressing the switch again.
B370A01GK
HEATED REAR WINDOW
B380A01A-EAT To operate the heated rear window depress the switch shown. The heated rear window will automatically turn offafter 15 minutes or when the ignition is turned off. The system may be turned off manu-ally by depressing the switch again. Type A
HGK2090-1
Type B
!
CAUTION:
The inside of the rear windscreen should never be cleaned with a hard or sharp implement since damage to the heating element may occur.The glass should only be cleaned with a soft cloth or chamois leather with the use only of a mild deter-gent or proprietary glass cleaner where necessary. Only horizontal movement of the cloth should bemade when cleaning the glass and care should be exercised to ensure that the heating elements are not damaged by rings or jewellery whilst the glass is being cleaned. NOTE: The ignition must be in the "ON" position for the heated rear window to operate.
Type A
Type C
Type B
gkfluk-1a.p65
11/21/2005, 2:56 PM
55

1CONTROLS AND EQUIPMENT
56CIGAR LIGHTER

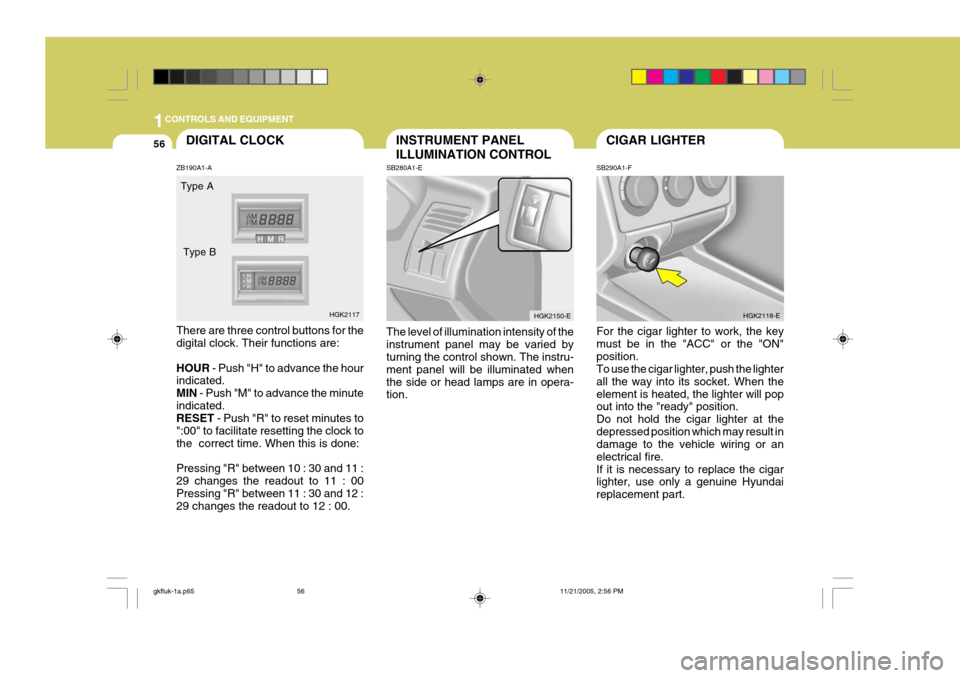

SB290A1-F For the cigar lighter to work, the key must be in the "ACC" or the "ON"position. To use the cigar lighter, push the lighter all the way into its socket. When theelement is heated, the lighter will pop out into the "ready" position. Do not hold the cigar lighter at thedepressed position which may result in damage to the vehicle wiring or an electrical fire.If it is necessary to replace the cigar lighter, use only a genuine Hyundai replacement part. HGK2118-EINSTRUMENT PANEL ILLUMINATION CONTROL
SB280A1-E The level of illumination intensity of the instrument panel may be varied by turning the control shown. The instru- ment panel will be illuminated whenthe side or head lamps are in opera- tion. HGK2150-EDIGITAL CLOCK
ZB190A1-A There are three control buttons for the digital clock. Their functions are: HOUR - Push "H" to advance the hour
indicated. MIN - Push "M" to advance the minute
indicated. RESET - Push "R" to reset minutes to
":00" to facilitate resetting the clock to the correct time. When this is done: Pressing "R" between 10 : 30 and 11 : 29 changes the readout to 11 : 00 Pressing "R" between 11 : 30 and 12 : 29 changes the readout to 12 : 00. Type A
HGK2117
Type B
gkfluk-1a.p65
11/21/2005, 2:56 PM
56

1
CONTROLS AND EQUIPMENT
57
!
CAUTION:
Do not use electric accessories or equipment other than the Hyundai genuine parts in the socket.
ASHTRAY

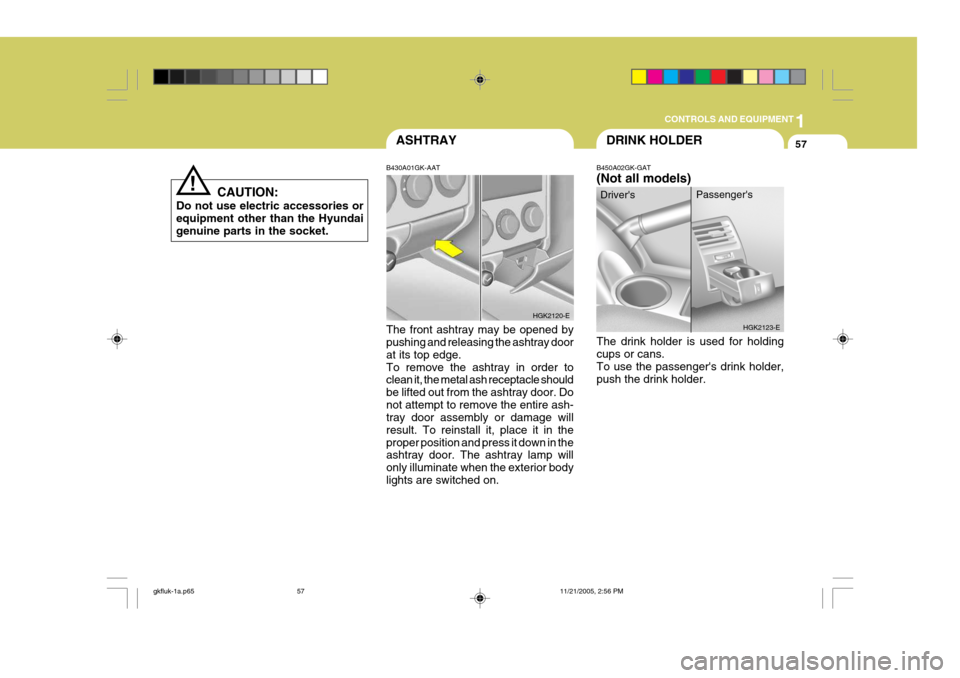

B430A01GK-AAT The front ashtray may be opened by pushing and releasing the ashtray door at its top edge.To remove the ashtray in order to clean it, the metal ash receptacle should be lifted out from the ashtray door. Donot attempt to remove the entire ash- tray door assembly or damage will result. To reinstall it, place it in theproper position and press it down in the ashtray door. The ashtray lamp will only illuminate when the exterior bodylights are switched on. HGK2120-EDRINK HOLDER
B450A02GK-GAT (Not all models) The drink holder is used for holding cups or cans. To use the passenger's drink holder,push the drink holder. Driver's
HGK2123-E
Passenger's
gkfluk-1a.p65 11/21/2005, 2:56 PM
57

1CONTROLS AND EQUIPMENT
58
Switch position
0 0 1 2
3Loading condition Driver only Driver + front passenger Full passengers(including driver) Full passengers (including driver) +full boot loading (or light trailer loading) Driver + full boot loading(or maximum trailer load-ing)
!WARNING:
o Use caution when using the drink holders. A spilled beverage that is very hot can injure you or your passengers. Spilled liquids can damage interior trim and electri-cal components.
o Do not place objects other than
cups or cans in the drink holder.Such objects can be thrown out in the event of a sudden stop or an accident, possibly injuring thepassengers in the vehicle.

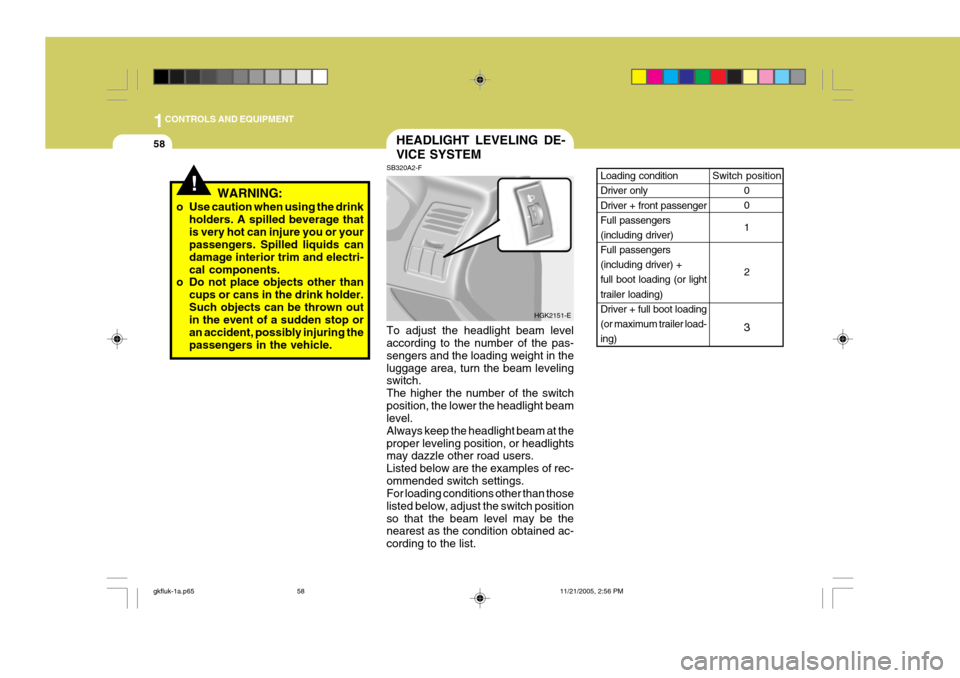

HEADLIGHT LEVELING DE- VICE SYSTEM
SB320A2-F To adjust the headlight beam level according to the number of the pas- sengers and the loading weight in theluggage area, turn the beam leveling switch. The higher the number of the switchposition, the lower the headlight beam level. Always keep the headlight beam at theproper leveling position, or headlights may dazzle other road users. Listed below are the examples of rec-ommended switch settings. For loading conditions other than those listed below, adjust the switch positionso that the beam level may be the nearest as the condition obtained ac- cording to the list. HGK2151-E
gkfluk-1a.p65
11/21/2005, 2:56 PM
58

1
CONTROLS AND EQUIPMENT
59SUNSHADE

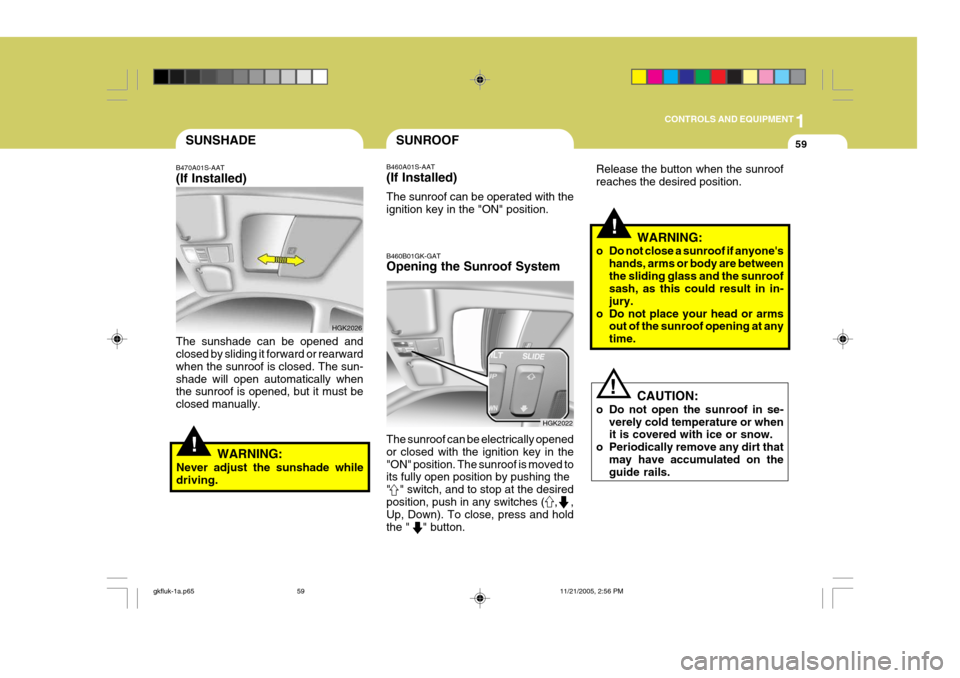

B470A01S-AAT (If Installed) The sunshade can be opened and closed by sliding it forward or rearward when the sunroof is closed. The sun-shade will open automatically when the sunroof is opened, but it must be closed manually. HGK2026
!WARNING:
Never adjust the sunshade while driving.
SUNROOF
B460A01S-AAT (If Installed) The sunroof can be operated with the ignition key in the "ON" position. B460B01GK-GAT Opening the Sunroof System The sunroof can be electrically opened or closed with the ignition key in the"ON" position. The sunroof is moved to its fully open position by pushing the " " switch, and to stop at the desiredposition, push in any switches ( , , Up, Down). To close, press and hold the " " button.
HGK2022
!
!
Release the button when the sunroof reaches the desired position.
CAUTION:
o Do not open the sunroof in se- verely cold temperature or when it is covered with ice or snow.
o Periodically remove any dirt that
may have accumulated on theguide rails. WARNING:
o Do not close a sunroof if anyone's hands, arms or body are between the sliding glass and the sunroof sash, as this could result in in- jury.
o Do not place your head or arms out of the sunroof opening at anytime.
gkfluk-1a.p65 11/21/2005, 2:56 PM
