1CONTROLS AND EQUIPMENT
60
2. Insert the hexagonal head wrenchprovided with the vehicle into the socket. This wrench can be found in the vehicle's boot or glove box.
3. Push and turn the wrench clockwise
to open or counterclockwise to closethe sunroof.
HGK2025
B460D03GK-AAT Manual Operation of Sunroof If the sunroof does not electrically op- erate:
1. Remove the cap located in the rear
roof panel by using a coin or driver.
HGK2024

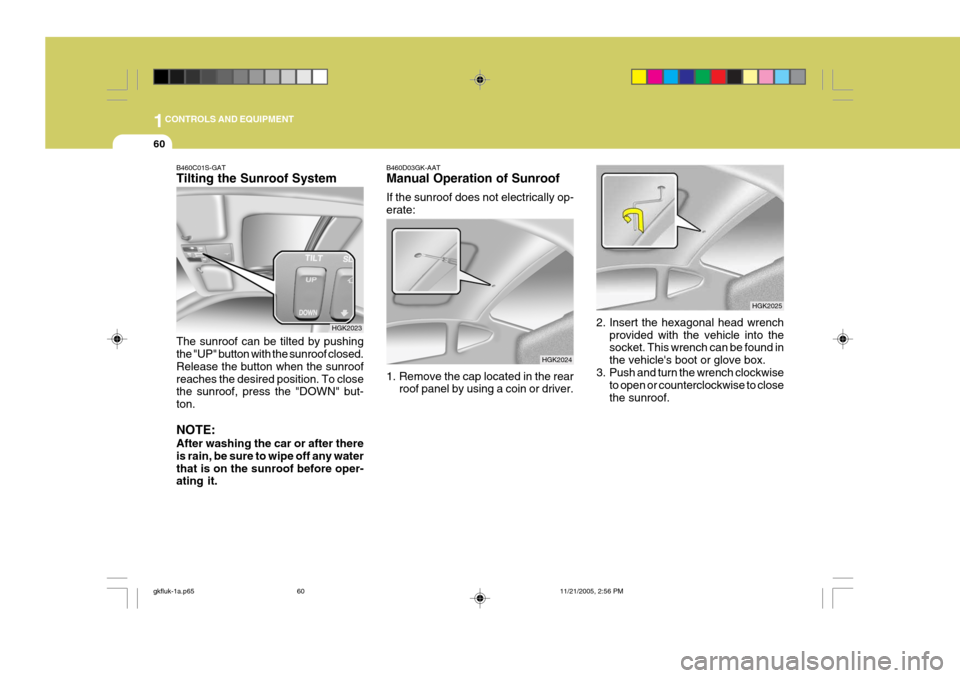

B460C01S-GAT Tilting the Sunroof System The sunroof can be tilted by pushing the "UP" button with the sunroof closed. Release the button when the sunroofreaches the desired position. To close the sunroof, press the "DOWN" but- ton. NOTE: After washing the car or after there is rain, be sure to wipe off any waterthat is on the sunroof before oper- ating it.
HGK2023
gkfluk-1a.p65 11/21/2005, 2:56 PM
60

1
CONTROLS AND EQUIPMENT
61
B460E03GK-GAT Resetting the Sunroof System If the battery has been recharged, disconnected or if the sunroof is oper-ated with the hexagonal head wrench manually, you may need to reset the sunroof. To do this;
1. Turn the ignition switch "OFF".
2. With pressing " " "up" button at the
same time, turn the ignition switch"ON". The resetting is failed when the ignition key to the "OFF" within1.5 seconds.
3. If the sunroof is set like this, the sunroof is reset with tilting up/down automatically once for all.
CAUTION:
If the sunroof is not reset, it may not be operated properly.
!

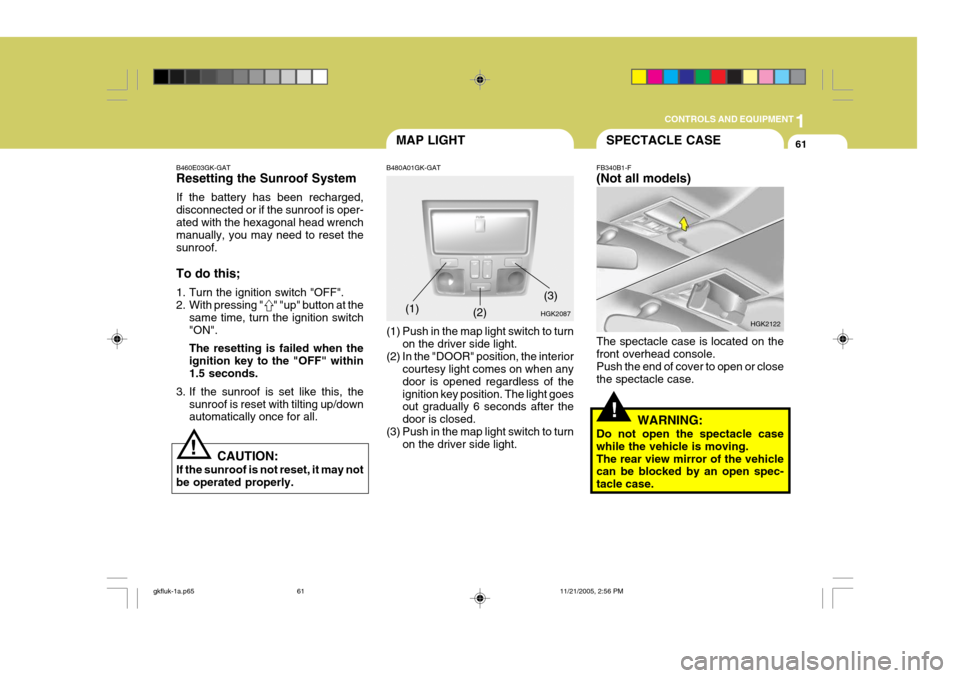

MAP LIGHT
B480A01GK-GAT
(1) Push in the map light switch to turn on the driver side light.
(2) In the "DOOR" position, the interior courtesy light comes on when any door is opened regardless of theignition key position. The light goes out gradually 6 seconds after the door is closed.
(3) Push in the map light switch to turn on the driver side light.(1)
HGK2087
(2)
(3)
!
SPECTACLE CASE
FB340B1-F (Not all models) The spectacle case is located on the front overhead console. Push the end of cover to open or closethe spectacle case.
WARNING:
Do not open the spectacle casewhile the vehicle is moving.The rear view mirror of the vehicle can be blocked by an open spec- tacle case. HGK2122
gkfluk-1a.p65
11/21/2005, 2:56 PM
61

1CONTROLS AND EQUIPMENT
62
!
!
To adjust the position of either mirror:
1. Move the selecting switch to the
right or left to activate the adjustable mechanism for the corresponding door mirror.
2. Now, adjust mirror angle by de-
pressing the appropriate perimeterswitch as illustrated.
CAUTION:
o Do not operate the switch con- tinuously for an unnecessarylength of time.
o Scraping ice from the mirror face
could cause permanent damage.To remove any ice, use a sponge, soft cloth or approved de-icer.
WARNING:
Be careful when judging the size ordistance of any object seen in the passenger side rear view mirror. It is a convex mirror with a curvedsurface. Any objects seen in this mirror are closer than they appear.
EXTERIOR REAR VIEW MIR- ROR

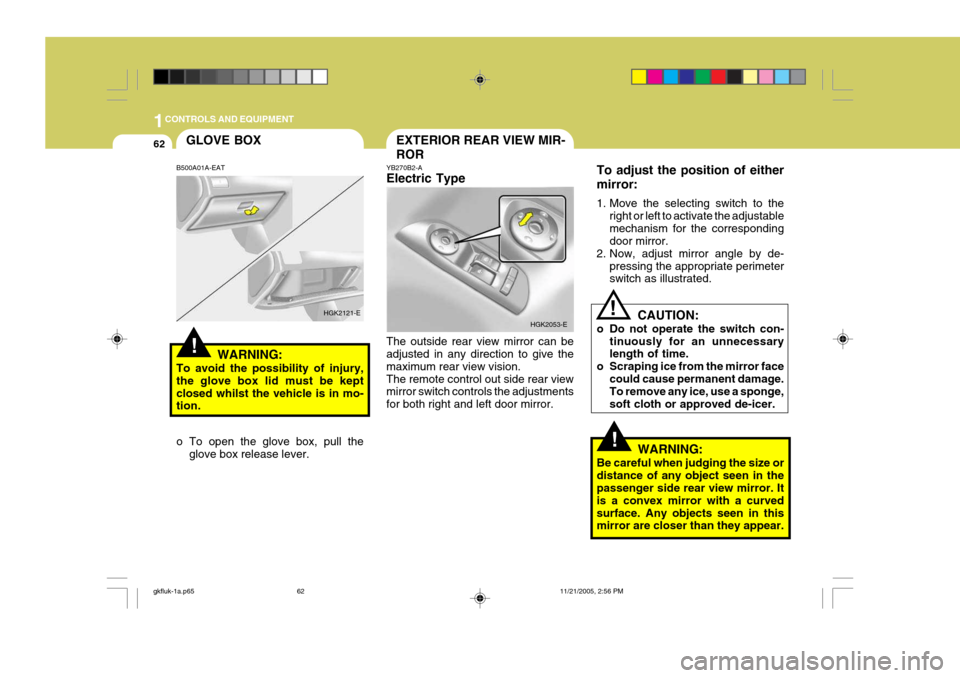

YB270B2-A Electric Type The outside rear view mirror can be adjusted in any direction to give the maximum rear view vision.The remote control out side rear view mirror switch controls the adjustments for both right and left door mirror. HGK2053-E
!
GLOVE BOX
B500A01A-EAT
WARNING:
To avoid the possibility of injury, the glove box lid must be keptclosed whilst the vehicle is in mo- tion.
o To open the glove box, pull the glove box release lever. HGK2121-E
gkfluk-1a.p65
11/21/2005, 2:56 PM
62

1
CONTROLS AND EQUIPMENT
63

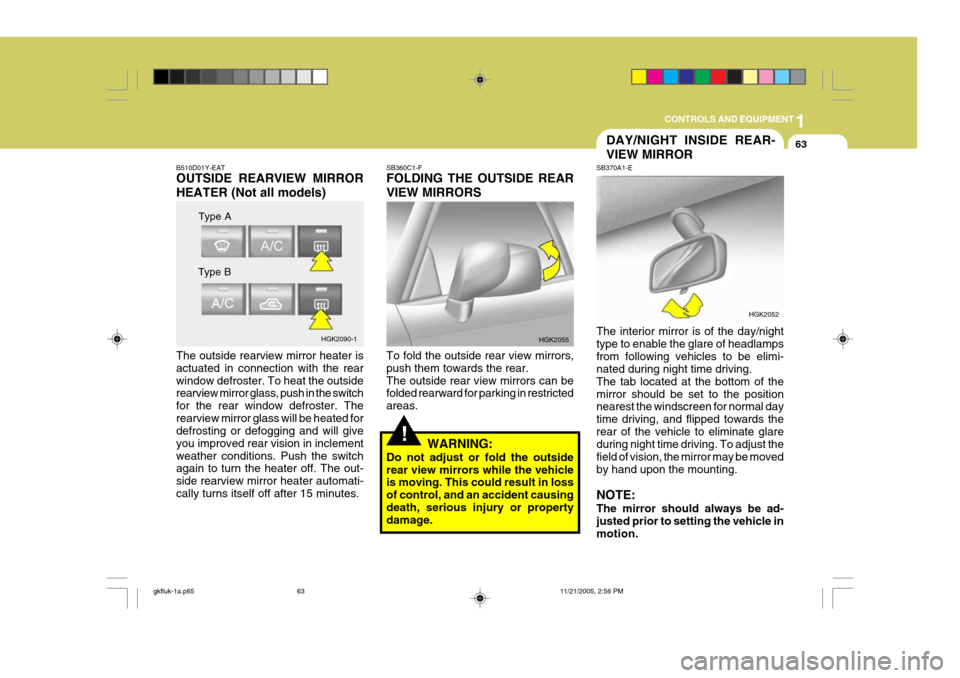

B510D01Y-EAT OUTSIDE REARVIEW MIRROR HEATER (Not all models) The outside rearview mirror heater is actuated in connection with the rearwindow defroster. To heat the outside rearview mirror glass, push in the switch for the rear window defroster. Therearview mirror glass will be heated for defrosting or defogging and will give you improved rear vision in inclementweather conditions. Push the switch again to turn the heater off. The out- side rearview mirror heater automati-cally turns itself off after 15 minutes.
HGK2090-1
Type A
Type B
!
SB360C1-F FOLDING THE OUTSIDE REAR VIEW MIRRORS To fold the outside rear view mirrors, push them towards the rear.The outside rear view mirrors can be folded rearward for parking in restricted areas. WARNING:
Do not adjust or fold the outsiderear view mirrors while the vehicle is moving. This could result in loss of control, and an accident causingdeath, serious injury or property damage. HGK2055
DAY/NIGHT INSIDE REAR- VIEW MIRROR
SB370A1-E The interior mirror is of the day/night type to enable the glare of headlampsfrom following vehicles to be elimi- nated during night time driving. The tab located at the bottom of themirror should be set to the position nearest the windscreen for normal day time driving, and flipped towards therear of the vehicle to eliminate glare during night time driving. To adjust the field of vision, the mirror may be movedby hand upon the mounting. NOTE: The mirror should always be ad- justed prior to setting the vehicle in motion.
HGK2052
gkfluk-1a.p65 11/21/2005, 2:56 PM
63

1CONTROLS AND EQUIPMENT
64HIGH-MOUNTED REAR STOP LIGHT
B550A02S-DAT In addition to the lower-mounted rear stopl ights on either side of the car, thehigh mounted rear stop light in the centre of the rear window or inserted in the rear spoiler also comes on whenthe brakes are applied. Type A
B550A01GK
Type B Type C

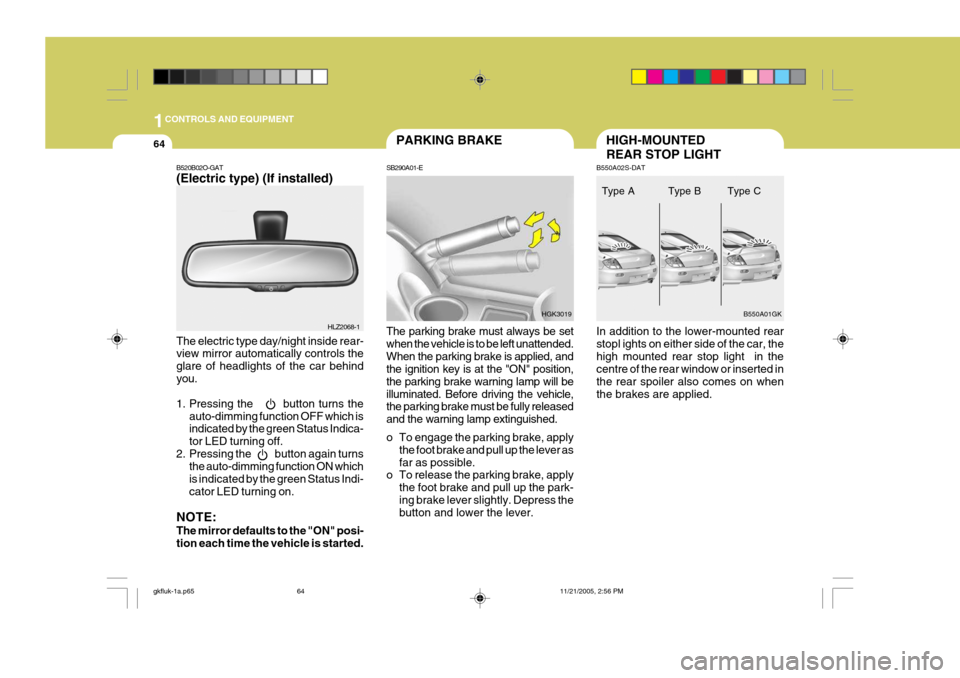

PARKING BRAKE
SB290A01-E The parking brake must always be set when the vehicle is to be left unattended.When the parking brake is applied, and the ignition key is at the "ON" position, the parking brake warning lamp will beilluminated. Before driving the vehicle, the parking brake must be fully released and the warning lamp extinguished.
o To engage the parking brake, apply the foot brake and pull up the lever as far as possible.
o To release the parking brake, apply
the foot brake and pull up the park-ing brake lever slightly. Depress the button and lower the lever. HGK3019
B520B02O-GAT (Electric type) (If installed) The electric type day/night inside rear- view mirror automatically controls the glare of headlights of the car behindyou.
1. Pressing the button turns the
auto-dimming function OFF which is indicated by the green Status Indica- tor LED turning off.
2. Pressing the button again turns the auto-dimming function ON whichis indicated by the green Status Indi-cator LED turning on.
NOTE: The mirror defaults to the "ON" posi- tion each time the vehicle is started. HLZ2068-1
gkfluk-1a.p65
11/21/2005, 2:56 PM
64

1
CONTROLS AND EQUIPMENT
65FRONT DOOR EDGE WARN- ING LAMP

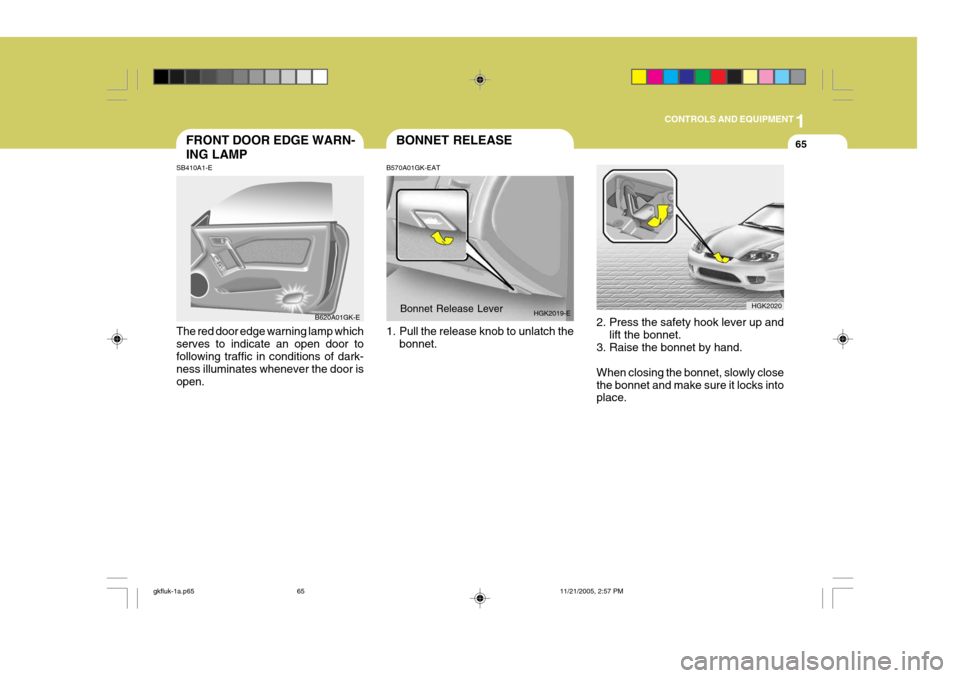

SB410A1-E The red door edge warning lamp which serves to indicate an open door tofollowing traffic in conditions of dark- ness illuminates whenever the door is open. B620A01GK-EBONNET RELEASE
B570A01GK-EAT
1. Pull the release knob to unlatch the bonnet.Bonnet Release Lever
HGK2019-E
2. Press the safety hook lever up and
lift the bonnet.
3. Raise the bonnet by hand. When closing the bonnet, slowly close the bonnet and make sure it locks into place. HGK2020
gkfluk-1a.p65
11/21/2005, 2:57 PM
65

1CONTROLS AND EQUIPMENT
66

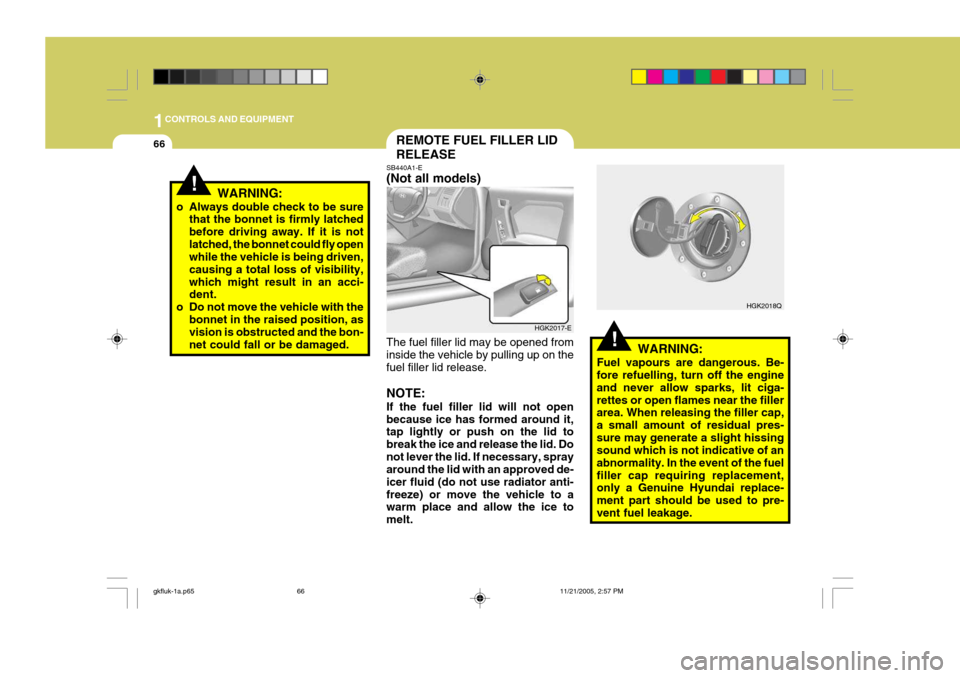

!WARNING:
Fuel vapours are dangerous. Be- fore refuelling, turn off the engine and never allow sparks, lit ciga-rettes or open flames near the filler area. When releasing the filler cap, a small amount of residual pres-sure may generate a slight hissing sound which is not indicative of an abnormality. In the event of the fuelfiller cap requiring replacement, only a Genuine Hyundai replace- ment part should be used to pre-vent fuel leakage. HGK2018Q
SB440A1-E (Not all models) The fuel filler lid may be opened from inside the vehicle by pulling up on thefuel filler lid release. NOTE: If the fuel filler lid will not open because ice has formed around it, tap lightly or push on the lid to break the ice and release the lid. Donot lever the lid. If necessary, spray around the lid with an approved de- icer fluid (do not use radiator anti-freeze) or move the vehicle to a warm place and allow the ice to melt.REMOTE FUEL FILLER LID RELEASE
HGK2017-E
!WARNING:
o Always double check to be sure that the bonnet is firmly latched before driving away. If it is notlatched, the bonnet could fly open while the vehicle is being driven, causing a total loss of visibility,which might result in an acci- dent.
o Do not move the vehicle with the bonnet in the raised position, asvision is obstructed and the bon- net could fall or be damaged.
gkfluk-1a.p65 11/21/2005, 2:57 PM
66

1
CONTROLS AND EQUIPMENT

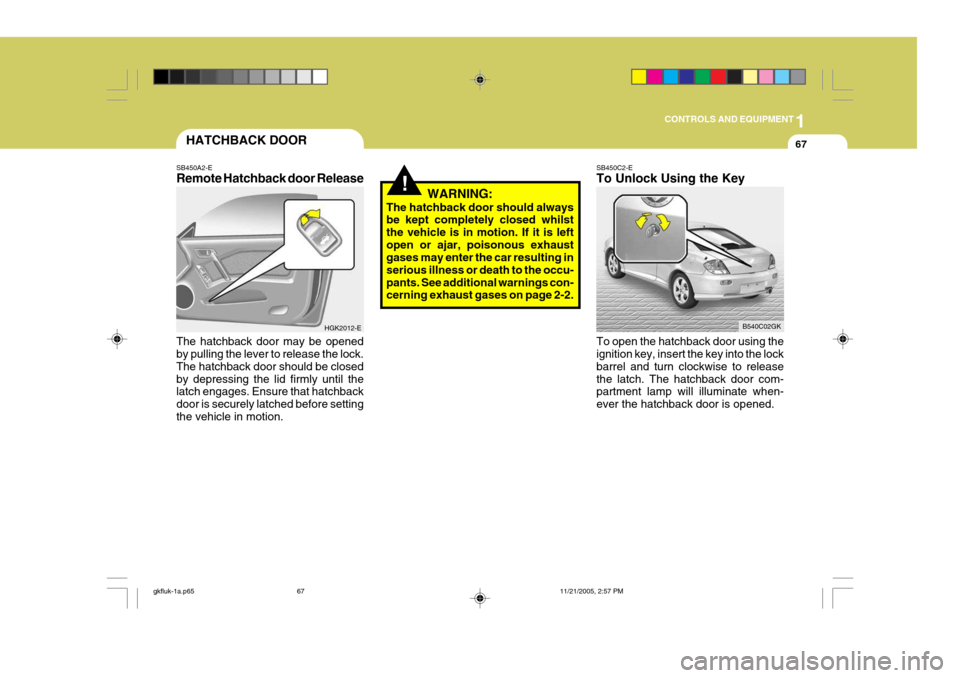

67HATCHBACK DOOR
SB450A2-E Remote Hatchback door Release The hatchback door may be opened by pulling the lever to release the lock. The hatchback door should be closedby depressing the lid firmly until the latch engages. Ensure that hatchback door is securely latched before settingthe vehicle in motion. HGK2012-E
!WARNING:
The hatchback door should always be kept completely closed whilst the vehicle is in motion. If it is leftopen or ajar, poisonous exhaust gases may enter the car resulting in serious illness or death to the occu-pants. See additional warnings con- cerning exhaust gases on page 2-2.
SB450C2-E To Unlock Using the Key To open the hatchback door using the ignition key, insert the key into the lock barrel and turn clockwise to releasethe latch. The hatchback door com- partment lamp will illuminate when- ever the hatchback door is opened. B540C02GK
gkfluk-1a.p65
11/21/2005, 2:57 PM
67

1CONTROLS AND EQUIPMENT

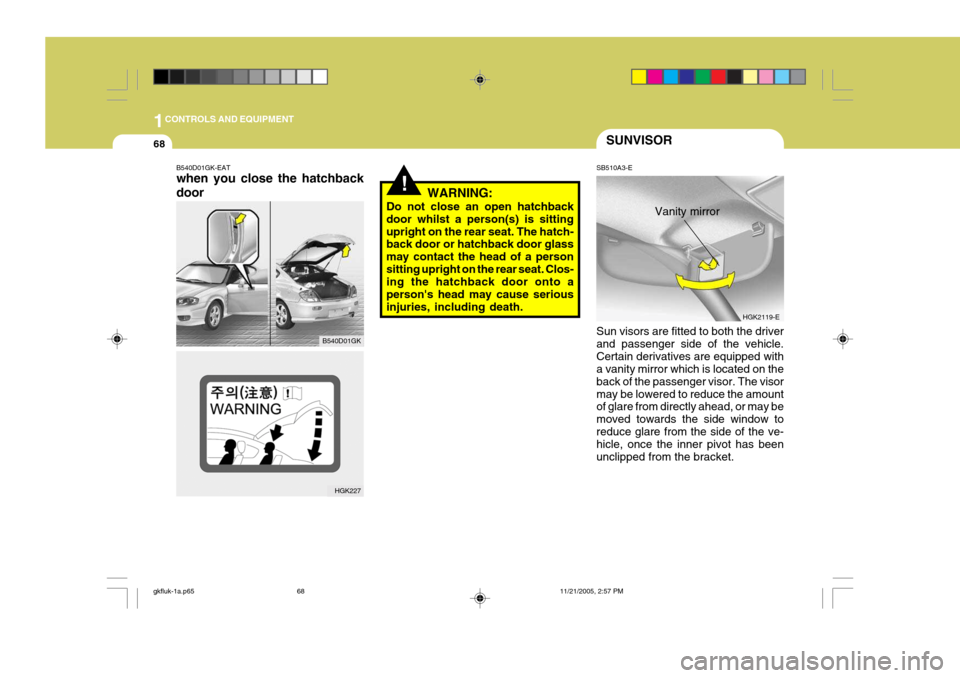

68SUNVISOR
SB510A3-E Sun visors are fitted to both the driver and passenger side of the vehicle.Certain derivatives are equipped with a vanity mirror which is located on the back of the passenger visor. The visormay be lowered to reduce the amount of glare from directly ahead, or may be moved towards the side window toreduce glare from the side of the ve- hicle, once the inner pivot has been unclipped from the bracket. Vanity mirror
HGK2119-E
!WARNING:
Do not close an open hatchback door whilst a person(s) is sittingupright on the rear seat. The hatch- back door or hatchback door glass may contact the head of a personsitting upright on the rear seat. Clos- ing the hatchback door onto a person's head may cause seriousinjuries, including death.
B540D01GK-EAT when you close the hatchback door
B540D01GK
HGK227
gkfluk-1a.p65 11/21/2005, 2:57 PM
68

1
CONTROLS AND EQUIPMENT
69
!
NOTE: The Supplemental Restraint Sys- tem (SRS) label containing useful information can be found on thefront of each sun visor.
WARNING:
Do not place the sunvisor in such a manner that it obscures visibility of the roadway, traffic or the objects.
!

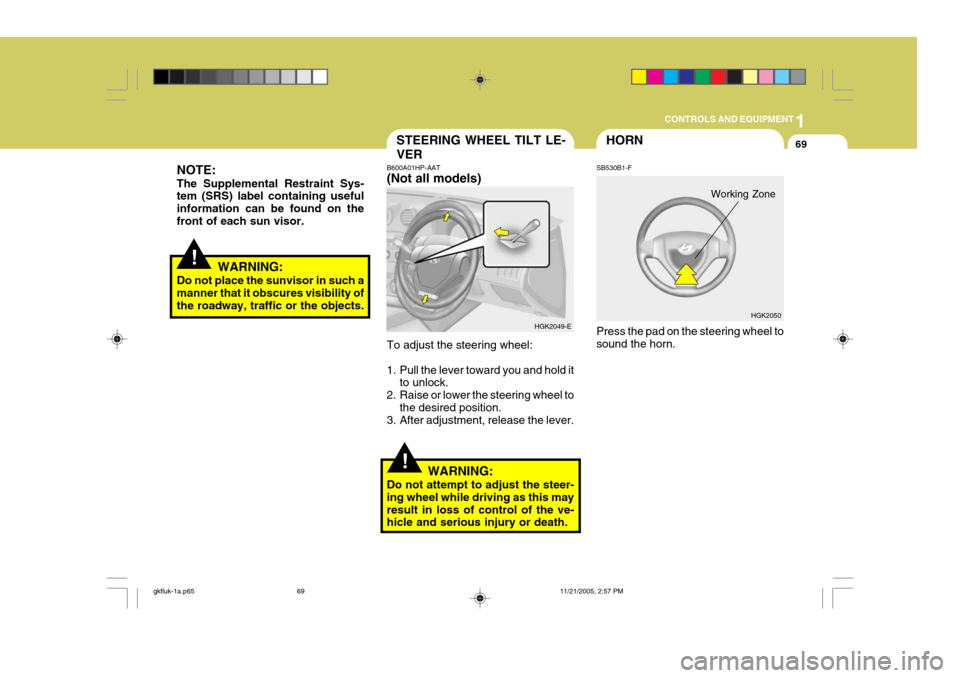

STEERING WHEEL TILT LE- VER
B600A01HP-AAT (Not all models) To adjust the steering wheel:
1. Pull the lever toward you and hold it
to unlock.
2. Raise or lower the steering wheel to
the desired position.
3. After adjustment, release the lever.
WARNING:
Do not attempt to adjust the steer- ing wheel while driving as this mayresult in loss of control of the ve- hicle and serious injury or death. HGK2049-E
HGK2050
HORN
SB530B1-F Press the pad on the steering wheel to sound the horn.
Working Zone
gkfluk-1a.p65 11/21/2005, 2:57 PM
