DO-IT-YOURSELF MAINTENANCE
33
G270C01GK-AAT
Luggage Compartment Light

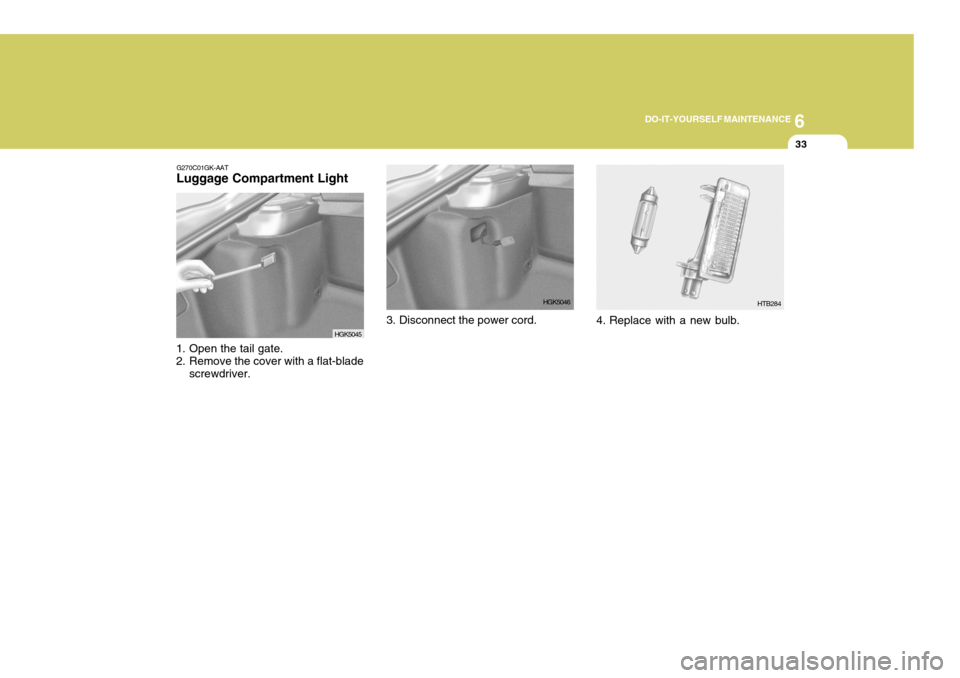

1. Open the tail gate.
2. Remove the cover with a flat-blade screwdriver.
HGK5045 HTB284
3. Disconnect the power cord. HGK5046
4. Replace with a new bulb.

6 DO-IT-YOURSELF MAINTENANCE
34
G270G01GK-AAT
Map Light

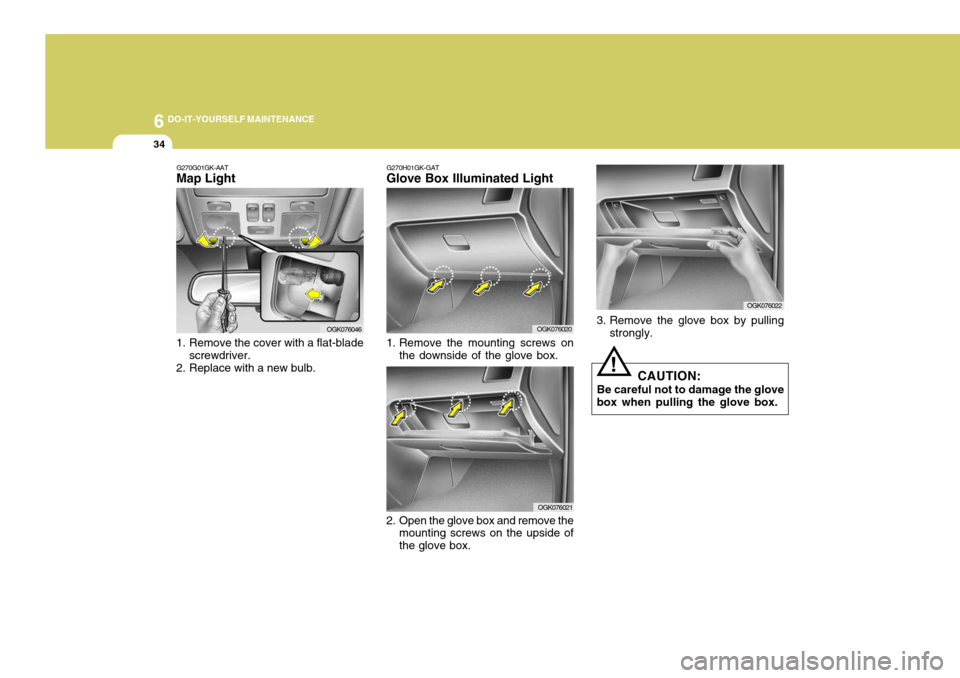

1. Remove the cover with a flat-blade
screwdriver.
2. Replace with a new bulb.
OGK076046
OGK076021
2. Open the glove box and remove the mounting screws on the upside of the glove box.
G270H01GK-GAT
Glove Box Illuminated Light
1. Remove the mounting screws on
the downside of the glove box. OGK076020
3. Remove the glove box by pulling
strongly.
CAUTION:
Be careful not to damage the glove box when pulling the glove box.
!
OGK076022

6
DO-IT-YOURSELF MAINTENANCE
35
OGK076038

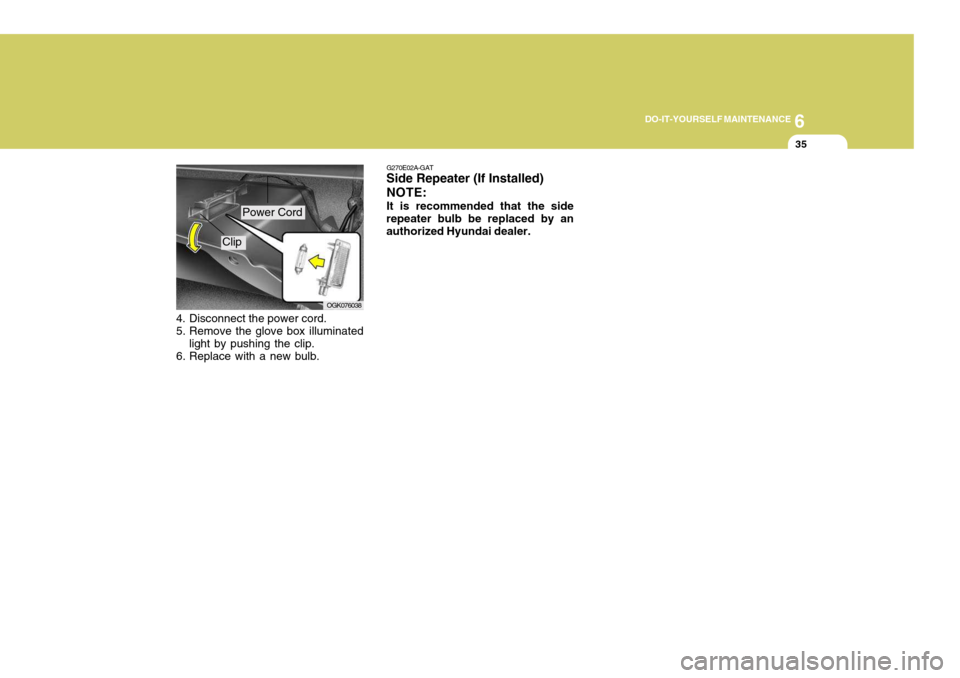

4. Disconnect the power cord.
5. Remove the glove box illuminated
light by pushing the clip.
6. Replace with a new bulb. G270E02A-GAT
Side Repeater (If Installed)
NOTE: It is recommended that the side
repeater bulb be replaced by an authorized Hyundai dealer.
Clip
Power Cord

6 DO-IT-YOURSELF MAINTENANCE
36

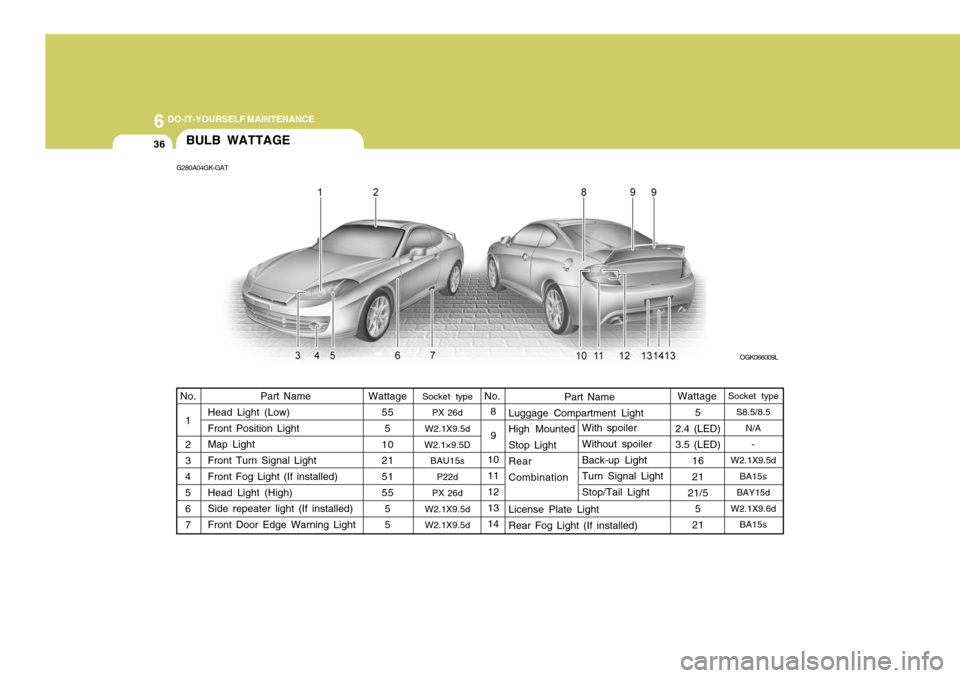

Part Name
Luggage Compartment Light High Mounted Stop Light Rear Combination License Plate Light Rear Fog Light (If installed) With spoilerWithout spoiler Back-up Light Turn Signal Light Stop/Tail Light
8 9
10 11 12 13 14
Part Name
Head Light (Low) Front Position Light Map Light Front Turn Signal Light Front Fog Light (If installed) Head Light (High) Side repeater light (If installed) Front Door Edge Warning Light
BULB WATTAGE
Socket typePX 26d
W2.1X9.5d
W2.1×9.5D BAU15s
P22d
PX 26d
W2.1X9.5d W2.1X9.5d
G280A04GK-GAT
Wattage
No.No.
1 2 3 4 5 6 7
OGK066009L
Wattage 555
10 21 51 55 55
5
2.4 (LED) 3.5 (LED) 1621
21/5 5
21 Socket type
S8.5/8.5 N/A
-
W2.1X9.5d
BA15s
BAY15d
W2.1X9.6d BA15s

6
DO-IT-YOURSELF MAINTENANCE
37FUSE PANEL DESCRIPTION
G200C02GK-GAT
Engine Compartment NOTE: Not all fuse panel descriptions in this manual may be applicable to your vehicle. It is accurate at the time of printing. When you inspect the fuse box on your vehicle, refer to the fuse box label. HGK4005

6 DO-IT-YOURSELF MAINTENANCE
38
PROTECTED COMPONENTS
Generator(1.6L/2.0L) BCM BOX(Tail lamp relay,Power connector,Fuse(2,7,12,13,19,20,24))Condenser fan relayRadiator fan relayEngine control relay, Fuel pump relay, A/T control relay, Generator,ECM(1.6L/2.7L),PCM(2.0L) Ignition switch,Start relayABS/ESP control module,ESP Air bleeding connectorABS/ESP control module,ESP Air bleeding connectorBlower relayInjector Oxygen sensor,Camshaft position sensor, Idle speed control actuator DRL control moduleFront fog lamp relayTCM(2.7L),ECM(2.7L/1.6L)Horn relay,A/C relay Head lamp relay(High) Head lamp relay(Low)
FUSERATING 120A50A 30A30A 30A 30A 40A40A30A 15A 10A15A15A10A15A 15A 15A
DESCRIPTION
BATTBATT
COND RAD ECU
IGN
ABS 1 ABS 2
BLOWER INJ
SNSR DRL
F/FOG ECU
HORN,A/CON H/LP (HI)
H/LP (LO)

6
DO-IT-YOURSELF MAINTENANCE
39
G200D02GK-GAT

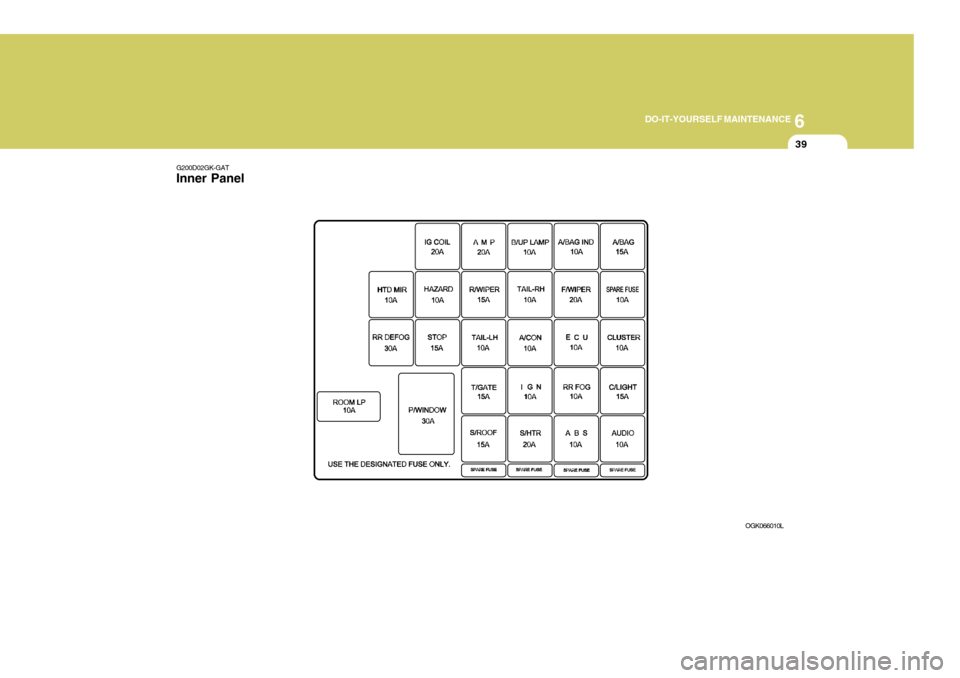

Inner Panel
OGK066010L

6 DO-IT-YOURSELF MAINTENANCE
40
DESCRIPTIONIG COIL
AMP
B/UP LAMP
A/BAG IND A/BAG
HTD MIR HAZARD
R/WIPER TAIL-RH
F/WIPER
RR DEFOG
STOP
TAIL-LH
A/CON ECU
CLUSTER
ROOM LP
P/WINDOW T/GATE
IGN
RR FOG
C/LIGHT S/ROOF
S/HTR ABS
AUDIO
PROTECTED COMPONENTS
Ignition coil(1.6l/2.7L), Electronic chrome mirror AMP Back-up lamp switch,Transaxle range switch,Cruise control module,Stop lamp switch Instrument cluster (A/BAG IND.) SRS control module Mirror defogger Hazard relay Rear wiper motor,Rear intermittent wiper relay Right tail lamps,Glove box lamp Front wiper motor,Front wiper relay Defogger relay Stop lamp switch,Burglar alarm horn relay,Folding/Unfolding relay Left tail lamps A/C control module, Blower relay ECM, Multi gauge unit, TCM, Vehicle speed sensor Instrument cluster (Power), Per-excitation resister, DRL Control module,Generator Room lamp,Clock,Audio,Data link connector,Multi gauge unit Power window relay Trunk lid switch AQS sensor,Head lamp relay,DRL Control module Rear fog lamp Cigarette lighter,Outside mirror switch Sunroof,Power door lock/Unlock relay Seat warmer ESP/ABS control module Audio,Digital clock
FUSERATING
20A 20A 10A 10A 15A 10A 10A 15A 10A 20A 30A 15A 10A 10A 10A 10A 10A 30A 15A 10A 10A 15A 15A 20A 10A 10A

Emission Control System ............................................ 7-2
Catalytic Converter ...................................................... 7-3
7
EMISSION CONTROL SYSTEM
7

7EMISSION CONTROL SYSTEMS
2
H010A01A-GAT (If Installed) Your Hyundai is equipped with an emission control system to meet all requirements of the Emission prohibi- tion rules of your province.There are three emission control sys-tems which are as follows.
(1) Crankcase emission control sys-
tem
(2) Evaporative emission control sys-
tem
(3) Exhaust emission control systemIn order to assure the proper function of the emission control systems, it isrecommended that you have your car inspected and maintained by an au- thorized Hyundai dealer in accordancewith the maintenance schedule in this manual. EMISSION CONTROL SYSTEMS
H010B01F-GAT 1. Crankcase Emission ControlSystem
The positive crankcase ventilation system is employed to prevent air pollution caused by blow-by gases being emitted from the crankcase.This system supplies fresh air to the crankcase through the air cleaner. Inside the crankcase, the fresh airmixes with blow-by gases, then passes through the PCV valve into the induction system.
H010C01F-GAT
2. Evaporative Emission Control
System (If Installed)
The evaporative emission control sys-
tem is designed to prevent fuel va-pors from escaping into the atmo-sphere. H010D01A-AAT
3. Exhaust Emission Control
System
The exhaust emission control system is a highly effective system which controls exhaust emissions while maintaining good vehicle performace.
Canister While the engine is inoperative, fuel vapors generated inside the fuel tank are absorbed and stored in the canis-ter. When the engine is running, the fuel vapors absorbed in the canister are drawn into the induction systemthrough the purge control solenoid valve. Purge Control Solenoid Valve The purge control solenoid valve is controlled by the ECM; when the en- gine coolant temperature is low, and during idling, it closes, so that evapo- rated fuel is not taken into the engine. After engine warm-up, during ordi-nary driving, it opens so as to intro- duce evaporated fuel to the engine.
