EMISSION CONTROL SYSTEMS
3
!

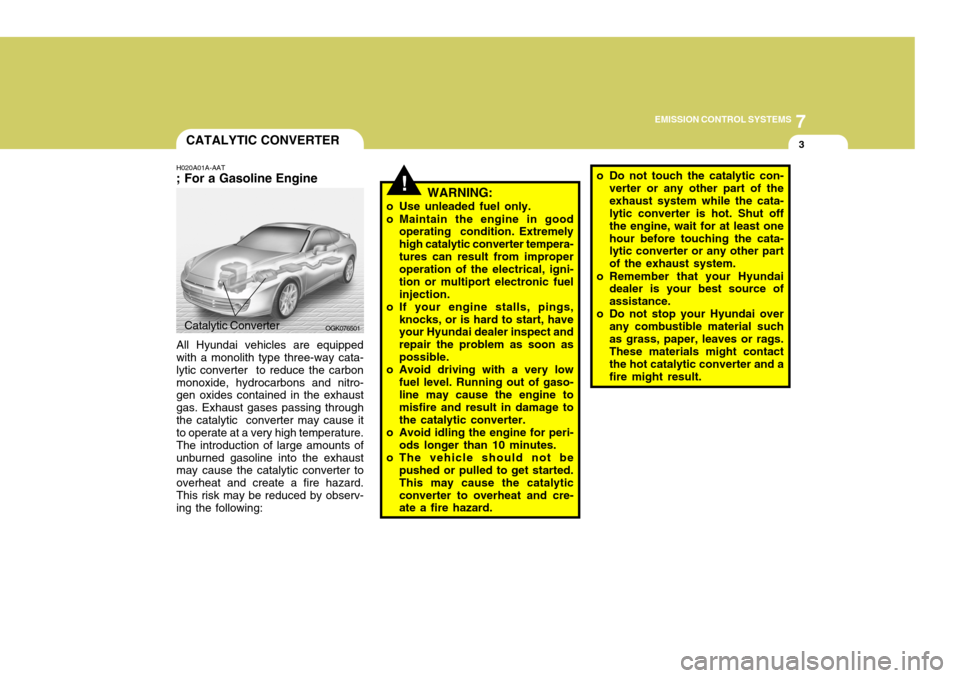

CATALYTIC CONVERTER
H020A01A-AAT ; For a Gasoline Engine All Hyundai vehicles are equipped with a monolith type three-way cata- lytic converter to reduce the carbonmonoxide, hydrocarbons and nitro- gen oxides contained in the exhaust gas. Exhaust gases passing throughthe catalytic converter may cause it to operate at a very high temperature. The introduction of large amounts ofunburned gasoline into the exhaust may cause the catalytic converter to overheat and create a fire hazard.This risk may be reduced by observ- ing the following: WARNING:
o Use unleaded fuel only.
o Maintain the engine in good operating condition. Extremely high catalytic converter tempera-tures can result from improper operation of the electrical, igni- tion or multiport electronic fuelinjection.
o If your engine stalls, pings, knocks, or is hard to start, have your Hyundai dealer inspect and repair the problem as soon aspossible.
o Avoid driving with a very low
fuel level. Running out of gaso-line may cause the engine to misfire and result in damage to the catalytic converter.
o Avoid idling the engine for peri-
ods longer than 10 minutes.
o The vehicle should not be pushed or pulled to get started.This may cause the catalyticconverter to overheat and cre- ate a fire hazard.
Catalytic Converter
OGK076501
o Do not touch the catalytic con-
verter or any other part of the exhaust system while the cata- lytic converter is hot. Shut off the engine, wait for at least onehour before touching the cata- lytic converter or any other part of the exhaust system.
o Remember that your Hyundai dealer is your best source ofassistance.
o Do not stop your Hyundai over any combustible material suchas grass, paper, leaves or rags. These materials might contact the hot catalytic converter and afire might result.

Vehicle Identification Number (VIN) ............................ 8-2
Engine Number ............................................................ 8-2
Recommended Inflation Pressures ............................. 8-3
Snow Tires ................................................................... 8-4
Tire Chains ................................................................... 8-4
Tire Rotation ................................................................ 8-5
Tire Balancing .............................................................. 8-5
Tire Traction ................................................................. 8-5
When to Replace Tires ................................................ 8-6
Spare Tire and Tools ................................................... 8-6
8
CONSUMER INFORMATION
8

8CONSUMER INFORMATION
2
F040A02TB-1
1.6LOGK086001
I010A01A-GAT
VEHICLE IDENTIFICATION NUMBER (VIN)

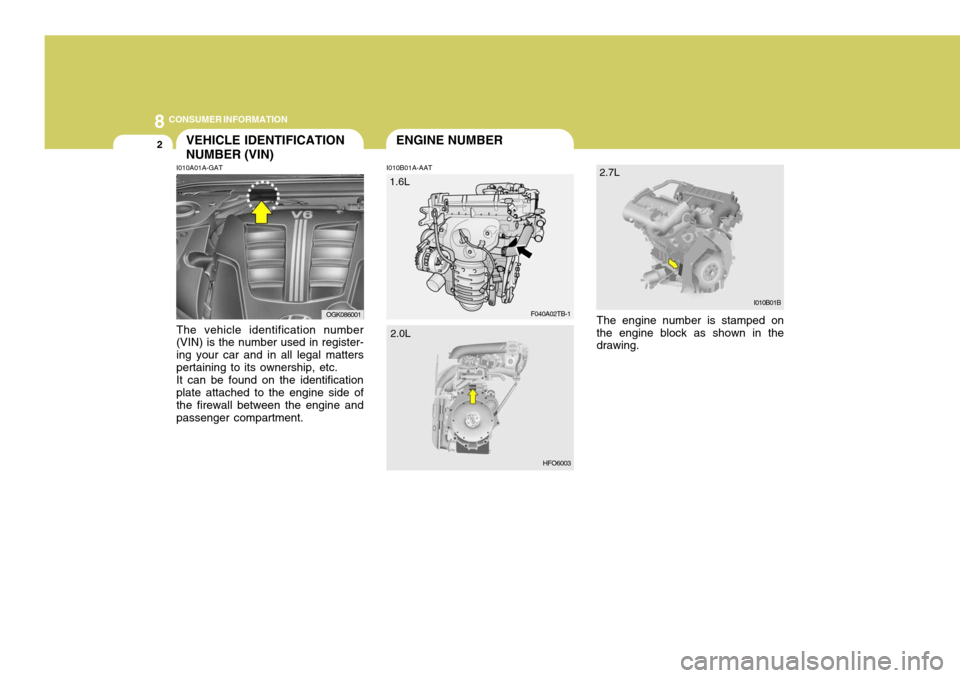

The vehicle identification number (VIN) is the number used in register- ing your car and in all legal matterspertaining to its ownership, etc.It can be found on the identificationplate attached to the engine side of the firewall between the engine and passenger compartment. I010B01A-AAT
ENGINE NUMBER
The engine number is stamped onthe engine block as shown in the drawing.I010B01B
2.7L
HFO6003
2.0L

8
CONSUMER INFORMATION
3
!
TIRE
I020A01A-AAT
Tire Information
The tires supplied on your new

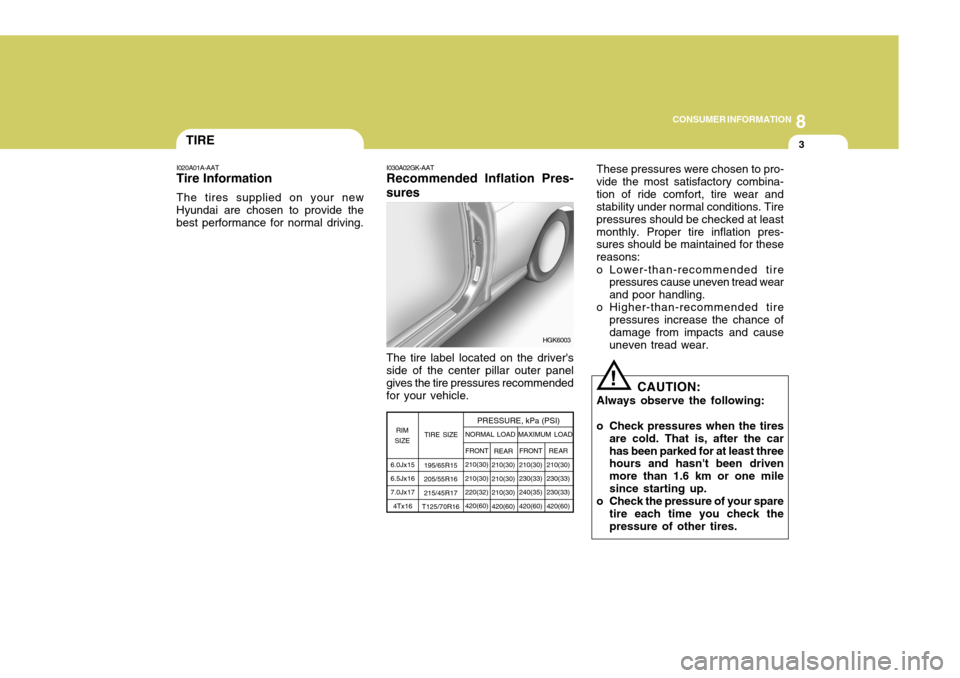

Hyundai are chosen to provide the best performance for normal driving. I030A02GK-AAT Recommended Inflation Pres- sures The tire label located on the driver's side of the center pillar outer panel gives the tire pressures recommended for your vehicle. These pressures were chosen to pro-
vide the most satisfactory combina-tion of ride comfort, tire wear and stability under normal conditions. Tire pressures should be checked at leastmonthly. Proper tire inflation pres- sures should be maintained for these reasons:
o Lower-than-recommended tire pressures cause uneven tread wear and poor handling.
o Higher-than-recommended tire
pressures increase the chance ofdamage from impacts and cause uneven tread wear.
6.0Jx15 6.5Jx16 7.0Jx17 4Tx16 TIRE SIZE
RIM
SIZE PRESSURE, kPa (PSI)
REAR
210(30) 210(30)210(30)420(60) FRONT
210(30)230(33) 240(35) 420(60)
NORMAL LOAD MAXIMUM LOAD
REAR
210(30)230(33) 230(33) 420(60)
FRONT
210(30)210(30)220(32) 420(60)
195/65R15 205/55R16215/45R17
T125/70R16
CAUTION:
Always observe the following:
o Check pressures when the tires are cold. That is, after the car has been parked for at least three hours and hasn't been driven more than 1.6 km or one milesince starting up.
o Check the pressure of your spare
tire each time you check thepressure of other tires.
HGK6003

8CONSUMER INFORMATION
4
!
I050A02GK-GAT Tire Chains Tire chains, if necessary, should be installed on the front wheels. Be sure that the chains are installed in accor- dance with the manufacturer's instruc-tions. Refer to the following informa- tion. To minimize tire and chain wear, do not continue to use tire chains when they are no longer needed. WARNING:
o When driving on roads covered with snow or ice, drive at lessthan 30 km/h (20 mph).
o Use tire chains less than 10mm (0.39 in.) for 16" and 17" tires.
o Avoid sudden stop and turns.
o Tighten firmly to avoid contact with the verticle body, if youhave noise caused by chaws contacting the body, remove the chains for damage protection.
Tire size
195/65 R 15 205/55 R 16 215/45 R 17 Snow Chain
Thickness
Max. 15 mmMax. 10 mm Max. 10 mmI040A01S-GAT Snow Tires If you equip your car with snow tires, they should be the same size and have the same load capacity as the original tires. Snow tires should beinstalled on all four wheels; other- wise, poor handling may result. Snow tires should carry 28 kPa (4 psi) more air pressure than the pres- sure recommended for the standardtires on the tire label on the drive side center pillar outer panel, or up to the maximum pressure shown on the tiresidewall whichever is less.Do not drive faster than 120 km/h (75mph) when your car is equipped withsnow tires.

8
CONSUMER INFORMATION
5
HGK5016
!
!
I060A02GK-GAT Tire Rotation Tires should be rotated every 10,000 km (6,000 miles). If you notice that tires are wearing unevenly between rotations, have the car checked by aHyundai dealer so the cause may be corrected. After rotating, adjust the tire pres- sures and be sure to check wheel nut torque. WARNING:

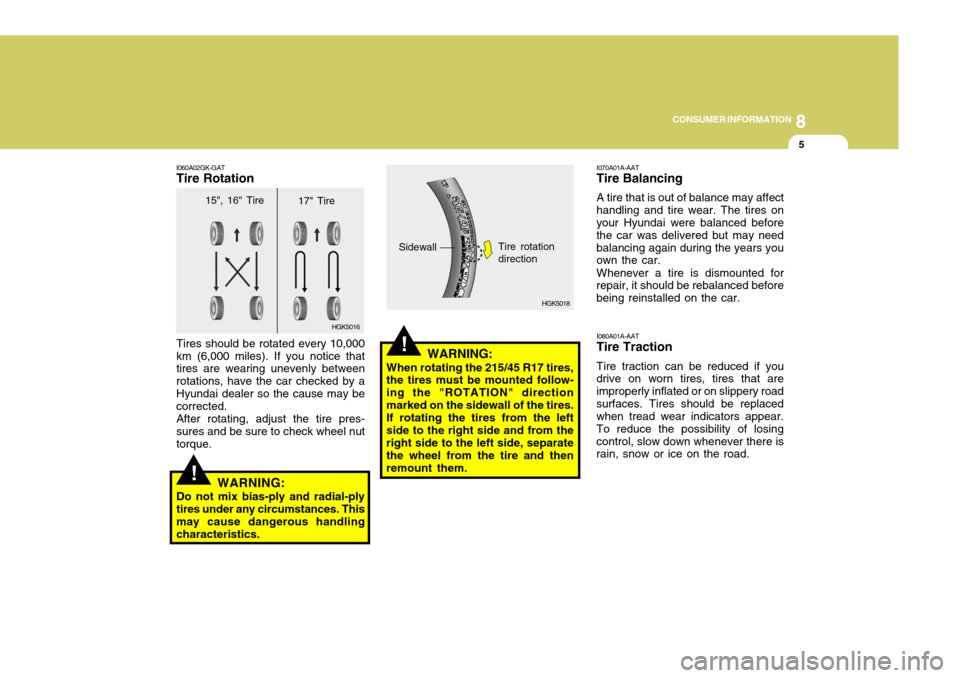

When rotating the 215/45 R17 tires, the tires must be mounted follow- ing the "ROTATION" directionmarked on the sidewall of the tires.If rotating the tires from the leftside to the right side and from theright side to the left side, separate the wheel from the tire and then remount them.
WARNING:
Do not mix bias-ply and radial-ply tires under any circumstances. This may cause dangerous handlingcharacteristics. 15", 16" Tire
Sidewall I070A01A-AAT
Tire Balancing
A tire that is out of balance may affect
handling and tire wear. The tires on your Hyundai were balanced before the car was delivered but may needbalancing again during the years you own the car.
Whenever a tire is dismounted for
repair, it should be rebalanced before being reinstalled on the car.
I080A01A-AAT
Tire Traction
Tire traction can be reduced if you
drive on worn tires, tires that areimproperly inflated or on slippery roadsurfaces. Tires should be replaced when tread wear indicators appear. To reduce the possibility of losingcontrol, slow down whenever there is rain, snow or ice on the road.
HGK5018
17" Tire
Tire rotation direction

8CONSUMER INFORMATION
6
!WARNING:
o Driving on worn-out tires is dan- gerous! Worn-out tires can cause loss of braking effectiveness, steer-ing control and traction. When re- placing tires, never mix radial and bias-ply tires on the same car. Ifyou replace radial tires with bias- ply tires, they must be installed in sets of four.
o Using tires and wheels of other than the recommended sizes maycause unusual handling charac- teristics that may cause death, serious injury or property dam-age.
o Tires degrade over time, even when
they are not being used. Regard- less of the remaining tread, it is recommended that tires generallybe replaced after six (6) years of normal service. Heat caused by hot climates or frequent high load-ing conditions can accelerate the aging process. Failure to follow this warning can result in suddentire failure, which could lead to a loss of control and an accident involving serious injury or death. I100A01FC-GAT
SPARE TIRE AND TOOLS
Your Hyundai is delivered with the following: Spare tire and wheel Wheel nut wrench, Wrench bar, Span- ner, Screwdriver Jack HGK4008
I090A02S-GAT When to Replace Tires The original tires on your car have tread wear indicators. The tread wear indicators appear when the tread depth is 1.6 mm (0.06 in.). The tireshould be replaced when these ap- pear as a solid bar across two or more grooves of the tread. Alwaysreplace your tires with those of the recommended size. If you change wheels, the new wheel's rim widthand offset must meet Hyundai speci- fications. HGK5015
1.6 mm (0.06 in.)
Wear indicator

Measurement................................................................ 9-2
Engine ........................................................................... 9-3
Lubrication Chart .......................................................... 9-4
9
VEHICLE SPECIFICATIONS
9

9 VEHICLE SPECIFICATIONS
2
4395(173)
1760(69.3) 1330(52.4)2530(99.6) 1490(58.7) 1510(59.5)1500(59.1)
J010A02GK-GAT MEASUREMENT
Overall length Overall widthOverall height (unladen) Wheel base Wheel tread
195/65 R15 205/55 R16215/45 R17
Type Wheel free playRack stroke Oil pump type Rack and pinion0 ~ 30 mm (0 ~ 1.18 in.) 132 mm (5.20 in.)Vane type
J060A01F-AAT FUEL SYSTEM
J020A01GK-GATPOWER STEERING J030A02GK-GAT TIRE
Option
mm (in.)
Fuel tank
capacity Imp.gal
12
195/65 R15, 205/55 R16, 215/45 R17
J050A01GK-GAT BRAKE Dual hydraulic with brake booster Ventilated disc Solid disc Cable
TypeFront brake type Rear brake type Parking brake
US.gal
14.5Liter55
J035A02GK-GAT SPARE TIRE
Standard Option T125/70 R16 (Temporary)
Full size
Front RearFront Rear FrontRear

9
VEHICLE SPECIFICATIONS
3
SPECIFICATION 2.0 L
82 x 93.5 1,975
1 - 3 - 4 - 2
0.17 ~ 0.23 mm (0.0067 ~ 0.0091 in.) 0.25 ~ 0.31 mm (0.0098 ~ 0.0122 in.)
0.12 ~ 0.28 mm (0.0047 ~ 0.011 in.) 0.2 ~ 0.38 mm (0.0079 ~ 0.015 in.)
700 ± 100
BTDC 8° ± 5° 2.7 L
6-Cyl., V-type DOHC 86.7 x 75
2,656
1 - 2 - 3 - 4 - 5 - 6
AUTO LASH
750 ± 100
BTDC 12° ± 10°
4-Cyl., In-line DOHC
1.6 L
76.5 x 87 1,599
1 - 3 - 4 - 2
AUTO LASH
700 ± 100
BTDC 5° ± 5°
ITEMS
Engine TypeBore x Stroke (mm) Displacement (cc) Firing order Valve clearance (Cold Engine 20 ± 5°C) Idle speed (rpm) Ignition timing (Base)ENGINE
J070A05GK-GAT
For adjustingFor checking Intake ExhaustIntake Exhaust
