DO-IT-YOURSELF MAINTENANCE
13
G080B01GK-GAT
Replacing the Wiper Blades To remove the wiper blade

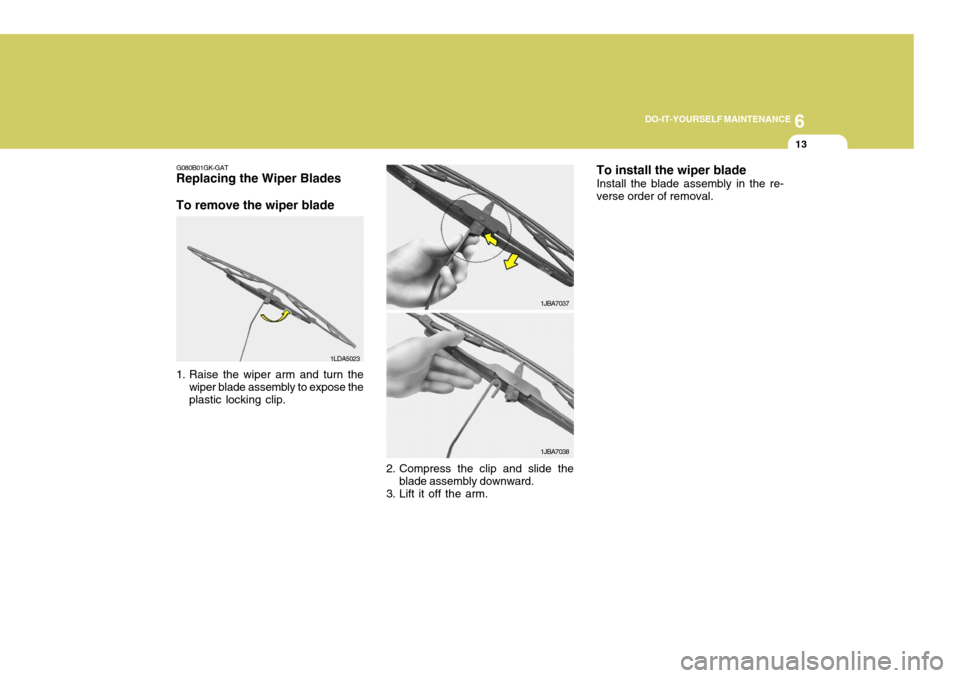

1. Raise the wiper arm and turn the
wiper blade assembly to expose the plastic locking clip. 1LDA5023
2. Compress the clip and slide theblade assembly downward.
3. Lift it off the arm. 1JBA7037
To install the wiper blade Install the blade assembly in the re- verse order of removal.
1JBA7038

6 DO-IT-YOURSELF MAINTENANCE
14

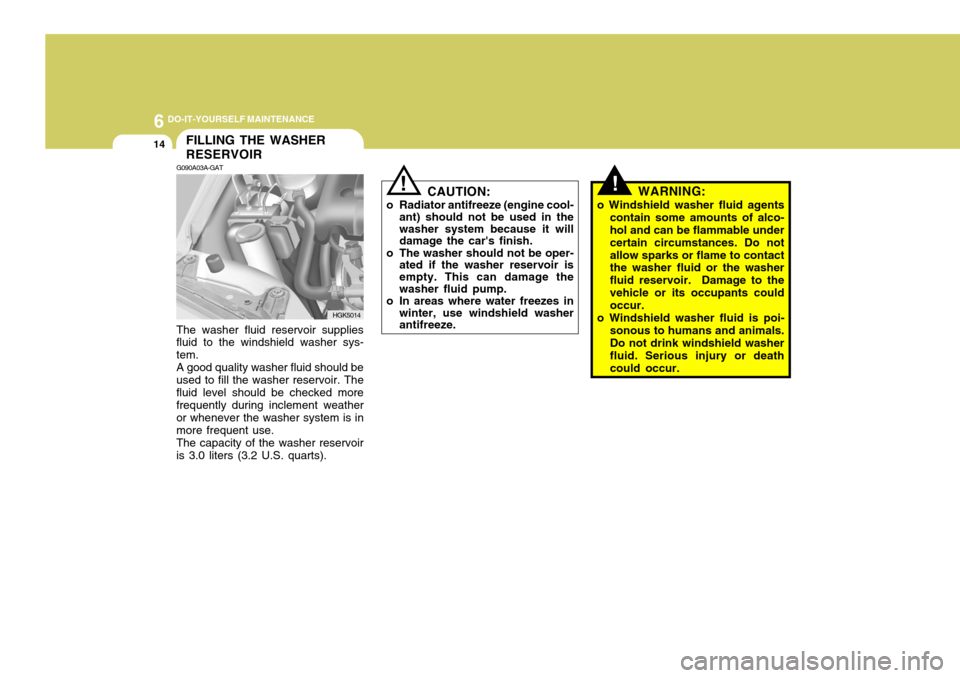

G090A03A-GAT The washer fluid reservoir supplies fluid to the windshield washer sys- tem.A good quality washer fluid should beused to fill the washer reservoir. Thefluid level should be checked more frequently during inclement weather or whenever the washer system is inmore frequent use.The capacity of the washer reservoiris 3.0 liters (3.2 U.S. quarts).FILLING THE WASHER RESERVOIR
HGK5014
!CAUTION:
o Radiator antifreeze (engine cool- ant) should not be used in the washer system because it will damage the car's finish.
o The washer should not be oper- ated if the washer reservoir is empty. This can damage the washer fluid pump.
o In areas where water freezes in winter, use windshield washerantifreeze.! WARNING:
o Windshield washer fluid agents contain some amounts of alco- hol and can be flammable under certain circumstances. Do notallow sparks or flame to contact the washer fluid or the washer fluid reservoir. Damage to thevehicle or its occupants could occur.
o Windshield washer fluid is poi- sonous to humans and animals.Do not drink windshield washer fluid. Serious injury or deathcould occur.

6
DO-IT-YOURSELF MAINTENANCE

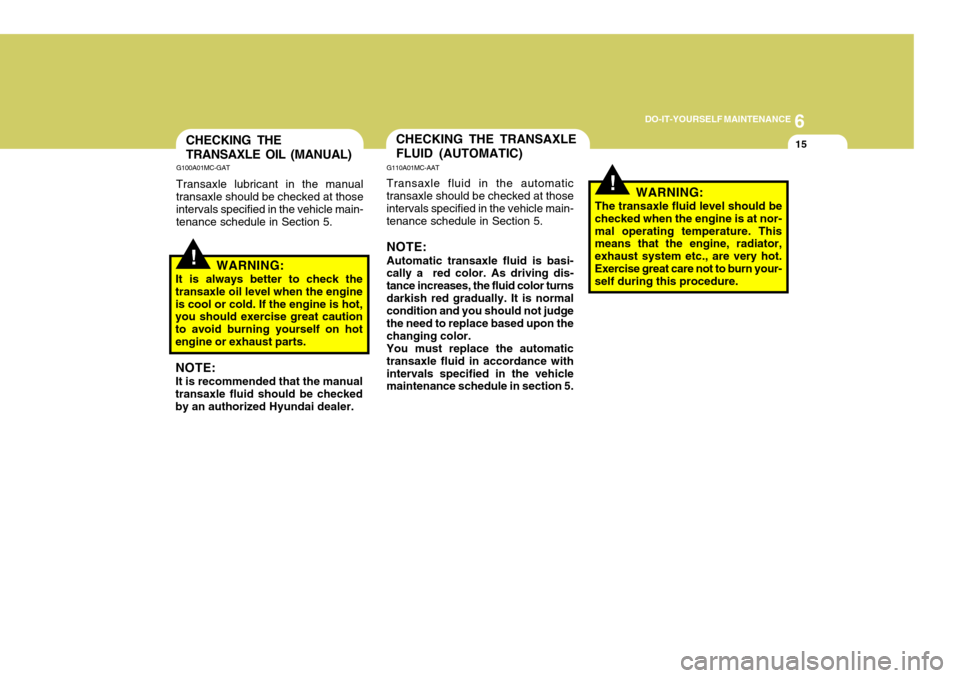

15CHECKING THE TRANSAXLE OIL (MANUAL)
G100A01MC-GAT
Transaxle lubricant in the manual transaxle should be checked at those intervals specified in the vehicle main-tenance schedule in Section 5.
!WARNING:
It is always better to check the
transaxle oil level when the engine is cool or cold. If the engine is hot, you should exercise great caution to avoid burning yourself on hotengine or exhaust parts.
NOTE: It is recommended that the manual
transaxle fluid should be checked by an authorized Hyundai dealer.
CHECKING THE TRANSAXLE FLUID (AUTOMATIC)
G110A01MC-AAT Transaxle fluid in the automatic transaxle should be checked at those intervals specified in the vehicle main-tenance schedule in Section 5. NOTE: Automatic transaxle fluid is basi- cally a red color. As driving dis- tance increases, the fluid color turnsdarkish red gradually. It is normal condition and you should not judge the need to replace based upon thechanging color.You must replace the automatictransaxle fluid in accordance withintervals specified in the vehicle maintenance schedule in section 5.
!WARNING:
The transaxle fluid level should be
checked when the engine is at nor- mal operating temperature. This means that the engine, radiator, exhaust system etc., are very hot.Exercise great care not to burn your- self during this procedure.

6 DO-IT-YOURSELF MAINTENANCE
16
HGK5007
G110D03Y-AAT

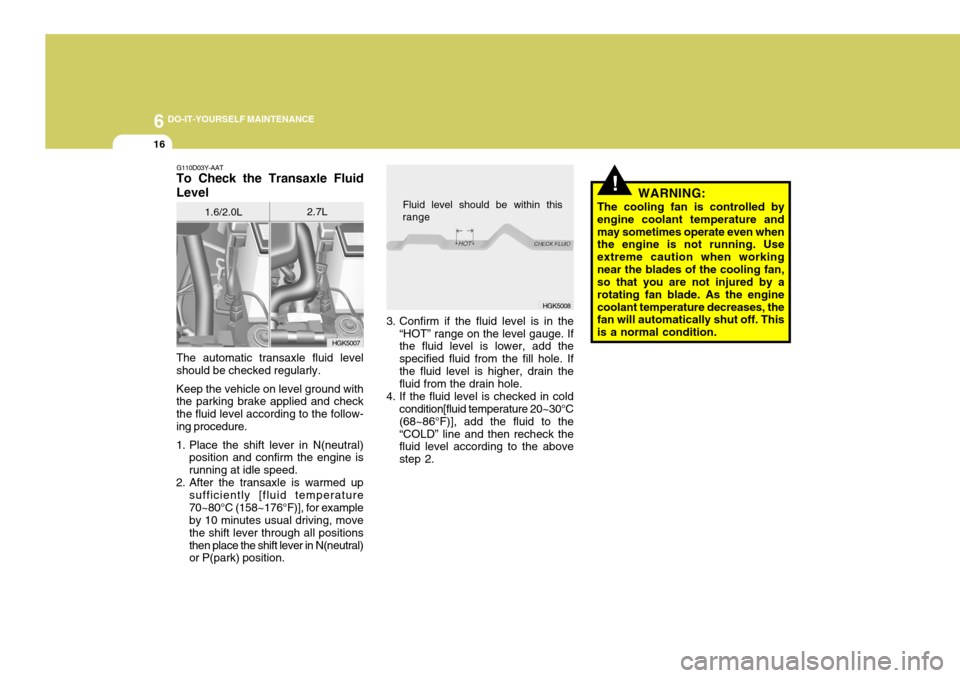

To Check the Transaxle Fluid Level
1.6/2.0L 2.7L
The automatic transaxle fluid level should be checked regularly. Keep the vehicle on level ground with the parking brake applied and check the fluid level according to the follow-ing procedure.
1. Place the shift lever in N(neutral) position and confirm the engine isrunning at idle speed.
2. After the transaxle is warmed up
sufficiently [fluid temperature70~80°C (158~176°F)], for example by 10 minutes usual driving, move the shift lever through all positionsthen place the shift lever in N(neutral) or P(park) position. 3. Confirm if the fluid level is in the
“HOT” range on the level gauge. Ifthe fluid level is lower, add the specified fluid from the fill hole. If the fluid level is higher, drain the fluid from the drain hole.
4. If the fluid level is checked in cold condition[fluid temperature 20~30°C(68~86°F)], add the fluid to the“COLD” line and then recheck the fluid level according to the above step 2.
HGK5008
!WARNING:
The cooling fan is controlled by engine coolant temperature andmay sometimes operate even when the engine is not running. Use extreme caution when workingnear the blades of the cooling fan, so that you are not injured by a rotating fan blade. As the enginecoolant temperature decreases, the fan will automatically shut off. This is a normal condition.
Fluid level should be within this
range

6
DO-IT-YOURSELF MAINTENANCE
17
G120D02A-AAT
To Check the Fluid Level

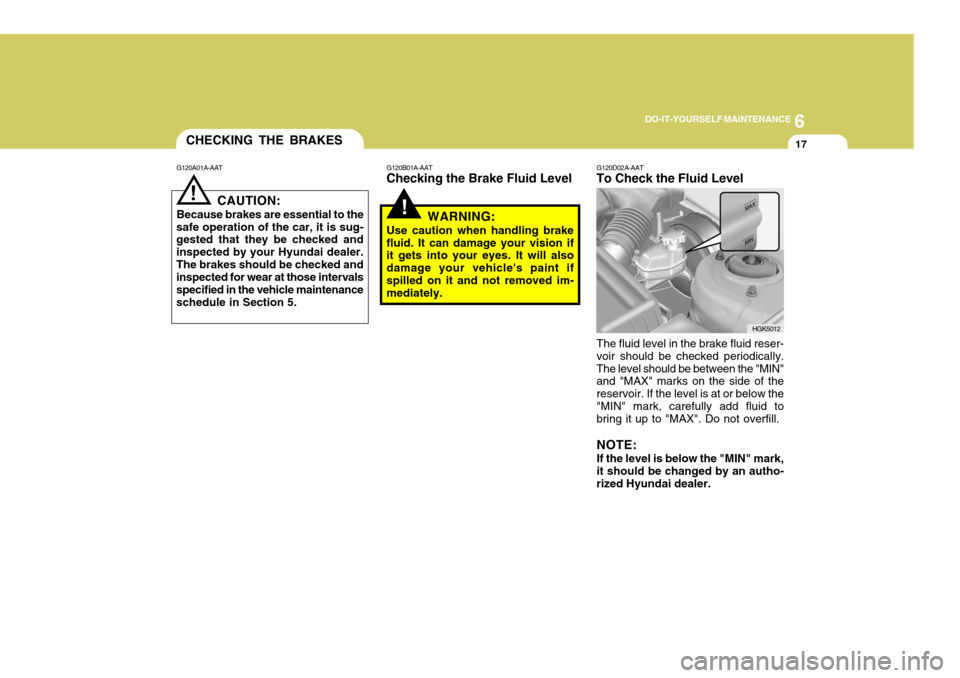

The fluid level in the brake fluid reser- voir should be checked periodically.The level should be between the "MIN" and "MAX" marks on the side of the reservoir. If the level is at or below the"MIN" mark, carefully add fluid to bring it up to "MAX". Do not overfill. NOTE: If the level is below the "MIN" mark, it should be changed by an autho-rized Hyundai dealer.
HGK5012
!
!
G120A01A-AAT CHECKING THE BRAKES
CAUTION:
Because brakes are essential to the
safe operation of the car, it is sug- gested that they be checked and inspected by your Hyundai dealer.The brakes should be checked and inspected for wear at those intervals specified in the vehicle maintenanceschedule in Section 5. G120B01A-AAT Checking the Brake Fluid Level
WARNING:
Use caution when handling brake fluid. It can damage your vision if it gets into your eyes. It will also damage your vehicle's paint ifspilled on it and not removed im- mediately.

6 DO-IT-YOURSELF MAINTENANCE
18
HGK5013

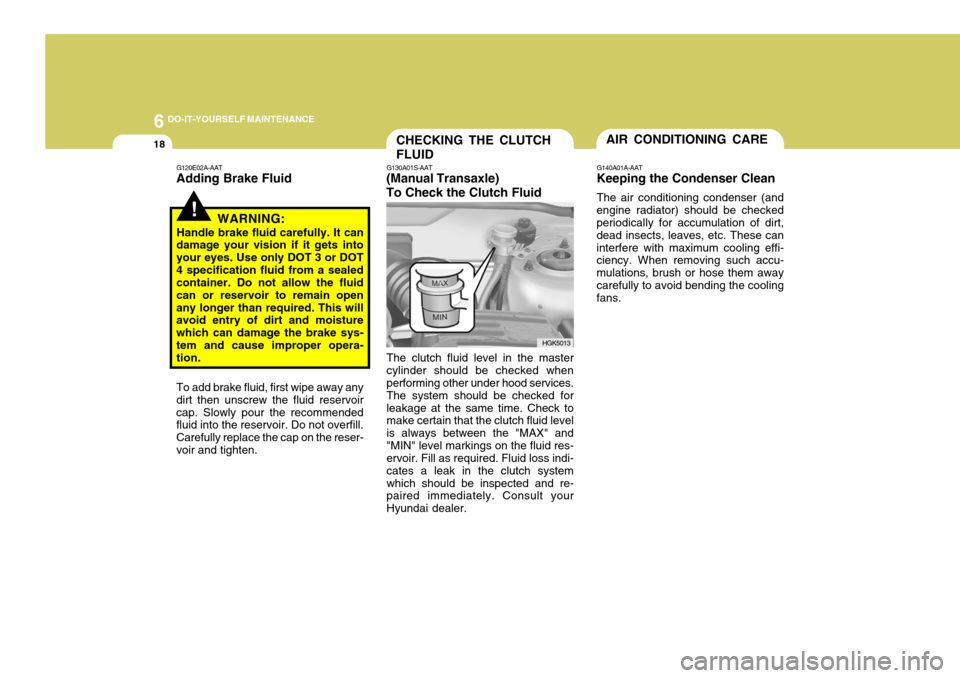

CHECKING THE CLUTCH FLUID
To add brake fluid, first wipe away any dirt then unscrew the fluid reservoircap. Slowly pour the recommended fluid into the reservoir. Do not overfill. Carefully replace the cap on the reser-voir and tighten. G130A01S-AAT
(Manual Transaxle) To Check the Clutch Fluid
!
G120E02A-AAT
Adding Brake Fluid
WARNING:
Handle brake fluid carefully. It can
damage your vision if it gets into your eyes. Use only DOT 3 or DOT4 specification fluid from a sealed container. Do not allow the fluid can or reservoir to remain openany longer than required. This will avoid entry of dirt and moisture which can damage the brake sys- tem and cause improper opera- tion. The clutch fluid level in the mastercylinder should be checked when performing other under hood services. The system should be checked forleakage at the same time. Check to make certain that the clutch fluid level is always between the "MAX" and"MIN" level markings on the fluid res- ervoir. Fill as required. Fluid loss indi- cates a leak in the clutch systemwhich should be inspected and re- paired immediately. Consult your Hyundai dealer.G140A01A-AAT
Keeping the Condenser Clean
The air conditioning condenser (and
engine radiator) should be checked periodically for accumulation of dirt, dead insects, leaves, etc. These caninterfere with maximum cooling effi- ciency. When removing such accu- mulations, brush or hose them awaycarefully to avoid bending the cooling fans. AIR CONDITIONING CARE

6
DO-IT-YOURSELF MAINTENANCE

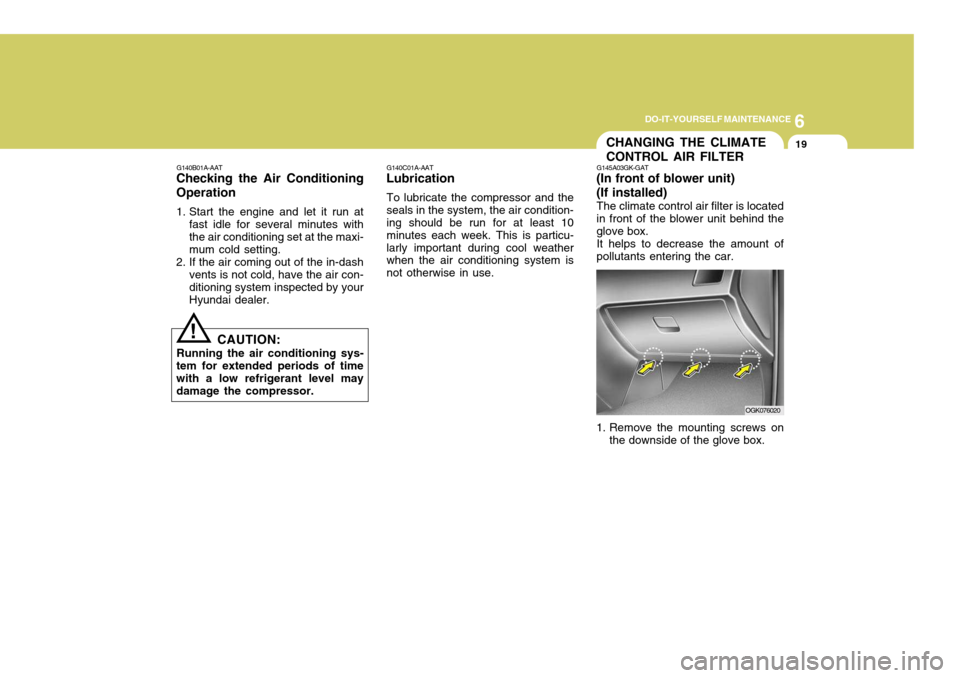

19CHANGING THE CLIMATE CONTROL AIR FILTER
G145A03GK-GAT
(In front of blower unit)(If installed)
The climate control air filter is located in front of the blower unit behind the glove box.It helps to decrease the amount ofpollutants entering the car.
1. Remove the mounting screws on the downside of the glove box. OGK076020
G140C01A-AAT
Lubrication
To lubricate the compressor and theseals in the system, the air condition- ing should be run for at least 10 minutes each week. This is particu-larly important during cool weather when the air conditioning system is not otherwise in use.
!
G140B01A-AAT
Checking the Air Conditioning Operation
1. Start the engine and let it run at
fast idle for several minutes with the air conditioning set at the maxi- mum cold setting.
2. If the air coming out of the in-dash vents is not cold, have the air con-ditioning system inspected by yourHyundai dealer.
CAUTION:
Running the air conditioning sys-
tem for extended periods of timewith a low refrigerant level maydamage the compressor.

6 DO-IT-YOURSELF MAINTENANCE
20
!

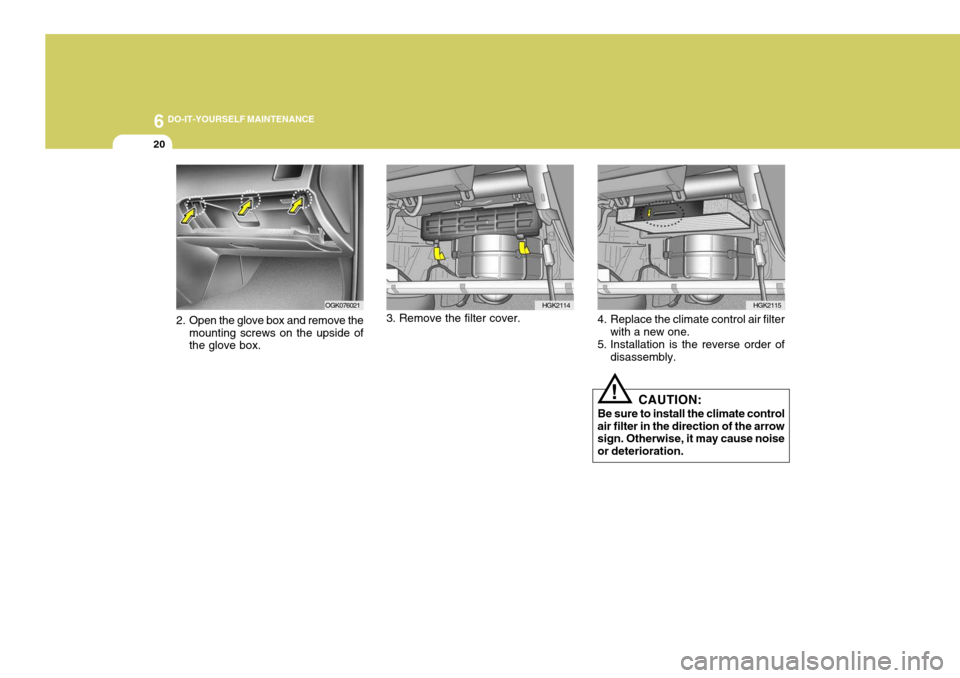

2. Open the glove box and remove the
mounting screws on the upside of the glove box. 4. Replace the climate control air filter
with a new one.
5. Installation is the reverse order of disassembly.
CAUTION:
Be sure to install the climate control
air filter in the direction of the arrowsign. Otherwise, it may cause noise or deterioration.
OGK076021HGK2114HGK2115
3. Remove the filter cover.

6
DO-IT-YOURSELF MAINTENANCE
21
G200A01E
!
CHECKING AND REPLACING FUSES
G200A01GK-AAT
Replacing a Fusible Link
A fusible link will melt if the electrical circuits from the battery are ever over-loaded, thus preventing damage to the entire wiring harness. (This could be caused by a short in the systemdrawing too much current.) If this ever happens, have a Hyundai dealer determine the cause, repair the sys-tem and replace the fusible link. The fusible links are located in a relay box(1.6L/2.0L) or below the positive(+) post cover of the battery (2.7L) for easy inspection. CAUTION:
When replacing a fusible link, never
use anything but a new fusible link with the same or lower amper-age rating. Never use a piece of wire or a higher-rated fusible link. This could result in serious dam-age and create a fire hazard.

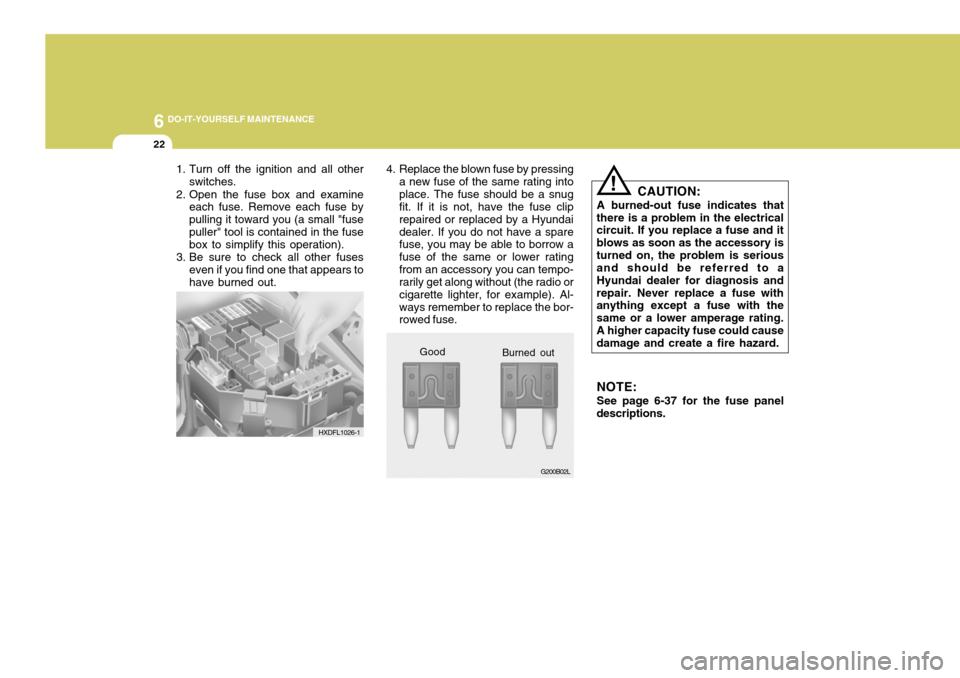

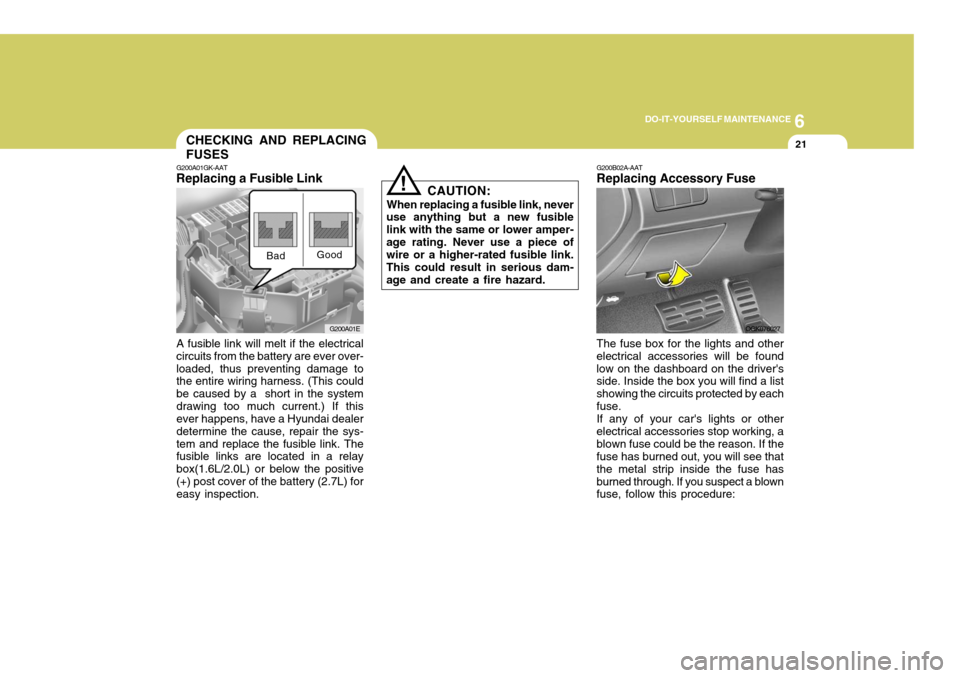

Good G200B02A-AAT Replacing Accessory Fuse The fuse box for the lights and other electrical accessories will be foundlow on the dashboard on the driver's side. Inside the box you will find a list showing the circuits protected by eachfuse.If any of your car's lights or otherelectrical accessories stop working, ablown fuse could be the reason. If the fuse has burned out, you will see that the metal strip inside the fuse hasburned through. If you suspect a blown fuse, follow this procedure:
Bad
OGK076027

6 DO-IT-YOURSELF MAINTENANCE
22
!
1. Turn off the ignition and all other
switches.
2. Open the fuse box and examine each fuse. Remove each fuse by pulling it toward you (a small "fusepuller" tool is contained in the fuse box to simplify this operation).
3. Be sure to check all other fuses even if you find one that appears to have burned out. 4. Replace the blown fuse by pressing
a new fuse of the same rating intoplace. The fuse should be a snug fit. If it is not, have the fuse clip repaired or replaced by a Hyundaidealer. If you do not have a spare fuse, you may be able to borrow a fuse of the same or lower ratingfrom an accessory you can tempo- rarily get along without (the radio or cigarette lighter, for example). Al-ways remember to replace the bor- rowed fuse. CAUTION:
A burned-out fuse indicates that
there is a problem in the electricalcircuit. If you replace a fuse and it blows as soon as the accessory isturned on, the problem is serious and should be referred to a Hyundai dealer for diagnosis andrepair. Never replace a fuse with anything except a fuse with the same or a lower amperage rating.A higher capacity fuse could cause damage and create a fire hazard.
NOTE: See page 6-37 for the fuse panel
descriptions.
Good
HXDFL1026-1
G200B02L
Burned out
