6OWNER MAINTENANCE
22
o If battery electrolyte is spilled ontoskin or into eyes, the effected area must be flushed with copious amounts of water and medical as- sistance sought.
o If battery electrolyte is ingested, copious amounts of water or milkfollowed by an ant-acid (raw egg ormilk of magnesia) must be drunk. Vomiting should not be induced and medical assistance must besought.
o Batteries must only be charged in well ventilated areas from which naked lights or sources of sparks are excluded.
o Ensure that children, pets or other unauthorised persons are kept awayfrom batteries.
o Do not allow anything to bridge the
positive (+) and negative (-) termi-nals of the battery.
o Never invert the battery.
The battery fitted during production isof the "Maintenance Free" type.
If electrolyte gets on your skin, thoroughly wash the contacted area. If you feel a pain or a burn- ing sensation, get medical attention immediately. Wear eye protection when charging or working near a battery.Always provide ventilationwhen working in an en-closed space.
o When lifting a plastic-cased bat- tery, excessive pressure on thecase may cause battery acid toleak, resulting in personal injury. Lift with a battery carrier or with your hands on opposite corners.
o Never attempt to charge the bat- tery when the battery cables areconnected.
o The electrical ignition system works with high voltage.Never touch these componentswith the engine running or theignition switched on.!WARNING:

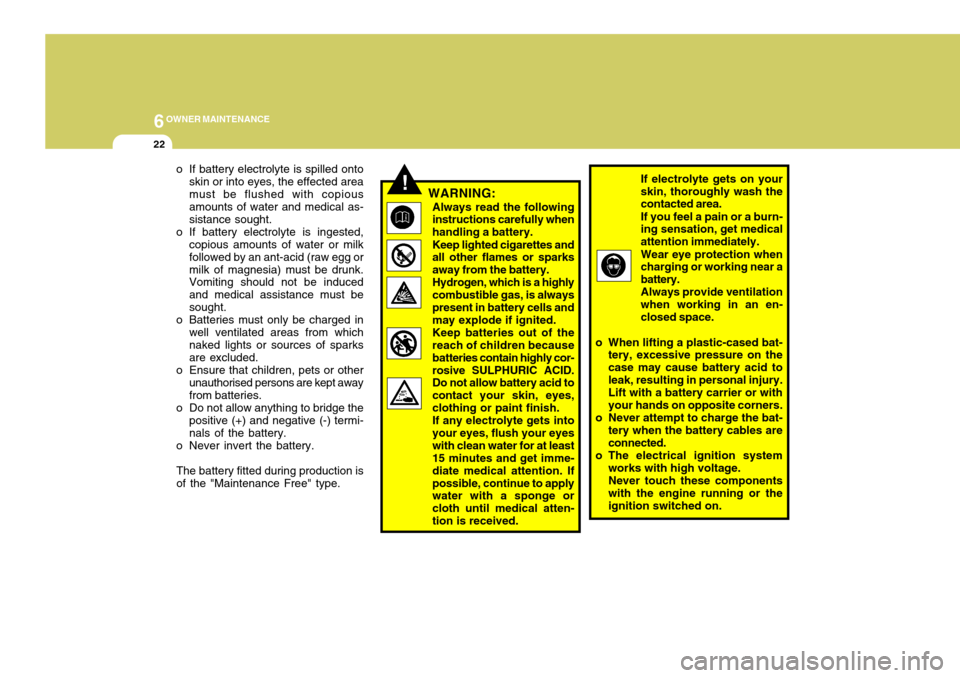

Always read the following instructions carefully when handling a battery. Keep lighted cigarettes and all other flames or sparks away from the battery.Hydrogen, which is a highlycombustible gas, is alwayspresent in battery cells and may explode if ignited. Keep batteries out of the reach of children because
batteries contain highly cor-rosive SULPHURIC ACID. Do not allow battery acid to
contact your skin, eyes,
clothing or paint finish.If any electrolyte gets intoyour eyes, flush your eyeswith clean water for at least 15 minutes and get imme- diate medical attention. Ifpossible, continue to apply water with a sponge or cloth until medical atten-tion is received.

6
OWNER MAINTENANCE
23POWER STEERING FLUID LEVELELECTRIC COOLING FANS
!
YG210A1-E
WARNING:
The cooling fan is controlled by
engine coolant temperature and may sometimes operate even whenthe engine is not running. Do not touch the radiator fan until it is completely stopped.
As the coolant temperature de-
creases the fan will automaticallyshut off. This is a normal condi- tion. Checking Engine Cooling Fan
The engine cooling fan should auto-
matically come on if the engine cool- ant temperature is high. Checking Condenser Cooling Fan
The condenser cooling fan (in front of
the condenser) should come on auto- matically whenever the air conditioneris in operation. YG220A1-E Power Steering Hoses It is suggested that you check the power steering hose connections for fluid leakage at those intervals speci- fied in the vehicle maintenance sched-ule in Section 5. The power steering hoses should be replaced if there are severe surface cracking, pulling, scuff-ing or worn spots. Deterioration of the hoses could cause premature failure.
HGK5011
G230A01GK-EAT The power steering fluid level should
be checked regularly.

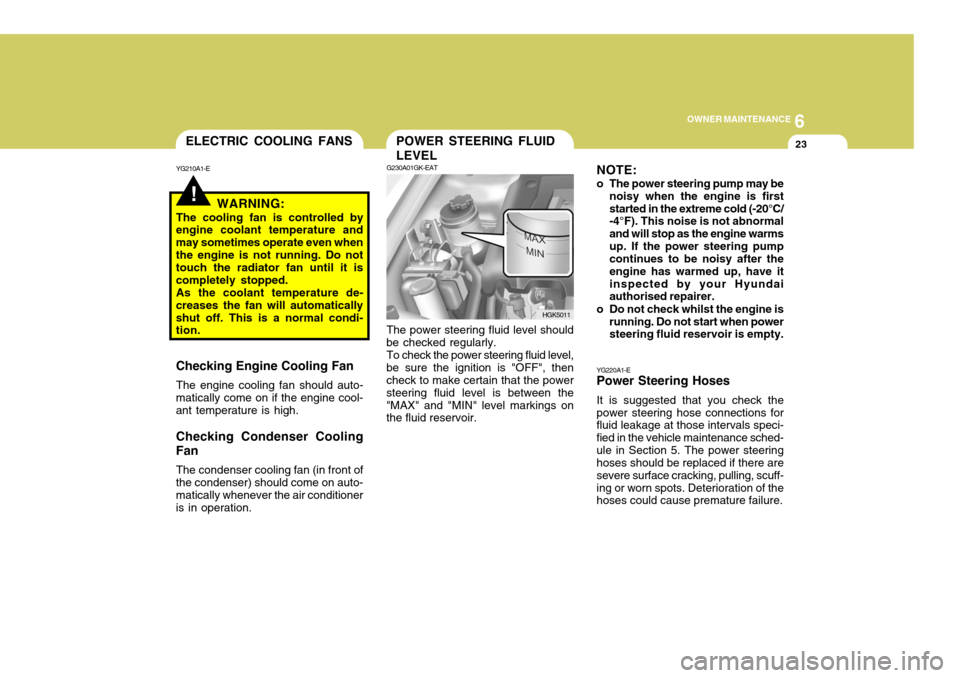

To check the power steering fluid level,
be sure the ignition is "OFF", then check to make certain that the power steering fluid level is between the"MAX" and "MIN" level markings on the fluid reservoir. NOTE:
o The power steering pump may be
noisy when the engine is first started in the extreme cold (-20°C/ -4°F). This noise is not abnormal and will stop as the engine warmsup. If the power steering pump continues to be noisy after the engine has warmed up, have itinspected by your Hyundai authorised repairer.
o Do not check whilst the engine is running. Do not start when powersteering fluid reservoir is empty.

6OWNER MAINTENANCE
24
G290B01GK-EAT

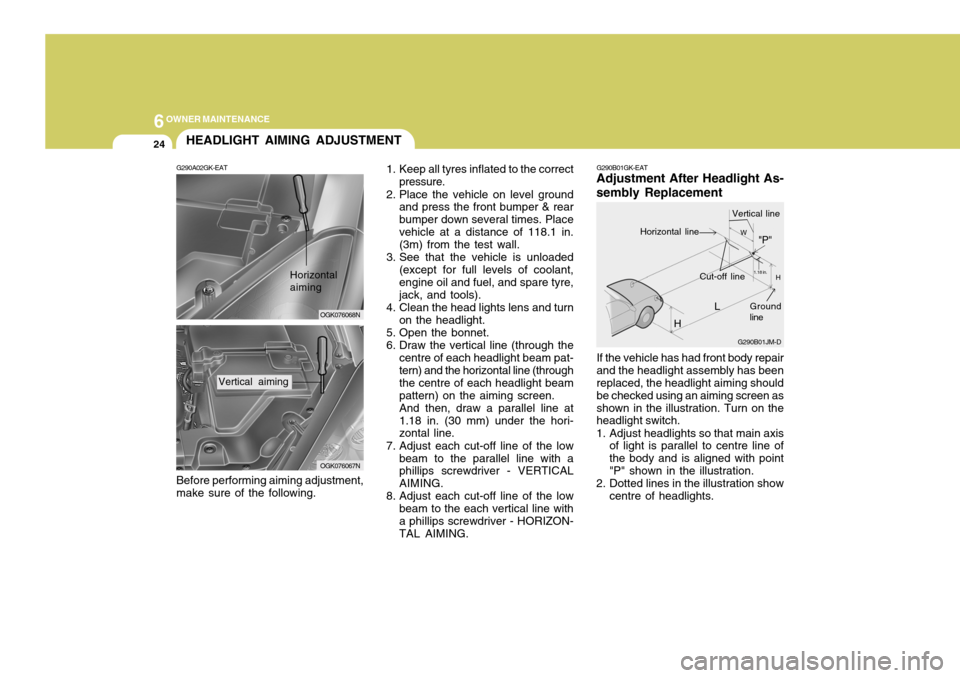

Adjustment After Headlight As- sembly Replacement
If the vehicle has had front body repair and the headlight assembly has been replaced, the headlight aiming should be checked using an aiming screen asshown in the illustration. Turn on the headlight switch.
1. Adjust headlights so that main axis of light is parallel to centre line of the body and is aligned with point"P" shown in the illustration.
2. Dotted lines in the illustration show centre of headlights.
1. Keep all tyres inflated to the correct
pressure.
2. Place the vehicle on level ground and press the front bumper & rearbumper down several times. Placevehicle at a distance of 118.1 in. (3m) from the test wall.
3. See that the vehicle is unloaded (except for full levels of coolant, engine oil and fuel, and spare tyre,jack, and tools).
4. Clean the head lights lens and turn
on the headlight.
5. Open the bonnet.
6. Draw the vertical line (through the centre of each headlight beam pat- tern) and the horizontal line (through the centre of each headlight beampattern) on the aiming screen.And then, draw a parallel line at1.18 in. (30 mm) under the hori- zontal line.
7. Adjust each cut-off line of the low beam to the parallel line with aphillips screwdriver - VERTICAL AIMING.
8. Adjust each cut-off line of the low
beam to the each vertical line witha phillips screwdriver - HORIZON- TAL AIMING. L
G290B01JM-D
W
H
H Cut-off line"P"
Vertical lineHorizontal line
Ground line
1.18 in.
G290A02GK-EAT
HEADLIGHT AIMING ADJUSTMENT
Before performing aiming adjustment, make sure of the following.
OGK076068N
OGK076067N
Horizontal aiming
Vertical aiming

6
OWNER MAINTENANCE
25
SPECIFICATION: "H" Horizontal centre line of headlights from ground: Low Beam: 27.2 in. (690 mm) High Beam: 26.5 in. (674 mm) "W" Distance between each headlight cen- tre : Low Beam: 52.6 in. (1,336 mm) High Beam: 43.2 in. (1,098 mm) "L" Distance between the headlights and the wall that the lights are tested against : 118.11 in. (3,000 mm)REPLACING LIGHT BULBS

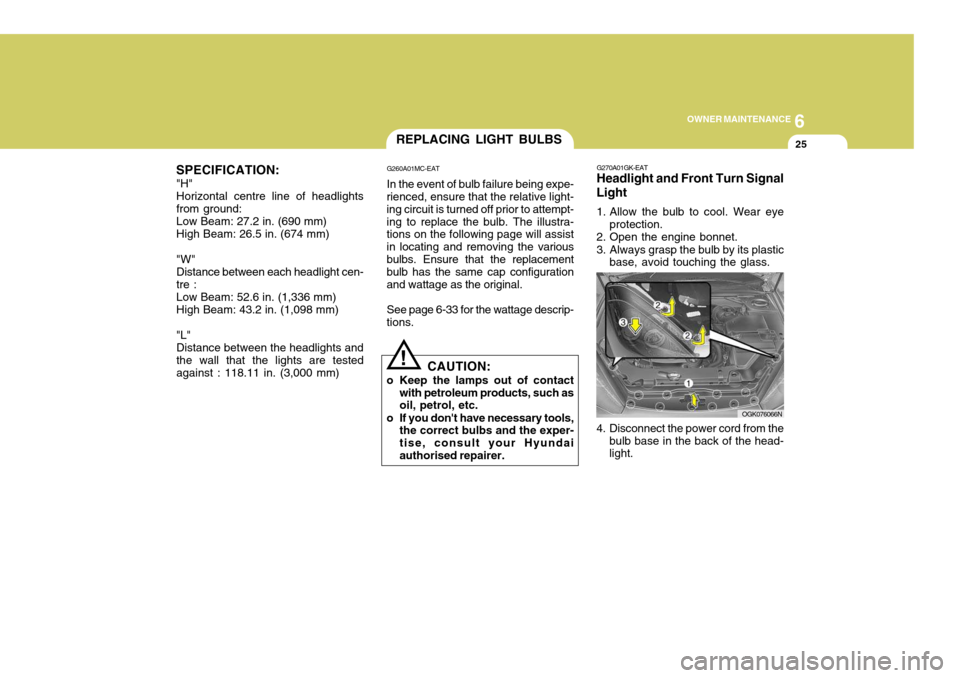

G260A01MC-EAT In the event of bulb failure being expe-
rienced, ensure that the relative light- ing circuit is turned off prior to attempt-ing to replace the bulb. The illustra- tions on the following page will assist in locating and removing the various
bulbs. Ensure that the replacement bulb has the same cap configuration and wattage as the original.
See page 6-33 for the wattage descrip-
tions.
CAUTION:
o Keep the lamps out of contact with petroleum products, such as oil, petrol, etc.
o If you don't have necessary tools, the correct bulbs and the exper- tise, consult your Hyundaiauthorised repairer.
!
G270A01GK-EAT
Headlight and Front Turn Signal Light

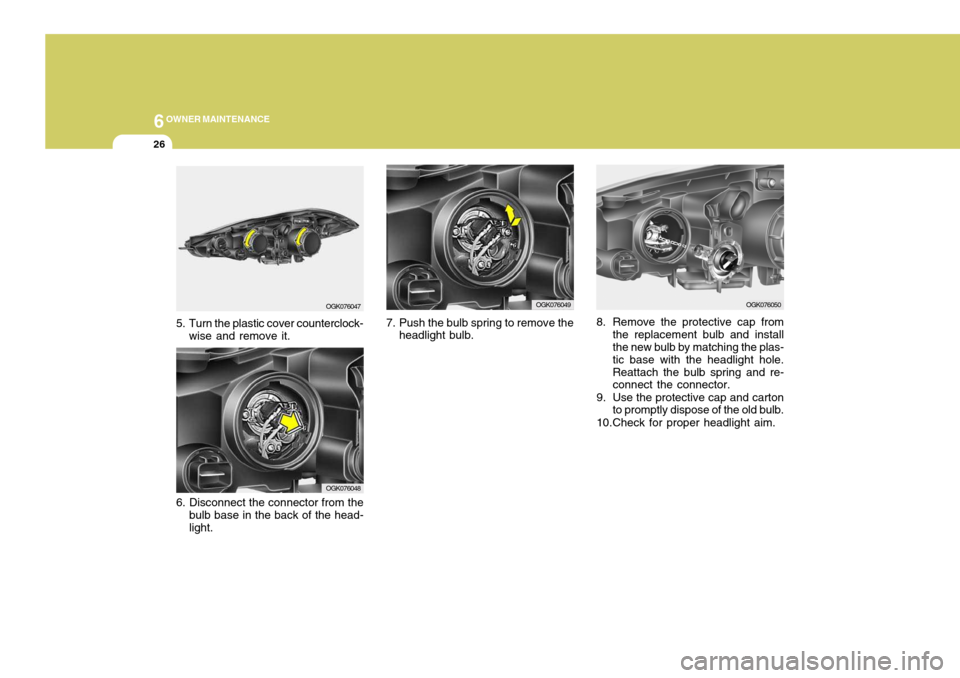

1. Allow the bulb to cool. Wear eye
protection.
2. Open the engine bonnet.
3. Always grasp the bulb by its plastic base, avoid touching the glass.
4. Disconnect the power cord from the
bulb base in the back of the head- light. OGK076066N

6OWNER MAINTENANCE
26
8. Remove the protective cap from
the replacement bulb and install the new bulb by matching the plas- tic base with the headlight hole.Reattach the bulb spring and re- connect the connector.
9. Use the protective cap and carton to promptly dispose of the old bulb.
10.Check for proper headlight aim.
7. Push the bulb spring to remove the
headlight bulb.
OGK076050OGK076049
OGK076048
OGK076047
5. Turn the plastic cover counterclock- wise and remove it.
6. Disconnect the connector from the bulb base in the back of the head- light.

6
OWNER MAINTENANCE
27

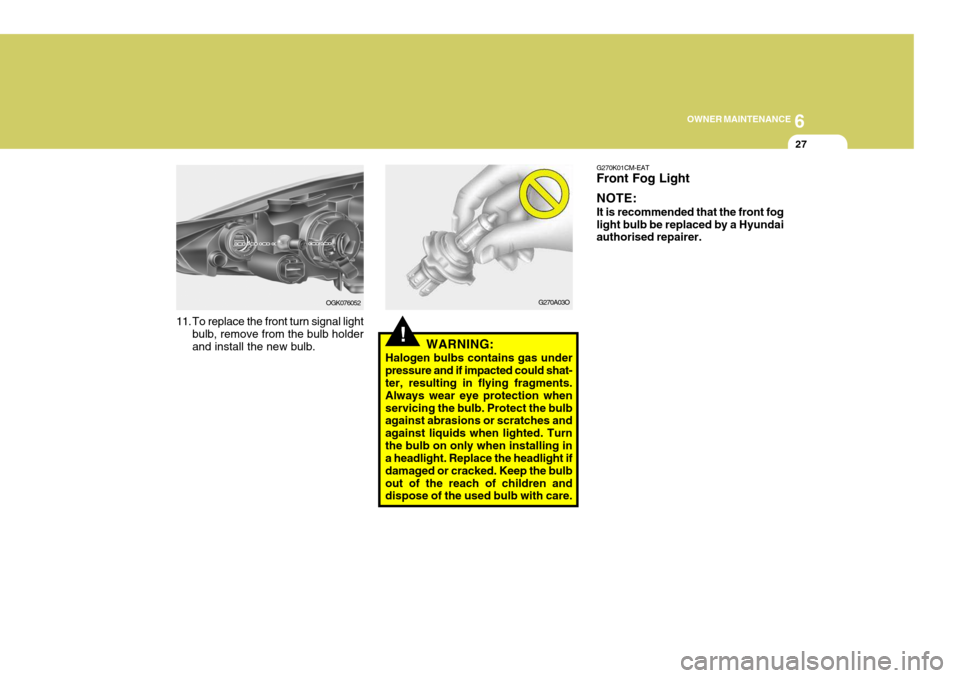

!WARNING:
Halogen bulbs contains gas under pressure and if impacted could shat- ter, resulting in flying fragments. Always wear eye protection whenservicing the bulb. Protect the bulb against abrasions or scratches and against liquids when lighted. Turnthe bulb on only when installing in a headlight. Replace the headlight if damaged or cracked. Keep the bulbout of the reach of children and dispose of the used bulb with care.
11. To replace the front turn signal light
bulb, remove from the bulb holderand install the new bulb. OGK076052
G270A03OG270K01CM-EAT Front Fog Light NOTE: It is recommended that the front fog light bulb be replaced by a Hyundai authorised repairer.

6OWNER MAINTENANCE
28

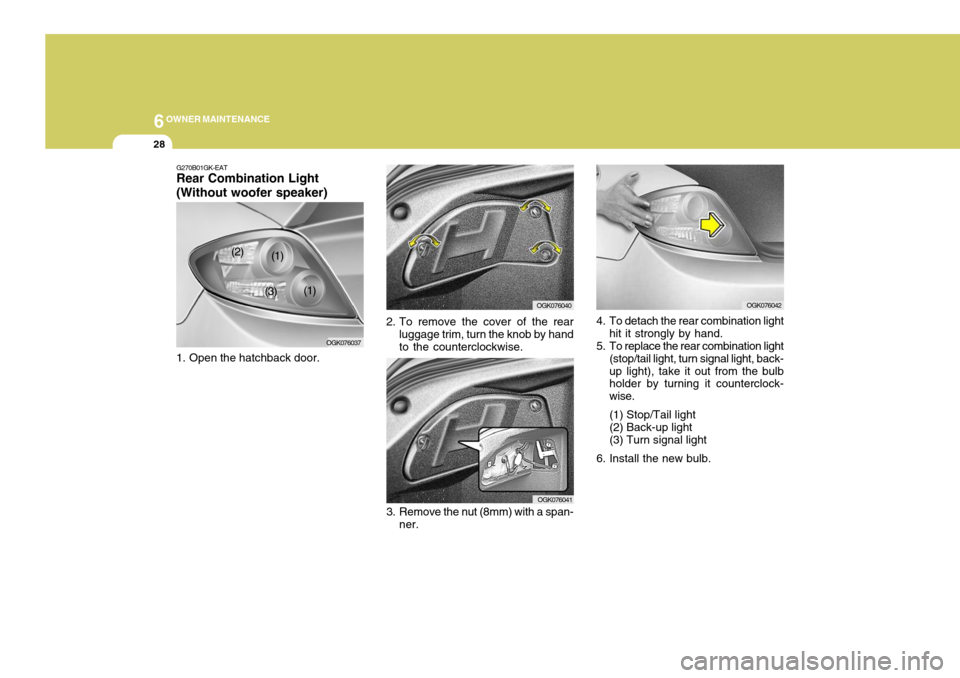

G270B01GK-EAT Rear Combination Light (Without woofer speaker)

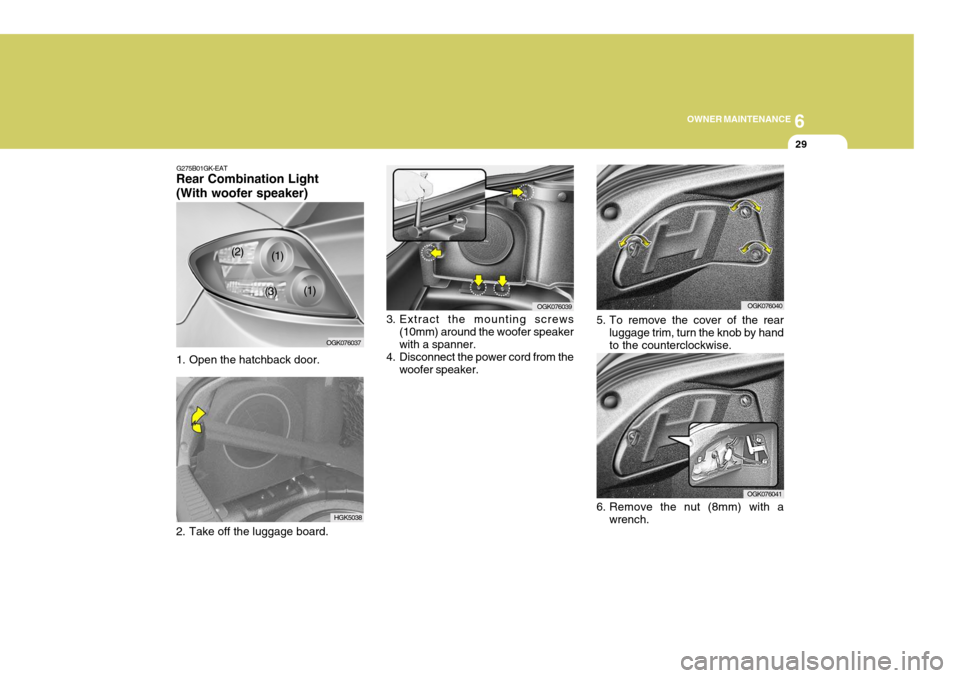

1. Open the hatchback door.
3. Remove the nut (8mm) with a span-ner. OGK0760414. To detach the rear combination light
hit it strongly by hand.
5. To replace the rear combination light (stop/tail light, turn signal light, back- up light), take it out from the bulb holder by turning it counterclock- wise. (1) Stop/Tail light (2) Back-up light (3) Turn signal light
6. Install the new bulb. OGK076042
OGK076040
2. To remove the cover of the rear luggage trim, turn the knob by hand to the counterclockwise.
OGK076037
(1)
(2)
(3) (1)

6
OWNER MAINTENANCE
29
1. Open the hatchback door. OGK076039
3. Extract the mounting screws (10mm) around the woofer speaker with a spanner.
4. Disconnect the power cord from the woofer speaker.
HGK5038
G275B01GK-EAT
Rear Combination Light (With woofer speaker)
2. Take off the luggage board.
OGK076037
(1)
(2)
(3) (1)
OGK076040
5. To remove the cover of the rear luggage trim, turn the knob by hand to the counterclockwise.
OGK076041
6. Remove the nut (8mm) with a wrench.

6OWNER MAINTENANCE
30
OGK076042

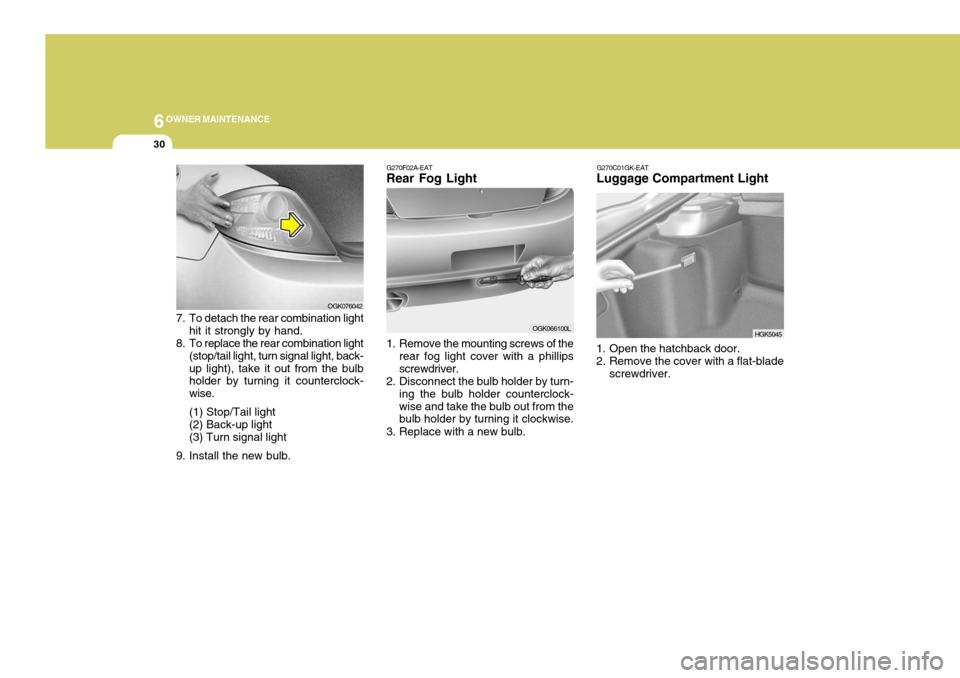

7. To detach the rear combination light hit it strongly by hand.
8. To replace the rear combination light (stop/tail light, turn signal light, back- up light), take it out from the bulb holder by turning it counterclock- wise. (1) Stop/Tail light (2) Back-up light (3) Turn signal light
9. Install the new bulb.
G270C01GK-EAT
Luggage Compartment Light
1. Open the hatchback door.
2. Remove the cover with a flat-blade screwdriver.
HGK50451. Remove the mounting screws of the
rear fog light cover with a phillips screwdriver.
2. Disconnect the bulb holder by turn-
ing the bulb holder counterclock-wise and take the bulb out from the bulb holder by turning it clockwise.
3. Replace with a new bulb. G270F02A-EAT
Rear Fog Light
OGK066100L

6
OWNER MAINTENANCE
31

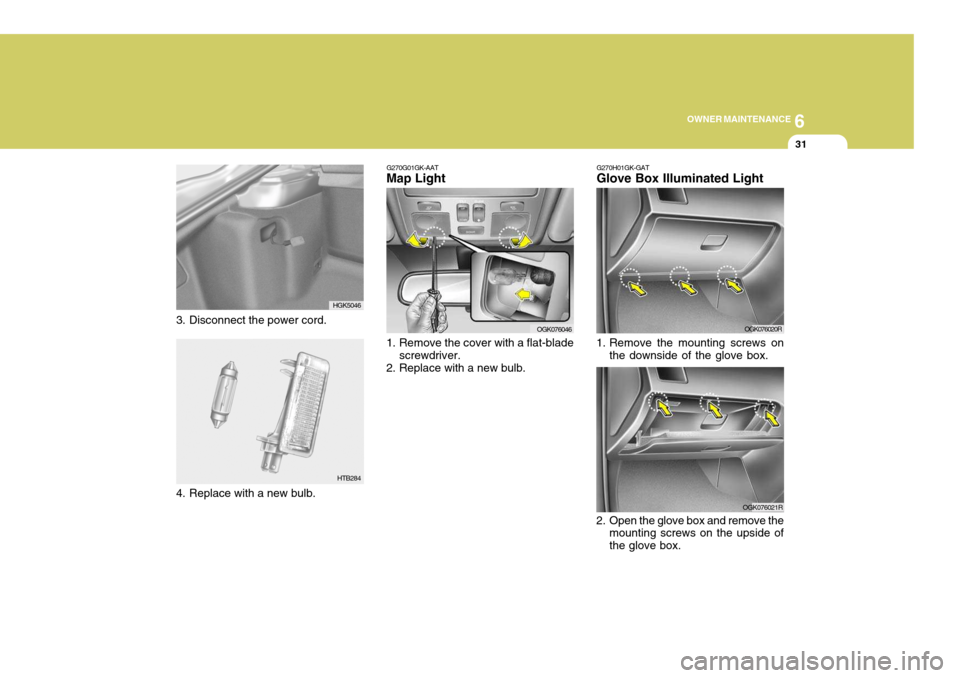

G270G01GK-AAT
Map Light
1. Remove the cover with a flat-blade
screwdriver.
2. Replace with a new bulb.
OGK076046
OGK076021R
2. Open the glove box and remove the mounting screws on the upside of the glove box.
G270H01GK-GAT Glove Box Illuminated Light
1. Remove the mounting screws on the downside of the glove box. OGK076020R
HTB284
3. Disconnect the power cord.
HGK5046
4. Replace with a new bulb.
