Hyundai Coupe 2007 Owner's Manual

8CONSUMER INFORMATION
2
F040A02TB-1
1.6LOGK086001
SI010A1-E

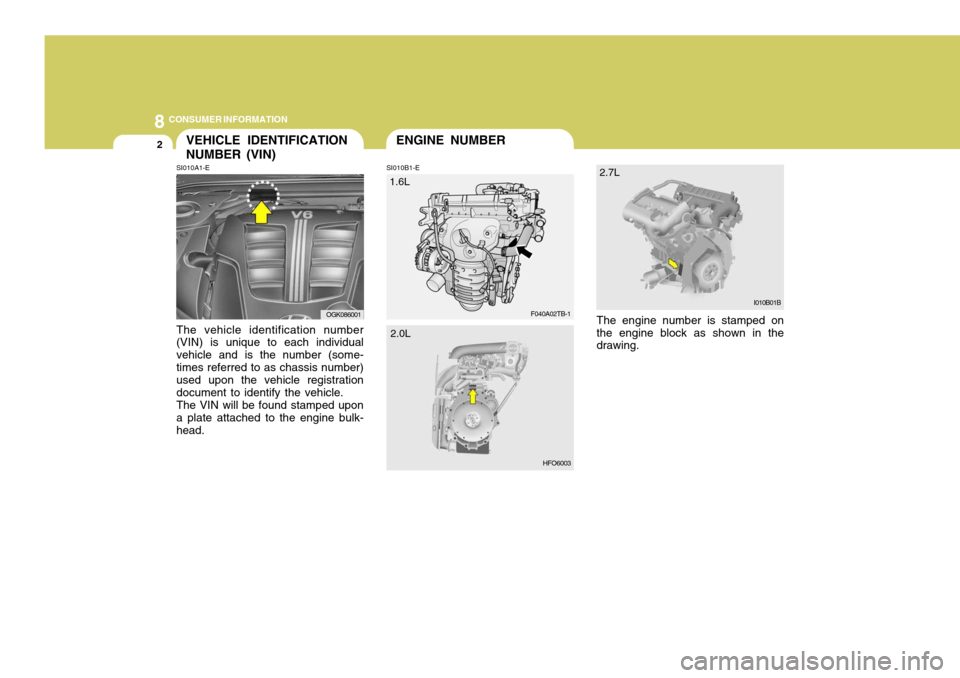

VEHICLE IDENTIFICATION NUMBER (VIN)
The vehicle identification number (VIN) is unique to each individual vehicle and is the number (some-times referred to as chassis number) used upon the vehicle registration document to identify the vehicle.The VIN will be found stamped upona plate attached to the engine bulk-head. SI010B1-E
ENGINE NUMBER
The engine number is stamped onthe engine block as shown in the drawing.I010B01B
2.7L
HFO6003
2.0L

8
CONSUMER INFORMATION
3
I030A01GK-EAT TYRE PRESSURES In modern high-speed motoring, cor- rect tyre pressures are vitally impor- tant. Incorrect tyre pressures can af- fect vehicle safety by causing re-duced adhesion, steering response and tyre failure through overheating. The tyre pressure must only be checked when the tyres are cold. The correct tyre pressures are indicated on the label affixed to the driver's doorpillar and above.Tyre pressures should be increasedby 3 psi when the vehicle is drivenfully laden or under conditions of sus- tained high speed motoring.
HGK6003-E
TYRE
ZI010C1-E TYRE INFORMATION The tyres supplied on your new Hyundai are chosen to provide the best performance for normal driving. 6.0Jx15 6.5Jx16 7.0Jx17
4Tx16 TYRE SIZE
RIM
SIZE PRESSURE, kPa (PSI)
REAR
210(30) 210(30)210(30)420(60) FRONT
210(30)230(33) 240(35) 420(60)
UP TO 2 PERSONS UP TO M
AX.LOAD
REAR
210(30)230(33) 230(33) 420(60)
FRONT
210(30)210(30)220(32) 420(60)
195/65R15 205/55R16215/45R17
T125/70R16

8CONSUMER INFORMATION
4
!

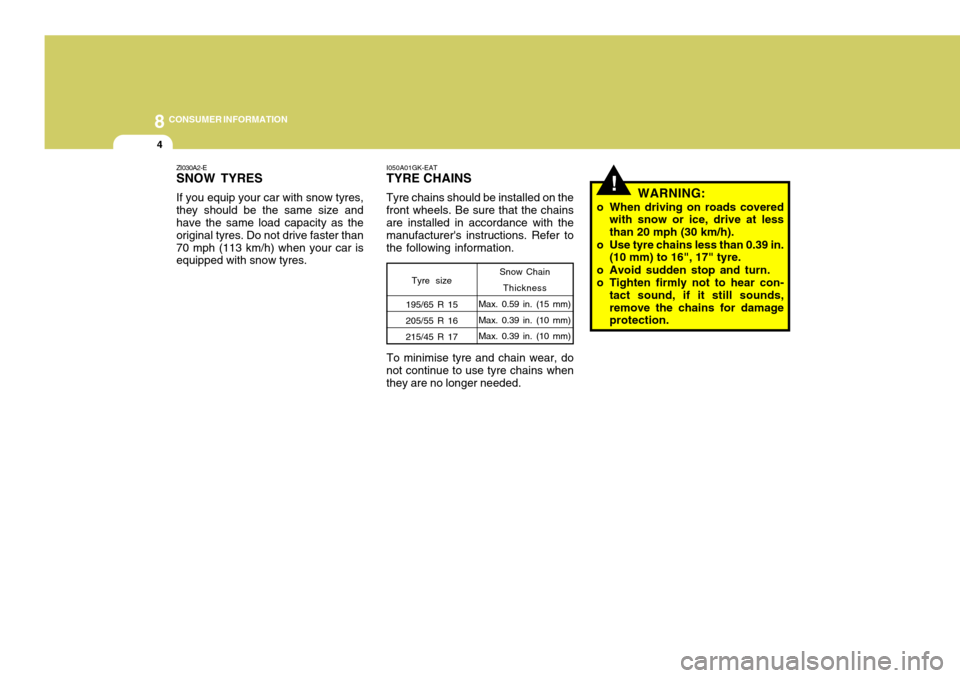

I050A01GK-EAT TYRE CHAINS Tyre chains should be installed on the front wheels. Be sure that the chains are installed in accordance with the manufacturer's instructions. Refer tothe following information.
To minimise tyre and chain wear, do
not continue to use tyre chains when they are no longer needed. WARNING:
o When driving on roads covered with snow or ice, drive at less than 20 mph (30 km/h).
o Use tyre chains less than 0.39 in. (10 mm) to 16", 17" tyre.
o Avoid sudden stop and turn.
o Tighten firmly not to hear con- tact sound, if it still sounds,remove the chains for damage protection.
ZI030A2-E SNOW TYRES If you equip your car with snow tyres, they should be the same size and have the same load capacity as the original tyres. Do not drive faster than70 mph (113 km/h) when your car is equipped with snow tyres.
Tyre size
195/65 R 15 205/55 R 16 215/45 R 17 Snow Chain
Thickness
Max. 0.59 in. (15 mm)Max. 0.39 in. (10 mm) Max. 0.39 in. (10 mm)

8
CONSUMER INFORMATION
5
HGK5016
!

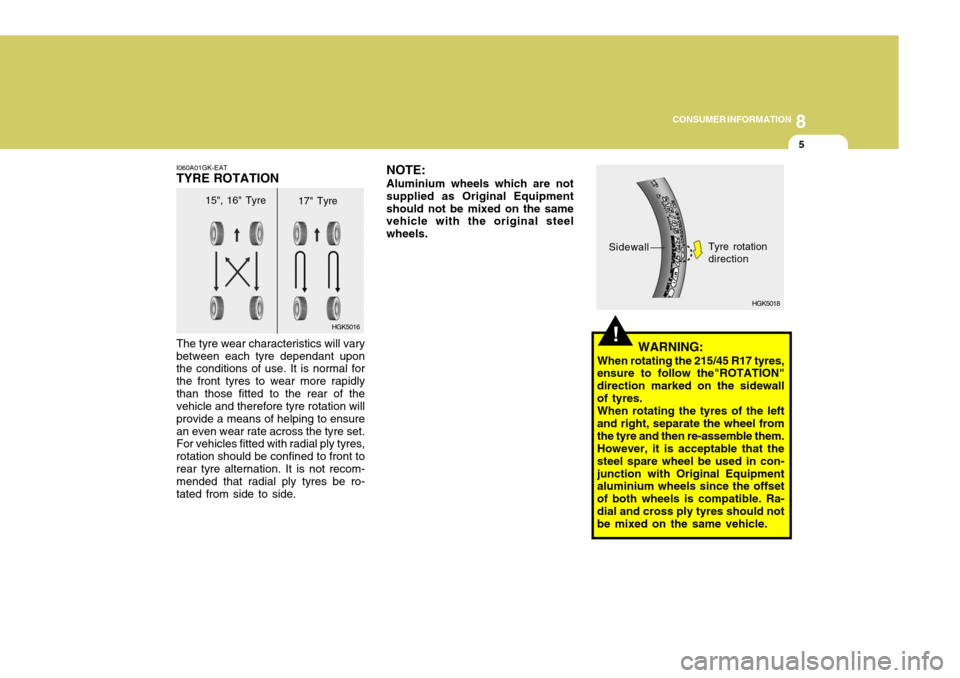

I060A01GK-EAT TYRE ROTATION The tyre wear characteristics will vary between each tyre dependant upon the conditions of use. It is normal for the front tyres to wear more rapidlythan those fitted to the rear of the vehicle and therefore tyre rotation will provide a means of helping to ensurean even wear rate across the tyre set. For vehicles fitted with radial ply tyres, rotation should be confined to front torear tyre alternation. It is not recom- mended that radial ply tyres be ro- tated from side to side. NOTE: Aluminium wheels which are not supplied as Original Equipmentshould not be mixed on the same vehicle with the original steel wheels.
15", 16" Tyre
Sidewall
HGK5018
17" Tyre Tyre rotation direction
WARNING:
When rotating the 215/45 R17 tyres,
ensure to follow the"ROTATION" direction marked on the sidewallof tyres.
When rotating the tyres of the left
and right, separate the wheel fromthe tyre and then re-assemble them. However, it is acceptable that the steel spare wheel be used in con-junction with Original Equipment aluminium wheels since the offset of both wheels is compatible. Ra-dial and cross ply tyres should not be mixed on the same vehicle.

8CONSUMER INFORMATION
6
SI060B2-E

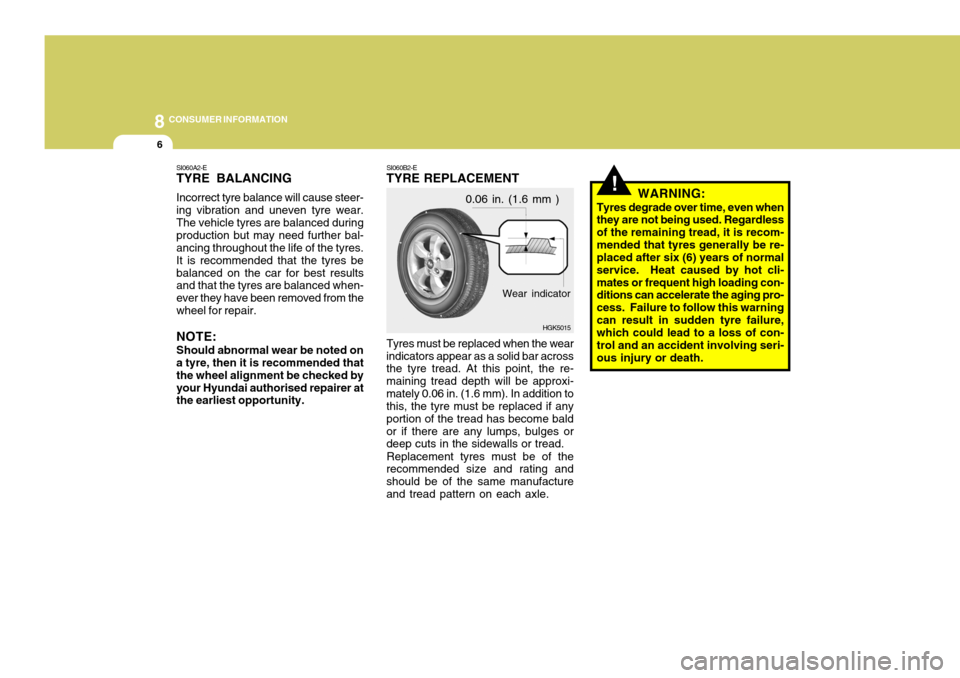

TYRE REPLACEMENT
Tyres must be replaced when the wear
indicators appear as a solid bar across the tyre tread. At this point, the re- maining tread depth will be approxi-mately 0.06 in. (1.6 mm). In addition to this, the tyre must be replaced if any portion of the tread has become baldor if there are any lumps, bulges or deep cuts in the sidewalls or tread.
Replacement tyres must be of the
recommended size and rating and should be of the same manufactureand tread pattern on each axle. HGK5015
0.06 in. (1.6 mm )
Wear indicator
SI060A2-E TYRE BALANCING Incorrect tyre balance will cause steer- ing vibration and uneven tyre wear. The vehicle tyres are balanced during production but may need further bal-ancing throughout the life of the tyres.It is recommended that the tyres bebalanced on the car for best results and that the tyres are balanced when- ever they have been removed from thewheel for repair. NOTE: Should abnormal wear be noted on a tyre, then it is recommended that the wheel alignment be checked byyour Hyundai authorised repairer at the earliest opportunity.
!WARNING:
Tyres degrade over time, even when they are not being used. Regardless of the remaining tread, it is recom-mended that tyres generally be re- placed after six (6) years of normal service. Heat caused by hot cli-mates or frequent high loading con- ditions can accelerate the aging pro- cess. Failure to follow this warningcan result in sudden tyre failure, which could lead to a loss of con- trol and an accident involving seri-ous injury or death.

8
CONSUMER INFORMATION
7
!

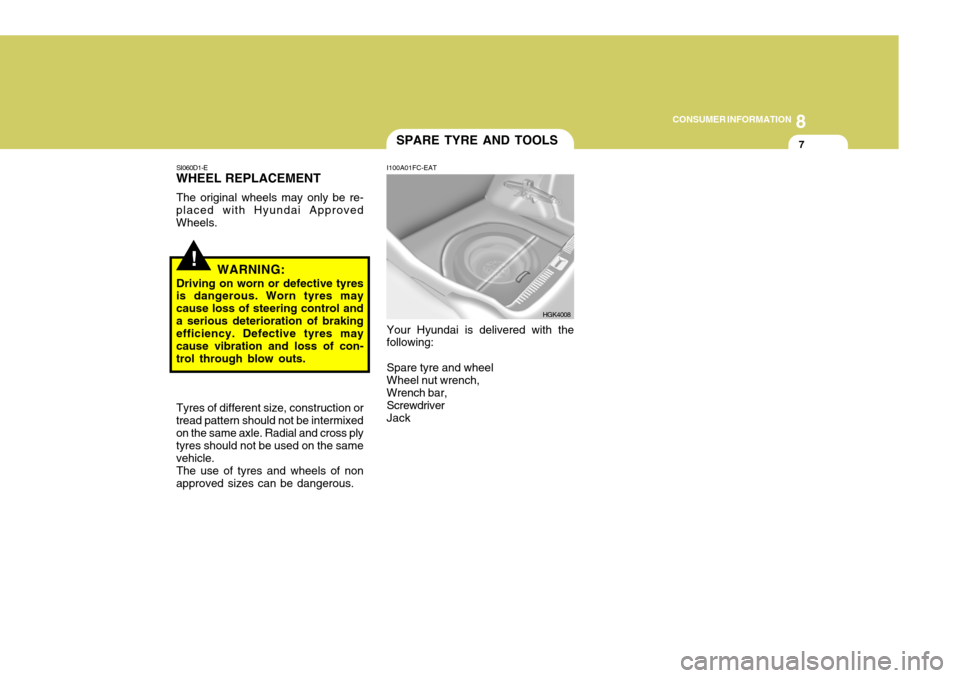

I100A01FC-EAT SPARE TYRE AND TOOLS
Your Hyundai is delivered with the following: Spare tyre and wheel Wheel nut wrench, Wrench bar,ScrewdriverJack HGK4008
SI060D1-E
WHEEL REPLACEMENT
The original wheels may only be re-
placed with Hyundai Approved Wheels.
WARNING:
Driving on worn or defective tyres
is dangerous. Worn tyres may cause loss of steering control anda serious deterioration of braking efficiency. Defective tyres may cause vibration and loss of con-trol through blow outs.
Tyres of different size, construction or
tread pattern should not be intermixedon the same axle. Radial and cross ply tyres should not be used on the same vehicle. The use of tyres and wheels of non
approved sizes can be dangerous.

MEASUREMENT......................................................... 9-2
ENGINE ....................................................................... 9-3
LUBRICATION CHART ............................................... 9-4
9
VEHICLE SPECIFICATIONS
9

9 VEHICLE SPECIFICATIONS
2
Type Wheel free play Rack stroke Oil pump type Rack and pinion0 ~ 1.18 in. (0 ~ 30 mm)5.20 in. (132 mm) Vane type
Option
Fuel tank capacity
195/65 R15, 205/55 R16, 215/45 R17
Dual hydraulic with brake booster Ventilated disc Solid discCable
Type Front brake type Rear brake typeParking brake
55 litres
SJ030A1-E FUEL SYSTEM
J020A01GK-EAT POWER STEERING J030A01GK-EATTYRE
J050A01GK-GAT BRAKE
J035A02GK-EAT SPARE TYRE
Standard
T125/70 R16 (Temporary)
173 (4395)
69.3 (1760) 52.4 (1330)99.6 (2530) 58.7 (1490) 59.5 (1510)59.1 (1500)
J010A02GK-EAT MEASUREMENTOverall length Overall widthOverall height (unladen) Wheel base Wheel tread
195/65 R15 205/55 R16215/45 R17
in. (mm)
Front RearFront Rear FrontRear

9
VEHICLE SPECIFICATIONS
3
4-Cyl., In-line DOHC
ITEMS
Engine Type Bore x Stroke Displacement (cc) Firing order Valve clearance (Cold Engine 20 ± 5°C) Idle speed (rpm) Ignition timing (Base)
For adjustingFor checking Intake ExhaustIntake Exhaust
ENGINE
J070A05GK-EAT SPECIFICATION
1.6 L
3.01 x 3.42 in. (76.5 x 87 mm) 1,599
1 - 3 - 4 - 2
AUTO LASH 700 ± 100
BTDC 5° ± 5° 2.0 L
3.22 x 3.68 in. (82 x 93.5 mm) 1,975
1 - 3 - 4 - 2
0.0067 ~ 0.0091 in. (0.17 ~ 0.23 mm) 0.0098 ~ 0.0122 in. (0.25 ~ 0.31 mm)
0.0047 ~ 0.011 in. (0.12 ~ 0.28 mm)0.0079 ~ 0.015 in. (0.2 ~ 0.38 mm)
700 ± 100
BTDC 8° ± 5° 2.7 L
6-Cyl., V-type DOHC
3.41 x 2.95 in. (86.7 x 75 mm)
2,656
1 - 2 - 3 - 4 - 5 - 6
AUTO LASH
750 ± 100
BTDC 12° ± 10°

9 VEHICLE SPECIFICATIONS
4
Q'ty (litre)
Drain and refill (With oil filter): 1.6L : 3.32.0L : 4.0 2.7L : 4.5 MAX. 1L / 1000 miles MAX. 1L / 620 miles 5 speed : 2.156 speed : 2.2 7.8As required As required 1.6L/2.0L : 7.02.7L : 8.0
LUBRICATION CHART
J080A04GK-EAT Oil & Grease Standard
API SJ, SL or ABOVE, SAE 5W-20, 5W-30
ILSAC GF-3 or ABOVE SAE 10W-30 (ABOVE -18°C)
SAE 15W-40 (ABOVE -13°C) SAE 20W-50 (ABOVE -7°C)
Normal driving conditionSevere driving condition HYUNDAI GENUINE PARTS MTF 75W/85(API GL-4)HYUNDAI GENUINE ATF SP-III, DIAMOND ATF SP-III, SK ATF SP-III or other brands approved by Hyundai Motor Co.,PSF-3 or ATF Dexron 2 DOT 3 or DOT 4 equivalent Ethylene glycol base for aluminium radiator
Item
Engine Oil Recommendes Engine Oil Consumption Transaxle Power Steering Brake Fluid Coolant
Manual Auto
