1
FEATURES OF YOUR HYUNDAI
59
B350B01O-AAT Windshield Washer Operation
B350A01A-AATWindshield wiper and washer
(1) Intermittent wiper operation
(2) Low-speed operation
(3) High-speed operation NOTE: To prevent damage to the wiper system, do not attempt to wipe awayheavy accumulations of snow or ice. Accumulated snow and ice should be removed manually.If there is only a light layer of snow or ice, operate the heater in the defrost mode to melt the snow or ice beforeusing the wiper.
OGK048900
OGK048900N
Type A Type B
The windshield wiper switch has three positions:
OGK048048
OGK048048N
Type A Type B
To use the windshield washer, pull the wiper/washer lever toward the steer-ing wheel.

1FEATURES OF YOUR HYUNDAI
60
When the washer lever is operated, the wipers automatically make two passesacross the windshield. The washer con- tinues to operate until the lever is re- leased. NOTE:
o Do not operate the washer morethan 15 seconds at a time or when the fluid reservoir is empty.
o In icy or freezing weather, be sure the wiper blades are notfrozen to the glass prior to oper-ating the wipers.
o In areas where water freezes in
winter, use windshield washerantifreeze. B350C01S-AAT Adjustable Intermittent Wiper Operation
Mist Wiper Operation If a single wipe is desired in mist, push the windshield wiper and washer controllever upwards.
OGK048049
OGK048049N
Type A Type B
OGK048050
OGK048050N
Type A Type B
To use the intermittent wiper feature, place the wiper switch in the "INT"position.

1
FEATURES OF YOUR HYUNDAI
61

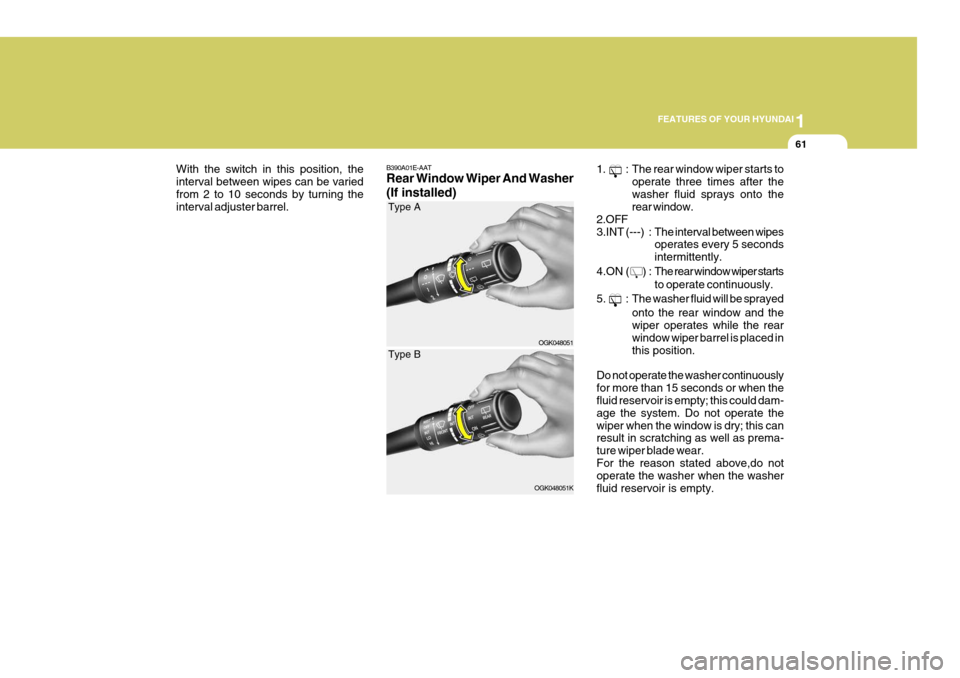

B390A01E-AAT Rear Window Wiper And Washer (If installed)
With the switch in this position, the interval between wipes can be variedfrom 2 to 10 seconds by turning the interval adjuster barrel. 1. : The rear window wiper starts to
operate three times after the washer fluid sprays onto the rear window.
2.OFF
3.INT (---) : The interval between wipes operates every 5 seconds intermittently.
4.ON (
) : The rear window wiper starts to operate continuously.
5.
: The washer fluid will be sprayed onto the rear window and the wiper operates while the rear window wiper barrel is placed inthis position.
Do not operate the washer continuouslyfor more than 15 seconds or when the fluid reservoir is empty; this could dam- age the system. Do not operate thewiper when the window is dry; this can result in scratching as well as prema- ture wiper blade wear.For the reason stated above,do not operate the washer when the washer fluid reservoir is empty.
OGK048051
OGK048051K
Type A Type B

1FEATURES OF YOUR HYUNDAI
62HAZARD WARNING SYS- TEM
B370A01A-AAT The hazard warning system should be used whenever you find it necessaryto stop the car in a hazardous situa- tion. When you must make such an emergency stop, always pull off theroad as far as possible. The hazard warning lights are turned on by pushing in the hazard switch.This causes all turn signal lights to blink. The hazard warning lights will operate even though the key is not inthe ignition. To turn the hazard warning lights off, push the switch a second time.
OGK066001
FOG LIGHT SWITCH
OGK046052
OGK046053
B360B01A-AAT Front Fog Light Switch (If installed) To turn on the front fog lights, push the switch. They will light when the head-light switch is in the second position and the ignition key is in the "ON" position. B360A01Y-GAT Rear Fog Light Switch (If installed) To turn on the rear fog lights, push the switch. They will come on when the headlight switch is in the second posi-tion and the key is in the "ON" position.

1
FEATURES OF YOUR HYUNDAI
63
!

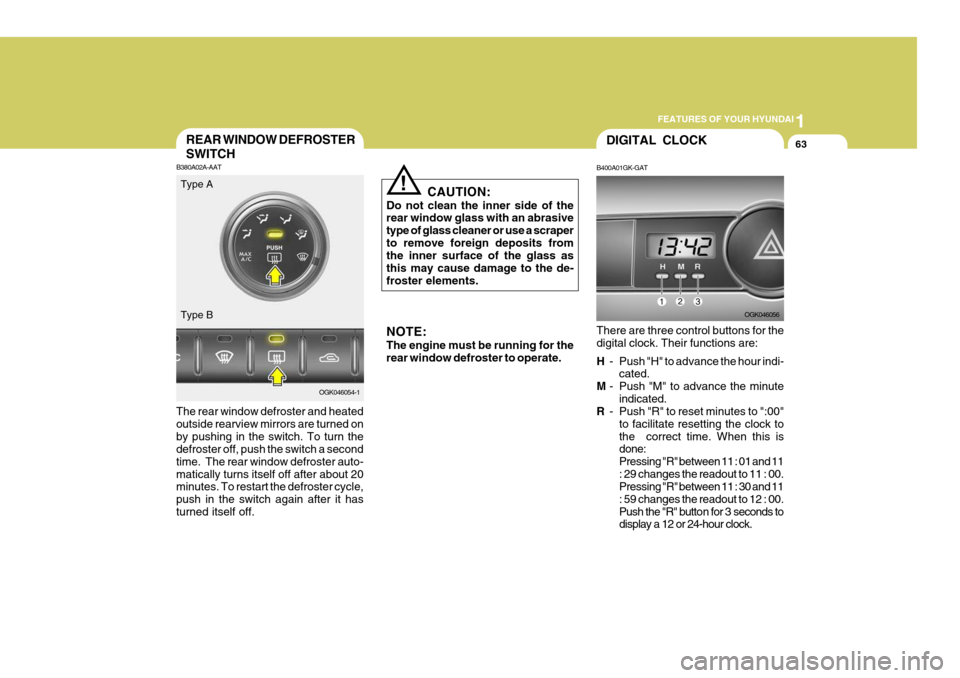

REAR WINDOW DEFROSTER SWITCH
B380A02A-AAT
The rear window defroster and heated outside rearview mirrors are turned onby pushing in the switch. To turn the defroster off, push the switch a second time. The rear window defroster auto-matically turns itself off after about 20 minutes. To restart the defroster cycle, push in the switch again after it hasturned itself off. CAUTION:
Do not clean the inner side of the rear window glass with an abrasive type of glass cleaner or use a scraperto remove foreign deposits from the inner surface of the glass as this may cause damage to the de-froster elements. NOTE: The engine must be running for the rear window defroster to operate.
OGK046054-1
Type A Type BDIGITAL CLOCK
B400A01GK-GAT There are three control buttons for the digital clock. Their functions are: H - Push "H" to advance the hour indi-
cated.
M - Push "M" to advance the minute
indicated.
R - Push "R" to reset minutes to ":00"
to facilitate resetting the clock to the correct time. When this is done: Pressing "R" between 11 : 01 and 11: 29 changes the readout to 11 : 00. Pressing "R" between 11 : 30 and 11 : 59 changes the readout to 12 : 00.
Push the "R" button for 3 seconds to display a 12 or 24-hour clock. OGK046056

1FEATURES OF YOUR HYUNDAI
64
!
CAUTION:
Do not use electric accessories or equipment other than the Hyundai genuine parts in the socket.

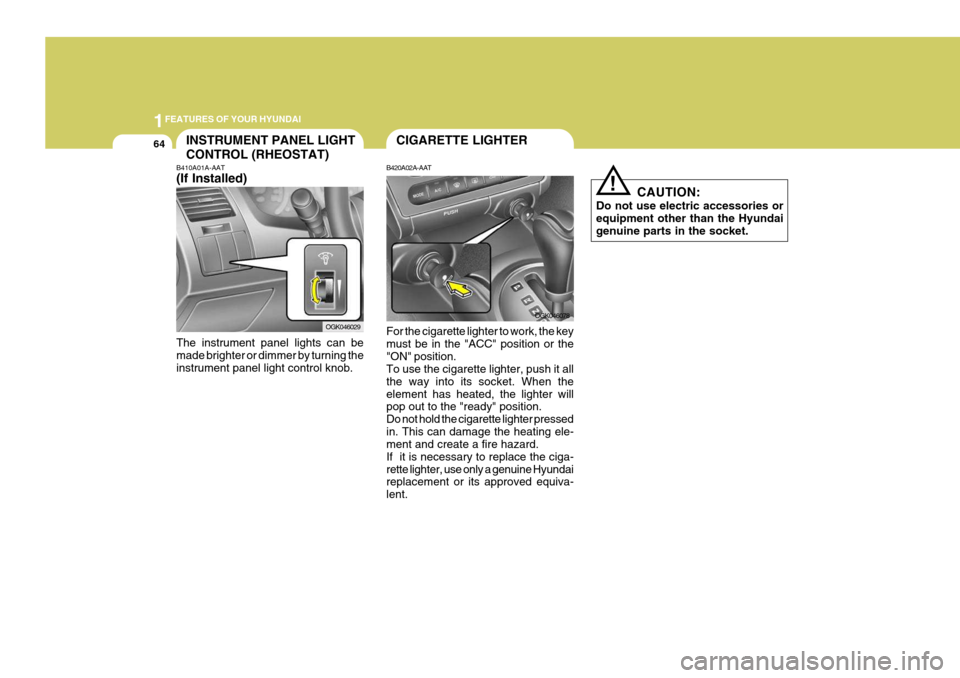

CIGARETTE LIGHTERINSTRUMENT PANEL LIGHT CONTROL (RHEOSTAT)
B410A01A-AAT (If Installed) The instrument panel lights can be made brighter or dimmer by turning the instrument panel light control knob. B420A02A-AAT For the cigarette lighter to work, the key must be in the "ACC" position or the"ON" position. To use the cigarette lighter, push it all the way into its socket. When theelement has heated, the lighter will pop out to the "ready" position. Do not hold the cigarette lighter pressedin. This can damage the heating ele- ment and create a fire hazard. If it is necessary to replace the ciga-rette lighter, use only a genuine Hyundai replacement or its approved equiva- lent.
OGK046029
OGK046078

1
FEATURES OF YOUR HYUNDAI
65DRINK HOLDERASHTRAY
B430A01GK-AAT The front ashtray may be opened by pushing and releasing the ashtray door at its top edge.To remove the ashtray in order to clean it, the metal ash receptacle should be lifted out from the ashtray door. Donot attempt to remove the entire ash- tray door assembly or damage will result. To reinstall it, place it in theproper position and press it down in the ashtray door. The ashtray lamp will only illuminate when the exterior bodylights are switched on. B450A02GK-GAT (If Installed) The drink holder is used for holding cups or cans. To use the passenger's drink holder,push the drink holder.
OGK046077
OGK046079
!WARNING:
o Use caution when using the drink holders. A spilled beverage that is very hot can injure you or your passengers. Spilled liquids can damage interior trim and electri-cal components.
o Do not place objects other than
cups or cans in the drink holder.Such objects can be thrown out in the event of a sudden stop or an accident, possibly injuring thepassengers in the vehicle.

1FEATURES OF YOUR HYUNDAI
66SUNSHADE
B470A01GK-AAT (If Installed) The sunshade can be opened and closed by sliding it forward or rearward when the sunroof is closed. The sunshadewill open automatically when the sunroof is opened, but it must be closed manu- ally. OGK046019
!WARNING:
Never adjust the sunshade while driv- ing. This could result in loss of con- trol and an accident that may cause death, serious injury, or propertydamage.
HEADLIGHT LEVELING DEVICE SYSTEM
B340G01A-GAT (If Installed) To adjust the headlight beam level according to the number of the pas- sengers and the loading weight in the luggage area, turn the beam levelingswitch. The higher the number of the switch position, the lower the headlight beamlevel. Always keep the headlight beam at the proper leveling position, or head- lights may dazzle other road users.Listed below are the examples of proper switch settings. For loading conditions other than those listed below, adjustthe switch position so that the beam level may be the nearest as the condi- tion obtained according to the list. Switch position
0 0 1 2
3
Loading condition Driver only Driver + front passengerFull passengers (including driver) Full passengers (includ-ing driver) + full trunk loading (or light trailer loading)Driver + full trunk loading (or maximum trailer loading)
HGK2151

1
FEATURES OF YOUR HYUNDAI
67
!

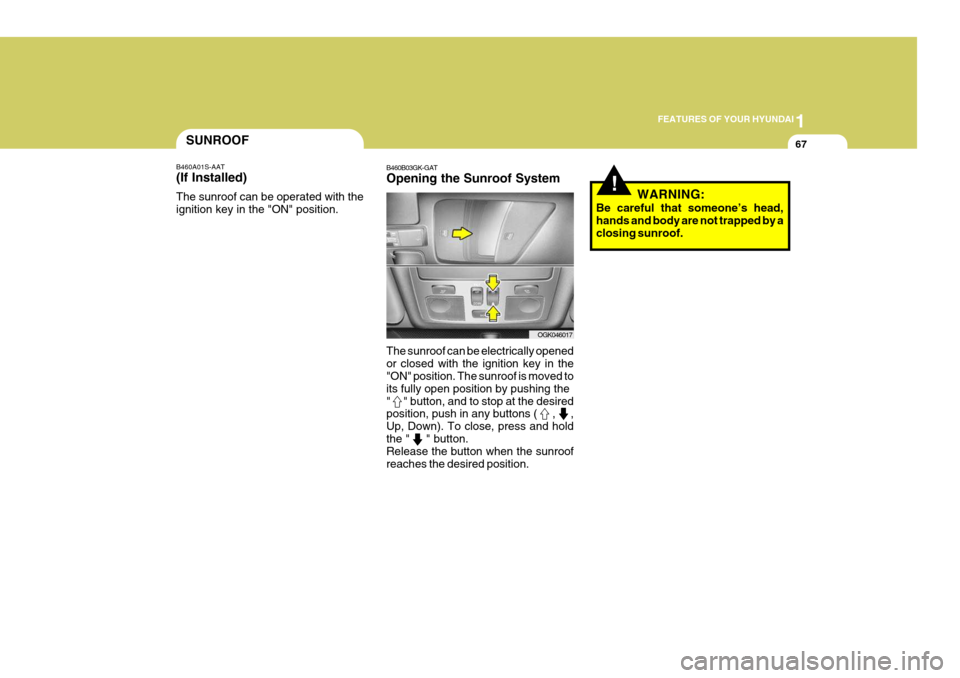

SUNROOF
B460A01S-AAT (If Installed) The sunroof can be operated with the ignition key in the "ON" position. B460B03GK-GAT Opening the Sunroof System The sunroof can be electrically opened or closed with the ignition key in the "ON" position. The sunroof is moved to its fully open position by pushing the" " button, and to stop at the desired position, push in any buttons ( , , Up, Down). To close, press and holdthe " " button. Release the button when the sunroof reaches the desired position. WARNING:
Be careful that someone’s head,hands and body are not trapped by aclosing sunroof.
OGK046017

1FEATURES OF YOUR HYUNDAI
68

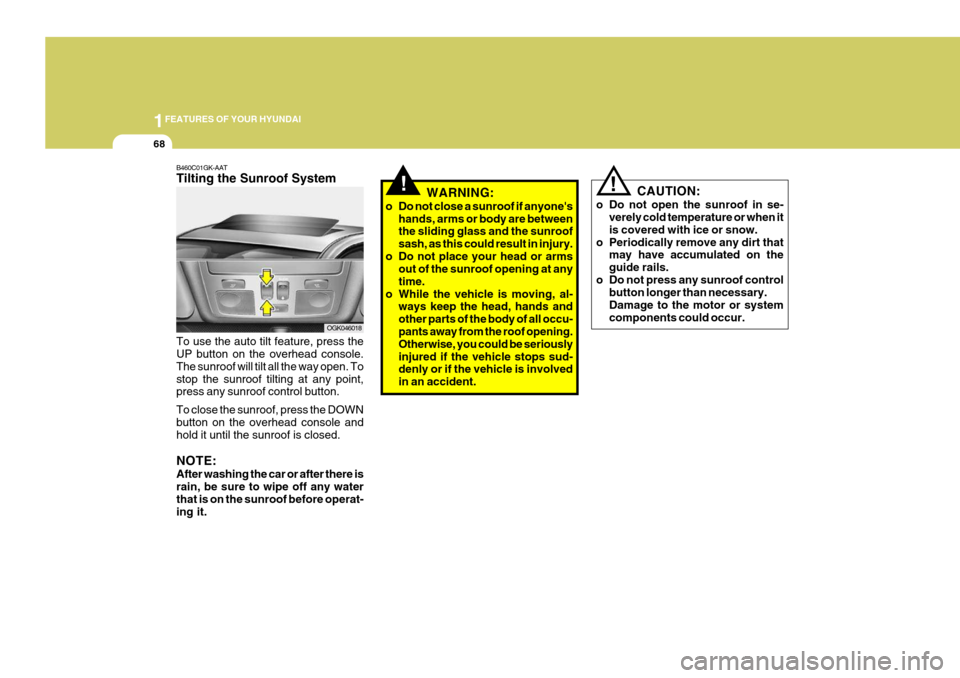

OGK046018
!!
WARNING:
o Do not close a sunroof if anyone's hands, arms or body are between the sliding glass and the sunroof sash, as this could result in injury.
o Do not place your head or arms out of the sunroof opening at anytime.
o While the vehicle is moving, al- ways keep the head, hands andother parts of the body of all occu-pants away from the roof opening. Otherwise, you could be seriously injured if the vehicle stops sud- denly or if the vehicle is involved in an accident. CAUTION:
o Do not open the sunroof in se- verely cold temperature or when itis covered with ice or snow.
o Periodically remove any dirt that may have accumulated on theguide rails.
o Do not press any sunroof control button longer than necessary.Damage to the motor or systemcomponents could occur.
B460C01GK-AAT Tilting the Sunroof System To use the auto tilt feature, press the UP button on the overhead console. The sunroof will tilt all the way open. Tostop the sunroof tilting at any point, press any sunroof control button. To close the sunroof, press the DOWN button on the overhead console and hold it until the sunroof is closed. NOTE: After washing the car or after there is rain, be sure to wipe off any waterthat is on the sunroof before operat- ing it.
