Hyundai Coupe 2008 Manual Online

1
FEATURES OF YOUR HYUNDAI
69
B460D03GK-AAT Manual Operation of Sunroof If the sunroof does not electrically op- erate:
1. Remove the cap located in the rear roof panel by using a coin or screw driver. 2. Insert the hexagonal head wrench
provided with the vehicle into the socket. This wrench can be found in the vehicle's trunk or glove box.
3. Push and turn the wrench clockwise
to close or counterclockwise to openthe sunroof.
OGK046020
OGK046021 B460E03GK-GAT Resetting the Sunroof System If the battery has been recharged, disconnected or if the sunroof is oper-ated with the hexagonal head wrench manually, you may need to reset the sunroof. To do this;
1. Turn the ignition switch "OFF".
2. With pressing " " "up" button at the
same time, turn the ignition switch"ON". The resetting is failed when the ignition key to the "OFF" within1.5 seconds.
3. If the sunroof is set like this, the sunroof is reset with tilting up/down automatically once for all.
CAUTION:
If the sunroof is not reset, it may not be operated properly.
!

1FEATURES OF YOUR HYUNDAI
70
!
SPECTACLE CASEMAP LIGHT
B480A02GK-GAT
(1) Push in the map light switch to turn on the driver side light.
(2) In the "DOOR" position, the interior courtesy light comes on when any door is opened regardless of theignition key position. The light goes out gradually 6 seconds after the door is closed.
(3) Push in the map light switch to turn on the front passenger side light. B491A03O-GAT (If Installed) The spectacle case is located on the front overhead console. Push the end of the cover to open thespectacle case.
WARNING:
o Do not keep objects such as sharp or unsuitable things inside thespectacle case. Such objects canbe thrown out in the event of a sudden stop or an accident, pos- sibly injuring the passengers inthe vehicle.
o Do not open the spectacle case
while the vehicle is moving. Therear view mirror of the vehicle can be blocked by an open spectacle case.
OGK046034L-1
OGK046076

1
FEATURES OF YOUR HYUNDAI
71
!
GLOVE BOX
B500A01A-AAT
WARNING:
To avoid the possibility of injury in case of an accident or sudden stop,the glove box door should be kept closed when the car is in motion.
To open the glove box, pull on the glovebox release lever.
OGK046075
B500B01NF-GAT Illuminated Glove Box Opening the glove box will automati- cally turn on the light when the multi- function switch is turned to the first position.
OUTSIDE REARVIEW MIRROR
B510B01Y-AAT Electric Type The outside rearview mirrors can be adjusted to your preferred rear vision, both directly behind the vehicle, and tothe rear of the left and right sides. The remote control outside rearview mirror switch controls the adjustmentsfor both the right and left outside mir- ror. OGK046026L
!
!
To Adjust the Position of Either Mirror:
1. Move the selecting switch to the
right or left to activate the adjustable mechanism for the corresponding door mirror.
2. Now, adjust the mirror angle by
depressing the appropriate perim-eter switch as illustrated.
CAUTION:
o Do not operate the switch con- tinuously for an unnecessarylength of time.
o Scraping ice from the mirror face
could cause permanent damage.To remove any ice, use a sponge, soft cloth or approved de-icer.
WARNING:
Be careful when judging the size ordistance of any object seen in the passenger side rearview mirror. It is a convex mirror with a curvedsurface. Any objects seen in this mirror are closer than they appear.

1FEATURES OF YOUR HYUNDAI
72
B510D01HP-GAT Outside Rearview Mirror Heater (If Installed)
The outside rearview mirror heater is actuated in connection with the rearwindow defroster. To heat the outside rearview mirror glass, push in the switch for the rear window defroster. Therearview mirror glass will be heated for defrosting or defogging and will give you improved rear vision in inclementweather conditions.
OGK046054-1
!
B510C01A-AAT Folding the Outside Rearview Mirrors To fold the outside rearview mirrors, push them towards the rear.The outside rearview mirrors can be folded rearward for parking in narrow areas. WARNING:
Do not adjust or fold the outsiderearview mirrors while the vehicle is moving. This could result in loss of control,and an accident which could cause death, serious injury or property damage. HGK2055
Push the switch again to turn the heateroff. The outside rearview mirror heaterautomatically turns itself off after 20 minutes.
Type A Type B

1
FEATURES OF YOUR HYUNDAI
73DAY/NIGHT INSIDE REARVIEW MIRROR
B520A01A-AAT Manual Type Your Hyundai is equipped with a day/ night inside rearview mirror. The "night"position is selected by flipping the tab at the bottom of the mirror toward you. In the "night" position, the glare ofheadlights of cars behind you is re- duced.
OGK046024
PARKING BRAKE
B530A03A-AAT Always engage the parking brake be- fore leaving the car. This also turns on the parking brake indicator light whenthe key is in the "ON" or "START" position. Before driving away, be sure that the parking brake is fully released and the indicator light is off. Applying the parking brake To engage the parking brake, first apply the foot brake and then without press- ing the release button in, pull the park- ing brake lever up as far as possible. Inaddition it is recommended that when parking the vehicle on a gradient, the shift lever should be positioned in theappropriate low gear on manual transaxle vehicles or in the P (Park) position on automatic transaxle vehicles. OGK056005
B520B02O-GATElectric type (If installed) The electric type day/night inside rear- view mirror automatically controls theglare of headlights of the car behind you.
1. Pressing the button turns the
auto-dimming function OFF which is indicated by the green Status Indicator LED turning off.
2. Pressing the button again turns the auto-dimming function ON whichis indicated by the green StatusIndicator LED turning on.
NOTE: The mirror defaults to the "ON" position each time the vehicle is started. OGK046025

1FEATURES OF YOUR HYUNDAI
74
!
FRONT DOOR EDGE WARNING LIGHT
B620A01S-AAT A red light comes on when the front door is opened. The purpose of this light is toassist when you get in or out and also to warn passing vehicles.
B620A01GK
HIGH-MOUNTED REAR STOP LIGHT
B550A01S-GAT In addition to the lower-mounted rear stoplights on either side of the car, thehigh mounted rear stoplight in the cen- ter of the rear window or inserted in the rear spoiler also lights when the brakesare applied. Type A
OGK016550L
Type B Type C
CAUTION:
Driving with the parking brake ap- plied will cause excessive brake pad (or lining) and brake rotor wear. Releasing the parking brake To release the parking brake, first apply the foot brake and pull up the parking brake lever slightly. Secondly, depress the release button and lower the parkingbrake lever while holding the button.
WARNING:
Whenever leaving vehicle or parkingalways set the parking brake as far as possible and fully engage the vehicle's transaxle into the park po-sition. Vehicles not fully engaged in park with the parking brake set are at risk for moving inadvertently andinjuring yourself or others.!

1
FEATURES OF YOUR HYUNDAI
75HOOD RELEASE
B570A01GK-GAT
1. Pull the release knob to unlatch the hood. 2. Press the secondary latch lever up
and lift the hood.
3. Raise the hood by hand. When closing the hood, slowly close the hood and make sure it locks into place.
Hood Release Lever
OGK046011L OGK046012L
!WARNING:
o Always double check to be sure that the hood is firmly latched before driving away. If it is notlatched, the hood could open while the vehicle is being driven, causing a total loss of visibility,which might result in an acci- dent.
o Do not move the vehicle with the hood in the raised position, asvision is obstructed and the hood could fall or be damaged.

1FEATURES OF YOUR HYUNDAI
76
o Automotive fuels are flammable/
explosive materials. When refuel- ing, please note the following guidelines carefully. Failure tofollow these guidelines may re- sult in severe personal injury, se- vere burns or death by fire orexplosion.
- Before refueling always note thelocation of the Emergency Gaso- line Shut-Off, if available, at the gas station facility.
- Before touching the fuel nozzle
or fuel filler cap, you shouldeliminate potentially dangerous static electricity discharge bytouching another metal part of the front of the vehicle, a safe distance away from the fuel fillerneck, nozzle, or other gas source.
- Do not get back into a vehicle
once you have begun refueling.Do not touch, rub or slide against any item or fabric (polyester,satin, nylon, etc.) capable of pro- ducing static electricity. Static electricity discharge can ignitefuel vapors resulting in explo- sion.
!
B560A01MC-GAT The fuel-filler lid may be opened from inside the vehicle by pulling up on thefuel-filler lid opener located on the front floor area on the left side of the car. NOTE: If the fuel-filler lid will not open because ice has formed around it, tap lightly or push on the lid tobreak the ice and release the lid. Do not pry on the lid. If necessary, spray around the lid with an ap-proved de-icer fluid (do not use radiator anti-freeze) or move the vehicle to a warm place and allowthe ice to melt.REMOTE FUEL-FILLER LID RELEASE
WARNING:
o Fuel vapors are dangerous. Be- fore refueling, always stop the en- gine and never allow sparks oropen flames near the filler area. If you need to replace the filler cap, use a genuine Hyundai replace-ment part. If you open the fuel filler cap dur- ing high ambient temperatures, aslight "pressure sound" may be heard. This is normal and not a cause for concern.Whenever you open the fuel filler cap, turn it slowly.
OGK046013
OGK046014

1
FEATURES OF YOUR HYUNDAI
77

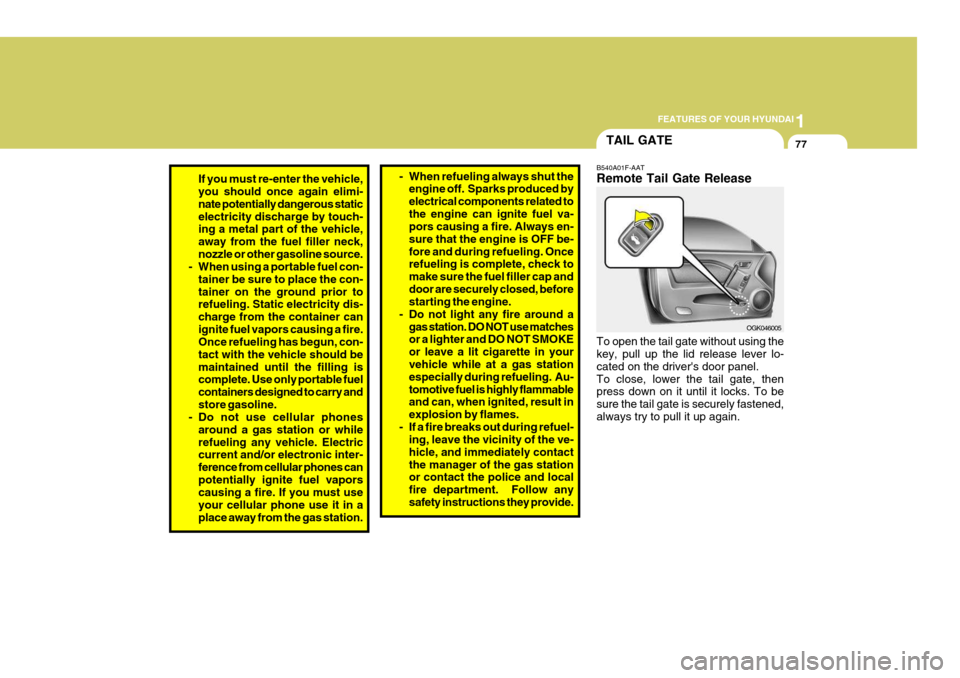

If you must re-enter the vehicle, you should once again elimi- nate potentially dangerous staticelectricity discharge by touch- ing a metal part of the vehicle, away from the fuel filler neck,nozzle or other gasoline source.
- When using a portable fuel con-
tainer be sure to place the con-tainer on the ground prior to refueling. Static electricity dis- charge from the container canignite fuel vapors causing a fire. Once refueling has begun, con- tact with the vehicle should bemaintained until the filling is complete. Use only portable fuel containers designed to carry andstore gasoline.
- Do not use cellular phones
around a gas station or whilerefueling any vehicle. Electric current and/or electronic inter- ference from cellular phones canpotentially ignite fuel vapors causing a fire. If you must use your cellular phone use it in aplace away from the gas station.
TAIL GATE
B540A01F-AAT Remote Tail Gate Release To open the tail gate without using the key, pull up the lid release lever lo- cated on the driver's door panel.To close, lower the tail gate, then press down on it until it locks. To be sure the tail gate is securely fastened,always try to pull it up again. OGK046005
- When refueling always shut the
engine off. Sparks produced byelectrical components related tothe engine can ignite fuel va- pors causing a fire. Always en- sure that the engine is OFF be-fore and during refueling. Once refueling is complete, check to make sure the fuel filler cap anddoor are securely closed, before starting the engine.
- Do not light any fire around a
gas station. DO NOT use matchesor a lighter and DO NOT SMOKE or leave a lit cigarette in your vehicle while at a gas station especially during refueling. Au-tomotive fuel is highly flammable and can, when ignited, result in explosion by flames.
- If a fire breaks out during refuel- ing, leave the vicinity of the ve-hicle, and immediately contactthe manager of the gas station or contact the police and local fire department. Follow anysafety instructions they provide.

1FEATURES OF YOUR HYUNDAI
78

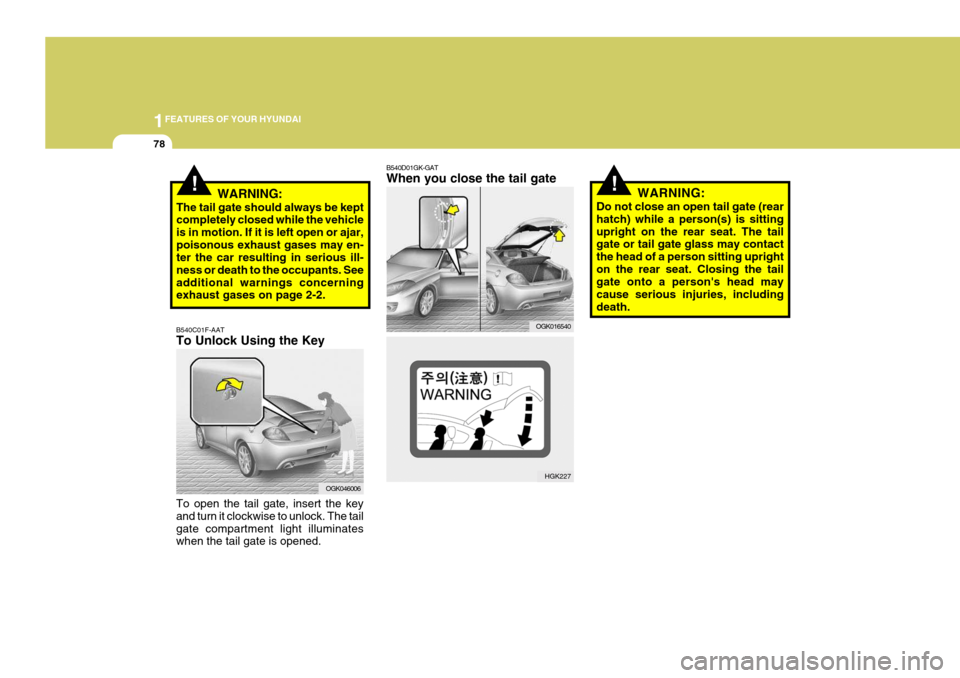

!WARNING:
Do not close an open tail gate (rear hatch) while a person(s) is sittingupright on the rear seat. The tail gate or tail gate glass may contact the head of a person sitting uprighton the rear seat. Closing the tail gate onto a person's head may cause serious injuries, includingdeath.
B540D01GK-GAT When you close the tail gate
OGK016540
HGK227
!WARNING:
The tail gate should always be kept completely closed while the vehicle is in motion. If it is left open or ajar,poisonous exhaust gases may en- ter the car resulting in serious ill- ness or death to the occupants. Seeadditional warnings concerning exhaust gases on page 2-2.
B540C01F-AAT To Unlock Using the Key To open the tail gate, insert the key and turn it clockwise to unlock. The tailgate compartment light illuminates when the tail gate is opened. OGK046006
