YOUR VEHICLE AT A GLANCE
F12B255A02GK-GAT INDICATOR SYMBOLS ON THE INSTRUMENT PANEL * More detailed explanations of these items will be found beginning on page 1-44.
Malfunction Indicator Light (If installed)
SRS (Airbag) Service Reminder Indicator (SRI)(If installed)
Tail Gate Open Warning Light
Low Fuel Level Warning Light
Door Ajar Warning Light (If installed)
ABS Service Reminder Indicator (If installed)
Turn Signal Indicator Lights
High Beam Indicator Light Low Oil Pressure Warning Light Parking Brake/Brake Fluid Level Warning Light
Charging System Warning Light CRUISE Indicator Light (If installed)
Seat Belt Warning Light CRUISE SET Indicator Light (If installed)
Electronic Stability Program (ESP) Indicator Light (If installed)
Immobilizer Warning Light (If installed)
120
km/hOverspeed warning Light (Mideast only)

Fuel Recommendations ............................................... 1-2
Breaking In Your New Hyundai .................................... 1-3
Keys .............................................................................. 1-4
Immobilizer System ...................................................... 1-4
Door Locks ................................................................... 1-7
Theft-Alarm System ...................................................... 1-9
Power Windows ..........................................................1-12
Seats .......................................................................... 1-13
Seat Belts .................................................................... 1-20
Child Restraint System ................................................ 1-25
Supplemental Restraint (AIRBAG ) System................. 1-34
Instrument Cluster and Indicator Lights .......................1-42
Warning and Indicator Lights....................................... 1-44
Trip Computer .............................................................. 1-52
Multi-function Light Switch ........................................... 1-55
Windshield Wiper/Washer Switch ................................1-58
Sunroof ........................................................................ 1-67
Mirror ........................................................................... 1-71
Hood R elease .............................................................. 1-75
Cruise Co ntrol.............................................................. 1-81
Audio Remote Contro l Switch ...................................... 1-85
Heating and Cooling Control .......... ..............................1-86
Antenna ..................................................................... 1-103
Stereo Sound System ............................................... 1-105
Audio System ............................................................ 1-107
FEATURES OF YOUR HYUNDAI
1
1

1FEATURES OF YOUR HYUNDAI
10
! B070D04GK-AAT Disarmed Stage
UNLOCK
The system will be disarmed when either of the following steps are taken:
1) The driver's or passenger's door is unlocked by depressing the "UN- LOCK" button on the transmitter.
2) In the middle of alarming or after
alarming, it disarms after 30 sec-onds if the key is turned to and kept in the "ON" position.
After completing one of steps above,the turn signal light will blink twice toindicate that the system is disarmed.
CAUTION:
Avoid trying to start the engine whilethe system is armed. OGK016102
LOCK
B070C02GK-GAT Alarm Stage The alarm will be activated if any of the following occur while the car is parkedand the system is armed.
1) A front door is unlocked and opened
without using the transmitter.
2) The tail gate is opened without us-
ing the key.
3) The engine hood is opened.The alarming horn will sound and the turn signal lights will blink continuously for 27 seconds (E.C, Mideast only/ Except E.C : This happens 3 times). Toturn off the system, unlock the door with the transmitter.
B075E02O-AAT Alarm Warning
1. Push the "Alarm" button on the trans-
mitter.
2. At the same time, the siren will sound and the turn signal lights will blink for 30 seconds.
3. To turn off the system, push any button on the transmitter. OGK016102
Alarm
NOTE: If any door, tail gate or engine hood is not opened within 30 seconds, the system will be rearmed.

1FEATURES OF YOUR HYUNDAI
44
B260D01A-AAT
Turn Signal Indicator Lights
The blinking green arrows on the in- strument panel show the direction indi-cated by the turn signals. If the arrow comes on but does not blink, blinks more rapidly than normal, or does notilluminate at all, a malfunction in the turn signal system is indicated. Your dealer should be consulted for repairs.
WARNING AND INDICATOR LIGHTS
B265C01LZ-AAT Electronic Stability Program Indicator Lights(If installed)
The electronic stability program indi- cators change operation according to the ignition switch position and whetherthe system is in operation or not. They will illuminate when the ignition key is turned to the "ON" position, butshould go out after three seconds. If the ESP or ESP-OFF indicator stays on, take your car to your authorizedHyundai dealer and have the system checked. See section 2 for more infor- mation about the ESP.B260U01TB-GAT Immobilizer Warning Light (If Installed)
This indicator light comes on for some seconds after the ignition key is turnedto the "ON" position. At this time, you can start the engine. The light goes out after the engine is running. In case thislight goes out before you start the engine, you must turn to the "LOCK" position and restart the engine. In casethis light blinks for five seconds when the ignition key is turned to "ON" posi- tion, this indicates that the immobilizersystem is out of order. At this time, refer to the explanation of the Limp home procedure(See page 1-6) or con-sult to the Hyundai dealer.

1FEATURES OF YOUR HYUNDAI
46
!
B260G01A-AAT
Low Oil Pressure Warn- ing LightCAUTION:
If the oil pressure warning light stays on while the engine is run-ning, serious engine damage may result. The oil pressure warning light comes on whenever there isinsufficient oil pressure. In normal operation, it should come on when the ignition switch is turned on,then go out when the engine is started. If the oil pressure warning light stays on while the engine isrunning, there may be a serious malfunction.
B260E01HP-GAT
Seat Belt Warning Light
The seat belt warning light blinks for about 6 seconds when the ignition keyis turned from the "OFF" position to "ON" or "START".
B260F01A-AAT High Beam Indicator Light
The high beam indicator light comes on whenever the headlights are switched to the high beam or flash position.
If this happens, stop the car as soon as it is safe to do so, turn off the engine and check the oil level. If the oil level is low, fill the engine oil tothe proper level and start the engine again. If the light stays on with the engine running, turn the engine offimmediately. In any instance where the oil light stays on when the engine is running, the engine should bechecked by an authorized Hyundai dealer before the car is driven again.
B260E02HP-GAT
Seat Belt Reminder Light and Chime (If installed)
The seat belt reminder light blinks for 6 seconds when the ignition key is turnedfrom the "OFF" position to "ON" or "START". If the driver's seat belt is not fastened, the warning chime will soundat the same time.

1
FEATURES OF YOUR HYUNDAI
49
B260P02Y-GAT
ABS Service Reminder Indicator (SRI)(If installed)
When the key is turned to the "ON" position, the Anti-Lock Brake System will come on and then go off in a fewseconds. If the ABS SRI remains on, comes on while driving, or does not come on when the key is turned to the"ON" position, this indicates that there may be a problem with the ABS. If this occurs, have your vehiclechecked by your Hyundai dealer as soon as possible. The normal braking system will still be operational, butwithout the assistance of the anti-lock brake system.
!WARNING:
If the both ABS SRI and Parking Brake/Brake fluid level warning lights remain "ON" or come on whiledriving, there may be a problem with E.B.D (Electronic brake force distri- bution).If this occurs, avoid sudden stops and have your vehicle checked by your Hyundai dealer as soon aspossible.
B270A01A-AAT BRAKE PAD WEAR WARNING SOUND The front disc brake pads have wear indicators that should make a high-pitched squealing or scraping noise when new pads are needed. The sound may come and go or be heard all thetime when the vehicle is moving. It may also be heard when the brake pedal is pushed down firmly. Exces-sive rotor damage will result if the worn pads are not replaced. See your Hyundai dealer immediately.
INSTRUMENT CLUSTER
B280A01TG-AAT FUEL GAUGE The needle on the gauge indicates the approximate fuel level in the fuel tank. The fuel capacity is given in Section 9. NOTE: The "
" symbol means the fuel
filler lid is placed on the left side of the vehicle. OGK016259

1FEATURES OF YOUR HYUNDAI
62HAZARD WARNING SYS- TEM
B370A01A-AAT The hazard warning system should be used whenever you find it necessaryto stop the car in a hazardous situa- tion. When you must make such an emergency stop, always pull off theroad as far as possible. The hazard warning lights are turned on by pushing in the hazard switch.This causes all turn signal lights to blink. The hazard warning lights will operate even though the key is not inthe ignition. To turn the hazard warning lights off, push the switch a second time.
OGK066001
FOG LIGHT SWITCH
OGK046052
OGK046053
B360B01A-AAT Front Fog Light Switch (If installed) To turn on the front fog lights, push the switch. They will light when the head-light switch is in the second position and the ignition key is in the "ON" position. B360A01Y-GAT Rear Fog Light Switch (If installed) To turn on the rear fog lights, push the switch. They will come on when the headlight switch is in the second posi-tion and the key is in the "ON" position.

1
FEATURES OF YOUR HYUNDAI

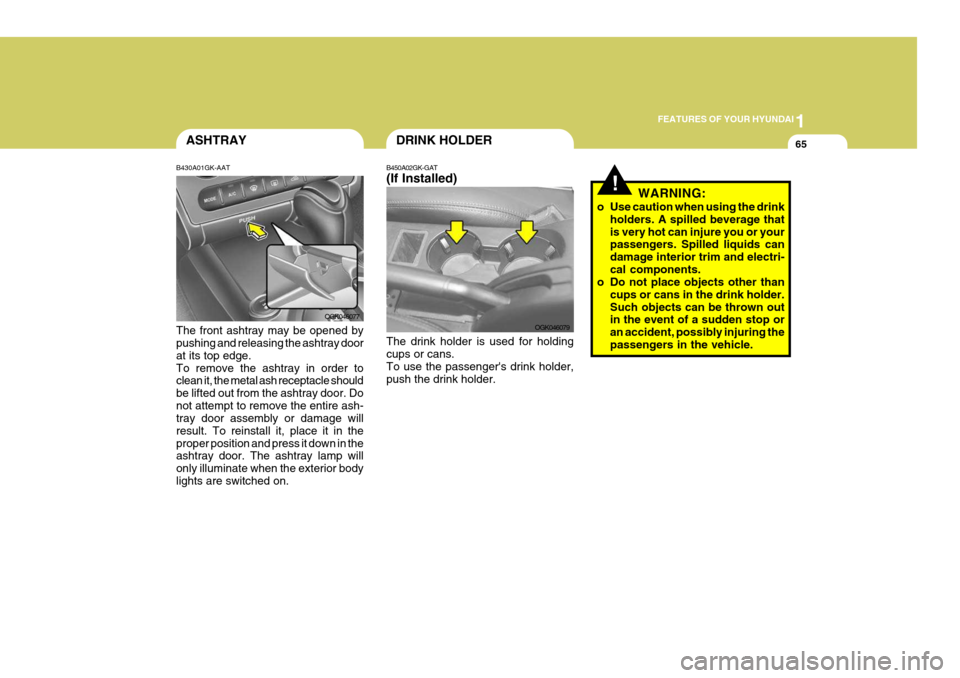

65DRINK HOLDERASHTRAY
B430A01GK-AAT The front ashtray may be opened by pushing and releasing the ashtray door at its top edge.To remove the ashtray in order to clean it, the metal ash receptacle should be lifted out from the ashtray door. Donot attempt to remove the entire ash- tray door assembly or damage will result. To reinstall it, place it in theproper position and press it down in the ashtray door. The ashtray lamp will only illuminate when the exterior bodylights are switched on. B450A02GK-GAT (If Installed) The drink holder is used for holding cups or cans. To use the passenger's drink holder,push the drink holder.
OGK046077
OGK046079
!WARNING:
o Use caution when using the drink holders. A spilled beverage that is very hot can injure you or your passengers. Spilled liquids can damage interior trim and electri-cal components.
o Do not place objects other than
cups or cans in the drink holder.Such objects can be thrown out in the event of a sudden stop or an accident, possibly injuring thepassengers in the vehicle.

1FEATURES OF YOUR HYUNDAI
66SUNSHADE
B470A01GK-AAT (If Installed) The sunshade can be opened and closed by sliding it forward or rearward when the sunroof is closed. The sunshadewill open automatically when the sunroof is opened, but it must be closed manu- ally. OGK046019
!WARNING:
Never adjust the sunshade while driv- ing. This could result in loss of con- trol and an accident that may cause death, serious injury, or propertydamage.

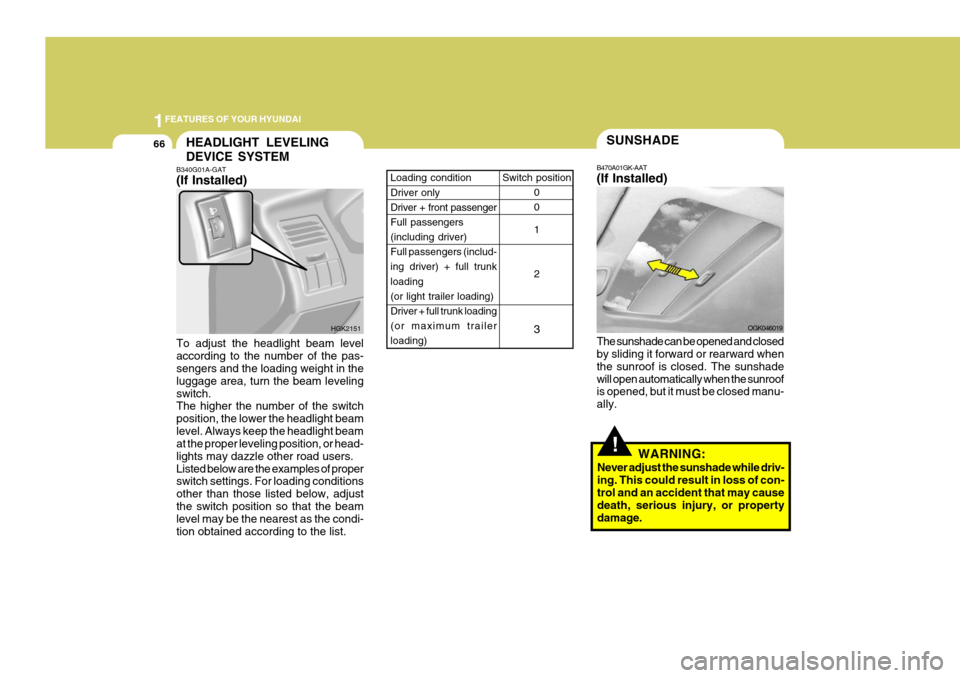

HEADLIGHT LEVELING DEVICE SYSTEM
B340G01A-GAT (If Installed) To adjust the headlight beam level according to the number of the pas- sengers and the loading weight in the luggage area, turn the beam levelingswitch. The higher the number of the switch position, the lower the headlight beamlevel. Always keep the headlight beam at the proper leveling position, or head- lights may dazzle other road users.Listed below are the examples of proper switch settings. For loading conditions other than those listed below, adjustthe switch position so that the beam level may be the nearest as the condi- tion obtained according to the list. Switch position
0 0 1 2
3
Loading condition Driver only Driver + front passengerFull passengers (including driver) Full passengers (includ-ing driver) + full trunk loading (or light trailer loading)Driver + full trunk loading (or maximum trailer loading)
HGK2151

1FEATURES OF YOUR HYUNDAI
74
!

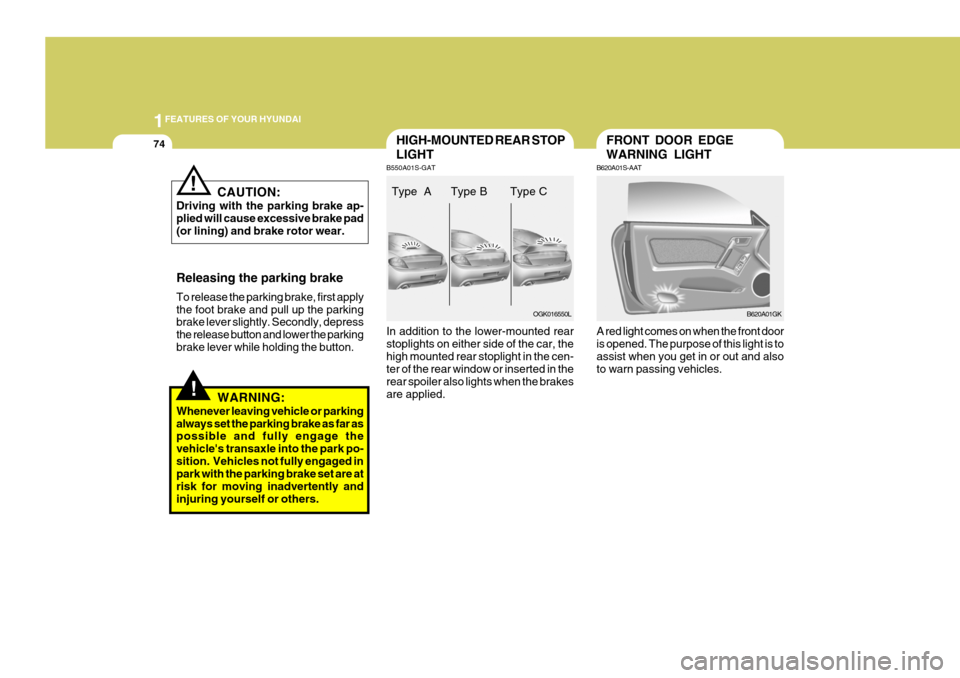

FRONT DOOR EDGE WARNING LIGHT
B620A01S-AAT A red light comes on when the front door is opened. The purpose of this light is toassist when you get in or out and also to warn passing vehicles.
B620A01GK
HIGH-MOUNTED REAR STOP LIGHT
B550A01S-GAT In addition to the lower-mounted rear stoplights on either side of the car, thehigh mounted rear stoplight in the cen- ter of the rear window or inserted in the rear spoiler also lights when the brakesare applied. Type A
OGK016550L
Type B Type C
CAUTION:
Driving with the parking brake ap- plied will cause excessive brake pad (or lining) and brake rotor wear. Releasing the parking brake To release the parking brake, first apply the foot brake and pull up the parking brake lever slightly. Secondly, depress the release button and lower the parkingbrake lever while holding the button.
WARNING:
Whenever leaving vehicle or parkingalways set the parking brake as far as possible and fully engage the vehicle's transaxle into the park po-sition. Vehicles not fully engaged in park with the parking brake set are at risk for moving inadvertently andinjuring yourself or others.!
