Hyundai Creta 2016 Owner's Manual

3-37
Convenient features of your vehicle
3

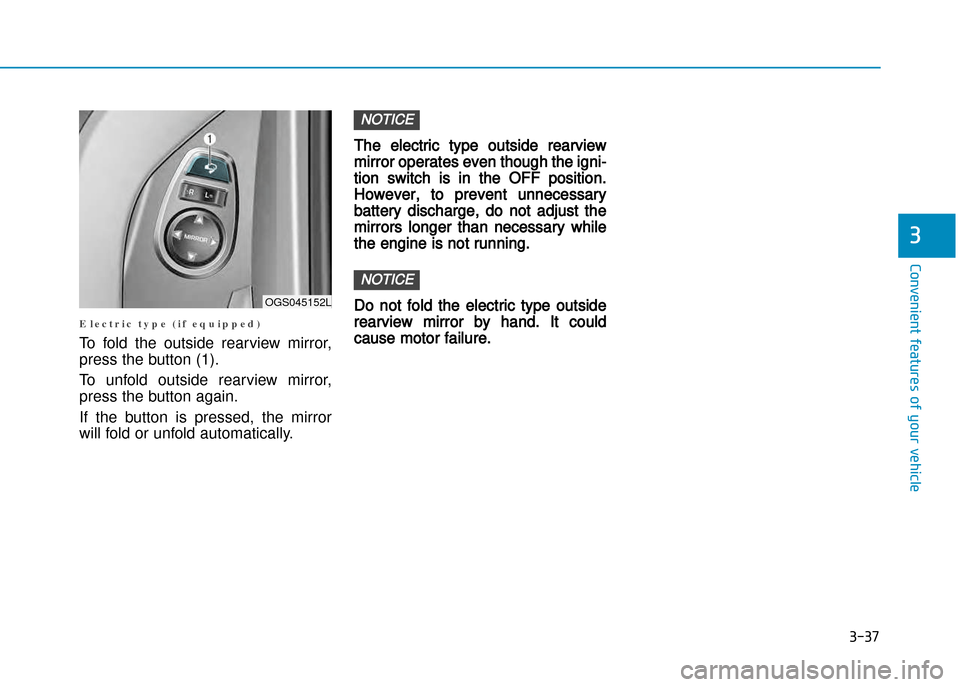

E l e c t r i c t y p e ( i f e q u i p p e d )
To fold the outside rearview mirror,
press the button (1).
To unfold outside rearview mirror,
press the button again.
If the button is pressed, the mirror
will fold or unfold automatically.
The electric type outside rearview
mirror operates even though the igni
tion switch is in the OFF position.
However, to prevent unnecessary
battery discharge, do not adjust the
mirrors longer than necessary while
the engine is not running.
Do not fold the electric type outside
rearview mirror by hand. It could
cause motor failure.
NOTICE
NOTICE
OGS045152L

3-38
Convenient features of your vehicle

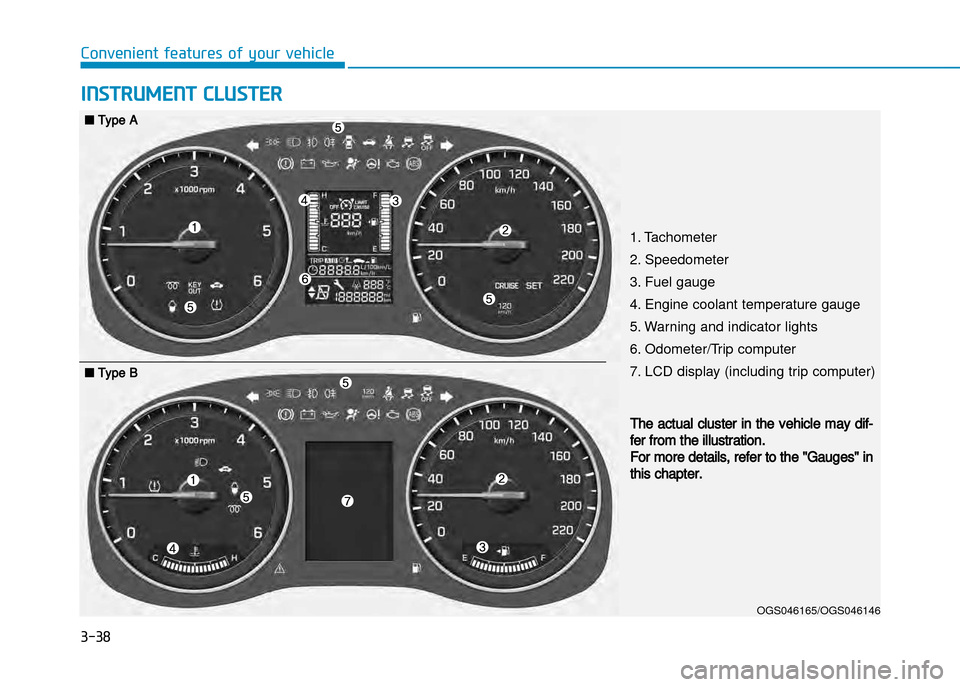

INSTRUMENT CLUSTER
1. Tachometer
2. Speedometer
3. Fuel gauge
4. Engine coolant temperature gauge
5. Warning and indicator lights
6. Odometer/Trip computer
7. LCD display (including trip computer)OGS046165/OGS046146
■Type A
The actual cluster in the vehicle may dif
fer from the illustration.
For more details, refer to the "Gauges" in
this chapter.
■Type B

3-39
Convenient features of your vehicle
3

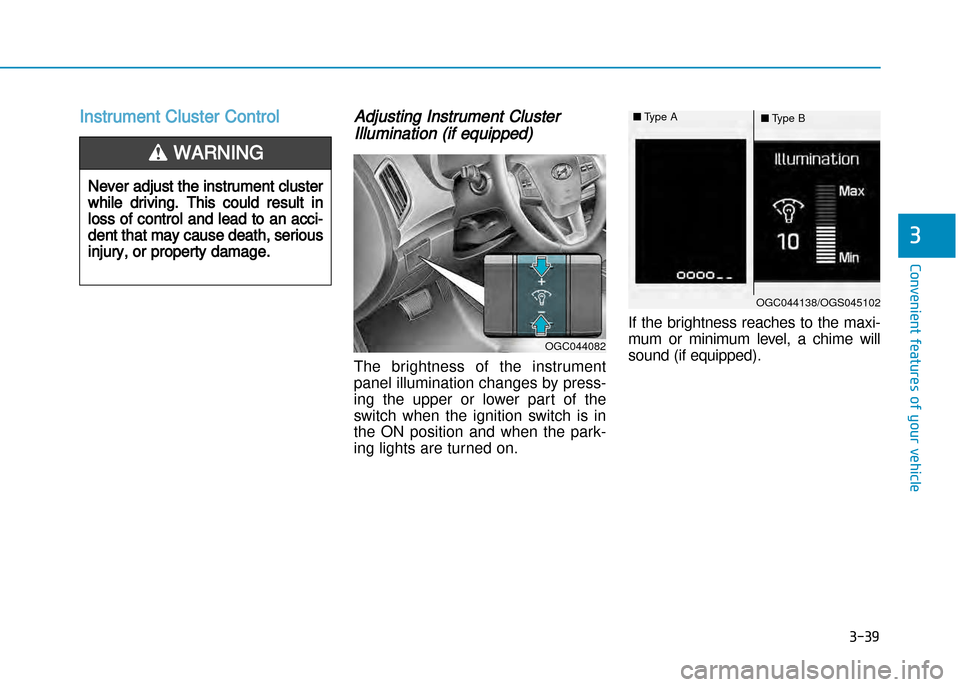

Instrument Cluster ControlAdjusting Instrument Cluster
Illumination (if equipped)
The brightness of the instrument
panel illumination changes by press
ing the upper or lower part of the
switch when the ignition switch is in
the ON position and when the park
ing lights are turned on. If the brightness reaches to the maxi
mum or minimum level, a chime will
sound (if equipped).
Never adjust the instrument cluster
while driving. This could result in
loss of control and lead to an acci
dent that may cause death, serious
injury, or property damage.
WARNING
OGC044082
OGC044138/OGS045102
■
Type A
■Type B

3-40
Convenient features of your vehicle

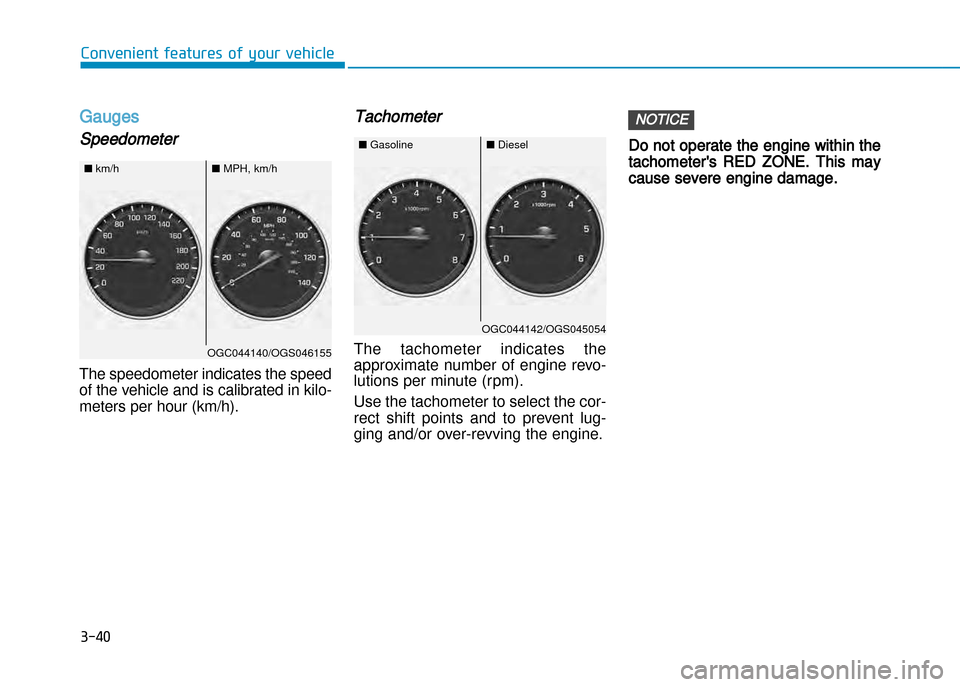

Gauges
Speedometer
The speedometer indicates the speed
of the vehicle and is calibrated in kilo
meters per hour (km/h).
Tachometer
The tachometer indicates the
approximate number of engine revo
lutions per minute (rpm).
Use the tachometer to select the cor
rect shift points and to prevent lug
ging and/or overrevving the engine.
Do not operate the engine within the
tachometer's RED ZONE. This may
cause severe engine damage.
NOTICE
OGC044142/OGS045054■
Diesel
■ Gasoline
OGC044140/OGS046155■
MPH, km/h
■km/h

3-41
Convenient features of your vehicle
3

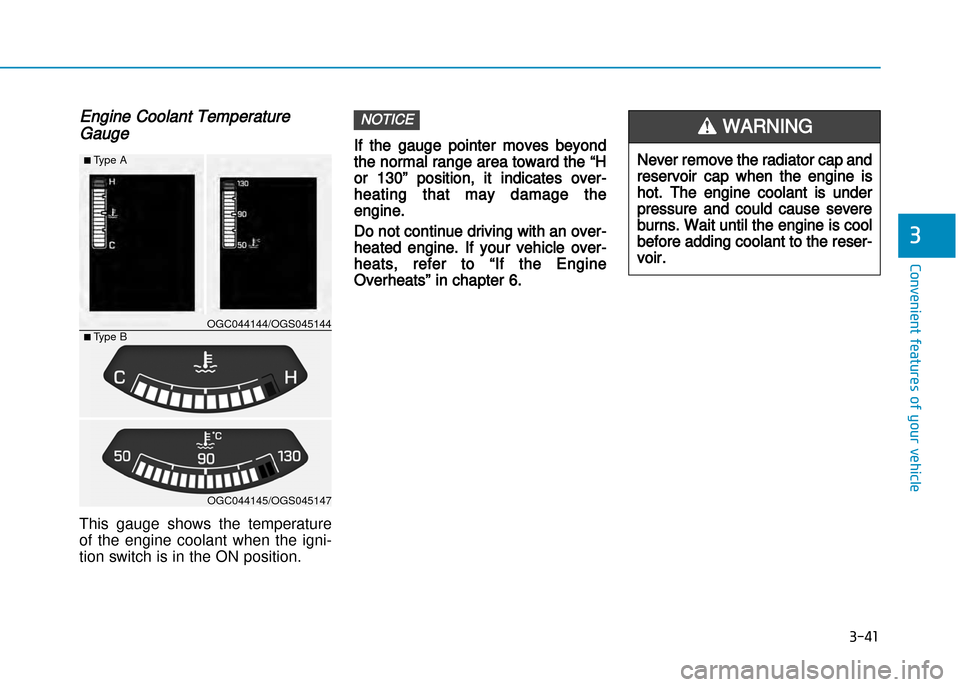

Engine Coolant Temperature
Gauge
This gauge shows the temperature
of the engine coolant when the igni
tion switch is in the ON position.
If the gauge pointer moves beyond
the normal range area toward the “H
or 130” position, it indicates over
heating that may damage the
engine.
Do not continue driving with an over
heated engine. If your vehicle over
heats, refer to “If the Engine
Overheats” in chapter 6.
NOTICE
Never remove the radiator cap and
reservoir cap when the engine is
hot. The engine coolant is under
pressure and could cause severe
burns. Wait until the engine is cool
before adding coolant to the reser
voir.
WARNING
OGC044145/OGS045147
■Type A
■Type BOGC044144/OGS045144

3-42
Convenient features of your vehicle

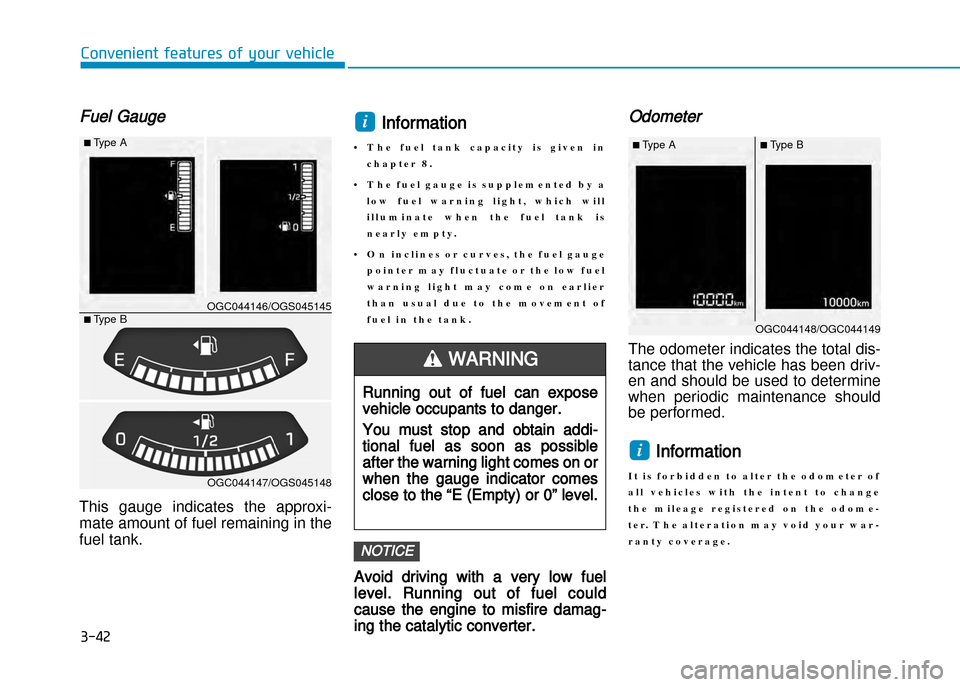

Fuel Gauge
This gauge indicates the approxi
mate amount of fuel remaining in the
fuel tank.
Information
• T h e f u e l t a n k c a p a c i t y i s g i v e n i n c h a p t e r 8 .
• T h e f u e l g a u g e i s s u p p l e m e n t e d b y a l o w f u e l w a r n i n g l i g h t , w h i c h w i l l
i l l u m i n a t e w h e n t h e f u e l t a n k i s
n e a r l y e m p t y .
• O n i n c l i n e s o r c u r v e s , t h e f u e l g a u g e p o i n t e r m a y f l u c t u a t e o r t h e l o w f u e l
w a r n i n g l i g h t m a y c o m e o n e a r l i e r
t h a n u s u a l d u e t o t h e m o v e m e n t o f
f u e l i n t h e t a n k .
Avoid driving with a very low fuel
level. Running out of fuel could
cause the engine to misfire damag
ing the catalytic converter.
Odometer
The odometer indicates the total dis
tance that the vehicle has been driv
en and should be used to determine
when periodic maintenance should
be performed.
Information
I t i s f o r b i d d e n t o a l t e r t h e o d o m e t e r o f
a l l v e h i c l e s w i t h t h e i n t e n t t o c h a n g e
t h e m i l e a g e r e g i s t e r e d o n t h e o d o m e
t e r . T h e a l t e r a t i o n m a y v o i d y o u r w a r
r a n t y c o v e r a g e .i
i
NOTICE
Running out of fuel can expose
vehicle occupants to danger.
You must stop and obtain addi
tional fuel as soon as possible
after the warning light comes on or
when the gauge indicator comes
close to the “E (Empty) or 0” level.
WARNING
OGC044147/OGS045148
■ Type A
■Type BOGC044146/OGS045145
OGC044148/OGC044149■
Type B
■Type A

3-43
Convenient features of your vehicle
3

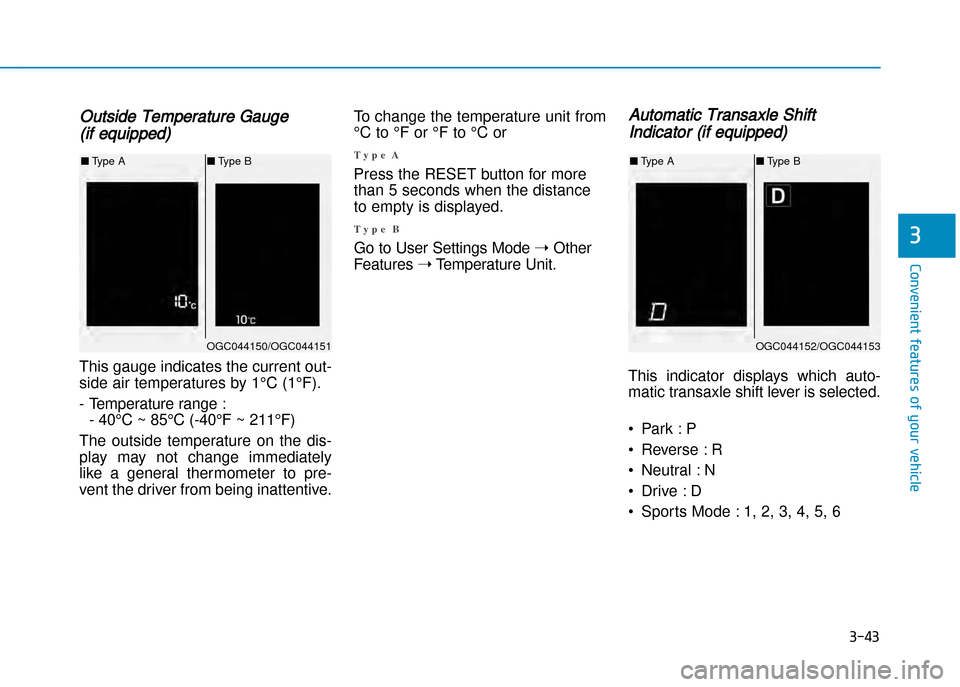

Outside Temperature Gauge
(if equipped)
This gauge indicates the current out
side air temperatures by 1°C (1°F).
Temperature range : 40°C ~ 85°C (40°F ~ 211°F)
The outside temperature on the dis
play may not change immediately
like a general thermometer to pre
vent the driver from being inattentive. To change the temperature unit from
°C to °F or °F to °C or
T y p e A
Press the RESET button for more
than 5 seconds when the distance
to empty is displayed.
T y p e B
Go to User Settings Mode
➝Other
Features ➝Temperature Unit.
Automatic Transaxle Shift
Indicator (if equipped)
This indicator displays which auto
matic transaxle shift lever is selected.
• Park : P
• Reverse : R
• Neutral : N
• Drive : D
• Sports Mode : 1, 2, 3, 4, 5, 6
OGC044150/OGC044151
■Type A ■Type B
OGC044152/OGC044153
■Type A ■Type B

3-44
Convenient features of your vehicle

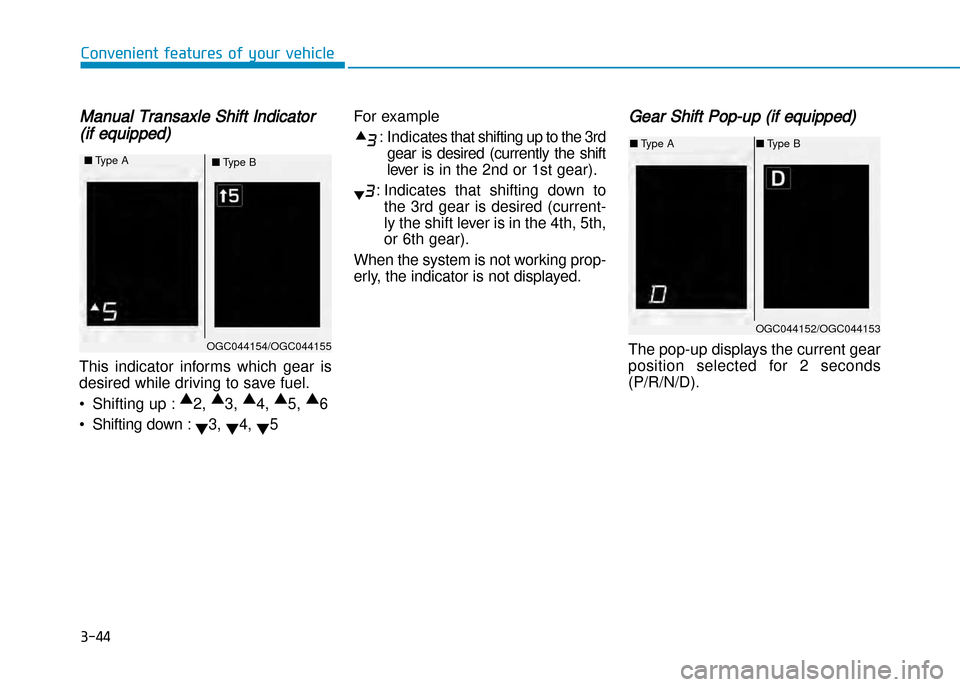

Manual Transaxle Shift Indicator
(if equipped)
This indicator informs which gear is
desired while driving to save fuel.
• Shifting up : ▲
2, ▲
3, ▲
4, ▲
5, ▲
6
• Shifting down : ▼3,
▼4,
▼5 For example
: Indicates that shifting up to the 3rdgear is desired (currently the shift
lever is in the 2nd or 1st gear).
: Indicates that shifting down to the 3rd gear is desired (current
ly the shift lever is in the 4th, 5th,
or 6th gear).
When the system is not working prop
erly, the indicator is not displayed.
Gear Shift Popup (if equipped)
The popup displays the current gear
position selected for 2 seconds(P/R/N/D).
OGC044152/OGC044153
■ Type A ■Type B
OGC044154/OGC044155
■
Type A
■Type B

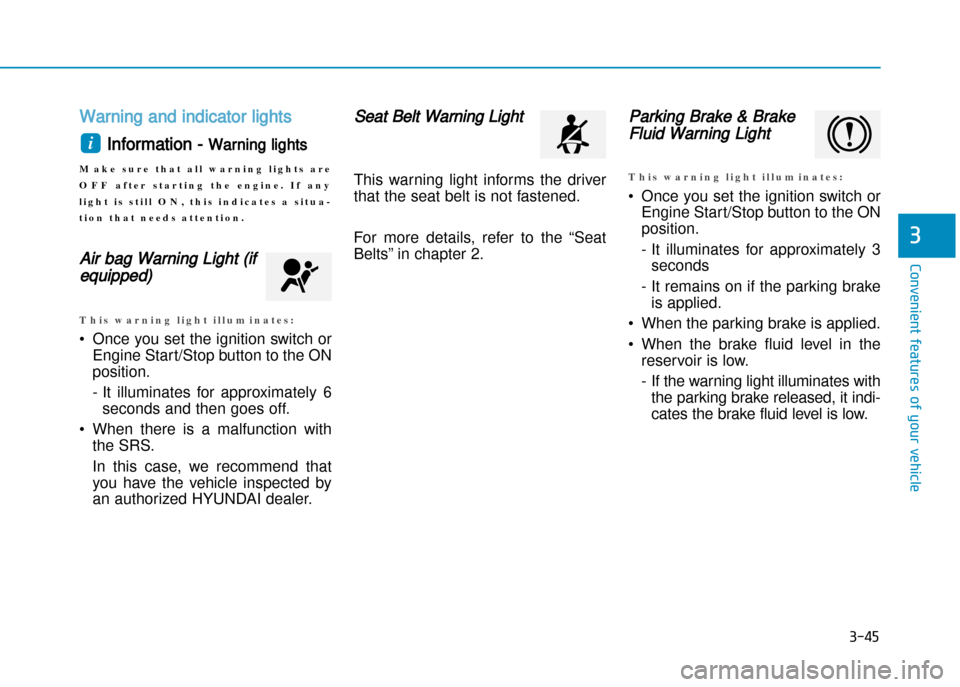

Warning and indicator lights
Information Warning lights
M a k e s u r e t h a t a l l w a r n i n g l i g h t s a r e
O F F a f t e r s t a r t i n g t h e e n g i n e . I f a n y
l i g h t i s s t i l l O N , t h i s i n d i c a t e s a s i t u a
t i o n t h a t n e e d s a t t e n t i o n .
Air bag Warning Light (if
equipped)
T h i s w a r n i n g l i g h t i l l u m i n a t e s :
• Once you set the ignition switch or Engine Start/Stop button to the ON
position.
It illuminates for approximately 6 seconds and then goes off.
• When there is a malfunction with the SRS.
In this case, we recommend that
you have the vehicle inspected by
an authorized HYUNDAI dealer.
Seat Belt Warning Light
This warning light informs the driver
that the seat belt is not fastened.
For more details, refer to the “Seat
Belts” in chapter 2.
Parking Brake & Brake
Fluid Warning Light
T h i s w a r n i n g l i g h t i l l u m i n a t e s :
• Once you set the ignition switch orEngine Start/Stop button to the ON position.
It illuminates for approximately 3seconds
It remains on if the parking brake is applied.
• When the parking brake is applied.
• When the brake fluid level in the reservoir is low.
If the warning light illuminates withthe parking brake released, it indi
cates the brake fluid level is low.
i
3-45
Convenient features of your vehicle
3

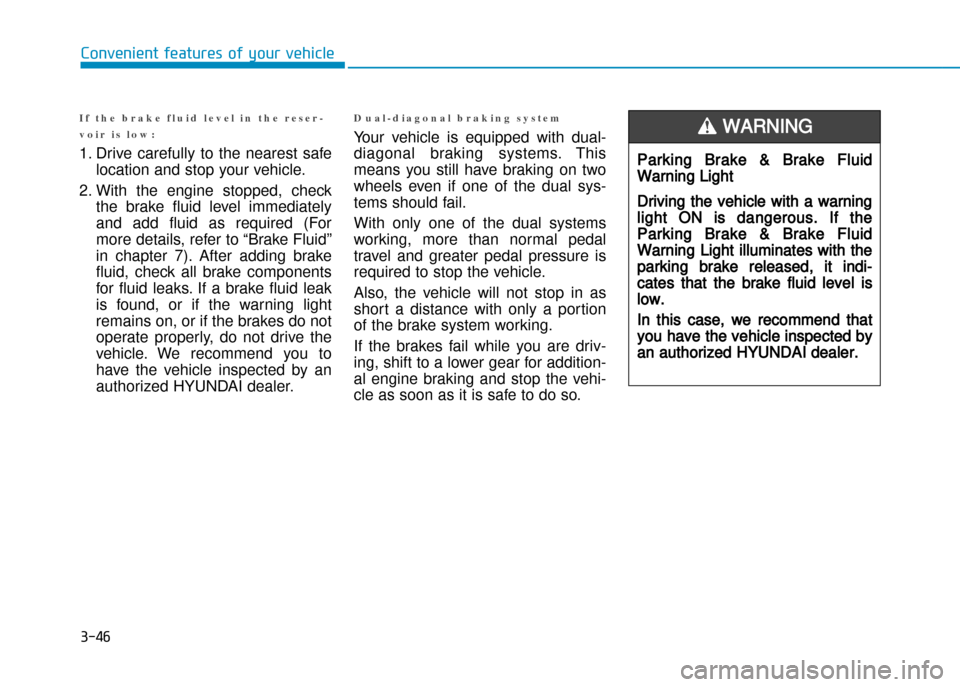

I f t h e b r a k e f l u i d l e v e l i n t h e r e s e r
v o i r i s l o w :
1. Drive carefully to the nearest safelocation and stop your vehicle.
2. With the engine stopped, check the brake fluid level immediately
and add fluid as required (For
more details, refer to “Brake Fluid”
in chapter 7). After adding brake
fluid, check all brake components
for fluid leaks. If a brake fluid leak
is found, or if the warning light
remains on, or if the brakes do not
operate properly, do not drive the
vehicle. We recommend you to
have the vehicle inspected by an
authorized HYUNDAI dealer.
D u a l d i a g o n a l b r a k i n g s y s t e m
Your vehicle is equipped with dual
diagonal braking systems. This
means you still have braking on two
wheels even if one of the dual sys
tems should fail.
With only one of the dual systems
working, more than normal pedal
travel and greater pedal pressure is
required to stop the vehicle.
Also, the vehicle will not stop in as
short a distance with only a portion
of the brake system working.
If the brakes fail while you are driv
ing, shift to a lower gear for addition
al engine braking and stop the vehi
cle as soon as it is safe to do so.
3-46
Convenient features of your vehicle
Parking Brake & Brake Fluid
Warning Light
Driving the vehicle with a warning
light ON is dangerous. If the
Parking Brake & Brake Fluid
Warning Light illuminates with the
parking brake released, it indi
cates that the brake fluid level is
low.
In this case, we recommend that
you have the vehicle inspected by
an authorized HYUNDAI dealer.
WARNING
