Hyundai Creta 2016 Owner's Manual

3-7
Convenient features of your vehicle
3
Smart key (if equipped)
Your HYUNDAI uses a Smart Key,
which you can use to lock or unlock
a door (and tailgate) and even start
the engine.
1. Door Lock
2. Door Unlock
3. Tailgate Unlock
Locking
To lock :
1. Close all doors, engine hood andtailgate.
2. Either press the door handle but ton or press the Door Lock button
(1) on the smart key.
3. The hazard warning lights will blink.
4. Make sure the doors are locked by checking the position of the door
lock button inside the vehicle.
Information
T h e d o o r h a n d l e b u t t o n w i l l o n l y
o p e r a t e w h e n t h e s m a r t k e y i s w i t h i n
0 . 7 ~ 1 m ( 2 8 ~ 4 0 i n . ) f r o m t h e o u t s i d e
d o o r h a n d l e . i
OIB044179OGS045001L

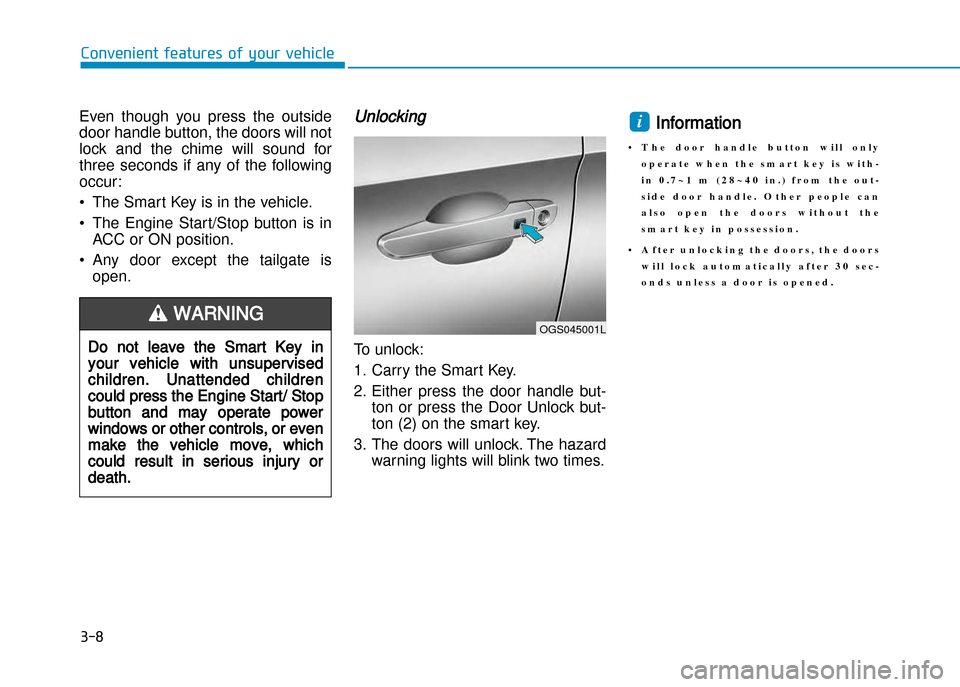

3-8
Convenient features of your vehicle
Even though you press the outside
door handle button, the doors will not
lock and the chime will sound for
three seconds if any of the following
occur:
• The Smart Key is in the vehicle.
• The Engine Start/Stop button is inACC or ON position.
• Any door except the tailgate is open.Unlocking
To unlock:
1. Carry the Smart Key.
2. Either press the door handle but ton or press the Door Unlock but
ton (2) on the smart key.
3. The doors will unlock. The hazard warning lights will blink two times.
Information
• T h e d o o r h a n d l e b u t t o n w i l l o n l y o p e r a t e w h e n t h e s m a r t k e y i s w i t h
i n 0 . 7 ~ 1 m ( 2 8 ~ 4 0 i n . ) f r o m t h e o u t
s i d e d o o r h a n d l e . O t h e r p e o p l e c a n
a l s o o p e n t h e d o o r s w i t h o u t t h e
s m a r t k e y i n p o s s e s s i o n .
• A f t e r u n l o c k i n g t h e d o o r s , t h e d o o r s w i l l l o c k a u t o m a t i c a l l y a f t e r 3 0 s e c
o n d s u n l e s s a d o o r i s o p e n e d .i
Do not leave the Smart Key in
your vehicle with unsupervised
children. Unattended children
could press the Engine Start/ Stop
button and may operate power
windows or other controls, or even
make the vehicle move, which
could result in serious injury or
death.
WARNING OGS045001L

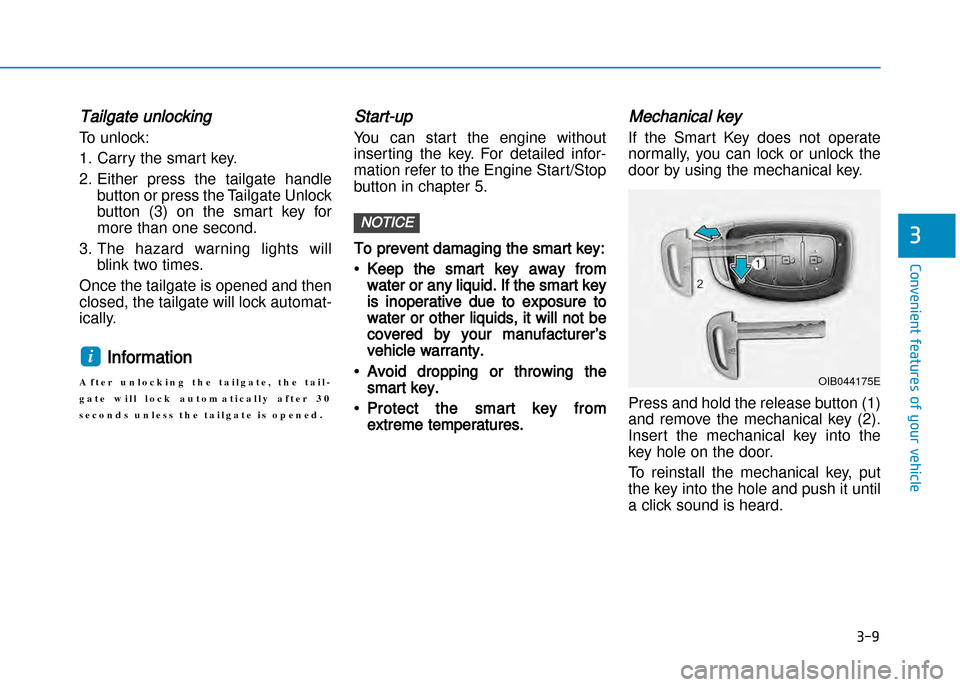

3-9
Convenient features of your vehicle
3
Tailgate unlocking
To unlock:
1. Carry the smart key.
2. Either press the tailgate handlebutton or press the Tailgate Unlock
button (3) on the smart key for
more than one second.
3. The hazard warning lights will blink two times.
Once the tailgate is opened and then
closed, the tailgate will lock automat
ically.
Information
A f t e r u n l o c k i n g t h e t a i l g a t e , t h e t a i l
g a t e w i l l l o c k a u t o m a t i c a l l y a f t e r 3 0
s e c o n d s u n l e s s t h e t a i l g a t e i s o p e n e d .
Startup
You can start the engine without
inserting the key. For detailed infor
mation refer to the Engine Start/Stop
button in chapter 5.
To prevent damaging the smart key:
•Keep the smart key away from
water or any liquid. If the smart key
is inoperative due to exposure to
water or other liquids, it will not be
covered by your manufacturer’s
vehicle warranty.
•Avoid dropping or throwing the
smart key.
•Protect the smart key from
extreme temperatures.
Mechanical key
If the Smart Key does not operate
normally, you can lock or unlock the
door by using the mechanical key.
Press and hold the release button (1)
and remove the mechanical key (2).
Insert the mechanical key into the
key hole on the door.
To reinstall the mechanical key, put
the key into the hole and push it until
a click sound is heard.
NOTICE
i
OIB044175E

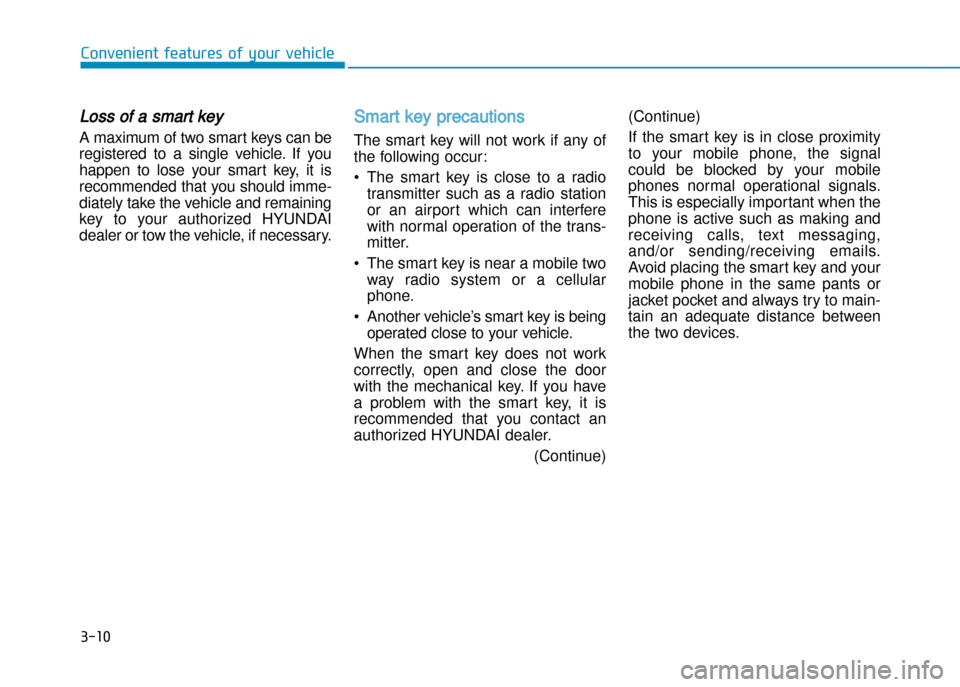

3-10
Convenient features of your vehicle
Loss of a smart key
A maximum of two smart keys can be
registered to a single vehicle. If you
happen to lose your smart key, it is
recommended that you should imme
diately take the vehicle and remaining
key to your authorized HYUNDAI
dealer or tow the vehicle, if necessary.
Smart key precautions
The smart key will not work if any of
the following occur:
• The smart key is close to a radiotransmitter such as a radio station
or an airport which can interfere
with normal operation of the trans
mitter.
• The smart key is near a mobile two way radio system or a cellular
phone.
• Another vehicle’s smart key is being operated close to your vehicle.
When the smart key does not work
correctly, open and close the door
with the mechanical key. If you have
a problem with the smart key, it is
recommended that you contact an
authorized HYUNDAI dealer. (Continue)(Continue)
If the smart key is in close proximity
to your mobile phone, the signal
could be blocked by your mobile
phones normal operational signals.
This is especially important when the
phone is active such as making and
receiving calls, text messaging,
and/or sending/receiving emails.
Avoid placing the smart key and your
mobile phone in the same pants or
jacket pocket and always try to main
tain an adequate distance between
the two devices.

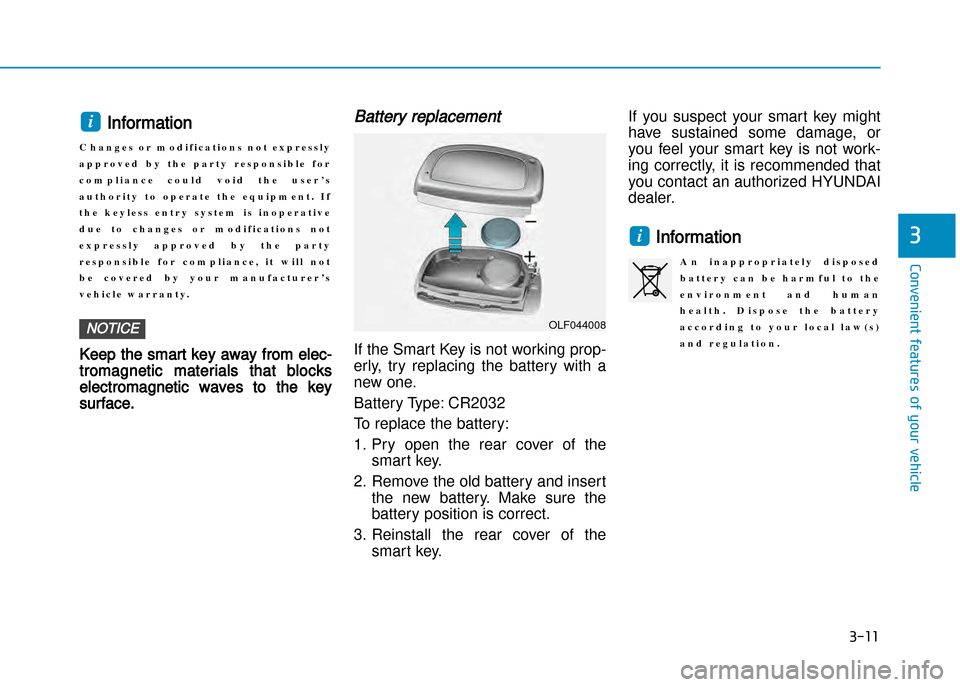

3-11
Convenient features of your vehicle
3
Information
C h a n g e s o r m o d i f i c a t i o n s n o t e x p r e s s l y
a p p r o v e d b y t h e p a r t y r e s p o n s i b l e f o r
c o m p l i a n c e c o u l d v o i d t h e u s e r ’ s
a u t h o r i t y t o o p e r a t e t h e e q u i p m e n t . I f
t h e k e y l e s s e n t r y s y s t e m i s i n o p e r a t i v e
d u e t o c h a n g e s o r m o d i f i c a t i o n s n o t
e x p r e s s l y a p p r o v e d b y t h e p a r t y
r e s p o n s i b l e f o r c o m p l i a n c e , i t w i l l n o t
b e c o v e r e d b y y o u r m a n u f a c t u r e r ’ s
v e h i c l e w a r r a n t y .
Keep the smart key away from elec
tromagnetic materials that blocks
electromagnetic waves to the key
surface.
Battery replacement
If the Smart Key is not working prop
erly, try replacing the battery with a
new one.
Battery Type: CR2032
To replace the battery:
1. Pry open the rear cover of the smart key.
2. Remove the old battery and insert the new battery. Make sure the
battery position is correct.
3. Reinstall the rear cover of the smart key. If you suspect your smart key might
have sustained some damage, or
you feel your smart key is not work
ing correctly, it is recommended that
you contact an authorized HYUNDAI
dealer.
Information
A n i n a p p r o p r i a t e l y d i s p o s e d
b a t t e r y c a n b e h a r m f u l t o t h e
e n v i r o n m e n t a n d h u m a n
h e a l t h . D i s p o s e t h e b a t t e r y
a c c o r d i n g t o y o u r l o c a l l a w ( s )
a n d r e g u l a t i o n .i
NOTICE
i
OLF044008

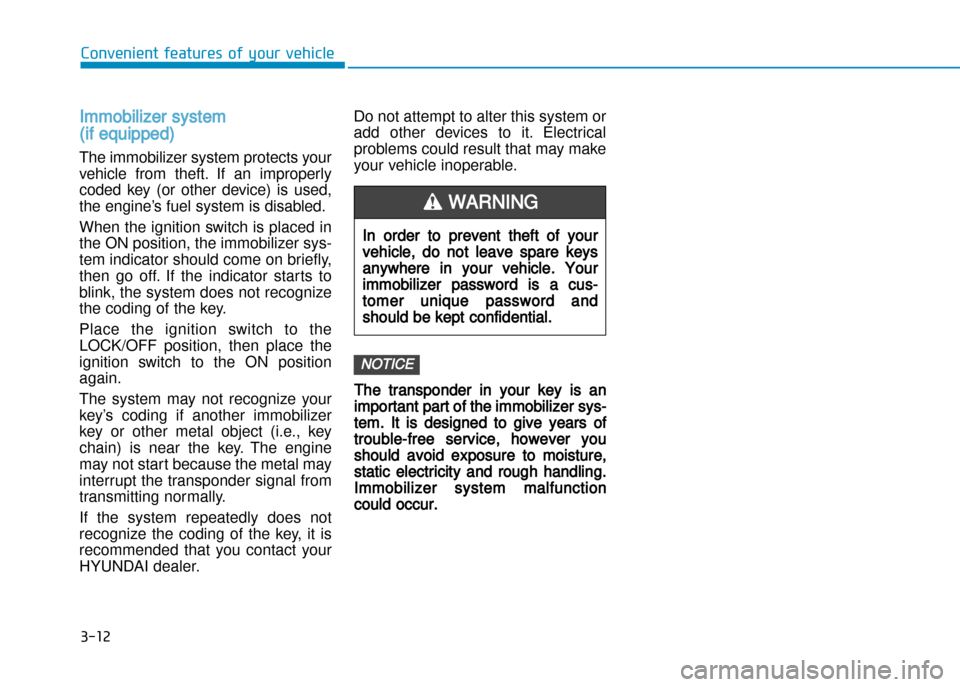

3-12
Convenient features of your vehicle
Immobilizer system
(if equipped)
The immobilizer system protects your
vehicle from theft. If an improperly
coded key (or other device) is used,
the engine’s fuel system is disabled.
When the ignition switch is placed in
the ON position, the immobilizer sys
tem indicator should come on briefly,
then go off. If the indicator starts to
blink, the system does not recognize
the coding of the key.
Place the ignition switch to the
LOCK/OFF position, then place the
ignition switch to the ON positionagain.
The system may not recognize your
key’s coding if another immobilizer
key or other metal object (i.e., key
chain) is near the key. The engine
may not start because the metal may
interrupt the transponder signal from
transmitting normally.
If the system repeatedly does not
recognize the coding of the key, it is
recommended that you contact your
HYUNDAI dealer. Do not attempt to alter this system or
add other devices to it. Electrical
problems could result that may make
your vehicle inoperable.
The transponder in your key is an
important part of the immobilizer sys
tem. It is designed to give years of
troublefree service, however you
should avoid exposure to moisture,
static electricity and rough handling.
Immobilizer system malfunction
could occur.
NOTICE
In order to prevent theft of your
vehicle, do not leave spare keys
anywhere in your vehicle. Your
immobilizer password is a cus
tomer unique password and
should be kept confidential.
WARNING

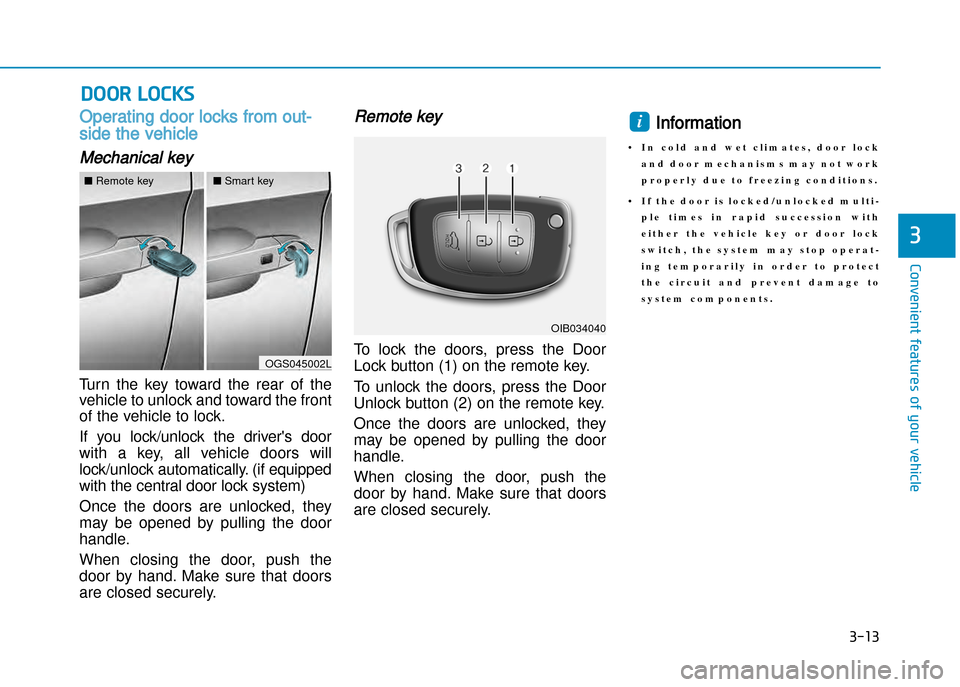

3-13
Convenient features of your vehicle
3
Operating door locks from out
side the vehicle
Mechanical key
Turn the key toward the rear of the
vehicle to unlock and toward the front
of the vehicle to lock.
If you lock/unlock the driver's door
with a key, all vehicle doors will
lock/unlock automatically. (if equipped
with the central door lock system)
Once the doors are unlocked, they
may be opened by pulling the door
handle.
When closing the door, push the
door by hand. Make sure that doors
are closed securely.
Remote key
To lock the doors, press the Door
Lock button (1) on the remote key.
To unlock the doors, press the Door
Unlock button (2) on the remote key.
Once the doors are unlocked, they
may be opened by pulling the door
handle.
When closing the door, push the
door by hand. Make sure that doors
are closed securely.
Information
• I n c o l d a n d w e t c l i m a t e s , d o o r l o c k a n d d o o r m e c h a n i s m s m a y n o t w o r k
p r o p e r l y d u e t o f r e e z i n g c o n d i t i o n s .
• I f t h e d o o r i s l o c k e d / u n l o c k e d m u l t i p l e t i m e s i n r a p i d s u c c e s s i o n w i t h
e i t h e r t h e v e h i c l e k e y o r d o o r l o c k
s w i t c h , t h e s y s t e m m a y s t o p o p e r a t
i n g t e m p o r a r i l y i n o r d e r t o p r o t e c t
t h e c i r c u i t a n d p r e v e n t d a m a g e t o
s y s t e m c o m p o n e n t s .i
DOOR LOCKS
OIB034040
OGS045002L
■
Remote key ■Smart key

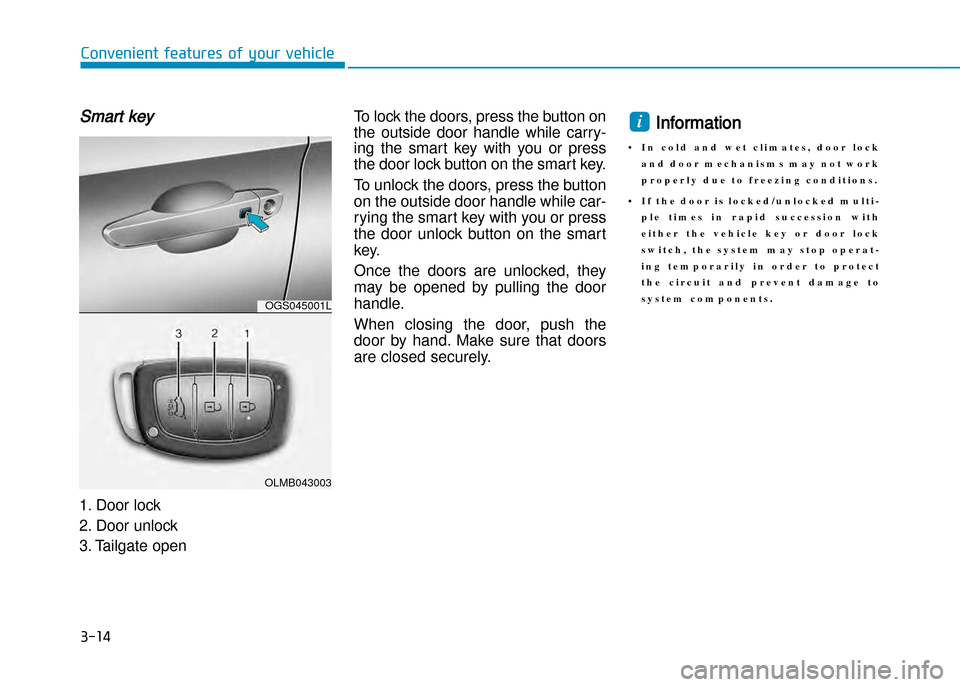

3-14
Convenient features of your vehicle
Smart key
1. Door lock
2. Door unlock3. Tailgate open To lock the doors, press the button on
the outside door handle while carry
ing the smart key with you or press
the door lock button on the smart key.
To unlock the doors, press the button
on the outside door handle while car
rying the smart key with you or press
the door unlock button on the smart
key.
Once the doors are unlocked, they
may be opened by pulling the door
handle.
When closing the door, push the
door by hand. Make sure that doors
are closed securely.
Information
• I n c o l d a n d w e t c l i m a t e s , d o o r l o c k a n d d o o r m e c h a n i s m s m a y n o t w o r k
p r o p e r l y d u e t o f r e e z i n g c o n d i t i o n s .
• I f t h e d o o r i s l o c k e d / u n l o c k e d m u l t i p l e t i m e s i n r a p i d s u c c e s s i o n w i t h
e i t h e r t h e v e h i c l e k e y o r d o o r l o c k
s w i t c h , t h e s y s t e m m a y s t o p o p e r a t
i n g t e m p o r a r i l y i n o r d e r t o p r o t e c t
t h e c i r c u i t a n d p r e v e n t d a m a g e t o
s y s t e m c o m p o n e n t s .i
OGS045001L
OLMB043003

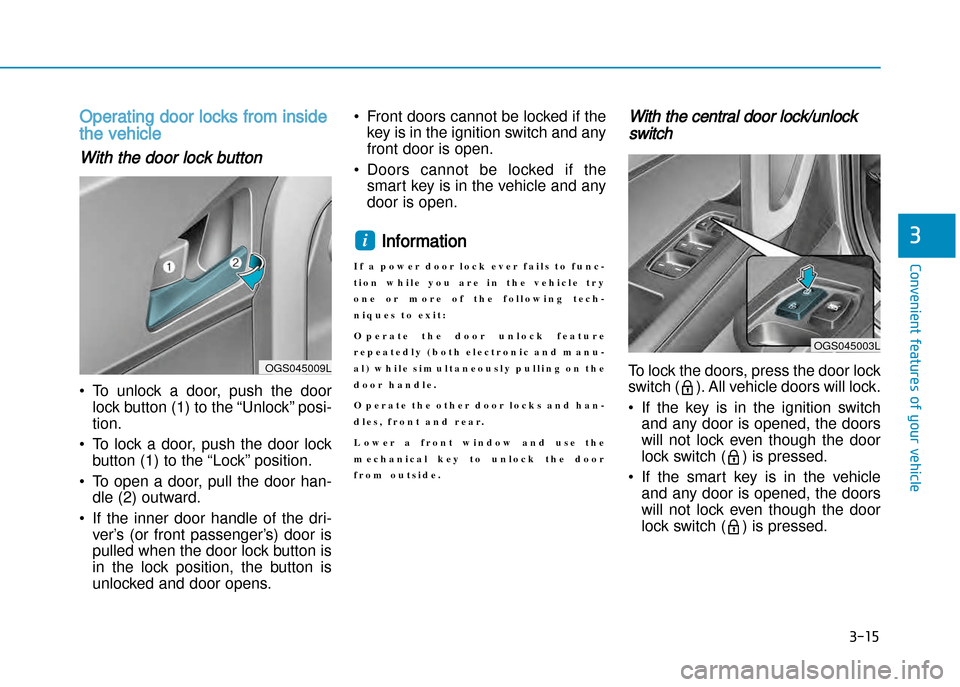

3-15
Convenient features of your vehicle
3
Operating door locks from inside
the vehicle
With the door lock button
• To unlock a door, push the doorlock button (1) to the “Unlock” posi
tion.
• To lock a door, push the door lock button (1) to the “Lock” position.
• To open a door, pull the door han dle (2) outward.
• If the inner door handle of the dri ver’s (or front passenger’s) door is
pulled when the door lock button is
in the lock position, the button is
unlocked and door opens. • Front doors cannot be locked if the
key is in the ignition switch and any
front door is open.
• Doors cannot be locked if the smart key is in the vehicle and any
door is open.
Information
I f a p o w e r d o o r l o c k e v e r f a i l s t o f u n c
t i o n w h i l e y o u a r e i n t h e v e h i c l e t r y
o n e o r m o r e o f t h e f o l l o w i n g t e c h
n i q u e s t o e x i t :
O p e r a t e t h e d o o r u n l o c k f e a t u r e
r e p e a t e d l y ( b o t h e l e c t r o n i c a n d m a n u
a l ) w h i l e s i m u l t a n e o u s l y p u l l i n g o n t h e
d o o r h a n d l e .
O p e r a t e t h e o t h e r d o o r l o c k s a n d h a n
d l e s , f r o n t a n d r e a r .
L o w e r a f r o n t w i n d o w a n d u s e t h e
m e c h a n i c a l k e y t o u n l o c k t h e d o o r
f r o m o u t s i d e .
With the central door lock/unlock
switch
To lock the doors, press the door lock
switch ( ). All vehicle doors will lock.
• If the key is in the ignition switch and any door is opened, the doors
will not lock even though the door
lock switch ( ) is pressed.
• If the smart key is in the vehicle and any door is opened, the doors
will not lock even though the door
lock switch ( ) is pressed.
i
OGS045009L
OGS045003L

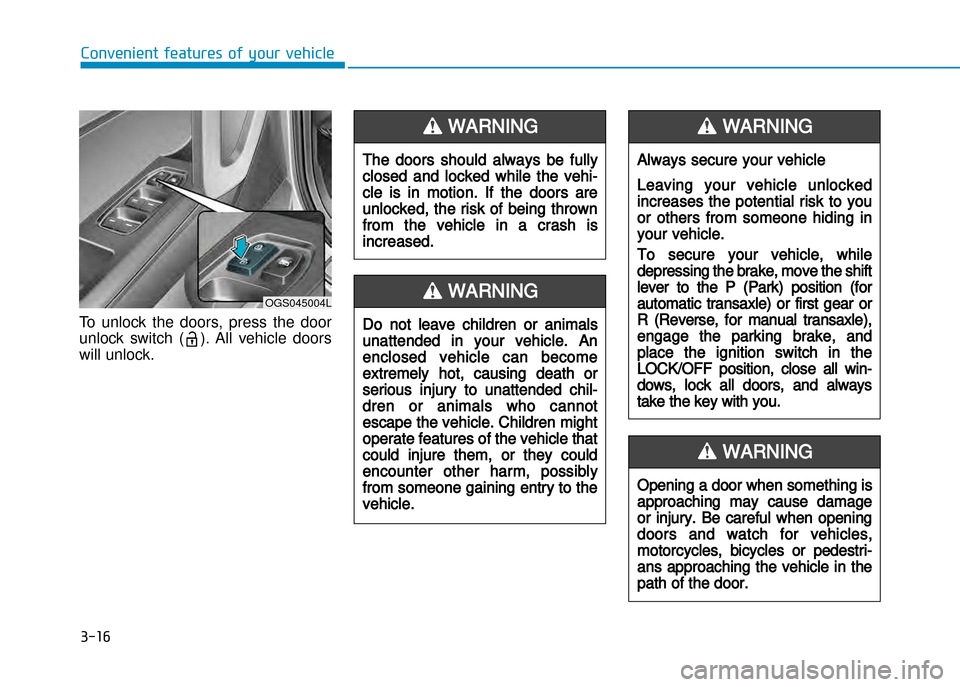

3-16
Convenient features of your vehicle
To unlock the doors, press the door
unlock switch ( ). All vehicle doors
will unlock.
The doors should always be fully
closed and locked while the vehi
cle is in motion. If the doors are
unlocked, the risk of being thrown
from the vehicle in a crash is
increased.
WARNING
Do not leave children or animals
unattended in your vehicle. An
enclosed vehicle can become
extremely hot, causing death or
serious injury to unattended chil
dren or animals who cannot
escape the vehicle. Children might
operate features of the vehicle that
could injure them, or they could
encounter other harm, possibly
from someone gaining entry to the
vehicle.
WARNING
Always secure your vehicle
Leaving your vehicle unlocked
increases the potential risk to you
or others from someone hiding in
your vehicle.
To secure your vehicle, while
depressing the brake, move the shift
lever to the P (Park) position (for
automatic transaxle) or first gear or
R (Reverse, for manual transaxle),
engage the parking brake, and
place the ignition switch in the
LOCK/OFF position, close all win
dows, lock all doors, and always
take the key with you.
WARNING
Opening a door when something is
approaching may cause damage
or injury. Be careful when opening
doors and watch for vehicles,
motorcycles, bicycles or pedestri
ans approaching the vehicle in the
path of the door.
WARNING
OGS045004L
