2-41
Safety system of your vehicle
2

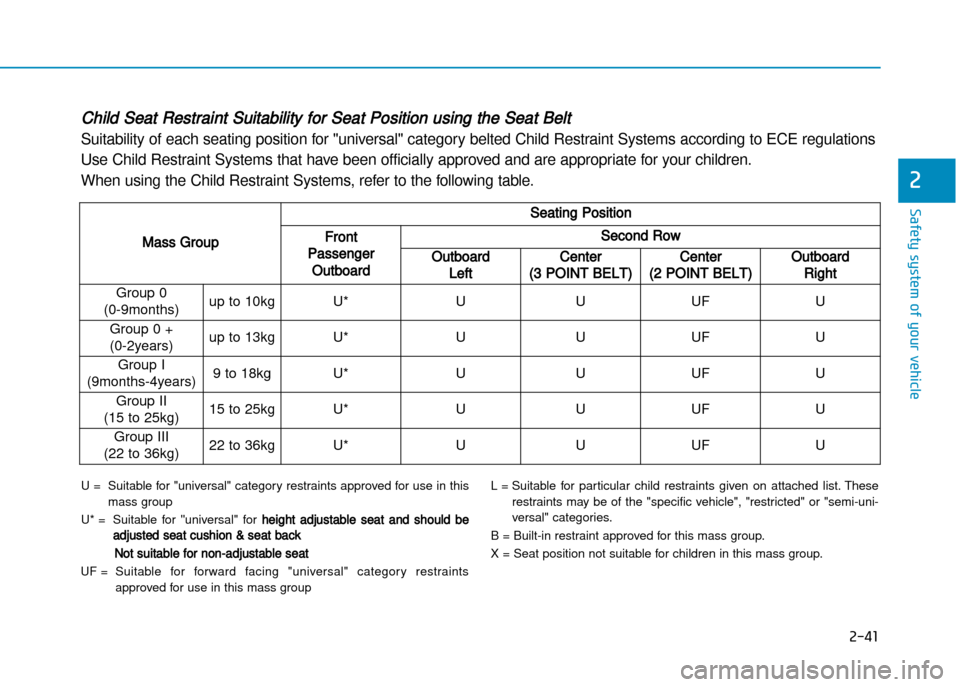

Child Seat Restraint Suitability for Seat Position using the Seat Belt
Suitability of each seating position for "universal" category belted Child Restraint Systems according to ECE regulations
Use Child Restraint Systems that have been official ly approved and are appropriate for your children.
When using the Child Restraint Systems, refer to th e following table.
U = Suitable for "universal" category restraints a pproved for use in this
mass group
U* = Suitable for "universal" for
height adjustable seat and should be
adjusted seat cushion & seat back
Not suitable for nonadjustable seat
UF = Suitable for forward facing "universal" categ ory restraints
approved for use in this mass group L = Suitable for particular child restraints given
on attached list. These
restraints may be of the "specific vehicle", "restr icted" or "semiuni
versal" categories.
B = Builtin restraint approved for this mass group .
X = Seat position not suitable for children in this mass group.
Mass Group
Seating Position
Front
Passenger
Outboard
Second Row
Outboard
Left
Center
(3 POINT BELT)
Center
(2 POINT BELT)
Outboard
Right
Group 0
(09months)up to 10kgU*UUUFU
Group 0 +
(02years)up to 13kgU*UUUFU
Group I
(9months4years)9 to 18kgU*UUUFU
Group II
(15 to 25kg)15 to 25kgU*UUUFU
Group III
(22 to 36kg)22 to 36kgU*UUUFU

2-42
Safety system of your vehicle

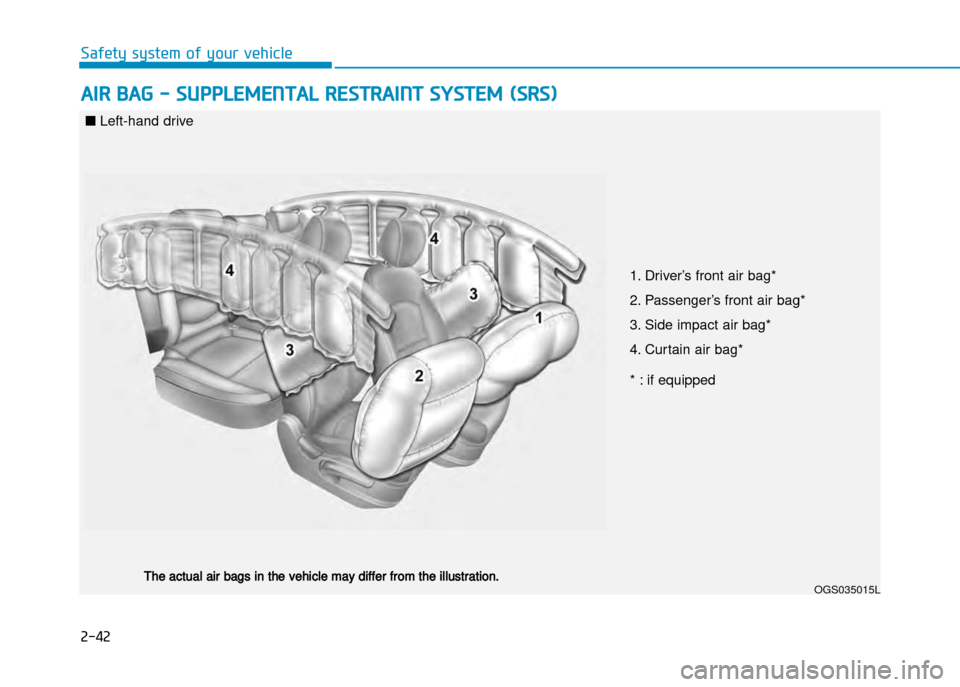

AIR BAG - SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
OGS035015L
1.
Driv er’s front air bag*
2. Passenger’s front air bag*
3. Side impact air bag*
4. Curtain air bag*
* : if equipped
■ Lefthand drive
The actual air bags in the vehicle may differ from the illustration.

2-43
Safety system of your vehicle
2
OGS035015
■Righthand drive

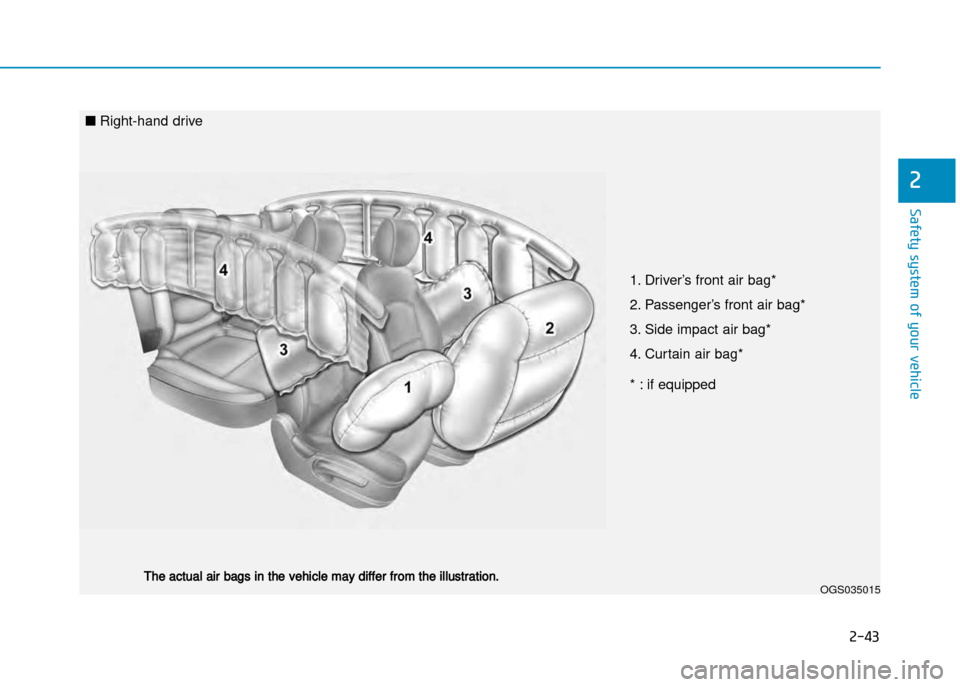

1. Driver’s front air bag*
2. Passenger’s front air bag*
3. Side impact air bag*
4. Curtain air bag*
* : if equipped
The actual air bags in the vehicle may differ from the illustration.

2-44
Safety system of your vehicle

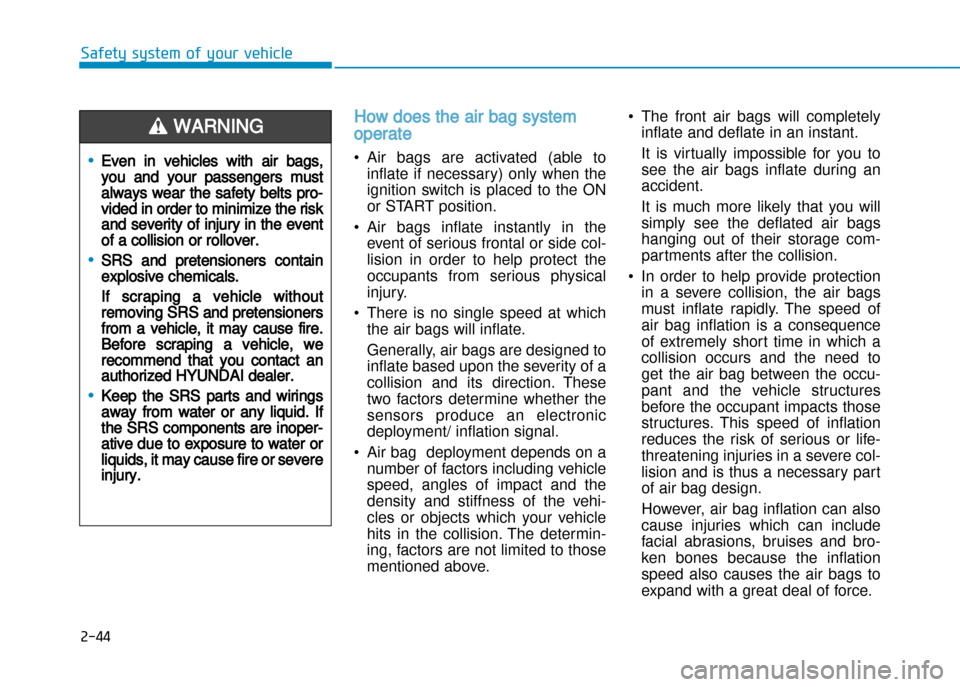

How does the air bag system
operate
•Air bags are activated (able to
inflate if necessary) only when the
ignition switch is placed to the ON
or START position.
• Air bags inflate instantly in the event of serious frontal or side col
lision in order to help protect the
occupants from serious physical
injury.
• There is no single speed at which the air bags will inflate.
Generally, air bags are designed to
inflate based upon the severity of a
collision and its direction. These
two factors determine whether the
sensors produce an electronic
deployment/ inflation signal.
• Air bag deployment depends on a number of factors including vehicle
speed, angles of impact and the
density and stiffness of the vehi
cles or objects which your vehicle
hits in the collision. The determin
ing, factors are not limited to those
mentioned above. • The front air bags will completely
inflate and deflate in an instant.
It is virtually impossible for you to
see the air bags inflate during an
accident.
It is much more likely that you will
simply see the deflated air bags
hanging out of their storage com
partments after the collision.
• In order to help provide protection in a severe collision, the air bags
must inflate rapidly. The speed of
air bag inflation is a consequence
of extremely short time in which a
collision occurs and the need to
get the air bag between the occu
pant and the vehicle structures
before the occupant impacts those
structures. This speed of inflation
reduces the risk of serious or life
threatening injuries in a severe col
lision and is thus a necessary part
of air bag design.
However, air bag inflation can also
cause injuries which can include
facial abrasions, bruises and bro
ken bones because the inflation
speed also causes the air bags to
expand with a great deal of force.•Even in vehicles with air bags,
you and your passengers must
always wear the safety belts pro
vided in order to minimize the riskand severity of injury in the event
of a collision or rollover.
•SRS and pretensioners contain
explosive chemicals.
If scraping a vehicle without
removing SRS and pretensioners
from a vehicle, it may cause fire.
Before scraping a vehicle, we
recommend that you contact anauthorized HYUNDAI dealer.
•Keep the SRS parts and wirings
away from water or any liquid. If
the SRS components are inoper
ative due to exposure to water or
liquids, it may cause fire or severeinjury.
WARNING

2-45
Safety system of your vehicle
2
•There are even circumstances
under which contact with the steer
ing wheel air bag can cause fatal
injuries, especially if the occupant is
positioned excessively close to the
steering wheel.
Noise and smoke
When the air bags inflate, they make
a loud noise and they leave smoke
and powder in the air inside of the
vehicle. This is normal and is a result
of the ignition of the air bag inflator.
After the air bag inflates, you may
feel substantial discomfort in breath
ing due to the contact of your chest
with both the seat belt and the air
bag, as well as from breathing the
smoke and powder.
Open your doors
and/or windows as soon as possible
after impact in order to reduce dis
comfort and prevent prolonged expo
sure to the smoke and powder.
Though smoke and powder are non
toxic, it may cause irritation to the
skin (eyes, nose and throat, etc.). If
this is the case, wash and rinse with
cold water immediately and consult
with the doctor if the symptom per
sists.

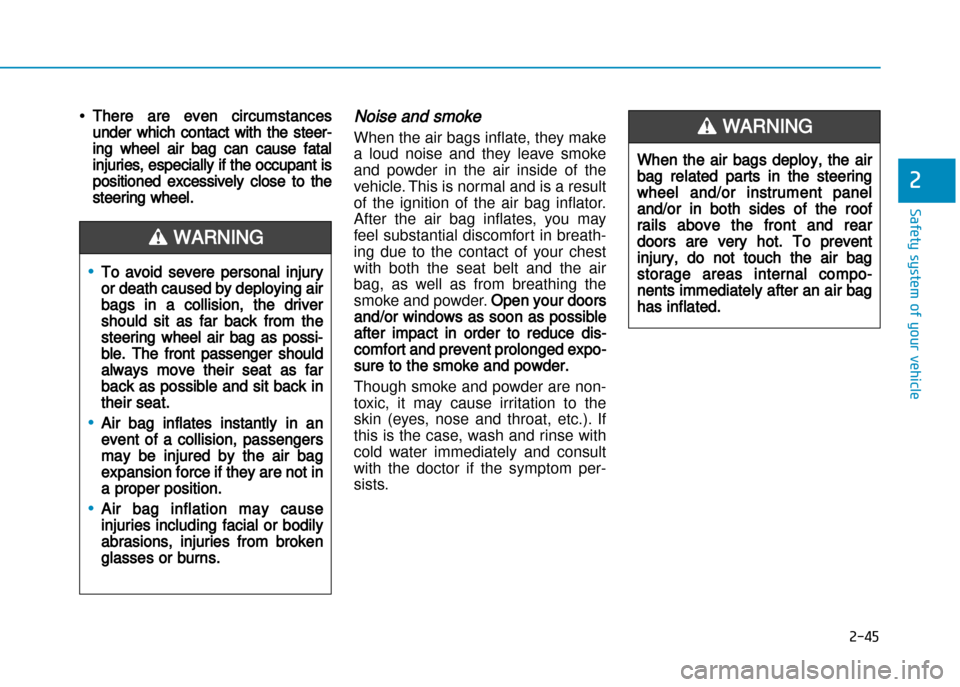

•To avoid severe personal injury
or death caused by deploying air
bags in a collision, the driver
should sit as far back from the
steering wheel air bag as possi
ble. The front passenger should
always move their seat as far
back as possible and sit back in
their seat.
•Air bag inflates instantly in an
event of a collision, passengers
may be injured by the air bag
expansion force if they are not in
a proper position.
•Air bag inflation may cause
injuries including facial or bodily
abrasions, injuries from broken
glasses or burns.
When the air bags deploy, the air
bag related parts in the steering
wheel and/or instrument panel
and/or in both sides of the roof
rails above the front and rear
doors are very hot. To prevent
injury, do not touch the air bag
storage areas internal compo
nents immediately after an air bag
has inflated.
WARNING
WARNING

2-46
Safety system of your vehicle

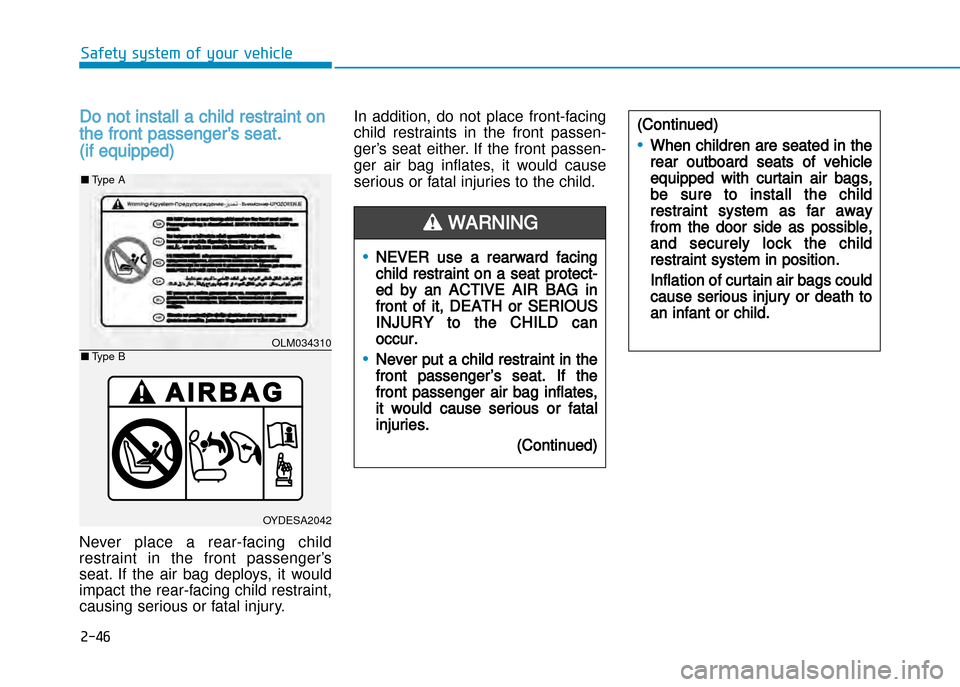

Do not install a child restraint on
the front passenger's seat.
(if equipped)
Never place a rearfacing child
restraint in the front passenger’s
seat. If the air bag deploys, it would
impact the rearfacing child restraint,
causing serious or fatal injury.In addition, do not place frontfacing
child restraints in the front passen
ger’s seat either. If the front passen
ger air bag inflates, it would cause
serious or fatal injuries to the child.
OLM034310
OYDESA2042
■
Type A
■Type B
•NEVER use a rearward facing
child restraint on a seat protect
ed by an ACTIVE AIR BAG in
front of it, DEATH or SERIOUS
INJURY to the CHILD can
occur.
•Never put a child restraint in the
front passenger’s seat. If the
front passenger air bag inflates,
it would cause serious or fatal
injuries.
(Continued)
WARNING
(Continued)
•When children are seated in the
rear outboard seats of vehicle
equipped with curtain air bags,
be sure to install the child
restraint system as far away
from the door side as possible,
and securely lock the child
restraint system in position.
Inflation of curtain air bags could
cause serious injury or death to
an infant or child.

2-47
Safety system of your vehicle
2
Air bag warning and indicator
(if equipped)
Air bag warning light
The purpose of the air bag warning
light in your instrument panel is to
alert you of a potential problem with
your air bag Supplemental Restraint
System (SRS).When the ignition switch is turned
ON, the warning light should illumi
nate for approximately 6 seconds,
then go off.
Have the system checked if:
• The light does not turn on briefly
when you turn the ignition ON.
• The light stays on after illuminating for approximately 6 seconds.
• The light comes on while the vehi cle is in motion.
• The light blinks when the ignition switch is in ON position.

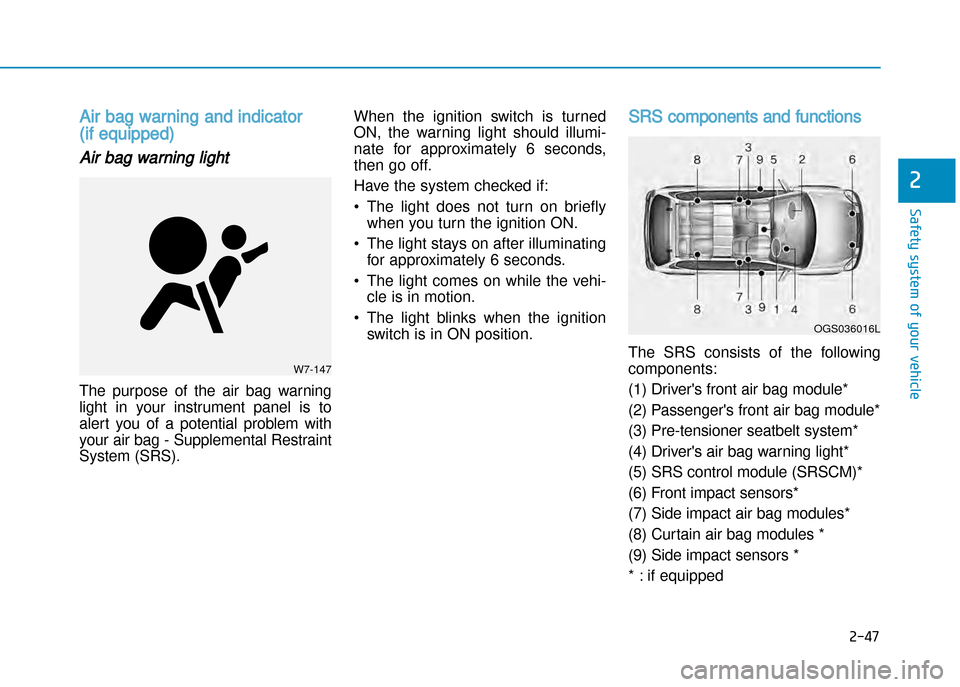

SRS components and functions
The SRS consists of the following components:
(1) Driver's front air bag module*
(2) Passenger's front air bag module*
(3) Pretensioner seatbelt system*
(4) Driver's air bag warning light*
(5) SRS control module (SRSCM)*
(6) Front impact sensors*
(7) Side impact air bag modules*
(8) Curtain air bag modules *
(9) Side impact sensors *
* : if equipped
W7147
OGS036016L

2-48
Safety system of your vehicle

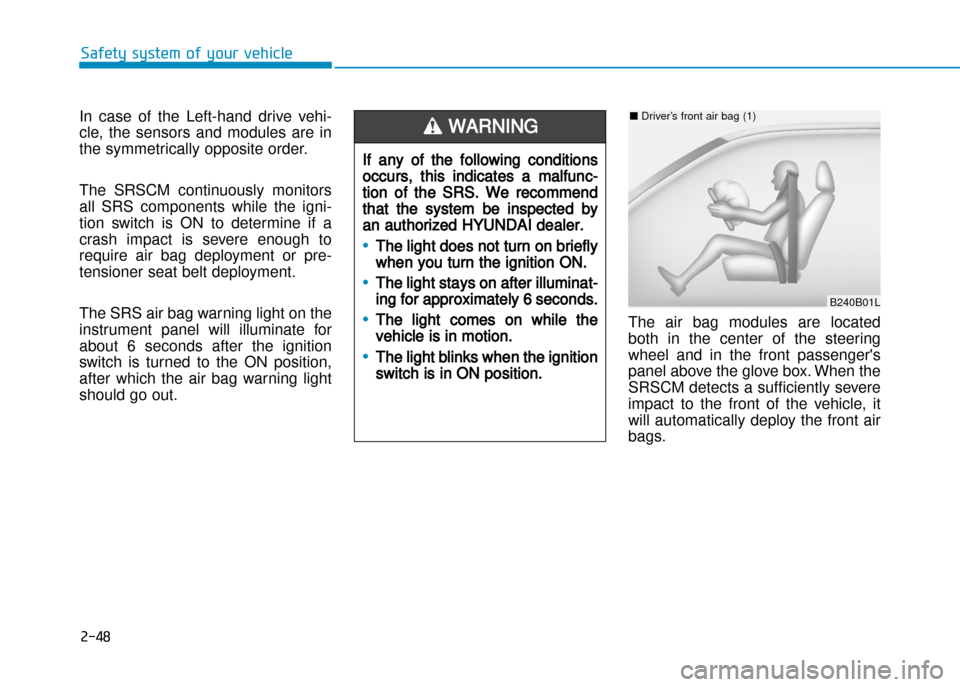

In case of the Lefthand drive vehi
cle, the sensors and modules are in
the symmetrically opposite order.
The SRSCM continuously monitors
all SRS components while the igni
tion switch is ON to determine if a
crash impact is severe enough to
require air bag deployment or pre
tensioner seat belt deployment.
The SRS air bag warning light on the
instrument panel will illuminate for
about 6 seconds after the ignition
switch is turned to the ON position,
after which the air bag warning light
should go out.The air bag modules are located
both in the center of the steering
wheel and in the front passenger's
panel above the glove box. When the
SRSCM detects a sufficiently severe
impact to the front of the vehicle, it
will automatically deploy the front air
bags.
If any of the following conditions
occurs, this indicates a malfunc
tion of the SRS. We recommend
that the system be inspected by
an authorized HYUNDAI dealer.
•The light does not turn on briefly
when you turn the ignition ON.
•The light stays on after illuminat
ing for approximately 6 seconds.
•The light comes on while the
vehicle is in motion.
•The light blinks when the ignition
switch is in ON position.
WARNING
B240B01L
■
Driver’s front air bag (1)

2-49
Safety system of your vehicle
2

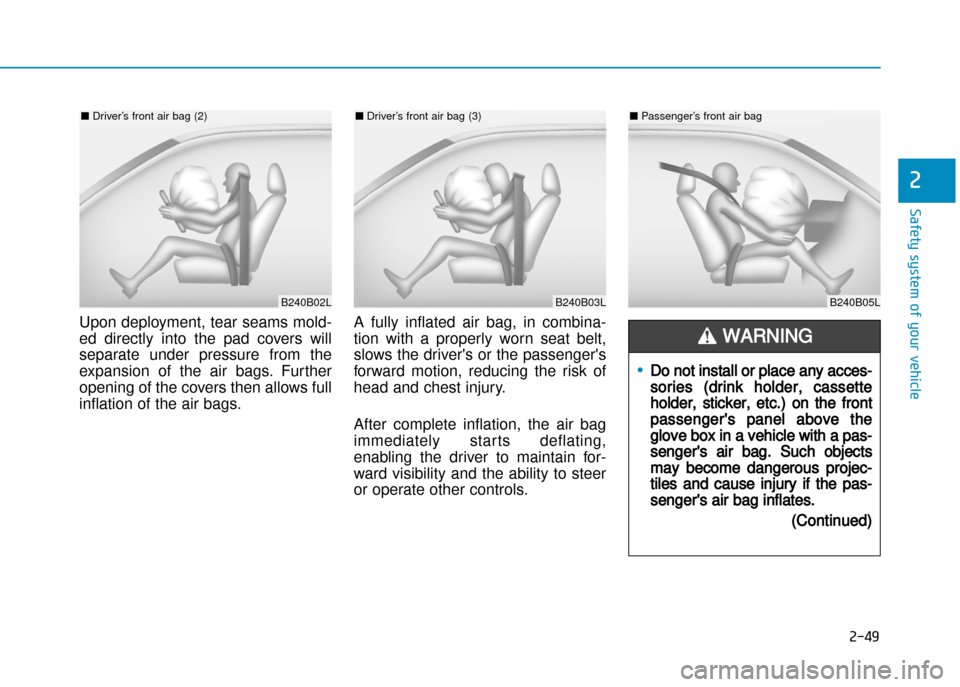

Upon deployment, tear seams mold
ed directly into the pad covers will
separate under pressure from the
expansion of the air bags. Further
opening of the covers then allows full
inflation of the air bags. A fully inflated air bag, in combina
tion with a properly worn seat belt,
slows the driver's or the passenger's
forward motion, reducing the risk of
head and chest injury.
After complete inflation, the air bag
immediately star ts deflating,
enabling the driver to maintain for
ward visibility and the ability to steer
or operate other controls.
B240B05L
■ Passenger’s front air bag
B240B03L
■Driver’s front air bag (3)
•Do not install or place any acces
sories (drink holder, cassette
holder, sticker, etc.) on the front
passenger's panel above the
glove box in a vehicle with a pas
senger's air bag. Such objects
may become dangerous projec
tiles and cause injury if the pas
senger's air bag inflates.
(Continued)
WARNING
B240B02L
■ Driver’s front air bag (2)

2-50
Safety system of your vehicle

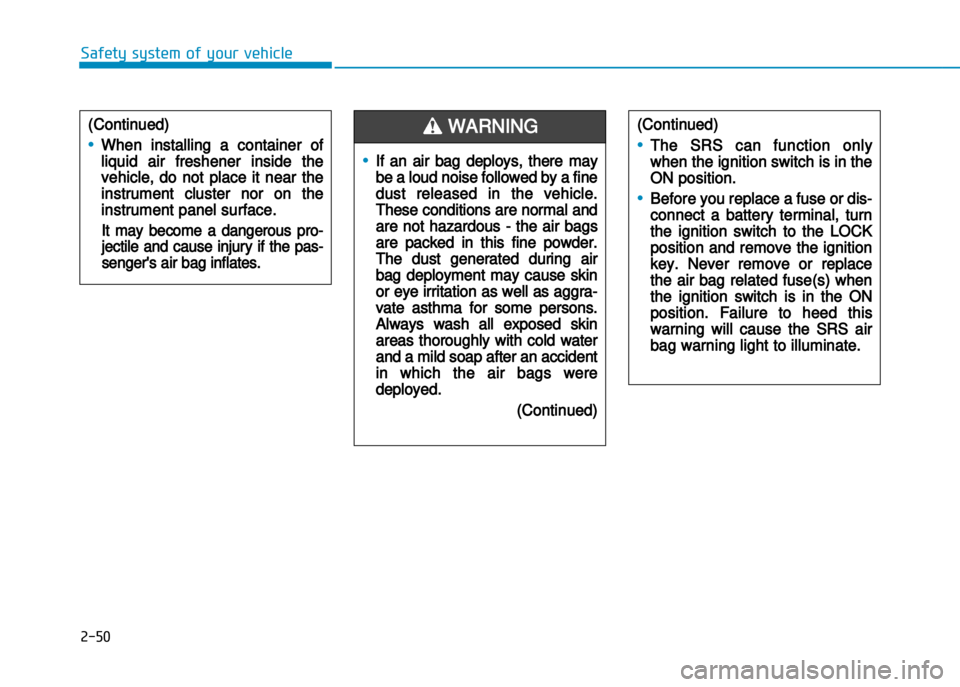

(Continued)
•When installing a container of
liquid air freshener inside the
vehicle, do not place it near the
instrument cluster nor on the
instrument panel surface.
It may become a dangerous pro
jectile and cause injury if the pas
senger's air bag inflates.
•If an air bag deploys, there may
be a loud noise followed by a fine
dust released in the vehicle.
These conditions are normal and
are not hazardous the air bags
are packed in this fine powder.
The dust generated during air
bag deployment may cause skin
or eye irritation as well as aggra
vate asthma for some persons.
Always wash all exposed skin
areas thoroughly with cold water
and a mild soap after an accident
in which the air bags were
deployed.
(Continued)
WARNING (Continued)
•The SRS can function only
when the ignition switch is in the
ON position.
•Before you replace a fuse or dis
connect a battery terminal, turn
the ignition switch to the LOCK
position and remove the ignition
key. Never remove or replace
the air bag related fuse(s) when
the ignition switch is in the ON
position. Failure to heed this
warning will cause the SRS air
bag warning light to illuminate.
