7-64
Maintenance

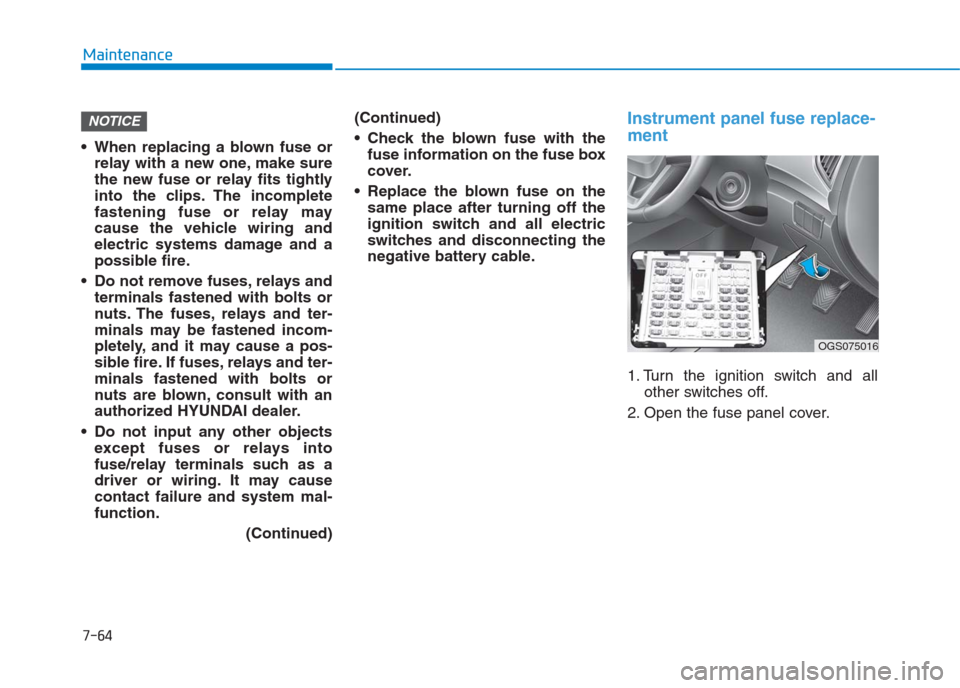

When replacing a blown fuse or
relay with a new one, make sure
the new fuse or relay fits tightly
into the clips. The incomplete
fastening fuse or relay may
cause the vehicle wiring and
electric systems damage and a
possible fire.
Do not remove fuses, relays and
terminals fastened with bolts or
nuts. The fuses, relays and ter-
minals may be fastened incom-
pletely, and it may cause a pos-
sible fire. If fuses, relays and ter-
minals fastened with bolts or
nuts are blown, consult with an
authorized HYUNDAI dealer.
Do not input any other objects
except fuses or relays into
fuse/relay terminals such as a
driver or wiring. It may cause
contact failure and system mal-
function.
(Continued)(Continued)
Check the blown fuse with the
fuse information on the fuse box
cover.
Replace the blown fuse on the
same place after turning off the
ignition switch and all electric
switches and disconnecting the
negative battery cable.
Instrument panel fuse replace-
ment
1. Turn the ignition switch and all
other switches off.
2. Open the fuse panel cover.
NOTICE
OGS075016

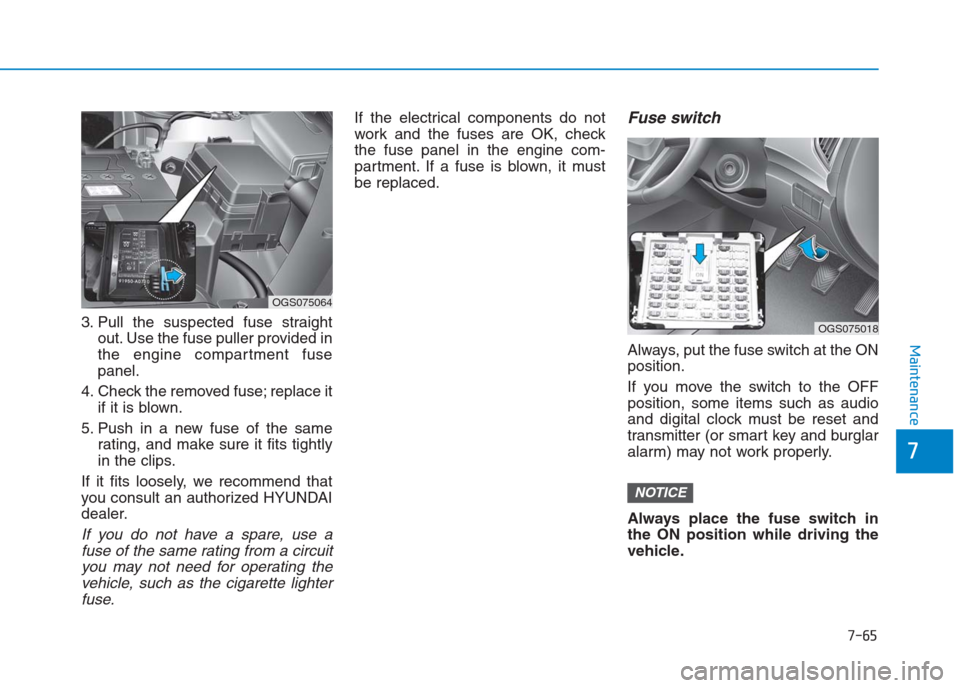

7-65
7
Maintenance
3. Pull the suspected fuse straight
out. Use the fuse puller provided in
the engine compartment fuse
panel.
4. Check the removed fuse; replace it
if it is blown.
5. Push in a new fuse of the same
rating, and make sure it fits tightly
in the clips.
If it fits loosely, we recommend that
you consult an authorized HYUNDAI
dealer.
If you do not have a spare, use a
fuse of the same rating from a circuit
you may not need for operating the
vehicle, such as the cigarette lighter
fuse.
If the electrical components do not
work and the fuses are OK, check
the fuse panel in the engine com-
partment. If a fuse is blown, it must
be replaced.Fuse switch
Always, put the fuse switch at the ON
position.
If you move the switch to the OFF
position, some items such as audio
and digital clock must be reset and
transmitter (or smart key and burglar
alarm) may not work properly.
Always place the fuse switch in
the ON position while driving the
vehicle.
NOTICE
OGS075064
OGS075018

7-66
Maintenance

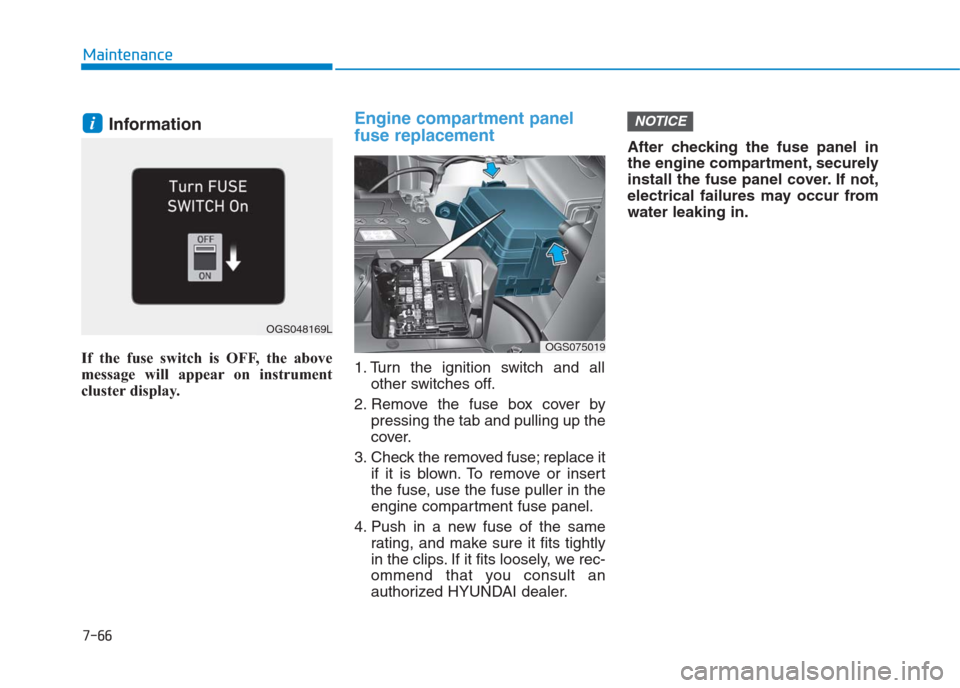

Information
If the fuse switch is OFF, the above
message will appear on instrument
cluster display.
Engine compartment panel
fuse replacement
1. Turn the ignition switch and all
other switches off.
2. Remove the fuse box cover by
pressing the tab and pulling up the
cover.
3. Check the removed fuse; replace it
if it is blown. To remove or insert
the fuse, use the fuse puller in the
engine compartment fuse panel.
4. Push in a new fuse of the same
rating, and make sure it fits tightly
in the clips. If it fits loosely, we rec-
ommend that you consult an
authorized HYUNDAI dealer.After checking the fuse panel in
the engine compartment, securely
install the fuse panel cover. If not,
electrical failures may occur from
water leaking in.
NOTICEi
OGS075019
OGS048169L

7-67
7
Maintenance

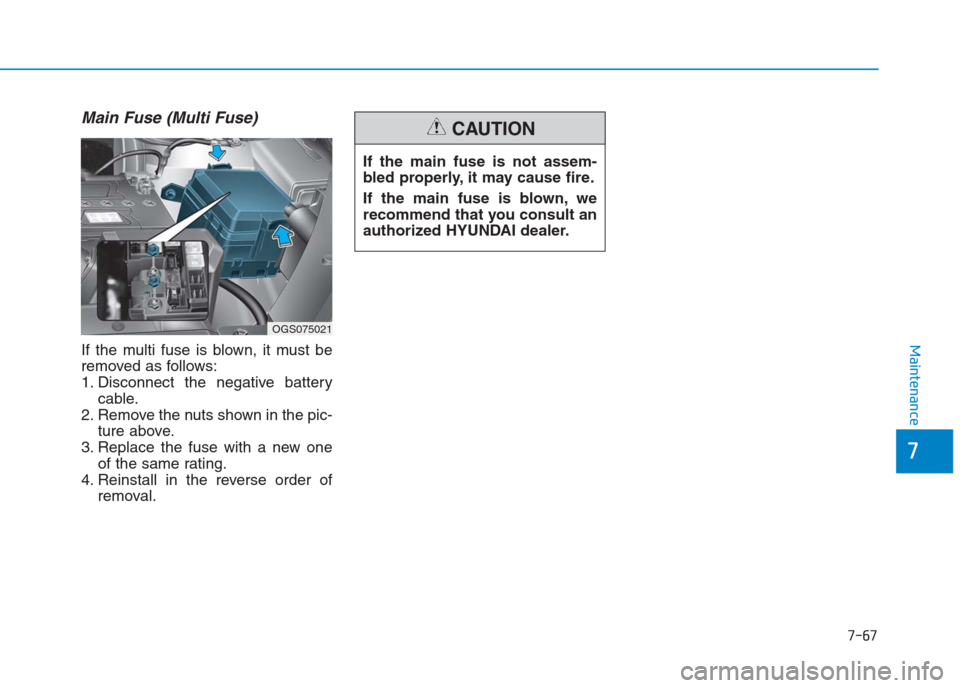

Main Fuse (Multi Fuse)
If the multi fuse is blown, it must be
removed as follows:
1. Disconnect the negative battery
cable.
2. Remove the nuts shown in the pic-
ture above.
3. Replace the fuse with a new one
of the same rating.
4. Reinstall in the reverse order of
removal.
OGS075021
If the main fuse is not assem-
bled properly, it may cause fire.
If the main fuse is blown, we
recommend that you consult an
authorized HYUNDAI dealer.
CAUTION

7-68
Maintenance

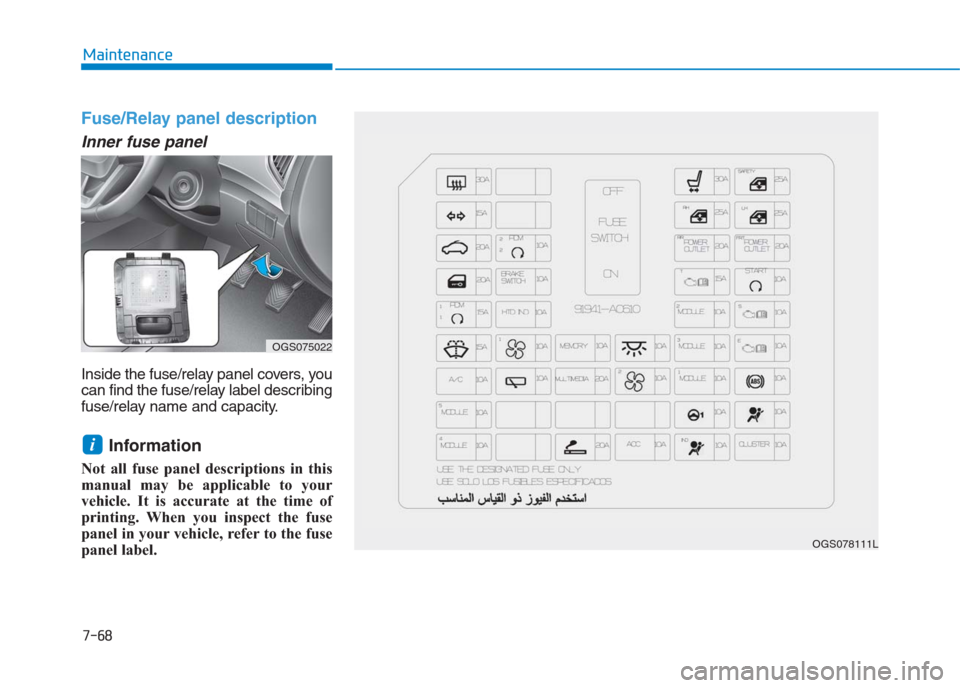

Fuse/Relay panel description
Inner fuse panel
Inside the fuse/relay panel covers, you
can find the fuse/relay label describing
fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle. It is accurate at the time of
printing. When you inspect the fuse
panel in your vehicle, refer to the fuse
panel label.
i
OGS075022
OGS078111L

7-69
7
Maintenance

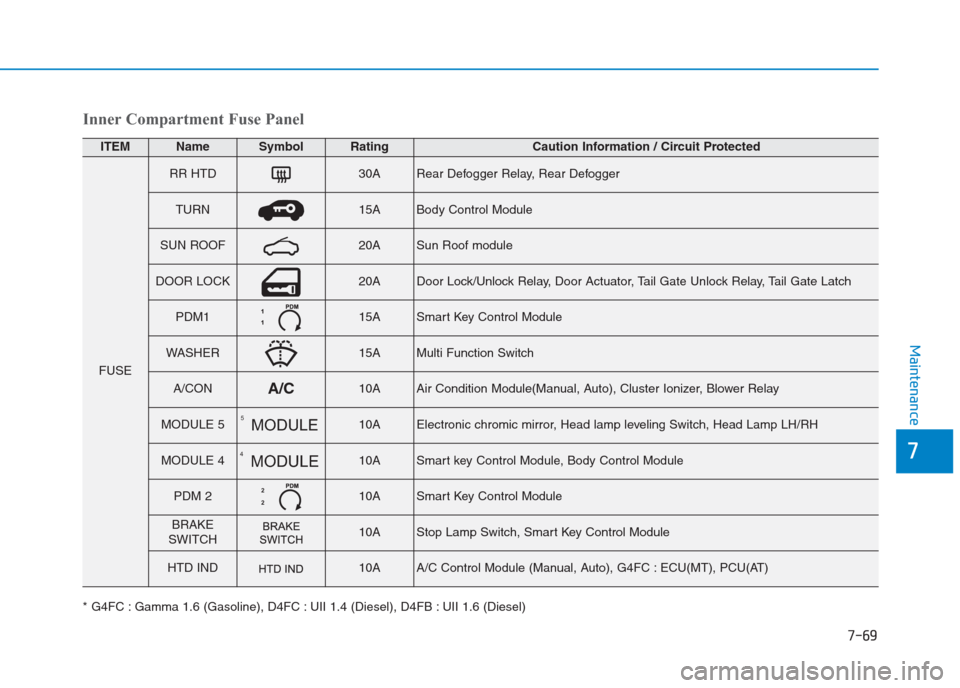

Inner Compartment Fuse Panel
ITEMNameSymbolRatingCaution Information / Circuit Protected
FUSE
RR HTD30ARear Defogger Relay, Rear Defogger
TURN15ABody Control Module
SUN ROOF20ASun Roof module
DOOR LOCK20ADoor Lock/Unlock Relay, Door Actuator, Tail Gate Unlock Relay, Tail Gate Latch
PDM115ASmart Key Control Module
WASHER15AMulti Function Switch
A/CONA/C10AAir Condition Module(Manual, Auto), Cluster Ionizer, Blower Relay
MODULE 502'8/(10AElectronic chromic mirror, Head lamp leveling Switch, Head Lamp LH/RH
MODULE 402'8/(10ASmart key Control Module, Body Control Module
PDM 22210ASmart Key Control Module
BRAKE
SWITCH10AStop Lamp Switch, Smart Key Control Module
HTD IND10AA/C Control Module (Manual, Auto), G4FC : ECU(MT), PCU(AT)
* G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel)

7-70
Maintenance

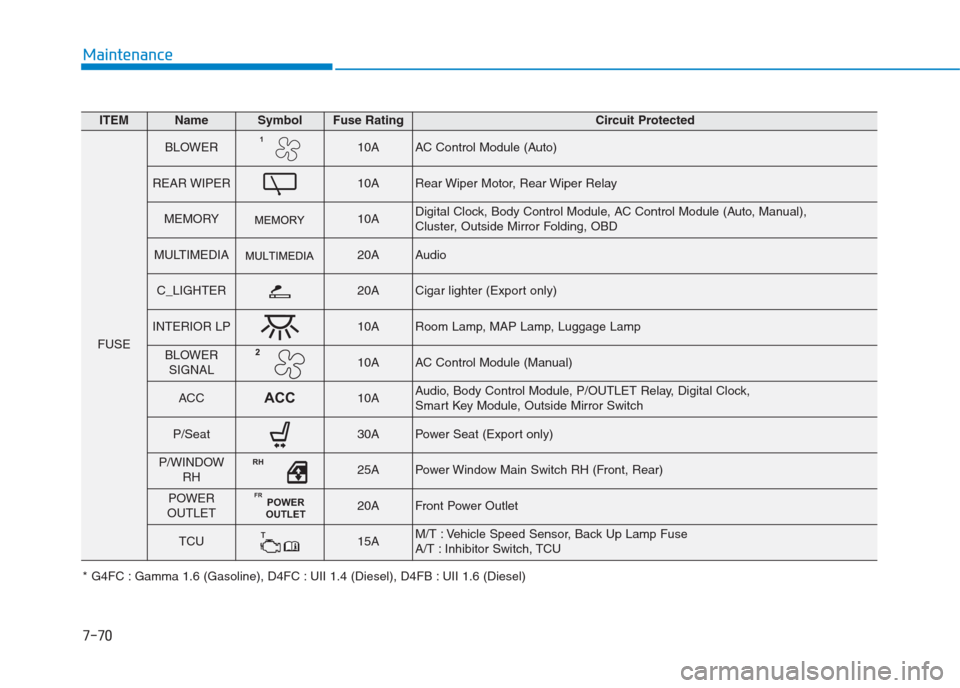

ITEMNameSymbolFuse RatingCircuit Protected
FUSE
BLOWER110AAC Control Module (Auto)
REAR WIPER10ARear Wiper Motor, Rear Wiper Relay
MEMORY10ADigital Clock, Body Control Module, AC Control Module (Auto, Manual),
Cluster, Outside Mirror Folding, OBD
MULTIMEDIA20AAudio
C_LIGHTER20ACigar lighter (Export only)
INTERIOR LP10ARoom Lamp, MAP Lamp, Luggage Lamp
BLOWER
SIGNAL210AAC Control Module (Manual)
ACCACC10AAudio, Body Control Module, P/OUTLET Relay, Digital Clock,
Smart Key Module, Outside Mirror Switch
P/Seat 30APower Seat (Export only)
P/WINDOW
RHRH25APower Window Main Switch RH (Front, Rear)
POWER
OUTLETPOWER
OUTLETFR20AFront Power Outlet
TCU15AM/T : Vehicle Speed Sensor, Back Up Lamp Fuse
A/T : Inhibitor Switch, TCU
* G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel)

7-71
7
Maintenance

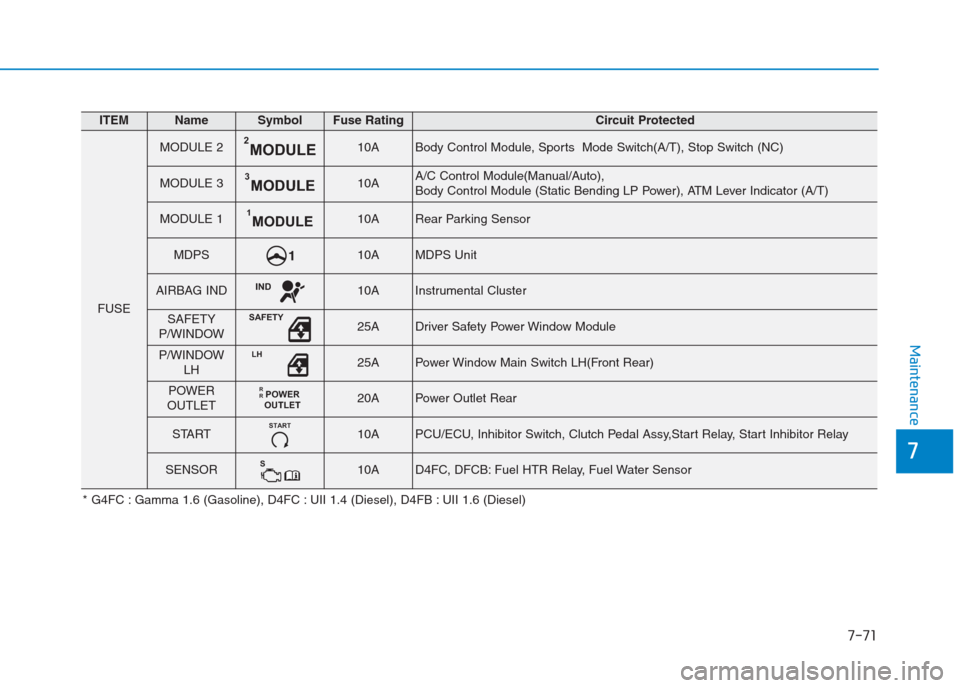

ITEMNameSymbolFuse RatingCircuit Protected
FUSE
MODULE 2MODULE210ABody Control Module, Sports Mode Switch(A/T), Stop Switch (NC)
MODULE 3MODULE310AA/C Control Module(Manual/Auto),
Body Control Module (Static Bending LP Power), ATM Lever Indicator (A/T)
MODULE 1MODULE110ARear Parking Sensor
MDPS10AMDPS Unit
AIRBAG INDIND10AInstrumental Cluster
SAFETY
P/WINDOWSAFETY25ADriver Safety Power Window Module
P/WINDOW
LHLH25APower Window Main Switch LH(Front Rear)
POWER
OUTLETPOWER
OUTLETR
R20APower Outlet Rear
STARTSTART10APCU/ECU, Inhibitor Switch, Clutch Pedal Assy,Start Relay, Start Inhibitor Relay
SENSORS10AD4FC, DFCB: Fuel HTR Relay, Fuel Water Sensor
* G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel)

7-72
Maintenance
ITEMNameSymbolFuse RatingCircuit Protected
FUSE
ENGE10AAirflow Sensor (D4FB), Smart key Control Module, ECU/PCU (G4FC,D4FC,D4FB)
ABS10AABS/ ESC Control Module, Rheostat & ESC Switch,
Engine Room Diagnosis Connector
AIRBAG 10AAirbag Control Unit
CLUSTERCLUSTER10AInstrument Cluster
* G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel)

7-73
7
Maintenance

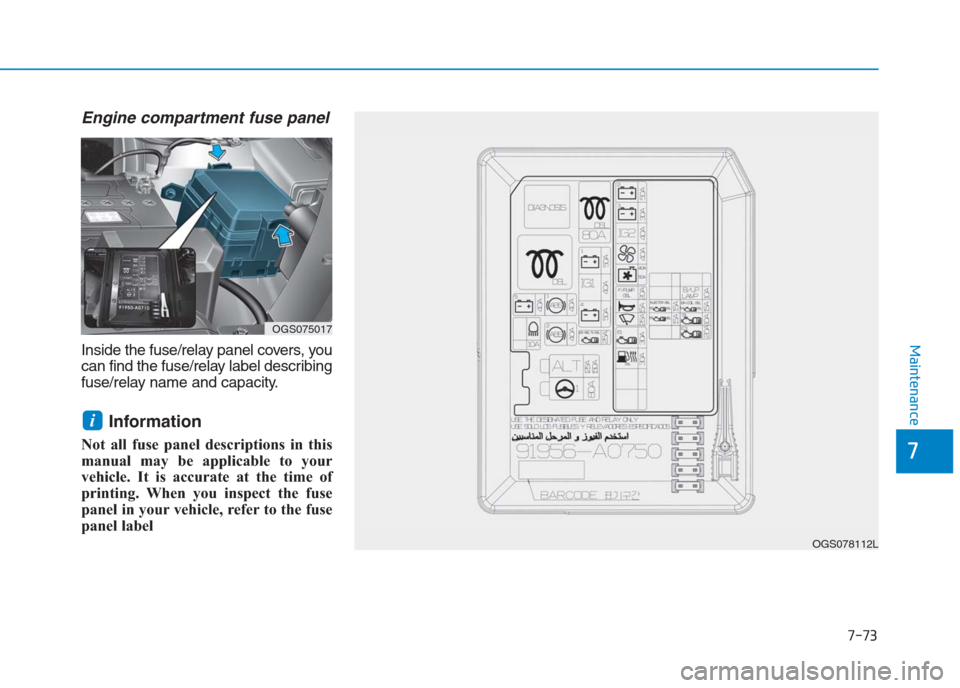

Engine compartment fuse panel
Inside the fuse/relay panel covers, you
can find the fuse/relay label describing
fuse/relay name and capacity.
Information
Not all fuse panel descriptions in this
manual may be applicable to your
vehicle. It is accurate at the time of
printing. When you inspect the fuse
panel in your vehicle, refer to the fuse
panel label
i
OGS075017
OGS078112L
