Hyundai Creta 2018 Owner's Manual

7-74
Maintenance
Engine Compartment Fuse Panel
ItemNameSymbolFuse RatingCircuit Protected
MULTI
FUSEMDPS80AMDPS(Motor Power Steering)
ALTALT125A/150AG4FC(125A): Alternator, Battery, All Fuses connected to Alternator fuse
D4FC/D4FB(150A): Alternator, Battery, All Fuses connected to Alternator fuse
FUSE
ECU 515AG4FC(15A): ECU (M/T), PCU(A/T)
HEAD LAMP
HIGH BEAM10AHead Lamp High Solenoid Relay (Bi-Functional Type)
ABS 240AABS / ESC Control Module
ECU 4E425A/15AG4FC(25A): ECU (M/T), PCU(A/T)
D4FC(15A): Inlet Meter Valve,
D4FB(15A): Glow Plug Relay, Fuel Meter Unit
TCU 1T125AD4FB: TCU(A/T)
B+540AInstrument Panel Fuse Block Fuse: FS01
ABS 140AABS / ESC Control Module, Engine Room Diagnosis
* G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel)

7-75
7
Maintenance

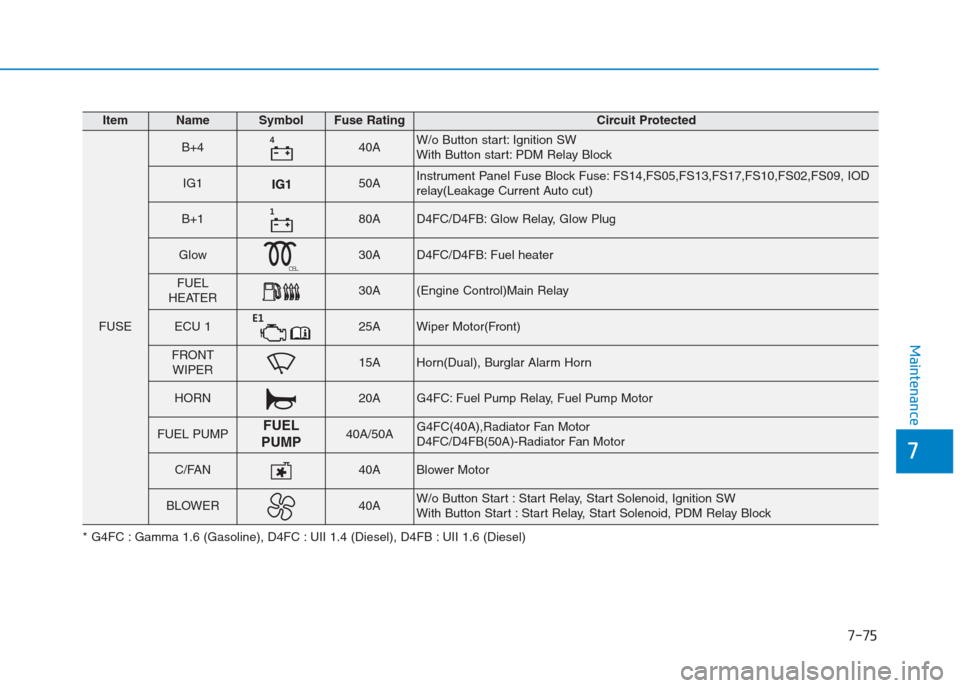

ItemNameSymbolFuse RatingCircuit Protected
FUSE
B+440AW/o Button start: Ignition SW
With Button start: PDM Relay Block
IG150AInstrument Panel Fuse Block Fuse: FS14,FS05,FS13,FS17,FS10,FS02,FS09, IOD
relay(Leakage Current Auto cut)
B+180AD4FC/D4FB: Glow Relay, Glow Plug
Glow30AD4FC/D4FB: Fuel heater
FUEL
HEATER30A(Engine Control)Main Relay
ECU 1'25AWiper Motor(Front)
FRONT
WIPER15AHorn(Dual), Burglar Alarm Horn
HORN20AG4FC: Fuel Pump Relay, Fuel Pump Motor
FUEL PUMPFUEL
PUMP40A/50AG4FC(40A),Radiator Fan Motor
D4FC/D4FB(50A)-Radiator Fan Motor
C/FAN40ABlower Motor
BLOWER40AW/o Button Start : Start Relay, Start Solenoid, Ignition SW
With Button Start : Start Relay, Start Solenoid, PDM Relay Block
* G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel)

7-76
Maintenance

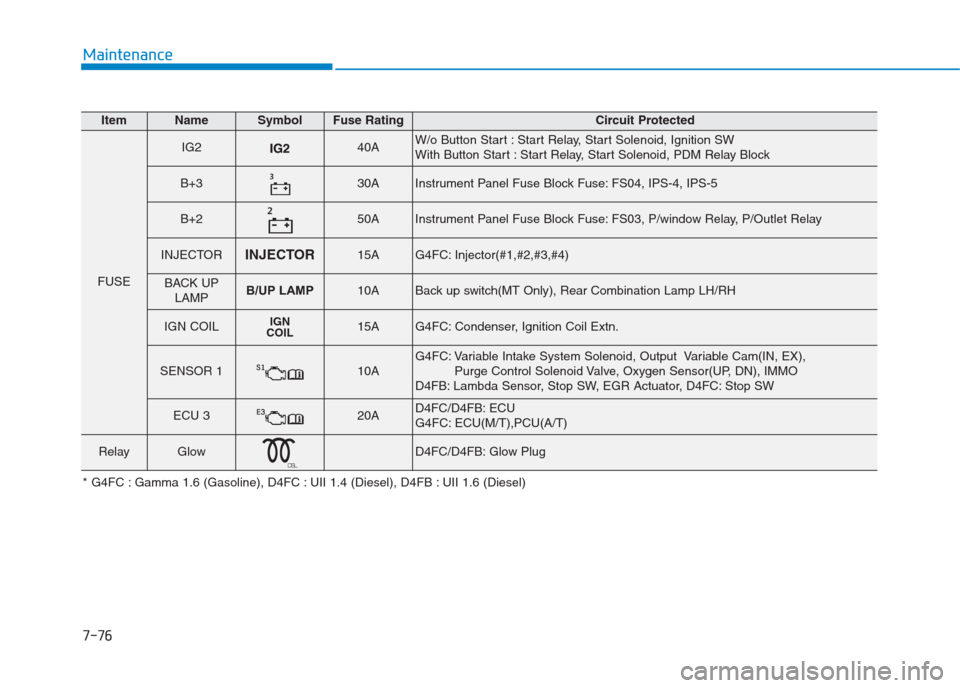

ItemNameSymbolFuse RatingCircuit Protected
FUSE
IG240AW/o Button Start : Start Relay, Start Solenoid, Ignition SW
With Button Start : Start Relay, Start Solenoid, PDM Relay Block
B+330AInstrument Panel Fuse Block Fuse: FS04, IPS-4, IPS-5
B+250AInstrument Panel Fuse Block Fuse: FS03, P/window Relay, P/Outlet Relay
INJECTORINJECTOR15AG4FC: Injector(#1,#2,#3,#4)
BACK UP
LAMPB/UP LAMP10ABack up switch(MT Only), Rear Combination Lamp LH/RH
IGN COILIGN
COIL15AG4FC: Condenser, Ignition Coil Extn.
SENSOR 1610AG4FC: Variable Intake System Solenoid, Output Variable Cam(IN, EX),
Purge Control Solenoid Valve, Oxygen Sensor(UP, DN), IMMO
D4FB: Lambda Sensor, Stop SW, EGR Actuator, D4FC: Stop SW
ECU 3(20AD4FC/D4FB: ECU
G4FC: ECU(M/T),PCU(A/T)
RelayGlowD4FC/D4FB: Glow Plug
* G4FC : Gamma 1.6 (Gasoline), D4FC : UII 1.4 (Diesel), D4FB : UII 1.6 (Diesel)

7-77
7
Maintenance
L LI
IG
GH
HT
T
B
BU
UL
LB
BS
S

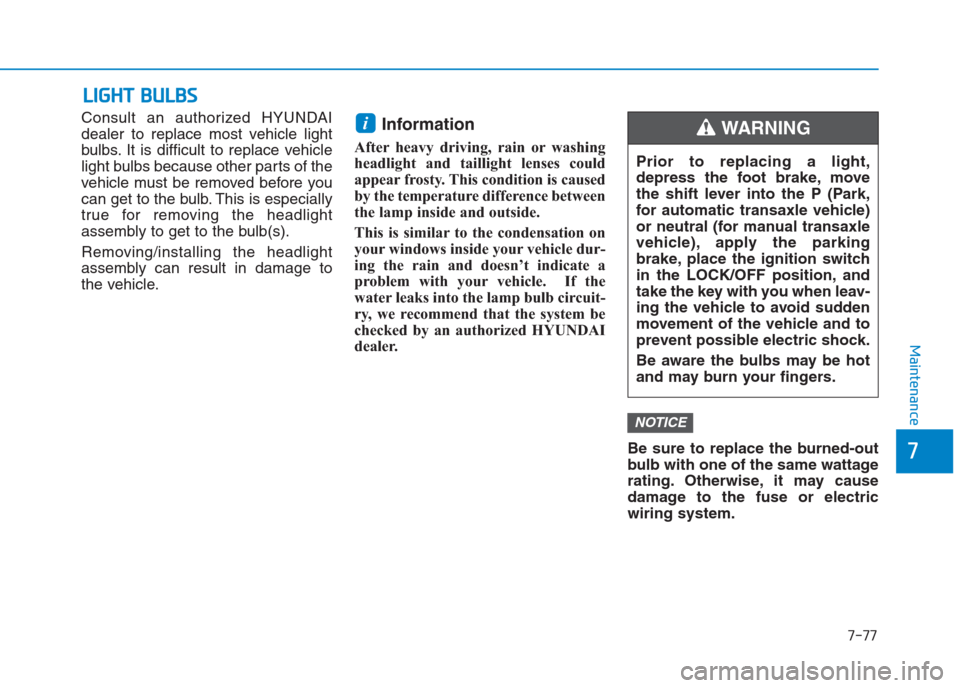

Consult an authorized HYUNDAI
dealer to replace most vehicle light
bulbs. It is difficult to replace vehicle
light bulbs because other parts of the
vehicle must be removed before you
can get to the bulb. This is especially
true for removing the headlight
assembly to get to the bulb(s).
Removing/installing the headlight
assembly can result in damage to
the vehicle.Information
After heavy driving, rain or washing
headlight and taillight lenses could
appear frosty. This condition is caused
by the temperature difference between
the lamp inside and outside.
This is similar to the condensation on
your windows inside your vehicle dur-
ing the rain and doesn’t indicate a
problem with your vehicle. If the
water leaks into the lamp bulb circuit-
ry, we recommend that the system be
checked by an authorized HYUNDAI
dealer.
Be sure to replace the burned-out
bulb with one of the same wattage
rating. Otherwise, it may cause
damage to the fuse or electric
wiring system.
NOTICE
i
Prior to replacing a light,
depress the foot brake, move
the shift lever into the P (Park,
for automatic transaxle vehicle)
or neutral (for manual transaxle
vehicle), apply the parking
brake, place the ignition switch
in the LOCK/OFF position, and
take the key with you when leav-
ing the vehicle to avoid sudden
movement of the vehicle and to
prevent possible electric shock.
Be aware the bulbs may be hot
and may burn your fingers.
WARNING

7-78
Maintenance

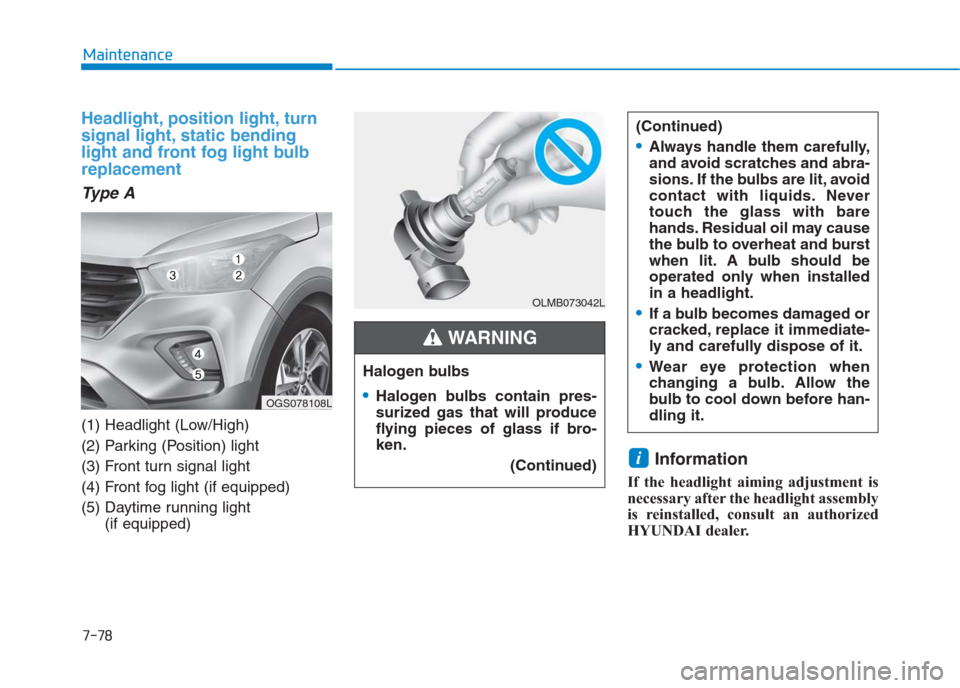

Headlight, position light, turn
signal light, static bending
light and front fog light bulb
replacement
Ty p e A
(1) Headlight (Low/High)
(2) Parking (Position) light
(3) Front turn signal light
(4) Front fog light (if equipped)
(5) Daytime running light
(if equipped)
Information
If the headlight aiming adjustment is
necessary after the headlight assembly
is reinstalled, consult an authorized
HYUNDAI dealer.
i
OGS078108L
(Continued)
Always handle them carefully,
and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never
touch the glass with bare
hands. Residual oil may cause
the bulb to overheat and burst
when lit. A bulb should be
operated only when installed
in a headlight.
If a bulb becomes damaged or
cracked, replace it immediate-
ly and carefully dispose of it.
Wear eye protection when
changing a bulb. Allow the
bulb to cool down before han-
dling it.Halogen bulbs
Halogen bulbs contain pres-
surized gas that will produce
flying pieces of glass if bro-
ken.
(Continued)
WARNING
OLMB073042L

7-79
7
Maintenance

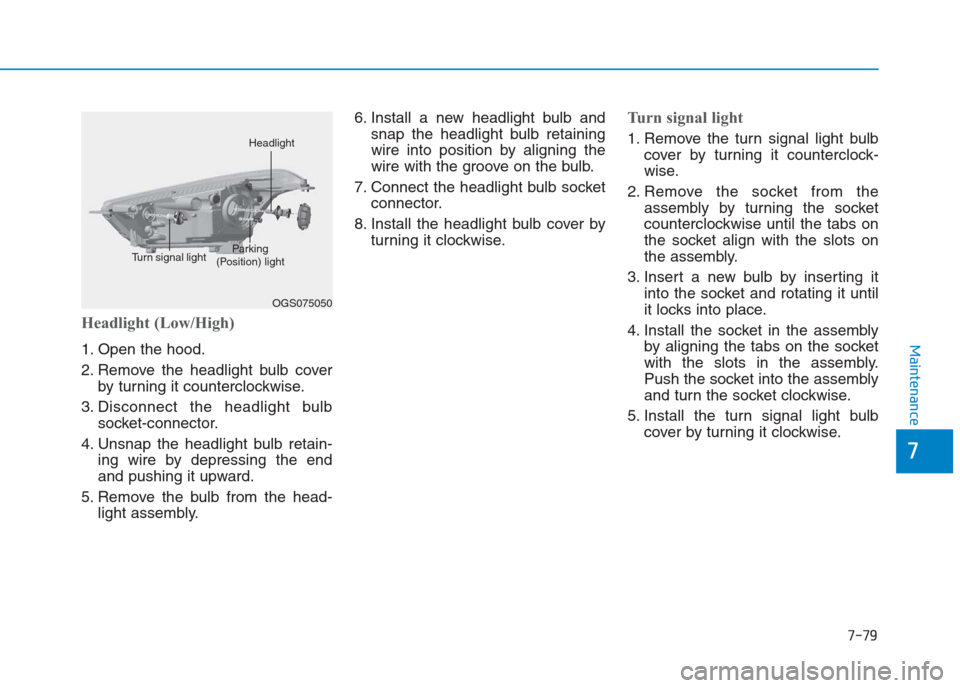

Headlight (Low/High)
1. Open the hood.
2. Remove the headlight bulb cover
by turning it counterclockwise.
3. Disconnect the headlight bulb
socket-connector.
4. Unsnap the headlight bulb retain-
ing wire by depressing the end
and pushing it upward.
5. Remove the bulb from the head-
light assembly.6. Install a new headlight bulb and
snap the headlight bulb retaining
wire into position by aligning the
wire with the groove on the bulb.
7. Connect the headlight bulb socket
connector.
8. Install the headlight bulb cover by
turning it clockwise.
Turn signal light
1. Remove the turn signal light bulb
cover by turning it counterclock-
wise.
2. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
3. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
4. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
5. Install the turn signal light bulb
cover by turning it clockwise.
OGS075050
Turn signal lightParking
(Position) light
Headlight

7-80
Maintenance

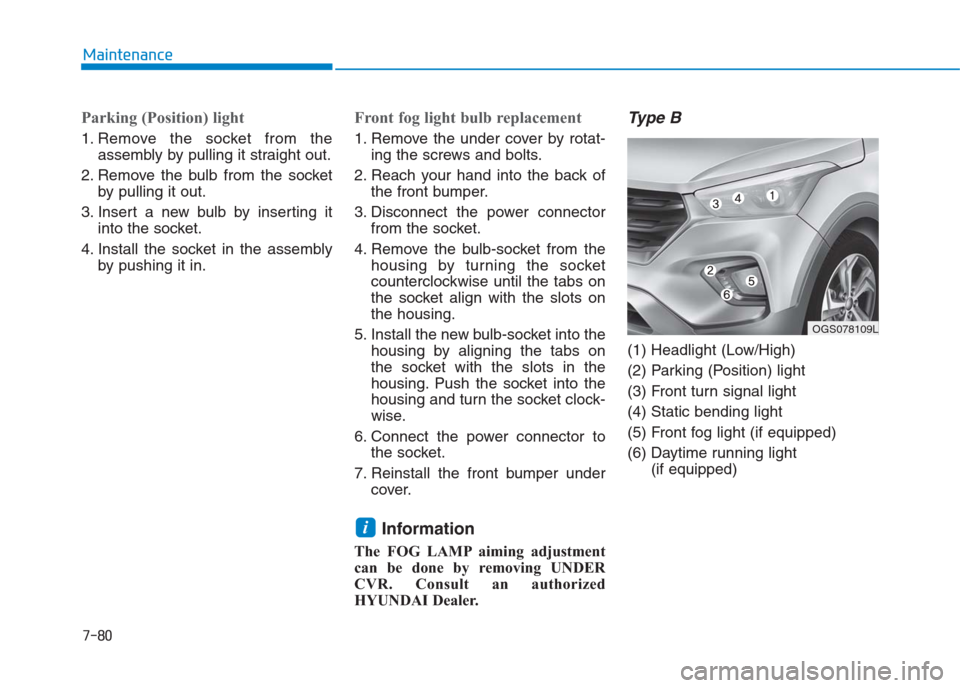

Parking (Position) light
1. Remove the socket from the
assembly by pulling it straight out.
2. Remove the bulb from the socket
by pulling it out.
3. Insert a new bulb by inserting it
into the socket.
4. Install the socket in the assembly
by pushing it in.
Front fog light bulb replacement
1. Remove the under cover by rotat-
ing the screws and bolts.
2. Reach your hand into the back of
the front bumper.
3. Disconnect the power connector
from the socket.
4. Remove the bulb-socket from the
housing by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the housing.
5. Install the new bulb-socket into the
housing by aligning the tabs on
the socket with the slots in the
housing. Push the socket into the
housing and turn the socket clock-
wise.
6. Connect the power connector to
the socket.
7. Reinstall the front bumper under
cover.
Information
The FOG LAMP aiming adjustment
can be done by removing UNDER
CVR. Consult an authorized
HYUNDAI Dealer.
Type B
(1) Headlight (Low/High)
(2) Parking (Position) light
(3) Front turn signal light
(4) Static bending light
(5) Front fog light (if equipped)
(6) Daytime running light
(if equipped)
i
OGS078109L

7-81
7
Maintenance
Information
If the headlight aiming adjustment is
necessary after the headlight assembly
is reinstalled, consult an authorized
HYUNDAI dealer.

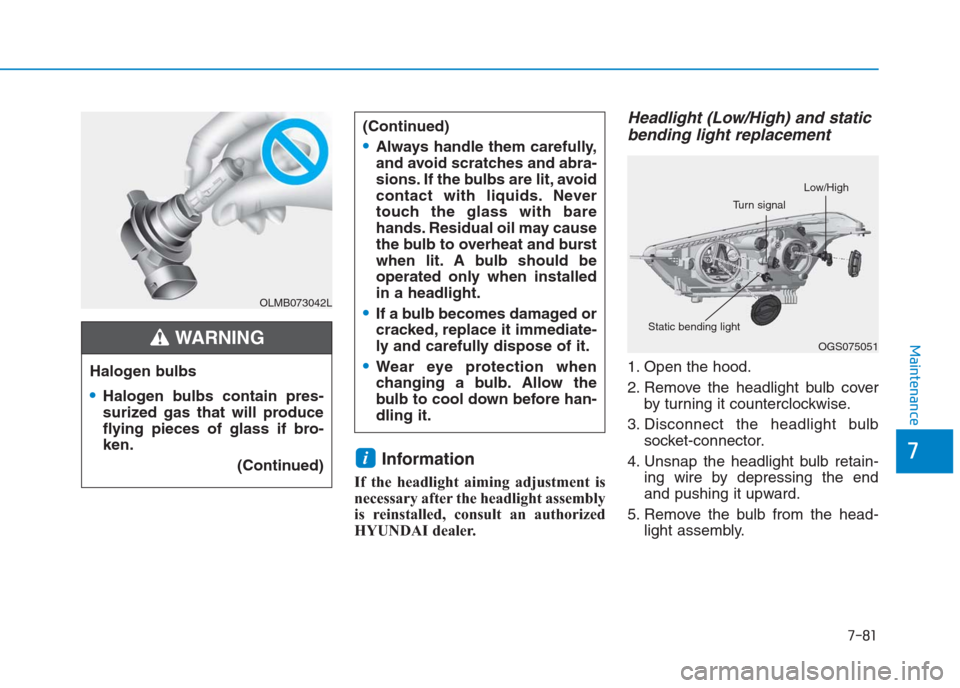

Headlight (Low/High) and static
bending light replacement
1. Open the hood.
2. Remove the headlight bulb cover
by turning it counterclockwise.
3. Disconnect the headlight bulb
socket-connector.
4. Unsnap the headlight bulb retain-
ing wire by depressing the end
and pushing it upward.
5. Remove the bulb from the head-
light assembly.
i
(Continued)
Always handle them carefully,
and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never
touch the glass with bare
hands. Residual oil may cause
the bulb to overheat and burst
when lit. A bulb should be
operated only when installed
in a headlight.
If a bulb becomes damaged or
cracked, replace it immediate-
ly and carefully dispose of it.
Wear eye protection when
changing a bulb. Allow the
bulb to cool down before han-
dling it.Halogen bulbs
Halogen bulbs contain pres-
surized gas that will produce
flying pieces of glass if bro-
ken.
(Continued)
WARNING
OLMB073042L
OGS075051
Static bending light
Turn signal
Low/High

7-82
Maintenance

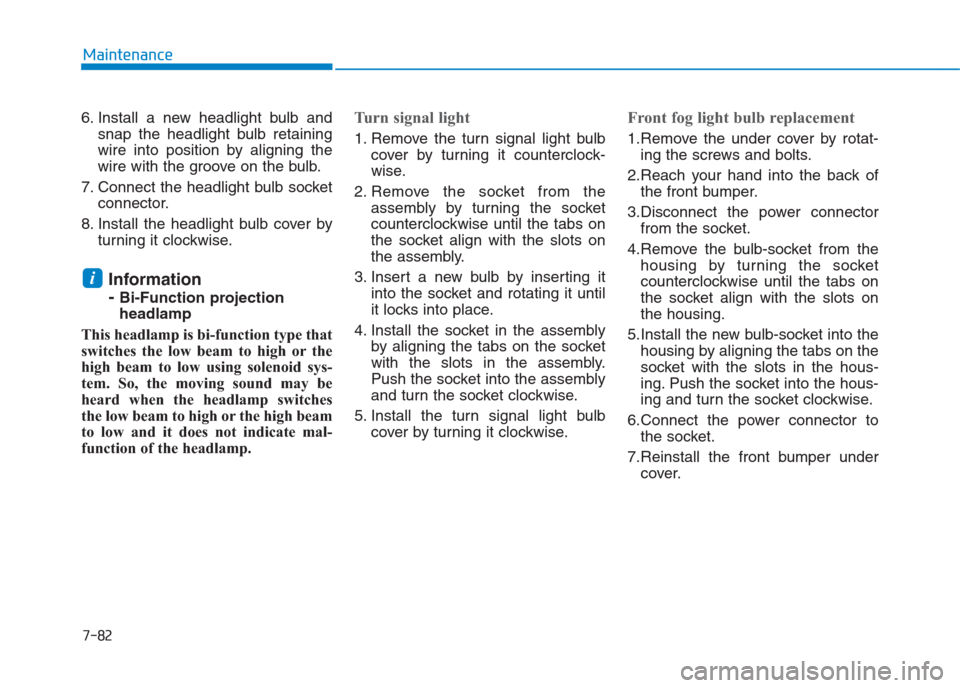

6. Install a new headlight bulb and
snap the headlight bulb retaining
wire into position by aligning the
wire with the groove on the bulb.
7. Connect the headlight bulb socket
connector.
8. Install the headlight bulb cover by
turning it clockwise.
Information
-
Bi-Function projection
headlamp
This headlamp is bi-function type that
switches the low beam to high or the
high beam to low using solenoid sys-
tem. So, the moving sound may be
heard when the headlamp switches
the low beam to high or the high beam
to low and it does not indicate mal-
function of the headlamp.
Turn signal light
1. Remove the turn signal light bulb
cover by turning it counterclock-
wise.
2. Remove the socket from the
assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
3. Insert a new bulb by inserting it
into the socket and rotating it until
it locks into place.
4. Install the socket in the assembly
by aligning the tabs on the socket
with the slots in the assembly.
Push the socket into the assembly
and turn the socket clockwise.
5. Install the turn signal light bulb
cover by turning it clockwise.
Front fog light bulb replacement
1.Remove the under cover by rotat-
ing the screws and bolts.
2.Reach your hand into the back of
the front bumper.
3.Disconnect the power connector
from the socket.
4.Remove the bulb-socket from the
housing by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the housing.
5.Install the new bulb-socket into the
housing by aligning the tabs on the
socket with the slots in the hous-
ing. Push the socket into the hous-
ing and turn the socket clockwise.
6.Connect the power connector to
the socket.
7.Reinstall the front bumper under
cover.
i

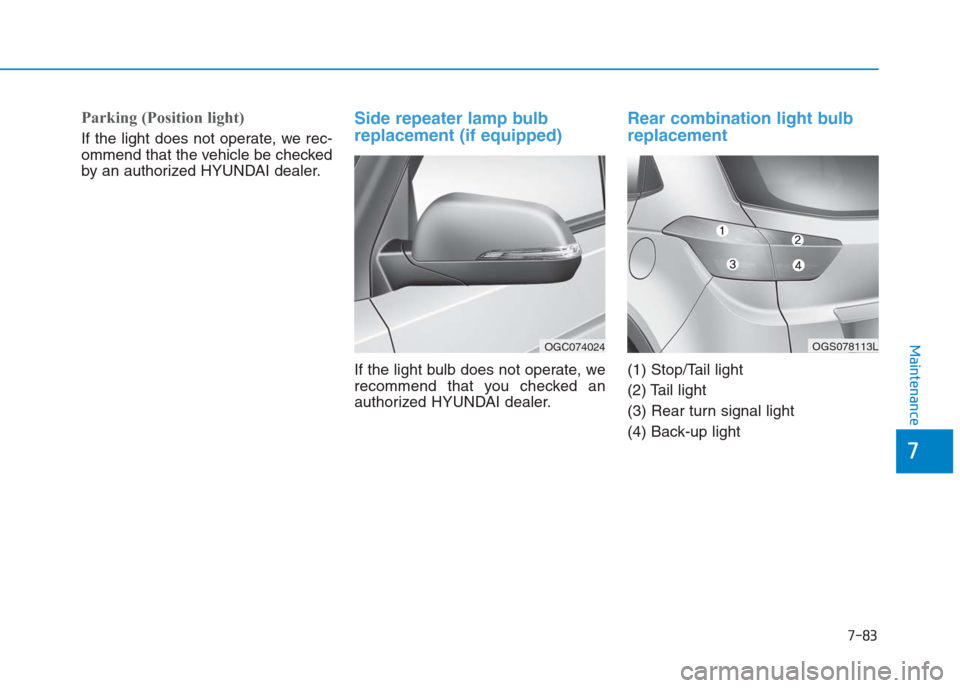

7-83
7
Maintenance
Parking (Position light)
If the light does not operate, we rec-
ommend that the vehicle be checked
by an authorized HYUNDAI dealer.
Side repeater lamp bulb
replacement (if equipped)
If the light bulb does not operate, we
recommend that you checked an
authorized HYUNDAI dealer.
Rear combination light bulb
replacement
(1) Stop/Tail light
(2) Tail light
(3) Rear turn signal light
(4) Back-up light
OGC074024OGS078113L
