8-7
8
Specifications & Consumer information
Recommended SAE viscosity
number
Engine oil viscosity (thickness) has
an effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosi-
ty engine oils can provide better fuel
economy and cold weather perform-
ance, however, higher viscosity
engine oils are required for satisfac-
tory lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage.When choosing an oil, consider the
range of temperature your vehicle
will be operated in before the next oil
change.Proceed to select the recommended
oil viscosity from the chart.
Always be sure to clean the area
around any filler plug, drain
plug, or dipstick before check-
ing or draining any lubricant.
This is especially important in
dusty or sandy areas and when
the vehicle is used on unpaved
roads. Cleaning the plug and
dipstick areas will prevent dirt
and grit from entering the
engine and other mechanisms
that could be damaged.
CAUTION

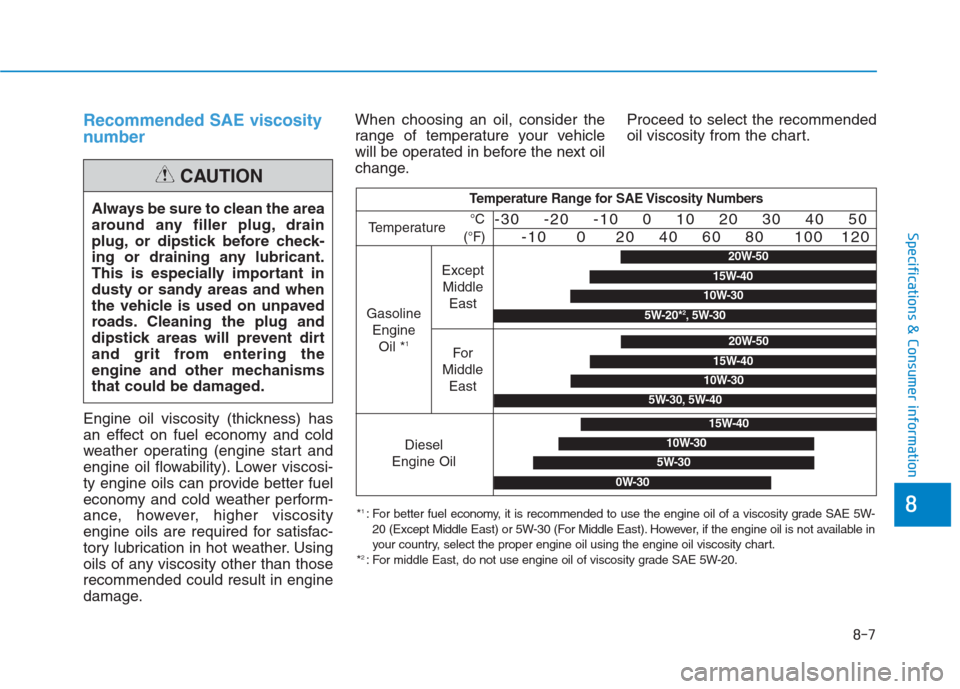

Temperature Range for SAE Viscosity Numbers
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50
-10 0 20 40 60 80 100 120
Diesel
Engine Oil
5W-30
15W-40
10W-30
0W-30
*1 : For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE 5W-
20 (Except Middle East) or 5W-30 (For Middle East). However, if the engine oil is not available in
your country, select the proper engine oil using the engine oil viscosity chart.
*
2 : For middle East, do not use engine oil of viscosity grade SAE 5W-20.
Gasoline
Engine
Oil *
1
20W-50
10W-30
15W-40
5W-20*2, 5W-30
20W-50
10W-30
15W-40
5W-30, 5W-40
Except
Middle
East
For
Middle
East
Page 462 of 472

8-8
Specifications & Consumer information
V VE
EH
HI
IC
CL
LE
E
I
ID
DE
EN
NT
TI
IF
FI
IC
CA
AT
TI
IO
ON
N
N
NU
UM
MB
BE
ER
R
(
(V
VI
IN
N)
)
The vehicle identification number
(VIN) is the number used in register-
ing your car and in all legal matters
pertaining to its ownership, etc.
The number is punched on the floor
under the front right seat. To check
the number, pull out the slit part of
carpet.The VIN is also on a plate attached
to the top of the dashboard.
The number on the plate can easily
be seen through the windshield from
outside.
The vehicle certification label
attached on the driver’s (or front pas-
senger’s) side center pillar gives the
vehicle identification number (VIN).
OGS085002
V VE
EH
HI
IC
CL
LE
E
C
CE
ER
RT
TI
IF
FI
IC
CA
AT
TI
IO
ON
N
L LA
AB
BE
EL
L
(
(I
IF
F
E
EQ
QU
UI
IP
PP
PE
ED
D)
)
OGS085010L
■ Type A■ Type B
OGS085003
OGS085004L
■Right Hand Drive
■Left Hand Drive
Page 463 of 472

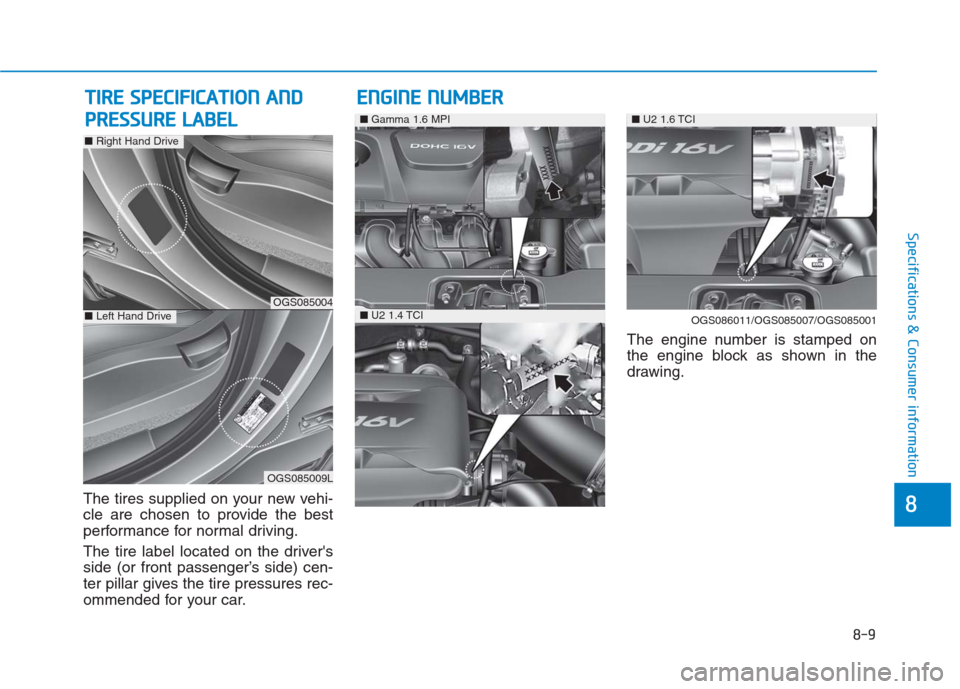

The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side (or front passenger’s side) cen-
ter pillar gives the tire pressures rec-
ommended for your car.The engine number is stamped on
the engine block as shown in the
drawing.
8-9
8
Specifications & Consumer information
T TI
IR
RE
E
S
SP
PE
EC
CI
IF
FI
IC
CA
AT
TI
IO
ON
N
A
AN
ND
D
P PR
RE
ES
SS
SU
UR
RE
E
L
LA
AB
BE
EL
L
OGS085004
OGS085009L
■Right Hand Drive
■Left Hand Drive
■Gamma 1.6 MPI
■U2 1.4 TCIOGS086011/OGS085007/OGS085001
■U2 1.6 TCI
E
EN
NG
GI
IN
NE
E
N
NU
UM
MB
BE
ER
R
Page 464 of 472

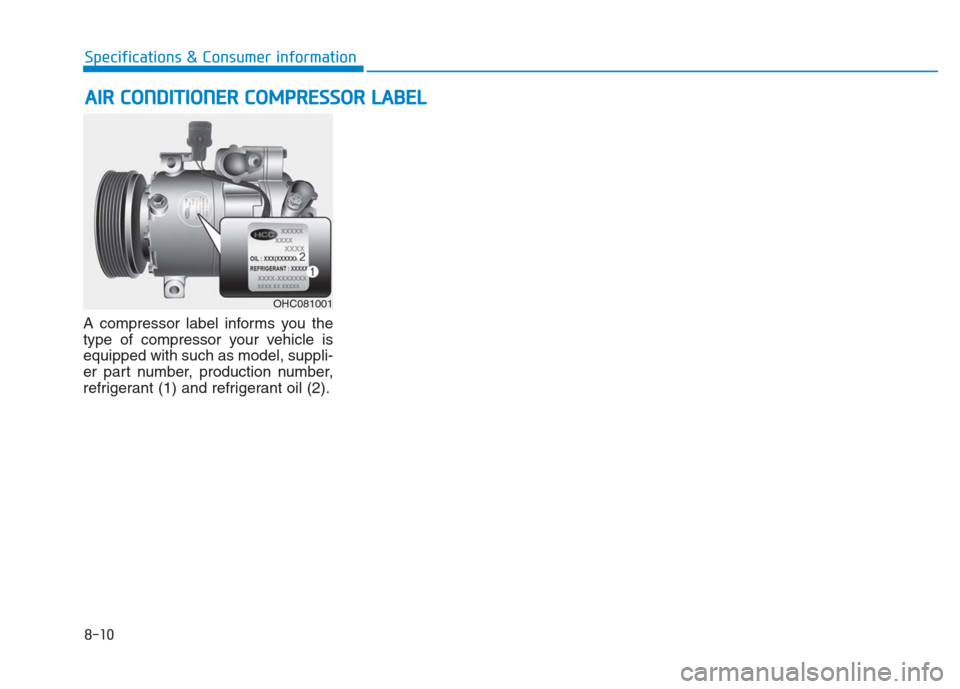

A compressor label informs you the
type of compressor your vehicle is
equipped with such as model, suppli-
er part number, production number,
refrigerant (1) and refrigerant oil (2).
A AI
IR
R
C
CO
ON
ND
DI
IT
TI
IO
ON
NE
ER
R
C
CO
OM
MP
PR
RE
ES
SS
SO
OR
R
L
LA
AB
BE
EL
L
8-10
Specifications & Consumer information
OHC081001
Page 465 of 472

I
Index
I
Page 466 of 472

I-2
