Hyundai Elantra 2004 Owners Manual

1FEATURES OF YOUR HYUNDAI

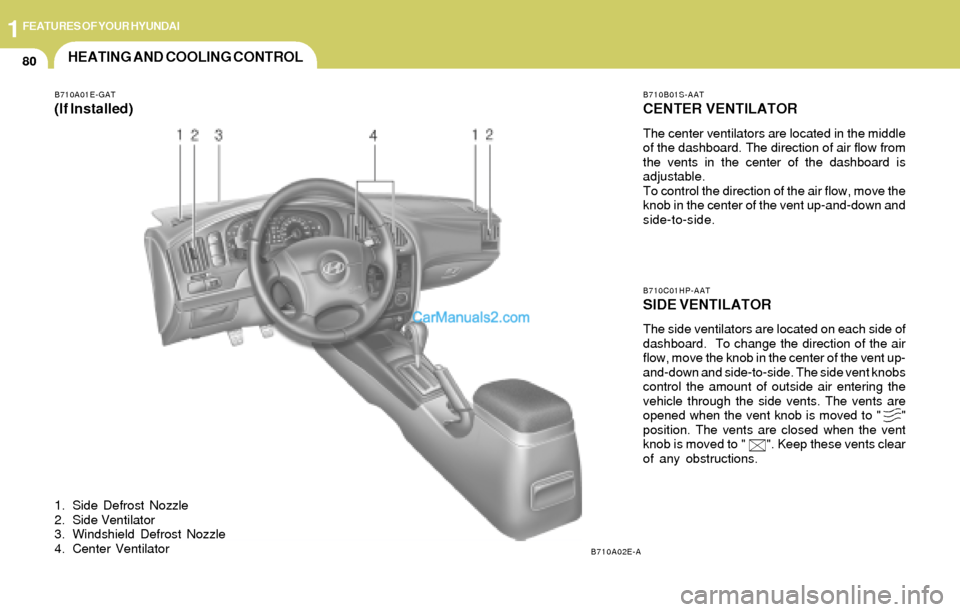

80HEATING AND COOLING CONTROL
B710A01E-GAT
(If Installed)
1. Side Defrost Nozzle
2. Side Ventilator
3. Windshield Defrost Nozzle
4. Center Ventilator
B710B01S-AAT
CENTER VENTILATOR
The center ventilators are located in the middle
of the dashboard. The direction of air flow from
the vents in the center of the dashboard is
adjustable.
To control the direction of the air flow, move the
knob in the center of the vent up-and-down and
side-to-side.
B710C01HP-AATSIDE VENTILATOR
The side ventilators are located on each side of
dashboard. To change the direction of the air
flow, move the knob in the center of the vent up-
and-down and side-to-side. The side vent knobs
control the amount of outside air entering the
vehicle through the side vents. The vents are
opened when the vent knob is moved to " "
position. The vents are closed when the vent
knob is moved to " ". Keep these vents clear
of any obstructions.
B710A02E-A

1FEATURES OF YOUR HYUNDAI
81HEATING AND VENTILATION
B670A01A-AAT
Rotary type (If installed)
This model has four controls for the heating and
cooling system. They are:
1. Air flow control
2. Air intake control
3. Temperature control
4. Fan speed control
HXDOM046-A
123
4
B670C01E-A B670D01E-AAT
Air Flow Control
This is used to direct the flow of air. Air can be
directed to the floor, dashboard outlets, or
windshield. Five symbols are used to represent
Face, Bi-Level, Floor, Floor-Defrost and De-
frost air position.
The MAX A/C mode is used to cool the inside of
the vehicle faster.Face-Level
Selecting the "Face" mode will cause air to be
discharged through the face level vents.
HXDFL539-A

1FEATURES OF YOUR HYUNDAI
82
Bi-Level
Air is discharged through the face vents and the
floor vents.Floor-Level
Air is discharged through the floor vents, wind-
shield defroster nozzle, side defroster nozzle
and side ventilator.Floor-Defrost Level
Air is discharged through the windshield defrost
nozzle, the floor vents, side defroster nozzle
and side ventilator.
If the "Floor-Defrost" mode is selected, the A/C
will turn on automatically and "Fresh" mode will
be activated.
HXDFL543-AHXDFL540-AHXDFL541-A

1FEATURES OF YOUR HYUNDAI
83
MAX
A/CDefrost-Level
Air is discharged through the windshield de-
froster nozzle, side defroster nozzle and side
ventilator.
If the "Defrost" mode is selected, the A/C will turn
on automatically and "Fresh" mode will be ac-
tivated.
NOTE:If the "Floor-Defrost" or "Defrost" mode is
selected, the air conditioning will not turn
off by pushing the A/C button.
HXDFL542-A
MAX A/C-Level
Air is discharged through the face level vents.
If the "MAX A/C" mode is selected, the A/C will
turn on automatically and "Recirculation" mode
will be activated.
HXDFL544-AB670C02E-AAT
Air Intake Control
This is used to select fresh outside air or
recirculating inside air.
To change the air intake control mode, (Fresh
mode, Recirculation mode) push the control
button.
FRESH MODE ( ) : The indicator light on
the button goes off when the air intake control
is in fresh mode.
RECIRCULATION MODE ( ): The indicator
light on the button is illuminated when the air
intake control is in recirculation mode.
B670C02E-A

1FEATURES OF YOUR HYUNDAI
84
B670E02A-AAT
Temperature Control
This control is used to adjust the degree of
heating or cooling desired. With the "Fresh" mode selected, air enters the
vehicle from the outside and is heated or cooled
according to the function selected.
With the "Recirculation" mode selected, air from
within the passenger compartment will be drawn
through the heating system and heated or
cooled according to the function selected.
NOTE:o It should be noted that prolonged opera-
tion of the heating in "Recirculation"
mode will give rise to fogging of the
windshield and side windows and the air
within the passenger compartment will
become stale. In addition, prolonged
use of the air conditioning with the "Re-
circulation" mode selected may result in
the air within the passenger compart-
ment becoming excessively dry.
o When the ignition switch is turned "ON"
the air intake control will change to
"Fresh" mode in floor, floor-defrost and
defrost position. This is normal opera-
tion.
B670E02A-AB670B02A-AAT
Fan Speed Control (Blower Control)
This is used to turn the blower fan on or off and
to select the fan speed.
This blower fan speed, and therefore the vol-
ume of air delivered from the system, may be
controlled manually by setting the blower con-
trol between the "1" and "4" positions.
NOTE:If the blower fan is off, it will set to the fresh
mode automatically and be able to select
"Fresh"mode or "Recirculation" mode.
B670A01E-A

1FEATURES OF YOUR HYUNDAI
85VENTILATION BI-LEVEL HEATING
B690A01E-AAT
For normal heating operation, set the air intake
control to the fresh air ( ) position and the air
flow control to floor ( ) position.
For faster heating, the air intake control should
be set in the recirculate
( ) position.
If the windows fog up, move the air flow control
to the defrost ( ) position. (The A/C will be on
automatically and "Fresh" mode will be acti-
vated.)
For maximum heat, move the temperature con-
trol to "Warm".
B690A01E-A
HEATING CONTROLS
B710A01S-AAT B700A01E-AAT
Your Hyundai is equipped with bi-level heating
controls.
o Set the air intake control to fresh air ( )
position.
o Set the air flow control at the bi-level ( )
position.
o Adjust the fan speed control to the desired
speed.
o Set the temperature control between "Cool"
and "Warm".To operate the ventilation system:
o Set the air intake control to "Fresh" mode
( ).
o To direct all intake air to the dashboard
vents, set the airflow control to "Face".
o Adjust the fan speed control to the desired
speed.
o Set the temperature control between "Cool"
and "Warm".
B700A01E-A
B710A01E-A

1FEATURES OF YOUR HYUNDAI
86
B730A01E-AAT
Operation Tips
o To keep dust or unpleasant fumes from
entering the car through the ventilation sys-
tem, temporarily set the air intake control to
( ).
Be sure to return the control to ( ) when
the irritation has passed to keep fresh air in
the vehicle. This will help keep the driver alert
and comfortable.
o Air for the heating/cooling system is drawn
in through the grilles just ahead of the wind-
shield. Care should be taken that these are
not blocked by leaves, snow, ice or other
obstructions.
o To prevent interior fog on the windshield, set
the air intake control to the fresh air ( )
position and fan speed to the desired posi-
tion.

1FEATURES OF YOUR HYUNDAI
87
NOTE:
When the A/C is operated continuously on the floor-defrost level ( ) or defrost level ( ), it may cause
fog to form on the exterior windshield. If this occurs set the air flow control to the face level position
( ) and fan speed control to the low position.To remove interior fog on the windshield;
o Set the air flow control to the defrost ( ) position.
(The A/C will turn on automatically and "Fresh" mode
will be activated.)
o Set the temperature control to the desired position.
o Set the fan speed control between "1" and "4" position.To remove frost or exterior fog on the windshield;
o Set the air flow control to the defrost ( ) position.
(The A/C will turn on automatically and "Fresh" mode
will be activated.)
o Set the temperature control to warm.
o Set the fan speed control to position "3" or "4".
B720A01E-AAT
DEFROSTING/DEFOGGING
B720A02E-AB720A03E-A
Use the heating/ventilation system to defrost or defog the windshield:
A TypeB Type
A TypeB Type

1FEATURES OF YOUR HYUNDAI
88
B740C01S-AATDehumidified Heating
For dehumidified heating:
o Turn on the fan control switch.
o Turn on the air conditioning switch. The air
conditioning indicator light should come on at
the same time.
o Set the air intake control to "Fresh" mode
( ).
o Set the air flow control to "Face".
o Adjust the fan control to the desired speed.
o For more rapid action, set the fan at one of
the higher speeds.
o Adjust the temperature control to provide the
desired amount of warmth. o Set the temperature control to "Cool". ("Cool"
provides maximum cooling. The tempera-
ture may be moderated by moving the con-
trol toward "Warm".)
o Adjust the fan control to the desired speed.
For greater cooling, turn the fan control to
one of the higher speeds or temporarily
select the "Recirculation" position on the air
intake control.
AIR CONDITIONING SYSTEM
B740A01S-AAT
Air Conditioning Switch
B740B01S-AAT
Air Conditioning Operation
Cooling
The air conditioning is turned on or off by
pushing the A/C button on the heating/air con-
ditioning control panel.To use the air conditioning to cool the interior:
o Set the side vent control to "OFF", to shut off
outside air entry.
o Turn on the fan control switch.
o Turn on the air conditioning switch by push-
ing in on the switch. The air conditioning
indicator light should come on at the same
time.
o Set the air intake control to "Fresh" mode
( ).
B740A02E-A
B740B01E-A

1FEATURES OF YOUR HYUNDAI
89
B740D01A-AAT
Operation Tips
o If the interior of the car is hot when you first
get in, open the windows for a few minutes
to expel the hot air.
o When you are using the air conditioning
system, keep all windows closed to keep hot
air out.
o When moving slowly, as in heavy traffic, shift
to a lower gear. This increases engine speed,
which in turn increases the speed of the air
conditioning compressor.
o On steep grades, turn the air conditioning off
to avoid the possibility of the engine over-
heating.
o During winter months or in periods when the
air conditioning is not used regularly, run the
air conditioning once every month for a few
minutes. This will help circulate the lubri-
cants and keep your system in peak oper-
ating condition.
